Product Type	Condensation dryer (condenser)
Model	HKT8BGT2
Brand	Hanseatic
Energy Efficiency Class	B
Rated Capacity (Cotton)	8 kg
Dimensions (H x W x D)	84.5 cm x 59.5 cm x 61.5 cm
Weight	41 kg
Power Supply	220–240 V, 50 Hz
Rated Power	2700 W
Annual Energy Consumption	560.9 kWh/year (160 cycles of standard cotton program)
Noise Level	69 dB(A) re 1 pW
Condensation Efficiency Class	B (81% weighted condensation efficiency)
Drying Programs	14 programs: Cotton (Extra-dry, Cupboard-dry, Iron-dry), Quick-dry, Mixed, Synthetics (Extra-dry, Cupboard-dry), Baby clothes, Special (Jeans, Bed linen, Sport, Shirts), Customised, Time (Warm, Cool, Airing)
SpeedDry Function	Yes, for quick drying of synthetic or small loads
Delay Start	Up to 24 hours
Drying Intensity Adjustment	Yes, adjustable in 5-minute steps
Anti-Crease Protection	Up to 120 minutes after cycle end
Button Lock (Child Lock)	Yes, can be activated during operation
Interior Light	Yes
Lint Filter	Yes, must be cleaned after each use
Condensate Drawer	Yes, must be emptied after each use
Heat Exchanger Maintenance	Clean every 2 months
Safety Features	Child lock, overheating protection, door lock, residual current device recommended
Warranty	Standard manufacturer warranty (check service page)

Frequently Asked Questions - HKT8BGT2 Hanseatic

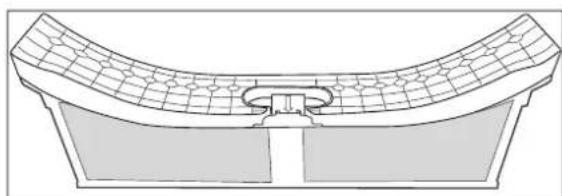

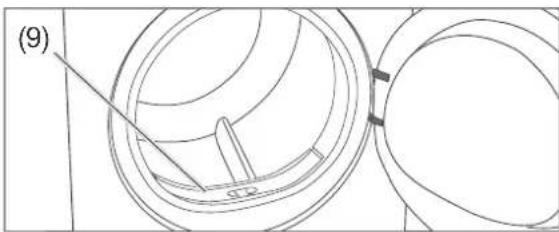

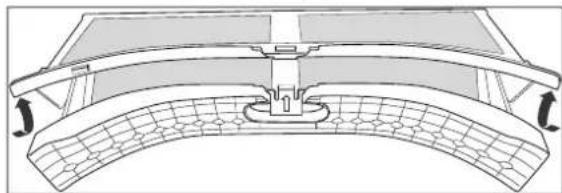

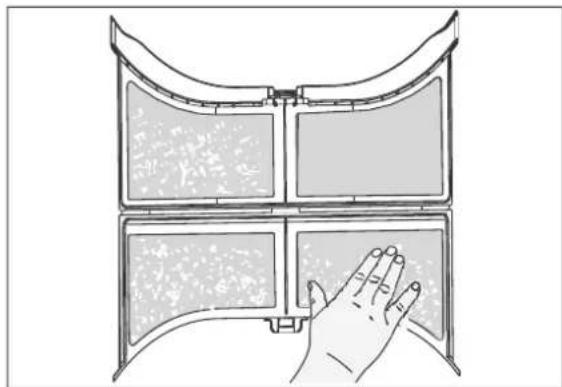

How do I clean the lint filter?

Remove the lint filter from its bracket, open it, remove lint by hand or rinse under running water. Allow to dry completely, then reinsert with the arrow pointing towards you.

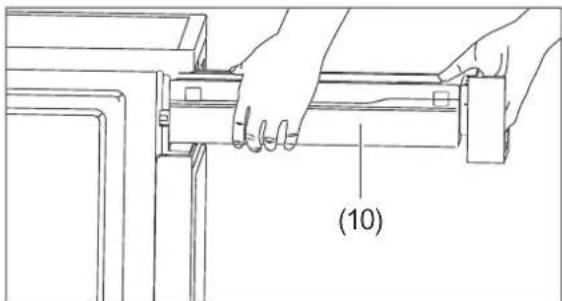

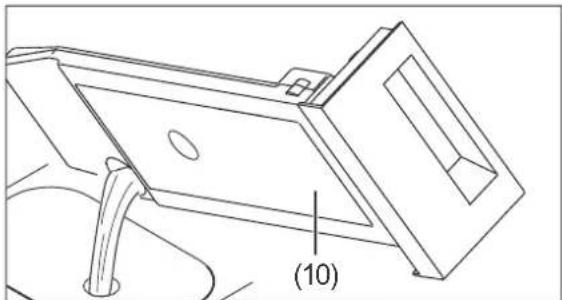

How do I empty the condensate drawer?

Pull out the condensate drawer using both hands, pour the water into a basin, then slide it back into the dryer. Empty after each use to avoid cycle interruption.

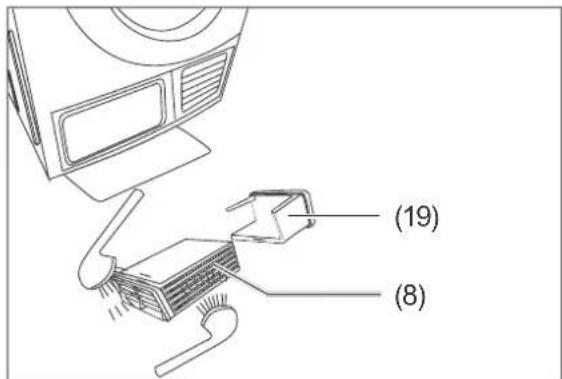

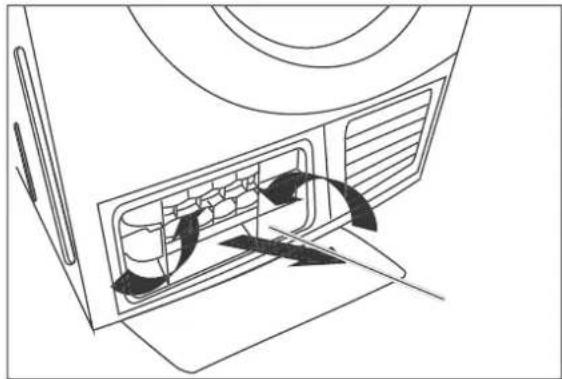

How do I clean the heat exchanger?

Open the maintenance flap, unlock and remove the heat exchanger attachment, then remove the heat exchanger. Rinse it from all sides with water, drain, clean seals, then reinsert with handle pointing down. Lock the attachment and close the flap.

How do I set the delay start?

Load the dryer, select a cycle, then press the delay start button repeatedly to set the desired delay (up to 24 hours). Press Start/Pause to begin the countdown.

What does the SpeedDry function do?

SpeedDry is a short drying cycle for synthetic materials or small loads (up to 3 kg). Press the SpeedDry button to activate it. The symbol appears on the display.

How do I activate the button lock?

Press and hold both the anti-crease button and the buzzer button simultaneously for 3 seconds while a cycle is running. The button lock symbol appears. Repeat to deactivate.

What should I do if the dryer doesn't start?

Check the power supply, ensure the door is closed, a cycle is selected, and the On/Off button is pressed. If the condensate drawer is full or filters are clogged, the dryer may not start; resolve those issues first.

What do error codes E30, E32, E33 mean?

E30 indicates a heating error, E32 a moisture sensor error, and E33 a temperature sensor error. Contact the service department for assistance if these codes appear.

Can I dry all types of fabrics?

No. Only fabrics with the appropriate care label (e.g., a circle in a square) should be dried. Avoid drying items with rubber, foam rubber, or those soiled with flammable substances. Always follow the garment's care instructions.

How do I save a custom cycle?

Select your desired cycle and adjust settings, then press and hold the SpeedDry button for 3 seconds. The customised setting symbol flashes. Later, turn the cycle selector to 'Customised' to use it.

USER MANUAL HKT8BGT2 Hanseatic

Line drawing of a washing machine with front panel, side door, and control panel (no text or symbols)

Gebrauchsanleitung

Line drawing of a front-loading washing machine with front panel, door, and digital display (no text or symbols)

Lieferumfang

Technical line drawing of a mechanical device with a labeled component (10), no readable text or symbols present.

Technical line drawing of a curved structural component with grid pattern and directional arrows (no text or symbols)

Line drawing of a hand interacting with four panels, showing a hand touching one panel (no text or symbols present)

Architectural cross-section diagram of a curved building facade with grid patterns (no text or symbols)

Technical line drawing of a device rear panel with internal compartments and ventilation slots (no text or symbols)

Line drawing of a refrigerator interior with airflow arrows indicating airflow direction (no text or symbols)

Technical line drawing of a device rear panel with internal compartments and ventilation slots (no text or symbols)

Line drawing of a washing machine with front panel, side door, and control panel (no text or symbols)

User manual

Manual/version: 2001-00115 EN 20201109 Article number: 30713324, 37850263 Reproduction, even of excerpts, is not permitted!

Condensation dryer

Table of contents

Delivery.... EN-3 Package contents.... EN-3 Check package contents.... EN-3

Safety .... EN-4 Intended use.... EN-4 Explanation of terms .... EN-4 Explanation of symbols .... EN-4 Safety notices .... EN-5

Operational controls and appliance parts ..... EN-9

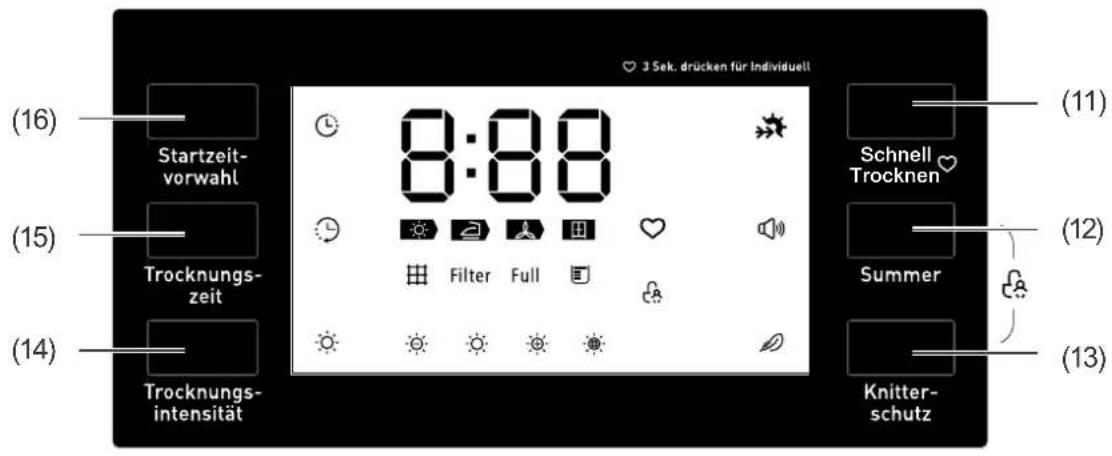

Control panel .... EN-10 Symbols on the display .... EN-10

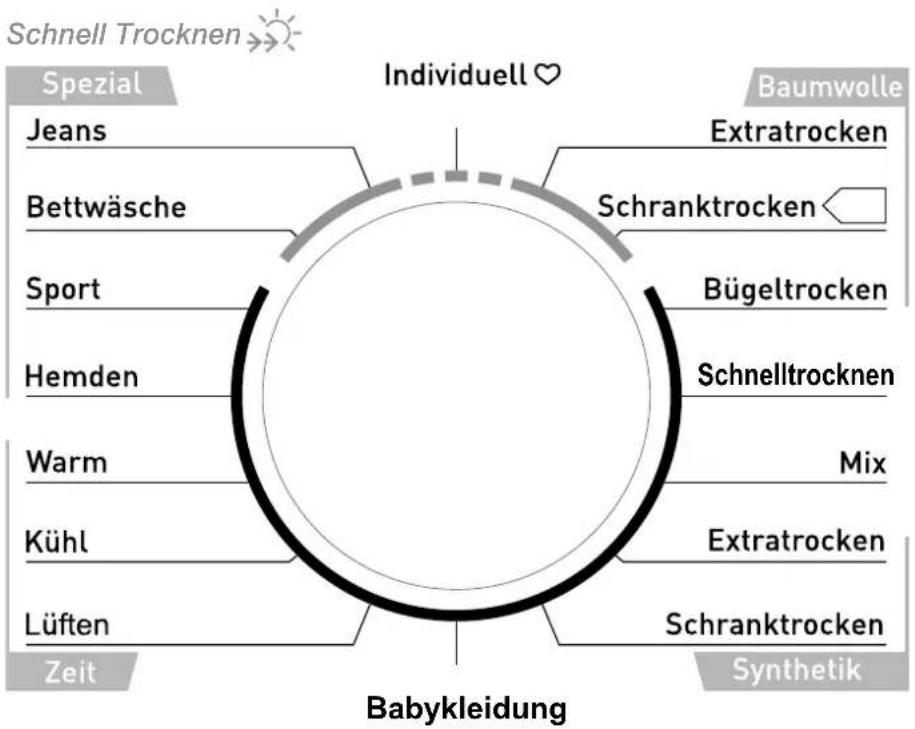

Cycle selection....EN-11

Table of cycles for model HKT8BGT2....EN-12

Table of cycles for model HKT7BGT2....EN-13

Drying process ..... EN-14 Before getting started ..... EN-14 Loading laundry ..... EN-14 Starting the cycle ..... EN-14 Pausing and continuing the cycle . EN-14 Cancelling/modifying a cycle ..... EN-14 Cycle end ..... EN-15 After the drying process ..... EN-15

Available settings .... EN-16 Setting the start time .... EN-16 Setting the drying time .... EN-16 Setting the drying intensity .... EN-16 Switching the "SpeedDry" setting On/Off .... EN-17 Activating/deactivating sound .... EN-17 Setting the anti-crease feature .... EN-17 Switching button lock on/off .... EN-17 Customised settings .... EN-17

Tips for drying ..... EN-18 Cleaning and maintenance ..... EN-19 Regular checks ..... EN-19 Cleaning the door ..... EN-19 Cleaning the drum ..... EN-19

Emptying the condensate drawer . EN-20Cleaning the lint filter . . . . . . . . EN-20Cleaning the heat exchanger . . . . EN-21

Installation and connection.... EN-23 Transport.... EN-23 Installing the dryer.... EN-23 Levelling the dryer.... EN-23 Creating an electrical connection.. EN-24 Before first use.... EN-24

Troubleshooting ..... EN-25 Environmental protection ..... EN-27 Disposing of old electrical devices in an environmentally-friendly manner .. EN-27 Packaging ..... EN-27

Service .... EN-28 Advice, order and complaint .... EN-28 Repairs, replacement parts and accessories .... EN-28

Product fiche concerning Regulation (EU) No 392/2012 ..... EN-29 Technical specifications ..... EN-31

Please read through the safety notices and user manual carefully before using the appliance. This is the only way you can use actions reliably and safely.

Be sure to also observe the national regulations in your country, which are valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the product.

You can find more information on setting up and connecting the appliance from page EN-23.

Delivery

Line drawing of a washing machine with front panel, door, and digital display (no text or symbols)

Package contents

1× Condensation dryer
1× User manual

Check package contents

1. Move the appliance to a suitable place and unpack it (see page EN-23).
2. Remove all parts of the packaging, plastic profiles, tape and foam padding.
3. Check that the delivery is complete.
4. Check whether the appliance was damaged during transit.
5. If the delivery is incomplete or the appliance has been damaged during transport, please contact our service team (see page EN-28).

WARNING!

Never use a damaged appliance.

Safety

Intended use

The Condensation dryer is intended for drying typical amounts of laundry in a domestic setting (maximum of 7 kg to 8 kg).

This appliance should be used only for drying laundry that has been washed in water.

It has been designed solely for private domestic use and is not suitable for commercial or shared use (e.g. by several families in an apartment building). Use the appliance exclusively as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The manufacturer accepts no liability for damage caused by improper use.

Explanation of terms

The following symbols can be found in this user manual.

WARNING!

This symbol indicates a hazard which, if not avoided, could result in death or serious injury.

CAUTION!

This symbol indicates a hazard which, if not avoided, could result in minor or moderate injury.

NOTICE

This symbol warns against possible damage to property.

This symbol refers to useful additional information.

Explanation of symbols

Protective earthing

The energy-efficiency test program "standard cotton cycle", which complies with the EN 61121 standard and is suitable for drying normal cotton fabrics at the nominal capacity.

Safety notices

Read important safety instructions carefully and store for future use.

In this chapter, you will find general safety notices which you must always observe for your own protection and that of third parties. Please also observe the warnings in the individual chapters on installation, fitting and assembly, etc.

Risks in handling household electrical appliances

WARNING!

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Only use the appliance indoors.
■ Never use the appliance in a damp or wet environment.
■ Do not operate or continue to operate the appliance if

– it shows visible signs of damage, e.g. the power cord is defective.
– it starts smoking or there is a smell of burning.
– it makes unfamiliar noises.

In this happens, unplug the appliance from the mains or disable/unscrew the fuse and contact our service department see “Service” on page EN-28).

- Investigations and repairs to the appliance may only be carried out by authorised specialists, such as our service department see “Service” on page EN-28).

■ Unauthorised repairs to the appliance can cause property damage and personal injury, and invalidate liability and warranty claims. Never try

to repair a defective or suspected defective appliance yourself.

■ This appliance contains electrical and mechanical parts which are essential for protection against potential sources of danger. Only parts corresponding to the original appliance specifications may be used for repairs.

- Check whether any stipulations of the responsible energy provider concern the connection of clothes dryers. We recommend using a pulse-sensitive residual-current device (RCD).

- The appliance corresponds to protection class I and may only be connected to a plug with a protective conductor that has been installed properly. When connecting, make sure that it has the right voltage. You can find more detailed information about this on the nameplate.

- If the mains plug is no longer accessible after installation, an all-poles disconnecting device complying with overvoltage category III must be connected to the house wiring with a contact gap of at least 3 mm; this includes fuses, circuit breakers and contactors.

- Do not operate the appliance with an external timer or a separate remote control system.

- Keep the appliance, the mains plug and the mains cord away from open flames and hot surfaces.

- Do not kink or pinch the mains cord or lay it over sharp edges.

■ If the mains cord is damaged, it must be replaced by the manufacturer, its customer service or a similarly qualified person in order to avoid hazards.

• Do not put any objects in or through the housing openings and make sure that children also cannot insert any objects in them.
  ■ Never pull the mains plug out of the socket by the mains cord; always hold the mains plug itself.
  ■ Never touch the mains plug with wet hands.
  ■ Never immerse the mains cord or mains plug in water or any other liquids.
• In the event of malfunction, and before cleaning and maintenance, disconnect the plug and/or disable/un-screw the fuse.
  ■ Never clean the appliance with a high-pressure cleaner or steam cleaner.
• Check the appliance regularly for damage.

Fire hazard!

Improper handling of the appliance can lead to fire and property damage.

- Only connect the appliance to a properly installed and earthed electric socket. Do not connect to a multi-socket extension cable or a multi-socket plug.

Risks to children

WARNING!

Risk of suffocation!

Children can become entangled in the packaging fi lm or swallow small parts and suffocate.

■ Do not allow children to play with the packaging fi lm.

■ Prevent children from pulling small parts from the device or taking them out of the accessory bag and putting them in their mouths.

Risks for certain groups of people

WARNING!

Danger for children and people with limited physical, sensory or mental capacity!

■ This appliance can be used by children aged 8 years and older and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance may not be performed by children without supervision.

- Keep children under the age of 3 away from the appliance, unless they are under constant supervision.

Children can lock themselves in the drum when playing and so endanger their lives.

■ Ensure that children have no access to the appliance when unsupervised, regardless of whether the appliance is switched on or off.

Risks in handling drum dryers

WARNING!

Fire hazard!

Improper handling of the appliance can lead to fire and property damage.

■ Do not use the drum dryer to dry laundry items that have been washed using industrial chemicals.
■ Clean the lint fi Iter regularly.
- Do not let lint accumulate around the dryer.
■ Do not close off air vents in the appliance housing.
- Do not dry any unwashed laundry in the drum dryer.
■ Laundry items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, paraffin oil, stain removers, turpentine, waxes or wax removers should be washed in hot water with an extra amount of detergent before being dried in the drum dryer.
■ Items such as foam rubber (latex foam rubber), shower caps, waterproof fabrics, rubberised objects and clothing, or pillows with shredded foam rubber, etc. should not be dried in the drum dryer.
■ Fabric softeners or other similar products should be used as described in their respective use instructions.
■ All objects, such as lighters and matches, should be removed from pockets.
■ Never turn off the drum dryer before the end of a drying cycle, unless you are able to quickly remove all laundry items and spread them out to dissipate the heat.

- Do not place the appliance on carpeted flooring. Otherwise, it may not be able to properly ventilate, which can result in overheating and damage. The ventilation openings must not be obstructed by carpet flooring.

Danger of explosion!

Improper handling of the appliance can lead to fire and explosion.

■ Due to the risk of fi re, never use the drum dryer to dry fabrics or other objects if
– they have been cleaned using industrial chemicals (e.g. during dry cleaning)
–they consist mostly of foam rubber, rubber or rubber-like materials; Items such as foam rubber (latex foam rubber), shower caps, waterproof fabrics, rubberised objects or clothes, or pillows with shredded foam rubber should not be dried in the drum dryer.
– they contain filling and are damaged (e.g. pillows or jackets); the filling may escape and cause a fire.
- Do not store any laundry items that have recently been treated with chemical detergents such as white spirit or stain remover in the appliance. Such items should first be left to air and dry.
- Do not store any combustible or easily fl ammable liquids near the appliance.
- Do not place any combustible or easily fl ammable objects near the appliance.
- Keep the area around the appliance clean. Dust from coal or fl our can ignite.

Risk of burns!

Improper handling of the appliance can lead to burns.

- The glass of the door can get hot during operation. Do not touch the glass when the appliance is running.

Risk of injury!

Improper handling of the appliance may result in injury.

■ The appliance is very heavy. Never transport or carry the appliance alone; always with the assistance of another person.
■ Remove all obstacles on the transport route and from the installation location, e.g. open doors and clear away objects lying on the floor.
■ Do not use the open door as a hand-hold.
- Do not install the appliance behind a lockable door, a sliding door, or a door with a hinge located opposite the appliance's door hinge such that it prevents the dryer's door from fully opening.

Health hazard!

Consuming the condensate may be hazardous to health.

■ Never drink the condensate.

! NOTICE

Risk of damage to property!

Improper handling of the dryer may result in damage to it.

■ If a trolley is used to move the appliance, the appliance must be lifted as shown on the packaging. Always transport the appliance vertically.

■ Remove all packaging material before first use.
■ If the appliance is in a room susceptible to frost, residual water in the appliance may freeze and cause damage when temperatures fall below zero. Therefore, drain residual water if there is a risk of frost.
- Do not place the appliance on top of other appliances and do not use it as a base for other appliances (e.g. for washing machines). Do not sit or stand on the appliance.
- For use on rugs, carpets, parquet or wooden fl oorboards, place a stable wooden board (measuring at least 60 × 60 cm) underneath the appliance.
■ Never apply weight/pressure to or lean on the door.
■ Never dry more than 7 kg or 8 kg of laundry in one go.
■ Never attempt to open the door with force during or at the end of a cycle.
- Do not use any harsh or abrasive cleaning agents to clean the appliance. These could damage the surfaces and render the door seal brittle and fragile.
- Do not use any pointed, sharp or angular objects to clean the rubber sleeve.
■ Never spray the appliance with a water jet or a high-pressure cleaner.
- Do not operate the appliance without the lint fi lter.

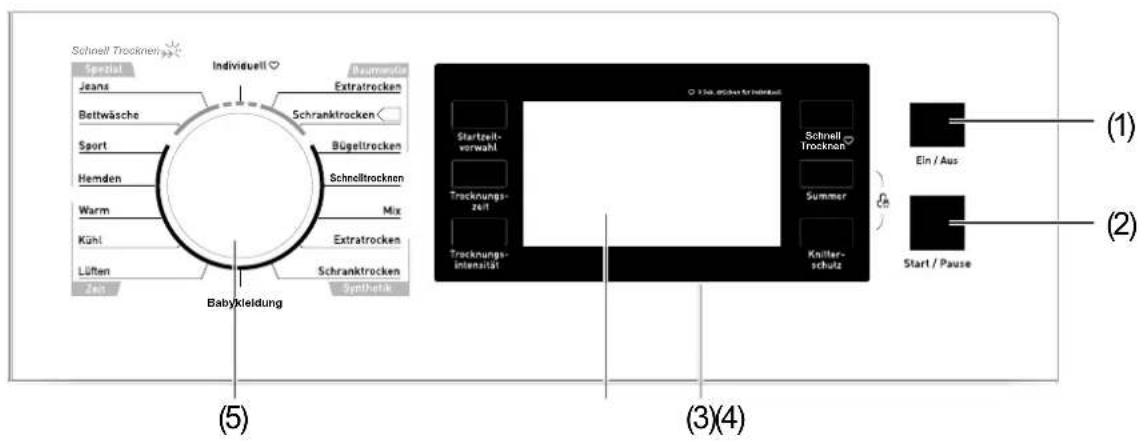

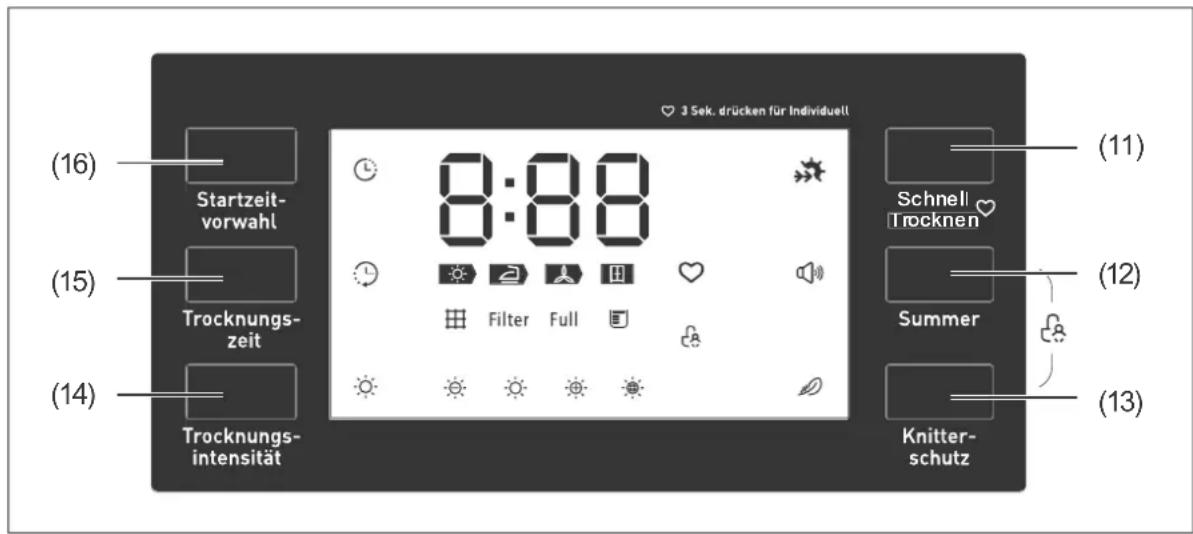

Operational controls and appliance parts

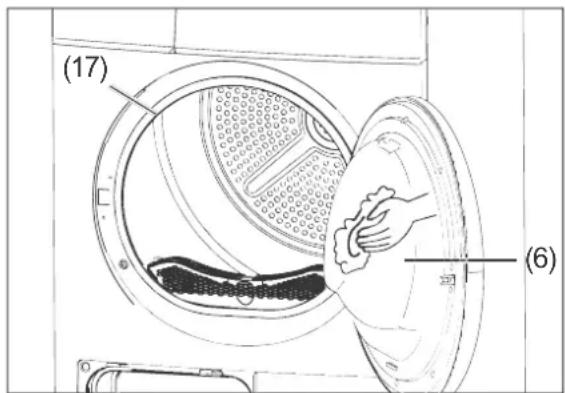

(6) Door

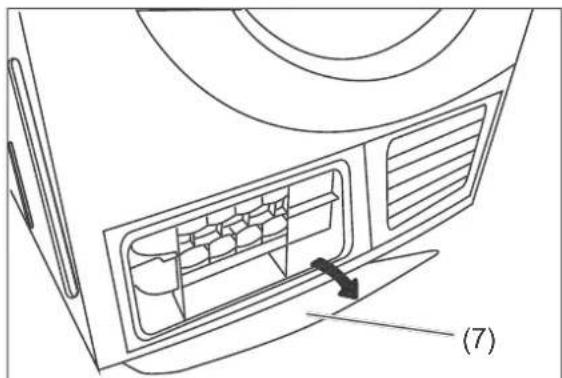

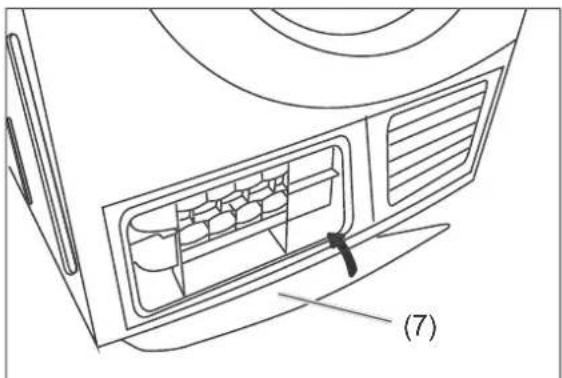

(7) Maintenance flap for the heat exchanger
(8) Heat exchanger
(9) Lint filter
(10)Condensate drawer

Control panel

(11) "SpeedDry" ("Schnell Trocknen") button (short drying cycle)
(12) Button for buzzer
(13) Button for anti-crease feature ("Knitterschutz")

(14) Button for drying intensity ("Trocknungsintensität")
(15) Button for drying duration ("Trocknungszeit")
(16) Button for delay start ("Startzeitvorwahl")

Symbols on the display

Start time delay

Drying duration

Interior light

Buzzer

Anti-crease

Button lock

Customised setting

Drying progress

Drying intensity setting

Drying intensity

Full condensate drawer

Filters require cleaning

SpeedDry

Cycle selection

    J["Individuell"] --> K["Extratrocken"]
    K --> L["Schranktrocken"]
    L --> M["Bügeltrocken"]
    M --> N["Schnelltrocknen"]
    N --> O["Mix"]
    O --> P["Extratrocken"]
    P --> Q["Schranktrocken"]
    Q --> R["Synthetik"]

    style A fill:#f9f,stroke:#333
    style J fill:#f9f,stroke:#333
    style K fill:#ccf,stroke:#333
    style L fill:#ccf,stroke:#333
    style M fill:#ccf,stroke:#333
    style N fill:#ccf,stroke:#333
    style O fill:#ccf,stroke:#333
    style P fill:#ccf,stroke:#333
    style Q fill:#ccf,stroke:#333
    style R fill:#ccf,stroke:#333

    %% Legend labels
    subgraph "Babykleidung"
        direction LR
        S1[" "]
        S2[" "]
        S3[" "]
        S4[" "]
        S5[" "]
        S6[" "]
        S7[" "]
        S8[" "]
        S9[" "]
        S10[" "]
        S11[" "]
        S12[" "]
        S13[" "]
        S14[" "]
        S15[" "]
        S16[" "]
        S17[" "]
        S18[" "]
        S19[" "]
        S20[" "]
        S21[" "]
        S22[" "]
        S23[" "]
        S24[" "]
        S25[" "]
        S26[" "]
        S27[" "]
        S28[" "]
        S29[" "]
        S30[" "]
        S31[" "]
        S32[" "]
        S33[" "]
        S34[" "]
        S35[" "]
        S36[" "]
        S37[" "]
        S38[" "]
        S39[" "]
        S40[" "]
        S41[" "]
        S42[" "]
        S43[" "]
        S44[" "]
        S45[" "]
        S46[" "]
        S47[" "]
        S48[" "]
        S49[" "]
        S50[" "]
        S51[" "]
        S52[" "]
        S53[" "]
        S54[" "]
        S55[" "]
        S56[" "]
        S57[" "]
        S58[" "]
        S59[" "]
        S60[" "]
        S61[" "]
        S62[" "]
        S63[" "]
        S64[" "]
        S65[" "]
        S66[" "]
        S67[" "]
        S68[" "]
        S69[" "]
        S70[" "]
        S71[" "]
        S72[" "]
        S73[" "]
        S74[" "]
        S75[" "]
        S76[" "]
        S77[" "]
        S78[" "]
        S79[" "]

Table of cycles for model HKT8BGT2

Cycle		Weight (max. 8 kg)	Use/properties	Delay	Time
Cotton	For white and coloured cotton or linen laundry.
	Extra-dry	8 kg	Single and multi-layer cotton laundry: T-shirts, underwear, baby clothes, work clothes, jackets, blankets, aprons, smocks, terry cloth towels/bath towels/bathrobes, flannel/terry cloth bed linens.	Yes No
	Cupboard-dry (*)
	Iron dry		Normal single-layer laundry which should be damp after drying and is suitable for ironing or hanging.	Yes No
Quick-dry 3 kg			For drying laundry which needs to be dried quickly, which is made of synthetic materials, or for drying smaller laundry items.	Yes No
Mixed 3.5 kg			Mixed load consisting of cotton and synthetic laundry.	Yes No
Synthetics	For synthetic and mixed fabric laundry or cotton laundry which doesn't need to be ironed.
	Extra-dry	3.5 kg	For drying thick or multi-layer synthetic fabrics.	Yes No
	Cupboard-dry		For drying thin synthetic fabrics that need not be ironed, such as synthetic shirts, tablecloths, baby clothing and socks.
Baby clothes 1 kg For drying small loads of baby clothes Yes No
Special	Jeans 6 kg		For drying jeans or casual clothes that have been spin-dried at a high speed in a washing machine.	Yes No
	Bed linen	5 kg For drying bedsheets or other large laundry items.
	Sport	3 kg	For drying sportswear, thin fabrics and polyester that cannot be ironed
	Shirts	3 kg	For easy-care clothing, such as shirts and blouses with anti-crease properties, for minimal ironing effort.
Customised		For setting and saving your favourite cycle.
Time	Warm	-	Timed drying, warming up clothes. For a minimum of 10 to a maximum of 120 minutes (in steps of 10 minutes).	Yes	Yes
	Cool	-	Cooling down the clothing without heat supply. For a minimum of 10 to a maximum of 30 minutes (in steps of 10 minutes).
	Airing	-	For freshening up clothes that have been kept in an enclosed environment. For a minimum of 20 to a maximum of 150 minutes (in steps of 10 minutes).

*) Energy efficiency test cycle “Standard Cotton Cycle”, which complies with the EN 61121 standard, is suitable for drying normal wet cotton laundry and is the most efficient for drying wet cotton laundry in terms of energy consumption

Table of cycles for model HKT7BGT2

Cycle		Weight (max. 7 kg)	Use/properties	Delay	Time
Cotton	For white and coloured cotton or linen laundry.
	Extra-dry	7 kg	Single and multi-layer cotton laundry: T-shirts, underwear, baby clothes, work clothes, jackets, blankets, aprons, smocks, terry cloth towels/bath towels/bathrobes, flannel/terry cloth bed linens.	Yes No
	Cupboard-dry (*)
	Iron dry		Normal single-layer laundry which should be damp after drying and is suitable for ironing or hanging.	Yes No
Quick-dry 3 kg			For drying laundry which needs to be dried quickly, which is made of synthetic materials, or for drying smaller laundry items.	Yes No
Mixed 3 kg			Mixed load consisting of cotton and synthetic laundry.	Yes No
Synthetics	For synthetic and mixed fabric laundry or cotton laundry which doesn't need to be ironed.
	Extra-dry	3.5 kg	For drying thick or multi-layer synthetic fabrics.	Yes No
	Cupboard-dry		For drying thin synthetic fabrics that need not be ironed, such as synthetic shirts, tablecloths, baby clothing and socks.
Baby clothes 1 kg For drying small loads of baby clothes Yes No
Special	Jeans 6 kg		For drying jeans or casual clothes that have been spin-dried at a high speed in a washing machine.	Yes No
	Bed linen	5 kg For drying bedsheets or other large laundry items.
	Sport	3 kg	For drying sportswear, thin fabrics and polyester that cannot be ironed
	Shirts	3 kg	For easy-care clothing, such as shirts and blouses with anti-crease properties, for minimal ironing effort.
Customised		For setting and saving your favourite cycle.
Time	Warm	-	Timed drying, warming up clothes. For a minimum of 10 to a maximum of 120 minutes (in steps of 10 minutes).	Yes	Yes
	Cool	-	Cooling down the clothing without heat supply. For a minimum of 10 to a maximum of 30 minutes (in steps of 10 minutes).
	Airing	-	For freshening up clothes that have been kept in an enclosed environment. For a minimum of 20 to a maximum of 150 minutes (in steps of 10 minutes).

*) Energy efficiency test cycle “Standard Cotton Cycle”, which complies with the EN 61121 standard, is suitable for drying normal wet cotton laundry and is the most efficient for drying wet cotton laundry in terms of energy consumption

Drying process

Before getting started

• Read the “Safety” chapter from page EN-4.
• Prepare the appliance as described in chapter "Installation and connection" on page EN-23.

Loading laundry

1. Open the appliance door by pulling the handle slightly forward.
2. Load the laundry. Pay attention to the tips on page EN-18.
   Do not exceed the maximum load weight allowed, and do not jam any clothes in the door opening.
3. Close the appliance door by pushing it until you hear it snap shut.

Starting the cycle

1. Press the On/Off button (1). The display will light up.
2. Choose the correct cycle for your laundry from the cycle table on page EN-12 or page EN-13 and select it using the cycle selector (5).
3. You can further customise the selected cycle according to the nature of your laundry by changing the default settings using the menu buttons on the control panel (3) (see "Available settings" on page EN-16).
4. Press the Start/Pause button (2) to begin the cycle.
   The dryer will start running. The symbols will flash on the display, and the time remaining will change automatically.

The remaining time display changes occasionally based on the type of residual moisture detected by the sensor.

Pausing and continuing the cycle

! NOTICE

Risk of fi re/damage! Improper handling of the appliance can lead to fi re/faults.

■ Never try to open the appliance door with force whilst a cycle is in progress or once a cycle has ended.
- If you would like to pause an active cycle, e.g. to add laundry, press the Start/Pause button (2).
To continue the cycle, press the Start/Pause button (2) again.

Cancelling/modifying a cycle

1. Press the On/Off button (1) to cancel or modify an active cycle.
   The dryer will switch off.
2. Switch the dryer on again and use the cycle selector (5) to choose a new cycle.
3. Press the Start/Pause button (2) to start the new cycle.

! WARNING!

Fire hazard!

Improper handling of the appliance can lead to fire and property damage.

■ Never turn off the drum dryer before the end of a drying cycle, unless you are able to quickly remove all laundry items and spread them out to dissipate the heat.

Cycle end

When the drying cycle is complete, the display (4) will show "0:00", the dryer will sound three times and the symbol indicating the corresponding drying progress will flash.

If laundry is not removed from the drum, the dryer starts the “Anti-crease” mode for 30 minutes.

After the drying process

1. Switch off the dryer by pressing the On/Off button (1).
2. Open the door and remove the dried laundry items.
3. Follow the instructions in chapter "Cleaning and maintenance" on page EN-19.

Available settings

Setting the start time

This feature allows you to set the start time of the drying process. You can delay the start time by up to 24 hours.

1. Load the dryer and close the door.
2. Press the On/Off button (1).
   The display will light up.
3. Select your desired cycle and adjust any additional settings as required.
4. Press the button for delay start (16).
   You can increase the length of delay by repeatedly pressing the button.
5. Press the Start/Pause button (2) to begin the cycle.
   The symbol for delay start will flash.
   The drying cycle will begin as soon as the delay start timer runs out.
6. If you want to pause the delay start, press the Start/Pause button.
7. If you want to cancel the delay start, press the On/Off button (1).

Setting the drying time

Additional drying time can be set for the cycles Warm, Cool and Airing.

• To increase the drying time for the three cycles, press the button for the drying duration (15).
• You can increase the drying duration in steps of 10 minutes by repeatedly pressing the button.

Setting the drying intensity

This setting allows you to further adjust the drying intensity according to your laundry items.

The drying intensity cannot be set for every cycle. On the display (4), the symbol for drying intensity will indicate which cycle is being supported by this setting.

For this setting, the drying time increases in steps of 5 minutes. The drying intensity must be set before starting a cycle.

1. Select your desired cycle.

2. To set the drying intensity, press the button for drying intensity (14) repeatedly until you arrive at your desired drying intensity.

3. Press the Start/Pause button (2) to begin the cycle.

Switching the "SpeedDry" setting On/Off

- To switch the "SpeedDry" setting on or off, press the "SpeedDry" button (11). The symbol appears on the display (4).

Activating/deactivating sound

By default, the dryer will play sounds, e.g. when the cycle selector is turned, the settings buttons are pressed, or the drying process is complete.

- Press the button for the buzzer (12) to activate or deactivate the sound function.

Setting the anti-crease feature

This feature helps ensure clothes stay crease-free after the drying process. By default, the anti-crease phase will run for 30 minutes after the drying process. The duration can be increased up to 120 minutes.

The laundry can be removed during the anti-crease phase.

The anti-crease feature can be set for all cycles except for Cool and Airing.

- Press the button for anti-crease (13) to set the anti-crease feature.

Switching button lock on/off

The dryer is equipped with a special button lock to prevent e.g. children from accidentally pressing buttons and interrupting the drying process, for example. The button lock can be activated only when a cycle is already running.

• To activate the button lock, press and hold both the button for anti-crease feature (13) and the button for the buzzer (12) simultaneously for 3 seconds.
  The button lock symbol will appear on the display. All buttons and the cycle selector will be disabled, with the exception of the On/Off button (1).
• To deactivate the button lock, press and hold both the button for anti-crease feature (13) and the button for the buzzer (12) simultaneously for 3 seconds.

Customised settings

This feature allows you to save a customised cycle that you use often and want quick access to.

1. Select your desired cycle and adjust any additional settings as required.
2. To save the cycle and settings, press and hold the "SpeedDry" button (11) for 3 seconds.
   The symbol for the customised setting will flash on the display (4).
3. To select the customised cycle later, turn the cycle selector (5) to the position "Customised".
4. To change the customised settings, repeat steps 1 and 2.

Tips for drying

Preparation

Before being dried in the dryer, laundry items must be thoroughly spin-dried in a washing machine. The high spin speed can reduce the clothes dryer's drying time and energy consumption.

For an even drying result, the laundry must be sorted according to fabric type and drying cycle.

Items such as zips, hook-and-eye closures, buttons and belts found on clothing must be closed before the drying process.

Sorting laundry

The drying instructions of the textile manufacturer/the international care symbols on the labels contain precise information about how to handle each piece of laundry.

- Sort the laundry according to the instructions on the respective labels.

Special materials

• Do not dry any items with rubber or other elastic rubber-like materials.
• Thick or multi-layer laundry items (bedclothes, jackets, etc.) are difficult to dry. For such items, you should use the “Cotton Extra-Dry” cycle or adjust the drying duration and intensity accordingly.
• Outdoor jackets made of modern synthetic materials must be treated with special care. Before drying such a jacket in the dryer, find out the appropriate dryer settings from its manufacturer.

Other tips

• Do not dry your clothes excessively, as creases can form easily on over-dried clothes.
• If you notice that some of the clothes are still damp after drying, try to dry them separately the next time using another cycle.

The correct quantity

The amount of clothes you can put in the drum depends on the type of clothes you are drying.

Reference weight of dry clothes

Jacket (cotton) approx. 800 g
Jeans	approx.
Towel/blanket (cotton)	approx.	900 g
Single bedsheet (cotton)	approx.
Workwear	approx.
Overnight	approx.	200 g
Long-sleeve shirt (cotton)	approx.	300 g
Short-sleeve shirt (cotton)	approx.	180 g
Pair of shorts (cotton)	approx.	70 g
Pair of socks (blended fabric)	approx.	50 g

Symbols on clothing

Only clothing with the appropriate care label may be dried in the dryer.

Suited for the dryer

Dry at normal temperature

Dry at lower temperature

Do not dry using the dryer

Cleaning and maintenance

WARNING!

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Always unplug the power cord before cleaning the appliance.
■ Never pull the mains plug out of the socket by its cord, but always take hold of the mains plug.
■ Never spray the appliance with a water jet or a high-pressure cleaner.

Health hazard!

Consuming the condensate may be hazardous to health.

■ Never drink the condensate.

NOTICE

Risk of damage to property!

Improper handling of the appliance may result in damage.

• Do not wash with harsh or abrasive detergents. They can damage the surfaces or make the rubber sleeve brittle and fragile.
• Do not use pointed, sharp or angular objects for cleaning the rubber sleeve. They can damage the rubber sleeves and make them leaky.
• Do not operate the appliance without the condensate drawer.

Regular checks

A few simple and regular checks can save you from unpleasant surprises. Check regularly whether the drum is free of foreign objects.

Cleaning the door

- Use a soft, damp cloth to wipe the inside and outside of the door (6) and rubber sleeve (17), and then wipe them both dry.

Cleaning the drum

- Use a soft, damp cloth to wipe the inside of the drum, and then wipe it dry.

Emptying the condensate drawer

The condensate drawer (10) must be emptied after every use. If the condensate drawer (10) is full, the cycle will stop and the symbol 📋 will appear. After emptying the condensate drawer (10), you can press the Start/Pause button (2) to resume the cycle.

1. Use both hands to pull out the condensate drawer (10).

Technical line drawing of a mechanical component with a labeled part (10), no readable text or symbols present.

1. Pour the condensate into a basin.

2. Slide the condensate drawer (10) back into the dryer.

Cleaning the lint filter

Technical line drawing of a mechanical component with no visible text or symbols

1. Remove the lint filter (9) from the bracket.

Technical line drawing of a curved structural component with grid pattern and mounting bracket (no text or symbols)

1. Open the lint filter (9).

Line drawing of a hand interacting with four panels, showing a hand touching one panel (no text or symbols present)

1. Either remove the lint with your hands or rinse the opened lint filter under running water.

Architectural diagram of a curved structural frame with grid patterns (no text or symbols)

1. Close the lint filter.

2. Allow the lint filter to dry completely.

3. If required, remove the lint on the lint filter or in the lint filter bracket using a vacuum cleaner.

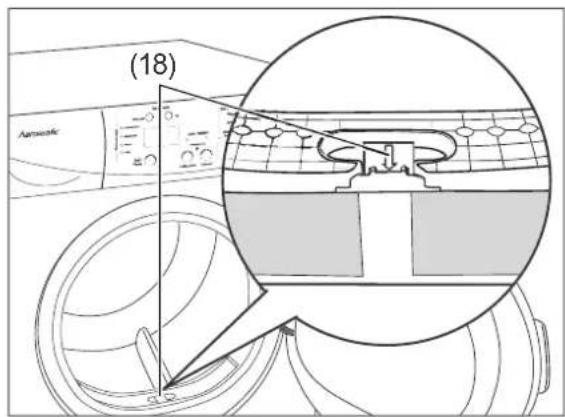

1. Reinsert the lint filter. Ensure that the arrow (18) points in your direction.

Cleaning the heat exchanger

CAUTION!

Risk of injury!

Touching the heat exchanger may lead to injuries.

■ Do not touch the heat exchanger with your bare hands.
■ Let the dryer cool down before cleaning the heat exchanger.

NOTICE

Risk of damage to property!

Improper handling of the appliance may result in damage.

- Only use water to clean the heat exchanger, and do not use any hard or sharp objects to remove lint.

Residual water can leak. Put an absorbent cloth under the maintenance flap.

The heat exchanger must be cleaned around every two months.

Technical line drawing of a device rear panel with internal compartments and ventilation slots (no text or symbols)

1. Open the maintenance flap (7).

Line drawing of a refrigerator interior with airflow arrows indicating airflow direction (no text or symbols)

1. Unlock the heat exchanger attachment (19) and remove it.
2. Remove the heat exchanger (8).

1. Rinse the heat exchanger (8) from all sides with a jet of water to remove all lint entirely. Then drain the water completely.
2. Clean the seals.
3. Reinsert the heat exchanger (8) with the handle pointing downwards.
4. Reinsert the heat exchanger attachment (19) and lock it.

Technical line drawing of a device rear panel with internal compartments and ventilation slots (no text or symbols)

1. Close the maintenance flap (7) until you hear it snap shut.

Installation and connection

Transport

CAUTION!

Risk of injury!

Improper handling of the appliance may result in injury.

■ The appliance is heavy. Never transport or carry it alone, rather always with at least two persons.

! NOTICE

Risk of damage to property!

Improper handling of the appliance may result in damage.

• If a trolley is used to move the appliance, the appliance must be lifted as shown on the packaging. If the dryer cannot be transported upright, ensure that it is not tilted more than 30°.
  ■ Exercise caution when moving the appliance. Do not lift or pull the dryer by any of its protruding parts. The dryer door must not be used as a carrying handle.
• Do not install the appliance behind a lockable door, a sliding door, or a door with a hinge located opposite the appliance's door hinge such that it prevents the dryer's door from fully opening.

- Check whether the paths of transport and the installation location are suitable for the weight of the dryer. If in doubt, ask your landlord or property management.

Installing the dryer

- Read the “Safety” chapter from page EN-4.

Requirements for safe set-up

• The installation site must be frost-proof.
  – Ideally, the dryer should be installed next to your washing machine.
• The ground must be secure, even, clean and dry. The dryer must not be placed on a surface that is sloping, flexible or uneven.
• It is not appropriate to have a rug or carpet under the appliance, as the appliance will not be ventilated well enough and can overheat. The floor clearance must not be restricted by objects such as carpets and wood strips.
• Ensure that air can circulate freely in the dryer's immediate surroundings.
• The ventilation grilles on the dryer's front and back must not be obstructed.
• The feet must not be removed from the dryer.
  – The mains plug must also be easily accessible after the appliance has been set up.

Levelling the dryer

1. Use a spirit level to check whether the dryer is level.
2. To level the dryer, use your hand or a spanner to turn the levelling feet inwards or outwards. To adjust a levelling foot – turn anticlockwise to unscrew; – turn clockwise to screw in.
3. Repeat this for the other levelling feet until the dryer is level and stable.

Creating an electrical connection

WARNING!

Risk of electric shock!

Touching live parts may result in severe injury or death.

• Do not put into operation if the mains cord is faulty or the appliance displays other visible damage.
  ■ Never connect the appliance via a multi-socket or an extension cord.

- Plug the mains plug into a properly installed and earthed electric socket that has been sufficiently secured (220–240 V\~, 50 Hz, 16 A).

Before first use

1. Clean the drum's interior using a soft cloth.
2. Place a few clean dry cloths into the drum.
3. Press the On/Off button (1). The display will light up.
4. Select the "Airing" cycle using the cycle selector (5).
5. Press the Start/Pause button (2) to begin the cycle.
6. After the cycle is complete, follow the instructions in chapter "Cleaning and maintenance" on page EN-19.

Troubleshooting

Malfunctions can occur in all electrical appliances. This does not necessarily mean there is a defect in the appliance. For this reason, please check the tables to see if you can correct the malfunction.

WARNING!

Risk of electric shock!

Touching live parts may result in severe injury or death.

- Never try to repair a defective or suspected defective appliance yourself. You can put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.

Malfunction
Problem Possible causes Solutions, tips
The display does not light up.	· The power supply is interrupted.	· Check whether the power supply is working properly.· Check whether the mains plug is inserted.· Check the selected cycle.· Press the On/Off button (1).
lights up	· The condensate drawer (10) is full.	· Empty the condensate drawer.· If the symbol continues to light up after that, contact our service department (see page EN-28).
lights up	· The heat exchanger (8) and/or lint filter (9) are clogged by lint.	· Clean the heat exchanger (8) and/or the lint filter (9).
The dryer does not start.Problem Possible causes	· The power supply is interrupted.· The door (6) is open.· No cycle has been selected.· The dryer has not been switched on.es Solutions, tips	· Check whether the power supply is working properly.· Check whether the door is closed.· Check whether a cycle has been selected.· Check whether the On/Off button (1) has been pressed.· If the dryer still does not start after that, contact our service department (see page EN-28).
The laundry is not dry enough or the drying duration is too long.	· The dryer is installed in a space that is too confined.· The heat exchanger (8) and/or lint filter (9) are clogged by lint.· The condensate drawer (10) is full.· The ventilation slots are clogged or obstructed.· An inappropriate cycle has been selected for your laundry.	· Check whether the dryer has enough free space to function properly.· Clean the heat exchanger and lint filter.· Empty the condensate drawer.· Ensure that the ventilation grilles are not clogged.· Select a cycle with a higher drying intensity or longer drying time.

The display shows an error code
Problem Possible causes Solution
E30 Heating error		Contact our service department (see page EN-28).
E32 Moisture sensor error
E33 Temperature sensor error

Environmental protection

Disposing of old electrical devices in an environmentally-friendly manner

Electrical appliances contain harmful substances as well as valuable resources.

Every consumer is therefore required by law to dispose of old electrical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling centre.

Please contact your dealer directly for more information about this topic.

Packaging

Our packaging is made from environmentally friendly, recyclable materials:

– Outer packaging made of cardboard
- Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of polyethylene (PE)
– Tension bands made of polypropylene (PP)
- Saving energy also protects against excessive global warming. Your new appliance uses little energy due to its environmentally friendly insulation and technology.

Please dispose of packaging in an environmentally friendly manner.

Service

In order for us to help you quickly, please tell us:

Name of appliance Model Colour Article number
hanseatic Condensation dryer	HKT8BGT2 W	White 30713	324
	HKT7BGT2 W	White 37850	263

Advice, order and complaint

Please contact your mail order company's customer service centre if

– the delivery is incomplete,
– the appliance is damaged during transport,
– you have questions about your appliance,
- a fault cannot be rectified using trouble-shooting.

Repairs, replacement parts and accessories

Customers in Germany

– Please contact our technical service department: Tel. [phone]

Customers in Austria

- Please contact your mail order company's customer service centre or product advice centre.

Please note:

You are responsible for the condition of the appliance and its proper use in the household. If you call out for customer service due to an operating error, you will incur charges, even during the guarantee/warranty period. Damage resulting from non-compliance with this manual unfortunately cannot be recognised.

Product fiche concerning Regulation (EU) No 392/2012

Trade mark	hanseatic
Model identifier	HKT8BGT2
Rated capacity in kg of cotton	8
Household tumble drier type	condenser
Energy efficiency class on a scale from A+++ (most efficient) to D (least efficient)	B
Energy consumption 560,9 kWh per year, based on 160 drying cycles of the standard cotton prog ramme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.
Automatic tumble drier	yes
Energy consumption of the standard cotton programme at full load	4,74 kWh
Energy consumption of the standard cotton programme at partial loac	2,57 kWh
Power consumption in off-mode	0,10 W
Power consumption left-on mode	0,80 W
Duration of the left-on mode	10 min
The programme Baumwolle Schranktrocken used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this prog ramme is suitable for drying normal wet cotton laundry and that it is the most efficient prog ramme in terms of energy consumption for cotton.
Weighted programme time of the standard cotton programme at full and partial load	111 min
Programme time of the standard cotton programme at full load	140 min
Programme time of the standard cotton programme at partial load	90 min
Condensation efficiency class B on a scale from G (least efficient) to A (most efficient)
Weighted condensation efficiency for the standard cotton programme	81 %
Average condensation efficiency of the standard cotton prog ramme at full load	81 %
Average condensation efficiency of the standard cotton prog ramme at partial load	81 %
Sound power level	69 dB(A) re 1 pW
Built-in	nc

The values indicated above have been measured under standardised laboratory conditions pursuant to EN 61121.

Trade mark	hanseatic
Model identifier	HKT7BGT2
Rated capacity in kg of cotton	7
Household tumble drier type	condenser
Energy efficiency class on a scale from A+++ (most efficient) to D (least efficient)	B
Energy consumption 503,3 kWh per year, based on 160 drying cycles of the standard cotton prog ramme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.
Automatic tumble drier	yes
Energy consumption of the standard cotton programme at full load	4,24 kWh
Energy consumption of the standard cotton programme at partial load	2,32 kWh
Power consumption in off-mode	0,10 W
Power consumption left-on mode	0,80 W
Duration of the left-on mode	10 min
The programme Baumwolle Schranktrocken usec at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this prog ramme is suitable for drying normal wet cotton laundry and that it is the most efficient prog ramme in terms of energy consumption for cotton.
Weighted programme time of the standard cotton programme at full and partial load	101 min
Programme time of the standard cotton programme at full load	128 min
Programme time of the standard cotton programme at partial load	80 min
Condensation efficiency class B on a scale from G (least efficient) to A (most efficient)
Weighted condensation efficiency for the standard cotton programme	81 %
Average condensation efficiency of the standard cotton prog ramme at full load	81 %
Average condensation efficiency of the standard cotton prog ramme at partial load	81 %
Sound power level	69 dB(A) re 1 pW
Built-in	nc

The values indicated above have been measured under standardised laboratory conditions pursuant to EN 61121.

Technical specifications

Model identifier	HKT8BGT2
Supply voltage / frequency	220 - 240 V, 50 Hz
Rated power	2700 W
Device measurements (Height × Width × Depth with connections)	84,5 cm × 59,5 cm × 61,5 cm
Unloaded weight	41 kg

Model identifier	HKT7BGT2
Supply voltage / frequency	220 - 240 V, 50 Hz
Rated power	2700 W
Device measurements (Height × Width × Depth with connections)	84,5 cm × 59,5 cm × 61,5 cm
Unloaded weight	41 kg
