USER MANUAL KDC-W5041U KENWOOD

Basic Operation Accessories/ Installation Procedure

General functions Tuner functions Disc & Audio file play functions General Operation Audio Control Audio Setup Speaker Setting Display Switching Tuner Operation PTY (Program Type) Program Type preset Changing Language for PTY Function Direct Access Tuning Music disc/Audio file Operation Play Functions of Disc Changer Direct Music Search Direct Disc Search List Select iPod Select Track Select Menu Operation

Menu System Security Code Manual Clock Adjustment Aurliary Input Display Setting Demonstration mode Setting Basic Operations of remote control

Connecting Wires to Terminals

Installation/Removing the Unit

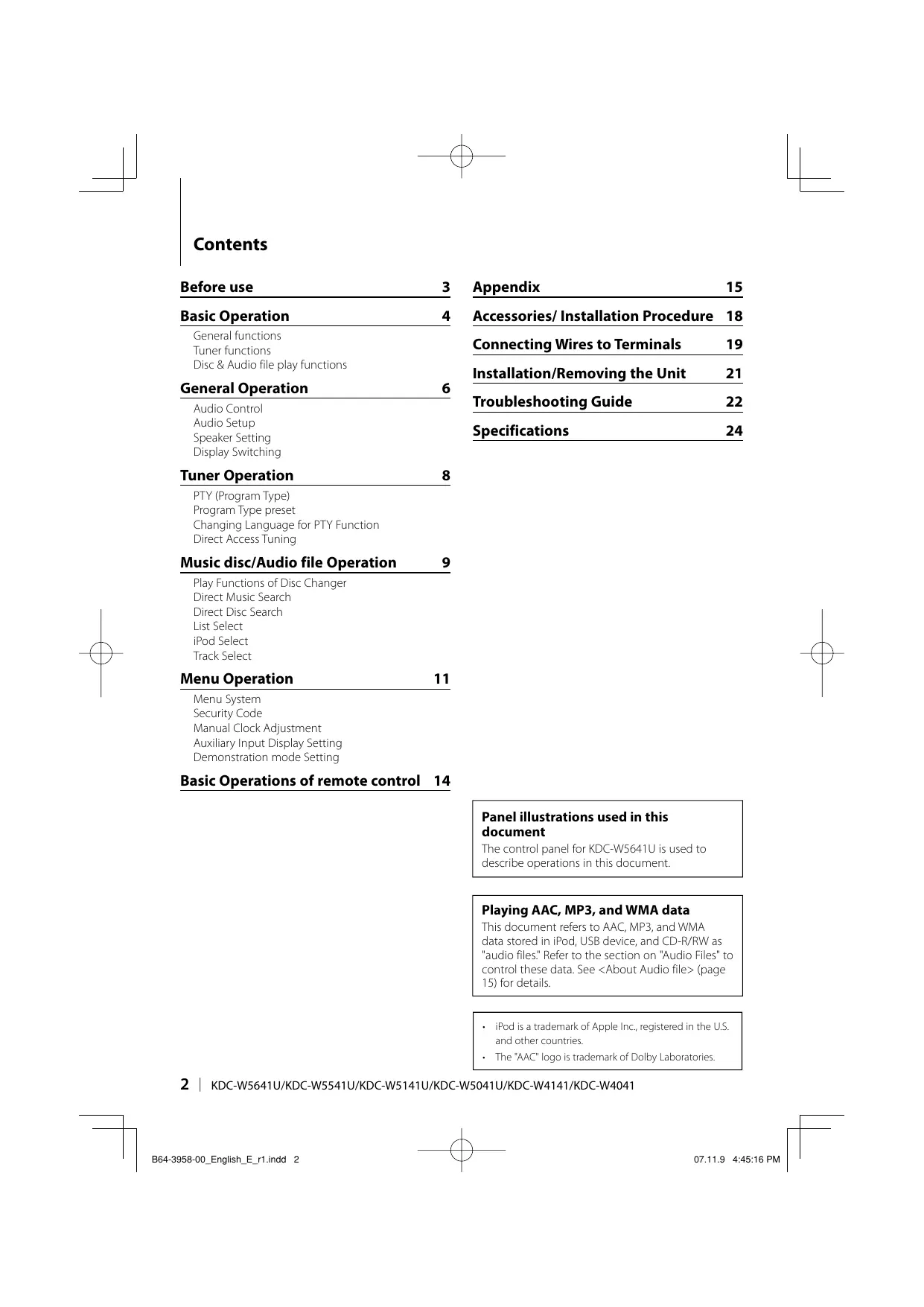

Panel illustrations used in this document The control panel for KDC-W5641U is used to describe operations in this document. Playing AAC, MP3, and WMA data This document refers to AAC, MP3, and WMA data stored in iPod, USB device, and CD-R/RW as control these data. See <About Audio file> (page

‘audio files” Refer to the section on "Audio Files” to and other countries. The “AAC' loga is trademark of Dolby Laboratories. Pod is a trademark of Apple Inc, registered in the US. 2 | KDC-W564a1U/KDC-W5541U/KDC-W5141U/KDC-W5041U/KDC-W4141/KDC-W4041

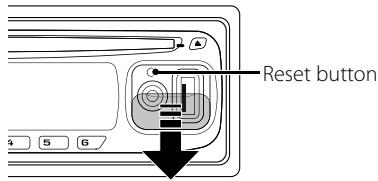

Before use A WARNING To preven: precautions: + To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit. jury or fire, take the following Before using this unit for the This unit is initially set on the Demonstration mode. When using this unit for the first time, cancel the <Demonstration mode Setting> (page 13). How to reset your unit + Ithis unit or the connected unit (disc auto changer, etc) fails to operate properly, press the Reset button. The unit returns to factory settings when the Reset button is pressed. —— "à Reset button Cleaning the Unit IFthe faceplate of this unit is stained, wipe it with a dry soft cloth such as a silicon cloth. IFthe faceplate is stained badly, wipe the stain off with a cloth moistened with neutral cleaner, then wipe it again with a clean soft dry cloth

Appbing spray cleaner directly to the unit may affect its mechanical parts. Wiping the faceplate with a hard cloth or using a volatile liquid such as thinner or alcohol may scratch the surface or erases characters. Cleaning the Faceplate Terminals Ithe terminals on the unit or faceplate get dirty, wipe them with à clean soft dry cloth. Lens Fogging When you turn on the car heater in cold weather, dews or condensation may form on the lens in the CD player ofthe unit. Called lens fogging, this condensation on the lens may not allow CDs to play. In such a situation, remove the disc and wait for the condensation to evaporate. Ifthe unit still does not operate normally after a while, consult your Kenwood dealer. I B64-3958-00_English_E_rt.indd 3 If you experience problems during installation, consult your Kenwood dealer. When you purchase optional accessories, check with your Kenwood dealer to make sure that they work with your model and in your area The characters which can be displayed by this unit are AZ09@""%&*+-=,./\<>[]()::1-{)| The RDS feature won't work where the service is not supported by any broadcasting station. The illustrations of the display and the panel appearing in this manual are examples used to explain more clearly how the controls are used. Therefore, what appears on the display in the illustrations may differ from what appears on the display on the actual equipment, and some of the illustrations on the display may be inapplicable. Handling CDs + Do not touch the recording surface of the CD. + Do not stick tape etc. on the CD, or use a CD with tape stuck on it. Do not use disc type accessories. + Clean from the center of the disc and move outward. When removing CDs from this unit, pull them out horizontally. Ifthe CD center hole or outside rim has burrs, use the CD only after removing the burrs with à ballpoint pen etc. CDs that cannot be used + CDs that are not round cannot be used. + CDs with coloring on the recording surface or CDs that are dirty cannot be used 2 This unit can onby play the CDs with gp LE ES This unit may not correctiy play discs which do not have the mark. + You cannot play a CD-R or CD-RW that has not been finalized. (For the finalization process refer to your CD-R/CD-RW writing software, and your CD-R/CD- RW recorder instruction manual) English | 3

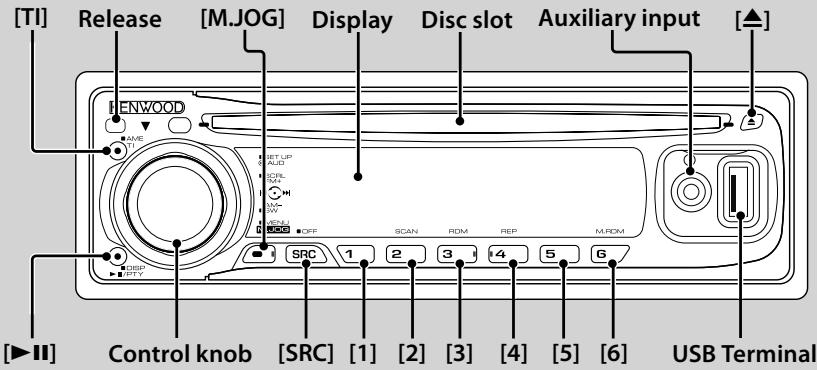

ET) D11] Controlknob ISRC] [1] [2] General functions Power/Source select button Let ISRC] Turns on the power. When the power is on, the source switches between Tuner (TUNER") , USB or iPod (‘USB or “iPod'), CD (‘CD'), Auxiliary input ('AUX"), and Standby (STANDBY") each time this button is pressed Press at least 1 second to turn off the power. + When the power is ON, the <Security Code> (page 12) is displayed as "CODE ON" or "CODE OFF” + For whether USB devices and iPod can be connected, refer to <About Audio fle> (page 15). + When an optional accessory is connected, the source name for each device appears. + This unit automatically turns full power OFF after 20 minutes lapses in Standby mode in order to save the vehicle's battery. The time until full power OFF can be set in “POWER OFF of <Menu System> (page 11) + When connection ofthe iPod is recognized, the source display changes from "USB" to “iPod” Volume control 9 controtknob Turn the knob to adjust the volume Faceplate release Release Releases the faceplate lock so that it can be removed! Refer to the following diagram when reattaching the faceplate. + The faceplate is a precision piece of equipment and can be [31 [4] [5] [6] USB Terminal damaged by shocks or jolts. + Keep the faceplate in its faceplate case while detached. + Do not place the faceplate (and the faceplate case) in areas exposed to direct sunlight, excessive heat or humidity. Also avoid places with too much dust or the possibilty of water splashing, + To prevent deterioration, do not touch the terminals of the unit or faceplate with your fingers. Auxiliary input Used to connect a portable audio device with mini- plug cable (3:5 0) + Use the mini-plug cable (stereo) which does not have any resistance. Muting volume upon reception of phone call When there is a call "CALL'is displayed and the audio system is paused. When the call ends, *CALL' disappears and the audio system comes back on. The audio system comes back on when [SRCI is pressed during a call. Subwoofer output a Control knob Switches between ON (‘SUBWOOFER ON") and OFF (SUBWOOFER OFF") each time pushing toward down for at least 2 seconds. Text/Title scroll SA control knob Scrolls the CD, audio file, and Radio text display when pushing toward up for at least 2 seconds. Tuner functions Band select GA contrt knob Switches betweëTFMt, FM2, and FM3 each time pushing toward up. Switches to AM when pushing toward down 4 | KDC-W5641U/KDC-W5541U/KDC-W5141U/KDC-W5041U/KDC-W4141/KDC-W4041

—6— Tuning 3 contrt knob Changes thèfrequency when pushing toward left or right. + During reception of stereo stations the *ST'indicator is ON. Traffic information ä [TI] Turns ON or OFF the Traffic Information function. When the function is turned ON, ‘Tl' indicator is ON If traffic bulletin starts when the function is ON, “TRAFFIC INFO" is displayed and traffic information is received. + fthe volume is adjusted during reception of traffic information, the adjusted volume is memorized automatically. The memorized volume will be applied next time the Traffic Information function is turned ON. Preset memory im -[61 Memorizes the station selected when pressing for at least 2 seconds Auto memory entry & [Tu Memorizes six stations with good reception automatically when pressed for at least 2 seconds. Preset tuning ee [11-161 Recalls the memorized station. Disc & Audio file play functions Disc play Bone slot Starts playing When a disc is inserted When à CD is inserted, the ‘IN' indicator is ON. + 3 inch (8 cm) CD cannot be used. Attempt to insert using an adapter can cause malfunction USB device play (KDC-W5641U/W5541U/W5141U/ W5041U) use rermi al Used to connêct the USB device to the USB cable (optional accessory) which is connected to the USB terminal. When the USB device is connected, the "USB" indicator is ON. + For the playable audio file, media, and devices, refer to <About Audio file> (page 15). B64-3958-00_English_E_rtindd 5

Pause and play Lal Du] Switches between pause and play each time this button is pressed. Discejection ra : You can eject the disc for 10 minutes after switching off the engine. USB device removing ä [a] Press this button for 2 seconds or longer to select the remove mode, and the remove the USB device. During the remove mode, “USB REMOVE" is displayed ndicates the button etc. to operate. Music search Control knob Changes the music when pushing toward left or right. Fast reverses or forwards the music while keeping pushing toward left or right. (No sound is output while playing audio file) Folder search SA control knob Changes the folder containing the audio file when: pushing toward up or down Select mode g [M.306] After pressing this button, you can quickly search songs with the control knob. See <List Select> (page 10), <iPod Select> (page 10) for details. Track/File/ Folder repeat play Da Switches between Track Repeat (TRAC REP ON") and OFF ('REP OFF') when pressed while playing à CD. Switches between File Repeat (‘FILE REP ON"), Folder Repeat (’FOLD REP ON"), and OFF (‘REP OFF") when pressed while playing an audio file. + The folder repeat operation cannot be performed while iPod is playing, Scan play De Successively plays the intro ofthe music in the disc or folder. When Scan Play is turned on, “TRAC SCAN ON” “FILE SCAN ON" is displayed! + The Scan paly operation cannot be performed while iPod is playing. Random play a [31 Randomiy plays the music in the disc or folder. When Random Play is turned on, “DISC RDM ON’ “FOLD RDM ON" is displayed. English | 5

I B64-3958-00_English_E_rt.indd 6 General Operation Audio Control Audio Setup You can adjust following Audio Control items; You can set Sound system , such as follows; Adjustmentitem Display Range Adjustmentitem Display Range Rear volume VOLUME" 0—35 Front High Pas iter* “HPFFIhrough/9/100/120/ 150/180 Subwoofer "SUBWE 15 —+15 Hz Bass Boost BONE ATP OUR RearHigh ass ler CHPER Irough0/100/120/ 150180 indicator turs on according to Li the eting) Low Pass Fier PPESW" 607807207160 Through Hz Sent NUE Nalserseteng fee Subwoofer Phase Reverse (180 Normal (0°) “USER"/'ROCK"/ | Paps/Essp/Top 40/Jerz dolume ofset EIRE #8) *POPS'EASY"! (The indictor tums on oudness” POUDNESS" OFF/ON “1OP40"/IAZZ" according ta the setting.) Dual Zone System* "ZONE OFF/ON Bass level EXT +8 Middle level “MID LT Treble level FTREL Balance BALANCE" Left 15 — Right 15 Fader PEADER" Rear 15 — Front 15 Exit Audio Control mode (Volume control mode) “Function of KDC-W5641U/W5541U/WS 14 TUAWSO4 U. “Function of KDC-W4141/1404 + "USER" The customized Bass, Middle, and Treble levels are effective. On the KDC-W5641UAWS54TU/WS141U/ WS041U, this item can be selected at any time. On the KDC-W4141/W4041, this item is displayed only when the tone quality has been adjusted. On the KDC-W4141/ W4O4T, this item disappears when another setting is selected + You can set Bass, Middle, and Treble for each source. 1 Select the source to adjust Press the [SRC] button. 2 Enter Audio Control mode Press the Control knob. 3 Select the Audio item to adjust Press the Control knob. 4 Adjust the Audio item Turn the Control knob. 5 Exit Audio Control mode Press any button. Press a button other than the Control knob or & button. “Function of KDC-W5641U/WSS41UAWS 141U/WSO41U. “KDC-WS641UAW554 1U/WST4TU/WSO4TU only: “KDC-W4141/W4041 only. + Volume offset: Sets each sources volume as a difference from the basic volume: + Loudness: Compensates for low and high tones during low volume. (Only the low tone is compensated for when the tuner is selected as a source) + Dual Zone System Main source and sub source (Auxiliary input) output Front channel and Rear channel separately Set up the channel of sub source by"ZONE2" of <Menu System> (page 11) Select Main source by [SRC] button Adjust the volume of Front channel by Control knob. Adjust the volume of Rear channel by <Audio Control> (page 6) The Audio Control has no effect on sub source. 1 Select the source to adjust Press the [SRC] button. 2 Enter Audio Setup mode Press the Control knob for at least 1 second. 3 Select the Audio Setup item to adjust Press the Control knob. 4 Adjust the Audio setup item Turn the Control knob. 5 Exit Audio Setup mode Press the Control knob for at least 1 second. 6 | KDC-W5641U/KDC-W5541U/KDC-W5141U/KDC-W5041U/KDC-W4141/KDC-W4041

en you select the clock display, the display setting of h source will be changed to the cl + Hfthe selected display item does not have any information, alternative information is displayed ing" FOLDER NAME" while playing with l be displayed depending on currently selected browsing iterns. k display. English | 7

Tuner Operation PTY (Program Type) Selecting the Program Type below and searching for a station; No. Program Type Display 1 Speech SPEECH" 2 Music "MUSIC" 3 Neus "NEWS" 4 Current fais AFFAIRS" 5 Information “INFO” 6 Sport SPORT" 7 Education “EDUCATE" & Drama “DRAMA" 9 Cutture “CULTURE” 10 Science “SCIENCE

12 PopMusic “POP M 13 Rod Music “ROCK NT"

14. Easy Listening Music “EASYM"

15. Light Gassical “LIGHT M

16. Serious Classical “CLASSICS"

17. OtherMusic “OTHER M"

18 Weather “WEXTHER"

19. Finance “ANANCE"

20. Childrens programs “CHILDREN”

29. Oldies Music “OLDES"

30. FokMusic “FOLK M

31. Documentary “DOCUMENT

+ Speech and Music include the Program type shown below Music: No.12 — 17, 26 — 30 Speech: No3 — 11, 18— 25, 31 1 Enter PTY mode Press the [pi] button. During PTY mode the “PTY'indicator is ON + This function cannot be used during a traffic bulletin or AM reception. 2 Select the Program Type Push the Control knob towards up or down. 3 Search for the selected Program Type station Push the Control knob towards right or left. + When the selected Program Type is not found, "NO PTY" is displayed. Select another Program Type. 4 Exit PTY mode Press the [»-11] button. Program Type preset Putting the Program Type in the Preset button memory and quick recall. Presetting the Program Type 1 Select the Program Type to preset Refer to <PTY (Program Type)>. 2 Preset the Program Type Press the desired [1] — [6] button for at least 2 seconds. Recalling the preset Program Type 1 Enter PTY mode Refer to <PTY (Program Type)>. 2 Recall the Program Type Press the desired [1] — [6] button. Changing Language for PTY Function Selecting the Program Type display language as follows: language Display English l'ENGLISH' French FRENCH" German 'GERMAN" 1 Enter PTY mode Refer to <PTY (Program Type)>. 2 Enter Changing Language mode Press the [TI] button. 3 Select the language Push the Control knob towards up or down. 4 Exit Changing Language mode Press the [TI] button. 8 | KDC-W5641U/KDC-W5541U/KDC-W5141U/KDC-W5041U/KDC-W4141/KDC-W4041 B64-3958-00_English_E_rt.indd 8

Function of remote control Direct Access Tuning Entering the frequency and tuning. 1 Enter Direct Access Tuning mode Press the [DIRECT] button on the remote control. "is displayed! 2 Enter the frequency Press the number buttons on the remote control. Eample Desired frequency Press button

92.1 MHz (FM 10), 19], 121, 11]

810 kHz (AN) {0 8 1, 1 Cancelling Direct Access Tuning Press the [DIRECT] button on the remote control. + You can enter the FM band frequency in steps of a minimum of 0.1 MHz. B64-3958-00_English_E_rt.indd 9 —6— Music disc/Audio file Operation Play Functions of Disc Changer While a disc in the disc changer is being played, the following play functions can be used. Playing the Current Song or Disc Repeatedly. (Repeat play) Press the [4] button. Pressing the button repeatedly selects Track Repeat play on (*TRAC REP ON'), Disc Repeat play on (DISC REP ON"), and Repeat play off (REP OFF) sequentially. Randomly plays the mu: (Magazine random play) Press the [6] button. Pressing the button toggles the setting between Magazine random play on (‘MGZN RDM ON") and off ('RDM OFF) the disc changer. Function of remote control Direct Music Search Searchs the music by entering the track number. 1 Enter the music number Press the number buttons on the remote control. 2 Search the music Press the [4-4] or [»-»1] button. Cancelling Direct Music Search Press the [»-11] button. + Direct Music Search cannot be performed during playing ofiPod, Random plaÿ, or scan play. English | 9

—6— Music disc/Audio file Operation Function of disc changers with remote control Direct Disc Search Searchs the disc by entering the disc number. 1 Enter the disc number Press the number buttons on the remote control. 2 Search the disc Press the [FM] or [AM] button. Cancelling Direct Disc Search Press the [»-11] button. + Input”0"to select disc 10. + Direct Disc Search cannot be performed during playing of Random play or scan play. Function of USB/CD of Audio file List Select Search for the song you want to listen to by tracing the media file structure. 1 Enter Multi Jog Select mode Press the [M.JOG] button. "MULTI JOG ON ‘is displayed. Displays the current Audio file name. 2 Searching for and playing a song Operation type Operation Movement beteen un the Control knob. folders/fles Selection offolder/fle Press the Control knob. Return to previous folder Push the Control knob towards left Push the Control knob towards left for at least 2 seconds. Return to root folder “<'or">" beside the displayed folder name indicates that this folder is preceded or followed by. another folder. When file name is displayed, "#" is added at the end. Cancelling the Multi Jog Select mode Press the [M.JOG] button. + List Select cannot be performed during Random play or can play. Function of KDC-W5641U/KDC-W5541U Function of iPod iPod Select Search for the song you want to listen to by selecting the same menu item as that of iPod. Enter Multi Jog Select mode Press the [M.JOG] button. “MULTI JOG ON"is displayed Displays the play list. 2 Searching for and playing a song Operation type Operation Movement between items Turn the Control knob. Selection oftem Press the Control knob. Return to previous Rem Push te Control Knob towards up. Fetum to Top menu Push the Control knob towards up orat est 2 seconds Cancelling the Multi Jog Select mode Press the [M.JOG] button. + iPod Select cannot be performed during Random play: Function of Music CD Track Select Select the song you want to listen to by turning the control knob. Enter Multi Jog Select mode Press the [M.JOG] button. “MULTI JOG ON"is displayed Displays the current music No 2 Select the muisc Turn the Control knob. 3 Play the selected song Press the Control knob. The Multi Jog Select mode is canceled and the selected song is played Cancelling the Multi Jog Select mode Press the [M.JOG] button. + Track Select is available only during playing of the huit in CD player + Track Select cannot be performed during Random play or scan play. 10 | KDC-W5641U/KDC-W5541U/KDC-W5141U/KDC-W5041U/KDC-W4141/KDC-W4041 B64-3958-00_English_E_rt.indd 10

Menu Operation Menu System Display Setting Setting overview Source Set up the following functions; SAN CO Sd as qi Css] language. Display Setting _ Setting overview Source SOL AUTO Sanlsthescæenoncewhenthe — "SECURITY Referto Setssecuitycode Css] MANUAL* displayed tet changes sr page 1? AUX OFFJONT*T Sets whether to display AUX ŒED “OK Reero Setsthedock ee ON? duringsource selection ADJUST" page 12 POWER OFF ——20W" Tumsofiheponerwhenthe ŒE FAC ONVOF SynchonzngtheDSsaton @ED —60M presettime has apsedinthe time data and this unit lock. Standby mode. FDSPLANT ON'/OFF lumsoffihedisplaywhenno — CDREAD 172 SestheCDreadmode operation performed DENO Reerio Speciesweïtertoemable = DIMMER AUTOY/OFF Dims te display in conuncion QE MODE" pagel3 demonstration with the light sich ofthe : xehide. Factory setting # Function of KDC-W5641U/W5541U/W5141U/WS041U,. “DIMMER* ONVOFF Adjusts the brghiness of = 2 Function of KDC-WA141/W4Q4T the display according to the Function of KDC-W/S641U/WS 14TUAW414 suroundingillumination. Displayed item is depending on currently selected “DOTLINE" ON*/OFF Species whetherto displaythe QE source. The mark in Source column shows the red doted line on the display: source to which the item is displayed SSURE HN Sestheprourouqu ee Can be set in other than standby state. SUB-W SC be set in standby state. FIONEZ® REAR®/ Species the destination of AUX Can be setwile Audio fle source of CD/USB L 1 {excluding iPod) FRONT input sound whenthe Dual Zone Eee h function is tumed on. an be set wie Tuner source. Can be set during FM reception. SUPREME" ON'/OFF … lums ON/OFF the Supreme Can be set while accessing AUX source. function. —" : Can be set during all sources. PREUS OF lumsOW/OFteNewsBulein — = OM Automatic Reception function 1 Enter Menu mode and sets the news bulletin Press the [M.JOG] button for at least 1 second. interupt disabled time. *MENU"is displayed! PLOCALS" ONPOFF On sions whose reception is 2 Select the menu item good search au seck Push the Control knob towards up or down. AUTOI*/ Selects the tuning made of 3 Set the menu item AUTO2/ … theredio Push the Control knob towards right or left. MANUAL 4 Exit Menu mode NF ON/OFE When station reception is poor, automatically switches tothe Press the [MJOG] button. station that is broadcasting the ni ne certhesame RDS + Refer to the respective page for information on how ta Demon set the items with reference page number. REGIONAL ON'/OFF Setswethertoswitch1o te 2 ZONE2' displayed when “2ZONE”in <Audio Setup> Station only in the specific region (page 6) is set to "ON ing the”AF" control + Refer to the <Appendix> (page 16) for the details of the APS" ONOF Wrentrffcinformatonsttion menu items. reception is poor, automatically Searches for a sttin that an be received bete. "MONO" OVOF Rechesaseeobmadastintte ŒD mono mode. PRANESET Refrto Setsthe display when suited page 13 to AUX source. I B64-3958-00_English_E_rt.indd 11 English | 11

Menu Operation Security Code When Security Code is set, possibility of theft is reduced because input of Security Code is prompted to turn on the unit once it is turned off. hhen you activate the Security Code function, it cannot be released Note, your Security Code is the 4 digit number entered in yourCar Audio Passport” this package. Select Security Code item during Menu mode Select the "SECURITY SET' display. For how to select menu items, refer to <Menu System>(page 11) 2 Enter Security Code mode Press the Control knob for at least 1 second. When “ENTER"is displayed, *CODE"is also displayed 3 Select the digits to enter Push the Control knob towards right or left. 4 Select the Security Code numbers Push the Control knob towards up or down. 5 Repeat steps 3 and 4, and complete the Security Code. 6 Confirm the Security Code Press the Control knob for at least 3 seconds. When *RE-ENTER"is displayed, "CODE"is also displayed 7 Do the step 3 through 6 step operation, and reenter the security code. “APPROVED"is displayed The Security Code function activates. + Ifyou enter a Cade different from your Security Code, you have to start over from step 3. 8 Exit Security Code mode Press the [M.JOG] button. Entering Security Code The Security Code is required to use the audio unit when the unit is first used after removed from the battery power source or the Reset button is pressed. 1 Turn the power ON. 2 Do the step 3 through 6 step operation, and reenter the security code. “APPROVED"is displayed + Ifan incorrect code is entered,"WAITING"is displayed, and'the input prohibition periods shown in the table below is generated After the input prohibition time lapses,"CODE"is displayed, and you can reenter the code. Number oftimes the Input prohibited time incorrect code was input 1 — 2 5 minutes 3 hour 4 24 hours Manual Clock Adjustment Select Clock Adjustment item during Menu mode Select the*CLOCK ADJUST" display. For how to select menu items, refer to <Menu System>(page 11).

Enter Clock Adjust mode Press the Control knob for at least 1 second. The clock display blinks 3 Adjust the time Push the control knob towards up or down to adjust the hours and right or left to adjust the minutes. 4 Exit Clock adjustment mode Press the [M.JOG] button. + You can de this adjustment when the"SYNC'is set as "OFF: 12 | KDC-W5é41U/KDC-W5541U/KDC-W5141U/KDC-W5041U/KDC-W4141/KDC-W4041 B64-3958-00_English_E_rt.indd 12

Auxiliary Input Display Setting Selects the display below when changing to Auxiliary input source: 1 Select Auxiliary input display setting item during Menu mode Select the*NAME SET" display. For how to select menu items, refer to <Menu System>(page 11). 2 Enter Auxiliary input display setting mode Press the Control knob for at least 1 second. The presently selected Auxiliary input display is displayed 3 Select the Auxiliary input display Push the Control knob towards right or left. 4 Exit Auxiliary input display setting mode Press the [M.JOG] button. + When operation stops for 10 seconds, the name at that time is registered, and the Auxliary input display setting mode closes + The Auxliary input display can be set only when the buil-in auxliary input or the auxilary input of optional KCA-5220A is used. On the KCA-5220, displayed by default Demonstration mode Setting Tuning the demonstration mode ON/OFF. Select Demonstration item during Menu mode Select the*DEMO MODE" display. For how to select menu items, refer to <Menu System>(page 11) 2 Set the Demonstration mode Press the Control knob for at least 2 second. Pressing this button for 2 secondks or longer toggles the setting between "ON" and "OFF 3 Exit Demonstration mode Press the [M.JOG] button. English | 13 B64-3958-00_English_E_rt.indd 13 Se 07.119 4:45:22PM

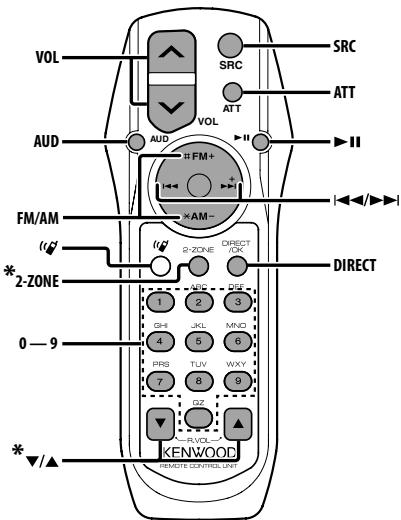

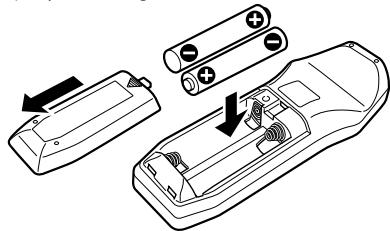

—6— Accessory of KDC-W5641U/KDC-W5141U/KDC-W4141 Basic Operations of remote control In Tuner source Band select BR rrsran Station select LUTTE Recall preset stations LT In CD/USB source Music select near Folder/Disc select Grue Pause/Play en *KDCWS64TU/WST4TU only General control About [ff This button is used when Bluetooth HANDS FREE BOX is connected. For more information, refer to the instruction manual of Bluetooth HANDS FREE BOX. Source select CE ISRC] ÂÀ + Do not set the remote control in hot places such as on the dashboard Volume control ä [VOL] Volume reduce a IATT] When the button is pressed again, the volume returns to the previous level. When the volume is reduced, Loading and Replacing battery the "ATT" indicator flashes Use two"AA"/"R6"-size batteries. Slide the cover while pressing downwards to remove its illustrated In Audio control Insert the batteries with the + and - poles aligned properly following the illustration inside the case. Audio item select CE [AUD] Adjusts the Audio item Divou + Refer to <Audio Control> (page 6) for the operation method, such as the procedures for Audio control and others operations. Dual Zone control Dual zone system on and off a [2-ZONE] Rear channel volume control & NT] 14 | KDC-W5641U/KDC-W5541U/KDC-W5141U/KDC-W5041U/KDC-W4141/KDC-W4041 I B64-3958-00_English_E_rt.indd 14

Although the audio files are complied with the standards listed above, the play maybe impossible depending on the types or conditions of media or device + Playing order of the Audio file In the example of folder/fll tree shown below, the flles are played in the order from (D to (0 co) © foider, Jo Audio file

An online manual about audio iles is put on the site, wwwkenwood.com/audiofile/. On this online manual, detailed information and notes which are not written in this manual are provided. Make sure to read through the online manual as well In this manual, the word "USB device" is used for flash memories and digital audio players which have USB terminal. + The word “iPod” appearing in this manual indicates the iPod connected with the iPod connection cable (optional accessorÿ). The iPod connected with the iPod connection cable can be controlled from this unit iPods that can be connected with the iPod connection cable are the iPod nano, Fifth Generation iPod, iPod classic, and iPod touch. Other iPads cannot be connected I 864-3958-00_English_E_rtindd 15 About USB device + Ifyou start playback after connecting the iPod, the music that has been played by the iPod is played first. In this case, "RESUMING" is displayed without displaying a folder name, etc. Changing the browse item will display a correct title, etc. + When the iPod is connected to this unit, “KENWOOD'"or "is displayed on the iPod to indicate that you cannot operate the iPod + When the USB device is connected to this unit, it can be charged up provided that this unit is powered - Install the USB device in the place where it wi not prevent you from driving your vehicle properly. + You cannot connect a USB device via à USB hub and Multi Card Reader. + Teke backups of the audio files used with this unit The filles can be erased depending on the operating conditions of the USB device. We shall have no compensation for any damage arising out of erasure of the stored data. + No USB device comes with this unit. You need to purchase a commercially available USB device. + When connecting the USB device, usage of the CA- UIEX (option) is recommended: Normal playback is not guaranteed when a cable other than the USB compatible cable is used. Connecting a cable whose total length is longer than 5 m can result in abnormal playback English | 15

Appendix Menu Glossary + SWPRE (Switching Preout) Switches the preout between rear output ('REAR') and subwoofer output ("SUB-W). SUPREME Technology to extrapolate and supplement with proprietary algorithm, the high-frequency range that is cut off when encoding at low bit rate (less than 128Kbps, Sampling frequency is 44.1kHz) Supplementing is optimized by compression format (AAC, MP3 or WMA] and processed according to bit rate. The effect is negligible with music that is encoded at high bit rate, variable bit rate or has minimal high frequency range. CD READ Sets the method for reading CD. When unable to play special format CD, set this function to “2' to force playing. Note that some music CD may be unplayable even when set to "2 In addition, audio files cannot be played when set to"2' Normally, keep this set to "1" 1: Automatically distinguishes between audio file disc and music CD when playing disc. 2: Forces playing as music CD. + AUX When this is set to ON, AUX source can be selected. ONI: Outputs the sound of external unit connected to the AUX terminal when switched to AUX source. ON2: Activates the attenuator function when switched to AUX source. Turn off the attenuator function when listening to output from external unit, This prevents the noise when no external unit is connected to AUX terminal. OFF: Disables the selection of AUX source. Set to OFF when not using the AUX terminal. NEWS (News Bulletin with Timeout Setting) Automatically receives news bulletin when it Starts, Set the time during which interrupt is to be disabled after start of another news bulletin. Changing "NEWS 00M" to "NEWS 90M'turns this function ON. When this function is ON, the “NEWS” indicator is ON. If news bulletin starts when this function is ON, “TRAFFIC"is displayed and news is received. If"20M" is has been set, reception of another news bulletin will not start for 20 minutes. The news bulletin volume is the same level that was set for Traffic Information. SEEK (Tuning mode select) Select a tuning mode of the radio. uning mode Display Operation Auto seek “AUTO Automatic search for sttlon. Presetstaonseëk “AUTOZ* Sean order ofthe stations inthe Preset memory Manuel MANUAE Normal manual tuning control AF (Alternative Frequency) When the reception is poor, automatically alternate to another frequency broadcasting the same program in the same RDS network with better reception. + RUSSIAN (Russian language setting) When this is set to ON, the following character strings are displayed in Russian: Folder name/ File name/ Song title/ Artist name/ Album name/ KCA-BT100 (optional accessory) ABBTAEX3MMKJNMHON

POWER OFF (Power OFF Timer) Setting the timer to turn this units power OFF automatically when Standby mode continues. Using this setting can save the vehicle battery power. —- Power OFF Timer function is OFF. 20M: Turns the power OFF after 20 minutes. (Factory setting) 40M: Turns the power OFF after 40 minutes. 60M: Turns the power OFF after 60 minutes. ZONE2 (Dual Zone) Set the destination (front speaker "FRONT" or rear speaker REAR") of the sub source (AUX IN) when the Dual Zone function is turned on. DISPLAY If this unit is not operated at least 5 seconds with “OFF selected, the display turns off During a setup mode, the display will not turn off even if 5 seconds lapse. 16 | KDC-W5641U/KDC-W5541U/KDC-W5141U/KDC-W5041U/KDC-W4141/KDC-W4041 I B64-3958-00_English_E_rt.indd 16

B64-3958-00_English_E_rtindd 17 For operating KCA-BT100 To control KCA-BT 100, operate as follows; To make setting for <Selecting the Dialing Mode», select <Menu System> (page 11). Pressing the button for at least 1 second after selecting the "DIALING MODE" item allows you to enter the dialing method selection mode. To exit from dialing method selection mode, press [MJOG] button. To make <Disconnecting a Call>, <Clearing the Disconnection Massage>, and <Rejecting an Incoming call>, press [AUTO] button for at least 1 second Moreover, some displays are different from the description of KCA-BT100 Instruction Manual Displays oFKCA-BTI00 Instruction Actual displays on this unit Manual

BT: Displays the bluetooth connection status. This indicator turns on when a cell-phone is connected to this unit. Tail: Displays the signal strength of cel-phone. &2: Displays the battery level of cell-phone. €2 1 2 nÿ C2 This Product is not installed by the manufacturer of a vehicle on the production line, nor by the professional importer of a vehicle into an EU Member State Information on Disposal of Old Electrical and Electronic Equipment (applicable for EU countries that have adopted separate waste collection systems) Products with the symbol (crossed-out wheeled bin) cannot be disposed as household waste. Old electrical and electronic equipment mms Should be recycled at a facility capable of handling these items and their waste byproducts. Contact your local authority for details in locating a recycle facility nearest to you. Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment. The marking of products using lasers (Except for some areas) CLASS 1 LASER PRODUCT The label is attached to the chassis/case and says that the component uses laser beams that have been classified as Class 1. It means that the unit is utilizing laser beams that are of a weaker class. There is no danger of hazardous radiation outside the unit.

Declaration of Conformity with regard to the EMC Directive 2004/108/EC Manufacture: Kenwood Corpora 2967-3 Ishikawa-machi, Hachioj-shi Tokyo, 192-85. EU Representative Kenwood Electronics Europe BV Amsterdamseweg 37, 1422 AC UITHOORN, The Netherlands

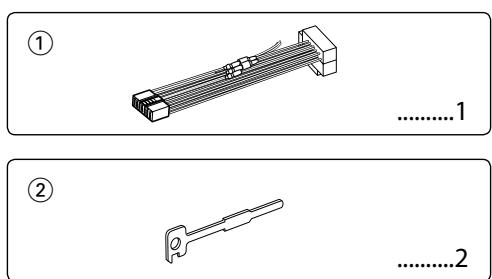

Accessories Installation Procedure To prevent short circuits, remove the key from the ignition and disconnect the © terminal of the battery. Make the proper input and output wire connections for each unit. Connect the wire on the wiring harness. Take Connector B on the wiring hamess and connect it to the speaker connector in your vehicle. Take Connector À on the wiring harness and connect it to the external power connector on your vehicle. Connect the wiring harness connector to the unit. Install the unit in your car. Reconnect the © terminal ofthe battery. Press the reset button.

+ Mounting and wiring this product requires skills and experience. For safety sake, leave the mounting and wiring work to professionals Make sure ta ground the unit to a negative 12V DC power supply. Do not install the unit in a spot exposed ta direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing Do not use your own screws. Use only the screws provided. I you use the wrang screws, you could damage the unit Ithe power is not tumed ON (‘PROTECT"Is displayed), the speaker wire may have a short-circuit or tauched the chassis of the vehicle and the protection function may have been activated, Therefare, the speaker wire should be checked Make sure that all wire connections are securely made by inserting jacks until they lock completely. I your vehicles ignition does not have an ACC position, or ifthe ignition wire is connected to à power source with constant voltage such as a battery wire, the power will not be linked with the ignition (Le, it will not turn on and off along with the ignition). f you want to link the units power 8 w

Accessories/ Installation Procedure with the ignition, connect the ignition wire to a power source that can be tumed on and off with the ignition key. Use a commercially available conversion connector if the connector does not fi in the vehicle connector. Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminal. Ithe console has a lid, make sure to install the unit so that the faceplate will not hit the lid when closing and opening, Ifthe fuse blows, first make sure the wires aren't touching to cause a short circuit, then replace the old fuse with one with the same rating. Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the © wires or ground them to any metal part in the car. + After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly. Mount the unit so that the mounting angle is 30° or less. About CD players/disc changers connected to this unit Kenwood disc changers/ CD players released in 1998 or later can be connected to this unit. Refer to the catalog or consult your Kenwood dealer for connectable models of disc changers/ CD players Note that any Kenwood disc changers/ CD players released in 1997 or earlier and disc changers made by other makers cannot be connected to this unit. Connecting unsupported disc changers/CD players to this unit may result in damage: Set the “O-N"Switch to the “N” position for the applicable Kenwood disc changers/ CD players. The functions you can use and the information that can be displayed may differ depending on the models being connected 18 | KDC-W5641U/KDC-W5541U/KDC-W5141U/KDC-W5041U/KDC-W4141/KDC-W4041 I B64-3958-00_English_E_rt.indd 18

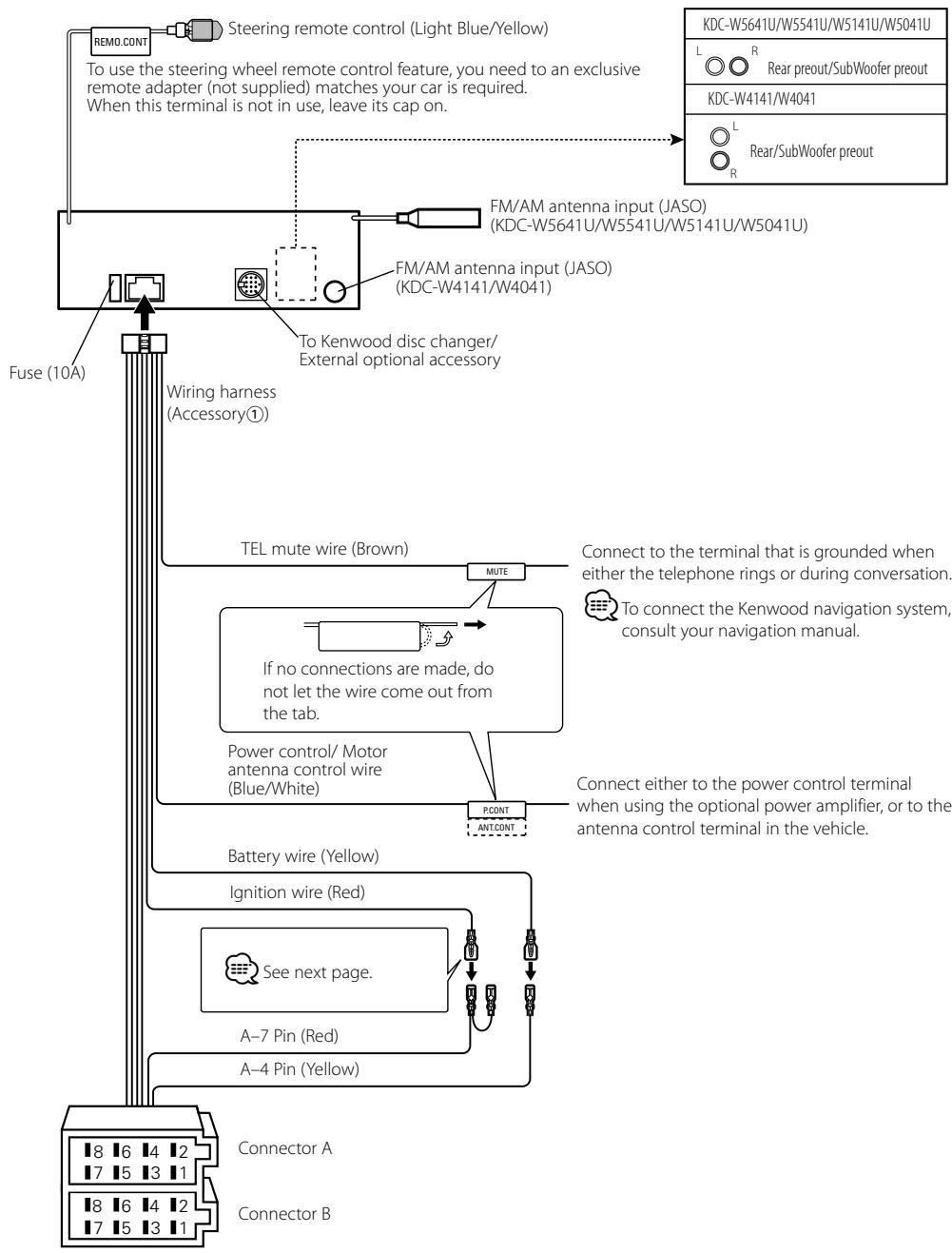

—6— Connecting Wires to Terminals x supplied) matches your car is required. not in use, leave its cap on. (KDC-W5641 FM/AM ar (KDC-W4 41ANAOÀ 1) To Kenwood disc changer/ External optional accessory Fuse (10Â) Wing harness Accessory@D) TEL mute wire (Brown) If no connections are made, do not let the wire come out from the tab. Power control/ Motor antenna control wire {Blue/Wnite) Battery wire (Yellow) Ignition wire (Red) See next page. A7 Pin (Red) A-4 Pin (Yellow) Connector A BEL CAEN ENT CAR ENT Connector B B64-3958-00_English_E_rt.indd 19 KDC-WSGAIUNSSATUANS TATUANSOATU

© © fear preout/Subloofer preout RDC

Rear/Subgoer preout FM/AM antenna input (JASO) UAWSS4TU/WS 141 U/WS041U) “enna input (JASO) Connect to the terminal that is grounded when either the telephone rings or during conversation. ET connect he Kenwood navigation system, consul your navigation manual Connect either to the power control terminal when using the optional power amplifier, or ta the antenna control terminal in the vehicle. English | 19

—6— Connecting Wires to Terminals Connector Function Guide A WARNING Pin Numbers for [Cable Colour [Functions Connecting the ISO Connector ISO Connectors The pin arrangement for the ISO connectors depends on External Power the type of vehicle you drive. Make sure to make the proper fconnector connections to prevent damage to the unit. A î a pren | The default connection far the wiring hamess is described in A Pen D pos rontrol [ below. the ISO connecter pins are set as described in [2] Pa AR | on (ACC) or [5], make the connection as illustrated! fe Éek Earth (Ground) Please be sure to reconnect the cable as shown [2] below to É install this unit to the Volkswagen vehicles etc. onnection Speaker Connector fault setting) The A-7 pin (red) ofthe vehicles B+ Purple Rear Right (+) ISO connector is linked with the ignition, and the A- B2 Purple/Black Rear Right (-) 4 pin (yellow) is connected to the constant power 83 Gray Front Right (4) supply. 84 Gray/Black Front Right (-} Ignition cable (Red) A7 Pin (Red) ss White Front Left (+) © + B-6 White/Black Front Left (-) LES (me Menicie, B7 Green Rear Left (+) 2e + me N be Green/Black er Left C3 Battery cable (Yellow) A4 Pin (Yellow) he A-7 pin (red) of the vehicle‘ 150 connector is connected to the constant power supply, and the A4 pin (yellow) is linked to the ignition. Ignition cable “Function of KDC-WS64TU/AWSS41UANS141UASOATU. (Red) A7 Pin (Red) Unit (me) Vehicle Battery cable A4 Pin (Vellow) (ellow) he A4 pin (yellow) of the vehicle ISO connector is not connected to anything, while the A-7 pin (red) is connected to the constant power supply (or both the A-7 (red) and A-4 (yellow) pins are connected to the constant power supply). Ignitin cable (Red) A:7 Pin (Red) Unit Je+ Vehicle Battery cable (Yellow) A:4 Pin (Yellow) + When the connection is made as in [3] above, the units power will not be linked to the ignition key. For that reason, always make sure to turn offthe units power when the ignition is turned of. To link the units power ta the ignition, connect the ignition cable (ACC.red) to a power source that can be turned on and off with the ignition key. 20 | KDC-W5641U/KDC-W5541U/KDC-W5141U/KDC-W5041U/KDC-W4141/KDC-W4041

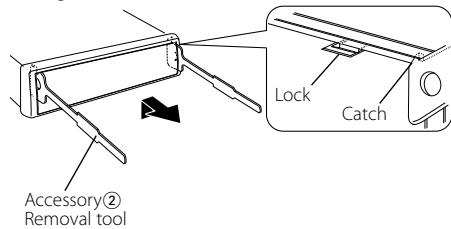

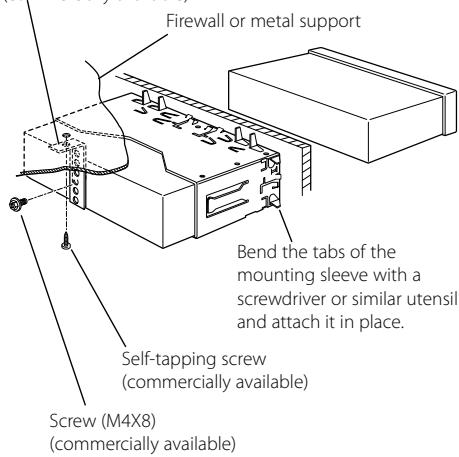

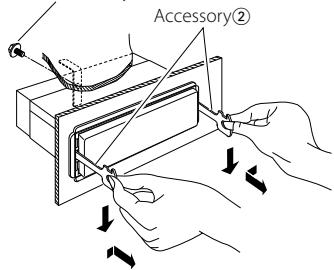

I B64-3958-00_English_E_rt.indd 21 —6— Installation/Removing the Unit Installation Removing the hard rubber frame Metal mounting strap {commercially available) Firewall or metal support Bend the tabs of the mounting sleeve with à screwdriver or similar utensil and attach it in place. Selftapping screw {commercially available) Screw (M4X8) {commercially available) + Make sure that the unit is installed securely in place. Ifthe unit is unstable, it may malfunction (for example, the sound may skip) À Engage the catch pins on the removal tool and remove the two locks on the upper level Upper the frame and pull it forward as shown in the figure. Accessory@) Removal tool 2 When the upper level is removed, remove the lower two locations. + The frame can be removed from the bottom side in the same manner. Removing the Unit T Refer to the section <Removing the hard rubber frame> and then remove the hard rubber frame. 2 Remove the screw (M4 X 8) on the back panel 3 Insert the two removal tools deeply into the slots on each side, as shown. 4 Lower the removal tool toward the bottom, and pull out the unit halfway while pressing towards the inside Screw (MAXE) {commerciall available) Accessory@ + Be careful to avoid injury from the catch pins on the removal tool. 5 Pul the unit all the way out with your hands, being careful not to drop it English | 21

Troubleshooting Guide Some functions of this unit may be disabled by some settings made on this unit. EX : cannot set up the subwoofer. + Cannot set up the High Pass Filter. + Cannot set up the Fader. + No Audio control effect on AUX. D - Preout is not set to subwoofer. ur <Menu System> (page 11) of <Basic Operation> (page 4) PRE" of + The Dual zone function is enabled. ## <Audio Setup> (page 6) EX cannot set up the subwoofer phase. D The Low Pass Filter is set to Through. ex <Audio Setup> (page 6) El : cannot select the output destination of the subsource in the Dual zone. + Cannot adjust the volume of the rear speakers. D The Dual zone function is disabled. #æ <Audio Setup> (page 6) El : cannot register a security code. + Cannot set up Display Illumination Control. D <Demonstration mode Setting> (page 13) is not ned off EX cannot set up the Power-off timer. D <Security Code> (page 12) is not set. What might seem to be a malfunction in your unit may just be the result of slight misoperation or miswiring. Before calling service, first check the following table for possible problems. Tuner source Disc source H the specified disc does not play, but another one plays instead. W The specified CD is quite dirty. «x_ Clean the CD. 7e disc is loaded'in a different slot from that specified. w Eject the disc magazine and check the number for the specified disc

“The disc is severely scratched. #_ Try another disc instead Audio file source H The sound skips when an Audio fil played. W The media is scratched or dirty. ur Clean the media referring to the CD cleaning of the section on <Handling CDS> (page 3) W" The recording condition is bad.” «Record the media again or use another media being 22 | KDC-W56aiu/KDC-W5541U/KDC-W5141U/KDC-W5041U/KDC-W4141/KDC-W4041 B64-3958-00_English_E_rt.indd 22

The messages shown below display your systems condition. TOC ERROR: E-05 E77. E-99: IN (Blink: PROTECT: NA FILE. COPY PRO: READ ERROR NO DEVICE: N/A DEVICE: + No disc has been loaded in the disc: magazine. + The CDiis quite dirty. The CD is upside- down. The CD is scratched a lot. ‘The disc is unreadable. The unit is malfunctioning for some reason +? Press the reset button on the unit. IFtheE- 77" code does not disappear, consult your nearest service center. Something is wrong with the disc magazine. Or the unit is malfunctioning for some reason. + Check the disc magazine. And then press the reset button on the unit. IFthe"E-99" code does not disappear, consult your nearest service center. The CD player section is not operating proper. “ Reinsert the CD. Ifthe CD cannot be ejected or the display continues to flash even when the CD has been properly reinserted, please switch off the power and consult your nearest service center. The speaker wire has a short-circuit or touches the chassis ofthe vehicle, and then the protection function is activated + Wire or insulate the speaker cable properly and press the reset button. If the PROTECT" code does not disappear, consult your nearest service center. An Audio file is played with a format that this unit can't support. A copy-protected file is played. The file system of the connected USB device is broken. + Copy the files and folders for the USB device again. I the error message is still displayed, initialize the USB device or use other USB devices. The USB device is selected as a source although no USB device is connected + Change the source to any source other than USB. Connect an USB device, and change the source to USB again. An unsupported USB device is connected. + Remove the USB device without entering the remove mode. NO MUSIC DATA/E-15: + The connected USB device contains no playable audio fil. + Media was played that doesnt have data recorded that the unit can play. I B64-3958-00_English_E_rt.indd 23 USB ERROR/USB (Blink): iPod ERROR USB REMOVE: Some trouble may have occurred ta the connected USB device. <> Remove the USB device, then cycle the power switch to ON. the same display is repeated, use another USB device. Connection to the iPod has failed. < Check that the connected iPod is an iPod that is supported. See <About Audio file> {page 15) for information on supported iPods. <> Remove the USB device and then reconnect it. <> Confirm that the software for the iPod is the latest version. The Remove mode has been selected for the USB device/Pod. You can remove the USB device/Pod safely. English | 23

Specifications FM tuner section Frequency range (50 kHz space)

87.5 MHz — 108.0 MHz

Usable sensitivity (S/N = 26d8)

Quieting Sensitivity (S/N = 46dB)

Frequency response (43.0 dB) 30 Hz = 15 kHz Signal to Noise ratio (MONO) 65 dB Selectivity (DIN) (4400 kHz) > 80 dB Stereo separation (1 kHz) 35 d8 MW tuner section Frequency range (9 kHz space) 531 kHz- 1611 kHz Usable sensitivity (S/N = 20d8)

LW tuner section Frequency range 153 kHz 281 kHz Usable sensitivity (S/N = 20d8) 45 UV CD player section Laser diode GaAlAs Digital filter (D/A) 8 Times Over Sampling D/A Converter Bit Spindle speed 500 — 200 rpm (CLV) Wow & Flutter Below Measurable Limit Frequency response (41 dB) 10 Hz 20 kHz Total harmonic distortion (1 kHz)
