LED Mini Party Set - Light effect machine Eurolite - Free user manual and instructions

Product Type	LED lighting effects machine (party set)
Included Units	Flower effect, wash light, UV/strobe bar
Power Supply	100-240 V AC, 50/60 Hz via supplied power adapter (12V/1 A)
Power Consumption (Flower)	8 W
Power Consumption (UV Strobe)	11 W
Power Consumption (Wash)	4 W
LED Type (Flower)	1 x RGB, 9 W
LED Type (UV Strobe)	5 x UV 1 W each, 4 x white 0.5 W each
LED Type (Wash)	1 x R, 1 x G, 1 x B, 1 W each
Dimensions (Flower)	146 x 146 x 160 mm
Weight (Flower)	0.7 kg
Dimensions (UV Strobe)	560 x 40 x 60 mm
Weight (UV Strobe)	0.4 kg
Dimensions (Wash)	190 x 60 x 110 mm
Weight (Wash)	0.3 kg
Max Ambient Temperature	45 °C
Min Distance from Flammable Surfaces	0.5 m
Min Distance to Lighted Object	0.1 m
Protection Class	III
Control	IR remote control (included); sound-to-light, auto, and manual modes
Mounting	Mounting bracket for wall/ceiling/truss; safety bond required for overhead installation
Safety Features	Indoor use only; keep away from water and moisture; not for household lighting
Maintenance	Wipe with soft damp cloth; no solvents; LEDs not replaceable
Battery (Remote)	3 V button cell type CR 2025 (included)
Intended Use	Professional event technology; stage lighting; not for household illumination

Frequently Asked Questions - LED Mini Party Set Eurolite

What is included in the Eurolite LED Mini Party Set?

The set includes three lighting effects: a flower effect, a wash light, and a UV/strobe bar. Also included are power adapters for each unit and an IR remote control.

How do I set up the LED Mini Party Set?

Connect each unit to mains power using the supplied power adapters. The units will power on and enter standby. Use the remote control to operate all three effects simultaneously or individually by aiming at the desired unit's IR sensor.

Can I mount the lights on a ceiling or wall?

Yes, each unit has a mounting bracket suitable for wall or ceiling mounting. For overhead installation, always use a safety bond to secure the device and follow local safety regulations (e.g., EN 60598-2-17).

What modes are available for the flower effect?

The flower effect can operate in auto mode (rotating multicolor beams) or sound-to-light mode (reacts to music via built-in microphone). It also responds to the remote control for color and strobe selection.

How do I control the UV/strobe bar manually?

Use the buttons on the bottom of the unit: the STROBE MODE button cycles through strobe speeds (from off to very fast) and sound control; the UV ON/OFF button toggles the UV LEDs.

Is the LED Mini Party Set suitable for outdoor use?

No, the device is designed for indoor use only. Keep it away from rain, moisture, and high humidity. Operating temperature range is –5 °C to +45 °C.

How do I clean the lights?

Disconnect from power before cleaning. Use a lint-free, slightly dampened cloth to wipe the housing. Never use solvents or abrasive cleaners. The LEDs are permanently installed and cannot be replaced.

What battery does the remote control use?

The remote requires one 3 V button cell type CR 2025. It is pre-installed with an insulating foil; remove the foil before first use. Replace when range decreases.

Can I use this product as household lighting?

No, the LED Mini Party Set is intended for professional event technology (e.g., stage, disco). It is not suitable as permanent household lighting.

What is the total power consumption of the set?

Individual power consumption: flower effect 8 W, UV strobe 11 W, wash light 4 W. Total maximum consumption is 23 W when all units are on. Each is powered by a 12V/1A adapter.

USER MANUAL LED Mini Party Set Eurolite

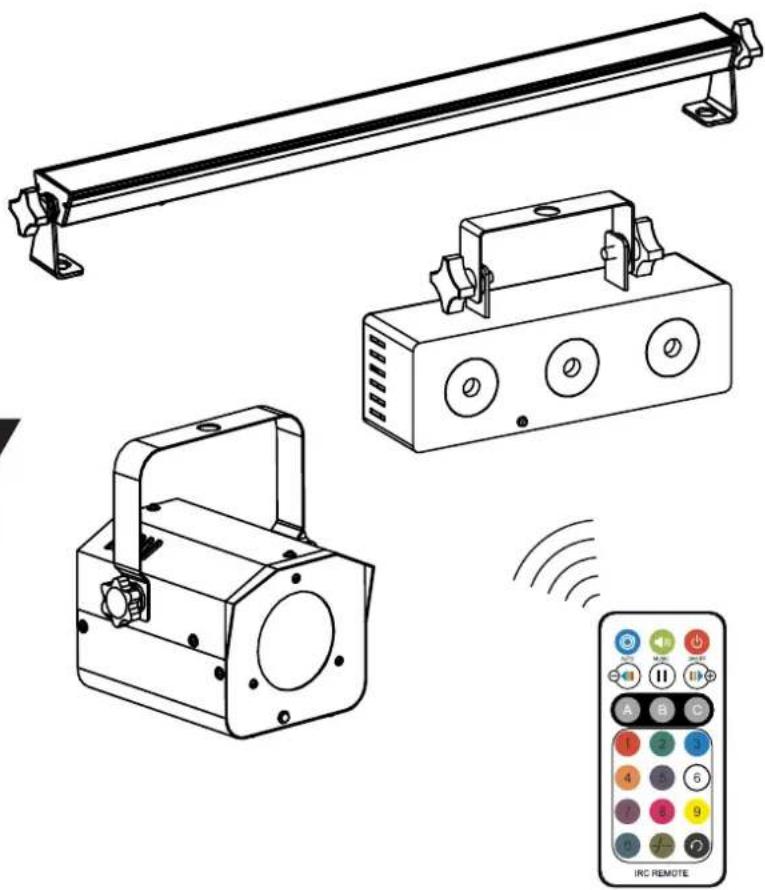

eurolite® LED MINI PARTY SET

Flower effect Wash light UV/strobe bar

Technical line drawings of three different lighting and radar devices with an IRC remote control panel (no text or symbols on the devices themselves)

www.eurolite.de

www.youtube.com/eurolitevideo

www.facebook.com/Eurolitefans

Technical line drawing of industrial lighting components including a beam, projector, and remote control (no text or symbols)

IMPORTANT SAFETY INSTRUCTIONS .... 15

OPERATING ELEMENTS AND CONNECTIONS . 16

MOUNTING 19

OPERATION 20

CLEANING AND MAINTENANCE 20

PROTECTING THE ENVIRONMENT ...... 20

TECHNICAL SPECIFICATIONS ...... 21

D00107355, version 1.0, publ. 30/03/2017

For product updates, documentation, software and support please visit www.eurolite.de. You can find the latest version of this user manual in the product's download section.

© 2017 Eurolite. All rights reserved.

No part of this document may be reproduced in any form without the written permission of the copyright owner. The contents of this document are subject to revision without notice due to continued progress in methodology, design, and manufacturing. Eurolite shall have no liability for any error or damage of any kind resulting from the use of this document.

All trademarks mentioned herein are the property of their respective owners.

INTRODUCTION

Experience Eurolite.

Product videos, suitable accessories, firmware and software updates, documentation and the latest news about the brand. You will find this and much more on our website. You are also welcome to visit our YouTube channel and find us on Facebook.

www.eurolite.de

www.youtube.com/eurolitevideo

www.facebook.com/Eurolitefans

Welcome to Eurolite! Thank you for choosing one of our products. Eurolite is your connection to the world of show with an unparalleled variety of products, both for professionals and beginners.

If you follow the instructions given in this manual, we are sure that you will enjoy this product for a long period of time. This user manual will show you how to install, set up and operate your new Eurolite product.

Users of this product are recommended to carefully read all warnings in order to protect yourself and others from damage. Please keep this manual for future needs and pass it on to further owners.

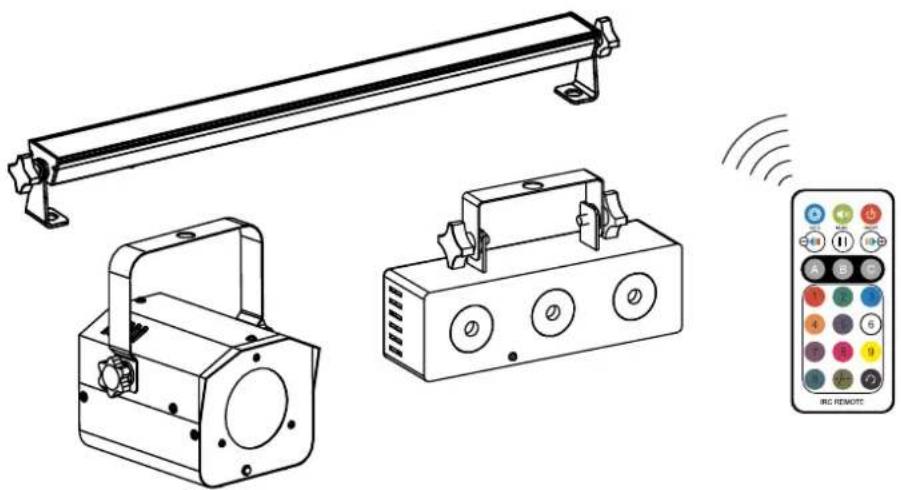

Product features

•3 party light effects in one convenient package
- 1 x flower effect, 1 x wash light, 1 x UV/strobe bar
- Adds fun to any party
- Easy operation thanks to small design
- Ready to use right out of the box via sound-to-light mode
- Flower effect project bright colors in your room
- Wash light covers large area with RGB wash
• 2-in-1 bar pairs UV light effect with white strobe effect
- Easy wireless control of all 3 effects with one IR remote control
- Various show programs in auto and sound mode
- Mounting bracket
- Low power consumption
• Operation via included power units

Technical line drawing of industrial lighting components including a beam, projector, and remote control unit (no text or symbols)

IMPORTANT SAFETY INSTRUCTIONS

CAUTION!

Operating conditions

This device has been designed for indoor use only. Keep this device away from rain and moisture.

DANGER!

Electric shock caused by short-circuit

Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires!

• Please read these operating instructions carefully before using the product. They contain important information for the correct use of your product. Please keep them for future reference.
• Only use the product according to the instructions given herein. Damages due to failure to follow these operating instructions will void the warranty! We do not assume any liability for any resulting damage.
• We do not assume any liability for material and personal damage caused by improper use or non-compliance with the safety instructions. In such cases, the warranty/guarantee will be null and void.
• Unauthorized rebuilds or modifications of the product are not permitted for reasons of safety and render the warranty invalid.
• Keep away from water, high air humidity and heat. The recommended temperature range is -5 to +45 °C.
• This product is not applicable for outdoors.
• This device falls under protection class III. The device must be operated with an appropriate power unit. Always plug in the power unit least. The power plug must always be inserted without force. Make sure that the plug is tightly connected with the outlet.
• Do not touch the power cord and connectors with wet hands as it may cause electric shock.
• To clean the unit, disconnect it from the power source. Only use a soft cloth, never use any solvent.
• Do not expose this product to flammable materials.
• This product is not a toy. Keep it out of the reach of children and pets. Do not leave packaging material lying around carelessly.
• Do not look directly at the light source! Persons with light-sensitive epilepsy may suffer from epileptic seizures or fall unconscious.
• Handle the product with care, it can be damaged by impacts, blows, or accidental falls, even from a low height.

• Lighting effects are not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects.

• Make sure that the installation complies with the standards and rules that apply in your country. The device must be installed securely and prevented from falling down. Always secure it with an appropriate safety bond.

• If this product is no longer working properly or is visibly damaged, take it out of operation and consult your local dealer.
• Do not try to short-circuit, recharge, disassemble or heat batteries (danger of explosion!). Remove the batteries if the device is not used for a longer period of time. Damaged/leaking batteries may cause harm to your skin–use safety gloves.

Intended use

- The LED mini party set consists of 3 lighting effects that fill the room with dancing lights and project colorful light beams onto walls and ceilings. Control is possible via IR remote control.

- This device is designed for professional use in the field of event technology, e.g. on stage. It is not suitable as household lighting.

OPERATING ELEMENTS AND CONNECTIONS

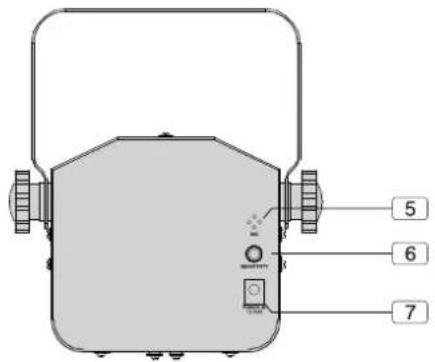

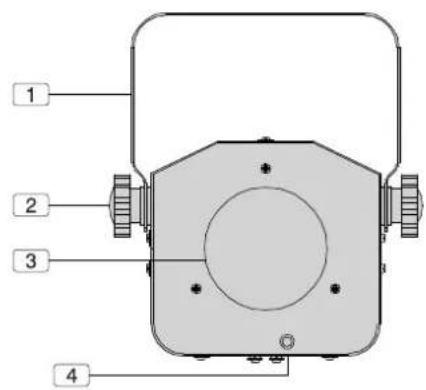

Flower effect

The LED effect light creates constantly rotating multicolor light beams. It can be used with fog or haze to create a dance atmosphere and can operate in either sound-active or automatic modes.

No. Element

1 Mounting bracket

2 Fixation screw

3 Lens with 1 RGB LED

4 Infrared receiver for the remote control

5 Microphone

6 Sensitivity control for the microphone

7 Input for the power adapter

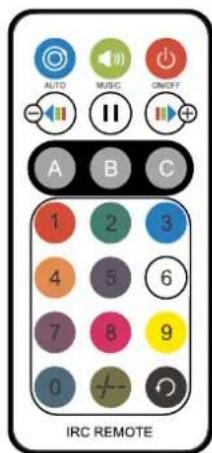

Remote control

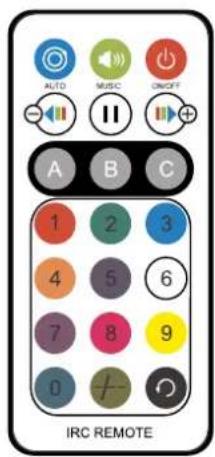

The following remote control buttons are used with the flower effect:

Button	Function Button		Function
	On/off	2	Green
	Auto mode	3	Green, blue
	Sound control	4	Red, green
	Strobe effect	5	Blue
()	Flash rate down	6	Red, green, blue
)	Flash rate up	7	Red, blue
	Green	8	Red, blue
	Red	9	Red, green,

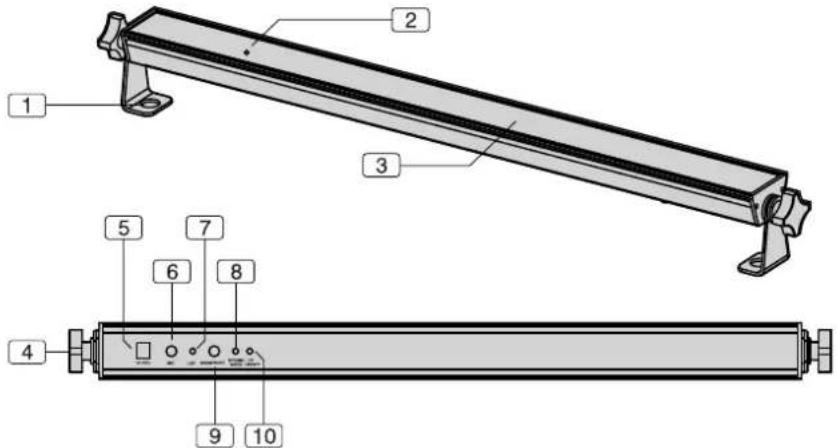

UV/strobe bar

The UV wash and strobe combo is a blacklight strip with the ability to strobe bright white while maintaining a cool UV wash effect. You can manually change the speed of the strobe, or set it to automatic or sound-active modes via the remote control and the operating buttons directly at the unit.

No.	Element
1	Mounting bracket
2	Infrared receiver for the remote control
3	5 UV LEDs and 4 white LEDs
4	Fixation screw
5	Input for the power adapter
6	Microphone
7	Status indicator: flashes when strobe mode is enabled and lights continuously when sound control is selected.
8	Sensitivity control for the microphone
9	UV LEDs on/off
10	Repeated actuation selects the strobe modeMode 1: all LEDs offMode 2: very slow strobe effectMode 3: slow strobe effectMode 4: medium strobe effectMode 5: fast strobe effectMode 6: very fast strobe effectMode 7: sound controlMode 8: all LEDs on at full brightness

Remote control

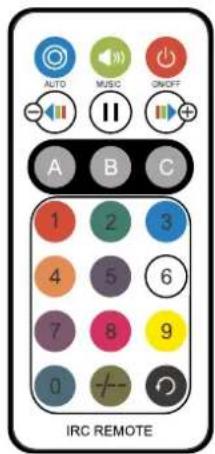

The following remote control buttons are used with the UV/strobe bar:

Button	Function Button		Function
	On/off		Flash rate down
	Auto mode		Flash rate up
	Sound control		UV LEDs on/off
	Strobe effect		White LEDs on/off

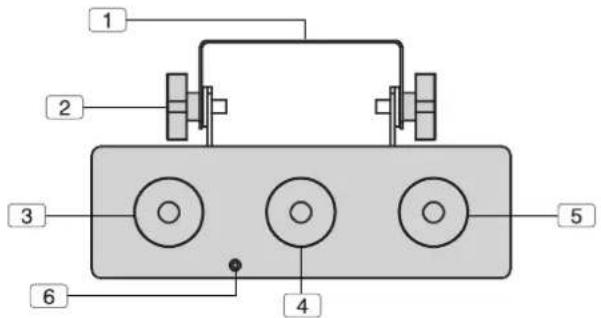

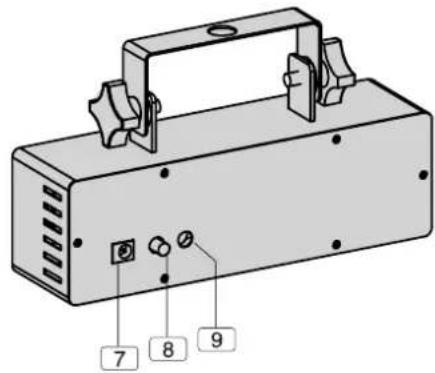

Wash light

The RGB wash effect light is a compact strip color light with sound-active mode and fully automated programs. It includes an all-on and chase option, with red, green, blue or rainbow-chase color options.

No.	Element
1	Mounting bracket
2	Fixation screw
3	Blue LED
4	Green LED
5	Red LED
6	Infrared receiver for the remote control
7	Input for the power adapter
8	Sensitivity control for the microphone
9	Microphone

Remote control

The following remote control buttons are used with the wash light:

Button	Function Button		Function
	On/off		Green
	Auto mode		Green, blue
	Sound control		Red, green
	Strobe effect		Blue
	Flash rate down		Red, green, blue
	Flash rate up		Red, blue
	Green		Red, blue
	Red		Red, green,

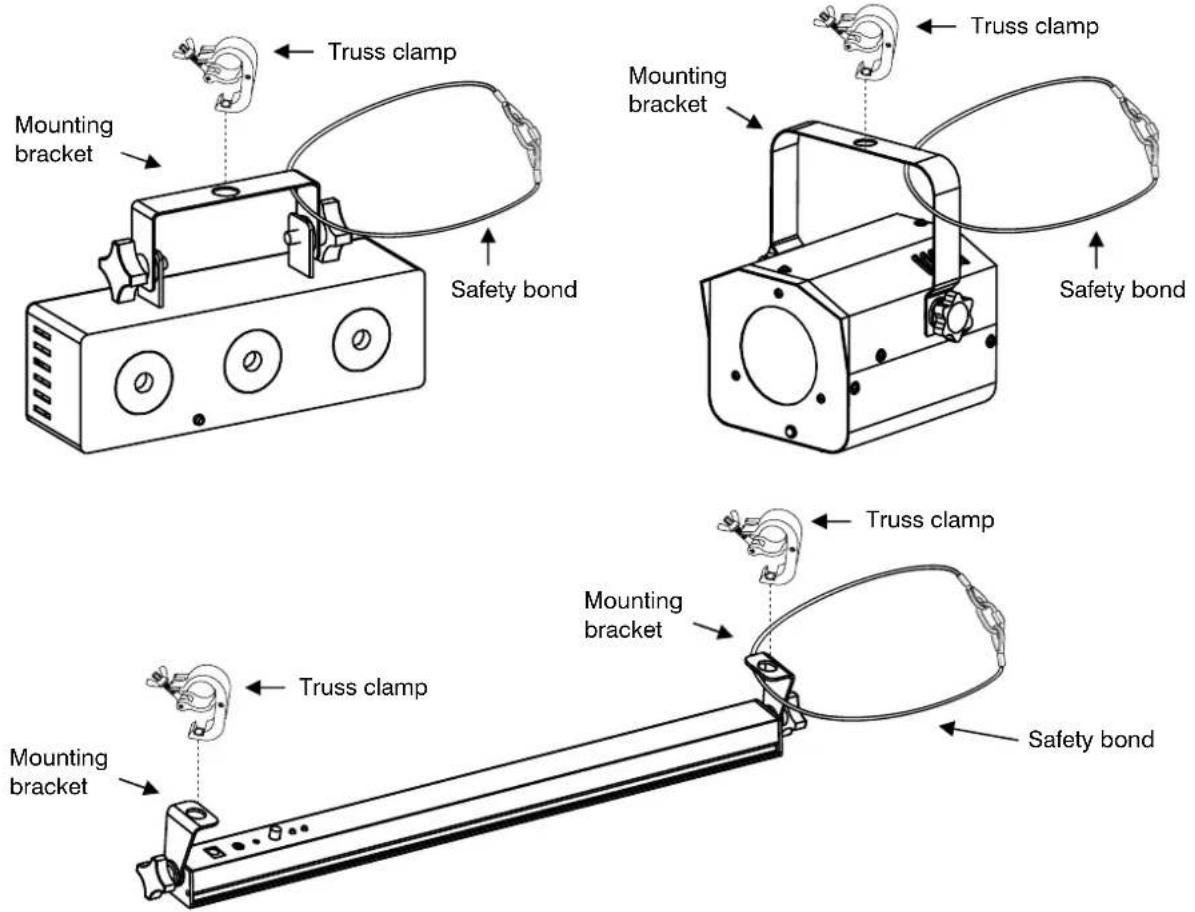

MOUNTING

These products are designed for overhead rigging to a wall or ceiling with the mounting brackets. They can also be fastened to a truss using appropriate clamps. To align the units, release the fixation screws at the mounting brackets, adjust the desired inclination angle and retighten the fixation screws.

WARNING!

Risk of injury caused by falling objects

Devices in overhead installations may cause severe injuries when crashing down. Make sure that the device is installed securely and cannot fall down. Make sure that the installation complies with the standards and rules that apply in your country, in particular EN 60598-2-17.

• The installation of the device has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.
• The device must be additionally secured with e.g. an appropriate safety bond. Fasten the safety bond in such a way that, in the event of a fall, the maximum drop distance of the device will not exceed 20 cm. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.
• You must only use safety bonds and quick links complying with DIN 56927, shackles complying with DIN EN 1677-1 and BGV C1 carbines. The safety bonds, quick links, shackles and the carbines must be sufficiently dimensioned and used correctly in accordance with the latest industrial safety regulations (e. g. BGV C1, BGI 810-3).

OPERATION

Setting up your new effect lights only takes a minute. Simply connect them to the mains via their power adapters provided. Thus, the units are powered on and are in standby mode.

You're ready to go: From a distance, all products will respond to the remote control simultaneously when in close proximity to each other. To select an individual product, the remote must be aimed only at the desired product. The UV/strobe can also be set with the operating buttons at the bottom of the unit. The STROBE MODE button selects the mode for the white strobe LEDs and the UV ON/OFF button switches the UV LEDs on and off.

After the operation, unplug the power adapter to prevent unnecessary power consumption. Remove the battery from the remote control as a precaution if the device is not used for a longer period of time.

Notes

• When actuating a button, always hold the remote control in the direction of the sensor at the unit's front. There must be visual connection between the remote control and the sensor.
• The remote control is supplied with a battery inserted. An insulating foil between the battery and the battery contacts prevents the battery from being discharged during storage. Prior to the first operation remove the foil from the battery support on the rear side of the remote control. Otherwise operation of the remote control is not possible.

- If the range of the remote control decreases, replace the battery. For this purpose, on the rear side of the remote control press the small bar with the groove to the right and at the same time remove the battery support. For operation, one 3 V button cell type CR 2025 is required. When inserting, pay attention that the positive pole of the button cell shows upwards in the support.

CLEANING AND MAINTENANCE

The product is maintenance-free, except for potential battery replacement and occasional cleaning. You can use a lint-free, slightly dampened cloth for cleaning. Refer all servicing to qualified personnel. The LEDs are permanently installed; they cannot be replaced.

PROTECTING THE ENVIRONMENT

Disposal of old equipment

When to be definitively put out of operation, take the product to a local recycling plant for a disposal which is not harmful to the environment. Devices marked with this symbol must not be disposed of as household waste. Contact your retailer or local authorities for more information. Remove any inserted batteries and dispose of them separately from the product.

You as the end user are required by law (Battery Ordinance) to return all used batteries/rechargeable batteries. Disposing of them in the household waste is prohibited. You may return your used batteries free of charge to collection points in your municipality and anywhere where batteries/rechargeable batteries are sold. By disposing of used devices and batteries correctly, you contribute to the protection of the environment.

TECHNICAL SPECIFICATIONS

Power supply:	100-240 V AC, 50/60 Hz via supplied power adapter (12 V/1 A)
Power consumption:
Flower effect:	8 W
UV strobe:	11 W
Wash light:	4 W
LED type:
Flower effect:	1 x RGB, 9 W
UV strobe:	5 x UV, 1 W each and 4 x white, 0.5 W each
Wash light:	1 x R, 1 x G, 1 x B, 1 W each
Max. ambient temperature T_a :	45°C
Max. housing temperature T_c :	55°C
Min. distance from flammable surfaces:	0.5 m
Min. distance to lighted object:	0.1 m

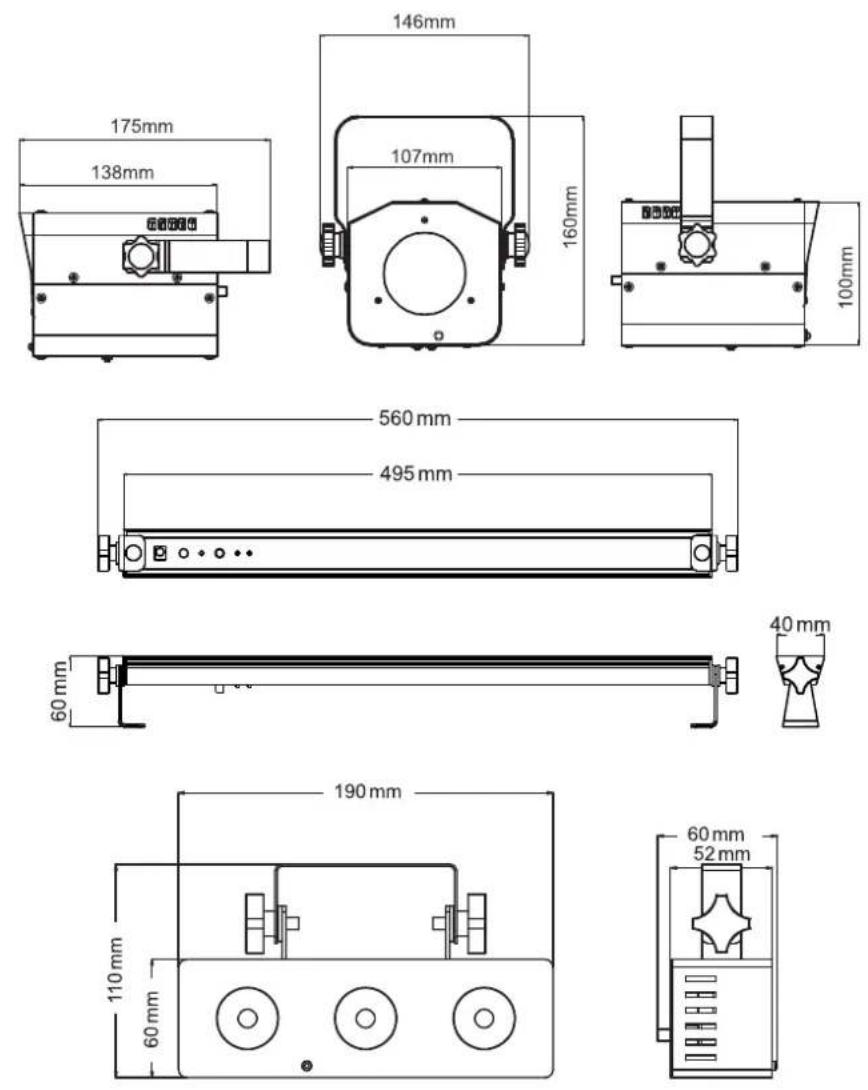

Dimensions and weight:
Flower effect:	146 x 146 x 160 mm, 0.7 kg
UV strobe:	560 x 40 x 60 mm, 0.4 kg
Wash light:	190 x 60 x 110 mm, 0.3 kg

Specifications are subject to change without notice due to product improvements.
