KDC-MP155U - Car stereo KENWOOD - Free user manual and instructions

Product type	CD/MP3/WMA car stereo with FM/AM tuner
Brand	Kenwood
Model	KDC-MP155U
Dimensions (W × H × D)	182 mm × 53 mm × 160 mm
Weight	1.2 kg
Power supply	12 V DC (11-16 V allowable), max consumption 10 A
Max output power	50 W × 4
Rated power (RMS)	22 W × 4 (less than 1% THD)
Speaker impedance	4 Ω to 8 Ω
Supported audio formats (CD)	Audio CD, MP3, WMA
Supported audio formats (USB)	MP3, WMA (FAT16/32)

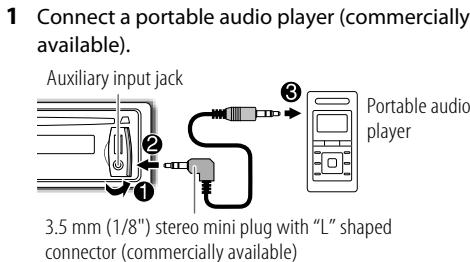

Auxiliary input	Front 3.5 mm mini-jack
Radio tuner	FM (87.5-108 MHz, step 50 kHz), AM (530-1710 kHz, step 10 kHz)
RDS functions	PTY, TI, synchronized clock
Equalizer	Presets (Rock, Pop, Jazz, etc.) and manual bass/mid/treble adjustments
Repeat/shuffle function	Yes (track, folder, disc)
Detachable faceplate	Yes, with cleanable connector
Display settings	Brightness (DISP DIMMER), text scrolling
Maintenance	Clean faceplate with soft dry cloth; clean connector with cotton swab
Security	Faceplate detachment, reset possible
Included accessories	Faceplate, mounting sleeve, trim plate, wiring, extraction keys, screws

Frequently Asked Questions - KDC-MP155U KENWOOD

How to reset the unit?

Press the reset button (located on the faceplate) with a pen. All preset settings will be cleared.

Why does the unit display 'PROTECT' and not work?

This indicates a short circuit on the speaker wires. Ensure the connections are insulated, then reset the unit.

How to play MP3 files from a USB stick?

Insert the USB stick into the front port. The source switches to USB automatically. Use the ◀◀/▶▶ buttons to navigate between files and 1/2 to change folders.

What to do if the disc does not eject?

Press and hold the ▲ button (forced eject) for a few seconds. If that doesn't work, reset the unit.

How to set the clock?

Press the volume knob to enter [FUNCTION], rotate to select [SETTINGS] > [CLOCK] > [CLOCK ADJUST], then set the hours and minutes with the volume knob.

The display shows 'NO DISC' even though a CD is inserted. What to do?

Check that the CD is inserted correctly (label side up) and is clean. Try another compatible CD (finalized CD-R/RW).

Can I connect an iPod/iPhone?

No, the KDC-MP155U model does not support direct iPod/iPhone connection. Use the AUX input or a USB stick.

How to memorize a radio station?

Tune to the desired station, then press and hold a preset button (1 to 6) until 'MEMO' appears.

The sound is muted during a phone call. How to restore the sound?

Press ⏻ SRC to reactivate the sound. The 'CALL' display disappears and sound returns.

How to clean the faceplate connector?

Detach the faceplate and use a dry cotton swab to gently clean the connector. Avoid any contact with liquids.

USER MANUAL KDC-MP155U KENWOOD

Take the time to read through this instruction manual.

Familiarity with installation and operation procedures will help you obtain the best performance from your new CD-receiver.

For your records

Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your Kenwood dealer for information or service on the product.

Model KDC-X397/ KDC-355U/ KDC-255U/ KDC-155U/ KDC-MP255U/ KDC-MP155U/ KMR-355U Serial number

US Residents Only

Register Online

Register your Kenwood product at www.Kenwoodusa.com

CONTENTS

BEFORE USE 2

BASICS 3

GETTING STARTED 4

RADIO 5

CD / USB / iPod 6

AUX 7

PANDORA®

(for KDC-X397/ KDC-355U/ KDC-255U/

KDC-155U / KMR-355U) 8

SiriusXM™

(for KDC-X397/ KDC-355U/ KMR-355U) 8

AUDIO SETTINGS 10

DISPLAY SETTINGS 11

MORE INFORMATION 11

TROUBLESHOOTING 12

SPECIFICATIONS 13

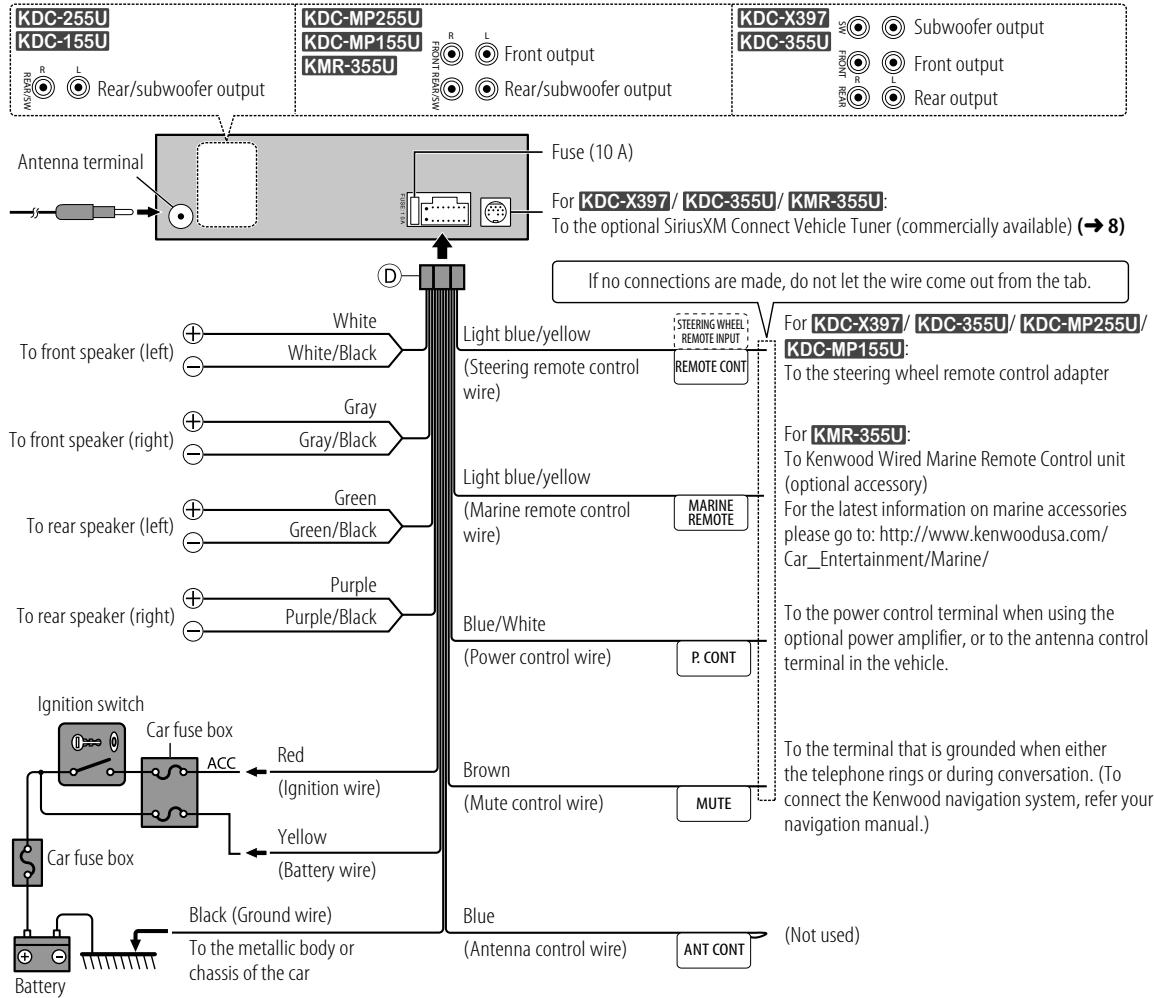

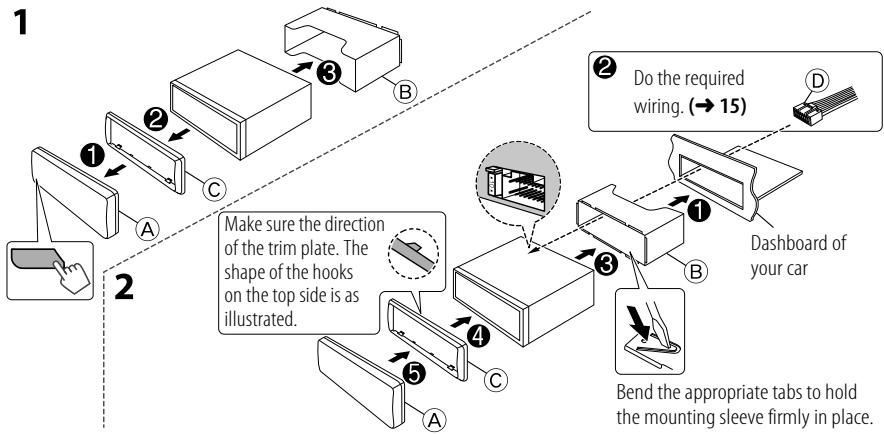

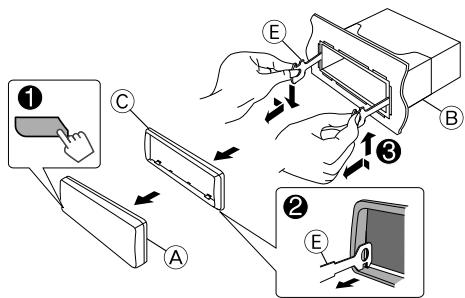

INSTALLATION / CONNECTION 14

How to read this manual

• Operations explained mainly using buttons on the faceplate.
  • [XX] indicates the selected items.
• ( XX) indicates references are available on the stated page number.

BEFORE USE

Warning

Do not operate any function that takes your attention away from safe driving.

Caution

Volume setting:

• Adjust the volume so that you can hear sounds outside the car to prevent accident.
• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.
• Avoid using the USB device or iPod/iPhone if it might hinder driving safety.
• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.
• Never put or leave any metallic objects (such as coins or metal tools) inside the unit, to prevent a short circuit.
• If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate.

General:

Remote control (RC-406):

• Do not leave the remote control in hot places such as on the dashboard.
• The Lithium battery is in danger of explosion if replaced incorrectly. Replace it only with the same or equivalent type.
• The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Keep battery out of reach of children and in original package until ready to use. Dispose of used batteries promptly. If swallowed, contact a physician immediately.

CALIFORNIA, USA ONLY

This perchlorate WARNING applies only to the product sold or distributed in California USA "Perchlorate Material-special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate."

Maintenance

Cleaning the unit: Wipe off dirt on the faceplate with a dry silicon or soft cloth.

Cleaning the connector: Detach the faceplate and clean the connector with a cotton swab gently, being careful not to damage the connector.

Handling discs:

• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.
• Do not use any accessories for the disc.
• Clean from the center of the disc and move outward.
• Clean the disc with a dry silicon or soft cloth. Do not use any solvents.
• When removing discs from this unit, pull them out horizontally.
• Remove burrs from the center hole and disc edge before inserting a disc.

Pure electrical circuit lines without any symbols

Connector (on the reverse side of the faceplate)

Faceplate

Attach

Detach

How to reset

Your preset adjustments will also be erased.

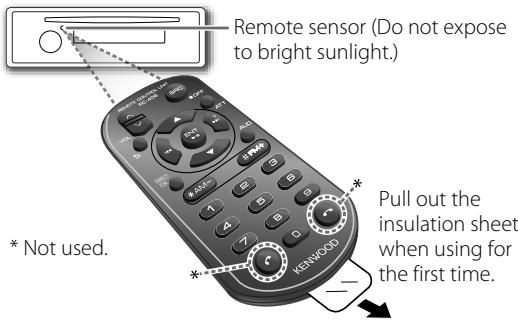

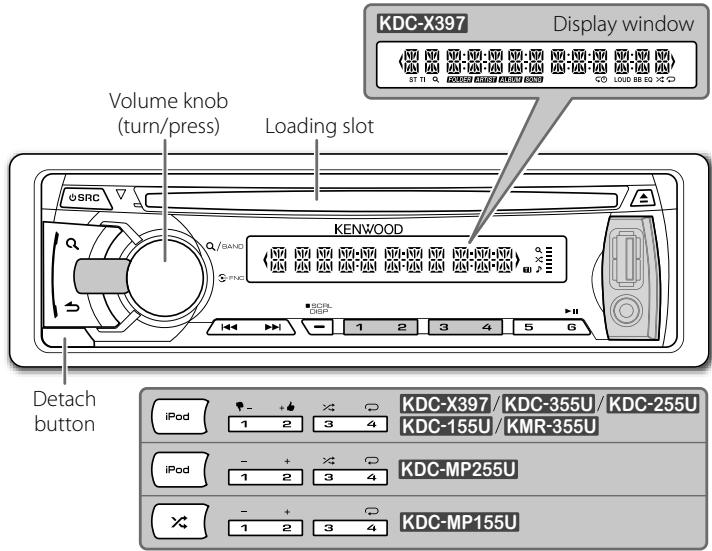

Remote control (RC-406)
(not supplied for KMR-355U)

How to replace the battery

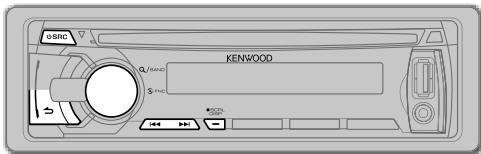

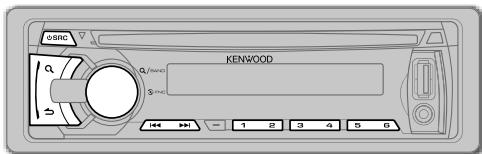

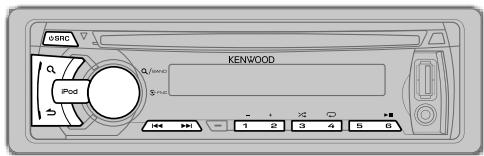

To	Do this (on the faceplate)	Do this (on the remote control)
Turn on the power	Press ⏻ SRC.• Press and hold to turn off the power.*1	Press and hold SRC to turn off the power.(Pressing SRC does not turn on the power.)
Adjust the volume	Turn the volume knob.	Press VOL ∧ or VOL √.
		Press ATT during playback to attenuate the sound.• Press again to cancel.
Select a source	Press ⏻ SRC repeatedly.	Press SRC repeatedly.
Change the display information*2	Press SCRL DISP repeatedly.• Press and hold to scroll the current display information.	(not available)

*1 For KMR-355U: The power will automatically turn off after 20 minutes when in standby mode (Auto Power Off).
*2 For KDC-MP255U/ KDC-MP155U: You can also select to turn off the display information by pressing SCRL DISP repeatedly.

1

Cancel the demonstration

When you turn on the power (or after you reset the unit), the display shows: "CANCEL DEMO" → "PRESS" → "VOLUME KNOB"

1 Press the volume knob.

[YES] is selected for the initial setup.

2 Press the volume knob again.

"DEMO OFF" appears.

For KMR-355U, [DEMO OFF] is selected initially.

2

Set the clock

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [SETTINGS], then press the knob.
3 Turn the volume knob to select [CLOCK], then press the knob.
4 Press the volume knob to select [CLOCK ADJUST]/ [CLOCK ADJ].
5 Turn the volume knob to adjust the hour, then press the knob.
6 Turn the volume knob to adjust the minute, then press the knob. Press I◀◀/▶▶I to move between the hour and minute adjustment.
7 Press and hold ↗ to exit.

(or)

Press and hold SCRL DISP to enter clock adjustment mode directly while in clock display screen.

Then, perform steps 5 and 6 above to set the clock.

3

Set the initial settings

1 Press ⏻ SRC to enter [STANDBY].
2 Press the volume knob to enter [FUNCTION].
3 Turn the volume knob to select [INITIAL SET], then press the knob.
4 Turn the volume knob to make a selection (see the table below), then press the knob.
5 Press and hold ↗ to exit.

- To return to the previous hierarchy, press ↗.

Default: XX

PRESET TYPE	NORMAL/ NORM: Memorizes one station for each preset button in each band (FM1/ FM2/ FM3/ AM). ; MIX: Memorizes one station or SiriusXM channel for each preset button regardless of the selected band or SiriusXM channel.
KEY BEEP	ON: Activates the keypress tone. ; OFF: Deactivates.
PANDORA SRC	(Except for [KDC-MP255U]/ [KDC-MP155U])ON: Enables PANDORA in source selection. ; OFF: Disables. (→ 8)
BUILT-IN AUX/ BUILTIN AUX	ON: Enables AUX in source selection. ; OFF: Disables. (→ 7)
CD READ	1: Automatically distinguishes between audio file disc and music CD. ; 2: Forces to play as a music CD. No sound can be heard if an audio file disc is played.
SWITCH PRE	(Except for [KDC-X397]/ [KDC-355U])REAR/ SUB-W: Selects whether rear speakers or a subwoofer are connected to the line out terminals on the rear (through an external amplifier).
SP SELECT	OFF/ 5/4/ 6 × 9/6/ OEM: Selects according to the speaker size (5 inches or 4 inches, 6×9 inches or 6 inches) or OEM speakers for optimum performance.

F/W UPDATE

F/W UP xx.xx

YES: Starts upgrading the firmware. ; NO: Cancels (upgrading is not activated). For details on how to update the firmware, see: www.kenwood.com/cs/ce/

Search for a station

1 Press ⏻ SRC to select TUNER.
2 Press Q repeatedly (or press *AM- / #FM+ on RC-406) to select FM1/ FM2/ FM3/ AM.
3 Press ◀◀◀ / ▶▶▶ I to search for a station.
• To store a station: Press and hold one of the number buttons (1 to 6).
• To select a stored station: Press one of the number buttons (1 to 6)

Direct Access Tuning (using RC-406) (except for KMR-355U)

1 Press *AM- / #FM+ to select a band.
2 Press DIRECT to enter Direct Access Tuning. “----•--” (for FM) or “----” (for AM) appears on the display.
3 Press the number buttons to enter a frequency.
4 Press |◀◀ / ▶▶▶| (+) to search for a frequency.

- To cancel, press ↗.

- If no operation is done for 10 seconds after step 3, Direct Access Tuning is automatically canceled.

Other settings

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [SETTINGS], then press the knob.
3 Turn the volume knob to make a selection (see the table on the right), then press the knob.
4 Press and hold ↗ to exit.

Default: XX

SEEK MODE	Selects the tuning method for the I◄◄ / ►►I buttons.AUTO1: Automatically searches for a station. ; AUTO2: Searches for a preset station. ;MANUAL: Manually search for a station.
AUTOMEMORY	YES: Automatically starts memorizing 6 stations with good reception. ; NO: Cancels.(Selectable only if [NORMAL] / [NORM] is selected for [PRESET TYPE].) (→ 4)
MONO SET	ON: Improves the FM reception, but the stereo effect may be lost. ; OFF: Cancels.

For KDC-MP255U/ KDC-MP155U:

PTY SEARCH	Selects the available Program Type (see below), then, press I◄◄/►►I to start.
TI	ON: Allows the unit to temporarily switch to Traffic Information. ;OFF: Cancels.
CLOCK
TIME SYNC	ON: Synchronizes the unit’s time to the Radio Broadcast Data System station time. ;OFF: Cancels.
TUNER SET: Selectable only when the source is not TUNER.
TI	ON: Allows the unit to temporarily switch to Traffic Information. ;OFF: Cancels.

• [MONO SET]/ [PTY SEARCH]/ [TI] is selectable only when the source is FM.
  • Available Program Type:
  SPEECH: NEWS, INFORM (information), SPORTS, TALK, LANGUAGE, REL TALK (religious talk), PERSNLTY (personality), PUBLIC, COLLEGE, HABL ESP (spanish talk), MUSC ESP (spanish music), HIP HOP, WEATHER
  MUSIC: ROCK, CLS ROCK (classic rock), ADLT HIT (adult hits), SOFT RCK (softrock), TOP 40, COUNTRY, OLDIES, SOFT, NOSTALGA (nostalgia), JAZZ, CLASSICL (classical), R & B (rhythm and blues), SOFT R&B (soft rhythm and blues), REL MUSC (religious music)

The unit will search for the Program Type categorized under [SPEECH] or [MUSIC] if selected.

- For KDC-MP255U/ KDC-MP155U; If the volume is adjusted during reception of traffic information or alarm, the adjusted volume is memorized automatically. It will be applied the next time traffic information or alarm function is turned on.

Start playback

CD

The source changes to CD and playback starts.

USB

The source changes to USB and playback starts.

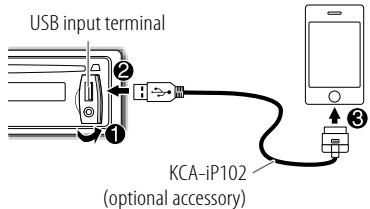

iPod/iPhone (except for KDC-MP155U)

KCA-iP102 (optional accessory)

The source changes to iPod and playback starts.

Press and hold iPod to select the control mode while in iPod source.

MODE ON: From the iPod*1.

MODE OFF: From the unit.

*1 You can still control play/pause, file selection, fast-forward or reverse files from the unit.

√ : Applicable
— : Not applicable

To	Do this	CD	USB	iPod
Pause or resume playback	Press 6 ▶II (or ENT ▶II on RC-406).	√	√	√
Select a track/file	Press I◀◀ / ▶▶▶I (or I◀◀ / ▶▶▶I (+) on RC-406).	√	√	√
Select a folder	Press 1 - / 2 + (or *AM- / #FM+ on RC-406).	^*2	√	—
Reverse/Fast-forward	Press and hold I◀◀ / ▶▶▶I (or I◀◀ / ▶▶▶I (+) on RC-406).	√	√	√
Select a track/file from a list	1 Press Q.2 Turn the volume knob to make a selection, then press the knob.MP3/WMA file: Select the desired folder, then a file.iPod or KENWOOD Music Editor Light (KME Light)/ KENWOOD Music Control (KMC) file*4: Select the desired file from the list (PLAYLISTS, ARTISTS, ALBUMS, SONGS, PODCASTS*5, GENRES, COMPOSERS*5).To return to the root folder (or first file), press number button 5.To return to the previous hierarchy, press ↗.To cancel, press and hold ↗.	√	√	^*3
	To skip songs at a specific ratio, press I◀◀ / ▶▶▶I. (→ 7)	—	^*4	^*3
Repeat play	Press 4 ↔ repeatedly.Audio CD: TRACK/ TRAC REPEAT, REPEAT OFFMP3/WMA file: FILE REPEAT, FOLDER/ FOLD REPEAT, REPEAT OFFiPod or KME Light/ KMC file: FILE REPEAT, REPEAT OFF	√	√	^*3
Random play	Press 3 ✉ or ✉ repeatedly.Audio CD: DISC RANDOM, RANDOM OFFMP3/WMA/iPod or KME Light/ KMC file: FOLDER/ FOLD RANDOM, RANDOM OFF	√	√	^*3
	Press and hold 3 ✉ or ✉ to select “ALL RANDOM.”	^*2	√	^*3

*2 Only for MP3/WMA files.
*3 Applicable only when [MODE OFF] is selected.

*4 Only for files registered in the database created with KME Light/ KMC. (→ 11)
*5 Only for iPod.

Direct Music Search (using RC-406)

(except for KMR-355U)

1 Press DIRECT.
2 Press the number buttons to enter a track/file number.
3 Press ◀◀◀ / ▶▶▶ I (+) to search for music.
- To cancel, press ↗.
- Not available if Random Play is selected.
- Not applicable for iPod, KME Light/ KMC file. (→ 11)

Select a song by name

(except for KDC-MP155U)

While listening to iPod...

1 Press Q.
2 Turn the volume knob to select a category, then press the knob.
3 Press Q again.
4 Turn the volume knob to select the character to be searched for.
5 Press I◀◀ / ▶▶▶I to move to the entry position. You can enter up to three characters.
6 Press the volume knob to start searching.
7 Turn the volume knob to make a selection, then press the knob.
Repeat step 7 until the desired item is selected.
- To search for a character other than A to Z and 0 to 9, enter only "*".
- To return to the previous hierarchy, press ↗.
- To return to the top menu, press number button 5.
- To cancel, press and hold ↗.

Set the skip ratio

While listening to iPod (except for KDC-MP155U) or KME Light/ KMC file...

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [SETTINGS], then press the knob.
3 Turn the volume knob to select [SKIP SEARCH], then press the knob.
4 Turn the volume knob to make a selection, then press the knob.
0.5% (default)/ 1%/ 5%/ 10%: Sets the skip ratio when searching for a song.
(Holding ◀◀◀ / ▶▶◀I skips songs at 10% regardless of the setting made.)
5 Press and hold ↗ to exit.

Muting upon the reception of a phone call

Connect the MUTE wire to your telephone using a commercial telephone accessory. ( 15)

When a call comes in, "CALL" appears.

• The audio system pauses.
- To continue listening to the audio system during a call, press ⏻ SRC. "CALL" disappears and the audio system resumes.

When the call ends, "CALL" disappears.

• The audio system resumes.

Preparation:

Select [ON] for [BUILT-IN AUX] / [BUILTIN AUX]. ( 4)

Start listening

2 Press ⏻ SRC to select AUX.
3 Turn on the portable audio player and start playback.

Set the AUX name

While listening to AUX...
1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [SETTINGS], then press the knob.
3 Turn the volume knob to select [AUX NAME SET]/[AUX NAME], then press the knob.
4 Turn the volume knob to make a selection, then press the knob. AUX (default)/ DVD/ PORTABLE/ GAME/ VIDEO/ TV
5 Press and hold ↗ to exit.

Preparation:

Install the latest version of the Pandora® application into your device (iPhone/ iPod touch), then log in and create an account with Pandora®.

- Select [ON] for [PANDORA SRC]. (→ 4)

Start listening

1 Open the Pandora® application on your device.
2 Connect your device to the USB input terminal.

The source changes to PANDORA and broadcast starts.

About Pandora® internet radio

• Pandora® is only available in the US.
• Because Pandora® is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.
• Some functions of Pandora® cannot be operated from this unit.
• For issues using the application, please contact Pandora at [e-mail].
• If the version of the OS of the connected iPhone is earlier than 4.0, start the PANDORA internet radio application before selecting the PANDORA source.

To	Do this
Pause or resume playback	Press 6 ▶II (or press ENT ▶II on RC-406).
Thumbs up or thumbs down	Press 1 ▶/2 ▶.If thumbs down is selected, the current track is skipped.
Skip a track	Press ▶▶I.
Create a new station	1 Press and hold the volume knob.2 Turn the volume knob to select [FROM TRACK] or [FROM ARTIST], then press the knob.A new station is created based on the current song or artist.
Save a station	Press and hold number button 3, 4 or 5 to store.To select a stored station, press the same button (3, 4 or 5).
Search for a registered station	1 Press Q.Turn the volume knob to make a selection, then press the knob (or press ▲/▼ on RC-406).[BY DATE]: According to the registered date.[A-Z]: Alphabetical order.3 Turn the volume knob to the desired station, then press the knob.

Preparation:

1 Connect the optional SiriusXM Connect Vehicle Tuner (commercially available).

SiriusXM Connect Vehicle Tuner

2 Activate the subscription through www.siriusxm.com/activatenow or call 1-866-635-2349. The Radio ID is required to activate the SiriusXM Connect Vehicle Tuner. The Radio ID is located on the label of the SiriusXM Connect Vehicle Tuner and can also be shown on the unit's display window when you select "Channel 0" after SiriusXM Connect Vehicle Tuner is connected.
3 Press ⏻ SRC to select SIRIUS XM to start updating.

Start listening

1 Press ⏻ SRC to select SIRIUS XM.
2 Press Q repeatedly to select a band.
3 Press and hold Q.
4 Turn the volume knob to select a category, then press the knob. If "ALL CHANNEL" is selected, all the available channels will be shown.

5 Turn the volume knob to select a channel, then press the knob. (or)

Press ◀◀◀ / ▶▶▶ I to search for a channel manually.

- Pressing and holding I◀◀ / ▶▶▶ changes the channel rapidly.

If a locked channel or a mature channel ([MATURE CH] is set to [ON]) is selected, a pass code input screen appears. Enter the pass code to receive the channel.

• To store a channel of the current band: Press and hold one of the number buttons (1 to 6).
• To select a stored channel of the current band: Press one of the number buttons (1 to 6)

Direct Access Tuning (using RC-406) (except for KMR-355U)

1 Press DIRECT to enter Direct Access Tuning.
2 Press the number buttons to enter a channel number, then press ◀◀◀/▶▶▶I (+) to start searching.
- To cancel, press ↗ or DIRECT.

Replay

Press ↩.

Replay starts from the live position (and "◀○" lights up for KDC-X397).

During Replay...

• To pause or resume playback, press 6 ▶II.
• To skip the current song backward/forward, press ◀◀◀ / ▶▶▶.
• To rewind/fast-forward, press and hold ◀◀◀ / ▶▶.
• To exit from Replay and go to live, press ↩.

Other settings

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [SETTINGS], then press the knob.
3 Turn the volume knob to make a selection (see table on the right), then press the knob.
4 Press and hold ↗ to exit.

SEEK MODE	Selects the tuning method for the I◄◄ / ►►I buttons.CHANNEL: Manually search for a channel. ; PRESET: Search for a preset channel of the selected band.
CHANNEL LOCK/ CH LOCK	To unlock settings:1 Turn the volume knob to select a number.2 Press I◄◄ / ►►I to move to the entry position.3 Repeat steps 1 and 2 to enter the current pass code. (Initial pass code is 0000.)4 Press the volume knob to confirm.
CODE SET	1 Turn the volume knob to select a number.2 Press I◄◄ / ►►I to move to the entry position.3 Repeat steps 1 and 2 to enter a new 4-digit pass code.4 Press the volume knob to confirm.5 Repeat steps 1 to 4 to reconfirm the pass code.• Make a note of the new pass code to enter channel lock settings from next time.
CHANNEL EDIT/CH EDIT *	1 Turn the volume knob to select a category, then press the knob.2 Turn the volume knob to select a channel you want to lock, then press the knob. “L” appears in front of the channel number.3 Press → to exit.
CHANNEL CLEAR/CH CLEAR *	YES: Clears all the locked channels. ; NO: Cancels.
MATURE CH	ON: Turns on the Sirius XM-defined lock setting (mature channel). ; OFF: Turns off.• If [ON] is selected, your setting (CHANNEL EDIT/ CH EDIT) is temporary ignored.
SIGNAL LEVEL/ SIGNAL LVL	NO SIGNAL/ WEAK/ GOOD/ STRONG: Shows the strength of the current received signal.
BUFFER USAGE/ BUF USAGE	0% — 100% (0): Shows the memory usage for Replay buffer.

* Displayed only when [MATURE CH] is set to [OFF].

AUDIO SETTINGS

While listening to any source...

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [AUDIO CONTROL]/ [AUDIO CTRL], then press the knob.
3 Turn the volume knob to make a selection (see the table below), then press the knob.
Repeat step 3 until the desired item is selected or activated.

4 Press and hold ↩ to exit.

- To return to the previous hierarchy, press ↗.

Default: XX

SUB-W LEVEL	-15 to +15 (0):	Adjusts the subwoofer output level.
BASS LEVEL	-8 to +8 (0):	Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.)
MID LEVEL	-8 to +8 (0):
TRE LEVEL	-8 to +8 (0):

EQ PRO (for KDC-X397)

BASS ADJUST	BASS CTR FRQ	60/ 80/100/200: Selects the center frequency.
	BASS LEVEL	-8 to +8(0): Adjusts the level.
	BASS Q FACTOR	1.00/1.25/1.50/2.00: Adjusts the quality factor.
	BASS EXTEND	ON: Turns on the extended bass.;OFF: Cancels.
MID ADJUST	MID CTR FRQ	0.5K/1.0K/1.5K/2.5K: Selects the center frequency.
	MID LEVEL	-8 to +8(0): Adjusts the level.
	MID Q FACTOR	0.75/1.00/1.25: Adjusts the quality factor.
TRE ADJUST	TRE CTR FRQ	10.0K/12.5K/15.0K/17.5K: Selects the center frequency.
	TRE LEVEL	-8 to +8(0): Adjusts the level.
PRESET EQ	NATURAL/ USER/ ROCK/ POPS/ EASY/ TOP40/ JAZZ/ POWERFUL: Selects a preset equalizer suitable to the music genre. (Select [USER] to use the customized bass, middle, and treble settings.)
BASS BOOST	B.BOOST LV1/ B.BOOST LV2/ B.BOOST LV3: Selects your preferred bass boost level.;OFF: Cancels.

LOUDNESS	LOUDNESS LV1/ LOUD LV1/ LOUDNESS LV2/ LOUD LV2: Selects your preferred low and high frequencies boost to produce a well-balanced sound at a low volume level. ; OFF: Cancels.
BALANCE	L15 to R15 (0): Adjusts the left and right speaker output balance.
FADER	R15 to F15 (0): Adjusts the rear and front speaker output balance.
SUBWOOFER SET/ SUB-W SET	ON: Turns on the subwoofer output. ; OFF: Cancels.

DETAILED SET/DETAIL SET

HPF	ForKDC-X397/ KDC-355U:THROUGH: All signals are sent to the speakers. ; 100HZ/ 120HZ/150HZ: Audio signals with frequencies higher than 100 Hz/ 120 Hz/ 150 Hz are sent to the speakers.
LPF SUBWOOFER/LPF SUB-W	THROUGH: All signals are sent to the subwoofer. ; 85HZ/ 120HZ/160HZ: Audio signals with frequencies lower than 85 Hz/ 120 Hz/ 160 Hz are sent to the subwoofer.
SUB-W PHASE	REVERSE/ REV (180°)/NORMAL/NORM(0°): Selects the phase of the subwoofer output to be in line with the speaker output for optimum performance. (Selectable only if a setting other than[THROUGH]is selected for [LPF SUBWOOFER]/ [LPF SUB-W].)
SUPREME SET	ON: Creates realistic sound by interpolating the high-frequency components that are lost in MP3/WMA audio compression. ;OFF: Cancels. (Selectable only when playing back an MP3/WMA disc or a USB device, except iPhone/iPod.)
VOLUME OFFSET/VOL OFFSET(Default:0)	-8to+8(for AUX); -8to0(for other sources): Presets the volume adjustment level of each source. (Before adjustment, select the source you want to adjust.)

For KDC-255U/ KDC-155U/ KDC-MP255U/ KDC-MP155U/ KMR-355U:

- [SUB-W LEVEL]/ [SUB-W SET]/ [LPF SUB-W]/ [SUB-W PHASE] is selectable only if [SWITCH PRE] is set to [SUB-W]. (→ 4)

- [SUB-W LEVEL]/ [LPF SUB-W]/ [SUB-W PHASE] is selectable only if [SUB-W SET] is set to [ON].

DISPLAY SETTINGS

1 Press the volume knob to enter [FUNCTION].

2 Turn the volume knob to select [SETTINGS], then press the knob.

3 Turn the volume knob to make a selection (see the table below), then press the knob.

Repeat step 3 until the desired item is selected or activated.

4 Press and hold ↩ to exit.

- To return to the previous hierarchy, press ↗.

Default: XX

DISP & KEY (for KDC-X397 / KDC-355U / KDC-255U / KDC-MP255U)

COLOR SELECT/ COLOR SEL	VARIABLE SCAN/ VARI SCAN/ COLOR 01 — COLOR 24/ USER: Selects your preferred key illumination color.
	You can create your own color (when [COLOR 01] — [COLOR 24] or [USER] is selected). The color you have created can be selected when you select [USER].1 Press and hold the volume knob to enter the detailed color adjustment.2 Press I◄◄ / ►►I to select the color (R/ G/ B) to adjust.3 Turn the volume knob to adjust the level (0 — 9), then press the knob.
DISP DIMMER	ON: Dims the display illumination. ;OFF: Cancels.
TEXT SCROLL	AUTO/ ONCE: Selects whether to scroll the display information automatically, or scroll only once. ;OFF: Cancels.
KEY DIMMER	DIMMER LV1: Dims the key illumination. ; DIMMER LV2: Dims the key illumination darker than DIMMER LV1. ; DIMMER OFF: Cancels.

DISPLAY (for KDC-155U / KDC-MP155U / KMR-355U)

DISP DIMMER	ON: Dims the display illumination. ; OFF: Cancels.
TEXT SCROLL	AUTO/ ONCE: Selects whether to scroll the display information automatically, or scroll only once. ; OFF: Cancels.

MORE INFORMATION

General

• This unit can only play the following CDs:

- Detailed information and notes about the playable audio files are stated in an online manual on the following site: www.kenwood.com/cs/ce/audiofile/

playable files

• Playable Audio file: MP3 (.mp3), WMA (.wma)
• Playable disc media: CD-R/RW/ROM
• Playable disc file formats: ISO 9660 Level 1/2, Joliet, Romeo, Long file name.
• Playable USB device file system: FAT16, FAT32 Although the audio files are complied with the standards listed above, playback maybe impossible depending on the types or conditions of media or device.

Unplayable discs

• Discs that are not round.
- Discs with coloring on the recording surface or discs that are dirty.
- Recordable/ReWritable discs that have not been finalized.
- 8 cm CD. Attempting to insert using an adapter may cause malfunction.

About USB devices

• This unit can play MP3/WMA files stored on a USB mass storage class device.
• You cannot connect a USB device via a USB hub and Multi Card Reader.
• Connecting a cable whose total length is longer than 5 m may result in abnormal playback.
• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1 A.

About iPod/iPhone

Made for

• iPod touch (1st, 2nd, 3rd, and 4th generation)
• iPod classic
• iPod with video
• iPod nano (1st, 2nd, 3rd, 4th, 5th, and 6th generation)
• iPhone, iPhone 3G, 3GS, 4, 4S
• For the latest compatible list and software versions of iPhone/iPod, see: www.kenwood.com/cs/ce/ipod
• If you start playback after connecting the iPod, the music that has been played by the iPod is played first. In this case, "RESUMING" is displayed without displaying a folder name, etc. Changing the browse item will display the correct title, etc.
• You cannot operate iPod if "KENWOOD" or "✔" is displayed on iPod.

About "KENWOOD Music Editor Light" and "KENWOOD Music Control"

• This unit supports the PC application "KENWOOD Music Editor Light" and Android™ application "KENWOOD Music Control."
• When you use an audio file with database information added using the "KENWOOD Music Editor Light" or "KENWOOD Music Control," you can search for a file by title, album or artist name using Music Search.
• "KENWOOD Music Editor Light" and "KENWOOD Music Control" are available from the following web site: www.kenwood.com/cs/ce/

TROUBLESHOOTING

Symptom	Remedy
Sound cannot be heard.	Adjust the volume to the optimum level.Check the cords and connections.
“PROTECT” appears and no operations can be done.	Check to be sure the terminals of the speaker wires are insulated properly, then reset the unit. If this does not solve the problem, consult your nearest service center.
Sound cannot be heard.The unit does not turn on.Information shown on the display is incorrect.	Clean the connectors. (→ 2)
The unit does not work at all.	Reset the unit. (→ 3)
For KMR-355U:The Auto Power Off function (that turns the power off after 20 minutes when in standby mode) does not work.	Make sure [OFF] is selected for [DEMO MODE]. (→ 4)
Radio reception is poor.Static noise while listening to the radio.	Connect the antenna firmly.Pull the antenna out all the way.
“NA FILE” appears.	Make sure the disc contains supported audio files. (→ 11)
“NO DISC” appears.	Insert a playable disc into the loading slot.
“TOC ERROR” appears.	Make sure the disc is clean and inserted properly.
“PLS EJECT” appears.	Reset the unit. If this does not solve the problem, consult your nearest service center.
Disc cannot be ejected.	Press and hold ▲ to forcibly eject the disc. Be careful not to drop the disc when it is ejected. If this does not solve the problem, reset the unit. (→ 3)
“READ ERROR” appears.	Copy the files and folders onto the USB device again. If this does not solve the problem, reset the USB device or use another USB device.
“NO DEVICE” appears.	Connect a USB device, and change the source to USB again.
“COPY PRO” appears.	A copy-protected file is played.
“NO MUSIC” appears.	Connect a USB device that contains playable audio files.
“NA DEVICE” appears.	Connect a supported USB device, and check the connections.
“USB ERROR” appears.	Remove the USB device, turn the unit off, then turn it on again.Try to connect another USB device.

Symptom		Remedy
“iPod ERROR” appears.		Reconnect the iPod.Reset the iPod.
Noise is generated.		Skip to another track or change the disc.
Tracks do not play back as you have intended them to play.		Playback order is determined when files are recorded.
“READING” keeps flashing.		Do not use too many hierarchical levels or folders.
Elapsed playing time is not correct.		This is caused by how the tracks are recorded.
The number of songs contained in the “SONGS” category of this unit is different from the iPod/iPhone.		Podcast files are not counted on this unit as this unit does not support the playback of podcast files.
Correct characters are not displayed (e.g. album name).		This unit can only display uppercase letters, numbers, and a limited number of symbols.
Pandora®	“ADD ERROR”/ “ADD ERR”“SEARCH ERROR”/ “SEARCH ERR”	New station creation is unsuccessful.
	“CHECK DEVICE”/ “CHK DEVICE”	Check the Pandora® application on your device.
	“NO SKIPS”	The skip limit has been reached.
	“NO STATIONS”	No station is found.
	“STATION LIMIT”/“STATION LIM”	The number of registered stations has reached it’s limit.Retry after deleting an unnecessary station on your device.
	“UPGRADE APP”	Make sure you have installed the latest version of the Pandora® application on your device.
SiriusXMTM	“CH LOCKED”	The selected channel is locked. Enter the correct pass code to unlock. (→ 9)
	“CHAN UNSUB”	The selected channel is unsubscribed. Call 1-866-635-2349 to subscribe.
	“CHAN UNAVAIL”	The selected channel is unavailable.
	“CHECK ANTENNA”/“CHK ANTENNA”	Check the antenna and its connection are in good condition.
	“CHECK TUNER”	Make sure the SiriusXM Connect Vehicle Tuner is connected to the unit.
	“NO SIGNAL”	Make sure the antenna is mounted outside the vehicle.
	“SUBSCRIPTION UPDATED – ENTER TO CONTINUE.” / “SUBSCRIPTN UPDATED – ENTER TO CONTINUE.”	Your subscription is updated. Press the volume knob to continue.
	“WRONG CODE”	Make sure you have entered the correct pass code. (→ 9)

SPECIFICATIONS

Tuner	FM	Frequency Range	For KDC-X397/ KDC-355U/ KDC-255U/ KDC-155U/ KMR-355U: 87.9 MHz to 107.9 MHz (200 kHz space) For KDC-MP255U/ KDC-MP155U: 87.5 MHz to 108.0 MHz (50 kHz space)
		Usable Sensitivity (S/N = 26 dB)	11.2 dBf (1.0 μV/75 Ω)
		Quieting Sensitivity (DIN S/N = 46 dB)	19.2 dBf (2.5 μV/75 Ω)
		Frequency Response (±3 dB)	30 Hz to 15 kHz
		Signal-to-Noise Ratio (MONO)	63 dB
		Stereo Separation (1 kHz)	40 dB
	AM	Frequency Range	530 kHz to 1 700 kHz (10 kHz space)
		Usable Sensitivity (S/N = 20 dB)	31 dBμ (36 μV)
CD player	Laser Diode		GaAlAs
	Digital Filter (D/A)		8 times over sampling
	D/A Converter		24 Bit
	Spindle Speed		500 rpm to 200 rpm (CLV)
	Wow & Flutter		Below measurable limit
	Frequency Response (±1 dB)		20 Hz to 20 kHz
	Total Harmonic Distortion (1 kHz)		0.01 %
	Signal-to-Noise Ratio (1 kHz)		For KDC-X397: 110 dB For KDC-355U/ KDC-255U/ KDC-155U/ KDC-MP255U/ KDC-MP155U/ KMR-355U: 105 dB
	Dynamic Range		90 dB
	MP3 Decode		Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode		Compliant with Windows Media Audio

USB	USB Standard	USB 1.1, USB 2.0 (Full speed)
	Maximum Supply Current	DC 5 V = 1 A
	File System	FAT16/32
	MP3 Decode	Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode	Compliant with Windows Media Audio
Audio	Maximum Output Power	50 W × 4
	Full Bandwidth Power	22 W × 4 (at less than 1 % THD)
	Speaker Impedance	4 Ω to 8 Ω
	Tone Action	Bass 100 Hz ±8 dB
		Middle 1 kHz ±8 dB
		Treble 12.5 kHz ±8 dB
	Preout Level / Load (CD)	For KDC-X397: 4 000 mV/10 kΩFor KDC-355U/KDC-255U/KDC-155U/KDC-MP255U/KDC-MP155U/KMR-355U: 2 500 mV/10 kΩ
	Preout Impedance	≤ 600 Ω
Auxiliary	Frequency Response (±3 dB)	20 Hz to 20 kHz
	Input Maximum Voltage	1 200 mV
	Input Impedance	10 kΩ
General	Operating Voltage	14.4 V (11 V to 16 V allowable)
	Maximum Current Consumption	10 A
	Installation Size (W × H × D)	182 mm × 53 mm × 160 mm(7-3/16" × 2-1/8" × 6-5/16")
	Weight	2.65 lbs (1.2 kg)

Subject to change without notice.

Warning

• The unit can only be used with a 12 V DC power supply, negative ground.
• Disconnect the battery's negative terminal before wiring and mounting.
• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.
  • Insulate unconnected wires with vinyl tape to prevent a short circuit.
• Be sure to ground this unit to the car's chassis again after installation.

Caution

• For safety's sake, leave wiring and mounting to professionals. Consult the car audio dealer.
• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.
• Do not connect the wires of speaker to the car chassis, Ground wire (black), or in parallel.
• Mount the unit with the angle of 30^ or less.
• If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle's fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.
• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• If the fuse blows, first make sure the wires are not touching car's chassis, then replace the old fuse with one that has the same rating.

Basic procedure

1 Remove the key from the ignition switch, then disconnect the ⊖ terminal of the car battery.
2 Connect the wires properly.
See Wiring connection. (→ 15)
3 Install the unit to your car.
See Installing the unit (in-dash mounting).
4 Connect the ⊖ terminal of the car battery.
5 Reset the unit. ( 3)

Installing the unit (in-dash mounting)

When installing without the mounting sleeve

1 Remove the mounting sleeve and trim plate from the unit.
2 Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with the supplied screws.

How to remove the unit

1 Detach the faceplate.
2 Fit the catch pin on the extraction keys into the holes on both sides of the trim plate, then pull it out.
3 Insert the extraction keys deeply into the slots on each side, then follow the arrows as shown on the right.

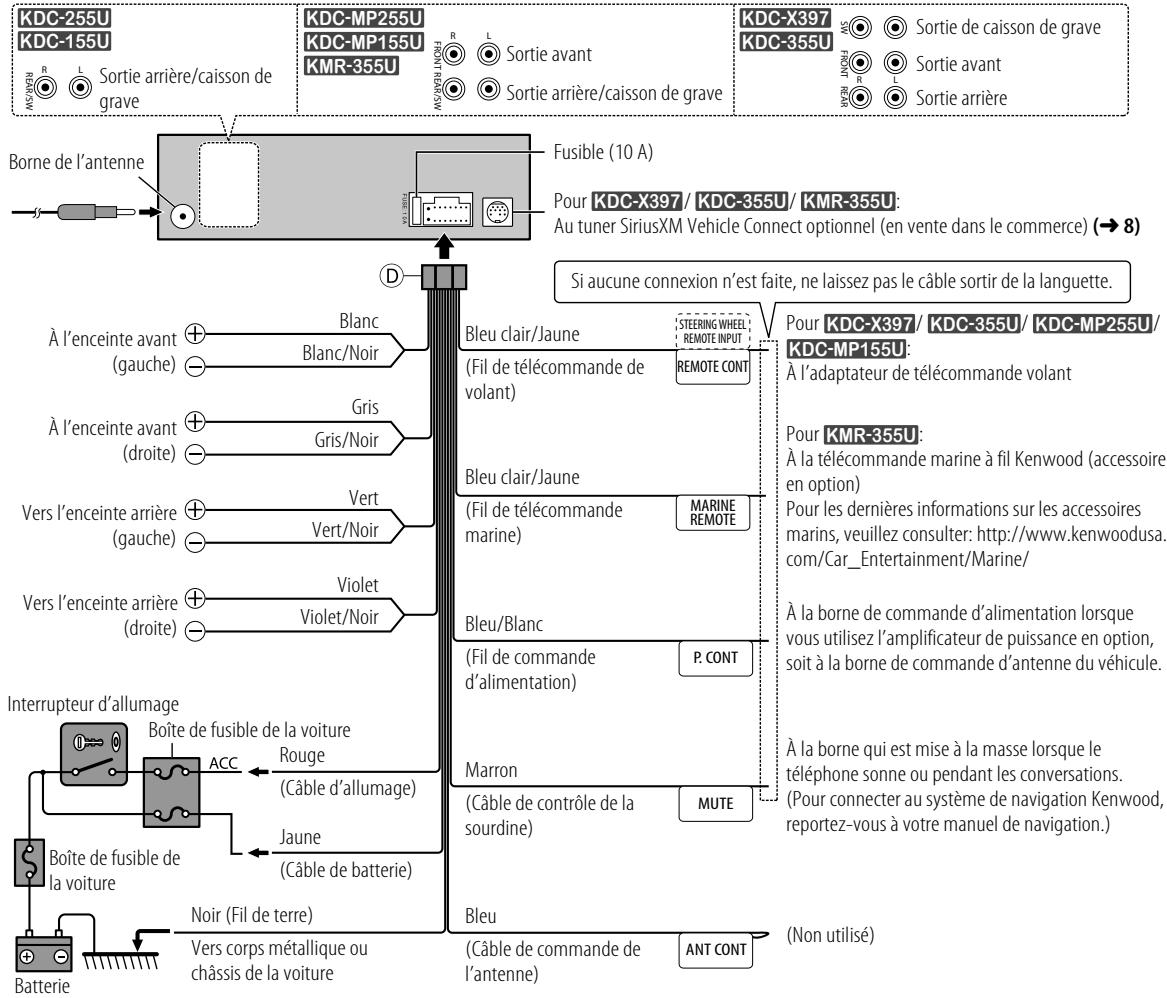

Wiring connection

Part list for installation

Ⓐ Faceplate

(×1)
⑧ Mounting sleeve

(×1)

© Trim plate

(×1)

(D) Wiring harness

(×1)

⑤ Extraction key

(×2)
⑤ Flat head screw

(×4)

G Round head screw

(×4)

TABLE DES MATIERES

-

Diagram of a CD or DVD player with a screen, lens, and control panel (no text or symbols)

Tuner SiriusXM Connect Vehicle

DETAILED SET/DETAIL SET

Connexions

Simple line drawing of a Kenwood industrial device with no text or symbols on the main body

1

DETAILED SET/DETAIL SET

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. In compliance with Federal Regulations, following are reproductions of labels on, or inside the product relating to laser product safety.

JVC KENWOOD Corporation 2967-3, ISHIKAWA-MACHI, HACHIOJI-SHI, TOKYO, JAPAN

THIS PRODUCT COMPLIES WITH DHHS RULES 21CFR SUBCHAPTER J IN EFFECT AT DATE OF MANUFACTURE.

Location : Top Plate

FCC WARNING

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

FCC NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment may cause harmful interference to radio communications, if it is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

• "Made for iPod," and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

• iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
• Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission.
• Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.
  • Android is trademark of Google Inc.

Information on Disposal of Old Electrical and Electronic Equipment (applicable for countries that have adopted separate waste collection systems)

Products with the symbol (crossed-out wheeled bin) cannot be disposed as household waste. Old electrical and electronic equipment should be recycled at a facility capable of handling these items and their waste byproducts. Contact your local authority for details in locating a recycle facility nearest to you. Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment.
