Product Type	Oil-filled radiator
Model	KOR-1318
Power Supply	220-240V ~ 50Hz
Power Consumption	800 / 1200 / 2000 W (3 settings)
Dimensions	Approx. 64 x 26 x 65 cm (height x width x depth)
Weight	Approx. 12 kg
Number of Fin Sections	13
Thermostat Control	Adjustable thermostat with automatic temperature regulation
Heating Elements	3 power switches (Low, Medium, High)
Overheat Protection	Yes, automatic shut-off when overheated
Safety Features	Tip-over protection (if equipped), thermal cut-off
Assembly Required	Yes, caster wheels must be attached before use
Cord Storage	Yes, built-in cord wrap
Portability	Equipped with 4 caster wheels and a handle
Material	Steel body with oil-filled fins
Color	White
Maintenance	Wipe with soft damp cloth; do not immerse
Reparability	Do not open; contact authorized service for oil leaks or repairs
Room Size Recommendation	For rooms up to 25 m² (approx.)
Certifications	CE marked (Low Voltage & EMC directives)
Warranty	2 years from date of purchase (manufacturing defects)

Frequently Asked Questions - KOR-1318 Kunft

How do I assemble the caster wheels on the KOR-1318?

Place the radiator upside down on a soft surface. Attach the U-shaped bolt to the flange between the first and second fins. Insert the threaded ends into the caster mounting plate and secure with wing nuts. Then attach each caster by screwing the spherical nut onto the shaft. Repeat for the rear casters between the last two fins.

What are the power settings and how do I use them?

The radiator has three power switches: I (800W low), II (1200W medium), III (2000W high). Set the thermostat to MAX initially, then turn on the desired combination. Once the room is warm, rotate the thermostat counterclockwise until the light goes off to maintain temperature.

Can I use an extension cord with this radiator?

It is recommended to avoid extension cords as they may overheat and cause a fire risk. Plug the radiator directly into a wall outlet.

How do I clean the oil radiator?

Unplug the radiator and let it cool completely. Wipe the exterior with a soft, damp (not wet) cloth. Do not use detergents or abrasives. Never immerse the radiator in water.

What should I do if the radiator tips over?

The radiator may have a tip-over switch that shuts it off automatically. If not, turn it off and unplug immediately. Inspect for damage; if any, contact customer support. Do not use until checked.

Is it safe to leave the radiator on overnight?

The manual advises never leaving the radiator unattended while in use. It is safer to turn it off when sleeping. The thermostat and overheat protection help, but constant supervision is recommended.

How large of a room can the KOR-1318 heat?

The manual recommends minimum room size of 5 m². For optimal heating, it is suitable for rooms up to approximately 25 m², depending on insulation.

What does the overheat protection do?

The overheat protection system automatically shuts off the radiator if internal parts become excessively hot, preventing fire hazards. Once cooled, it may reset automatically, but check for obstructions.

How should I store the radiator in summer?

Allow the radiator to cool completely. Wind the cord around the cord storage. Store in a clean, dry place. Ensure it is upright to avoid oil leakage.

What should I do if the radiator leaks oil?

Oil leaks require professional repair. Do not attempt to open the radiator. Contact the manufacturer or authorized service agent. Follow local regulations for oil disposal if scrapping.

USER MANUAL KOR-1318 Kunft

White Kuwait-style solar oil heater with cooling fans and wheels (no visible text or symbols)

oil radiator 2000W

kunft.®

oil radiator 2000W

KOR-1318

EN

Dear client,

We thank you for purchasing this product.

This appliance was submitted to several laboratorial tests, which certify its quality. To simplify the use of this appliance, this instruction manual has been provided.

The instructions must ensure a quick and safe use.

Please read carefully the instructions and safety measures described in this manual.

We wish our clients great satisfaction in using their new appliance.

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 5
1.2. Power Cord and Other Cables ...... 6
1.3. Humidity and Water 6
1.4. Cleaning 6
1.5. General Precautions ...... 6

1. OPERATING INSTRUCTIONS ...... 10

2.1. Product Description.... 10
2.2. Using the Product .....11
2.3. Maintenance 12

1. AFTER SALES SERVICE 13

2. ENVIRONMENTAL PROTECTION 13

2

3

kunft®

1. SAFETY INSTRUCTIONS

	WARNING
	Risk of Electric ShockDo Not Open
Warning: to avoid the risk of electric shock, do not remove the cover.The interior does not contain any parts that can be repaired by the user. Ask for assistance by qualified personnel.

Important Warnings

Before using your appliance read this instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance may not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any ma-

oil radiator 2000W

KOR-1318

EN

nual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to a qualified technician for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case please consult the Customer Support Service.

kunft®

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Technical Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product use a dry soft cloth only.

1.5. General Precautions

- Please follow the instructions in the user manual which help to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.

oil radiator 2000W

KOR-1318

EN

• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
  • The product is for household use only.
• Connect the appliance to single phase AC supply of the voltage specified on the rating plate.
• In order to avoid overheating, do not cover the radiator.
• Never leave the radiator unattended while it is in use. Always turn the product to the OFF position and unplug it from the electrical outlet when not in use.

kunft®

• Extreme caution is necessary when any radiator is used by or near children, invalids or elderly people and whenever the radiator is left operating and unattended.
• The radiator must not be located immediately below an electrical socket-outlet.
• Do not run the cord under carpeting and do not cover the cord with throw rugs, runners or alike. Arrange the cord away from traffic areas and where it will not be tripped over.
• Do not operate the radiator with a damaged cord or plug, or after the radiator malfunctions, has been dropped, or damaged in any manner.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person to avoid a hazard.
• Avoid the use of an extension cord as this may overheat and cause a risk of fire.
• Use the radiator in a well-ventilated area. Do not insert or allow objects to enter any ventilation or exhaust opening. To prevent a possible fire, do not block air intakes or exhaust openings in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked. Use the radiator on flat, dry surfaces only.
• Do not place this radiator near flammable materials, surfaces or substances, as there may be a risk of fire. Keep the above flammable materials, surfaces or subs-

oil radiator 2000W

KOR-1318

EN

tances at least 1 m away from the front of the product and keep them away from the sides and rear.

• Do not use the radiator in any areas where petrol, paint or other flammable liquids are stored e.g. Garages or workshops as a hot, arcing or sparking parts inside the radiator.
• Don't use this radiator in the immediate surroundings of a bath, a shower or a swimming pool. Never place the radiator where it may fall into bathtub or other water container.
• This radiator is hot when in use. To avoid burns and personal injury, do not let bare skin touch hot surfaces. If provided, use handles when moving the product.
• Be sure that no other appliances are in use on the same electrical circuit as your product as an overload can occur.
• This radiator is filled with a precise quantity of special oil.
• Repairs requiring opening the oil container are only to be made by the manufacturer or its service agent who should be contacted if there is an oil leakage.
• Regulations concerning the disposal of oil when scrapping the appliance have to be followed.
• The radiator should not be used in a room with less than 5m^2 .
• The cord shouldn't be placed nearby the hot surface of the appliance.

kunft.

2. OPERATING INSTRUCTIONS

2.1. Product Description

1. Handle
2. Thermostat knob
3. Power switch
4. Cord storage
5. Radiant fins
6. Caster wheels

Model N.° Power I Power II Power III
KOR-2689 600 W 900 W 1500 W
KOR-1318 800 W 1200 W 2000 W
KOR-1319 1000 W 1500 W 2500 W

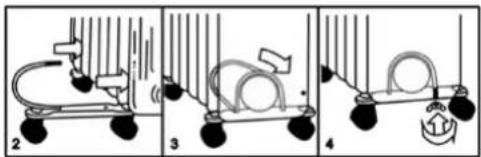

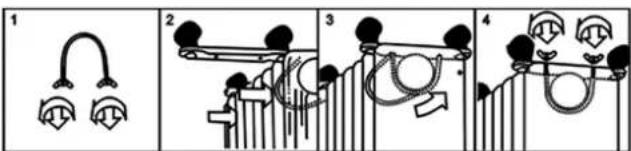

ASSEMBLY INSTRUCTIONS

The radiator is packaged with the feet unattached. You must attach them before operating the radiator.

WARNING: Do not operate without the feet attached. Operate the radiator only in the upright position (feet on the bottom, controls on the top), any other position could create a hazardous situation.

1. Place the radiator body upside-down on a scratch-free location, make sure it is stable and will not fall.
2. Screw off the wing nuts from the U-shaped bolt provided, attach the U-shaped bolt to the U-facing flange between first and second fins (near the front cover).

oil radiator 2000W

KOR-1318

EN

1. To attach the caster mounting plate to the radiator body, you should insert the threaded ends of the U bolt in the holes on the caster mounting plate.
2. Screw the wing nuts back to the U bolt and fasten the wing nut properly.

Note: do not over tighten, which may cause the damage of radiator flange.

1. Screw off spherical nut from the caster, align the shaft to the hole of the caster mounting plate, insert in, and screw on the spherical nut.
2. Repeat 2, 3, 4 and 5 on the rear of radiator for mounting of the rear casters.

Note: the rear casters must be mounted between the end two fins.

2.2. Using the Product

1. Before using the radiator, make sure that it is on a flat and stable surface, as damage may occur if it is placed on an incline or decline surface.
2. Set all the controls to the OFF position and insert the plug into a grounded socket-outlet. Be sure that the plug fits firmly.
3. Rotate the thermostat knob clockwise to the MAX position and switch the radiator on as follow: switch I for low heat, switch II for medium heat and switch III for high heat.
4. When your room reaches the desired temperature, now slowly rotate the thermostat knob counter clockwise until the pilot light goes out. The thermostat can now be left at this setting. As soon as the room temperature has dropped below the set temperature, the unit will switch itself on automatically until the set temperature has been reached again. This way, the room temperature remains constant with the most economical use of electricity.
5. If you want to change the room temperature setting, rotate the thermostat knob clockwise to raise the temperature, or counter clockwise to lower it.
6. This radiator includes an overheat protection system that shuts off the radiator when parts of the radiator get excessively hot.
7. To completely shut the radiator off, turn all the controls to OFF, and remove the plug from the socket-outlet.

kunft®

2.3. Maintenance

1. Always remove the plug from the socket-outlet and allow the radiator to cool down before cleaning it.
2. Wipe the radiator with a soft damp (not wet) cloth.

WARNING:

Do not immerse the radiator in water.

Do not use any cleaning chemicals such as detergents and abrasives.

Do not allow the interior to get wet as this could create a hazard.

1. To store away the radiator, wind the cable round bobbin and store the radiator in a clean dry place.
2. In case of malfunction or doubt, do not try to repair the radiator yourself, it may result in a fire hazard or electric shock.

CONFORMITY WITH DIRECTIVES

This product is CE marked to denote conformity with Directives 2006/95/EC (Low Voltage) and the EMC directive (2004/108/EC), as amended.

oil radiator 2000W

KOR-1318

EN

3. AFTER SALES SERVICE

KUNFT has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Costumer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

4. ENVIRONMENTAL PROTECTION

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

kunft.®
