Product Type	Bagless Vacuum Cleaner for Pet
Power Consumption	700 W
Voltage	220-240 V
Frequency	50/60 Hz
Dust Collection Method	Bagless dust chamber (1.5 L approx.)
Filtration System	Washable HEPA filter and sponge
Attachments Included	Brush tool, crevice tool, extension wand
Floor Brush	Switchable bristles for hard floors and carpets
Power Cord	Automatic rewind, length approx. 5 m
Weight	Approx. 4.5 kg
Dimensions	40 x 25 x 30 cm (approx.)
Noise Level	< 80 dB (estimated)
Safety Features	Thermal protection, automatic shut-off when overheated
Maintenance	Clean HEPA filter twice a year; washable dust chamber
Warranty	2-year manufacturer warranty
Recommended Use	Household, for pet hair and general cleaning

Frequently Asked Questions - BVC4521 Becken

How do I assemble the vacuum cleaner?

Connect the hose to the vacuum by inserting the hose connector into the inlet hole and turning right. Attach the extension wand to the hose, then connect the brush tool to the wand by inserting and rotating.

How do I use the crevice tool?

Attach the crevice tool directly to the hose or extension wand. Use it for cleaning corners and tight spaces.

How do I adjust the floor brush for carpets vs hard floors?

Press the floor brush switch forward to expose bristles for hard floors, and backward to hide bristles for carpets.

How do I empty the dust chamber?

Press the release button on the dust chamber handle, remove the chamber, take it to a bin, push the release button again to open the bottom, and empty the dust. Close the chamber before reattaching.

How do I clean the HEPA filter?

Press the filter lock to open the housing, remove the outlet filter, rotate the HEPA cover to separate, and wash the HEPA filter with water. Let it dry completely before reinstalling. Do not use detergent or a washing machine.

What should I do if the vacuum loses suction?

Check if the dust chamber is full and empty it. Clean the HEPA filter and ensure it is dry. Also check for blockages in the hose or brush.

Can I vacuum water or flammable materials?

No. Do not vacuum water, flammable materials, burning items, or ashes. This can damage the motor and pose a fire hazard.

How do I rewind the power cord?

After use, turn off the vacuum and unplug it. Press the winding device button on the top of the vacuum, and the cord will automatically retract. Guide it to avoid tangles.

What safety precautions should I take?

Do not use if the cord or plug is damaged. Keep away from water and heat. Do not immerse in water. Only use as intended. If abnormal noise or smell occurs, turn off and unplug, then contact support.

What is the warranty period and how do I get service?

The appliance has a 2-year warranty against manufacturing defects. For service, contact the Customer Support at any Worten, Modelo, or Continente store. Do not attempt to repair yourself.

USER MANUAL BVC4521 Becken

Bagless Vacuum Cleaner Pet

Aspirador sin Bolsa Pet Aspirador sem Saco Pet

INSTRUCTIONS MANUAL

MANUAL DE INSTRUÇÕES

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 5
1.2. Power Cord and Other Cables 5
1.3. Humidity and Water 5
1.4. Cleaning 6
1.5. General Precautions 6

2. OPERATING INSTRUCTIONS 7

2.1. Product Description 7
2.2.Product Usage 8
2.3. Maintenance 10

3. TECHNICAL SPECIFICATIONS 12

4. POST-SALE SERVICE 12

5. ENVIRONMENTAL PROTECTION 13

BECKEN

1. SAFETY INSTRUCTIONS

	WARNING
	RISK OF ELECTRIC SHOCKDO NOT OPEN
Warning: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that can be repaired by the user. Ask for assistance from the Customer Support Service.

Important Warnings

Before using your appliance read this instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
- You notice any evidence of damage;
- Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance may not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to the Customer Support Service for assistance..

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervisio.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Technical Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

BECKEN

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product, use a dry soft cloth only.

1.5. General Precautions

- Please follow the instructions in the user manual which will help you to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.

- Read all instructions before using the product.

- Maintenance and service operations are only to be carried out by authorized professionals.

- Any damage caused by manual modifications to the product is not covered by the warranty.

- If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.

- Read this manual thoroughly before using the vacuum cleaner for the first time and keep it for future use.

- Before the first operation, make sure the dust cover is properly installed.

• Make sure the power supply is 220-240 V, 50 Hz.

- Do not vacuum water and flammable materials.

- Do not vacuum burning materials and ashes.

- Do not use the machine without a motor protection filter filled.

- Change the dust bag/HEPA filter immediately when damaged.

- Do not store or use the appliance close in high temperature spaces.

- Do not let children use the appliance in case of danger.

- If abnormal noise, smell, smoke or any other failure or breakage is found during operation, turn off the appliance and unplug it. Then, contact the Customer Support Service for repair. Do not repair it by yourself.

- If the supply cord is damaged, it must be replaced by the manufacture, its service agent or a similarly qualified person in order to avoid a hazard.

2. OPERATING INSTRUCTIONS

2.1. Product Description

1 Brush tool
2 Extension wand
3 Dust chamber
4 Hose connector
5 Crevice brush
6 Release button
7 Back wheel
8 Speed control knob
9 Handle
10 Hose
11 Winding device button
12 Dust bag handle

BECKEN

2.2. Product Usage

Assembly before use

Fig. 1 shows the connection of the hose and the vacuum cleaner. To assemble it, place the hose connector in front of the vacuum cleaner, insert it into the inlet hole and turn right. To disassemble it, turn the hose connection left and then pull it out.

Fig. 2 shows the hose connection and the extension wand. Hold the hose and connect it with the bigger hole of the extension wand.

Fig. 3 shows the connection of the extension wand and the brush tool. Put the extension wand into the brush hole and rotate it to fasten them.

Fig. 4 shows how to check the winding of the power cord. You can pull the power cord out of the appliance and stop it when you see a yellow mark. Make sure the red mark is not out. When your sweep is over, turn off the appliance, unplug it from the socket and press the winding button until the cord is completely in the machine.

Fig.5 shows the power button. Put the plug into the socket and push the power button to control the appliance power.

Illustration of a vacuum cleaner with attached cable and plug, showing mechanical assembly (no text or symbols)

How to use the attachments:

1. As shown in Fig. 10, you can use the crevice brush to clean corners.
2. As shown in Fig. 11, place the crevice brush with the brush side down to clean sofas, curtains and dust on ornaments.

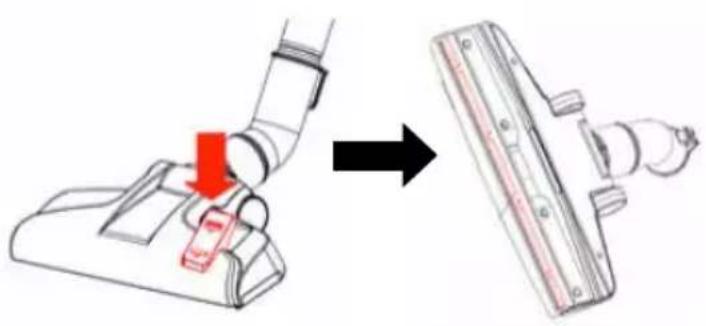

3. As shown in Fig. 12, press the floor brush switch forward to show the bristles, so you can clean floors.
4. As shown in Fig. 13, press the floor brush switch in the opposite direction to hide the bristles, so you can clean carpets.

Fig. 10 Fig. 11 Fig. 12 Fig. 13

BECKEN

2.3. Maintenance

1. The filter should be cleaned twice a year, and when there is obvious dirt on the filter.

2. You must attach the filter properly before operating the vacuum cleaner.

3. The filter can't be cleaned in the washing machine or dried using a dryer.

4. The filter needs to be completely dry before operating the appliance, otherwise it will reduce the suction power and damage the motor.

5. How to maintain the vacuum cleaner:

1) As shown in Fig. 14, press the filter lock to open the filter housing.

2) As shown in Fig. 15, remove the outlet filter.

3) As shown in Fig. 16, rotate the HEPA cover to separate it from the chamber cover.

4) As shown in Fig. 17, separate the HEPA cover from its filter.

5) As shown in Fig. 18, remove any hair logged here before cleaning it.

6) As shown in Fig. 19, wash the HEPA filter.

7) Wash the HEPA cover, the HEPA structure, the outlet sponge and the dust chamber with water without detergent and dry them before use.

8) Place the HEPA structure on the chamber cover and make sure three salient cubes are stuck in the grooves of the dust chamber.

9) Rotate the HEPA structure in the direction of the mark on the chamber cover.

10) Assemble the chamber cover structure and the dust chamber according to the mark outside.

11) Tap the filter rack with your hand slightly.

12) Place the dust chamber back in the appliance. Start by placing the chamber in the right position and then press the handle of the dust chamber. If you hear a click sound, it means it is in place.

Cleaning the dust chamber

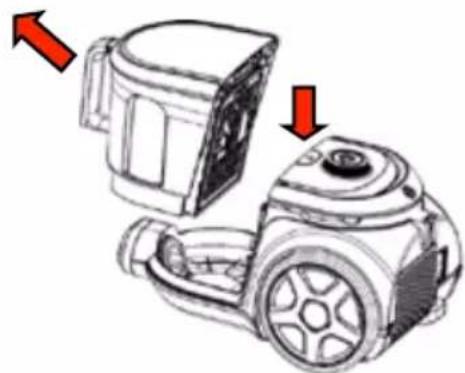

1. As shown in Fig. 6, hold the dust chamber and handle and push the release button.
2. As shown in Fig. 7, remove the dust chamber from the appliance.

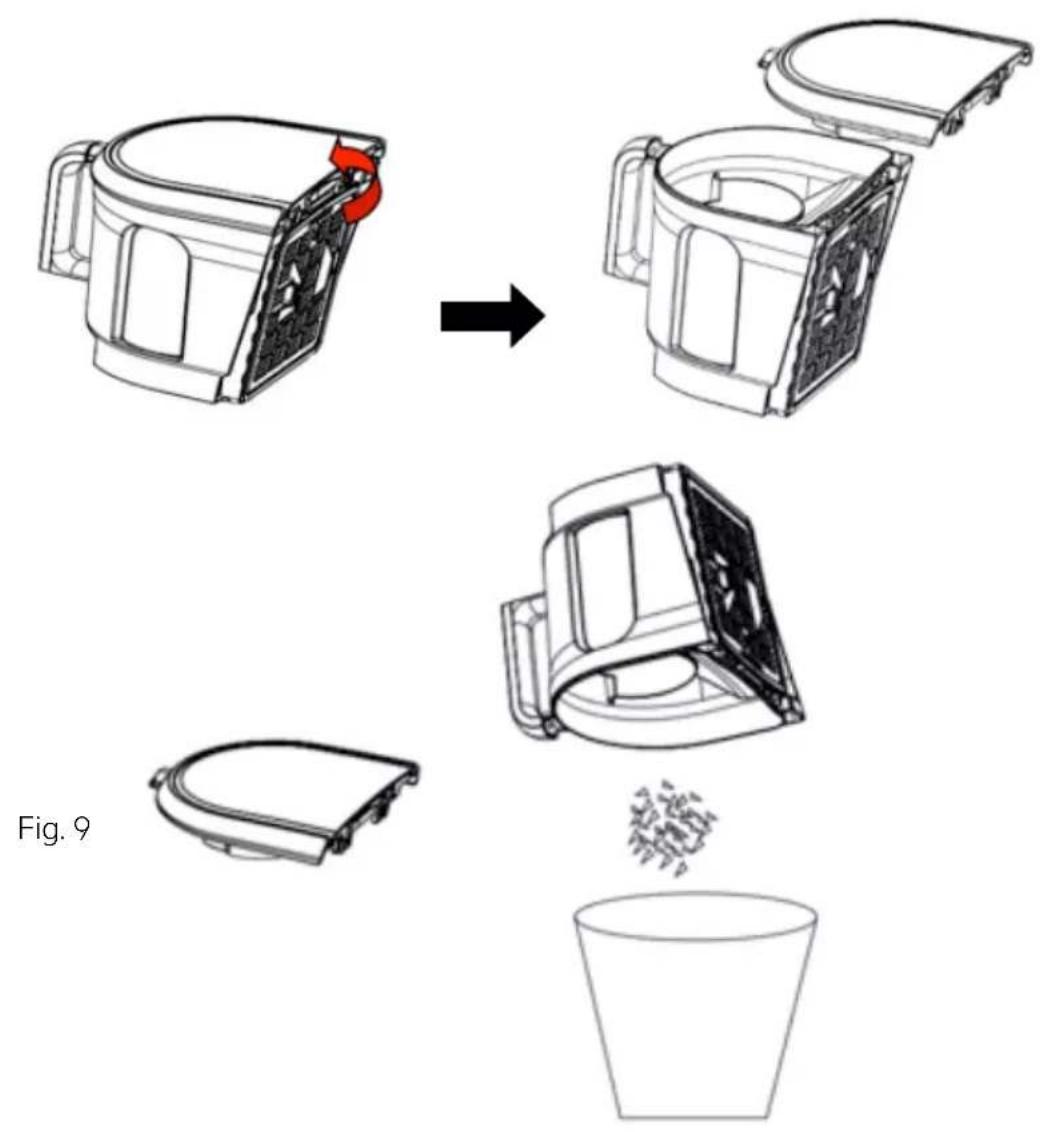

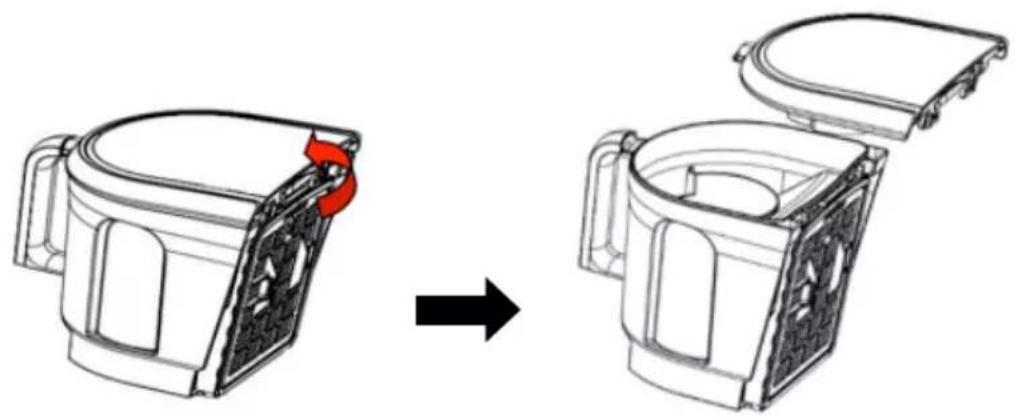

3. As shown in Fig. 8, take the dust chamber to the bin, push the release button to open it and empty the dust and dirt into the bin.
4. As shown in Fig. 9, close the dust chamber after cleaning it.

Line drawing of a vacuum cleaner (no text or symbols)

Fig. 6 Fig. 7

Diagram of a vacuum cleaner with two red arrows indicating assembly or movement (no text or symbols present)

BECKEN

Fig. 8

Diagram showing a device being processed from a left-side component to an open lid, with no visible text or symbols.

Fig. 9

Line drawing of a mechanical device with a curved handle and rectangular body (no text or symbols)

Simple line drawing of a cup with a pile of food items (no text or symbols)

3. TECHNICAL SPECIFICATIONS

220-240 V

50/60 HZ

700 W

4. POST-SALE SERVICE

BECKEN has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Costumer Support Service of any

Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

5. ENVIRONMENTAL PROTECTION

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Symbol of a trash bin crossed with two diagonal lines, no text or labels present

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
