Nitt M200 - Meat Grinder Eldom - Free user manual and instructions

Product Type	Electric Meat Grinder
Model	Nitt M200
Brand	Eldom
Power	400 W
Voltage	220-240 V ~ 50/60 Hz
Dimensions (L x W x H)	30 x 15 x 25 cm
Weight	3.5 kg
Material	Stainless steel and plastic
Feeding Tube Diameter	50 mm
Grinding Plates	Fine (4.5 mm) and coarse (8 mm)
Functions	Meat grinding, sausage stuffing (with included accessories)
Reverse Function	Yes, to clear blockages
Safety Features	Thermal overload protection, non-slip feet, safety switch
Cleaning	Removable parts dishwasher safe; hand wash motor unit
Accessories Included	Cutting blade, 2 grinding plates, sausage stuffing kit, pusher
Spare Parts Available	Yes, blades, plates, and other parts via Eldom service
Warranty	2 years
Certifications	CE, RoHS

Frequently Asked Questions - Nitt M200 Eldom

How do I assemble the meat grinder?

First, attach the grinding head to the motor housing by aligning the notch and twisting clockwise. Then insert the cutting blade and desired grinding plate, secure with the ring nut. Finally, attach the food tray and pusher.

What can I grind with the Nitt M200?

You can grind raw meat (beef, pork, chicken), fish, and vegetables. It is not suitable for bones, nuts, or very hard foods.

How do I clean the meat grinder?

Unplug the device. Disassemble all removable parts (grinding head, blade, plates, tray). Wash them in warm soapy water or the top rack of a dishwasher. Wipe the motor unit with a damp cloth. Do not immerse the motor in water.

What does the reverse function do?

If the grinder gets clogged, press the reverse button to rotate the auger backwards and clear the blockage. Do not use reverse while the grinder is running forward.

Can I grind frozen meat?

It is recommended to use partially thawed meat (still firm but not frozen) to avoid damage. Fully frozen meat can break the blade or motor.

How do I make sausages with the Nitt M200?

Replace the grinding plate with the sausage stuffing attachment. Slide the casing onto the tube, then feed the ground meat mixture through the grinder. The casing will fill with meat.

Why is my grinder overheating?

Overheating may occur if the meat is too tough or if the grinder is used continuously for too long. Allow the motor to cool for 10 minutes between batches. Also ensure the blade and plate are not dull.

Is the cutting blade reversible?

No, the blade is not reversible. Replace it if it becomes dull. Always ensure the sharp edge faces outward when assembling.

Where can I find spare parts?

Spare parts (blades, plates, accessories) are available from Eldom authorized service centers or online retailers. Check the Eldom website for your region.

What is the maximum continuous operating time?

Do not operate the grinder for more than 5 minutes continuously. After 5 minutes, turn it off and let it rest for at least 10 minutes to prevent motor damage.

USER MANUAL Nitt M200 Eldom

Exterior view of a modern electric food grater with a side-mounted blade and handle (no text or symbols visible)

Exploded view diagram of a mechanical assembly with cylindrical components and an arrow indicating direction (no text or symbols)

Please acquaint precisely with whole of this instruction before using the blender for the first time.

1. The power cable must be plugged in the socket with parameters the same as those given in that instruction manual.
2. Do not immerse the cable or the appliance in water.
3. Do not use the appliance outdoors.
4. The appliance is not meant to be used via an external clock or a separate remote control system.
5. Before switching the appliance on, make sure that all of its elements are appropriately assembled.
6. Do not leave your device without supervision.
7. Do not use the appliance for breaking ice, bones and other hard products or to crush nuts, coffee and dried leguminous plants.
8. Always unplug the appliance after operation.
9. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
10. Do not touch the appliance with wet hands.
11. Always pull the plug of the socket before cleaning.
12. Do not exceed the maximum time of continuous operation of the appliance.

13. Do not move during use.

14. Never reach into the feeding tube with your fingers or an object while the appliance is running. Only the pusher is to be used for this purpose.

15. Never use the appliance if the supply cord is damaged. If found dama ged in any way, consult the producer's authorized service centre. The list of service centres is to be found in the appendix and on www.eldom.eu.
16. The appliance can be used only with the originally included accessories.
17. Refer servicing to an authorized service centre. Modifying the appliance or using spare parts or elements other than the original ones is forbidden and can expose the user to hazard.

WARNING

Plastic bag can be dangerous, to avoid danger of suffocation keep this bag away from babies and children.

Only intended for household use.

EN

INSTRUCTION MANUAL

MEAT GRINDER / MEAT GRINDER + SLICER M200/M200ZT

eldom

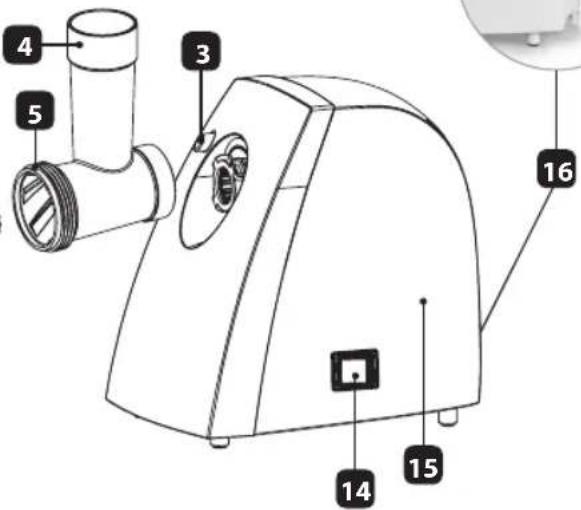

DESCRIPTION

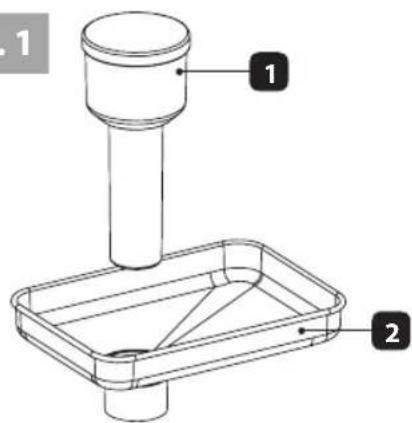

1. Pusher
2. Pan
3. Lock button
4. Hopper
5. Grinding chamber
6. Auger
7. Knife
8. Grinding plates: 3 mm, 5 mm, 8 mm
9. Nut
10. Butcher's attachment
11. Separator
12. Kebbe attachment
13. Stop
14. Switch
15. Body
16. Compartment

FIG. 1

Close-up of a white mechanical component with a metallic bracket and mounting base (no visible text or symbols)

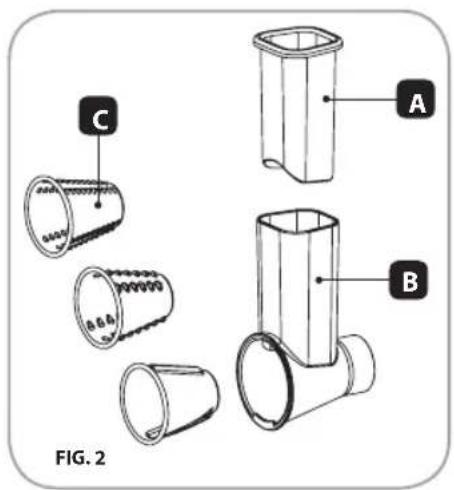

SLICING SET

(ONLY WITH M200ZT)

A. Plug
B. Slicer
C. Blades

TECHNICAL DATA

• power: 400 W
MBP: 700 W
- mains voltage: 220-240 V, \~50 Hz
• maximum time of continuous operation: 30 min.
- break before continuation of operation: 15 min.

INTENDED USE

The appliance is intended for grinding food products, mostly meat.

HOW TO USE

Before the first use:

• read thoroughly this guidebook.
• Make sure that all elements are free of damages.
- Wash the elements that come into contact with food.

OPERATION

• Set the body (15) on flat, hard and stable ground.
  • Make sure that the appliance is disconnected from the mains and the switch (14) is in the position "O".
• Select the required function of the appliance.
• Before starting the appliance, make sure that all its elements have been correctly installed.
• Do not put fingers or any objects into the hopper.
  • If the auger gets stuck, set the switch (14) in the position "R" for 3 to 5 s.
  • After processing the whole portion of ingredients, switch off the appliance and let it stop.
  • After the end of work, disconnect the appliance from the mains.

GRINDING

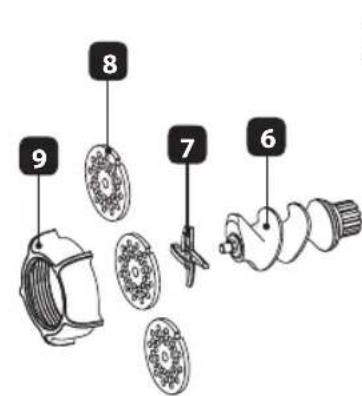

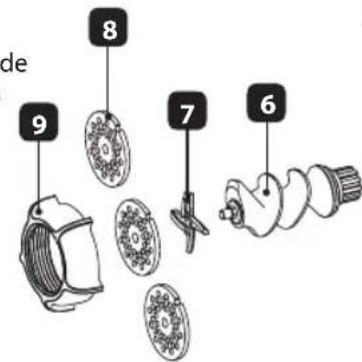

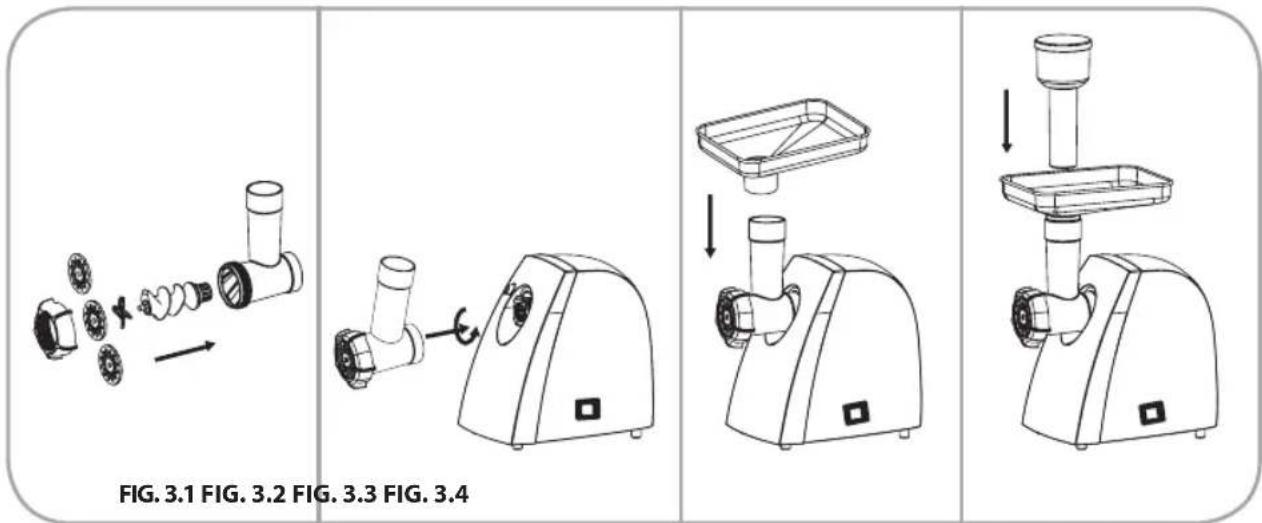

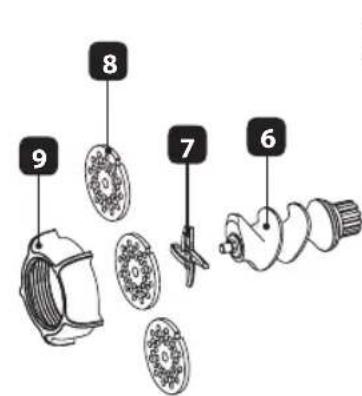

• The order of installation in the grinding chamber (5): the auger (6), the knife (7), a grinding plate of choice (8), and the nut (9), see fig. 3.1.
  • Install the complete unit in the body (15): see fig. 3.2. Make sure that the chamber (5) is locked.
  • Attach the pan (2) on the hopper (4): see fig. 3.3.
  • Insert the pusher (1) in the hopper (4): see fig. 3.4.
• Place a bowl under the outlet of the grinding chamber.
• Cut the meat into strips, 10 cm long and 2 cm thick. Remove bone, cartilage and tendons.
• Connect the appliance to the mains of the parameters compatible with those stated above and start it with the button (14): position "ON".
• Place the meat on the pan (2) and use the pusher (1) to gently push it into the hopper (4).
• Meet need to be ground twice for some meals.

NOTE:

DO NOT GRIND FROZEN MEAT!

THE BUTCHER'S SET (FOR SAUSAGES)

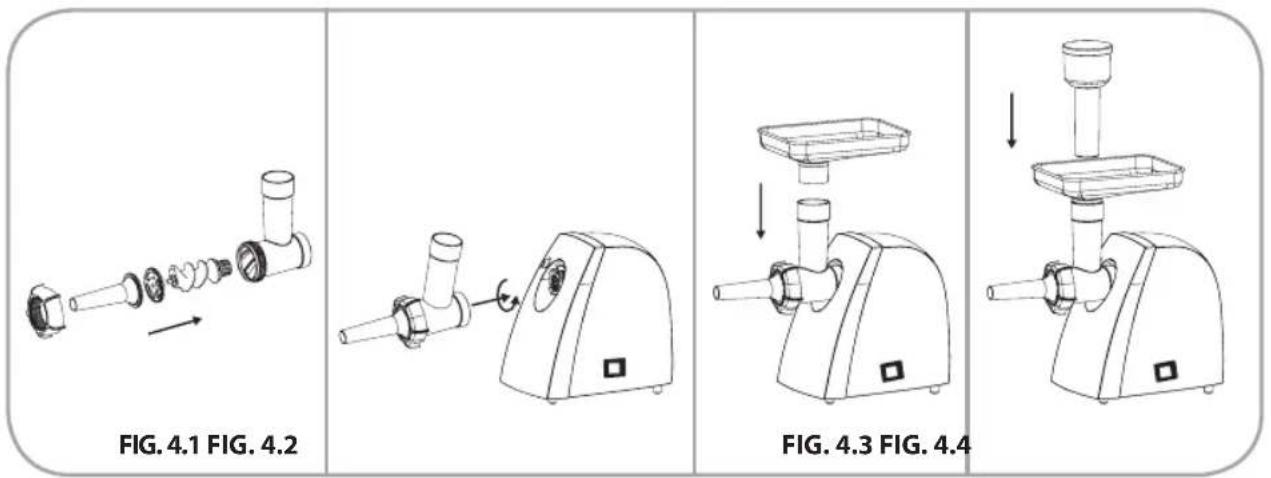

• The order of installation in the grinding chamber (5): the auger (6), the separator (11) and the butcher's attachment (10) and the nut (9): see fig. 4.1.
  • Install the complete unit in the body (15): see fig. 4.2. Make sure that the chamber (5) is locked.
• Attach the pan (2) on the hopper (4): see fig. 4.3.
• Insert the pusher (1) in the hopper (4): see fig. 4.4T.
• Soak sausage skin in lukewarm water (ca. 10 min.).
• Place the stuffing on the pan (2) and use the pusher (1) to gently push it into the hopper (4).
• Place moist skin on the attachment (10).
• Connect the appliance to the mains of the parameters compatible with those stated above and start it with the button (14): position "ON".
• Fill in the sausage skin and form sections as needed.

NOTE

STUFFING SHOULD NOT BE TOO THIN.

KEBBE SET

Kebbe is a traditional meal from Near East, made mostly of lamb and bulgur groats.

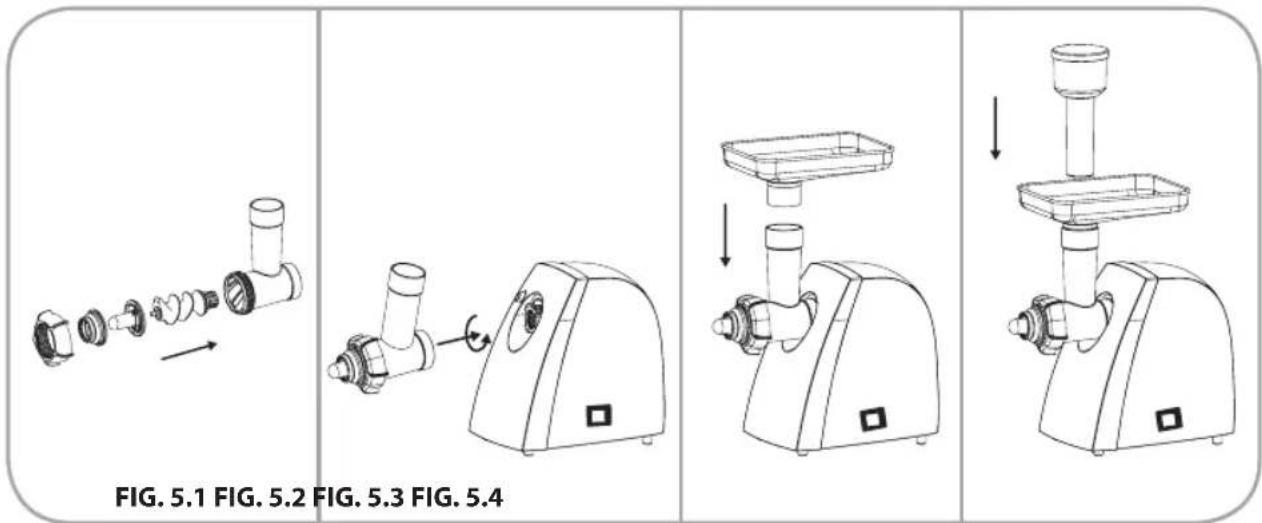

• The order of installation in the grinding chamber (5): the auger (6), the kebbe attachment (13) and the stop (12) and the nut (9): see fig. 5.1.
  • Install the complete unit in the body (15): see fig. 5.2. Make sure that the chamber (5) is locked.
  • Attach the pan (2) on the hopper (4): see fig. 5.3.
  • Insert the pusher (1) in the hopper (4): see fig. 5.4.

SLICER

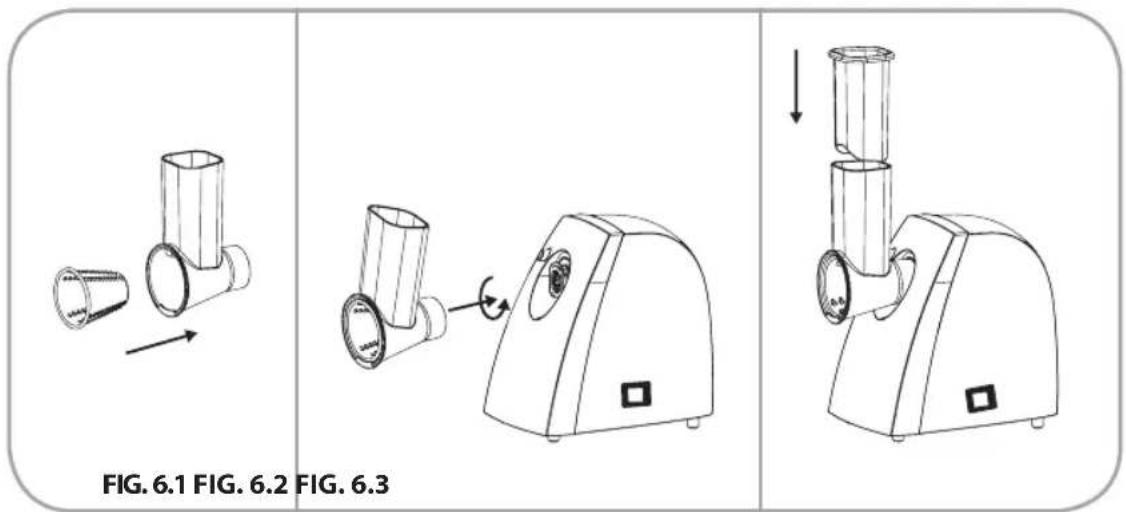

• Install a blade of your choice in the slicer (C): see fig. 6.1.
- Place the whole unit in the body (15): see fig. 6.2. Check whether the slicer (B) is locked.
- Insert the pusher (1) in the hopper: see fig. 6.3.
- Place a bowl under the outlet of the slicer.
- Connect the appliance to the mains of the parameters compatible with those stated above and start it with the button (14): position "ON".
- Put the ingredients one by one into the hopper and use the pusher (A) to slide them downwards to the rotating blade (C).

STORAGE

Unused grinding plates may be stored in the compartment (16) see fig. 1. The butchering set (10, 11) and the kebbe set (12, 13) may be put inside the pusher (1): see fig. 7.

CLEANING AND MAINTENANCE

Disconnect the power supply when the unit is not in use or before cleaning it. Clean the device right after its use. Before cleaning, dismantle the parts of the appliance. Wash them in warm water with washing liquid, use a brush, rinse under running water and wipe dry. Put a thin layer of edible oil on the grinding plates and the knife to protect them against rust. Do not use abrasive agents, cleaning powders, acetone, alcohol, etc., for cleaning. Do not immerse the body in water and do not rinse it under running water. Clean the body of the appliance with a damp cloth. The device cannot be immersed in water or washed in a dishwasher.

Exploded view diagram of a mechanical assembly showing internal components and a cylindrical component (no text or symbols)

The knife is an utility tool and should be replaced regularly. The knife is not covered by guarantee.

ENVIRONMENTAL PROTECTION

• the appliance is made of materials which can be recycled.
• it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

WARRANTY

• this appliance is designed for domestic use only.
• it cannot be used for professional purposes or for other than the intended use.
• improper use will nullify the guarantee.
