Product Type	Steam generator iron
Model	BSS4426
Brand	Becken
Power Supply	220-240 V, 50-60 Hz
Water Tank Capacity	1.2 L (detachable)
Soleplate Material	Stainless steel
Temperature Levels	2 (120 °C, 170 °C) with OptimalTemp technology
Steam Boost Function	Yes (U-Steam and D-Steam buttons)
Vertical Steam	Yes
ECO Mode	Yes (reduced steam output)
Safety Auto-Off	After 10 minutes of inactivity (specific types only)
Easy De-Calc System	Yes (EASY DE-CALC knob and light)
Water Tank Empty Indicator	Flashing light
Iron Ready Indicator	Light stays lit when ready
Carry Lock	Yes (specific types only)
Cord Length	Approx. 2 m
Weight	Approx. 4.5 kg
Dimensions (HxWxD)	30 x 25 x 40 cm
Warranty	2 years
Maintenance	Descale every 8 hours of use; clean soleplate regularly

Frequently Asked Questions - BSS4426 Becken

What type of water should I use in the Becken BSS4426?

Use tap water. If you have very hard water, mix 50% distilled water with 50% tap water to reduce scale buildup. Do not use hot water, perfume, vinegar, starch, or other chemicals.

How do I descale the steam generator?

When the EASY DE-CALC light flashes (after 8 hours of use), switch off and unplug. Place the unit with the EASY DE-CALC knob over a cup, turn it anti-clockwise to drain water with scale. Retighten knob and restart. See manual for detailed steps.

Why does water drip from the soleplate?

This is usually due to steam condensation in the hose. Direct the iron away from the garment and let it steam for a few seconds. If persistent, the iron may need to warm up longer or descaling may be required.

How do I activate ECO mode on the BSS4426?

Press and hold the on/off button for 2 seconds. The light turns blue to indicate ECO mode, which reduces steam output to save energy. To return to normal mode, switch the generator off and on again.

Can I use the iron vertically to remove wrinkles from hanging clothes?

Yes, you can use the iron vertically. Hold it vertically, press the steam trigger, and lightly touch the fabric with the soleplate. Never direct steam at people or your hands.

What does the 'iron ready' light mean?

The light flashes during heating (approx. 2 minutes) and stays lit when the iron is ready for use. The blue light indicates level 1 (120 °C) and the green light indicates level 2 (170 °C).

How do I clean the soleplate?

Heat the iron and move it over a damp cloth to remove stains. For scale buildup, first descale the steam generator, then fill with 500 ml distilled water, heat for 5 minutes, and steam over a thick cloth until water stops coming out. Let cool and drain.

Why does the iron leave shiny marks on clothes?

Shine can occur when ironing over seams or folds. It is not permanent and will wash out. Use a cotton cloth over the area or avoid ironing directly over seams.

What should I do if steam comes out from under the EASY DE-CALC knob?

Switch off and let cool for 2 hours, then unscrew and retighten the knob properly. If steam still escapes, contact an authorized service center.

How do I store the iron after use?

Switch off and unplug. Empty the water tank. Place the iron on the platform, lock it if your model has a carry lock. Fold the hose and cord into their storage compartments. Carry using the iron handle, not the water tank release lever.

USER MANUAL BSS4426 Becken

Close-up of a hand holding a small metallic coin on a dark surface, no visible text or symbols

INSTRUCTIONS MANUAL

Close-up of hands holding a blue plastic bag with wires, enclosed in a circular frame (no visible text or symbols)

MANUAL DE INSTRUÇÕES

Close-up of a purple and white electric iron shaver with handle, no visible text or symbols

BSS4426

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 5
1.2. Power Cord and Other Cables 5
1.3. Humidity and Water 5
1.4. Cleaning 6
1.5. General Precautions 6

2. OPERATING INSTRUCTIONS 7

2.1. Product Description 7
2.2. Product usage 8
2.3. Maintenance 14
2.4. Troubleshooting 17

3. POST-SALE SERVICE 20

4. ENVIRONMENTAL PROTECTION 21

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

1. SAFETY INSTRUCTIONS

	WARNING
	RISK OF ELECTRIC SHOCKDO NOT OPEN
Warning: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that can be repaired by the user. Ask for assistance from the Customer Support Service.

Important Warnings

Before using your appliance read these instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
- You notice any evidence of damage;
- Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance should not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

[you can trust]

Assistance

In case of malfunction, take your appliance to the Customer Support Service for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case, please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Customer Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous.

To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product, use a dry soft cloth only.

1.5. General Precautions

• Please follow the instructions in the user manual which will help you to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.

[you can trust]

2. OPERATING INSTRUCTIONS

2.1. Product Description

1 Steam supply hose
2 Iron platform
3 Iron support
4 Mains cord with plug
5 'Water tank empty' light
6 On/Off button with ECO mode
7 Easy DE-CALC light
8 Cord support bracket
9 Easy DE-CALC knob
10 Water level indication

11 Detachable water tank
12 Carry lock release button
13 'Iron ready' light
14 Soleplate
15 Skirt
16 Filling hole
17 U-Steam Button
18 D-Steam Button
19 Temperature Indicator Light
20 Temperature Switch Button

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

2.2. Product usage

Preparing for use

Filling the detachable water tank

Do not put hot water, perfume, vinegar, starch, descaling agents, ironing aids or other chemicals in the water tank.

Please fill the water tank before using the appliance and as soon as the 'water tank empty' light flashes.

Illustration of a hand washing a blue object with a water tap, labeled 'MAX' (no text or symbols on the diagram itself)

1. Remove the detachable water tank from the steam generator and fill the water tank with tap water.

Note: Your appliance has been designed to be used with tap water. If you live in an area with very hard water, fast scale build-up may occur. In this case, it is recommended to mix 50% distilled water and 50% tap water to extend the life of your appliance.

Illustration of a hand pressing down on a blue liquid container with motion lines indicating flow (no text or symbols)

1. Slide the water tank back into the steam generator ('click').

[you can trust]

'Water tank empty' light

When the water tank is almost empty, the 'water tank empty' light goes on. Fill the water tank and when the 'water tank empty' light goes off, the iron will continue to heat up to start working.

Using the appliance

OptimalTemp technology

Do not iron non-ironable fabrics

This steam generator iron has two temperature levels as follows: Level 1:120 °C; Level 2: 170 °C

- Fabrics with these symbols are ironable, for example linen, cotton, polyester; silk, wool, viscose and rayon.

– Fabrics with this symbol are not ironable. These fabrics include synthetic fabrics such as Spandex or elastane, Spandex-mixed fabrics and polyolefins (e.g. polypropylene), but also prints on garments.

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

Ironing

1. Place the steam generator on a stable and even surface.
2. Make sure that there is enough water in the water tank (see section 'Filling the detachable water tank').

1. Insert the mains plug in an earthed wall socket and press the on/off button to switch the steam generator on. The 'iron ready' light starts flashing to indicate that the steam generator is heating up (this takes approx. 2 minutes).

When the 'iron ready' light stays lit, the steam generator is ready for use. * The blue light refers to level 1; press the T-Switch button to get the green light for level 2.

Illustration of a hand holding a padlock with an open lock, showing a blue double-headed arrow indicating left motion (no text or symbols)

1. Specific types only: Press the carry lock release button to unlock the iron from the iron platform.

[you can trust]

Illustration of a hand using a power iron to clean or brush the air (no text or symbols)

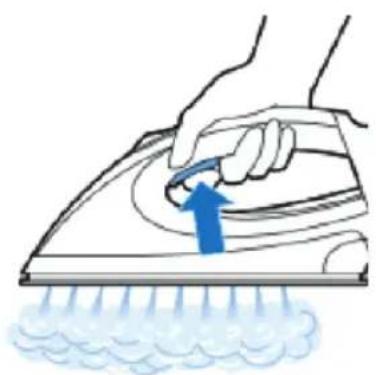

1. Press and hold the steam trigger to start ironing. Keep the steam trigger constantly pressed when you move the iron over the fabric.

Never direct steam at people.

Steam boost function

There are two steam boost functions for removing stubborn creases.

Illustration of two hands using a steam iron to clean water, showing the blade and handle (no text or symbols)

- Press the steam boost button for extra-strong steam output. - Press the steam trigger twice quickly for a high continuous steam output. You do not have to press the steam trigger continuously, which gives a more comfortable ironing experience.

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

Vertical ironing

Since the iron emits hot steam, never attempt to remove creases from a garment that someone is wearing. Do not apply steam near your own or someone else's hand.

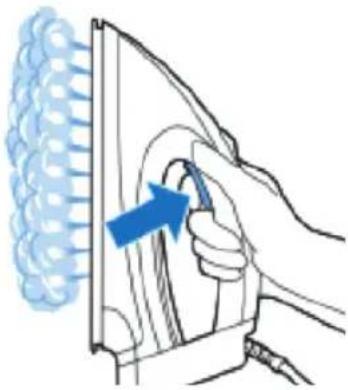

You can use the iron in a vertical position to remove wrinkles from hanging fabrics.

Illustration of a hand using a power iron to clean or store air, with a blue arrow indicating the process (no text or symbols present)

1. Hold the iron in a vertical position, press the steam trigger and touch the garment lightly with the soleplate.

Putting down the iron during ironing

Line drawing of a person lying on a bed with a blue iron resting, no text or symbols present

– During ironing, you can place the iron either on the iron platform or horizontally on the ironing board.

[you can trust]

Thanks to the OptimalTemp technology, the soleplate will not damage the ironing board cover.

Energy saving

ECO mode

By using ECO mode (reduced amount of steam), you can save energy without compromising the ironing result.

Line drawing of a steam iron with a power button icon (no text or symbols)

1. To activate the ECO mode, press and hold the on/off button for 2 seconds. The light turns blue.
2. To switch back to the 'OptimalTemp' setting, switch the steam generator off and on again.

Safety Auto-off (specific types only)

The Safety Auto-off function automatically switches off the appliance if it has not been used for 10 minutes, to save energy.

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

2.3. Maintenance Cleaning and maintenance

IMPORTANT – Descaling the steam generator

To ensure a long life for your steam generator, it is very important that you perform the descaling procedure when the EASY DE-CALC light starts flashing.

- The Easy DE-CALC light starts flashing after a total of 8 working hours to indicate that the steam generator needs to be descaled. To descale the steam generator; perform the steps below.

Never remove the EASY DE-CALC knob when the steam generator is hot

Illustration of a hand using a device to interact with a blue electrical plug, showing a close-up of the plug and switch (no text or symbols present)

[you can trust]

1. Press the on/off button to switch off the steam generator and unplug the unit from the mains.
2. Place the steam generator on a stable table with the EASY DE-CALC knob sticking out beyond the edge of the table or take the steam generator to a sink.
3. Hold a cup under the EASY DE-CALC knob and turn the EASY DE-CALC knob anti-clockwise to let the water with scale particles flow into the cup. When no more water comes out of the steam generator, reinsert the EASY DE-CALC knob. Turn the knob clockwise to fasten it and plug back the unit to the mains.
   You can now use the steam generator again.

Cleaning the soleplate

Please clean the soleplate regularly to remove stains from the soleplate.

• To maintain a good gliding of your soleplate, it is recommended to clean it regularly (once every 2 months). You can do that by heating up the iron and moving the soleplate over a moist cloth.
• Descaling the soleplate: if you do not descale your steam generator regularly, scale may build up on the soleplate. You can remove this scale by following the instructions below:

Illustration of a hand pouring liquid into a blue bag on a table (no text or symbols)

1. Descale the steam generator before you clean the soleplate (see section 'IMPORTANT - Descaling the steam generator').

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

1. Tilt the steam generator and pour 500 mL of distilled water into the opening. Reinsert the EASY DE-CALC knob and turn the knob clockwise to fasten it.
2. Press the on/off button and wait for 5 minutes.

1. Put a piece of thick cloth on your ironing board. Place your iron on the cloth, and then press and hold the steam trigger. While pressing the steam trigger, slowly move the iron back and forth across the cloth until no water comes out anymore or when steam comes out.

Hot, dirty water is coming out of the soleplate.

1. Switch off the steam generator and let it cool down for 2 hours.
2. Remove the EASY DE-CALC knob and let the water flow into a cup. Reinsert the EASY DE-CALC knob and turn the knob clockwise to fasten it.
3. Repeat steps 2 to 6 of this cleaning procedure.

Storage

1. Switch off the steam generator and unplug it from the mains.
2. Remove the water tank and empty it.
3. Place the iron on the iron platform. Specific types only: push the carry lock to lock the iron onto the platform.

[you can trust]

Diagram showing two car seatbelting mechanisms with blue arrows indicating force or movement (no text or symbols present)

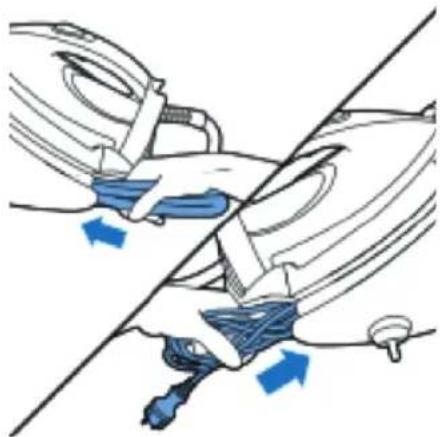

1. Fold the supply hose and mains cord. Put them in their respective storage compartments.
2. Specific types only: you can carry the appliance with one hand using the handle on the iron.

Do not carry the appliance by holding the water tank release lever

2.4. Troubleshooting

Problem Possible cause Solution
The ironing board cover becomes wet.	Steam has condensed on the ironing board cover after a long ironing session.	Replace the ironing board cover if the foam material has worn out. You can also add an extra layer of felt material under the ironing board cover to prevent condensation on the ironing board.
Water droplets come out of the soleplate.	The steam that was still present in the hose has cooled down and condensed into water.	Direct the iron away from the garment and let it produce steam for a few seconds.

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

Problem Possible cause Solution
Steam and/or water comes out from under the EASY DE-CALC knob.	The EASY DE-CALC knob is not properly tightened.	Switch off the appliance and wait for two hours to allow the steam generator to cool down. Unscrew the EASY DE-CALC knob and reattach it properly. Note: When you remove the knob, water will come out of the steam generator. If steam continues to escape, switch off the appliance and contact an authorised service centre.
Dirty water and impurities come out of the soleplate.	Impurities or chemicals present in the water have deposited in the steam vents and/or on the soleplate.	Descale the steam generator regularly. See section ‘Cleaning the soleplate’ in chapter ‘Cleaning and maintenance’.
	Too much scale and minerals have accumulated inside the steam generator	Descale the steam generator regularly.
See section ‘IMPORTANT - Descaling the steam generator’ in chapter ‘Cleaning and maintenance’.

[you can trust]

Problem Possible cause Solution
The iron leaves a shine or an imprint on the garment.	The surface to be ironed was uneven, for instance because you were ironing over a seam or a fold in the garment.	Perfect Care is safe on all garments. The shine or imprint is not permanent and will come off if you wash the garment. Avoid ironing over seams or folds or you can place a cotton cloth over the area to be ironed to avoid imprints.
The steam generator does not produce any steam.	There is not enough water in the water tank (the ‘water tank empty’ light flashes).	Fill the water tank and press the steam trigger to let the appliance heat up again. When the ‘iron ready’ light stays lit, you can continue steam ironing.
	The steam generator is not hot enough to produce steam.	Wait until the ‘iron ready’ light on the iron lights stays lit.
	You did not press the steam trigger	Press the steam trigger and keep it pressed while you iron.
	The water tank is not placed properly in the steam generator	Slide the water tank firmly back into the steam generator (‘click’).
The steam generator produces a pumping sound.	This is normal because the water is pumped into the boiler inside the steam generator.	If the pumping sound continues nonstop, switch off the steam generator and unplug the unit from the mains. Contact an authorised service centre.

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

Problem Possible cause Solution
The steam generator produces a loud pumping sound intermittently.	There is not enough water in the water tank (the ‘water tank empty’ light flashes).	Fill the water tank and press the steam trigger to let the appliance heat up again. When the ‘iron ready’ light stays lit, you can continue steam ironing.

3. POST-SALE SERVICE

Becken has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

[you can trust]

4. ENVIRONMENTAL PROTECTION

In order to protect the environment, we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

Estimado cliente,

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

1.4. Limpieza

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

Illustration of a hand pouring liquid into a container with blue spray (no text or symbols)

[you can trust]

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

Illustration of a hand holding a lock and pointing at a curved object with an arrow indicating direction (no text or symbols)

Illustration of a hand using a power iron to clean or brush the air (no text or symbols)

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

Illustration of a hand using a tool to clean or store items, with a blue arrow indicating the process (no text or symbols present)

Line drawing of a person lying on a bed with a blue iron resting on the back, no text or symbols present

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

Ahorro de energía

Modo ECO

Line drawing of a steam iron with a power button icon (no text or symbols)

Illustration of a hand inserting a device into a socket, with a magnified inset showing the socket being inserted (no text or symbols present)

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

Illustration of a hand pouring liquid into a blue bag on a table (no text or symbols)

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

Diagram showing a car seatbelt being adjusted to a vehicle's seatbelt, with blue arrows indicating force direction (no text or symbols present)

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

3. SERVICIO POSVENTA

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

Caro(a) cliente,

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

1. INSTRUÇÕES DE SEGURANÇA

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

1.4. Limpeza

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

Illustration of a hand holding a blue object with motion lines indicating movement (no text or symbols)

[you can trust]

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

Illustration of a hand holding a padlock and a curved object with an arrow indicating bidirectional movement (no text or symbols)

Illustration of a hand using an iron to clean or brush the power of a surface, with a blue arrow indicating the motion (no text or symbols present)

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

Illustration of a hand using a tool to clean or store air by using an iron, with a blue arrow indicating the process (no text or symbols present)

[you can trust]

Line drawing of a person using a blue iron on a bed, with a checkmark indicating the correct position (no text or symbols present)

Line drawing of a steam iron with a power button icon (no text or symbols)

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

Illustration of a hand inserting a plug into an electrical outlet, with a magnified inset showing the plug being inserted (no text or symbols present)

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

Illustration of a hand pouring liquid into a blue bag on a table (no text or symbols)

Diagram showing mechanical assembly with blue arrows indicating force or movement (no text or symbols present)

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Vertical vacuum cleaner | Aspiradora vertical | Aspirador vertical

BECKEN

Imported, produced and distributed by:

Worten Equipamentos p/o Lar S.A.
