KBSBS8616 IX - Refrigerator Kubo - Free user manual and instructions

Brand	Kubo
Model	KBSBS8616 IX
Product Type	Refrigerator-Freezer
Overall Dimensions (WxDxH)	905 x 595 x 1770 mm
Net Fresh Food Storage Volume	291 L
Net Frozen Food Storage Volume	151 L
Total Net Volume	442 L
Defrosting Type	Frost Free
Climatic Class	SN, N, ST
Energy Efficiency Class	F
Annual Energy Consumption	359 kWh/year
Noise Level	40 dB
Freezing Capacity	10.5 kg / 24 h
Temperature Rise Time	9.5 h
Rated Voltage	220-240 V
Refrigerant	R600a (Isobutane)
Controls	Touch buttons with LED display
Operating Modes	SMART, ECO, SUPER COOLING, SUPER FREEZING
Safety Features	Child lock, door open alarm, automatic temperature control
Warranty	3 years (manufacturer defects, via Worten)

Frequently Asked Questions - KBSBS8616 IX Kubo

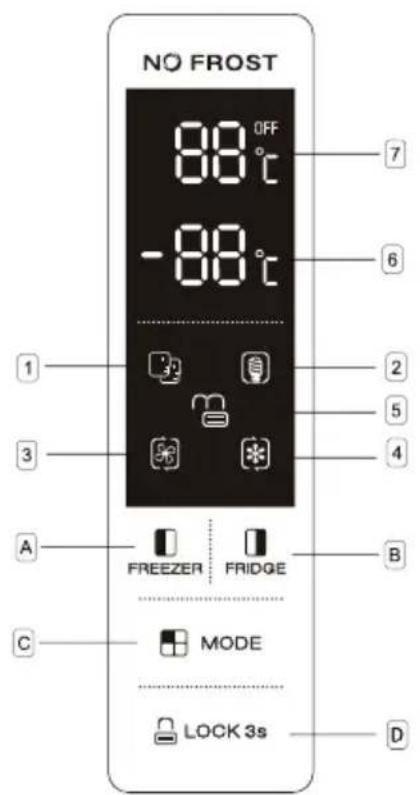

How do I set the temperature on my Kubo KBSBS8616 IX refrigerator?

Press button A to adjust freezer temperature (from -14°C to -22°C) and button B to adjust fridge temperature (from 2°C to 8°C). The display shows the current settings.

What is SMART mode and how does it work?

SMART mode automatically adjusts the temperature of both compartments based on internal and ambient conditions for optimal efficiency. It is selected by pressing button C until the SMART indicator lights up.

How do I activate the child safety lock?

Press and hold the LOCK button (button D) for about 3 seconds. The lock indicator will light up. To deactivate, press and hold the same button for 1 second.

What does the door open alarm mean?

If either door is left open or not closed properly for about 90 seconds, the appliance will sound an alarm. Close the door completely to stop the alarm.

How do I clean the refrigerator?

Switch off the appliance and unplug it. Remove all food. Clean the interior and accessories with a cloth and lukewarm water. Do not use abrasive cleaners or steam cleaners. Dry thoroughly before restarting.

Is the Kubo KBSBS8616 IX frost-free?

Yes, it features Frost Free defrosting, meaning no manual defrosting is required. The appliance automatically defrosts the freezer compartment.

How can I save energy with this refrigerator?

Select ECO mode for lowest energy consumption. Avoid placing hot food inside, keep doors closed, and ensure proper ventilation around the appliance. Remove unnecessary accessories like drawers to increase storage space and reduce energy use.

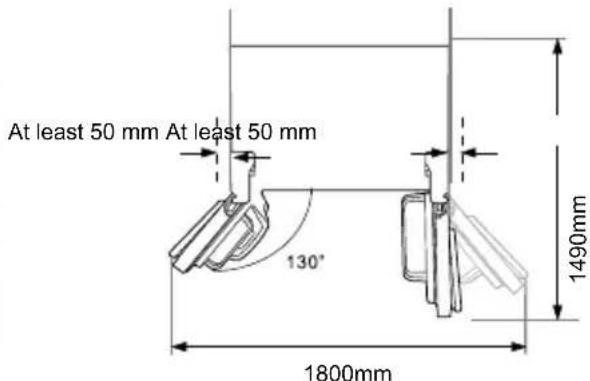

Can I remove the doors for installation?

Yes, the doors can be removed to fit through narrow openings. Use a Phillips screwdriver to remove hinge covers, disconnect harnesses, and lift the doors off. Reverse the process to reinstall.

What is the warranty period?

Kubo provides a 3-year warranty for manufacturing defects from the date of purchase. Any repair attempts without contacting the manufacturer or seller will void the warranty.

What should I do if the refrigerator is not cooling properly?

Check if the mains plug is connected and the fuse is intact. Ensure the temperature is set correctly and the doors are closed. If the problem persists, contact the Customer Support Service.

USER MANUAL KBSBS8616 IX Kubo

Simple line drawing of a door with a rectangular cutout on the side (no text or symbols)

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 5
1.2. Power Cord and Other Cables 5
1.3. Humidity and Water 6
1.4. Cleaning 6
1.5. General Precautions 6

2. OPERATING INSTRUCTIONS 18

2.1. Product Description 18
2.2.Using the Product 19

1. OPERATING INSTRUCTIONS 26
   3.1. Product usage 26
   3.2. Maintenance 30

2. POST-SALE SERVICE 34

3. ENVIRONMENTAL PROTECTION 34

1. SAFETY INSTRUCTIONS

	WARNING
	RISK OF ELECTRIC SHOCK DO NOT OPEN
Warning: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that can be repaired by the user. Ask for assistance from the Customer Support Service.

Important Warnings

Before using your appliance read these instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
- You notice any evidence of damage;
- Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance should not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use,

as well as any manual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to the Customer Support Service for assistance.

In case of malfunction, take your appliance to the Customer Support Service for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved.

Children may not play with the appliance.

Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case, please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Customer Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product, use a dry soft cloth only.

1.5. General Precautions

- Please follow the instructions in the user manual which will help you to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.

- Read all instructions before using the product.

- Maintenance and service operations are only to be carried out by authorized professionals.

- Any damage caused by manual modifications to the product is not covered by the warranty.

- If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.

- In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

- For the safety of life and property, keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

- This appliance can be used by children aged 8 and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if supervised or instructed concerning safe use of the appliance and the hazards involved.

- Children aged from 3 to 8 years are allowed to place/take things into/out of this appliance.

• Children should be supervised to ensure that they do not play with the appliance.

- Cleaning and user maintenance shall not be done by children unless they are 8 years old or above and supervised.

- Keep all packaging well away from children. There is risk of suffocation.

- If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children from suffering an electric shock or from closing themselves inside it.

- If this appliance, featuring a magnetic door seal, replaces an older appliance with a spring lock (latch) on the door or lid, be sure to make the

spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

- ⚠️ WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- ⚠️ WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- ⚠️ WARNING! Do not damage the refrigerant circuit.

- ⚠️ WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.

- ⚠️ WARNING! Do not touch the light bulb if it has been on for a long period of time because it could be very hot. ^1)

- ⚠️ WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

- ⚠️ WARNING! Do not locate multiple portable socket-outlets or power supplies at the rear of the appliance.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- The refrigerant isobutane (R-600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

- During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

- If the refrigerant circuit should be damaged: Avoid open flames and sources of ignition Thoroughly ventilate the room where the appliance is located

- It is dangerous to alter the specifications or to modify this product in any way.

- Any damage to the cord may cause a short circuit, fire and/or electric shock.

- This appliance is intended for domestic use and similar settings such as - staff kitchen areas in

shops, offices and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

- ⚠️ WARNING! Any electrical components (plug, power cord, compressor and etc.) must be replaced by the Customer Support Service.

- ⚠️ WARNING! The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp” is not usable for domestic lighting. ^2)

- Power cord must not be lengthened.

- Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.

• Make sure that you can reach the mains plug of the appliance.

- Do not pull the mains cable.

- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

• You must not operate the appliance without the lamp.
• This appliance is heavy. Care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight

WARNING!

While using, servicing and disposing of the appliance, please pay attention to yellow or orange symbol shown on the left, which can be found on the rear of appliance (rear panel or compressor).

It's a risk of fire warning symbol. There are flammable materials in the refrigerant pipes and compressor.

Please stay far away from fire sources during use, service and disposal.

Daily use

- Do not place hot items on the plastic parts in the appliance.

- Do not place food products directly against the rear wall.

- Frozen food must not be re-frozen once it has been thawed out. ^3)

- Store pre-packed frozen food in accordance with the manufacturer's instructions regarding frozen food. ^4)

- The appliance manufacturer's storage recommendations should be strictly adhered to. Refer to relevant instructions.

- Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. ^5)

- Ice lollies can cause frost burns if consumed straight from the appliance. ^6)

- To avoid contamination of food, please respect the following instructions

- Opening the door for long periods can cause a significant temperature increase in the appliance's compartments.

- Regularly clean surfaces that can come in contact with food and accessible drainage

systems.

• Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
• One-, two- and three -star compartments (if they are presented in the appliance) are not suitable for freezing fresh food.
• If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mould developing within the appliance.

Daily use

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.

- Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. ^7)

- Regularly examine the drain in the refrigerator for defrosted water. Clean the drain, if necessary. If the drain is blocked, water will collect in the bottom of the appliance. ^8)

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

- Unpack the appliance and check for damage. Do not connect the appliance if it is damaged. Report possible damages immediately to the place where you bought it. In that case, retain packaging.

- It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back into the compressor.

- There should be adequate air circulation around the appliance, as lacking this leads to overheating. To achieve sufficient ventilation, follow the installation instructions.

- Wherever possible the spacers of the product should be against a wall to prevent touching or catching warm parts (compressor, condenser), and to prevent possible burns.

- The appliance must not be located close to radiators or cookers.

- Make sure that the mains plug is accessible after the installation of the appliance. It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back into the compressor.

- There should be adequate air circulation around the appliance, as lacking this leads to overheating. To achieve sufficient ventilation, follow the installation instructions.

- Wherever possible the spacers of the product should be against a wall to prevent touching or catching warm parts (compressor, condenser), and to prevent possible burns.

- The appliance must not be located close to radiators or cookers.

- Make sure that the mains plug is accessible after the installation of the appliance.

Service

- Any electrical work requiring the servicing of the appliance should be carried out by a qualified electrician or competent person.

• This product must be serviced by the Customer

Support Service, and only genuine spare parts must be used.

Energy saving

• Don't put hot food in the appliance;
• Don't pack food close together as this prevents air from circulating;
• Make sure food doesn't touch the back of the compartment(s);
• If electricity goes off, don't open the door(s);
• Don't open the door(s) frequently;
• Don't keep the door(s) open for long periods of time;
• Don't set the thermostat on exceeding cold temperatures;
• Some accessories, such as drawers, can be removed to get larger storage volume and lower energy consumption.

2. OPERATING INSTRUCTIONS

2.1. Product Description

Note: Above picture is for reference only. The real appliance may differ.

2.2. Using the Product

Children and vulnerable people safety

• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
  • Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance should not be made by children unless they are aged 8 years and above and are supervised.
• Keep all packaging away from children. There is risk of suffocation
• If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door, to prevent children playing with the appliance from suffering electric shock or locking themselves in it.
• If this appliance features magnetic door seals to be replaced by an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

WARNING

Keep ventilation openings in the appliance enclosure or in the built-in structure, clear of obstructions

WARNING

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING

Do not damage the refrigerant circuit.

WARNING

Do not use other electrical appliances (such as ice cream makers) inside the refrigerating appliances, unless they are approved for this purpose by the manufacturer.

WARNING

Do not touch the light bulb if it has been on for a long period of time, because it could be very hot. ^1)

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

• avoid open flames and sources of ignitio

• ventil te the room in which the appliance is situated thoroughly
• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.

• This appliance is intended to be used in households and other similar applications such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses and customers in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications;

WARNING

Any electrical components (plug, power cord, compressor, etc.) must be replaced by a certified service agent or qualified service personnel.

WARNING

The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp” is not suitable for domestic lighting. ^1)

• The power cord must not be lengthened.
• Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
  • Make sure that you can access the mains plug of the appliance.
• Do not pull the mains cable.
• If the power plug socket is loose, do not insert the power plug. There is risk of electric shock or fire.
• You must not operate the appliance without the lamp.
  • This appliance is heavy. Care should be taken when moving it.
• Do not remove or touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

• Do not place hot items in contact with the plastic parts of the appliance
• Do not place food products directly against the rear wall.
• Frozen food must not be refrozen once it has been thawed out.1)
• Store pre-packed frozen food in accordance with the frozen food manufacturer instructions.1)
• Appliance manufacturers' storage recommendations should be strictly complied with. Refer to relevant instructions
• Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure in the container, which may cause it to explode, resulting in damage to the appliance.1)
• Ice lollies can cause frost burns if consumed straight from the appliance.1)

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

- Unpack the appliance and check if there is any damage on it. Do not connect the appliance if it is damaged.

Report possible damages immediately to the place you bought it. In that case retain the packaging.

• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• The appliance should have adequate air circulation around it, which if nonexisting may lead to overheating. To achieve sufficient ventilation, follow the relevant installation instructions
• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burns.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required for the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.

Energy saving

• Don't place hot foods in the appliance;
• Don't pack foods close together, as this prevents the air from circulating;
  • Make sure the food does not touch the back of the compartment(s);
• If the electricity goes o, don't open the door(s);
• Don't open the door(s) frequently;
• Don't keep the door(s) open for long periods of time;
• Don't set the thermostat to exceeding cold temperatures;
• Some accessories, such as drawers, can be removed to obtain larger storage space and lower energy consumption;

Disposal of the appliance

1. Disconnect the mains plug from the mains socket.
2. Cut off the mains able and discard it.

Overview

Installation

If the kitchen door is not wide enough to pass the refrigerator, the handle and the doors can be removed according to the process described below.

Removing the doors

Tools required: Philips screwdriver, Flat bladed screwdriver

• Ensure the unit is unplugged and empty,
• To take the door o , it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door removing process.
• A ll parts removed must be saved to reinstall the door.
• Do not lay the unit fl t as this may damage the coolant system.

• I t's better that 2 people handle the unit during assembly.

• Unscrew the hinge cover with the Philips screwdriver

• Disconnect the harness.

• Unscrew the top hinge.

• Lift the door and place it on a soft pad. Then remove the other door with the same process.

• Unscrew the bottom hinges.

• After the appliance is positioned, in tall the doors in the reversed process.

Space Requirement

• Select a location without direct exposure to sunlight;
• Select a location with enough space or the refrigerator doors to open easily;
• Select a location with levelled (or nearly levelled) flooring
• Allow sufficient space to install the refrigerator on a flat surface;
• Allow clearance to the right, left, back and top when installing.

This will help reduce power consumption and keep your electricity bills lower.

Levelling and anchoring the refrigerator

Technical line drawing of a dual-cylinder container system with wheels and a flat base (no text or symbols)

• Leveling and anchor the refrigerator by adjust the feet.
• Clockwise rotate feet to heighten them by hand.
• Anticlockwise rotate feet to lower them by hand.

Positioning

Install this appliance in a location where the room temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class Room temperature
SN +10°C to +32°C
N +16°C to +32°C
ST +16°C to +38°C
T +16°C	to +43°C

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that the air circulates freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate levelling is ensured by one or more adjustable feet at the base of the cabinet.

WARNING

It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation. Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic mains power supply.

The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earthed plug in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed. This appliance complies with the E.E.C. Directives.

3. OPERATING INSTRUCTIONS

3.1. Product usage

Buttons

A. Press to adjust the freezer compartment's temperature (on the left side) from -14 to -22.°C °C
B. Press to adjust the fridge compartment's temperature (on the right side) from 2 to 8. ^ C ^ C
C. Press to select the running mode from SMART, ECO, SUPER COOLING, SUPER FREEZING and USER'S SETTING (no symbol in display).
D. Press and hold the button for 3 sec. to lock other three buttons. Press and hold it for 1 second to unlock other three buttons.

Display

1. SMART mode - the refrigerator automatically sets the temperature of two compartments according to the internal temperature and ambient temperature.

2. ECO mode - the refrigerator runs in the lowest energy consumption setting.

3. SUPER COOLING - cools the fridge compartment to the lowest temperature for approx. 2 hours. Then the temperature set before super mode is automatically restored.

4. SUPER FREEZING - cools the freezer compartment to the lowest temperature for approx. 6 hours. Then the temperature set before super mode is automatically restored.

5. LOCK - the symbol will light on if buttons are locked.

6. Displays the freezer compartment's setting temperature.

7. Displays the fridge compartment's setting temperature.

Mode Indicator light		Freezer temperature display	Fridge temperature display
Smart		The temperature display for the freezer and fridge will change based on the ambient temperature (see table below).
ECO		-15°C +8°C
Super cooling		No change +2°C
Super freezing		-25°C No change

NOTES:

Smart mode: This mode allows your appliance to operate within the ideal temperature range.

Ambient Temperature (T)	T < 13°C	14°C < T < 20°C	21°C < T < 27°C	28°C < T < 34°C	T > 35°C
Freezer temperature display	-18°C -16°C -15°C
Fridge temperature display	3°C 4°C	5°C 6°C	8°C

ECO mode: Select this mode when you want to save power. Super cooling mode: This mode allows you to cool foods quickly and will be automatically deactivated after 2 hours of operation. Super freezing mode: This mode allows you to freeze foods quickly and will be automatically deactivated after 6 hours of operation.

Door open alarm

When any door is left open or not closed completely for about 90 seconds, the appliance will sound an alarm. Close the fridge door and the alarm will stop.

Child safety lock

This function is designed to prevent children from operating the appliance.

- To activate the function, press and hold LOCK3s for about 3 seconds.

The lock indicator light will light on indicating the safety lock function is activated.

- To deactivate the function, press and hold 📄 for about 3 seconds to unlock the indicator light and switch it off.

Daily use

Freezing fresh food

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time
• Place the fresh food to be frozen in the bottom compartment.
• The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
• The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Storing frozen food

When first starting-up or after a period out of use, before putting the product in the compartment let the appliance run at least 2 hours on the higher setting Important! In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under “rising time, the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the fridge compartment or at room temperature, depending on the time available for this operation. Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Accessories

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelvescan be positioned as desired.

Line drawing of a hand cleaning or adjusting a shelf with a tool (no text or symbols)

Positioning the door balconies

To allow the storage of food packages of various sizes, the door balconies can be placed at different heights. To make these adjustments proceed as follows: gradually pull the balcony in the direction of the arrows until it comes free, then reposition as required.

Simple line drawing of a roof structure with two upward-pointing arrows inside (no text or symbols)

Helpful hints and tips

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

- the maximum quantity of food that can be frozen in 24 hrs is shown on the rating plate;

- the freezing process takes 24 hours. No other food to be frozen should be added during this period:

- only freeze top quality, fresh and thoroughly cleaned food;

- prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required:

- wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;

• do not allow fresh, unfrozen food to touch other food which is already frozen, thus avoiding a rise in temperature of the latter;

- lean foods store better and longer than fatty ones; salt reduces the storage life of the food:

- ice cubes, if consumed immediately after removal from the freezer compartment, can possibly cause freeze burn to the skin:

- it is advisable to have the freezing date on each individual package to enable you to keep tabs of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foods were adequately stored by the retailer;
- be sure that frozen foods are transferred from the food store to the freezer in the shortest possible time
- do not open the door frequently or leave it opened longer than absolutely necessary. Once defrosted, food deteriorates rapidly and cannot be refrozen.
- Do not exceed the storage period indicated by the food manufacturer.

Hints for fresh food refrigeration

To obtain the best performance:

• Do not store warm food or evaporating liquids in the refrigerator.
• Cover or wrap the food, particularly if it has a strong lavour.

Hints for refrigeration

Useful hints:

• For all types: wrap in polythene bags and place on the glass shelves above the vegetable drawer.
• For safety, store in this way only one or two days at the most.
• Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.
• Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.
• Milk bottles: these should have a cap and should be stored in the balconies on the door.
• Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.

3.2. Maintenance

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. ^2)
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance.

Cleaning

For hygienic reasons the appliance interior, including interior accesses series, should be cleaned regularly.

Caution! The appliance may not be connected to the mains during cleaning.

Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn off the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components,

danger of electrical shock! Hot vapours may damage the plastic parts.

The appliance must be dry before it is placed back into service.

Important! Essential oils and organic solvents can attack plastic parts, e.g.

lemon juice or the juice from the orange peel, butyric acid, cleansers that contain acetic acid.

• Do not allow such substances to come into contact with the appliance parts.
• Do not use any abrasive cleaners
• Remove the food from the freezer. Store it in a cool place, well covered.
• Switch the appliance off and remove the plug from the mains, or switch off the circuit breaker or fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
  • After everything is dry, place the appliance back into service.

3.3. Troubleshooting

Caution! Before troubleshooting, disconnect the power supply.

Only the Customer Support Service or a competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem	Possible cause	Solution
Appliance does not work	Mains plug is not plugged in or is loose	Insert power plug.
	Fuse has blown or is defective.	Check fuse, replace if necessary.
	Socket is defective.	Mains malfunctions are to be corrected by an electrician.
Appliance freezes or cools too much	Temperature is set too cold or the appliance runs on SUPER mode.	Turn the temperature regulator to a warmer setting temporarily.
The food is not frozen enough.	Temperature is not properly adjusted.	Please check the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Refer to the Installation section.
Heavy build-up of frost on the door seal.	Door seal is not air tight.	Carefully warm the leaking sections of the door seal with a hair dryer (on a cool setting). At the same time shape the warmed door seal by hand so that it sits correctly.
Unusual noises	Appliance is not level.	Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
Side panel is hot	Condenser is inside the panel.	It's normal.

If the malfunction occurs again, contact the Customer Support Service.

These data are necessary to quickly and accurately help you. Write the necessary data here, refer to the rating plate.

4. POST-SALE SERVICE

KUBO has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 3-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

5. ENVIRONMENTAL PROTECTION

In order to protect the environment, we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangle below (no readable text or symbols)

Brand	KUBO
Model	KBSBS8616 IX
Appliance Category	Category 7 (Refrigerator-Freezer)
Overall Dimensions (WXDXH)	905 x 595 x 1770 mm
Net Fresh Food Storage Volume	291 L
Net Frozen Food Storage Volume	151 L
Defrosting Type	Frost Free
Climatic Class	SN, N, ST
Recommended Storagy Temperature Fridge Compartment	0°C. ~ 8°C.
Recommended Storagy Temperature Frezzer Compartment	≤-18°C
Energy Consumption	359kWh/year
Ariborne Acoustical Noise	40dB
Energy Class	F
Temperature Rise Time	9.5 h
Freezing Capacity	10.5 kg / 24 h
Rated Voltage	220-240 V

DELEGATED REGULATION (EU) 2019/2016 OF THE COMMISSION on the energy label of household appliances.

Parts Model information

To access the EPREL registration of the model:

1. Go to https://eprel.ec.europa.eu
2. Get the model identifier from the energy label of the product and type it in the search box
3. The model's energy labeling information is displayed

Completely black image with no visible content, text, or symbols.

Estimado cliente,

Technical line drawings of mechanical components, showing top and side views with no visible text or symbols

Technical line drawing of a mechanical assembly with mounting holes and structural supports (no text or symbols)

Technical line drawing of a refrigerator with doors open and one partially visible (no text or symbols)

Simple line drawing of a mechanical setup with a tool and two tools, no text or symbols present.

3D diagram of a rectangular box inside a transparent cube with a 50mm dimension label, no text or symbols present.

[At least 50 mm]

Technical line drawing of a two-part enclosure or tank structure with base and floor markers (no text or symbols)

Illustration of a hand using a tool to clean or store shelves (no text or symbols visible)

Simple line drawing of a roof structure with two upward-pointing arrows inside (no text or symbols)

Consejos útiles

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Simple line drawing of a mechanical setup with a lever and base (no text or symbols)

Pure technical line drawing of a mechanical assembly or bracket (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Line drawing of a refrigerator with doors open and one partially visible, no text or symbols present

Simple line drawing of a tool interacting with a ladder, no text or symbols present

[At least 50 mm]

Nivelando e fixando a geladeira

Portas
