Eagle KM0806 - Tablet Krüger&Matz - Free user manual and instructions

Product Type	Tablet
Brand	Krüger&Matz
Model	Eagle KM0806
Power Key	Yes
Volume Control	Yes (buttons)
Audio Jack	3.5 mm earphone jack
USB Port	USB Type-C (charging and data)
Microphone	Built-in
Speaker	Built-in
Rear Camera	Yes
Front Camera	Yes
SIM Card Slot	Nano SIM
Memory Card Slot	microSD
Battery Type	Li-ion, non-removable
Charging	Via USB Type-C, use authorized charger
Cleaning	Soft, slightly damp cloth; no abrasives or chemicals
Repair	Contact authorized service; do not disassemble
Safety	Keep away from moisture, heat, and magnetic fields
Operating System	Android (based on manual illustrations)

Frequently Asked Questions - Eagle KM0806 Krüger&Matz

How do I charge the tablet?

Connect the included USB Type-C cable to the tablet and an authorized charger. The charging process may cause the device to warm up; if it overheats, disconnect and let it cool.

Can I replace the battery?

No, the battery is not detachable. Do not attempt to disassemble the device. Contact an authorized service point if needed.

How to insert a SIM or microSD card?

Use the card tray pin to eject the tray. Insert a nano SIM card and/or microSD card as indicated on the tray, then close it gently.

What should I do if the screen is not responding?

First, try pressing the power key to wake the device. If unresponsive, press and hold the power key to force restart. If the issue persists, consult the manual or contact support.

How to clean the tablet?

Power off the device and disconnect from the charger. Use a soft, slightly damp cloth. Do not use abrasive cleaners or chemicals.

Why is my tablet overheating?

Overheating can occur during charging or heavy use. Close running apps, disconnect from charger, and lower screen brightness. If it continues, turn off the device and let it cool before resuming use.

Can I use the tablet while driving?

No. Road safety comes first; do not use the device while driving or walking.

Is the device waterproof?

No. Protect the device from moisture, humidity, water, and other liquids. Avoid using or storing it in extreme temperatures.

How do I turn the tablet on and off?

To turn on, press and hold the power key until the device starts. To turn off, press and hold the power key, then tap 'Power off' in the pop-up window.

What should I do if the charger gets hot?

Disconnect the charger immediately. Check for damage to the USB cable. If the cable is damaged, replace it with an authorized one. Do not use a damaged charger.

USER MANUAL Eagle KM0806 Krüger&Matz

All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means, without the prior written permission of the producer of this product.

Please note: illustrations and descriptions concerning operating system are for reference only, and may vary from actual software on your device!

Producer reserves the rights to errors and misprints.

Krüger&Matz

Read the instruction manual carefully before first use and keep it for future reference.

1. Protect this product from moisture, humidity, water and any other liquid. Avoid using/storing it in extreme temperatures. Do not expose it to direct sunlight and sources of heat.
2. Avoid using/storing it in the strong magnetic environment.
3. Never use this device if the power adapter or the device itself is damaged.
4. Disconnect the device from the power supply if it is not going to be used for a long time.
5. Use only authorized accessories.
6. Prevent the device from falling on the ground or being strongly impacted.
7. This product is not a toy; keep it beyond children's reach.
8. Producer does not claim liability for any data loss, damage caused by inappropriate use and handling or any mechanical damage.
9. Do not attempt to repair/disassemble this device yourself. In case of damage, contact with an authorized service point for check-up/repair.
10. ALWAYS disconnect this device from power supply mains before cleaning. Clean this device with soft, slightly damp cloth. Do not use any abrasives or chemical agents to clean this product.
11. Do not disconnect the tablet suddenly when formatting or uploading and downloading, which can lead to program errors.
12. Producer does not claim liability to any damages caused by inappropriate upgrade performed by the user.
13. Road safety comes first: Do not use this device while driving or walking.
14. Switch off in aircraft: Wireless devices can cause interference in aircraft. Please make sure that your device is powered off (or switched to flight mode) during flight.
15. Switch off before entering risky areas: Strictly observe the relevant laws, codes, and regulations on the use of wireless devices in risky areas. Turn off your device before entering a place susceptible to explosion, such as an oil station, oil tank, chemical plant or a place where a blasting process is under way.
16. Observe all special regulations: Follow any special regulations in force in any area such as hospitals and always switch off your device whenever it is forbidden to use it or, when it may cause interference or danger. Properly use your device near medical apparatuses, such as pacemakers, hearing aids and some other electronic medical devices, as it may cause interference to such apparatuses.
17. NOTE: The battery is not detachable. Do not attempt to disassemble the battery.

Overheating

While charging, the temperature of the device and the charger may get increased. This does not affect the device's lifespan or performance and is in the device's normal range of operation.

However, if there is an excessive increase in temperature or overheating, depending on the factor that caused it: device's performance may be significantly reduced, charging process may be stopped, the device may turn off or display notification about switching off for cooling. Function available only in selected models. Important: if the device displays notification about overheat, turn it off and do not turn it back on until completely cooled down!

In case of overheat during charging:

1. Disconnect the charger from the device.

2. Close any running apps.

3. Wait for the device to cool down, and then begin charging the device again.

If the part of the device where the USB port is placed overheats, check for damage to the connected USB cable. Replace the damaged USB cable with a new authorized cable.

The device may also overheat during operation when using several battery consuming applications or functions. In case of overheat during usage:

1. Close any running apps.
2. Disconnect any connectivity (Bluetooth, Wi-Fi, data transfer etc.).
3. Lower the screen brightness settings.
4. Wait for the device to cool down before attempting to use it again.

Safety precautions concerning operation environment

In order to maintain battery's longevity, and to avoid overheat, follow basic precautions including provisions listed below:

1. Do not use / store the device in very hot or cold environments nor expose to direct sunlight (e.g. on a car's dashboard when using as a navigation).
2. Do not place the device on surfaces that may cause overheat e.g. electric heating mat.
3. Do not place near sources of heat e.g. radiators, microwave ovens, hot kitchen appliances nor high pressure containers.
4. DO NOT use damaged charger or battery!
5. Use only authorized chargers, batteries and cables! Using unauthorized accessories may damage the device or battery. Connecting charger with inadequate parameters may result with damage to the device and poses risk to the user.

Krüger&Matz

Owner's manual Owner's manual

Krüger&Matz

1.	Power and lock key	6.	Nano SIM slot / microSD card slot
2.	Volume control button 7. Rear camera
3.	Earphone jack 8. Front camera
4.	Microphone 9. Speaker
5.	USB type C (charging)

Getting startedKeys and functions

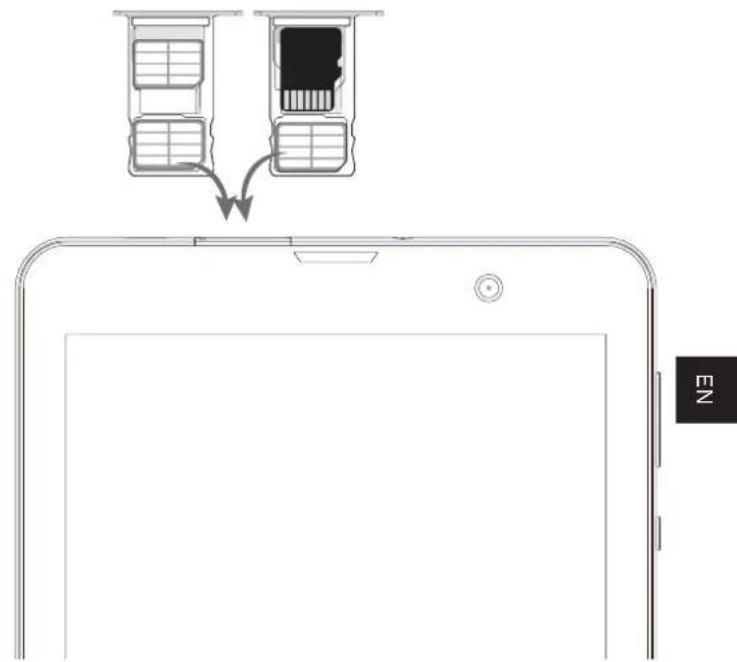

To eject the card tray, insert card tray pin into card tray hole and push lightly until the card tray pops up.

Retrieve the card tray and insert the nano SIM card and nano SIM card OR nano SIM card and microSD card as indicated.

Close the card tray.

Krüger&Matz

Owner's manual Owner's manual

Krüger&Matz

Turn on

To switch on your tablet, press and hold the power key and wait until it starts. The device will start with locked screen:

• Tap and drag the icon upwards to unlock.
• Touch the upper edge of the screen and drag downwards to open quick settings.

Turn off

To power off your tablet, press and hold the power key ⏻ until the pop-up window appears; tap "Power off" to power it off.

Lock/unlock the screen (sleep mode)

To save battery, you should put your tablet in sleep mode by turning off the LCD display. To do this, shortly press the power key ⏻. Press it again to wake up the screen.

Conserving energy

• Deactivate the Wi-Fi function when it is not in use.
• Keep the device connected to power mains only until it is fully charged.
• Reduce the display brightness in the unit settings.
• Switch to standby mode/turn it off when the device is not in use.

Learn more

For more information on this device visit: www.krugermatz.com. | Read owner's manual carefully before using your device. | Visit www.krugermatz.com website for more products and accessories. | In case of any doubts or questions reach out to our Frequently Asked Questions section.

Please note: below illustrations and descriptions concerning operating system are for reference only, and may vary from actual software on your device!

IMPORTANT: The producer allows the possibility for minor variations in display brightness and color between individual devices. There may be visible light or dark spots on the display. Up to 5 defective pixels are acceptable to be present on the display of the device. Above mentioned cases concerning device's display are not covered under warranty nor statutory warranty rights.

Lechpol Electronics Sp. z o.o. Sp.k. hereby declares that tablet KM0806 is consistent with directive 2014/53/UE. Full text of the EU Declaration of Conformity is available at following Internet address: www.lechpol.pl.

English

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Made in China for Lechpol Electronics Leszek Sp.k., ul. Garwolińska 1, 08-400 Miętne.

Krüger&Matz

Krüger&Matz

Manual de utilizare Manual de utilizare

Krüger&Matz

Pornire

Pentru a porni tableta, apasati si tineti apasat butonul de pornire si asteptati pana cand aceasta porneste. Dispozitivul porneste si afiseaza un ecran blocat:

Blocare/deblocare ecran (mod sleep)

www.krugermatz.com

is a registered trademark
