Product Type	Canister Vacuum Cleaner
Brand	Beko
Model	VCO 32804 AW
Power Consumption	800 W
Supply Voltage	220-240 V~, 50-60 Hz
Operating Radius	7.5 m
Noise Level	76 dB(A)
Dust Container Type	Bagless, Cyclonic
Filtration System	HEPA (Motor Protection Filter + HEPA Inlet Filter + HEPA Outlet Filter + Outlet Sponge Filter)
Suction Power Control	Adjustable via knob on appliance
Telescopic Tube	Yes, with adjustment latch
Floor Brush Type	Parquet/Carpet brush with adjustment latch
Accessories Included	Upholstery tool, Dust brush, Crevice tool
Parking Feature	Vertical and horizontal parking
Cord Rewind	Automatic with button
Safety Features	Yellow and red marks on cord to limit pull length; automatic shut-off not specified
Weight	Approx. 4.5 kg (estimated)
Dimensions (L x W x H)	Not specified in manual

Frequently Asked Questions - VCO 32804 AW BEKO

How do I attach the hose to the vacuum cleaner?

Push the hose cap into the housing until it clicks, ensuring the projecting parts align.

How do I empty the dust container?

Press the dust container removal button, lift out the container, open the lid by pressing the inner latch, empty it, close until a click, then reinsert.

How do I clean the HEPA filters?

Remove the filters (motor protection and HEPA inlet/outlet). Wash the sponge filter under running water, wring slightly, and dry for 24 hours. For HEPA filters, shake off dust and wash the clean side under cool water, then dry at room temperature for at least 24 hours. Do not use heat sources.

How do I adjust the brush for different floor types?

Press the adjustment latch on the parquet/carpet brush. For firm ground/parquet, extend the brush. For carpets/rugs, retract the brush.

What do the yellow and red marks on the power cord mean?

Stop pulling when you reach the yellow mark. The red mark indicates the maximum extension; do not pull beyond it to avoid damage.

Can I vacuum water or liquids with this vacuum?

No, this vacuum is not designed for wet pickup. Do not vacuum water or other liquid materials to avoid damage and safety hazards.

How do I use the parking feature?

For vertical parking, attach the brush hook to the groove at the bottom of the appliance. For horizontal parking, attach it to the groove at the rear side.

What accessories are included and how are they used?

Included accessories: upholstery tool for furniture and stairs, dust brush for curtains and fragile items, and crevice tool for tight spaces. Attach them to the handle or tube as needed.

What should I do if the power cord is damaged?

Do not use the appliance. The cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard.

How do I store the vacuum cleaner when not in use?

Unplug the appliance, press the cord winding button to retract the cord, and store it in a dry place out of reach of children. Use the parking feature to keep it upright.

USER MANUAL VCO 32804 AW BEKO

Simple line drawing of a decorative pattern with circular motifs inside a square frame (no text or symbols)

VCO 32804 AW

EN - PL

Please read this manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this user manual and all other provided documents carefully before using the appliance and keep it as a reference for future use. If you hand over the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Meanings of the Symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Protection class for electric shock.

This product has been manufactured in environmental friendly modern plants without giving any harm to the nature.

CONTENTS

ENGLISH	4-12
POLSKI	13-28

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

- This appliance complies with the international security standards.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

- Children should be supervised to ensure that they do not play with the appliance.

- If the supply cord is damaged, it must be replaced by the manufacturer or its agent or similarly qualified person in order to avoid hazard.

- Do not use it if the power cable or the appliance itself is damaged. Contact an authorized service.

- Your mains power supply should comply with the information supplied on the rating plate of the appliance.

- The mains supply of the appliance must be secured with a minimum 16 A fuse.

- Do not use the appliance with an extension cord.

1 Important safety and environmental instructions

• In order to prevent the power cable from getting damaged, make sure that it doesn't get stuck, twisted or rub against sharp surfaces.
• Do not touch the appliance or its plug when it is plugged if your hands are damp or wet.
• Do not pull the power cable when unplugging the appliance.
• Do not vacuum flammable materials and when vacuuming cigarette ashes make sure that it got cold.
• Do not vacuum water or other liquid materials.
• Protect the appliance from rain, humidity and heat sources.
• Never use the appliance in or near to combustible or inflammable places and materials.
• Unplug the appliance before cleaning and maintenance.

• Do not dip the appliance or its cable in water to clean it.

• Check the hose of the appliance regularly. Do not use if it is damaged and contact an authorized service.

• Do not attempt to dismantle the appliance.
• Only use the original parts or parts recommended by the manufacturer.
• The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.
• If heavily used for cleaning dust such as cement or grout the dust indicator will lit earlier then expected, in such case replace the dust bag even it is empty.
• Do not use the appliance without filters; otherwise it can get damaged.
• Keep fingers, hair and loose clothing from moving parts and openings whilst using the vacuum cleaner.
• When vacuuming the stairs, the appliance should be located below the user.

1 Important safety and environmental instructions

- If you keep the packaging materials, store them out of the reach of children.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your vacuum cleaner

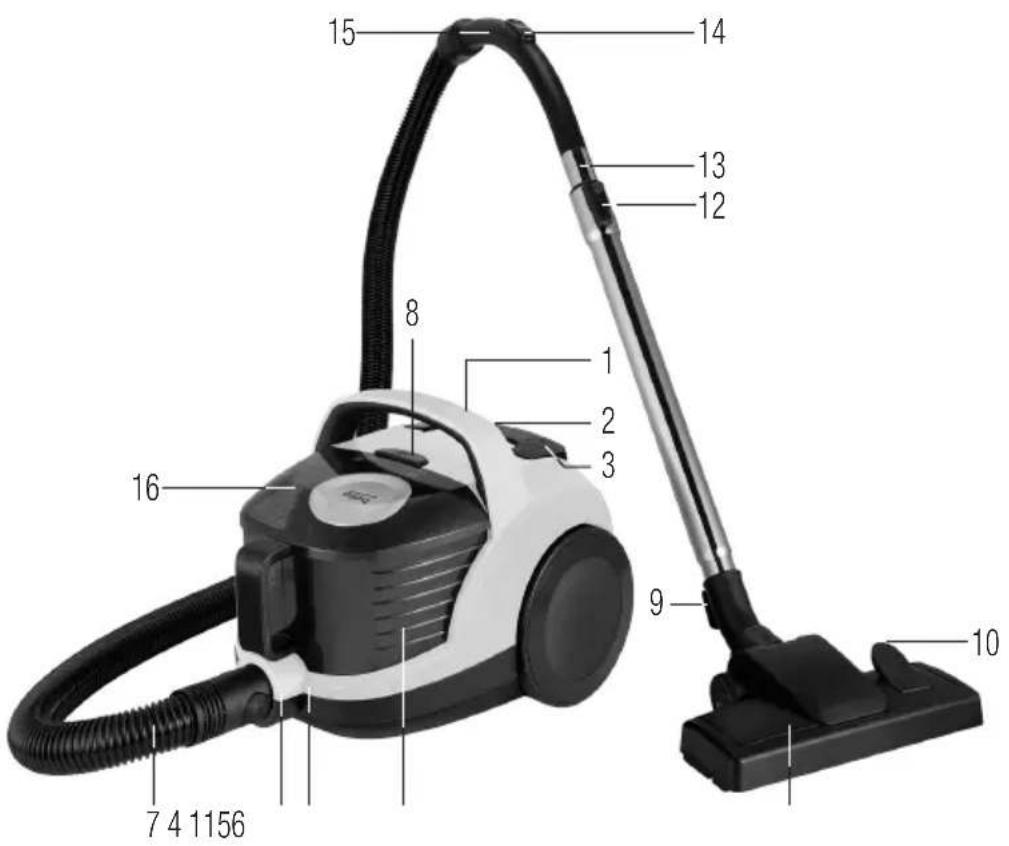

2.1 Overview

1. On/Off button
2. Suction power adjustment knob
3. Power cable winding button
4. Dust container
5. Suction nozzle
6. Hose cap
7. Hose
8. Dust container removal button
9. Parquet/carpet brush parking hook
10. Brush adjustment latch
11. High performance parquet/carpet brush
12. Telescopic tube adjustment latch
13. Telescopic tube
14. Vacuum control
15. Handle
16. Top lid

2.2 Technical data

Supply voltage :220-240 V\~, 50-60 Hz

Power :800 W

Operating radius :7.5 m

Sound : 76 dB(A)

Rights to make technical and design changes are reserved.

The values which are declared in the markings affixed on your appliance or other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

3 Usage

3.1 Intended use

The appliance has been designed for household use and is not suitable for industrial use.

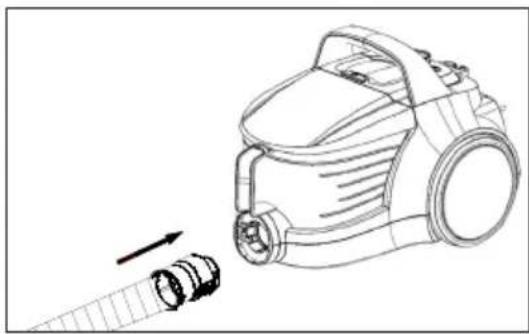

3.2 Attaching/removing the hose

1. To attach the hose (7), push the hose cap (6) in the direction of arrow until it is aligned with the housing (you will hear a click).

Line drawing of a vacuum cleaner with a cylindrical component inserted, showing no text or symbols.

- Projecting parts on the hose cap should be aligned correspondingly.

1. To remove the hose (7), press the unlocking buttons on the sides of the hose cap (6) and pull the hose.

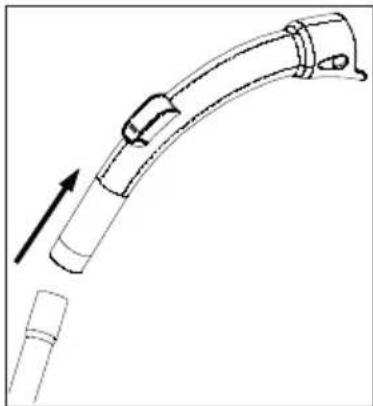

3.3 Attaching/removing the telescopic tube

1. Attach the telescopic tube (13) to the handle (15).

Diagram of a curved mechanical component with an arrow indicating direction (no text or symbols)

1. Pull the telescopic tube (13) from the handle (15) to remove it.

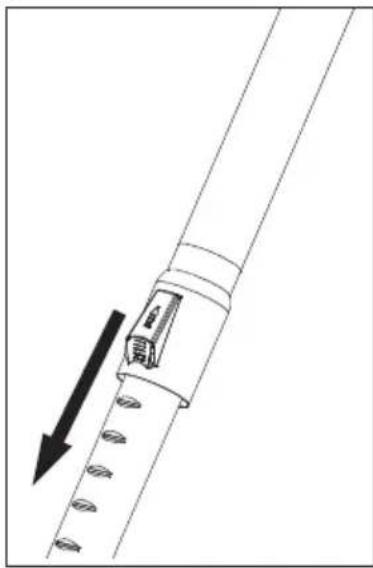

2. You can extend or shorten the telescopic tube (13) by sliding the telescopic tube adjustment latch (12) back and forth.

Diagram of a mechanical tool with a directional arrow indicating movement or force (no text or symbols present)

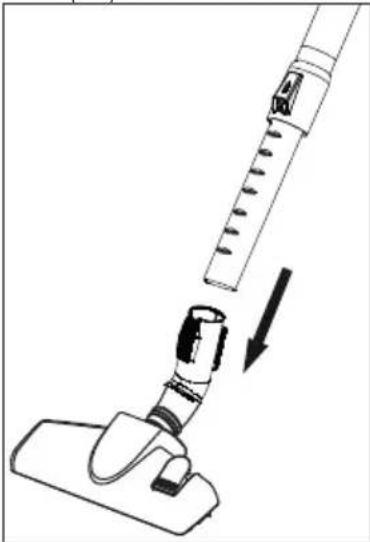

3.4 Attaching/removing the parquet/ carpet brush

1. Attach the telescopic tube (13) to the parquet/ carpet brush (11) in the arrow direction.

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

1. You can remove the telescopic tube (13) from the parquet/carpet brush (11) by pulling it.

3 Usage

3.5 Adjusting the parquet/carpet brush

Press the adjustment latch (10) located on the parquet/carpet brush (11) and;

- Vacuum on firm ground and parquet; extend the brush before vacuuming.

• Vacuum on carpets and rugs; retract the brush before vacuuming.

3.6 Operation

1. Plug in the appliance after pulling the power plug located at the back of the appliance.

WARNING: Stop pulling the appliance cable when it comes to the yellow mark located on it. After the yellow mark, the red mark will come. Do not pull any more after reaching the red mark.

1. Use the suction power adjustment knob (3) found on the appliance to set it to the desired suction power (see 3.6).
2. Press the on/off button (1) to switch on your appliance.

3.7 Accessories

Accessories have been designed in one piece to save space and provide practical use.

Upholstery tool

Suitable for cleaning the floorings, stair steps, inside of the cars, sofas, armchairs etc.

Dust brush

Pure technical line drawing of a mechanical component (no text or symbols)

Suitable for cleaning the curtains, and sensitive and fragile objects.

Crevice tool

Simple line drawing of a rectangular object with a curved top and base, resembling a stylized pen or container (no text or symbols)

Suitable for the cleaning of the surfaces which are difficult to clean, such as the areas remaining under the sofas and furniture.

WARNING: The crevice tool must be adjusted to remain outside.

- Pull the accessory to remove it when the process is complete.

WARNING: Do not make cleaning by using the handle's (15) end part.

3 Usage

3.8 Switching off the vacuum cleaner and parking feature

1. Switch off the appliance with the on/off button (1) and unplug it.
2. Press the cable winding button (3) to wind the cable inside the appliance.

Vertical parking feature

Attach the hook of the parquet/carpet brush (9) to the parking groove located at the bottom part of the appliance.

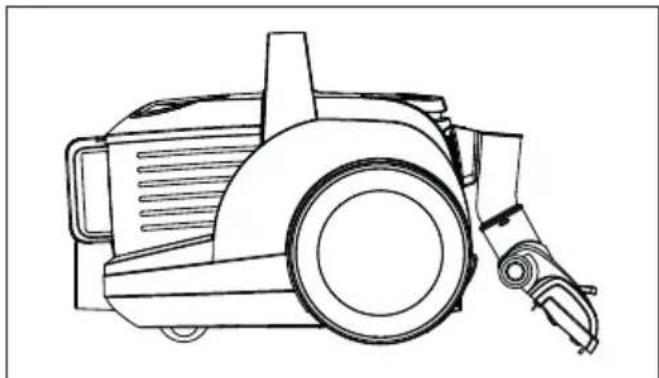

Horizontal parking feature

Attach the hook of the parquet/carpet brush (9) to the parking groove located at the rear side of the appliance.

Line drawing of a portable air purifier with handle and spout (no text or symbols)

4 Cleaning and care

Switch off and unplug the appliance before cleaning it.

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

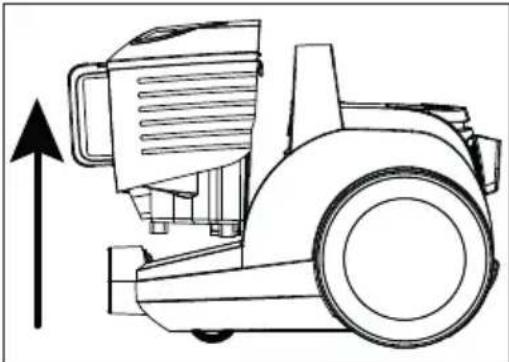

4.1 Emptying the dust container

1. Press the dust container removal button (8) to remove the dust container (4) and remove the dust container in the direction of the arrow by holding from the dust container carrying handle.

Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

1. Open the lid of the dust container (4) by pressing the inner latch and empty the container.

2. When you have emptied the dust, close the dust container lid (4).

- A click will be heard.

1. Insert the dust container (4) into its place by holding it from the handle.

4.2 Cleaning the filters

WARNING: Do not use appliances producing hot air such as hair dryer or heater to dry the filters.

WARNING: Do not install the filters without completely drying them; otherwise, smell of moisture may occur during use, water can leak from the back of the appliance or the filters may get damaged.

WARNING: Attach the filters into their places after they have dried.

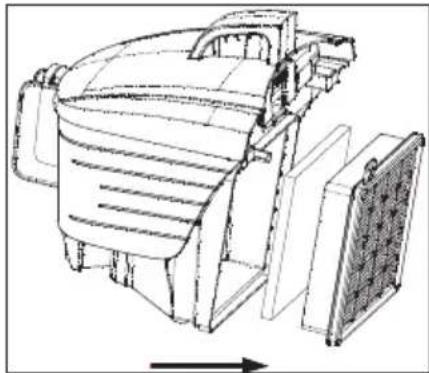

4.2.1 Motor protection filter and HEPA filter

These filters are located on the rear side of the dust container (4).

1. Press the dust container removal button (8) and remove the dust container (4).
2. Remove the HEPA filter and motor protection filter found at the back of the dust container (4).

Technical line drawing of a mechanical assembly with no visible text or symbols

1. After washing the sponge protection filter under running water, wring it out slightly and leave it to dry (for 24 hours minimum).
2. Shake off the HEPA inlet filter to eliminate the dusts on it. After that, you can wash it by holding its clean side under running cool water.
3. If you wash the HEPA filter, dry it at room temperature (for 24 hours minimum). Do not use it before ensuring that it is completely dry.

4 Cleaning and care

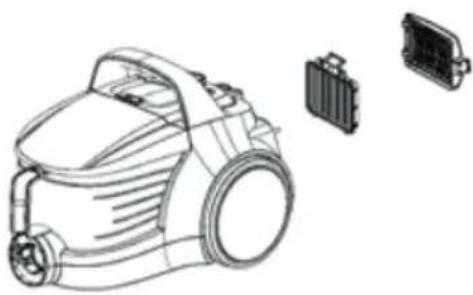

4.2.2 HEPA filter and outlet filter

HEPA outlet filter is located on the rear side of the appliance.

Line drawing of a vacuum cleaner with three additional components (no text or symbols)

1. Remove the HEPA filter by pulling it from its handle.
2. Shake off the HEPA outlet filter to eliminate the dusts on it. After that, you can wash it by holding its clean side under running cool water.
3. If you wash the HEPA filter, dry it at room temperature (for 24 hours minimum). Do not use it before ensuring that it is completely dry.
4. Remove the outlet filter that is found at the back of the cover.
5. After washing the outlet filter under running water, wring it out slightly and let it dry (for 24 hours minimum).

4.3 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance.
• Keep the appliance out of the reach of children.

4.4 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
• Dropping the appliance may render it non-operational or cause permanent damage.

220–240 V\~, 50–60 Hz

Moc

Line drawing of a vacuum cleaner with a pipe and valve assembly (no text or symbols)

Diagram of a curved pipe or duct with an arrow indicating upward motion (no text or symbols present)

Diagram of a mechanical tool with a directional arrow indicating movement or force (no text or symbols present)

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a bent rectangular object with a curved top edge (no text or symbols)

Line drawing of a portable air purifier with handle and spout (no text or symbols)

Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a vacuum cleaner with three additional components (no text or symbols)
