DRESDEN990-21EBHW - Range hood Frilec - Free user manual and instructions

Product Type	Range Hood (Under-cabinet / Wall-mounted)
Model	DRESDEN990-21EBHW
Brand	Frilec
Width	90 cm (approx.)
Depth	50 cm (approx.)
Height	Adjustable, typically 50-100 cm
Weight	Approximately 12 kg
Power Supply	220-240 V / 50 Hz
Motor Power	230 W (approx.)
Max Extraction Rate	650 m³/h (approx.)
Noise Level	55-65 dB (depending on speed)
Number of Speeds	3 speeds (typical)
Control Type	Electronic push buttons
Lighting	LED, 2 x 1.5 W (approx.)
Grease Filter	Aluminum mesh, washable
Charcoal Filter	Optional (for recirculation mode)
Ducting Diameter	150 mm (approx.)
Installation Type	Wall-mounted or under-cabinet
Maintenance	Clean grease filter monthly; replace charcoal filter every 3-6 months
Safety Features	Thermal overload protection, auto shut-off timer (optional)
Spare Parts Available	Grease filters, charcoal filters, LED bulbs, motor
Warranty	2 years (typical)

Frequently Asked Questions - DRESDEN990-21EBHW Frilec

What are the dimensions of the Frilec DRESDEN990-21EBHW range hood?

The width is approximately 90 cm, depth around 50 cm, and height adjustable from 50 to 100 cm.

How do I clean the grease filter?

Remove the aluminum mesh filter and wash it with warm soapy water or in the dishwasher. Allow it to dry completely before reinstalling.

How often should I replace the charcoal filter?

If used in recirculation mode, replace the charcoal filter every 3 to 6 months.

What type of lighting does the hood use?

It uses LED bulbs. Typically 2 x 1.5 W.

Can I install the hood in recirculation mode?

Yes, you can use it with a charcoal filter for recirculation. A ducting kit is not required.

How do I reset the filter cleaning reminder?

Press and hold the speed button for 3-5 seconds until the indicator light turns off.

What is the maximum extraction rate?

The maximum extraction rate is approximately 650 m³/h.

What should I do if the hood is noisy?

Check for loose parts, clean the fan blades, and ensure the ducting is not blocked. If noise persists, contact service.

Does the hood have an auto shut-off timer?

Some models include a timer; check your manual or press the timer button if available.

Where can I buy spare parts?

Spare parts such as filters and bulbs can be purchased from the manufacturer or authorized online retailers.

USER MANUAL DRESDEN990-21EBHW Frilec

Technical line drawing of a mechanical assembly with two stacked plates and a central block (no text or symbols)

INHOUD

Isometric line drawing of a rectangular enclosure with internal compartments and a vertical rod (no text or symbols)

Pure technical diagram of a rectangular panel with a central vertical bar and a circular button, no text or symbols present.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

https://www.frilec.nl

domestic and professional appliances

Manual built-in Cooker hood

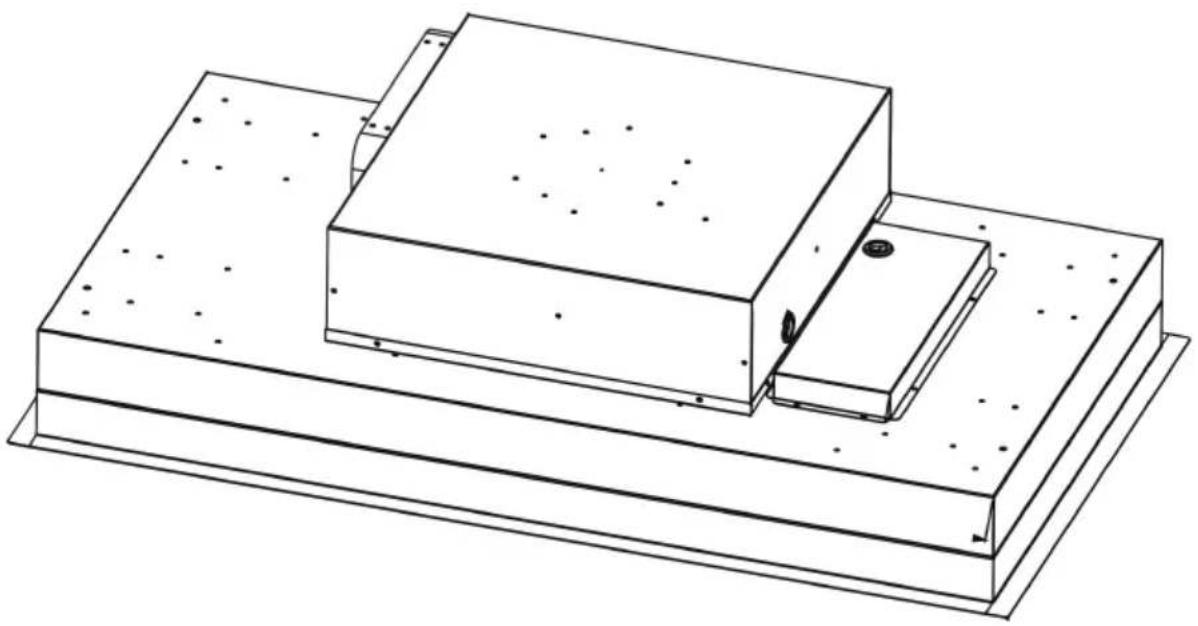

DRESDEN990-21EBHW DRESDEN991-21EBHI

Technical line drawing of a mechanical assembly with two stacked plates and a central component (no text or symbols)

CONTENT

Safety Instructions 2

Installation 4

Operation 8

Troubleshooting 10

Cleaning and Care 11

Hints on Disposal 11

Warranty &service 11

TECHNICAL DATA

Item number	DRESDEN990-21EBHWDRESDEN991-21EBHI
Power supply	220-240 V ~ 50/60 Hz

DECLARATION OF CONFORMITY

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

2009/125/EC (ErP)

SAFETY INSTRUCTIONS

• Thank you for purchasing this cooker hood. Please read the instruction manual carefully before you use the cooker hood, and keep it in a safe place.
• The installation work must be carried out by a qualified electrician or competent person. Before you use the cooker hood, make sure that the voltage (V) and the frequency (Hz) indicated on the cooker hood are exactly the same as the voltage (V) and the frequency (Hz) in your home.
• The manufacturer and the agent will not bear any responsibility for the damage caused by inappropriate installation and usage.
• Never let children operate the cooker hood.
• The cooker hood is for home use only. It is not suitable for barbecues, Roast shop and commercial purposes.
• The cooker hood and its filter mesh should be cleaned regularly in order to keep it in good working order.
  • Before cleaning, switch the power off at the main supply.
• Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.
  • Prohibit putting the cooker hood by fire.
• If there is any fault with the appliance, please call the service department to request a service engineer.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The instructions shall state the substance of the following: there shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• Do not flambé under the range hood. Accessible parts may become hot when used with cooking appliances.

Important Hints on Installation

- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- Regulations concerning the discharge of air have to be fulfilled.

Important notes about the extraction mode

WARNING

Risk of poisoning from exhaust gases sucked back. Never operate the device in extraction mode simultaneously with an open flue appliance when there is not adequate airflow guaranteed.

Open fl ue combustion equipment (for example, gas, oil, wood or coal-fi red heaters, tankless water heaters, water heaters) pulls combustion air from the room and runs it through an exhaust pipe or chimney to the outside. In the extraction mode, indoor air is removed from the kitchen and the adjacent rooms - without suffi cient air intake this creates a vacuum. Toxic gases from the chimney or extraction fl ue can thereby be sucked back into the living spaces.

• Always ensure that a sufficient supply of fresh air is guaranteed and that the air can circulate.
• An air supply / extractor box alone does not ensure compliance with the limit value.

Safe operation is only possible when the negative pressure in the room where the appliance is located does not exceed 4 Pa (0.04 mbar). This can be achieved when the air required for combustion can flow through openings that are not closable, for example in doors, windows, in conjunction with an air supply/ extractor box or through other technical measures. In any case, consult a qualified chimney sweep who can assess the entire ventilation of your house and propose appropriate measures for adequate ventilation.

If the hood is used exclusively in the recirculation mode, unrestricted operation is possible.

WARNING

Fire hazard from flying sparks. Only install equipment on a fi replace for solid fuels (for example, wood or coal), if a closed, non-removable cover is available.

INSTALLATION

Preparation

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminium, flexible pipe or inflammable material with an interior diameter of 150mm)

• Before installation, turn the unit off and unplug it from the outlet.
• The cooker hood should be placed at a distance of 65\~75cm above the cooking plane for best effect.

Installation (Vent outside)

Note: When the range hood and appliance supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must be not exceed 4 Pa ( 4 × 10^-5 Bar).

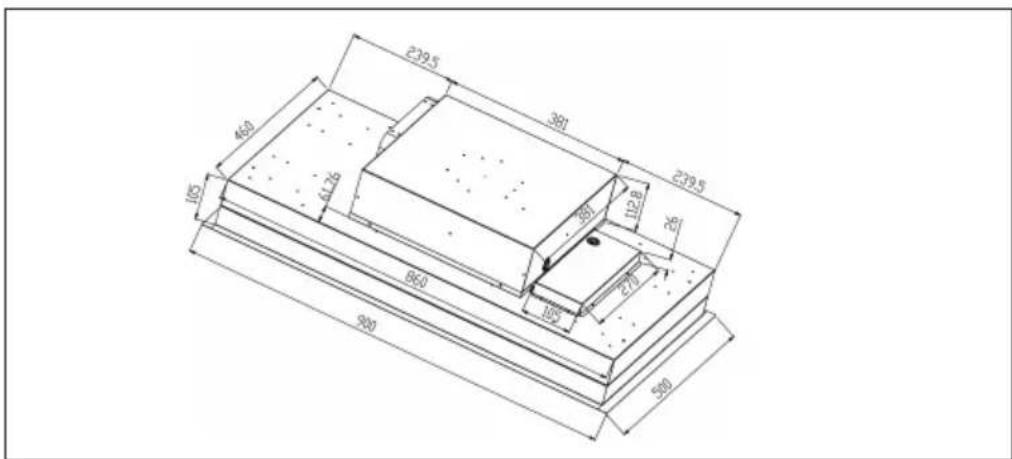

Dimensions

Before installation

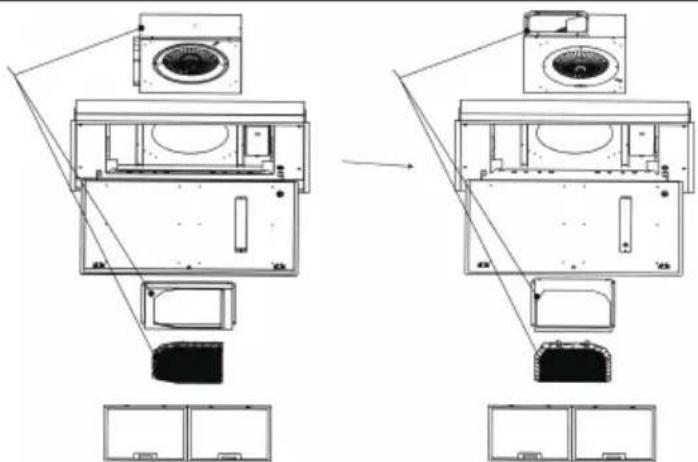

If you want to change the air-outlet to another side, see below how to do this Remark: only do one 90-degree rotation

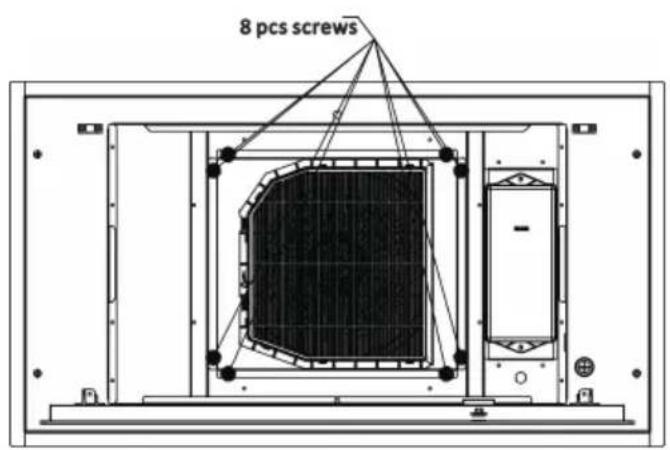

1. Take out the aluminum filter, then remove these 8 screws

Technical line drawing of a microwave oven assembly showing front and side views (no text or labels)

1. When you want to turn the motor, you must also turn the carbon filter's support kit&cilben

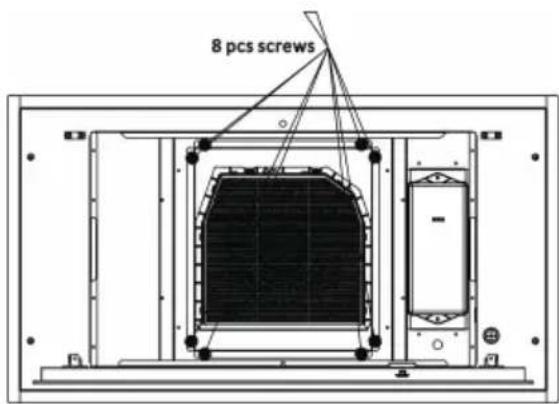

1. Install 8 screws at indicated places, then this step is done.

Ceiling installation

1. Cut the indicated hole in the ceiling.3. Install the hood into the ceiling. Push the extractor upwards until the brackets click open in the false ceiling. (see image 4)	2. Install indicated 4 screws in & the four brackets onto the hood, but not too tight yet.4. If they don't, use a screwdriver to push into the 4 holes in the lower corners of the hood to help them click open.

Isometric line drawing of a rectangular enclosure with internal compartments and mounting feet (no text or symbols)

Pure technical diagram of a rectangular panel with internal components and mounting holes (no text or symbols)

5.Tighten the screws now, installation is finished.
6. The hood with safety rope in the light panel; pressing this part can adjust the safety rope's length.
Note: The ventilation pipe must be installed after adjusting the extractor hood.

• When mounting a non-return valve, it must be ensured that the valve can be opened freely. If the valve cannot be opened freely, it can reduce the suction power and increase the noise from the extractor hood.
• If the extractor hood is used for recirculation and there is no external ventilation (exhaust air), it is important that the ventilation is not blocked or impaired, as this can damage the extractor hood, reduce capacity and increase noise. In addition, no non-return valve can be installed in recirculation mode.

OPERATION

Control Panel and Button Functions

1	Switch the engine on and off.
1	The motor runs at low speed.
2	The motor runs at medium speed.
3	The motor runs at high speed.
	Switch the light on and off.

Remote Control

1 42 3	1	Motor on/off
	2	Reduce power/speed
	3	Increase power/speed
	4	Light on/off

How to connect it?

1. In standby mode, long press the hood's on/off button and hold it 3 second, the hood will go into remote control connection mode, and the light will keep flashing.
2. In remote control connection mode, short press remote control's ON/OFF switch, and you will hear "beep", and then it has finished making the connection.

Remark: when you're in the remote control connection mode, you do not have any operation about

15 seconds or connection fails, the hood will go back to standby mode.

How to use it?

1. Motor on/off button
2. Reduce power/speed
3. Increase power/speed
4. Light on/off button

Remark: The Sequences of speed: 1st speed, 2nd speed, 3rd speed & booster. Booster: the booster setting will run 5 mins max.; after 5 mins, the speed will turn back to 3rd speed.

TROUBLESHOOTING

Fault Cause Solution
Light on, but fan does not work	The fan blade is jammed.	Switch off the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	light bulb burn. Replace the	bulb with correct rating.
	Parkway in total power	supply again.
Serious Vibration of th unit	The fan blade is damaged.	Switch off th repair by qualified service personnel only.
	The fan motor is not fixed tightly.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75cm

CLEANING AND CARE

Monthly Cleaning for Grease Filter

Clean the filter every month can prevent any risk of fire. The filter collects grease, smoke and dust, so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

Annual Cleaning for Activated Filter

Apply solely to unit that installed as a recirculation unit (not vented to the outside). This filter traps odours and must be replaced at least once a year depending on how frequent the cooker hood is used.

Replacing carbon filter

1. Open the light panel
2. Take out the Alum. filter
3. Take out the carbon filter and place a new one.

Replacing Bulbs

1 Switch the unit off and unplug the appliance.
2 Remove the lamp cover by unscrewing the 2 screws.
3 Unscrew the incandescent bulb. Replace with the same type and rated bulb.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Warranty conditions

Dear user,

For our warranty conditions, please scan the QR code below or use the link underneath. At the bottom in the footer you will find our warranty conditions.

https://www.frilec.nl

For questions regarding sales you can email to: [e-mail]

For questions regarding service you can email to: [e-mail]

For other questions you can email to: [e-mail]
