Product Type	Cooker Hood (Range Hood)
Model	DRESDEN678FKH 3
Brand	Frilec
Installation Type	Wall-mounted, ducted or recirculation
Minimum Distance from Hob (Gas)	65 cm (or as per gas hob instructions if greater)
Exhaust Pipe Diameter	120 mm or 150 mm
Number of Speeds	4 (Low, Mid, High, Boost)
Boost Function	Yes, automatically reverts to High after 8 minutes
Lighting Type	LED, max 1.5 W, 12 V DC
Light Module Replacement	Replace entire module (bulb not replaceable)
Grease Filters	Metal self-supporting, washable in dishwasher
Grease Filter Cleaning Frequency	Every 2 months (or more often with heavy use)
Charcoal Filter (Recirculation)	Optional, not washable, replace every 4 months
Maximum Number of Hob Elements	4
Power Supply	Mains voltage (check rating plate)
Class	I (requires earthing)
Warranty	2 years on entire device and electrical parts
Included Components	Hood body, lower/upper decorative chimney, flange (optional), exhaust pipe (optional), charcoal filters (optional)
Minimum Exhaust Pipe Distance	As short as possible
Safety Features	Overheat protection? (not specified), interlock with non-electrical appliances

Frequently Asked Questions - DRESDEN678FKH 3 Frilec

What is the minimum distance between the hob and the range hood for gas cooking?

The minimum distance is 65 cm. If the gas hob installation instructions specify a greater distance, that must be followed. This distance can be reduced for non-combustible parts of the hood operating at safety extra low voltage, provided they do not give access to live parts if deformed.

How do I install the ducted version?

Connect the hood to the chimney using a flexible or rigid pipe of 120 mm or 150 mm diameter. If using 120 mm, insert the reducer flange on the hood body outlet. Fix the pipe with clamps (not supplied). Remove any charcoal filters if present. Ensure the air is not discharged into a flue used for exhausting fumes from gas or other fuel appliances.

How often should I clean the grease filters?

The metal self-supporting grease filters should be cleaned every 2 months of operation, or more frequently with heavy usage. They are dishwasher safe. Avoid bending them, and ensure they are completely dry before refitting. The handle should face outward.

How do I replace the activated charcoal filter?

First remove the metal grease filters. Then remove the saturated charcoal filter and fit a new one. Finally, replace the metal grease filters. Charcoal filters are not washable and must be replaced approximately every 4 months (or more often with heavy use).

How do I change the LED light?

The LED light module must be replaced entirely (bulb not replaceable). Disconnect the appliance from the mains. Remove the grease filter and the two screws from the front plate. Disconnect the terminal of the LED light, press it from the back to remove it. Install the new LED light (max 1.5W, 12V DC) by pressing it onto the front plate and reconnecting the terminal. Reinstall the front plate and grease filter.

What should I do if the motor does not run but the light works?

Check if the fan blades are blocked. If not, the capacitor or motor may be damaged. Also check for disconnected wiring. Contact a qualified technician for replacement if needed.

What is the warranty period?

The warranty period is 2 years from the purchase date for the original buyer, covering the entire device and electrical parts. Exclusions include glass, lighting, plastic/metal parts, filters, and damage from misuse. The warranty is valid only for domestic use in Benelux and requires the original invoice.

Can I use the hood with a gas hob?

Yes, but ensure the minimum distance of 65 cm is maintained. The room must have adequate ventilation (direct opening to outside) to prevent backflow of exhaust gas, and the negative pressure should not exceed 0.04 mbar.

What does the Boost function do?

The Boost function runs the motor at maximum speed for 8 minutes, then automatically reverts to High speed. Press the Boost button to activate; press again to deactivate.

How do I clean the hood exterior?

Clean the hood with a damp cloth and a neutral liquid detergent. Do not use abrasive cleaners. Always unplug or switch off the appliance before cleaning.

USER MANUAL DRESDEN678FKH 3 Frilec

Line drawing of a tall rectangular metal enclosure mounted on a base (no text or symbols)

Simple line drawing of a laboratory setup with a conical flask, thermometer, and gas stove (no text or symbols)

Illustration of a cooking setup with a pot, stove, and steam rising (no text or symbols)

Simple line drawing of a rectangular block with a vertical centerline and two horizontal bars below (no text or symbols)

Simple line drawing of a rectangular block with a horizontal bar and a vertical line intersecting it (no text or symbols)

Goed Fout

AANSLUITINGEN

LUCHTAFVOER MET LUCHTUITLAATSYSTEEM

Simple line drawing of two cylindrical objects with dashed outlines, placed on a dotted base (no text or symbols)

Bovenste schouwdeel

Snelheidsafstelling

Licht

Laag

Middel

Hoog

Boost

VETFILTERS

REINIGEN VAN METALEN ZELFDRAGENDE VETFILTERS

Illustration of a hand holding a tablet device with a downward arrow, enclosed in a circular frame (no text or symbols)

ACTIEVE KOOLSTOFFILTER (luchtcirculatie)

Technical line drawing showing three steps of installing or adjusting a device panel (no text or symbols present)

domestic and professional appliances

MULTIBRAND

SALES & SERVICES

FRIZEC

INSTRUCTION MANUAL

COOKER HOOD

DRESDEN-678FKH-3

DRESDEN-978FKH-3

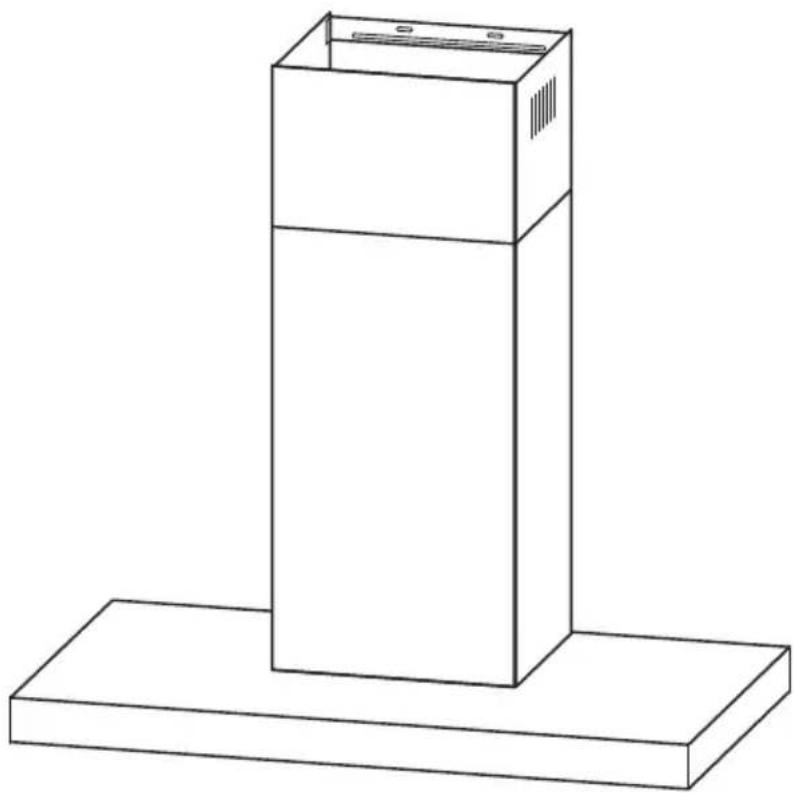

Line drawing of a tall rectangular metal enclosure mounted on a base (no text or symbols)

The instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

● The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
- The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood. ( When the range hood is located above a gas appliance, this distance shall be at least 65 cm. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. The distance of 65 cm can be reduced for:non-combustible parts of range hoods, and parts operating at safety extra low voltage,Provided these parts do not give access to live parts if deformed;)
- Check that the mains voltage corresponds to that indicated on the rating plate fixed to the hood.
- For Class I appliances, check that the domestic power supply guarantees adequate earthing.
- Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm. The route of the flue must be as short as possible.
● The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.
- When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
● Regulations concerning the discharge of air have to be fulfilled.

Illustration of a lamp illuminating a steaming lamp with a control panel (no text or symbols)

USE

● The cooker hood is only for home use, not suitable for barbecue, roast shop and other commercial purposes.

● Never use the hood for purposes other than for which it has been designed.

● Never leave high naked flames under the hood when it is in operation.

- Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.

● Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

● Do not flame under the range hood; risk of fire.

● This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

● Children should be supervised to ensure that they do not play with the appliance.

● Cleaning and user maintenance shall not be made by children without supervision.

● "CAUTION: Accessible parts may become hot when used with cooking appliances".

MAINTENANCE

● The cooker hood and its filter should be cleaned regularly according to the instruction.
- Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
● Clean and/or replace the Filters after the specified period(Fire hazard).
● Clean the hood using a damp cloth and a neutral liquid detergent.
● The appliance uses 4 hob elements at most.

Simple line drawing of a house with a chimney and fire extinguisher, no text or symbols present

The symbol is packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

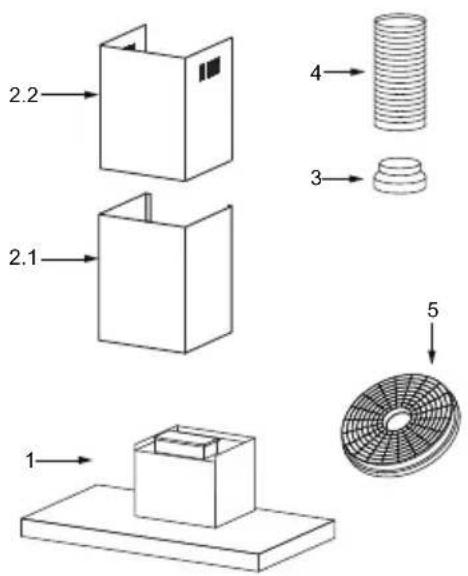

Ref.	Qty.	Product Components
1	1	Hood Body,complete with: Controls, Light, Blower,Filter.
2.1	1	Lower Decorative Chimney
2.2	1	Upper Decorative Chimney
3	1	Flange (optional)
4	1	Exhaust Pipe (optional)
5	2	The Activated Charcoal filter (optional)

Qty. Documentation

1 Instruction Manual

Ref. Qty. Optional Installation Components
10	7	Screws 5 x 50
11	7	Wall Plugs
12	6 Screws 4,2 x 9,5
20 1		Hood fixing bracket
21	2	Chimney fixing bracket

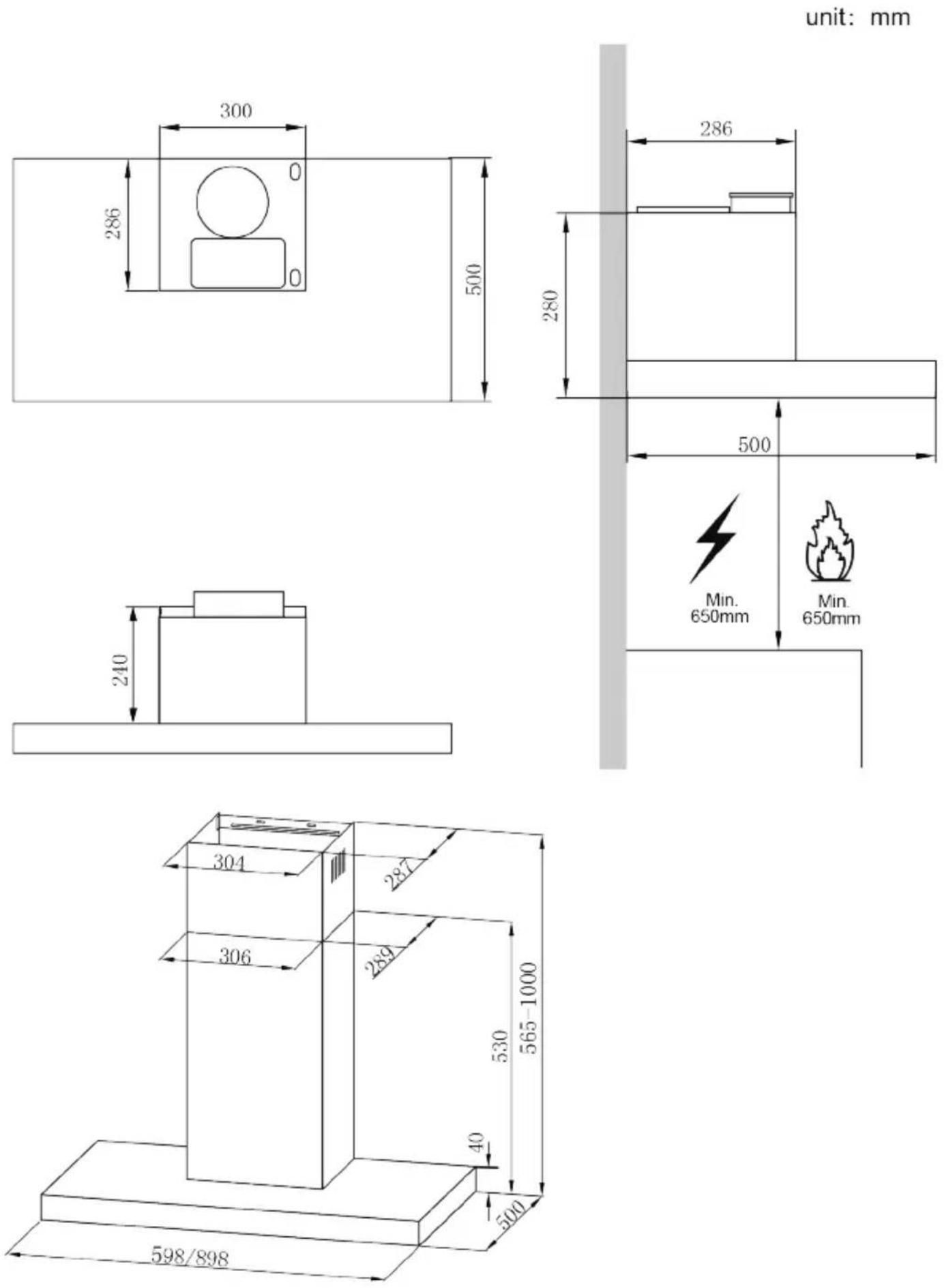

WALL DRILLING AND BRACKET FIXING

As a first step, proceed with the following drawings:

• A vertical line up to the ceiling or up to the upper limit, at the center of the area in which the hood is to be fitted.
  ● A horizontal line A at 970 – 1070 mm above the cooker top.
  ● A horizontal line B at a 260-700 mm above the horizontal line A.
  ● A horizontal line C at a 243 mm below the horizontal line A.

Mark Points:

● Mark a point (1) on the horizontal line A, 80 mm to the vertical reference line.
- Repeat this operation on the other side and on the vertical reference line, checking that the three marks are leveled.
- Mark a point (2) on the horizontal line B, 60 mm to the vertical reference line.
- Repeat this operation on the other side, checking that the two marks are on the same horizontal line.
- Mark a point (3) on the horizontal line C, 100 mm to the vertical reference line. Repeat this operation on the other side, checking that the two marks are leveled.

Fix the brackets :

● Drill holes at the marked points with a φ 10 mm drill bit.
- Insert the Wall Plugs 11 into the holes.
● Fix the hood fixing bracket 20 with 3 screws 10 (5 x 50) at the horizontal line A.
● Fix a Chimney fixing bracket 21 with 2 screws 10 (5 x 50) at the horizontal line B.

Lower decorative chimney

● Fix the exhaust pipe on the hood body, connect chimney and hood body with 2 screws 12. connect chimney fixing bracket and chimney with 2 screws 12.

Hook the hood body

● Hook the hood body to the bracket 20.
● Level the hood body itself.

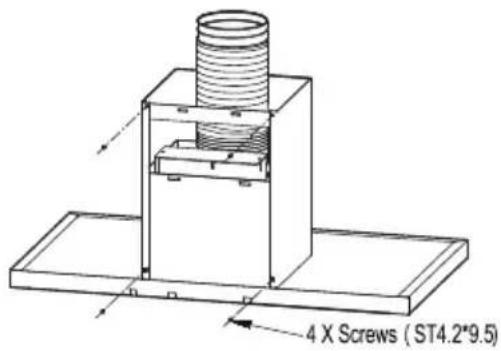

- Remove the filter from the inside of the hood body, fix the screws 10 to Wall Plugs 11 at the points (3).

Simple line drawing of a rectangular block resting on a horizontal bar with a vertical centerline (no text or symbols)

Right

Simple line drawing of a rectangular block resting on a horizontal bar with a vertical centerline (no text or symbols)

Wrong

CONNECTIONS

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe φ 150 or φ 120 mm, the choice of which is left to the installer.

• If to install a φ 120 mm air exhaust connection, insert the reducer flange 3 on the hood body outlet.
• Fix the pipe 4 in position using sufficient pipe clamps (not supplied).
• Remove possible charcoal filters.

Upper Decorative Chimney

• Insert the upper decorative chimney 2.2 into the lower decorative chimney 2.1 and drag it up to the horizontal line B
• Connect upper decorative chimney 2.2 and chimney fixing bracket 21 with 2 screws 12 .

Speed adjustment(for some models).

• After plugging, buzz once to declare the hood is connected with electricity. After the connection:
• Press the Light button, control light being on and off independently. Press it once, the lights will be on. Press again, they will be off.
• Press the Low button, control low speed being on and off independently. Press it once, the low speed key light is on and motor run at low speed. Press again, they will be off.
• Press the Mid button, control middle speed being on and off independently. Press it once, the mid speed key light is on and motor run at mid speed. Press again, they will be off.
• Press the High button, control high speed being on and off independently. Press it once, the high speed key light is on and motor run at high speed. Press again, they will be off.
• Press the Boost button, control boost speed being on and off independently. Press it once, the boost speed key light is on and motor run at boost speed. Press again, they will be off. The Boost speed will automatically revert to High speed after running 8 minutes.

B

Light

Low

Mid

High

Boost

GREASE FILTERS

CLEANING METAL SELF-SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Remove the filters one by one pushing them towards the back side of the hood unit and simultaneously pulling downwards.
• Any kind of bending of the filters has to be avoided when washing them. Before fitting them again into the hood make sure that they are completely dry. (The color of the filter surface may change throughout the time but this has no influence to the filter efficiency).
• When fitting the filters into the hood pay attention that they are mounted in correct position the handle facing outwards.

Illustration of a hand holding a tablet device with a finger pointing at it, showing a download arrow (no text or symbols present)

ACTIVATED CHARCOAL FILTER (RECIRCULATION VERSION)

These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

REPLACING THE ACTIVATED CHARCOAL FILTER

• Remove the metal grease filters.
• Remove the saturated activated charcoal filter.
  ● Fit the new filters.
• Replace the metal grease filters.

LIGHTING

LIGHT REPLACEMENT(Completed by professionals)

Replacing the light modules

• Cannot replaced the light bulbs, the entire light module has to be replaced.
• When changing the light modules, the contacts are live.
• Before changing the light module(s), unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

Dismantle LED light module

• Remove the grease filter and carefully remove the 2 screws from the front plate (a cross headed screwdriver will be needed to remove the screws).
• Disconnect the terminal of LED light.
  ● Press LED light on the back of the front plate, take the LED light out.
• Replace the lamp(commercially available LED lamp (max.1.5w).

Technical line drawing of a cabinet or enclosure with internal components and a hand pointing to a component (no text or symbols present)

Line drawing of two hands holding a rectangular object (no text or symbols)

Hand inserting a circular component into a rectangular device (no text or symbols visible)

Round lamp

	Max Power	Voltage	Picture Lamp Cap ILCOS D code
Round/ Diameter : 70mm	1.5W DC	12 V		——	DSR-1.5-S-70

• Press LED light on the front of front plate, install the LED light on the front plate.
• Connect the terminal of LED light and light leads.
  ● Carefully fasten the 2 screws on the front plate, reinstall the grease filter.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Fault Cause	Solution
Light on, but motor does not work	The blades are blocked.	Check the blades.
	The capacitor is damaged. Replace capacitor.
	The motor is damaged. Replace motor.
	The internal wiring of motor is cut off/disconnected. An unpleasant smell may be produced.	Replace motor.
Both light and motor do not work	Apart from the above mentioned, check the following:
	Light damaged. Replace lights.
	Power cord loose.	Connect the wires as the electric diagram.
Oil leakage	Outlet and the air ventilation entrance are not tightly sealed.	Take down the outlet and seal with glue.
Vibration	The blade, if damaged, can cause vibrating.	Replace the blade.
	The motor is not tightly fastened. Fasten the motor tightly.
	The cooker hood is not tightly fixed. Fixed the cooker hood tightly.
Insufficient suction	The distance between the cooker hood and the cooker top is too large.	Readjust the distance.
	Too much ventilation from open doors or windows.	Choose a new place to install the appliance or close some doors / windows.
The machine inclines	The fixing screws are not tight enough.	Tighten the fixing screw and make it horizontal.
	The hanging screws are not tight enough	Tighten the hanging screw and make it horizontal.

1. These warranty conditions apply exclusively to the original buyer and for domestic use of the appliance in the Benelux. If the appliance is resold from user to user, the warranty becomes null and void.
2. The warranty only applies if, in the event of a warranty claim, this warranty certificate with the original purchase invoice is shown by the original buyer.
3. No guarantee shall apply to defects caused by: damage, rough or injudicious handling, negligence on the part of the user, use of the appliance at an incorrect voltage or use for a purpose other than that for which it was supplied. Nor can the warranty be invoked when the rating plate with serial number has been changed or removed and/or when the device has been worked on by unqualified persons.
4. Not covered under the terms of this warranty: glass(ceramic), lighting, plastic/metal parts and/or accessories (i.e. filters, grills, pan supports), wire baskets and/or separation partitions, lacquer and/or enamel damage.
5. The warranty period commences on the purchase date stated on the original purchase invoice and covers: A two-year guarantee on the entire device and its electrical parts such as thermostat, thermal protection, relay, ventilation fan, transformer, switch, etc. with the exception of all parts mentioned under 4.
6. The warranty only covers the replacement of defective- or damaged parts and associated labour costs in accordance with the stated responsibility in these warranty conditions.
7. Transport- and/or packaging costs as well as the transportation risk (for equipment that can only be repaired in our service department) are not covered by the guarantee and will be charged to the user. For details, please also read the 'Service Terms' below in which, among other things, calculation of call-out charges and labour costs etc., if applicable, are specified.
8. Note that repair- and material costs not covered by this warranty must be paid directly in cash. If invoicing of the mechanic's costs is required, please take into account that additional administration costs will be charged.
9. We are not responsible for any work- and/or repair costs carried out by third parties, not commissioned by by us. Nor are we, at any time, responsible for any (extra) costs and/or any consequences hereof, in any case, directly or indirectly resulting from a malfunction, defect or injudicious use of the device caused by a 3 ^rd party not deployed by Frilec, its importer and/or suppliers.
10. Replacement of parts does not extend the original warranty period.

Service terms FRILEC

1. Do not use damaged appliances upon receipt, but report this immediately to your supplier. It is not possible to return damaged, used appliances!
2. During the first 24 months after the purchase date on the original invoice of the first buyer no costs will be charged for services which are covered by these applicable warranty terms and conditions.
3. After a warranty period of two years, starting on the date of purchase on the original invoice - during a period of 36 months - following costs will be charged:
   a. Call-out costs
   b. Administration costs
4. In case of a mechanic's visit all costs and materials used, which are not covered by this warrant, must be paid directly in cash in accordance with the stipulations stated in point 7 in the Warranty Terms & Conditions and in points 2-4 in the Service Terms Frilec, regardless of the nature of the work.
5. Dispatch of any parts will always take place on payment in advance.
6. Note! Five years after the date on the purchase invoice of the 1st buyer the entire warranty becomes null and void and all costs will be charged as mentioned in point 8.

For service →

FRILEC www.domest.nl - see service

domestic and professional appliances

MULTIBRAND

SALES & SERVICES
