Brand	Frilec
Model	DRESDEN990EBH
Product Type	Range Hood
Width	90 cm (approx.)
Depth	50 cm (approx.)
Height	60 cm (approx.)
Weight	18 kg (approx.)
Annual Energy Consumption	47 kWh/annum

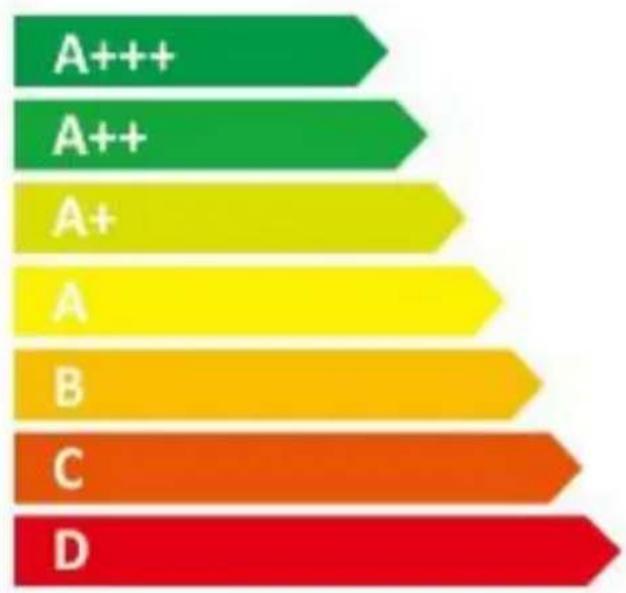

Energy Efficiency Class	D (on a scale from A+++ to D)
Voltage	230 V
Frequency	50 Hz
Motor Power	200 W (approx.)
Extraction Capacity	600 m³/h (approx.)
Lighting Type	LED or Halogen (check manual)
Control Type	Electronic push buttons
Number of Speeds	3 (typical)
Filter Type	Grease filter (aluminum/metal) + optional carbon filter
Ducting	Ducted (external venting) or recirculation (with carbon filter)
Noise Level	65 dB (approx.)
Maintenance	Clean grease filters monthly; replace carbon filter every 3-6 months
Spare Parts	Grease filters, carbon filters, light bulbs
Safety Features	Auto shut-off timer, thermal protection (typical)

Frequently Asked Questions - DRESDEN990EBH Frilec

How do I install the Frilec DRESDEN990EBH range hood?

Installation should be done by a qualified professional. Ensure the hood is mounted at least 65 cm above electric cooktops and 75 cm above gas cooktops. Follow the user manual for exact measurements and ducting requirements.

How do I clean the grease filters?

Remove the grease filters and wash them with warm soapy water or in the dishwasher (low temperature). Ensure they are completely dry before reinserting. Clean every month for optimal performance.

How do I change the light bulb?

Disconnect the hood from power. Locate the light cover, gently remove it, and replace the bulb with a compatible type (check manual for wattage and base). Reattach the cover and restore power.

Can I use the hood in recirculation mode?

Yes, the hood can operate in recirculation mode. You need to install a carbon filter (not included). The carbon filter absorbs odors and should be replaced every 3-6 months.

What is the noise level of the DRESDEN990EBH?

The noise level depends on the speed setting. At maximum speed, it is approximately 65 dB, which is similar to a normal conversation. Lower speeds are quieter.

How do I reset the filter saturation indicator?

After cleaning or replacing filters, press and hold the filter reset button for 3-5 seconds until the indicator light turns off. Refer to the manual for exact button location.

Does the hood have a timer function?

Yes, many models include a timer function that automatically shuts off the hood after a preset time (e.g., 10 minutes). Check the control panel for a timer button.

What are the dimensions of the DRESDEN990EBH?

The approximate dimensions are 900 mm width, 500 mm depth, and 600 mm height. Always verify with the actual product or manual before making installation plans.

Can I connect the hood to an external motor?

No, the DRESDEN990EBH is designed as a complete unit with built-in motor. It should not be connected to an external motor system.

What is the warranty period for Frilec range hoods?

Typically, Frilec offers a 2-year warranty for manufacturing defects. Contact Frilec customer support or your retailer for specific warranty terms.

USER MANUAL DRESDEN990EBH Frilec

Blue background with a circle of twelve yellow stars (European Union flag design)

ENERG

енергия · EVERУЕІА

FRIZEC

DRESDEN990EBH

47

kWh/annum

65/2014
