IB-367-CPD+ - Hard Drive Icy Box - Free user manual and instructions

Product Type	External Hard Drive Enclosure
Brand	Icy Box
Model	IB-367-CPD+
Supported Drive Size	2.5 inch SATA HDD/SSD
Interface	USB 3.0 (USB-C compatible with adapter)
Data Transfer Rate	Up to 5 Gbps
Dimensions (L x W x H)	130 x 80 x 12 mm
Weight	Approx. 120 g
Material	Aluminum and plastic
Color	Black
Power Supply	USB bus-powered (no external adapter required)
LED Indicator	Power and activity
Operating Systems Supported	Windows, macOS, Linux
Installation	Tool-free, slide-in mechanism
Maintenance	Wipe with a soft, dry cloth
Safety Warnings	Keep away from water and heat sources
Spare Parts & Reparability	No user-serviceable parts; contact support
Warranty	2 years manufacturer warranty
Package Contents	Enclosure, USB cable, user manual

Frequently Asked Questions - IB-367-CPD+ Icy Box

Is the Icy Box IB-367-CPD+ compatible with both HDD and SSD?

Yes, it supports both 2.5-inch SATA hard drives and solid-state drives.

Does the enclosure require an external power adapter?

No, it is powered directly via the USB port. However, some older computers may provide insufficient power for larger hard drives.

Can I use this enclosure with a USB-C port?

Yes, you can use a USB-C to USB-A adapter or a USB-C cable (not included) if your device has a USB-C port, but the interface is USB 3.0.

How do I install a hard drive into the IB-367-CPD+?

Simply slide off the cover, insert the 2.5-inch SATA drive into the connector, and slide the cover back on. No tools are required.

What is the maximum data transfer speed?

The USB 3.0 interface supports speeds up to 5 Gbps, but actual speed depends on the drive and host controller.

Is the enclosure compatible with Linux?

Yes, it works with Windows, macOS, and most Linux distributions without additional drivers.

What does the LED indicator mean?

A solid blue light indicates power and connection, while blinking means data activity.

Can I use a 3.5-inch hard drive with this enclosure?

No, this model is designed only for 2.5-inch SATA drives. For 3.5-inch drives, consider the Icy Box IB-367-CPD or similar.

How do I clean the enclosure?

Wipe the exterior with a soft, dry cloth. Avoid using liquids or abrasive cleaners.

What should I do if the drive is not recognized?

Check the USB connection, try a different port or cable, ensure the drive is properly inserted, and verify that the drive is formatted and powered.

USER MANUAL IB-367-CPD+ Icy Box

USB 3.1 (Gen 2) enclosure for a 2.5" or 3.5" HDD

Handbuch IB-367-CPD+

Exterior view of a desktop computer tower (no visible text or symbols)

Sicherheitshinweise

Technical line drawings of two hard disk drive units with mounting holes and internal components (no text or symbols)

HDD oder SSD

Please read carefully the following information to prevent injuries, damage to material and device as well as data loss:

Warning levels

Signal words and safety codes indicate the warning level and provide immediate information in terms of the probability of occurrence as well as the type and severity of the consequences if the measures to prevent hazards are not complied with.

DANGER

Wams of a directly hazardous situation causing death or serious injury.

WARNING

Wams of a potentially hazardous situation that may cause death or serious injury.

CAUTION

Wams of a potentially hazardous situation that may cause minor injury.

PORTANT

Warns of a potential situation that may cause material or environmental damage and disrupt operative processes.

1. Risk of electrical shock

WARNING

Contact with parts conducting electricity Risk of death by electrical shock

• Read the operating instructions prior to use
  • Make sure the device has been de-energised prior to working on it
• Do not remove contact protection panels
• Avoid contact with conducting parts
• Do not bring plug contacts in contact with pointed and metal objects
• Use in intended environments only
• Operate the device using a power unit meeting the specifications of the type plate only!
• Keep the device/power unit away from humidity, liquid, vapour and dust
• Do not modify the device
• Do not connect the device during thunderstorms
• Approach specialist retailers if you require repairs

2. Hazards during assembly (if intended)

CAUTION

Sharp components

Potential injuries to fingers or hands during assembly (if intended)

• Read the operating instructions prior to assembly
• Avoid coming into contact with sharp edges or pointed components
  • Do not force components together
• Use suitable tools
• Use potentially enclosed accessories and tools only

3. Hazards caused by a development of heat

IMPORTANT

Insufficient device/power unit ventilation

Overheating and failure of the device/power unit

Safety information

• Prevent externally heating up components and ensure an exchange of air
• Do not cover the fan outlet and passive cooling elements
• Avoid direct sunlight on the device/power unit
  • Guarantee sufficient ambient air for the device/power unit
• Do not place objects on the device/power unit

4. Hazards caused by very small parts and packaging

Risk of suffocation

WARNING

Risk of death by suffocation or swallowing

• Keep small parts and accessories away from children
• Store/dispose of plastic bags and packaging in an area that is inaccessible to children
• Do not hand over small parts and packaging to children

5. Potential data loss

IMPORTANT

Data lost during commissioning

Potentially irreversible data loss

• Always comply with the information in the operating instructions/quick installation guide
• Exclusively use the product once the specifications have been met
  • Back up data prior to commissioning
• Back up data prior to connecting new hardware
  • Use accessories enclosed with the product

6. Cleaning the device

IMPORTANT

Harmful cleaning agents

Scratches, discolouration, damage caused by moisture or short circuit in the device

• Disconnect the device prior to cleaning
• Aggressive or intense cleaning agents and solvents are unsuitable
  • Make sure there is no residual moisture after cleaning
  • We recommend cleaning devices using a dry, anti-static cloth

7. Disposing of the device

IMPORTANT

Environmental pollution, unsuitable for recycling

Potential environmental pollution caused by components, recycling circle interrupted

This icon on product and packaging indicates that this product must not be disposed of as part of domestic waste. In compliance with the Waste Electrical and Electronic Equipment Directive (WEEE) this electrical device and potentially included batteries must not be disposed of in conventional, domestic waste or recycling waste. If you would like to dispose of this product and potentially included batteries, please return it to the retailer or your local waste disposal and recycling point.

If you have any questions, please do not hesitate to contact our support at [e-mail] or visit our website at www.raidsonic.de.

Manual IB-367-CPD+

Package content

1x External case, 1x power adapter, 1x USB 3.1 Type-C cable, 1x stand foot, set of screws, manual

Product overview

1. LED
2. Lock
3. Mini DP 1.1 interface
4. USB 3.1 (Gen 2) Type-C ^TM interface
5. Power button
6. Power jack

Main Features

For 2.5" or 3.5" SATA I, II, III (6 Gbit/s) HDD/SSD

Interface to PC: USB 3.1 (Gen 2) Type-C, UASP, up to 10 Gbit/s

Additional miniDP port for DP1.1, up to 4k@30 Hz

Power Delivery 2.0 for charging up to 24 W

Enclosure material: aluminium, inclusive stand

HDD capacity unlimited

Plug & Play and HotSwap

AC Power Adapter (100 -240 V), 12 V/4.16 A, 50 W

Application

Driver Software - USB 3.1 Interface

The use of the USB 3.1 interface requires an installed USB 3.1 (Gen 2) controller on your system. Please install the USB 3.1 driver software for the controller.

By connecting to a USB 3.1 host interface the IB-367-CPD+ normally will be automatically detected.

Windows ≥8 has integrated driver for the USB 3.1 interface. By connecting the device, the OS will update the driver and connect the USB 3.1 device automatically. After the device installation has completed, you can access the new device. For older operating systems (e.g. Win 7), you need to install the USB 3.1 driver at first.

Manual IB-367-CPD+

Starting up

You need power supply to get enough electricity to drive the HDDs. With the USB 3.1 Type-C" data cable you can connect the IB-367-CPD+ to a USB 3.1 Type-C" interface. For mini DP usage a USB 3.1 (Gen 2) Type-C" port with DisplayPort™ alternate mode is necessary. For USB Power Delivery 2.0 Charging a USB 3.1 (Gen 2) port with USB Power Delivery 2.0 support for

5 V/3 A, 9 V/2 A or 12 V / 2 A is necessary.

Attention: Depending on the host system, most won't charge while in use. The delivered power is suitable for charging the host computer while it is idle or turned off.

HDD/SSD Installation

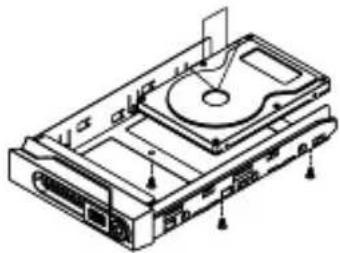

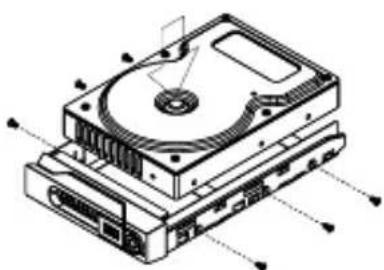

1. Mount your hard drives onto the removable drive tray and secure it with the screws included in the

Isometric line drawing of a computer hard disk with internal components and mounting holes (no text or labels)

Technical line drawing of a CD-ROM drive assembly (no text or labels)

HDD or SSD

1. Connect the enclosure unit to the computer via the delivered USB 3.1 Type-C™ cable.

2. Attach the AC power cable to the DC power adapter then connect one end to the power socket on the enclosure unit and the other end to the power socket.

3. Once completed, you may power on the unit. Once your computer has also booted, your operating system should recognize the drive automatically.

4. If the hard drive installed requires formatting, follow the formatting instructions given by the operating system to format the drive volume to your preference. Once the formatting has been completed, the device is ready for use.

Application - Using the external drive

Connect the device via the USB cable to the computer. Then connect the power adapter and switch the power button on.

Manual IB-367-CPD+

Attention: A new HDD/SSD must first be initialized, partitioned and formatted by the operation system to be displayed by the system.

Attention: Please await end of read/write operations before disconnecting the HDD/SSD to avoid data lost.

If the hard disc will not be recognized instantly by the operating system, please check:

• If the driver software has been installed.
- If the HDD/SSD has been initialized, partitioned and formatted.

LED-Function

The LED shines blue for power and blinks blue for drive access

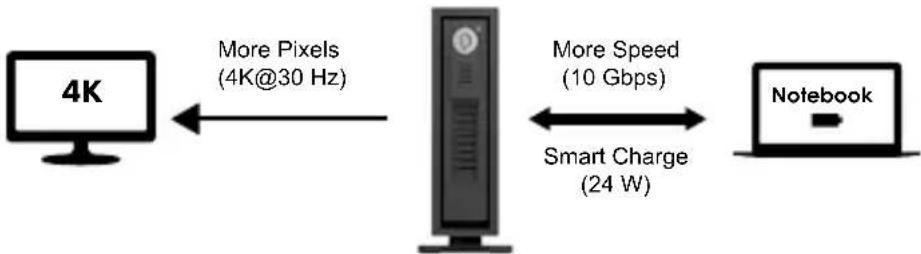

USB Power Delivery and alternate mode

Power Delivery 2.0

The USB Power Delivery 2.0 feature a 5/9/12 V power supply via the USB Type-C ^™ cable with up to 24 W in total. If a notebook or handheld device is used as host it can be charged simultaneously.

Note: The Power Delivery function must be supported by the hosts Type-C™ interface!

If the host reboots while connected, the IB-367-CPD+ must be turned off and on as well to ensure further charging.

DisplayPort™ alternate mode

Just connect a screen via the mini DisplayPort™ interface and the host device should automatically recognize an additional screen.

Note: Your host device must support DisplayPort™ alternate mode on the chosen USB Type-C™ interface!

Simple line drawing of a 3D cube with visible edges and faces (no text or symbols)

ICY BOX®

CE FC

© Copyright 2019 by RaidSonic Technology GmbH. All Rights Reserved The information contained in this manual is believed to be accurate and reliable. RaidSonic Technology GmbH assumes no responsibility for any errors contained in this manual. RaidSonic Technology GmbH reserves the right to make changes in the specifications and/or design of the above mentioned product without prior notice. The diagrams contained in this manual may also not fully represent the product that you are using and are there for illustration purposes only. RaidSonic Technology GmbH assumes no responsibility for any differences between the product mentioned in this manual and the product you may have. DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries.
