USER MANUAL DDX712 KENWOOD

Installation Procedure

1. To prevent a short circuit, remove the key from the

ignition and disconnect the - battery.

2. Make the proper input and output wire

connections for each unit.

3. Connect the speaker wires of the wiring harness.

4. Connect the wiring harness wires in the following

order: ground, battery, ignition.

5. Connect the wiring harness connector to the unit.

6. Install the unit in your car.

7. Reconnect the - battery.

8. Press the reset button.

• If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box. Acquiring GPS Signals The first time you turn on the DNX7120, you must wait while the system acquires satellite signals for the first time. This process could take up to several minutes. Make sure your vehicle is outdoors in an open area away from tall buildings and trees for fastest acquisition. After the system acquires satellites for the first time, it will acquire satellites quickly each time thereafter.

• Mounting and wiring this product requires skills and experience. For safety’s sake, leave the mounting and wiring work to professionals.
• Make sure to ground the unit to a negative 12V DC power supply.
• Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.
• Do not use your own screws. Use only the screws provided. If you use the wrong screws, you could damage the unit.
• If the power is not turned ON (“PROTECT” is displayed), the speaker wire may have a short-circuit or touched the chassis of the vehicle and the protection function may have been activated. Therefore, the speaker wire should be checked.
• Make sure that all wire connections are securely made by inserting jacks until they lock completely.
• If your vehicle’s ignition does not have an ACC position, or if the ignition wire is connected to a power source with constant voltage such as a battery wire, the power will not be linked with the ignition (i.e., it will not turn on and off along with the ignition). If you want to link the unit’s power with the ignition, connect the ignition wire to a power source that can be turned on and off with the ignition key.
• Use a commercially available conversion connector if the connector does not fit in the vehicle connector.
• Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals.
• If the console has a lid, make sure to install the unit so that the faceplate will not hit the lid when closing and opening.
• If the fuse blows, first make sure the wires aren’t touching to cause a short circuit, then replace the old fuse with one with the same rating.
• Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the - wires or ground them to any metal part in the car.
• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• Mount the unit so that the mounting angle is 30° or less.
• This unit has the cooling fan (page 5) to decrease the internal temperature. Do not mount the unit in a place where the cooling fan of the unit are blocked. Blocking these openings will inhibit the cooling of the internal temperature and result in malfunction.
• Do not press hard on the panel surface when installing the unit to the vehicle. Otherwise scars, damage, or failure may result. English | DNX̲DDX7̲insta̲K̲En̲r1.indd 3

Connection If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box. Ignition key switch

Battery wire (Yellow)

Ground wire (Black) (To car chassis) Antenna Cord FM/AM antenna input Battery Connect to the vehicle's parking brake detection switch harness using the supplied relay connector. Parking sensor wire (Light Green) PRK SW For the sake of safety, be sure to connect the parking sensor. Connect to vehicle's reverse lamp harness when using the optional rear view camera. To steering remote To use the steering wheel remote control feature, you need to an exclusive remote adapter (not supplied) matches your car is required. When this terminal is not in use, leave its cap on. Reveres sensor wire (Purple/White) Steering remote control input (Light Blue/Yellow) Dimmer control wire (Orange/White) To car light control switch Connect to the terminal that is grounded when either the telephone rings or during conversation. Mute wire (Brown) To connect the Kenwood navigation system, consult your navigation manual. Depending on what antenna you are using, connect either to the control terminal of the motor antenna, or to the power terminal for the booster amplifier of the film-type antenna. When using the optional power amplifier, connect to its power control terminal. To "EXT.AMP.CONT." terminal of the amplifier having the external amp control function. Motor antenna control wire (Blue) Power control wire (Blue/White) External amplifier control wire (Pink/Black) If no connections are made, do not let the cable come out from the tab. 4 |

Rear view Cooling fan Accessory @ (GPS Antenna ) (DNX7120 only) (see page 8) FUSE (15A) Accessory 1 REVERSE REMO.CONT White/Black ILLUMI White

To front left speaker Gray/Black MUTE Gray

To front right speaker Green/Black Green

• Video output (Yellow)
• Audio left output (White)
• Audio right output (Red) AV IN1 Accessory 4 Accessory

• Audio left output (White)
• Audio right output (Red) ■ Rear Preout
• Audio left output (White)
• Audio right output (Red) ■ Subwoofer Preout
• Audio left output (White)

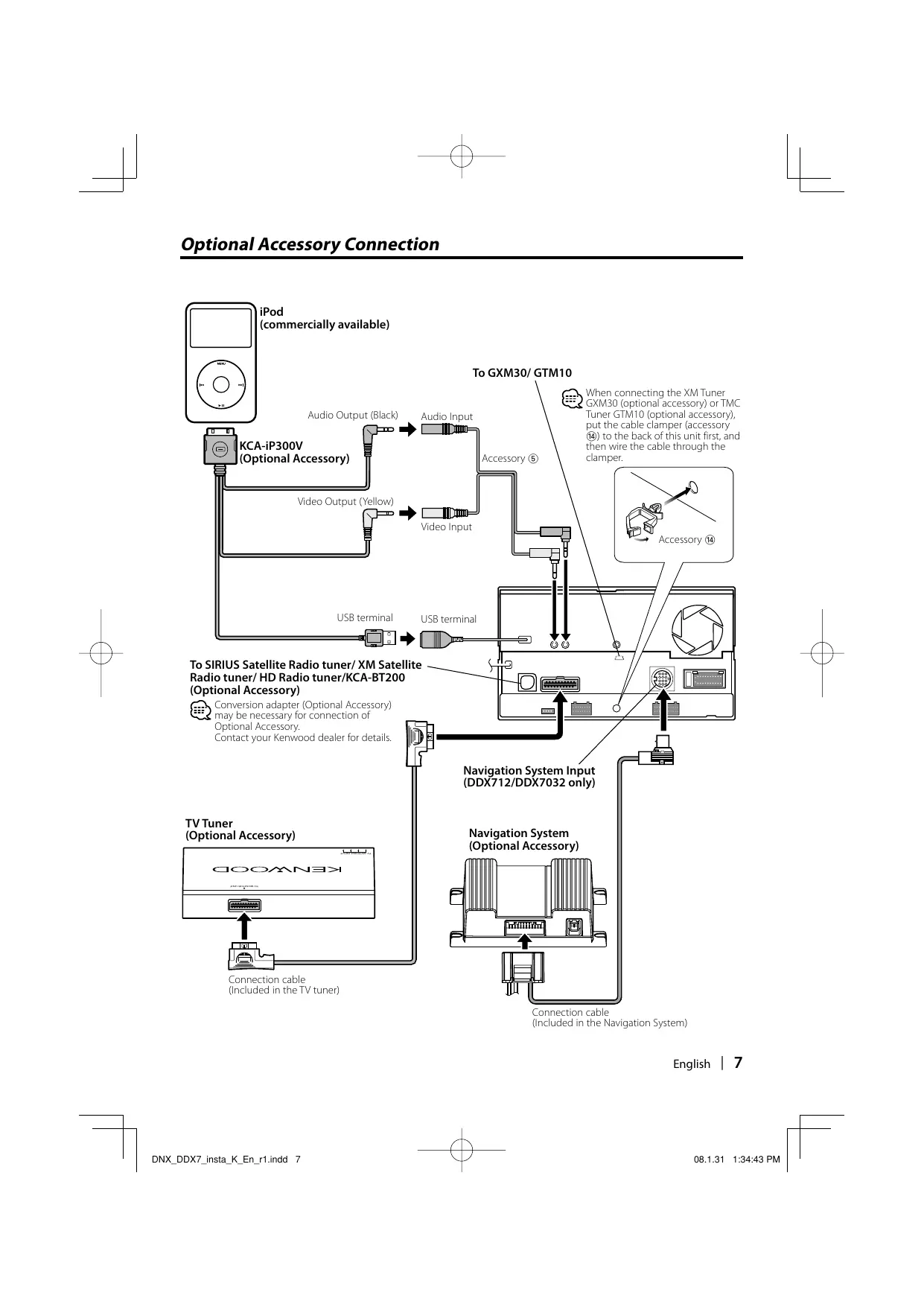

Optional Accessory Connection iPod (commercially available) To GXM30/ GTM10 Audio Output (Black) Audio Input KCA-iP300V (Optional Accessory) Accessory 5 When connecting the XM Tuner GXM30 (optional accessory) or TMC Tuner GTM10 (optional accessory), put the cable clamper (accessory $) to the back of this unit first, and then wire the cable through the clamper. Video Output (Yellow) Video Input Accessory $ USB terminal USB terminal To SIRIUS Satellite Radio tuner/ XM Satellite Radio tuner/ HD Radio tuner/KCA-BT200 (Optional Accessory) Conversion adapter (Optional Accessory) may be necessary for connection of Optional Accessory. Contact your Kenwood dealer for details. Navigation System Input (DDX712/DDX7032 only) TV Tuner (Optional Accessory) Navigation System (Optional Accessory)

Connection cable (Included in the TV tuner) Connection cable (Included in the Navigation System) English | DNX̲DDX7̲insta̲K̲En̲r1.indd 7

Installing the GPS Antenna (DNX7120 only) GPS antenna is installed inside of the car. It should be installed as horizontally as possible to allow easy reception of the GPS satellite signals. To mount the GPS antenna inside your vehicle:

1. Clean your dashboard or other surface.

2. Peel the backing off of the adhesive on the bottom

of the metal plate (Accessory #).

3. Press the metal plate (Accessory #) down firmly on

your dashboard or other mounting surface. You can bend the metal plate (Accessory #) to conform to a curved surface, if necessary.

4. Place the GPS antenna (Accessory @) on top of the

metal plate (Accessory #). Installing the Escutcheon For General Motors

1. Cut out accessory 7 to meet the shape of the

opening of the center console.

2. Attach accessory 7 to the unit.

Cut out to meet the shape of the opening in the vehicle. Accessory 7 Accessory @ Accessory # For Volkswagen

1. Attach accessory ! to the unit.

• Depending on the type of car, reception of the GPS satellite signals might not be possible with an inside installation.
• The GPS antenna should be installed at a position that is spaced at least 12 inch (30 cm) from cellular phone or other transmitting antennas. Signals from the GPS satellite may be interfered with by these types of communication.
• Painting the GPS antenna with (metallic) paint may cause a drop in performance. 8 | Accessory !

1. Cut out accessory 7 as illustrated.

Cutting line Accessory 7

2. Fold double-sided adhesive (accessory

8) along the slit and attach it to

accessory 7 cut-out against the center rib as illustrated. Use 2 pieces of accessory 8 for 1 accessory 7 cutout.

3. Attach accessory 7 cut-out to the unit.

Accessory 8 English | DNX̲DDX7̲insta̲K̲En̲r1.indd 9

Installation for Monitor/Player Unit Firewall or metal support Screw (M4X8) (commercially available) Bend the tabs of the mounting sleeve with a screwdriver or similar utensil and attach it in place. Self-tapping screw (commercially available) Metal mounting strap (commercially available) Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (eg, the sound may skip). Installation on Toyota, Nissan or Mitsubishi Car using Brackets Accessory 9 (M5x6mm) or Accessory 0 (M5x7mm) Car Bracket Accessory 9 (M5x6mm) or Accessory 0 (M5x7mm) 10 |

Removing Monitor/Player Unit Removing the Hard Rubber Frame (escutcheon)

1. Engage the catch pins on the removal tool 6 and

remove the two locks on the lower level. Lower the frame and pull it forward as shown in the figure. Accessory 6 Removing the Unit

1. Remove the hard rubber frame by referring to the

removal procedure in the section <Removing the Hard Rubber Frame>.

2. Remove the Hex-head screw with integral washer

(M4 × 8) on the back panel.

3. Insert the two removal tools 6 deeply into the

slots on each side, as shown. Accessory 6 Catch Lock

• The frame can be removed from the top side in the same manner.

2. When the lower level is removed, remove the

upper two locations.

4. Lower the removal tool toward the bottom, and

pull out the unit halfway while pressing towards the inside.

• Be careful to avoid injury from the catch pins on the removal tool.

5. Pull the unit all the way out with your hands, being

careful not to drop it. English | DNX̲DDX7̲insta̲K̲En̲r1.indd 11
