Product Type	Fan
Brand	Kunft
Model	TX-1608B
Power Source	AC 220-240V, 50/60Hz
Power Consumption	50W
Number of Speed Settings	3
Oscillation	Yes, automatic horizontal oscillation
Timer	Yes, up to 7 hours
Remote Control	Yes, included
Height Adjustment	Yes, telescopic pole
Number of Blades	3
Blade Material	Plastic (ABS)
Color	White/Black
Weight	3.5 kg
Dimensions (H x W x D)	130 cm x 40 cm x 40 cm
Safety Features	Tip-over switch, overheat protection
Cleaning Instructions	Wipe with a damp cloth, do not immerse in water
Storage	Store in a dry place, avoid dust
Spare Parts Availability	Replaceable blades and remote control available
Warranty	2 years

Frequently Asked Questions - TX-1608B Kunft

How do I clean the TX-1608B fan?

Unplug the fan. Use a soft, damp cloth to wipe the blades, grille, and base. Do not use abrasive cleaners or immerse the fan in water. Ensure all parts are dry before reassembling.

Does the fan come with a remote control?

Yes, the TX-1608B includes a remote control for adjusting speed, oscillation, and timer settings. The remote uses a CR2025 battery (included).

Can I adjust the height of the fan?

Yes, the fan features a telescopic pole that allows you to adjust the height from approximately 100 cm to 130 cm. Twist the collar to lock the desired height.

How do I set the timer?

Press the timer button on the control panel or remote. The default timer options are 1, 2, 4, or 7 hours. The fan will automatically turn off after the selected time.

Is the fan safe for children or pets?

The fan has a tip-over switch that automatically cuts power if the fan falls over. However, always place the fan on a stable surface and keep children and pets away from moving blades.

What should I do if the fan makes a loud noise?

Check if the blades are properly attached and free of obstructions. Ensure the fan is on a level surface. If noise persists, lubricate the motor shaft with light oil or contact customer support.

Can I use the fan outdoors?

No, the TX-1608B is designed for indoor use only. Exposure to moisture, dust, or extreme temperatures may damage the fan and pose a safety risk.

How do I replace the remote control battery?

Slide the battery cover off the back of the remote control. Replace the old CR2025 battery with a new one, ensuring correct polarity (+/-). Slide the cover back on.

What is the warranty period?

The Kunft TX-1608B comes with a 2-year warranty covering manufacturing defects. Proof of purchase is required for warranty service.

Can I buy spare parts for this fan?

Yes, replacement blades, remote controls, and other parts are available through Kunft's official website or authorized dealers. Check the model number TX-1608B for compatibility.

USER MANUAL TX-1608B Kunft

MANUAL DE INSTRUÇÕES

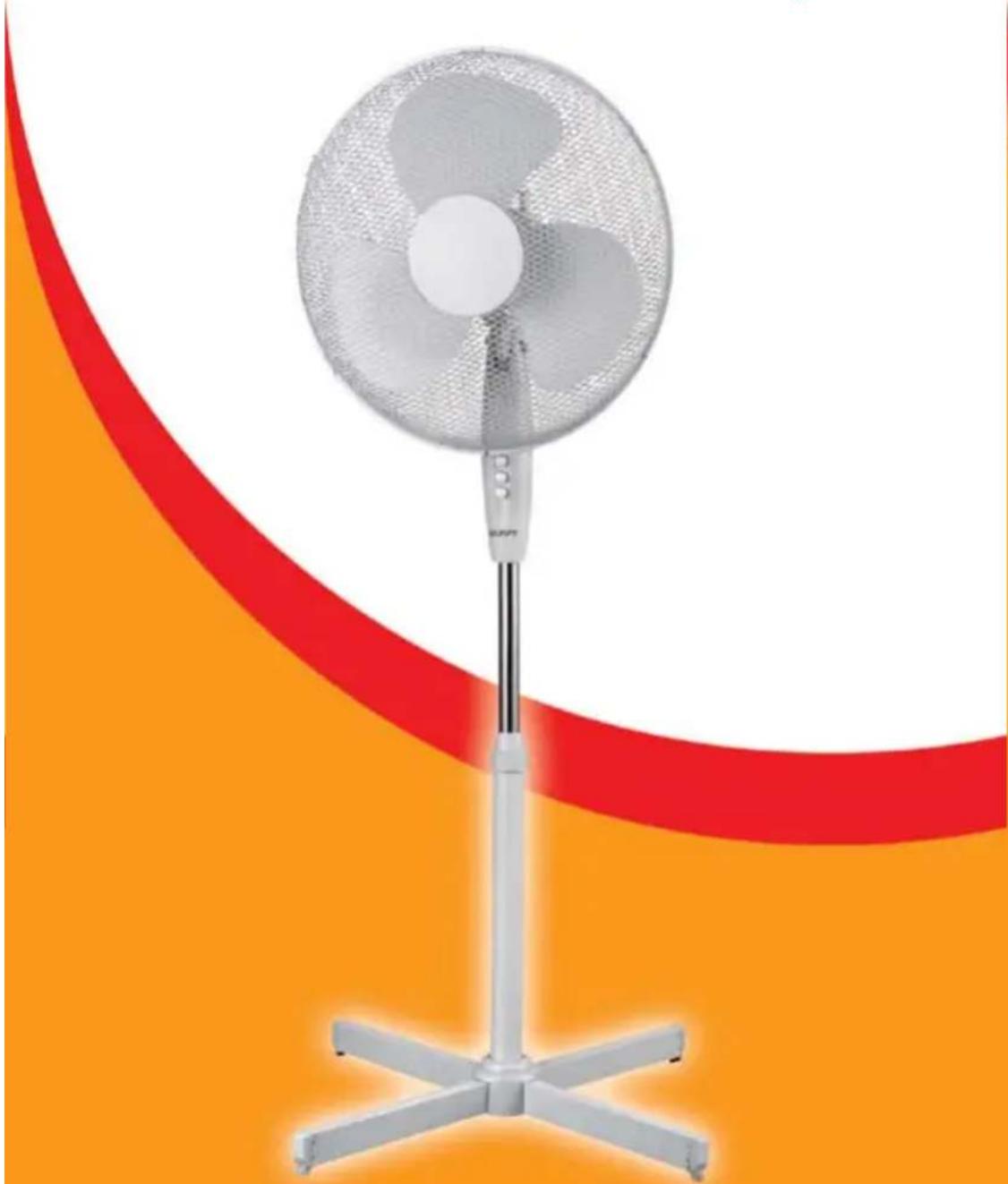

Illustration of a modern office desk fan with a stand and orange background (no text or symbols)

stand fan

TX-1608B

Dear client,

We thank you for purchasing this product.

This appliance was submitted to several laboratorial tests, which certify its quality. To simplify the use of this appliance, this instruction manual has been provided. The instructions must ensure a quick and safe use.

Please read carefully the instructions and safety measures described in this manual.

We wish our clients great satisfaction in using their new appliance.

INDEX

1. SAFETY INSTRUCTIONS ....4

1.1. Power Energy ....5
1.2. Power Cord and Other Cables .....5
1.3. Humidity and Water ......6
1.4. Cleaning 6
1.5. General Precautions ....7

1. UTILIZATION AND FUNCTIONING 11

2.1. Product Description ...... 11
2.2. Assembly 11

2.2.1. Base Assembly 11
2.2.2. Blade and Grill Assembly 12

2.3. Operating Instructions ...... 12

1. AFTERMARKET ....12
2. ENVIRONMENT CONSERVATION 13

1. SAFETY INSTRUCTIONS

	ATTENTION
	Risk of Electric ShockDo Not Open
Attention: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that may be repaired by the user. Ask for assistance to qualified personnel.

Important Warnings

Before using your appliance, read carefully this instruction manual and keep it in a safe place, as you may need it for future consultations.

Before you start your appliance, and to ensure a correct use, do not use it if:

• It has fallen on the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation;

To avoid hazards and deterioration of your appliance by an incorrect use, it is advisable to read the instructions carefully and attentively.

Your appliance must not be used to other ends than the ones foreseen in the instructions manual. Your safety is only guaranteed in a household use and not for

commercial use. The incorrect use will not be covered and automatically cancels the right to warranty.

Assistance

Be sure that, in case of malfunction, you take your appliance to a qualified technician for assistance.

This appliance can be used by children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children without supervision.

These instructions are also available on www.suporteworten.pt

1.1. Power Energy

Make sure the voltage of the electric network is compatible with the one of the appliance. If it does not match, consult the vendor or Customer Support Service.

1.2. Power Cord and Other Cables

Do not roll up or pull the cord to disconnect the appliance, and do not use to twine the appliance. Keep the cord far from warm surfaces.

Never use the appliance if it has a damaged cable or socket, or if it is not working properly.

In case of damage of the power cord, do not use your appliance. Take it to technical assistance for its replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not let your appliance to catch water under any circumstance, as it may be dangerous. TO AVOID FIRE HAZARD OR ELECTRIC SHOCK DO NOT EXPOSE YOUR APPLIANCE TO HUMIDITY OR WATER. Do not place your appliance under water (for example for washing).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the mains power supply.

Use only a damp cloth to clean the enclosure.

Switch off and unplug from the power supply before assembling or disassembling and cleaning.

Keep the air vents at the rear of the main body free from dust or fluff-use a vacuum cleaner to remove these when necessary. Do not probe any opening to remove fluff.

Fan component parts should be cleaned using mild soap and a damp cloth or sponge. Do not allow any water or other liquid to enter liquid to enter the motor housing.

Thoroughly remove soap film with clean water.

1.5. General Precautions

• Please follow the instructions of the user manual, which helps properly installing and operating this product and enjoying its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Do not use the product if the supply cord is damaged. If it is the case, it must be replaced by the manufacturer or its service agent.
• Do not allow the cord to hand over sharp edges and keep it well away from hot objects and naked flames. Remove the plug from the socket only by holding the plug.
• Make sure that there is no danger that the cord or extension cord may inadvertently be pulled or cause anyone to trip when in use.
• If an extensive cord is used it must be suited to the power consumption of the

stand fan TX-1608B

KUNFT®

appliance, otherwise overheating of the extension cord and /or plug may occur.

• Ensure the voltage used corresponds with the voltage indicated on the rating label.
• Incorrect operation and improper use can damage the appliance and cause injury to the user.
• Never touch the blades with your fingers, pencils or any other kind of objects, whether the appliance is operating or not.
• Never pull the power cord too hard. If it gets damaged after prolonged use, have it repaired by a qualified electrician or technician.
• Do not use the appliance in damp or wet places, like bathrooms.
• Never allow the fan to get wet or that any kind of liquid enters the motor or control panel. However should the appliance accidentally fall into water, unplug the appliance immediately and have it checked by a qualified person before using it again. Non-observance could cause a fatal electric shock!

• Do not use the appliance with wet hands, on a damp floor or when the appliance itself is wet.

• Do not touch the plug with wet or damp hands.

• Never block the blades while the appliance is operating.
• Never attempt to open the housing yourself.
• Do not place any kind of object into the inside of the housing.
• Do not hang or mount the fan on a wall or ceiling.
• Place the fan on an even and steady surface so it does not fall.
• Before using your fan, make sure it is completely and correctly mounted.
• To avoid damages in the cable, roll it without any effort.
• After assembling the fan, make sure the power cord is not stuck.
• Remove all the packaging materials (plastic, cardboard, etc.).
• The packaging materials should not be left for children to reach it or have access to it. Keep all packaging materials away from children as there is a risk of suffocation.
• This appliance is not suitable for commercial use nor for use in the open air.

stand fan TX-1608B

KUNFT®

• The appliance may be used only for its intended purpose. No responsibility can be taken for any possible damage caused through incorrect use or improper handling.
• Never use the cord to carry the appliance. Use the handle to carry the appliance.
• Never leave the appliance unattended while it is in use.
• Always remove the plug from the socket when the appliance is not in use and each time before it is cleaned.
• Nominal voltage is still present in the appliance as long as the appliance is connected to the mains socket.
• No exchange will be made if the above instructions are not followed. Always test the product first before purchase.
• If the ventilator is no longer required, store it in a cool, dry place.

2. UTILIZATION AND FUNCTIONING

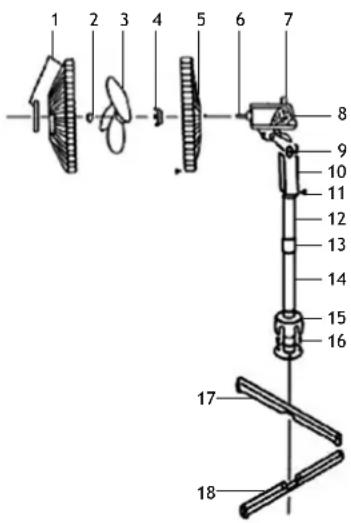

2.1. Product Description

1. Front Grill
2. Blade Cap
3. Fan Blade
4. Plastic Mounting Nut
5. Rear Grill
6. Motor Shaft
7. Oscillating Knob
8. Motor Housing
9. Neck Screw
10. Switch Box
11. Set Screw
12. Inner Tube
13. Height Adjustment Collar
14. Outer Tube
15. Base Decorative Cap
16. Screw
17. Cross Bar A
18. Cross Bar B
19. Screw

2.2. Assembly

2.2.1. Base Assembly

1. First, loosen and remove the four screws from the bars. Then cross bar A (17) and bar B (18) so that they interlock.
2. Be sure to align the four holes in the bars with those on the flange of the outer tube (14). Secure the flange to the bars with the four screws.
3. Loosen and remove the height adjustment collar (13) from the top of the inner tube (12). Slide the base decorative cap (15) down over the assembly.
4. Replace the height adjustment collar (13) on top of the inner tube (12). Pull the inner tube (12) out from the outer tube (14) to adjust the tube to the desired height and tighten the collar.

If necessary, slightly loosen the set screw (11) by turning it anticlockwise. Slide the switch box (10) down over the inner tube (12) and tighten the set screw (11). Make sure the set screw (11) is tightly secured.

2.2.2. Blade and Grill Assembly

1. Unscrew the plastic mounting nut (4) from the front of the motor housing (8) by rotating it anticlockwise.
2. Position the rear grill (5) against the front of the motor housing (8) with the handle uppermost, ensuring that the locating pegs on the motor housing (8) are engaged correctly in the holes of the rear grill (5).
3. Tighten the rear grill mounting nut (4) clockwise. Do not over tighten it.
4. Push the fan blade (3) on to the motor shaft (6), locating the slot at the back of the blade on the drive pin that passes through the motor shaft (6).
5. Tighten the blade cap (2) by turning it anticlockwise.
6. Position the front grill (1) against the rear grill (5) so that the holes in the rims that accept the small nut and bolt are in line. Insert the bolt through the holes and screw on the nut. Do not fully tighten at the stag.
7. Push the grill retaining clips into position ensuring that they engage correctly on the rim of the grill.
8. Fully tighten the small nut and bolt that passes through the rim of the grill.

2.3. Operating Instructions

1. Place your fan on a level and dry surface.
2. Plug the fan into the mains socket. Select the desired speed setting. There are 4 speed settings:
   0 - The fan is switched off.
   1 - The fan operates at the lowest speed.
   2 - The fan operates at medium speed.
   3 - The fan operates at high speed.
3. The fan can be set to oscillate by pushing the oscillating knob downwards. To stop the oscillating feature, pull up the oscillation knob.
4. To adjust the tilt angle of the fan head, loosen the neck screw, swivel the fan to the desired angle and then re-tighten the screw. Caution: The fan should always be switched off when performing this adjustment.

3. AFTERMARKET

KUNFT has designed this appliance in order to guarantee the maximum reliability. However, if a problem occurs, by following the procedures suggested in this section you may be able to determine its cause.

Do not attempt to open the appliance - there is a risk of electrical shock.

If you are not able to solve the problem, please contact your seller or manufacturer.

All users must be familiarized with this section. Knowing what could go wrong can help you avoid the occurrence of problems.

WARNING: any attempt of fixing the appliance without contacting the manufacturer will nullify the warranty.

In case the problem persists, take your appliance to an aftermarket section of any Worten, Modelo or Continente store in order to solve the problem.

Worten Equipamentos para o Lar ensures for a period of 2 years, counting from the date of purchase of this appliance, a warranty against any found manufacturing defect. The warranty supposes a correct use and maintenance of the appliance, namely according to the instructions expressed in this manual. In case otherwise identified, the malfunctions will not be under the warranty.

The repairing of electrical appliances must only be made by qualified technicians, as otherwise there may occur future complications on the appliances.

To avoid unnecessary risks, in case there are any malfunctions on the wires or on another type of components, repairing must be made on the specialized locations of technical assistance, as appropriate tools are needed.

4. ENVIRONMENT CONSERVATION

Aiming to protect the environment, we try to reduce to a maximum the volume of the packages which are confined to three easy separation materials: cardboard, paper and plastic.

The appliance is made of recyclable material, once disassembled by a specialized company. Follow the local legislation concerning recycling of all materials.

Imported, produced and distributed by:
