SECATRES Plus - Tumble drier Rommer - Free user manual and instructions

Product Type	Tumble drier
Brand	Rommer
Model	SECATRES Plus
Capacity	7 kg
Dimensions (H x W x D)	85 x 60 x 60 cm
Weight	35 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	2000 W
Energy Class	C
Drying Type	Condenser
Programs	Cotton, Synthetics, Delicates, Quick, Anti-crease
Sensor Drying	Yes
Delay Start	Up to 24 hours
Lint Filter	Removable, washable
Water Tank	Removable, 3 L capacity
Condenser Cleaning	Periodic manual cleaning required
Child Lock	Yes
Reversible Door	Yes
Noise Level	65 dB(A)
Spare Parts Availability	Belts, filters, heating element, door hinge
Repair Index	7.5 / 10

Frequently Asked Questions - SECATRES Plus Rommer

How do I install the tumble drier?

Place the drier on a flat, stable surface. Ensure at least 5 cm clearance on all sides for ventilation. Connect the drain hose if using continuous drainage, or empty the water tank after each cycle. Plug into a grounded outlet.

What is the maximum load capacity?

The maximum load is 7 kg for cotton programs. Reduce load for synthetics and delicates to avoid overloading.

How do I clean the lint filter?

Remove the lint filter after each cycle. Open the filter door, pull out the filter, and remove lint by hand or with a soft brush. Rinse under running water if needed. Dry thoroughly before reinserting.

How often should I clean the condenser?

Clean the condenser every 30 drying cycles or when the 'Clean Condenser' indicator lights up. Remove the lower door, pull out the condenser unit, and rinse with water to remove fluff. Allow to dry before reinstalling.

Why is the drying cycle taking too long?

Possible causes: overloaded drum, clogged lint filter, dirty condenser, or low room temperature. Check and clean the filter and condenser. Reduce load size. Ensure room temperature is above 5°C.

Can I dry wool or delicate fabrics?

Yes, use the Delicates program with low heat. For wool, use a special wool drying rack (not included) to avoid shrinking. Always check garment care labels.

The drier stops mid-cycle. What should I do?

Check if the water tank is full (empty it) or if the lint filter is blocked. Also ensure the door is fully closed. If the problem persists, the thermal fuse may have tripped; contact customer support.

How do I change the door opening direction?

The door is reversible. Unplug the drier. Remove the door hinge screws, reposition the door on the opposite side, and reattach. Detailed steps are in the user manual.

What is the energy consumption per cycle?

Approximately 4.5 kWh for a full cotton program at maximum load. Actual consumption varies by program and load size. The drier is Energy Class C.

Where can I find spare parts?

Spare parts such as belts, filters, heating elements, and door hinges are available through the Rommer website or authorized service centers. Use the model number SECATRES Plus when ordering.

USER MANUAL SECATRES Plus Rommer

Read all instructions and explanations before use. Follow the instructions carefully. Keep the operation instructions handy for later use, if the appliance is sold or passed on then ensure that the new owner always receives these operation instructions.

V1. 0

SECATRES PLUS

CAUTION: RISK OF FIRE!

CONTENTS

SAFETY INSTRUCTIONS

■ Safety Instructions 2

INSTALLATION

■ Product Description 7
■ Installation 7

OPERATIONS

■ Quick Start 9
■ Before Each Drying 10
■ Control Panel 11
■ Drying Programmes Table 12

MAINTENANCE

■ Cleaning And Care 13
■ Trouble Shooting 14
■ Technical Specifications 15
■ Product Fiche.... 17

1

SAFETY INSTRUCTIONS

■ Safety Instructions

• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• In EN standard countries, this appliance can be used by children from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance, cleaning and user maintenance shall not be made by children without supervision.
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• The lint trap has to be cleaned frequently.
• Lint must not to be allowed to accumulate around the tumble dryer.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substance such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with a extra amount of detergent before being dried in the tumble dryer.

2

- Items such as foam rubber (latex form), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

- Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

⚠ Warning!

Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

- The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliance burning gas or other fuels.

- The appliance must not be install behind a lockable door a sliding door or a door with a hinge on the opposite side, to that of the tumble dryer. In such a way that a full opening of the tumble dryer door is restricted.

- Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil.Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard.

- The appliance should not be overturned during normal use or maintenance.

- Remove all objects from pockets such as lighters and matches.

3

SAFETY INSTRUCTIONSSAFETY INSTRUCTIONS

- For appliances with ventilation openings in the base, that a carpet must not obstruct the openings.

- Children of less than 3 years should be kept away unless continuously supervised.

- Plug must be accessible after installation.

- Warning: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

- Remove all packages before using the appliance. Otherwise, serious damage may result.

Correct Disposal of this product:

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Model	Rated capacity
SECATRES PLUS	3.0kg

4

•Power supply and grounding

The dryer employs alternative current with the rated voltage and frequency. When the voltage fluctuates between 6% of rated voltage, the dryer can work normally. A special power socket with a capacity ≥slant 10A for the dryer had better be set beside the

dryer for convenience and safety. The method of connection of the socket is as the figure below.

To be safe, please make improvements as soon as possible according to the rules and suggestions mentioned above.

⚠ Warning!

The socket and the grounding wire must be installed by an electrician to prevent incorrect installation or use of the socket and to guarantee the safety of use of electricity. No connection of the grounding wire and the neutral wire, otherwise the cabinet will be charged, which is likely to cause the danger of electric shock.

- Precautions

Install or store where it will not be exposed to temperatures below freezing or exposed to water or weather, which could cause permanent damage and invalidate the warranty.

Thoroughly spin the laundry in washing machine. High spin speed can reduce the drying time and save energy consumption.

Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust and dirt. An obstructed port might reduce the airflow.

Make sure combustible sprayer will not be close to dryer when it is working, and once the gas leaks, do not touch plug or start/pause on it.

5

SAFETY INSTRUCTIONSSAFETY INSTRUCTIONS

Do not wash or dry articles that have been cleaned in, washed in, soaked in or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.).

Do not allow children on or in the appliance. Close supervision of children is necessary when the appliance is used near children.

Do not store plastic, paper or clothing that may burn or melt on top of the dryer during operation.

Do not dry articles containing rubber, plastic or similar materials such as padded bras, tennis shoes, galoshes, bath mats, rugs, bibs, baby pants, raincoat plastic bags or pillows that may melt or burn. Some rubber materials, when heated, can under certain circumstances produce fire by spontaneous combustion.

Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.

Please do not use the machine when your foot or hand with water.

The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliance burning gas or other fuels.

The door can be opened only after the programme of the drying machine is completed. Do not open the door before the programme finished to avoid the human skin from being scalded by hot steam or over heated drying machine.

6

INSTALLATION INSTALLATION

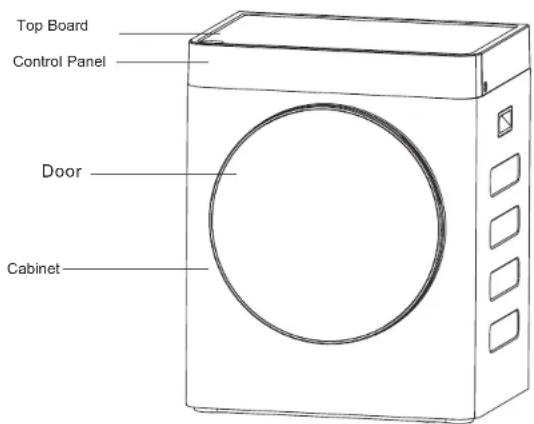

■ Product Description

Note: Please see the products you purchased in kind prevail.

■ Installation

- Dryer should be placed in a ventilated area with not less than 10cm distance from the wall. It is suggested there are no obstacles within 1.5m in front of dryer and keep ventilated.

7

- Level Adjusting

Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level. If it is not, adjust the feet with a tool.

Note!

if dryer could not be placed horizontally (the lean angle is no more than 2^ , the dryer will work unbalanced or stop working sometimes.

Notice when installing:

• Do not install the dryer in the open air or place easily damaged by rain;
• Do not place the back of dryer near curtain or something in the wind;

• Do not place the dryer near gas or flammable area.

• Flex tube fixing:

• Connect one end of flex tube with whorl to the back vent, then fix it measilly till tight.
• The other end of flex tube will be extended to outdoor, please refer the right assemble way to the below pictures.

8

OPERATIONS OPERATIONS

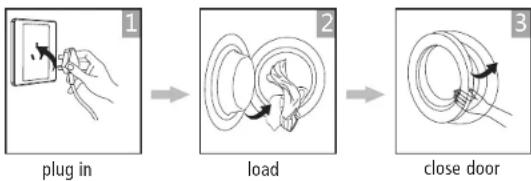

Quick Start

Note!

Before using, please make sure it's installed properly.

Drying

on

select program

select function or default

start

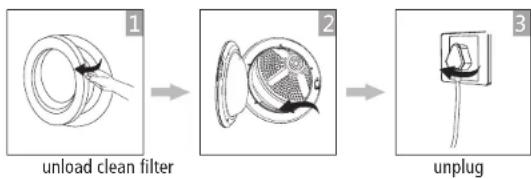

After Drying

Buzzer beep or "0:00" on display.

9

■ Before Each Drying

1. Before drying, thoroughly spin the laundry in washing machine. High spin speed can reduce dyeing time and save energy consumption.
2. For uniform drying result, sort the laundry according to fabric type and drying programme.
   3.Before drying, please close zips, hooks and eyelets, button up, tie fabric belts, etc.
   4.Do not over dry the clothes, because over dried clothes can easily get creases.
   5.Do not dry the articles containing rubber or similar elastic materials.
3. The door can be opened only after the programme of the drying machine is human skin from being scalded by hot steam or over heated drying machine.

4. Clean the lint filter and empty container after each use to avoid extension of drying time and energy consumption.

5. Do not dry these clothes after dry-clean process.

The reference weight of dry clothes (each)

	Jacket (about 800g cotton)		Jeans (about 800g)
	Work clothes (about 1120g)		Sleepwear (about 200g)
	Short pants (about 70g cotton)		Socks (about 50g mixed-weave)

Note!

- Never overload.

• Not for textile with dropping water. The dryer could be damaged, even fire.
• Not suitable for silk or woolen textiles.

Please pay attention to use the drying machine if the materials of your clothes can not be dried by it or contain the symbols as follows:

Dry	Normal	Not tumble dry normal	Do not dry
Line dry / hang to dry	Drip dry	Dry flat	In the shade
Dry clean	Do not dry clean	Dry clean normal cycle with any solvent	Dry clean normal cycle petroleum solvent only

10

OPERATIONS OPERATIONS

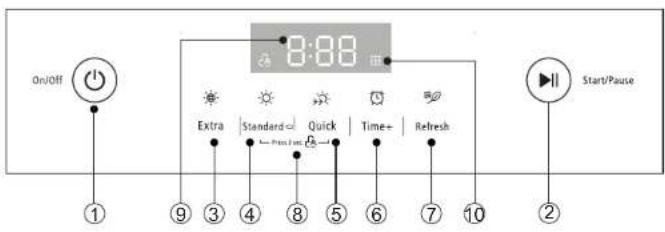

■ Control Panel

On/Off

After plugging in and loading, switch the product on or off.

Extra

To dry cotton pieces of clothing. Drying level: extra dry.

Quick

Fast drying for the polyester, mixed-fabric loading within 0.8kg.

Refresh

Refresh the laundry within 1kg.

Child Lock

This function can effectively prevent children from mis-pressing or mis-operating the dryer. To set this function: Press "Standard" and "Quick" simultaneously for 3sec., then Child Lock lights on.

Start/Pause

Press the button to start or pause the drying cycle.

Standard

Automatic drying for cotton and linen loading with full power.

Time+

Press the button continuously to adjusted the time of drying 10-120minutes.

Display Screen

⑨ 8:88 Remaining Time

Reminder for filter cleaning. After the program finishes, this light is on to remind the user of cleaning the filter.

Note!

• Clean the filter, cabinet and inner tube.
• Clean the filter when the "Filter" light is flashing, after the dryer stop.

■ Drying Programmes Table

Control Panel Programs	Weight (max) (kg)	Display Time	Time Adjustment (min)
Standard	3.0	1:46	/
Extra	3.0	1:58	/
Quick	0.8	0:45	/
Time+	1.0	0:10	10-120
Refresh	1.0 0:10		10-60

Note!

• Different series of products may have different combination keys for child lock.
• This function is set after the machine starts to operate. Once it's activated, no pressing (except power On/Off key) to the dryer can work. If you want to operate the dryer, please disable the Child Lock first.
• This symbol means the energy efficiency test programme "standard cotton programme", which is most suitable to dry normal cotton load at rated load capacity.

MAINTENANCES

■ Cleaning And Care

Filter clean

• Clean the lint filter after each use. Remove by pulling straight up.
• Cleaning filter Use wiping cloth or your fingers.
  • Install filter If the filter is cleaned by damp cloth or water, please install after the sun dry.

Cleaning cabinet and inner tube

• Use soft damp cloth wipe when cleaning cabinet and inner tube.
  • Not to rinse by water direct.
  • Not to use neutral scour wipe.
  • Not to use gasolene and alcohol wipe.
• Make sure open the front door for aeration after cleaning the inner tube.

MAINTENANCES

■ Trouble Shooting

Trouble	Cause	Solution
Will not start	Power cut.The power plug is not plugged tight.Dry clothes exceed.The temperature fuse is cut.	Wait for switching on electricity.Check the power socket,make sure plug tight.The clothes in dryer must be after spinning, and drying clothes can not exceed 3kg.Please career man restore the temperature fuse.
External hot or can smell hot	The lint filter is dirty.The uptake or exhaust duct is dirty.	Make sure clean the lint filter in time.Clean out the stem.
Clothes too dry	The clothes in machine are too full.Not to take out the clothes in time when finish.The clothes don't assort properly.The temperature is enacted too high.	Make sure the clothes are not too full.Take out the clothes immediately when finish.Observe the maintenance label on clothes.
Clothes shrink	Too dry.	Observe the maintenance label on clothes. if easy to shrink,should examine the clothes when dry.Take out the clothes when tiny damp for too dry.Then hang the clothes until full dry.
Hairball on clothes	It is right for synthetic fibre and permanent press fibre causing hairballs.This is because the right rub causing.	Use fabric softener lubricate fibre,please spray settled gule on cuff and neckline when iron clothes.Turn the sarcenet out for reducing rub.

MAINTENANCES

• The sound of dryer when runs can cause
Due to heavy wet clothes' turning and bumping, and this will cause noise accordingly.
- Air bumping: When drying, machine will generate steam which will come out from pipe and this will cost bumping with the bottom of inner tub.

Error code	Description	Criteria	Action after fault debounced
E33	Temperature Sensor error	Temperature Sensor is open or short	Stop the program and go to fault state

■ Technical Specifications

Model Parameter	SECATRES PLUS
Dimension (L*W*H)	520*435*640(mm)
Rated input power	1250W
Rated voltage	220-240V~
Rated frequency	50Hz
Weight of product	20kg
Rated capacity	3.0kg
Ambient temperature	+5°C~+35°C

15

MAINTENANCES

Note!

• The rated capacity is the maximum capacity, make sure that the dry clothes which are loaded to the appliance do not exceed the rated capacity each time.
• Do not install the tumble dryer in a room which the temperature around freezing point, and will have a risk of frost occurring, the tumble dryer may not be able to operate well.

16

MAINTENANCES

■ Product Fiche

Model	SECATRES PLUS
Rated Capacity	3kg
Dryer Type	Air Vented
Energy efficiency class	C
Weighted annual energy consumption (AE.) 1	250.7kWh/year
Automatic or non-automatic	Automatic
EU Ecolabel	N/A
Energy consumption of the standard cotton programme
Weighted energy consumption of the standard cotton programme at full and partial load	1.54kWh
Energy consumption of the standard cotton programme at full load	2.11kWh
Energy consumption of the standard cotton programme at partial load	1.12kWh
Power consumption of the off-mode (Po)	0.5 W
Power consumption of the left-on mode (Pl)	0.6 W
Duration of the left-on mode	10 min
Programme time of the 'Standard Cotton programme'
Weighted programme time of the standard cotton programme at full and partial load	84min
Programme time of the standard cotton programme at full load	115min
Programme time of the standard cotton programme at partial load	60min
Sound power level for the standard cotton programme at full load	65dB
Remarks:

① Energy consumption per year, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.

CONTENIDO

Model Parameter	SECATRES PLUS
Dimension (L*W*H)	520*435*640(mm)
Rated input power	1250W
Rated voltage	220-240V~
Rated frequency	50Hz
Weight of product	20kg
Rated capacity	3.0kg
Ambient temperature	+5°C~+35°C

MANTENIMIENTO

↓ Nota!
