FN-111745.2 - Fan Emerio - Free user manual and instructions

Product Type	Floor Fan
Brand	Emerio
Model	FN-111745.2
Power Source	AC 220-240V, 50/60Hz
Power Consumption	45 W
Number of Speed Settings	3
Oscillation	Yes, 90°
Timer	0-120 minutes
Remote Control	Yes, included
Height Adjustment	Yes, telescopic pole
Blade Diameter	40 cm (16 inch)
Material	Plastic (ABS) and metal stand
Weight	3.5 kg
Dimensions (HxWxD)	130 x 40 x 40 cm (max height)
Noise Level	Approx. 45-55 dB
Safety Features	Overheat protection, tip-over switch
Cleaning	Wipe with damp cloth; do not immerse
Spare Parts Availability	Fan blades, motor, remote control available from service
Repairability	Modular design; user replaceable fuse
Warranty	2 years

Frequently Asked Questions - FN-111745.2 Emerio

How do I assemble the fan?

First, attach the base to the stand pole using the screws provided. Then slide the fan body onto the pole and tighten the locking ring. Finally, attach the front and rear grilles by snapping them together and securing with the screw at the bottom.

Can the fan be used with a timer?

Yes, the fan has an adjustable timer from 0 to 120 minutes. Set it using the timer button on the control panel or remote.

How do I clean the fan?

Unplug the fan. Use a soft damp cloth to wipe the exterior and grilles. For deeper cleaning, remove the front grille by unscrewing the bottom screw and gently wash with mild soap. Do not immerse the motor or any electrical parts.

Why is my fan making a rattling noise?

Check if all screws are tightened, especially the grille screws. Also ensure the blades are not loose or bent. If the noise persists, stop use and contact service.

Does the fan have a remote control?

Yes, a remote is included. It allows you to adjust speed, oscillation, timer, and power on/off. The remote requires 2 AAA batteries (not included).

What should I do if the fan does not start?

Ensure the fan is plugged in and the power socket is working. Check if the safety switch at the base is not tripped. If using the remote, make sure the fan is set to standby by pressing the power button on the unit.

Can I adjust the height of the fan?

Yes, the fan has a telescopic pole. To adjust height, loosen the collar, extend or retract the pole to the desired height, then tighten the collar securely.

Is the fan suitable for outdoor use?

No, this fan is designed for indoor use only. It is not waterproof. Keep away from water and moisture.

How do I replace the fuse?

Unplug the fan. Locate the fuse holder on the plug. Open it with a small screwdriver, replace the blown fuse with one of the same rating (e.g., 5A), and close the holder.

What does the oscillation button do?

Pressing the oscillation button activates automatic side-to-side rotation of the fan head, which helps distribute airflow evenly across the room. Press again to stop oscillation.

USER MANUAL FN-111745.2 Emerio

White desktop fan with five blades and a stand, no visible text or symbols on the fan body.

Desk fan (EN)

Instruction manual – English ...... - 2 -

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children without supervision.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. Incorrect operation and improper handling can lead to faults on the device and injuries to the user.

6. In the event of improper use or incorrect handling, no liability can be accepted for any damage that may occur.

7. Do not immerse the unit or mains plug in water or other liquids. There is danger to life due to electric shock! However, if this occurs, remove the mains plug immediately and then have the unit checked by an expert before using it again.

8. Do not operate the device if the mains cable or the mains plug show signs of damage, if the device has fallen on the floor or has been otherwise damaged. In such cases take the device to a specialist for checking and repair, if necessary.

9. Never remove the mains plug from the socket by pulling on the mains cable, or with wet hands.

10. Ensure that the mains cable does not hang over sharp edges or become trapped.

11. Keep the appliance away from damp, and protect from splashes.

12. Keep the appliance away from hot objects (e.g. hotplates) and open flames.

13. Keep the appliance and its cord out of reach of children less than 8 years.
14. Use the appliance on a flat, dry and heat resistant surface.
15. Never leave the device unattended during use.
16. Do not store or operate the appliance in the open air.
17. Keep the appliance in a dry place, inaccessible to children (in its packaging).
18. Never put fingers or any other objects through the fan guards when the fan is running.
19. Never operate the product without the fan guards in place, as serious personal injury may result.
20. The appliance must be assembled completely before use.
21. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
22. Do not point the air flow to the people for a long time.
23. Ensure that the fan is switched off from the supply mains before removing the guard.

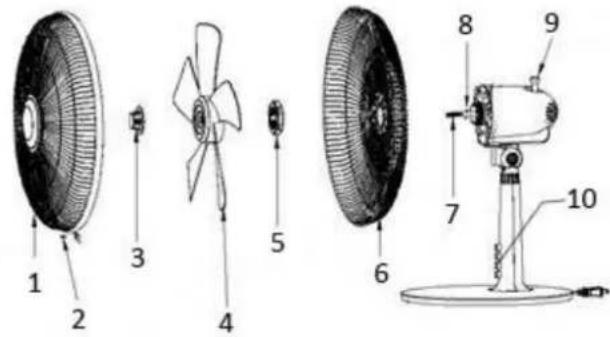

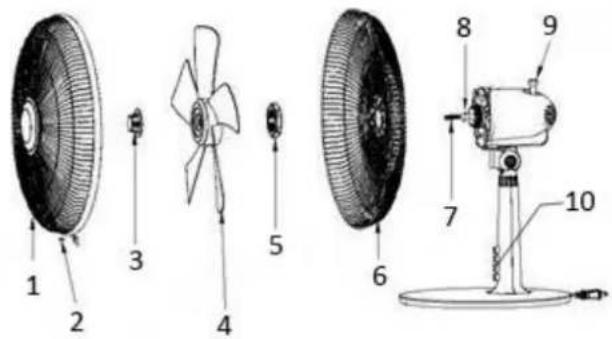

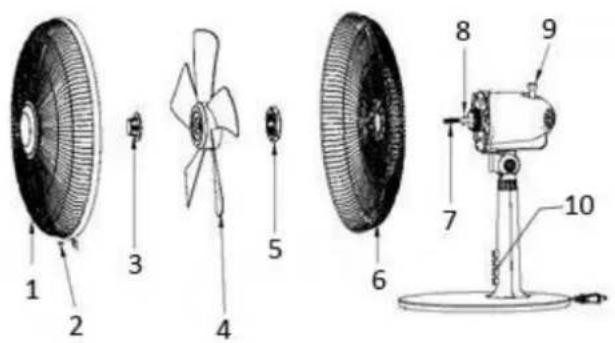

PARTS DESCRIPTION

1. Front guard
2. Guard securing clip
3. Blade fastening screw
4. Blade
5. Guard fastening screw
6. Rear guard
7. Motor shaft
8. Shaft pin
9. Oscillation knob
10. Speed control buttons
11. Bulge
12. Space
13. Standing shaft
14. Standing base
15. Power cord

ASSEMBLING INSTRUCTIONS

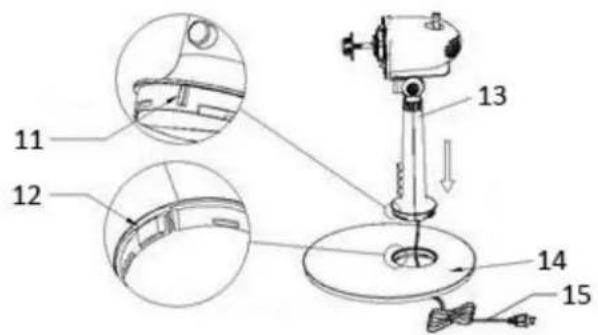

1. Base Assembly

Put power cord (15) through the hole of standing base (14), and make the bulge (11) on standing shaft (13) align with the space (12) of base hole, turning the standing shaft clockwise to fix it onto the standing base.

2. The Whole Assembly

• Remove the blade fastening screw (3) and guard fastening screw (5) from the motor shaft (7) spindle.
• Fit the rear guard (6) by positioning with the location pins. Secure the guard onto the motor body with the guard fastening screw (5).
• Place the fan blade (4) onto the motor shaft by matching the slot with the shaft pin (8). Fix the blade by tightening the blade fastening screw (3) in a counter-clockwise direction. Check that the fan blade can rotate freely by turning it with your hand.
• Position the top clip of front guard (1) onto the uppermost part of the rear guard (6). Press the rim of front guard onto the rear guard. Close the bottom clip.

OPERATING INSTRUCTIONS

1. Plug the power cord into a suitable socket.
2. Oscillation: To make the fan head oscillate, push down the oscillation knob (9). To stop the fan head from oscillating, pull up the oscillation knob.
3. The fan is switched on and off by pressing the speed control buttons, i.e. 0 = Off, 1 = Low air flow peed, 2 = Medium air flow speed, 3 = High air flow speed.
4. Tilting Angles: By pushing the fan-guard, you can adjust the fan to the preferred elevation.

CAUTION: Press only one of the speed control buttons at a time. Permanent damage to the switch housing may result if two or more of the buttons are pressed simultaneously.

CLEANING

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.

2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and dry it carefully. Always take out the mains plug first.

3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50Hz

Power consumption: 40W

Eco design requirements
Product information requirements
Maximum fan flow rate (F)	40.01 m^3/min
Fan power input (P)	31.80 W
Service value (SV)	1.26 ( m^3/min )/W
Measurement standard for service value	(EU) No 206/2012IEC 60879-1986EN 50564:2011EN 60704-2-7:1998EN 60704-1:2010+A11:2012
Standby power consumption (PSB)	0.00 W
Fan sound power level (LWA)	54.60 dB(A)
Maximum air velocity (c)	2.69 meters/sec
Contact details for obtaining more information	Emerio International ABSmedjegatan 6131 54 NackaSweden

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.
