Master X - Loudspeaker Xblitz - Free user manual and instructions

Product Type	Portable Bluetooth Speaker
Brand	Xblitz
Model	Master X
Dimensions (approx.)	20 x 10 x 10 cm
Weight (approx.)	1 kg
Power Source	Built-in rechargeable lithium-ion battery, 5V USB charging
Battery Life (approx.)	6 hours at moderate volume
Charging Time (approx.)	3 hours
Bluetooth Version	5.0
Wireless Range	Up to 10 meters
Speaker Output	10W RMS
Supported Audio Formats	MP3, WMA, WAV, FLAC
Playback Sources	Bluetooth, microSD card, USB flash drive, FM radio, AUX input
FM Frequency Range	87.5 - 108 MHz
Hands-free Calling	Yes (built-in microphone)
Controls	Physical buttons: Power, Volume +/-, Play/Pause, mode switch, next/previous track
Maintenance	Clean with a soft, dry cloth; do not use liquid cleaners
Safety Warnings	Do not expose to water or extreme heat; avoid dropping; keep away from children
Spare Parts / Reparability	Battery replacement possible by authorized service center; otherwise non-user-serviceable
Included Accessories	USB charging cable, AUX cable, user manual

Frequently Asked Questions - Master X Xblitz

How do I pair my Xblitz Master X with my phone?

Turn on the speaker by pressing the power button. Activate Bluetooth on your phone and search for devices. Select Master X from the list. A voice prompt will confirm pairing.

How do I charge the speaker?

Use the included USB charging cable. Connect the micro USB end to the speaker and the USB end to a 5V adapter or computer. The LED indicator will turn red during charging and green when fully charged.

What is the battery life of the Master X?

At moderate volume, the battery lasts approximately 6 hours. At maximum volume, battery life may be shorter.

How do I play music from a microSD card?

Insert a microSD card into the slot on the speaker. Press the mode button until you see MicroSD on the display (if available) or hear a voice prompt. The speaker will automatically play the music files.

Can I use the speaker while charging?

Yes, the speaker can be used while charging, but it is recommended to fully charge before first use for optimal battery performance.

How do I use the FM radio?

Press the mode button to switch to FM Radio mode. Connect the included AUX cable (or use the USB cable as antenna) for better reception. Press the Play/Pause button to start scanning for stations.

Why is the speaker not responding?

Try charging the speaker for at least 30 minutes. If still unresponsive, press and hold the power button for 10 seconds to reset the device. If the issue persists, contact support.

How do I answer a call with the speaker?

When connected via Bluetooth, an incoming call can be answered by pressing the Play/Pause button. The built-in microphone allows hands-free conversation. Press again to end the call.

Is the speaker waterproof?

No, the Xblitz Master X is not waterproof. Avoid exposure to rain, splashes, or submersion in water. Keep it away from moisture to prevent damage.

What does the LED indicator mean?

Solid red = Charging; Solid green = Fully charged; Flashing blue = Bluetooth pairing mode; Solid blue = Bluetooth connected.

USER MANUAL Master X Xblitz

Close-up of a black handheld device with blue and beige grip, no visible text or symbols

INSTRUKCJA OBSŁUGI

Szanowny Kliencie,

Thank you for purchasing the XBLITZ MASTER X speaker. The device is a wireless speaker that connects to your phone or other mobile device using Bluetooth technology and has the function to play files from external storage media. Please read the instructions before using the device.

01. CONTENTS OF THE KIT

1. Xblitz Master X speaker
2. USB cable
3. AUX cable
4. Instructions

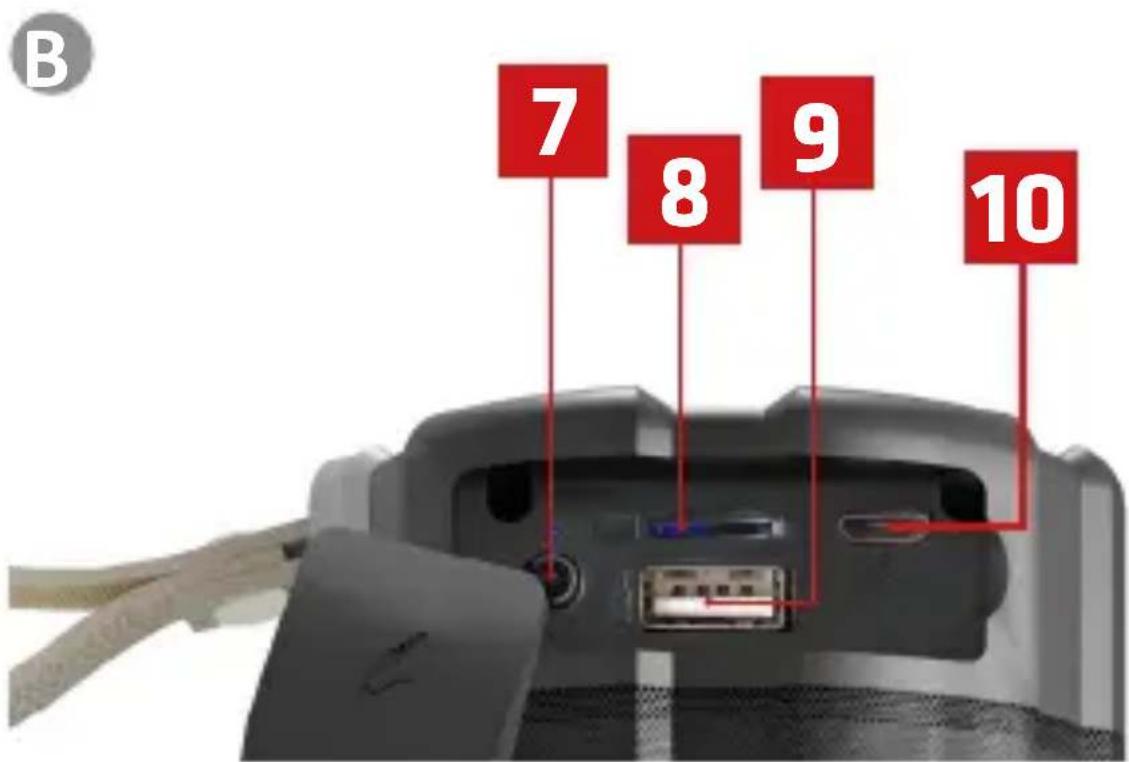

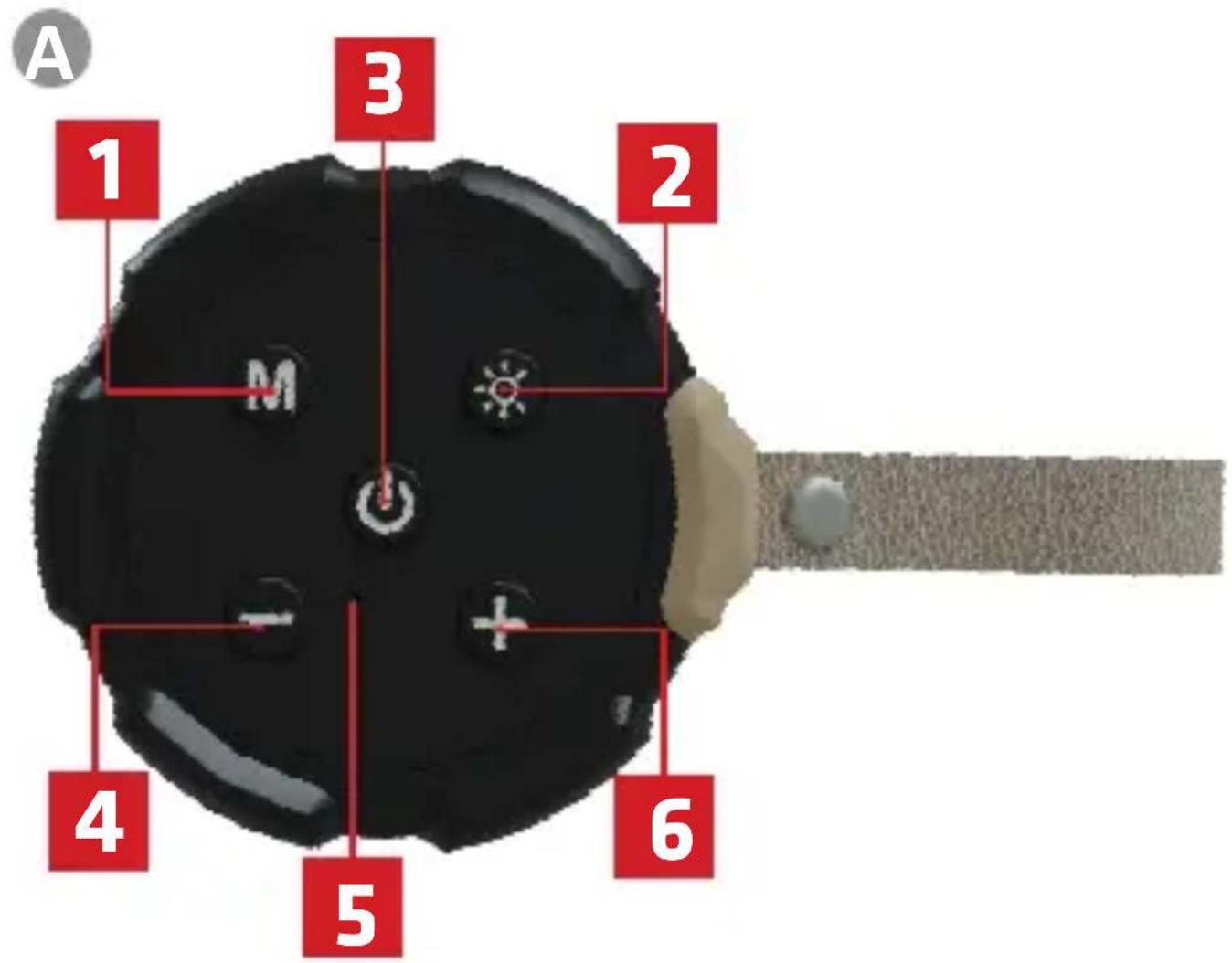

02. PRODUCT DESCRIPTION SEE ILLUSTRATION A, B

1. MODE button
2. LED button
3. POWER button
4. Button -
5. Microphone
6. Button +
7. AUX socket
8. Micro-SD card slot
9. USB port (mass storage)
10. Micro USB port (device power supply)

03. CHARGING THE DEVICE

To charge the device, connect it to the charge using the USB cable included in the kit. The time required to fully charge the battery is approximately 4h. When the device is close to discharging, it will start beeping briefly.

04. DESCRIPTION OF DEVICE MODES

1. Bluetooth mode

When the device is switched on, Bluetooth mode, which is the default mode of operation, will switch on automatically. The speaker will confirm the activation of the BT mode with a sound message. Before using the speaker for

the first time, pair it with the selected device by activating BT connectivity on the latter and select XBLITZ MASTER X from the list. Successful pairing will be confirmed by an audible message from the speaker.

To switch to the next song, briefly press the + button. To switch to the previous song, briefly press the - button. To increase or decrease the volume, hold down the + button or the - button respectively. Briefly press the M button to switch the unit to FM mode.

During a phone call, the announcer will read out the caller's phone number, then start beeping the incoming call. Briefly press the POWER button to answer the call or hold the same button to reject the call.

2. FM mode

To enter FM mode, briefly press the MODE button. For automatic programming of radio stations, press the POWER button. The unit will scan the frequencies in the broadcast band 87.5 - 108 MHz and store the radio stations in scanning order. To switch between the preset radio stations, briefly press the + or - button.

Note: To improve the quality of radio reception, it is recommended to plug the supplied USB cable into the micro-USB port on the device.

3. AUX mode

Connect the speaker with another device using the AUX cable supplied. The device will automatically switch to AUX mode. To switch the speaker to another mode, use the MODE button or remove the AUX cable (the speaker will then return to the default BT mode).

4. Playback from external storage media

The device plays .mp3 files from external storage media - USB flash drives and micro-SD cards. To switch to the playback of .mp3 recordings, simply place the selected storage medium in the corresponding slot on the loudspeaker. To switch between tracks, briefly press the + or - buttons. A short press on the POWER button stops playback from the memory storage.

Note: to avoid the possibility of damaging the storage medium, it is recommended to connect and disconnect it when the device is switched off.

5. LED backlighting

The device has several modes of LED backlighting. To switch between modes, press the LED button briefly. To switch off the LED illumination, hold down the button.

05. SAFETY INSTRUCTIONS

1. do not immerse the appliance or any of its parts in water. Do not use the device near water.
2. do not expose the device to intense sunlight and do not use it in hot, humid or dusty conditions.
3. do not block the ventilation openings of the unit.
4. do not store the unit in areas of high temperature and humidity. Keep the unit away from heating sources.
   5 Use only manufacturer-approved accessories.
5. do not use the appliance if it has become wet or mechanically damaged. In such cases, contact the service department.
6. never use caustic or abrasive cleaning agents for maintenance.
7. Clean the unit with a dry cloth.

06. TECHNICAL SPECIFICATIONS

BT version: 5.0 | BT range: up to 10 m | Power: 5 W x 2 | Frequency response: 120 Hz - 20 kHz | SNR: ≥ 90 dB | Battery: 2400 mAhv | Maximum capacity of supported micro-SD card: 32 GB | Supported audio file format: .mp3 | Charging time: up to 4 hours | Operating time: up to 4 hours | Input voltage: 5V/ 500 mA | Ports: USB, micro USB, micro SD, AUX | FM tuner: yes | Variable backlight modes: yes | Built-in microphone: yes | Weight: 500 g | Dimensions: 17.5 x 7.5 cm

07. WARRANTY/COMPLAINT CARD

The product comes with a 24-month warranty. Warranty conditions can be found at: https://xblitz.pl/gwarancja/

Claims should be made using the claim form found at:

Details, contact and service address can be found at: www.xblitz.pl.

Specifications and contents are subject to change without notice. We apologise for any inconvenience.

KGK Trade declares that the XBLITZ MASTER X device complies with the essential requirements of Directive 2014/53/EU. The text of the declaration can be found at the link:

02. PRODUKTA APRAKSTS

SKATĪT A, B ILUSTRĀCIJU

1. REŽIMA poga
2. LED poga
3. IESPĒJAS poga
4. Poga -
5. Mikrofons
6. Poga +
7. AUX ligzda
8. Micro-SD kartes slots
9. USB ports (masveida datu glabāšana)
10. Micro USB ports (ierīces barošanas avots)

03. IERİCES UZLÄDE

The crossed out trash can symbol indicates that unusable electrical or electronic devices, its accessories (such as power supplies, cords) or components (for example batteries, if included) cannot be disposed of alongside with household waste. In order to dispose of the devices or its components (for example, batteries) deliver the device to the collection point, where it will be accepted free of Disposal is subject to the recast version of the WEEE Directive (19/ EU) and the Directive on batteries and accumulators (2006/66 / oper disposal of the device prevents degradation of the natural ment. Information about the collection points of the facilities is by the competent local authorities. Incorrect disposal of waste is to penalties provided for by the law in force in the given area.
