| Product Type | Heat gun |
| Brand | Cotech |
| Model | JSRF-601G |
| Power Consumption | 2000 W |
| Temperature Range | 50 °C – 650 °C |
| Airflow Rate | 300 – 500 L/min |
| Speed Settings | 2 (low / high) |
| Temperature Control | Adjustable with knob |
| Dimensions (H × W × D) | 240 × 200 × 80 mm |
| Weight | 0.85 kg |
| Power Supply | 220 – 240 V, 50/60 Hz |
| Power Cord Length | 2.0 m |
| Overheating Protection | Yes, auto shut-off |
| Cool-down Function | Yes, reduces temperature after use |
| Nozzle Accessories Included | 2 (concentrator, flat) |
| Maintenance | Clean air intake, replace carbon brushes |
| Safety Features | Heat-resistant nozzle, insulated handle |
| Spare Parts Available | Nozzles, carbon brushes, heating element |
| Warranty | 2 years |
Frequently Asked Questions - JSRF-601G Cotech
User questions about JSRF-601G Cotech
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Heat gun in PDF format for free! Find your manual JSRF-601G - Cotech and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. JSRF-601G by Cotech.
USER MANUAL JSRF-601G Cotech
Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.
Viktig information:
18-3260
40-8227
MODEL
JSRF-601G-UK
JSRF-601G
Ver. 20130823
Original instructions
Bruksanvisning i original
Please read the entire instruction manual before use and save it for future reference. We reserve the right for any errors in text or images and for making any necessary technical changes to this document. If you should have any questions concerning technical problems please contact our Customer Services.
Safety
• If the mains lead is damaged it must only be replaced by a qualified tradesman.
- Never expose the heat gun to rain or moisture.
- Never point the heat gun towards people or animals.
- Never block the nozzle by covering it or holding it too close to the object being heated.
- Harmful or toxic gases can be produced when heating paint or varnish. Make sure your work area is well-ventilated.
Warning – Fire hazard!
The tool can become a fire hazard if used improperly. Please take the following into consideration:
- Be careful when using the tool in the vicinity of flammable materials.
- Do not hold the heat gun over the same area for a long time.
- Never use the tool in an explosive atmosphere.
- Heat can spread and ignite flammable materials which are not within sight.
- Place the tool in a standing position after use and let it cool sufficiently before putting it away for storage.
• Never leave the heat gun unattended when it is on. - Never use the heat gun for drying clothes or as a hair dryer.
• Overheating increases the risk for fire and explosions.

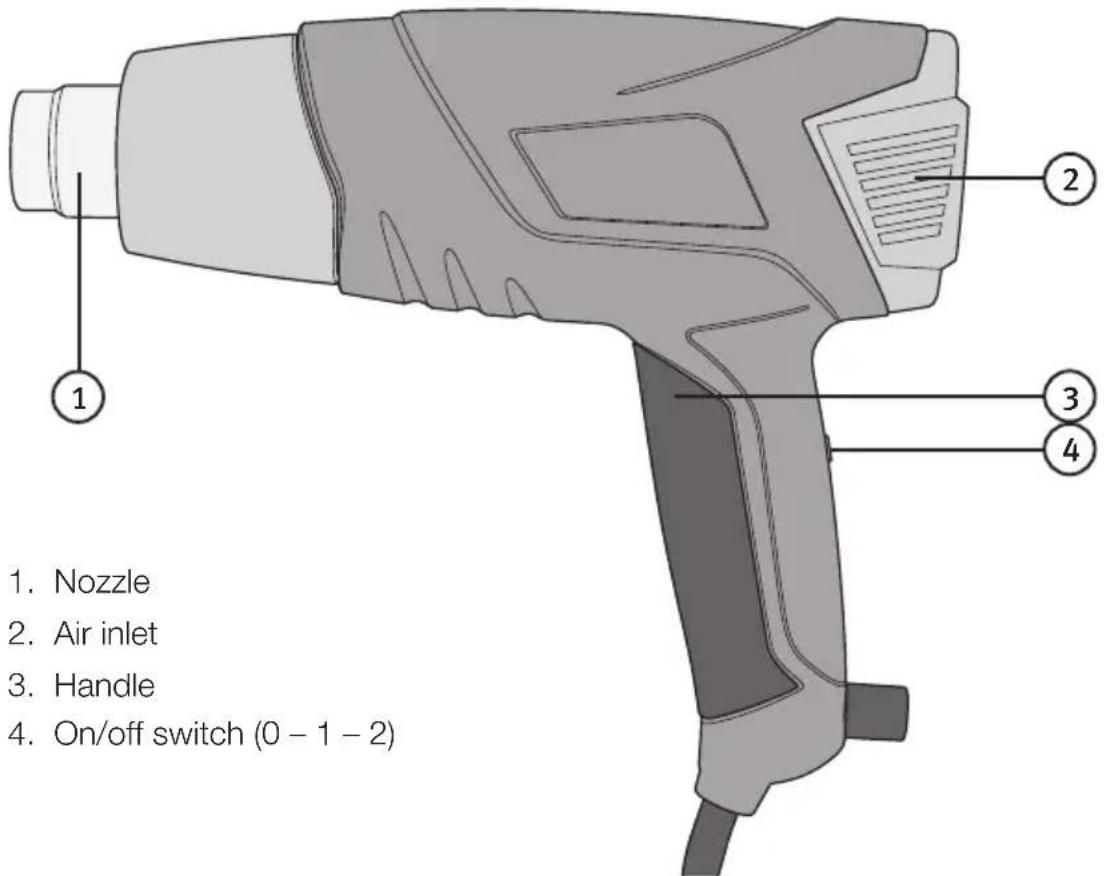

Product description
Product safety symbols
Always use ear protection.
Always use safety glasses / visor.
Operation
On/off switch
The power switch has 3 settings 0 - 1 - 2:
0 Off
1 Low heat (approx 300 °C and airflow 250 l/min)
2 High heat (approx 550 °C and airflow 550 l/min)
- Make sure the power switch is set to 0 before connecting the heat gun to a wall socket. When you are ready to begin work, set the power switch to 1 or 2. The heat gun will reach operating temperature in under a minute.
- If you need both hands for another task, the heat gun can be laid on a flat surface (with the nozzle up). The nozzle will become very hot; don't hold your hands too close.
- When removing paint, use a suitable paint scraper and work from the top down. Scrape off paint with smooth even strokes while simultaneously warming the paint in front of the scraper by sweeping the heat gun in a back and forth motion. When the paint has been heated sufficiently, even thick layers can be easily removed.
- The edge of your scraper must be cleaned often to keep it sharp and effective. Scrape off the paint immediately after heating as the paint hardens quickly.
- For contoured surfaces, the paint must first be heated until it softens and then be removed with a steel brush.
• Cover any adjacent surfaces which are not to be heated with a non-flammable material. - Never point the heat gun towards a window or any other glass surface.
- After use the heat gun should be placed in an upright position and allowed to cool before it is put away.
Note: The heat gun is suitable for the removal of oil and latex based paints. It cannot remove stains, primer and wood treatment residue. Emissions from lead paint can be dangerous to your health. Always provide for good ventilation when working indoors.
Removing paint/varnish
- Switch the heat gun on and let it warm up to operating temperature.
- Keep the nozzle about 10 cm from the paint to be removed.
- Do not overheat. Otherwise the paint will begin to burn and it will be even more difficult to remove.
Other applications
- Removing stickers and decorations.
- Defrosting frozen pipes, door locks, padlocks, etc. Do not try to defrost plastic pipes!
- Bringing out wood grain before staining or lacquering.
- Quick-drying paint and varnish. This is especially useful when colour matching is required by applying several layers of paint.
- Removing old window putty before applying new.
• Drying wood before processing it.
• Shrinking packaging shrink wrap. - Waxing skis.
• Shrinking heat-shrink tubing.
Care and maintenance
- Keep the air inlet and outlet clear.
- Clean the product using a clean soft cloth and a little mild detergent. Never clean the product using solvents or flammable liquids.
Disposal
Follow local ordinances when disposing of this product. If you are unsure how to proceed, contact your local authority.
Specifications
Voltage 230 V AC, 50 Hz
Power 2000 W
Operating temperature 300/550 °C
Air flow 250/550 l/min
Varmluftspistol 2000 W
ART.NR 18-3260 MODELL JSRF-601G-UK 40-8227 JSRF-601G
Icon of a person reading a book inside a circle (no text or symbols)natural_image
Icon of a person reading a book inside a circle (no text or symbols)natural_image
Icon of a person reading a book inside a circle (no text or symbols)Declaration of Conformity
EMC directive 2004/108/EC
EN 55014-1:2006+A1
EN 55014-2:1997+A1+A2
EN 61000-3-2:2006+A1+A2
EN 61000-3-3:2008
LOW VOLTAGE DIRECTIVE 2006/95/EC
EN 60335-1:2002
+A1+A11+A12+A2+A13
EN 60335-2-45:2002+A1:2008
EN 62233:2008
Klas Balkow President
Insjön, Sweden, 2011-05-13
