Product Type	Car Interior Fan Heater
Brand	Cotech
Model	32B003
Power Output	1200 W (at -25 °C) / 1000 W (at 25 °C)
Voltage	230 V, 50 Hz
Heating Element	Ceramic PTC (Positive Temperature Coefficient)
Protection Class	Class II (double insulation)
Ingress Protection	IP20 (dry environments only)
Power Cable	0.8 m rubber-coated cable
Dimensions (L × W × H)	20 × 16 × 5 cm (7.9 × 6.3 × 2.0 in)
Weight	Approx. 1.0 kg (2.2 lbs) – estimated
Minimum Clearance (Front)	30 cm (12 in)
Minimum Clearance (Above, Behind, Sides)	10 cm (4 in)
Safety Features	Over-temperature protection, thermal fuse safety cut-off
Mounting Options	Floor standing with adjustable stand, bracket mounting (under glove compartment or centre console)
Indicators	Indicator lamp (power on)
Controls	On/off switch
Airflow Direction	Adjustable, must not blow downwards
Compatible Vehicles	Cars, work vehicles with 230 V socket
Included Accessories	Mounting bracket, screws, adjustable stand
Disposal	Follow local ordinances for electronic waste
Manual Languages	DE, EN, FI, SV (additional translations available)

Frequently Asked Questions - 32B003 Cotech

Can the Cotech 32B003 car heater be used in any vehicle?

Yes, it is designed for cars and work vehicles with a 230 V, 50 Hz power supply. Ensure the vehicle has a compatible power socket inside the cabin.

Is the heater safe to use while driving?

Yes, when properly installed and not obstructing airbags or other equipment. It has over-temperature protection and a thermal fuse for safety.

How do I reset the over-temperature protection?

Unplug the heater from the power socket and wait 5–10 minutes for it to cool. It will automatically reset and work again.

What is the power consumption of the heater?

It consumes 1000 W at 25 °C and 1200 W at -25 °C. The PTC element adjusts power automatically to maintain temperature.

Can the heater be used outdoors or in wet conditions?

No. It has IP20 protection and is intended for dry, dust-free indoor environments only.

How should I mount the heater in my car?

You can place it on the floor with the adjustable stand, or attach it under the glove compartment or centre console using the supplied bracket. Ensure a minimum clearance of 30 cm in front and 10 cm above, behind, and sides.

What does the indicator lamp mean?

The indicator lamp shows that the heater is connected to power and switched on. It does not indicate heating status.

What are the dimensions of the heater?

The dimensions are 20 × 16 × 5 cm (length × width × height).

Can I replace the power cord if it is damaged?

No, the power cord cannot be replaced. If the cord is damaged, the entire unit must be discarded to avoid safety hazards.

How do I dispose of the heater?

Follow local regulations for disposal of electronic equipment. Contact your local authority for proper recycling or disposal options.

USER MANUAL 32B003 Cotech

Line drawing of a portable electronic device with a cable and plug, no text or symbols present

Art.no

36-4545

Model

32B003

Ver. 20131016

1200 W Car Heater

Art.no 36-4545 Model 32B003

Please read the entire instruction manual before use and save it for future reference. We reserve the right for any errors in text or images and for making any necessary technical changes to this document. If you should have any questions concerning technical problems please contact our Customer Services.

General

• Compact, elegant car interior fan heater.
  • Power: 1200 W (at -25^ ).
• Ceramic PTC element which ensures safe, effective and economical heating for all kinds of cars and work vehicles.
• The PTC thermistor ensures that the power is automatically cut when the temperature inside the car becomes too high. The temperature is thus kept at a constant level with low energy consumption.
• The heater has a built-in over-temperature protection device that cuts off the heater when it gets too hot.
• The heater comes with a mounting bracket that can even be attached to side panels.
• The heater is designed for use with a 230 V, 50 Hz power supply. It is double-insulated, class II, and intended to be connected to a power socket inside the vehicle.

Safety instructions

Follow these instructions for everyone's safety. Carefully read through all the instructions before using the car heater. Keep these instructions for future reference.

• The power lead must not be replaced. If the lead is damaged the appliance should be discarded.
• Do not position the heater directly under the power socket inside the vehicle.
• The distance between the heater's safety grille and the closest object (e.g. car seat) must be at least 30 cm. There must be at least 10 cm distance to objects above the heater.
• The heater must not be mounted in such a way that it blows air down, towards the floor. This poses an overheating risk.
• The car heater must not be covered or its exhaust ports blocked in any way.
  • No objects are to be poked through the safety grille.
• When installing the car heater in cars, check to see if there are any special directions or rules that apply to your type of vehicle. The car heater must not be placed in such a way that it might obstruct airbags or other equipment inside the vehicle.
• Any installation inside a vehicle should be professionally fitted using materials and products designed for vehicles.
  • This product must not be used outdoors or in damp environments, IP20.

Description

1. Upper part with air intake
2. Indicator lamp
3. Power lead with plug
4. Lower part
5. Stand
6. Front grille
7. On/off switch
8. Bracket

Operation

Plug the heater into the power socket located in the cabin of the vehicle. The outlet socket inside the car should be connected to the power inlet socket on the outside of the vehicle via a permanently installed cable. The cable must be rubber-coated with a core area of at least 1.5 mm ^2 (H05RN-F) and encased in a flexible metal armour sheath. The car heater can be placed on the floor and be pointed upwards using the adjustable stand. The heater can also be mounted under the glove compartment or centre console using the supplied bracket.

Overheating protection

The car heater has a built-in thermal over-temperature protection device. If the over-temperature protection is triggered, the car heater is automatically shut off.

Once the heater has cooled, it will work again as normal.

The over-temperature protection device is reset by unplugging the heater from the power socket. Wait for 5 to 10 minutes for the heater to cool before plugging it in and using it again.

As an extra safety measure the heater is also fitted with a thermal fuse safety cut-off. This thermal fuse cannot be reset, so if it has blown the car heater cannot be reused and should be discarded.

Placement

The car heater can be placed on the floor, attached to the passenger side of the centre console or hung under the glove compartment.

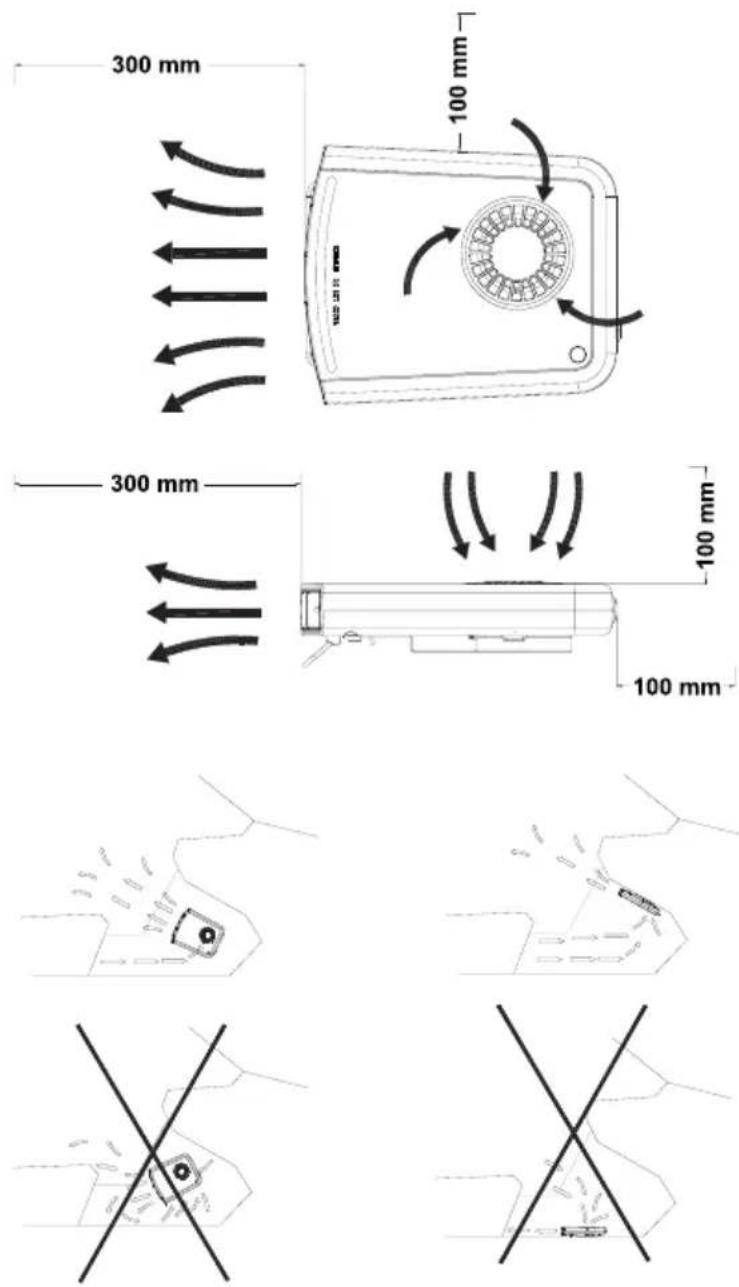

NOTE! The nearest object (e.g. seat) in front of the safety grille must be no closer than 30 cm. There must always be 10 cm of space above the heater; otherwise there is a risk of it overheating.

If the heater is placed on the floor, the adjustable stand should be used to direct the flow of air upwards. When attaching the heater to the centre console, the supplied bracket should be used. The car heater must never be positioned so that it blows air downwards or directly towards the seat.

Attach the bracket using the supplied screws. Push the car heater into the bracket and make sure that it is secure before turning it on.

Technical line drawing of a device housing assembly showing internal components and part alignment (no text or symbols)

Disposal

Follow local ordinances when disposing of this product. If you are unsure how to proceed, contact your local authority.

Technical data

Voltage 230 V, 50 Hz

Power 1000 W (at 25 °C) 1200 W (at -25 °C)

Lead 0.8 m rubber-coated cable

Protection class IP20 (only for use in dry and dust-free environments)

Placement Minimum distance of objects from the heater 30 cm in front, 10 cm above, 10 cm behind and 10 cm to the side.

Size (l × w × h) 20 × 16 × 5 cm
