PTC17 - Chauffage d'appoint pour voiture Cotech - Free user manual and instructions

Product Type	Car Heater (PTC Fan Heater)
Model	PTC17
Article Number	36-6699
Rated Voltage	230 V AC, 50 Hz
Power Output	1050 W (at 25 °C) / 1400 W (at -25 °C)
Mains Lead Length	0.8 m
IP Rating	IP20 (indoor/dry use only)
Dimensions (W×H×D)	20 × 17 × 3.5 cm
Weight	Approx. 1.5 kg (estimated)
Heating Element	PTC (Positive Temperature Coefficient) ceramic
Safety Features	Over-temperature protection (auto shut-off, resettable), thermal fuse (non-resettable)
Mounting Options	Floor standing (adjustable stand) or bracket mounting under glove compartment/centre console
Minimum Clearance	30 cm in front of grille, 10 cm above unit
Airflow Direction	Must blow upward; never downward or directly at seat
Controls	On/off switch, indicator lamp
Power Cord Requirement	Rubber-coated cable (H05RN-F), core area ≥ 1.5 mm², encased in flexible metal armour
Compliance	CE marked; WEEE compliant (recycle symbol)
Usage Environment	Indoor/vehicle cabin only; not for outdoor or damp areas

Frequently Asked Questions - PTC17 Cotech

How do I install the PTC17 car heater in my vehicle?

The heater can be placed on the floor using the adjustable stand (pointed upwards) or mounted under the glove compartment/centre console using the supplied bracket. For permanent installation, connect the heater to a power socket inside the vehicle that is wired to an external power inlet via a rubber-coated cable (H05RN-F, ≥1.5 mm²) encased in flexible metal armour. Ensure the heater is not positioned to obstruct airbags or other equipment.

What are the required safety distances?

Maintain at least 30 cm clearance in front of the safety grille (e.g., from a car seat) and at least 10 cm above the heater. Never place the heater so that it blows air downward or directly toward a seat.

How does the over-temperature protection work?

The heater has a built-in thermal over-temperature sensor that automatically shuts it off if it overheats. Once the unit cools down, it will resume normal operation. To reset, unplug the heater from the power socket, wait 5–10 minutes for it to cool, then plug it back in.

What if the thermal fuse blows?

The thermal fuse is a one-time safety cut-off that cannot be reset. If it blows, the heater must be discarded and replaced. Do not attempt to repair it.

Can I use the PTC17 heater outdoors or in damp areas?

No. The heater is rated IP20 (protected against solids >12.5 mm, no water protection). It is intended for indoor/vehicle cabin use only. Using it outdoors or in damp environments poses a safety hazard.

What type of power outlet does the heater require?

The heater has a standard 230 V AC plug. It should be plugged into a power socket inside the vehicle that is connected to a permanent external power inlet via a dedicated cable. The cable must be rubber-coated with a core area of at least 1.5 mm² and encased in flexible metal armour.

How should I clean and maintain the heater?

Unplug the heater before cleaning. Wipe the exterior with a dry or slightly damp cloth. Do not use water, solvents, or abrasive cleaners. Never insert objects through the safety grille. Ensure air inlets and outlets are free from dust and debris.

Can the heater be mounted under the glove compartment?

Yes, the heater can be mounted under the glove compartment or on the passenger side of the centre console using the supplied bracket. Use the provided screws to attach the bracket securely, then push the heater into the bracket until it clicks into place.

What is the power consumption and heating capacity?

The heater consumes 1050 W at 25 °C ambient temperature and 1400 W at -25 °C. It operates on a 230 V, 50 Hz power supply. The PTC element adjusts power output based on temperature.

Is the heater safe to leave unattended?

The heater has over-temperature protection and a thermal fuse, but always follow safety instructions: do not cover, ensure proper clearance, and never leave it running if you suspect a fault. Children should be supervised around the heater. Unplug when not in use.

USER MANUAL PTC17 Cotech

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Illustration of a portable electronic device with a grid-patterned top and ventilation grille (no text or symbols)

Art.no

36-6699

Model

PTC17

Ver. 20170424

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

Do not cover.

• This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities, or lack of experience and knowledge, prevents them from using the appliance safely without supervision or instruction.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• If the mains lead is damaged in any way it must be replaced by a qualified electrician.
• Do not position the heater directly under the power socket inside the vehicle.
• The distance to the closest object (e.g. car seat) in front of the safety grille of the heater must be at least 30 cm. The distance to the closest surface above the heater must be at least 10 cm.
• The heater must not be mounted in such a way that it blows air downward, towards the floor. Failure to take these precautions could result in the appliance overheating.
• The heater must not be covered or its exhaust ports blocked in any way.
• No objects are to be poked through the safety grille.
• When installing the heater in your vehicle, check to see if there are any special directions or rules that apply to your specific type of vehicle. The heater must not be placed in such a way that it might obstruct airbags or other equipment inside the vehicle.
• Any installation inside a vehicle should be carried out professionally using materials and products designed for vehicles.
• The heater must not be used outdoors or in damp environments. The IP rating of the heater is IP20.

Product description

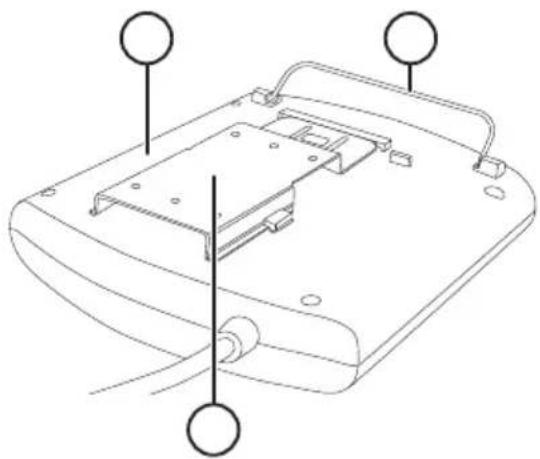

Technical line drawing of a device casing with labeled components (no text or symbols present)

1. Upper part with air intake
2. Indicator lamp
3. Power lead with plug

4. Lower part

5. Stand

6. Front grille
7. On/off switch
8. Bracket

Operation

Plug the heater into the power socket located in the cabin of the vehicle. The outlet socket inside the car should be connected to the power inlet socket on the outside of the vehicle via a permanently installed cable. The cable must be rubber-coated with a core area of at least 1.5 mm ^2 (H05RN-F) and encased in a flexible metal armour sheath. The car heater can be placed on the floor and be pointed upwards using the adjustable stand. The heater can also be mounted under the glove compartment or centre console using the supplied bracket.

Overheating protection

The car heater has a built-in thermal over-temperature protection device. If the over-temperature protection is triggered, the car heater is automatically shut off.

Once the heater has cooled, it will work again as normal.

The over-temperature protection device is reset by unplugging the heater from the power socket. Wait for 5 to 10 minutes for the heater to cool before plugging it in and using it again.

As an extra safety measure the heater is also fitted with a thermal fuse safety cut-off. This thermal fuse cannot be reset, so if it has blown the car heater cannot be reused and should be discarded.

Placement

The car heater can be placed on the floor, attached to the passenger side of the centre console or hung under the glove compartment.

Note: The nearest object (e.g. seat) in front of the safety grille must be no closer than 30 cm. There must always be 10 cm of space above the heater; otherwise there is a risk of it overheating.

If the heater is placed on the floor, the adjustable stand should be used to direct the flow of air upwards. When attaching the heater to the centre console, the supplied bracket should be used. The car heater must never be positioned so that it blows air downwards or directly towards the seat.

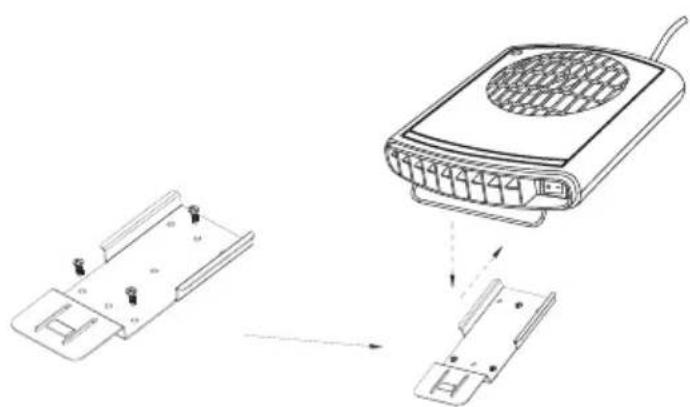

Attach the bracket using the supplied screws.

Push the car heater into the bracket and make sure that it is secure before turning it on.

Four technical diagrams showing mechanical or architectural components with no visible text, numbers, or symbols.

Technical line drawing of a device with exploded view and internal components (no text or symbols)

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

Specifications

Rated voltage 230 V AC, 50 Hz

Power 1050 W (at 25 °C)

1400 W (at -25 °C)

Mains lead 0.8 m

IP rating IP20

Size 20 × 17 × 3.5 cm

Kupévärmare 1400 W

Art.nr 36-6699 Modell PTC17

Technical line drawing of a computer monitor base with labeled ports and cable (no text or symbols)

Four technical diagrams showing cross-sectional views of a road intersection with no text or symbols

Technical line drawing of a device with exploded view and internal structure (no text or symbols)

Avfallshantering

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Specifikationer

Technical line drawing of a device casing with labeled components (no text or symbols present)

Four technical diagrams showing mechanical or architectural components with cross-sectional views, no text or symbols present.

Technical line drawing of a device with exploded view and internal components (no text or symbols)

Avfallshändtering

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Spesifikasjoner

Technical line drawing of a device casing with labeled components (no text or symbols present)

Four technical diagrams showing mechanical or architectural components with no visible text, numbers, or symbols.

Technical line drawing of a device with exploded view and internal components (no text or symbols)

Kierrättäminen

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

Tekniset tiedot

Technical line drawing of a computer monitor base with labeled ports and cable (no text or symbols)

Four technical diagrams showing mechanical or architectural components with no visible text, numbers, or symbols.

Technical line drawing of a device with exploded view and internal components (no text or symbols)

Abfallentsorgung

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Technische Daten
