USER MANUAL S1J-XT3-10 Cotech

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Black and white photo of a COTECH electric shaver tool (no visible text or symbols on body)

ART.NO MODEL

18-3052 S1J-XT3-10-UK

30-9470 S1J-XT3-10

Ver. 200802

Multi Tool

ART.NO: 18-3052 MODEL: S1J-XT3-10-UK

30-9470 S1J-XT3-10

Please read the entire instruction manual before using and save it for future use. We apologise for any text or photo errors and any changes of technical data. If you have any questions concerning technical problems please contact our Customer Service Department (see address on reverse.)

General Safety instructions

Warning! Read all the instructions. Failure to adhere to the following instructions may lead to electric shocks, fires and/or serious injury. The term “electrical hand tools” in the warning text below is referring to your mains operated or battery operated hand tool. Save the instructions!

1) The work space

a) Keep the work space clean and well illuminated. Cluttered and poorly lit areas invite accidents.
b) Do not use electrical hand tools in explosive environments, i.e. nearby flammable liquids, gas or dust. Electrical hand tools generate sparks that could easily ignite dust or fumes.
c) Keep away from children and other spectators while using the electrical hand tool. Distractions can make you lose your concentration and control.

2) Electrical safety

a) The electrical hand tool's plug must fit correctly in the wall socket. Never modify the plug in any way. Never use an adaptor together with earthed electrical hand tools. Unmodified plugs and suitable wall sockets decrease the risk of electric shock.
b) Avoid body contact with earthed objects, such as pipes, radiators, ovens or refrigerators. There is an increased risk of electrical shock if your body is earthed.
c) Do not expose the electrical hand tool to rain or other wet conditions. If water gets inside an electrical hand tool it increases the risk of electrical shock.
d) Do not misuse the lead. Never use the lead to carry, drag or pull the plug out of the wall socket. Keep the lead away from heat, oil, sharp edges and movable parts. Damaged or tangled leads increase the risk of electrical shock.
e) When you use an electrical hand tool outdoors; use an extension cord suitable for this purpose. Use of an extension cord for outdoor use decreases the risk of electrical shock.

3) Personal safety

a) Pay attention to what you do and use common sense when using electrical hand tools. Never use an electrical hand tool if you are tired or under the influence of drugs, alcohol or medication. One moment of not paying attention while using an electrical hand tool may result in serious injury.

b) Use protective equipment. Always use safety glasses. Using protective equipment such as a face mask, slip resistant protective shoes, a helmet and ear defenders when needed decreases the risk of injury.

c) Avoid unexpected starts. Make sure that the switch is set to OFF before you connect the device to the wall socket. Never carry an electrical hand tool with one finger on the trigger or never connect the hand tool to a wall socket when the switch is set to ON, since it may result in injury.

d) Remove all service tools/keys before switching on the hand tool. A forgotten service tool on a rotating part of the electrical hand tool may result in injury.

e) Do not overreach. Make sure you stand steady and well balanced at all times. This gives better control in unexpected situations.

f) Wear suitable clothing. Do not wear loose fitting clothes or jewellery. Keep hair, clothes and gloves away from movable parts. Loose fitting clothes, jewellery or long hair could get caught in movable parts.

g) If the equipment for suctioning or collecting dust is available make sure it is connected and used properly. Using technical aids may reduce dust related hazards.

4) Use and maintenance of the electrical hand tool.

a) Do not overdrive the hand tool. Use a hand tool suitable for the work you are to perform. At the correct rate of feed, the correct tool will carry out the work better and more safely.

b) Never use the electrical hand tool if the switch does not work properly to turn on and shut off the tool. All electrical hand tools that can not be operated by the switch are dangerous and must be repaired.

c) Unplug the lead from the wall socket before making any adjustments, changes of accessories or storing the electrical hand tool away. These precautions reduce the risk of unexpected start of the electrical hand tool.

d) Store electrical hand tools that are not being used out of reach from children. Do not let people unfamiliar with the electrical hand tool or its instructions use it. Electrical hand tools can be dangerous if they get into the hands of inexperienced users.

e) Maintenance of electrical hand tools. Check if something is incorrectly set, if movable parts are getting jammed, or parts are broken or something else that might cause the electrical hand tool to malfunction. If something is damaged it must be repaired before use. Many accidents are caused by poorly maintained electrical hand tools.

f) Keep the tools sharp and clean. Properly maintained cutting tools with sharp blades are less likely to jam and are easier to control.

g) Use the electrical hand tool, accessories and such according to the instructions and in a way suitable for the type of electrical hand tool used. Using the electrical hand tool for work other than that for which it is intended could result in a dangerous situation.

5) Service

a) Repairs and service should only be performed by qualified persons, and only with original spare parts. This guarantees the safety of the electrical hand tool.

Safety symbols

Read the entire instruction manual before using the product.

Always use ear protection.

Always use safety glasses or a visor.

Specific Safety Instructions for High Speed Rotary Tools

General

• The machine must only be operated by persons over the age of 16 years.
• This machine must not be used with water.
• Always remove the plug from the wall socket before making any adjustments or changing accessories.

Accessories

• Use only those accessories designed to be used with the machine.
  • Always follow the manufacturers instructions when attaching accessories.
• Use only those accessories rated at speeds higher than the highest rated speed for the machine.
• Do not use accessories that are damaged, deformed or that vibrate.
• Handle and store grinding/cutting discs carefully so that they don't splinter or split.
• The accessories must not be exposed to blows, knocks or grease.
• Never use grinding discs with diameters greater than 32 mm (1 14 ") ∅.
• Never use drill bits with diameters greater than 32 mm (1 14 ") ∅.
• Never use the edge of the cutting disc for grinding.
• Never use reducing rings or adaptors to attach grinding/cutting discs with large bores.

Before use

• Always make sure that the mains supply voltage is compatible with the machine's rated voltage.
• Do not work with materials containing asbestos.
• Tie the workpiece down if it is not held in place by its own weight.
• Use fully-rolled out extension leads with at least a 16 A rating.
• Safety glasses, gloves, ear protectors, face masks and safety shoes should all be worn. An apron should also be worn if necessary.

• Wear a face mask when working with material producing toxic dust. Check the make-up of the material before starting work.

• Make sure that the chuck is compatible with the shank of the accessory.

• Make sure that the power switch is set to OFF before the machine is plugged into the wall socket.

During use

• Keep the mains lead away from rotating parts; trail the lead behind and away from the machine.
• Do not use the machine if the mains lead is damaged; have the lead replaced by a qualified electrician.
• Never engage the spindle lock while the tool is rotating. Damage caused by incorrect handling of the machine is not covered by the guarantee.
• Keep hands away from rotating parts and accessories.
• The grinding of metal will produce sparks. Bystanders and flammable material should therefore be kept away from the working area.
• Always keep the motor's ventilation openings free of dust and debris.
• If an electrical or mechanical fault arises, the machine must be switched off and unplugged immediately.

After use

• The accessory will continue to rotate for a short while after the machine has been switched off.
• Before leaving the machine, make sure that the motor is switched off and that all parts have stopped moving.
• Never stop the tool rotating by applying a load to it after the machine has been turned off.

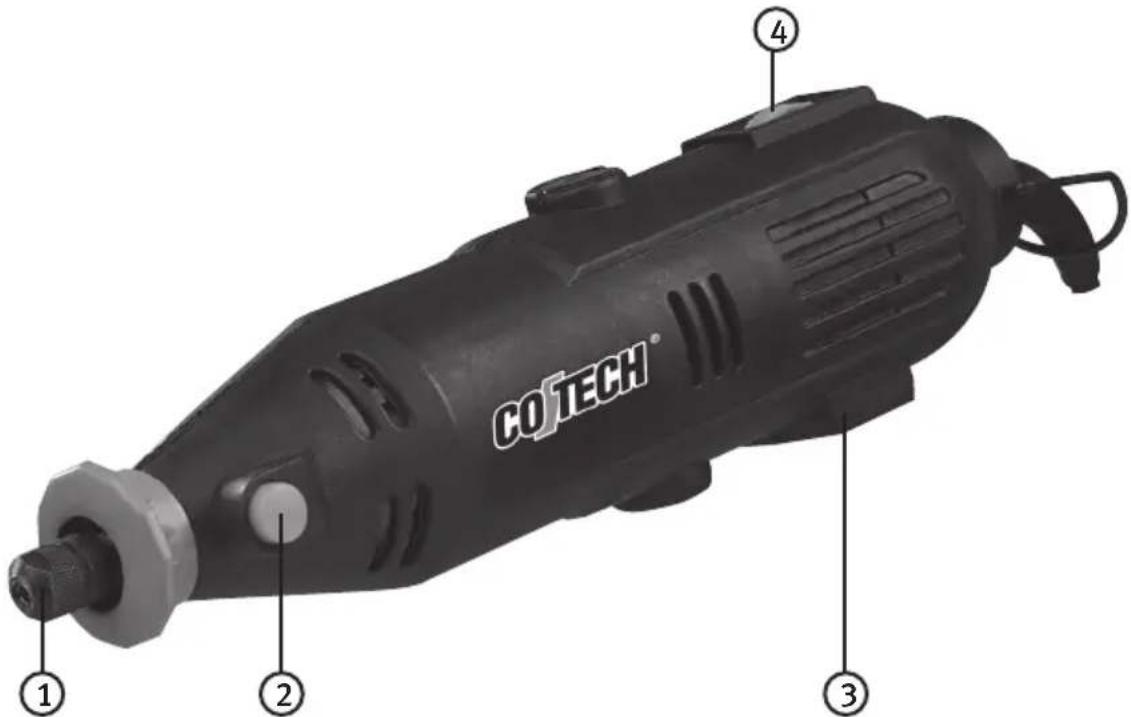

Produktbeskrivning

1. Spring Collet Chuck
2. Spindle Lock Button
3. Power Switch
4. Variable Speed Control Switch

Setting the speed

Switch the machine on by setting the power switch (3) to 1. The desired speed can then be set using the control switch (4).

Attaching accessories

Hold in the spindle lock button (2) and undo the collet chuck (1) using the supplied spanner. Insert the accessory. Hold in the spindle lock button (2) and tighten the collet chuck (1) using the supplied spanner. The spring collet (5) can be changed depending on the shank size of the accessory (2.4 or 3.2 mm).

Care and Maintenance

• Always keep the motor's ventilation openings free of dust and debris.
• Clean the machine as needed using a lightly moistened cloth and mild detergent if necessary. Avoid solvents and abrasive cleaning agents.

Troubleshooting

Problem Möjlig	orsak Möjlig lösning
The machine does not start.	No power. Check the power point.
	Short circuit. Contact our Customer Service Dept in case of motor or electrical faults.
	Faulty power switch.
The machine runs slowly.	Worn/damaged cutter/bit. Sharpen or change the tool.
	Speed too low. Alter the variable setting.
	The motor is overheated.. Do not press down too hard.
Strange noise. Mechanical fault. Contact our Customer Service Department.
Strong vibrations.	Loose cutter/bit. Tighten the tool and make sure it is set correctly.
Sparks in the motor.	Winding short circuited. Contact our Customer Service Department.
	Dirty commutator.

Disposal

Follow local ordinances when disposing of this product. If you are unsure about how to dispose of this product contact your municipality.

Specifications

Power Supply 230 V \~ 50 Hz

Power 135 W

No-Load Speed 8000 - 32500

Collet Size 2.4 and 3.2 mm

Weight 0.5 kg

Sound Pressure Level 68.6 dB (A)

Sound Power Level 79.6 dB (A)

Vibration Value 0.711 m/s ^4

Multiverktyg

ART.NO: 18-3052 MODEL: S1J-XT3-10-UK 30-9470 S1J-XT3-10
