JCA002105 - Air-conditioner Jocel - Free user manual and instructions

Product Type	Portable Air Conditioner
Model	JCA002105
Cooling Capacity	12000 BTU/h (approx.)
Power Supply	115V, 60Hz, 10A
Power Consumption (Cooling)	1100W
Refrigerant Type	R410A
Airflow Volume	350 m³/h
Dimensions (W x D x H)	18.1 x 16.5 x 28.3 in (46 x 42 x 72 cm)
Net Weight	55 lbs (25 kg)
Noise Level	≤ 55 dB(A)
Control Type	Remote + Touch Panel
Modes	Cool, Fan, Dry, Sleep, Auto
Fan Speeds	Low, Medium, High
Timer	1-24 hours
Air Filter	Washable mesh filter
Self-Evaporation System	Yes (drainless operation in most conditions)
Installation	Window kit included
Energy Efficiency Ratio (EER)	9.5
Certifications	UL, Energy Star (compliant)
Features	Auto restarts, LED display, bucket full indicator
Warranty	1 year limited

Frequently Asked Questions - JCA002105 Jocel

How do I clean the air filter?

Turn off and unplug the unit. Remove the filter from the back, wash it with warm soapy water, rinse, and let it dry completely before reinstalling. Clean every 2 weeks for optimal performance.

Do I need to drain the water from the unit?

In most conditions, the self-evaporation system removes condensate automatically. In very humid weather, the internal tank may need draining via the bottom drain plug.

The air conditioner is not cooling properly. What could be wrong?

Check that the air filter is clean, the windows and doors are closed, the unit is not too large for the room, and there are no obstructions to airflow. Also ensure the window exhaust hose is properly sealed.

How do I set the timer?

Using the remote or control panel, press the Timer button. Use the +/- buttons to set hours. Press again to confirm. The timer can be set to turn the unit on or off after a specific time.

Can I use an extension cord?

It is not recommended. Plug the unit directly into a properly grounded wall outlet. If necessary, use a heavy-duty extension cord of at least 14 AWG and 15 amps rating.

What does the 'Dry' mode do?

Dry mode reduces room humidity without cooling too much. The fan runs on low speed and the compressor cycles on and off to remove moisture from the air.

How do I use the remote control?

Insert 2 AAA batteries (not included) into the remote. Point it at the air conditioner's receiver. Press Power to turn on, then select mode, temperature, and fan speed.

Why does the unit make a loud noise?

Ensure the unit is on a level, hard surface. Check for loose parts or objects blocking the fan. A gurgling sound is normal from refrigerant flow.

The display shows 'E1' error code. What does it mean?

E1 usually indicates a fault with the room temperature sensor. Turn off the unit and unplug it for 10 minutes. If the error persists, contact customer service.

Can the window kit be installed in sliding windows?

Yes, the included window kit is adjustable for vertical or horizontal sliding windows. Follow the installation guide to expand the panels to fit your window dimensions.

USER MANUAL JCA002105 Jocel

White outdoor air conditioner unit with grid-patterned ventilation slots and control buttons (no visible text or symbols)

JCA002105

MANUAL DE INSTRUÇÕES MANUAL DE INSTRUCCIONES INSTRUCTION MANUAL

ÍNDICE

1. Painel de controlo
2. Persianas horizontais
3. Persianas verticais
4. Rodas
5. Caixas de gelo
6. Painel de arrefecimento Honeycomb
7. Filtro de ar
8. Depósito de água

ESPECIFICAÇÕES TÉCNICAS

Two white air purifiers with grid and ventilation grilles, one being handled by a hand (no visible text or symbols)

Two white air purifiers with grid patterns being handled, one with hand pointing at the screen (no visible text or symbols)

Adición de agua

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

Telef. 00 34 914 879 573

http://www.jocel.es

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

Parts Introduction....21

Technical Specifications....21

Working Principles of Air Cooler....22

Before the First Use....22

How to Use this Air Cooler....23

Cleaning and Maintenance....24

Troubleshooting....25

Important Guidelines....25

Guaranty....27

Conformity Certificate....28

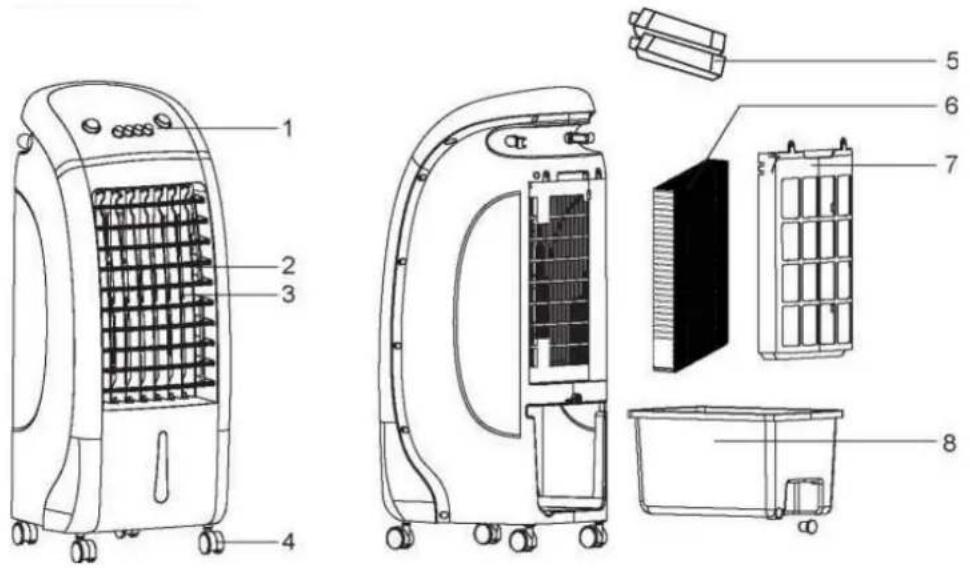

1. Control panel
2. Horizontal louvers
3. Vertical louvers
4. Casters
5. Ice boxes
6. Honeycomb filter
7. Air filter
8. Water tank

TECHNICAL SPECIFICATIONS

Model	JAC002105
Voltage	220-240V
Frequency	50/60Hz
Power	65W

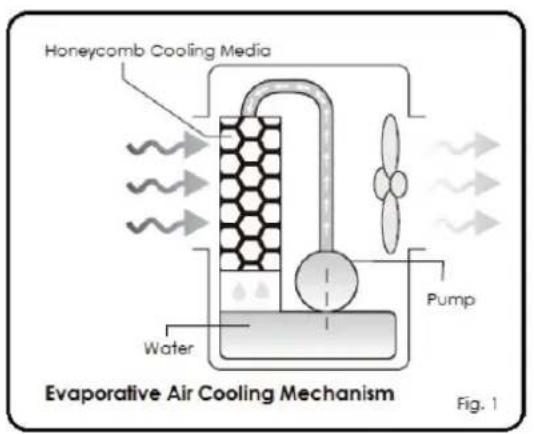

WORKING PRINCIPLES OF AIR COOLER

• Evaporative air coolers are built to maximize energy efficiency and keep cost low.

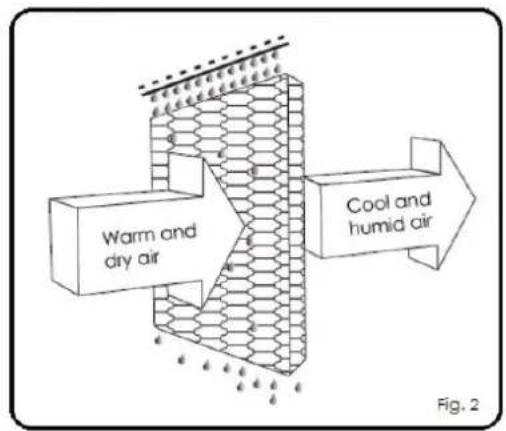

• Warm air is drawn into the cooler and enters the honeycomb cooling media. Water pumped from the tank pours over the honeycomb media (Fig.1).
• As the warm air passes through the media, the water absorbs the heat, naturally cooling and humidifying the air (Fig. 2).
• A fan propels the cooled air out into the room. This no-compressor system cools naturally, efficiently and inexpensively.

• The recommended maximum relative humidity level is 60% or less, which allows a noticeable temperature decrease. The temperature decrease will be greater in drier climates because higher evaporation occurs when the humidity is low.
• The evaporative air cooler should not be used in enclosed spaces. It must be kept level and there must be water in the water tank. The room should have doors and windows opened to allow free air flow.
• The evaporative air cooler works best when placed near an open window, so that outside air that is drawn into the evaporative air cooler circulates in the room, then exits via the door.

BEFORE THE FIRST USE

Please read these instructions carefully before using this appliance and keep them for future reference.

• Check whether the supply line voltage and current rating are in compliance with the rated electric parameter shown on the label before inserting the main plug into the socket.
• Please check whether all the parts of the appliance are in good condition. If any parts are broken or damaged, please contact the Technical Assistance.
• Ensure all packaging materials and any promotional labels or stickers are removed from the appliance before the first use.

HOW TO USE THIS AIR COOLER

Control Panel

Speed:

Press the "1" "2" "3" button to change speed. "0" button is for turning the unit OFF.

"0" - Off

"1"- Minimum

"2"- Medium

"3"-Máximum

Cool

Press “Cool” button repeatedly to choose the desired function. the functions can operate simultaneously.

To begin cooling the desired area, press the button on "COOL" is on. Water pump will start to operate and you will feel the cooler air after the honeycomb media is completely wet.

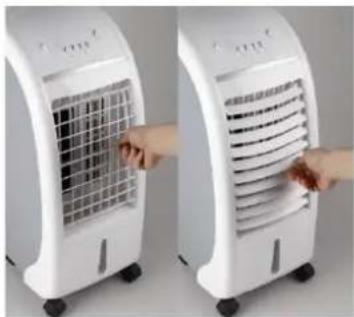

Swing

When “Swing” function is chosen, the vertical louvers will automatically move from right to left, but the horizontal louvers must be manually adjusted to change the air flow direction to top, centre or bottom.

Two white air purifiers with grid patterns being handled, one with hand and the other with handle (no visible text or symbols)

Filling with water

Caution: Always unplug from power supply when filling with water.

- Check water level indicator located on the front of the unit to determine the level of water inside the water tank. Be sure water in the tank is always above the minimum water level mark.

- To fill the water tank, remove the water tank and fill water to the Max Level, as indicated on the water tank. Do not fill water above the Max water level mark.

• For better cooling performance, it is recommended to put ice pack in the water tank.
• After refilling the water tank and placing the ice packs, close the water tank, connect to power supply and turn it on.
• To drain water from the tank, remove the rubber plug from the drain hole on the side. After draining the water, cover the hole with the cap.

Caution: Running the unit with inadequate water may cause pump failure.

CLEANING AND MAINTENANCE

• Before cleaning the unit, switch it to off position and unplug from the power supply.
• Use a damp cloth to remove dirt and dust from the outer surface.
• Never use corrosive elements or any chemicals to clean this product.

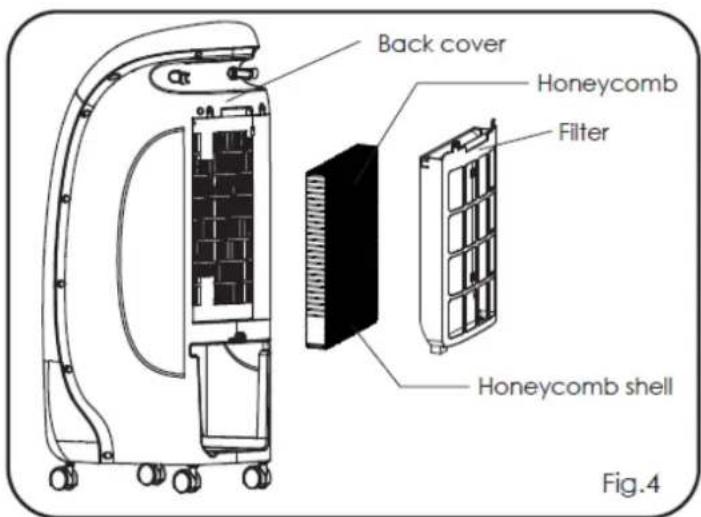

• Remove the filter and honeycomb filter from its shell for cleaning.
• Wash the filter in a mild detergent and warm water solution. Then rinse in clean water.
• Use a brush and water to clean the honeycomb filter.
• The cleaning frequency for the honeycomb filter depends on local air and water conditions. In areas where the mineral content of water is high, mineral deposits may build up quickly on the honeycomb filter and restrict air flow. Draining the water tank and refilling with fresh water at least once a week will help to reduce mineral deposits. If mineral deposits remain on the honeycomb filter, then it should be removed and washed under fresh water. The honeycomb filter should be cleaned every two months or sooner, depending on the frequency of mineral deposits or dust accumulation.
• Do not run the unit in mode with stale water in the tank. Empty the tank and refill it with fresh water if water has been standing in the tank for an extended period of time.
• When the product is not in use, store the unit in a dry place out of direct sunlight.

TROUBLESHOOTING

Problems	Possible Causes	Solutions
No discharge of air	Cord not plugged in.	Make sure power cord is plugged into the power outlet and the supply switch is on.
	Power not turned on.	Turn on the unit by pressing “1” button on the control panel.
No cool air/ unit is making noise	Pump is not turned ON.	Turn on the function on control panel.
	Low or no water in tank when is selected.	Refill water tank.
Odores	Cooler is new.	When the unit is used for the first time, the honeycomb filter may emit an odor. This odor will dissipate within a few hours of initial use.
	Cooler has not been used for a long time.	This could be due to residue. Replace the honeycomb filter.

IMPORTANT GUIDELINES

When using electrical appliances basic safety precautions should always be followed including the following:

1. Read all instructions before using.
2. Check the household voltage to ensure it matches the appliance's rate specifications.
3. Always turn setting controls to "0" position before disconnecting the cord from the power supply. Hold plug when unplugging from socket. Do not unplug by pulling the supply cord.
4. Do not touch wire connector with wet hands to avoid electric shock or injuries.
5. Always unplug the product before refilling the water tank.
6. Always unplug the appliance from the power source before cleaning, servicing or relocating the unit.

7. Do not use the product in areas where gasoline, paint or other flammable goods and objects are stored.

8. When using the “ ” setting, check to ensure the water tank has enough water to operate. Operating this cooler on the “ ” setting with an empty tank may result in damage to the water pump.

9. Do not attempt to repair or adjust any electrical or mechanical functions of the cooler, as this may make the warranty void.

10. Do not cover the air inlet or outlet of the appliance as this may cause damage.

11. Do not insert or allow objects to enter any ventilation or exhaust opening as this may damage the product and could cause an electrical shock or fire.

12. Do not operate with the honeycomb filter removed as this will overload and damage the set.
13. Do not leave the operating appliance unattended for extended periods of time.

14. Do not let children play with this appliance, packaging or plastic bag.

15. If the unit is damaged or if it malfunctions, do not continue to use it. Contact the Technical Assistance.

16. Place the unit on a level floor.
17. Dry the water tank if the cooler will not be used for a long period of time.
18. This product is not intended for use in wet or damp locations.
19. Do not use in bathrooms. Never locate the product where it may fall into a bathtub or other water containers.
20. Store in a dry area when not in use.
21. Always grip the side handles to move the cooler.
22. Do not immerse the power supply connector in water or other liquids and do not allow it to become wet.
23. This appliance is for domestic use only. This appliance is not suitable for commercial use.
24. The use of accessories not recommended by the appliance manufacturer may cause injury.
25. Do not use the appliance for other than its intended use.
26. Do not use the appliance outdoors.
27. The appliance is not intended for use by children, by persons with reduced physical, sensory or mental capabilities, or lacking experience or knowledge, unless they have been given supervision or instruction concerning the use of the product, by a person responsible for their safety. Extra caution is always necessary when using this product.
28. Children should be supervised to ensure that they do not play with the appliance.
29. Do not run power cord under carpeting, or cover it with rugs or runners. Keep the cord away from areas where it may be tripped over.
30. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Repair and services should always be carried out by technical assistance.

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

This marking indicates that this product should not be disposed with other household wastes throughout the nation. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc.
5. Lose warranty, all appliances that are not being used according to the instructions, or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. If the appliance has not been installed by an Accredited Technician.
2. Exceeded the current legal period, for home appliances and for industrial appliances, warranty expires and assistance will be made by charging the costs of labor hand, according to current fees
3. With the modification or disappearance of the nameplate of the appliance.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00 351 252 910 351

E-mail: [e-mail]

http://www.jocel.pt

DECLARATION OF CONFORMITY

CE

We declare on our own responsibility that the machine indicated below:

Product AIR COOLER

Brand JOCEL

Model JCA002105

Complies with the following European directives and standards implementation.

Low Voltage

2014/35/EU

EN 60335-1:2012+A11:2014+AC:2014

EN 60335-2-80:2003+A1:2004+A2:2009

EN 60335-2-98:2003+A1:2005+A2:2008

EN: 62233:2008

Electromagnetic Compatibility

2014/30/EU

EN 55014-1:2006 + A1:2009+A2:2011

EN 55014-2:2005

EN 61000-3-2:2014

EN 61000-3-3:2013
