Product Type	Blender
Brand	Coline
Model	CW3123
Power Consumption	500 W
Capacity	1.5 L
Number of Speed Settings	2 speeds + pulse
Material of Jar	Glass
Blade Material	Stainless steel
Dimensions (H x W x D)	40 cm x 18 cm x 18 cm
Weight	2.5 kg
Voltage	220-240 V, 50/60 Hz
Functions	Blending, mixing, pureeing, crushing ice
Safety Features	Non-slip feet, overload protection, lid lock
Cleaning	Dishwasher-safe jar, wipe motor base with damp cloth
Accessories Included	Measuring cup, recipe book
Warranty	2 years
Repairability	Spare parts available via customer service

Frequently Asked Questions - CW3123 Coline

How do I clean the blender jar properly?

Fill the jar halfway with warm water and a drop of dish soap. Run the blender on pulse for 30 seconds, then rinse thoroughly. The jar is also dishwasher safe on the top rack.

Can I crush ice with this blender?

Yes, the blender is equipped with stainless steel blades that can crush ice. Use the pulse function in short bursts for best results.

What is the maximum capacity for blending hot liquids?

Do not blend hot liquids above 60°C. Allow them to cool before blending and never fill the jar more than halfway when blending hot ingredients.

The blender stopped working during use. What should I do?

First, check if the blender has overload protection. Unplug for 15 minutes to reset. If it still doesn't work, verify the power outlet and that the jar is properly locked.

Can I blend nuts or make nut butter?

Yes, you can blend nuts for short periods. For nut butter, use the pulse setting and scrape sides frequently to avoid overheating the motor.

How do I remove stains from the plastic lid?

Soak the lid in a solution of baking soda and water for 15 minutes, then scrub gently with a soft sponge. Avoid abrasive cleaners.

What does the pulse function do?

The pulse function provides short bursts of power for chopping or mixing without continuous blending. Press and hold the pulse button for controlled results.

Is the blender suitable for making smoothies?

Absolutely. Add fruits, yogurt or milk, and ice. Blend on high speed until smooth. The 1.5L capacity is ideal for up to 4 servings.

The blade is not spinning. What could be wrong?

Ensure the jar is correctly locked onto the base. If the blade is stuck, unplug and check for obstructions. Never operate with damaged blades.

Where can I find spare parts or accessories?

Contact Coline customer service or visit the official website. Spare jars, blades, and seals are available for purchase.

USER MANUAL CW3123 Coline

Black-and-white product photo of a coline brush, beaker with liquid level, and whisk (no visible text or symbols)

CW3123 | 🎯 🌅 🍼

Hand Blender

Art.no

18-4787

44-3123

Model

HB978

HM978

Please read the entire instruction manual before use and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

• Incorrect handling of this product could result in personal injury.
• Great care should be exercised when handling and cleaning the blade and the beaker. The blade is very sharp.
• The product should always be disconnected from the mains when it is not in use, when it is to be assembled/disassembled and when it is to be cleaned.
• The product must not be used by children. Ensure that the product and its mains lead are kept out of children's reach.
• The product must only be used with the included motor unit.
• Note: Ensure that the product is switched off before the bowl is removed from the motor unit.
• Wash the beaker, cutter blade, other chopping attachments and lid with warm soapy water.
• Switch the product off and disconnect it from the mains before removing the blade or any of the moving parts.
• The product may be used by persons with reduced physical, sensory or mental capability, lack of experience or knowledge which could jeopardise their safety, provided they have been given supervision or instruction concerning the safe use of the product and understand the hazards involved.

• Never let children play with the product.

• Ensure that the product is used with the correct voltage. Refer to the product's rating plate.

• Always remove the beaker from the motor unit before cleaning. The blade is extremely sharp and could cause serious personal injury if the product were to start accidentally.
• To prevent electric shocks, the product and its mains lead should be kept dry.
• Never lay the mains lead over hot surfaces, sharp edges or corners.
• Always disconnect the product from the power supply by holding and pulling the plug. Do not pull the mains lead.
• Make sure that all parts are correctly assembled and that the product is switched off before it is connected to the power supply.
• Never operate the product without food in the container.
• Never use the product close to heat sources.
• Only use the supplied parts and/or accessories.
• Never use the product for anything other than its intended use.
• The mains lead should be checked regularly. Never use the product if the mains lead or plug is damaged.
• The mains lead must be changed if damaged. This is to prevent the risk of electric shock or fire and should only be carried out by the manufacturer, qualified service facility or qualified technician.
• The product is only intended for normal domestic use and only in the manner described in this instruction manual and in similar environments such as in canteens, offices, hotels and hostels.

Product description

1. [I] On/off, low speed
2. [II] On/off, high speed
3. Motor unit
4. Blending leg
5. Chopping bowl lid
6. Chopping blade
7. Base/lid for chopping bowl

The lid is used both to protect the bottom of the bowl and as a lid if food is kept in the bowl after chopping.

1. Chopping bowl
2. Balloon whisk holder
3. Balloon whisk
4. Beaker

Instructions for use

The blender

The blender is ideally suited for preparing dips, sauces, soups, baby food, milkshakes, etc. Blend for max 1 min at a time, then let the motor cool before blending again.

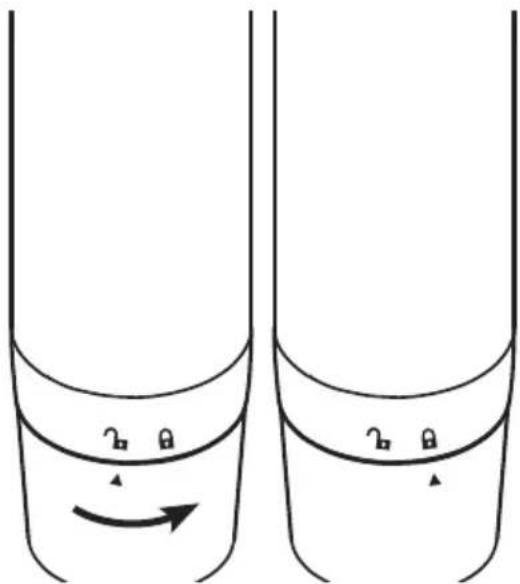

1. Align the arrow on the blending leg up with the open padlock symbol on the motor unit.
2. Twist the blending leg so that the arrow lines up with the locked padlock symbol.
3. Lower the blending leg into the beaker. Switch the blender on by pressing [I] or [II]. Release the button to stop blending.
4. Unplug the mains lead from the wall socket.

Diagram showing two containers with a curved arrow inside, indicating a rotation or movement (no text or symbols present)

The chopper

The chopper is suitable for meat, cheese, onions, herbs, garlic, carrots, nuts, etc. Avoid chopping extremely hard foodstuffs such as coffee beans or ice. Chop for max 15 sec, then let the motor cool before chopping again.

The chopping blade is very sharp, hold it only by plastic part.

1. Fit the chopping blade onto the mount in the bowl.
2. Place the food to be chopped into the bowl. Refer to the food quantity table to prevent overloading the blender.
3. Put the lid on.
4. Insert the motor unit into the lid and twist so that the arrow lines up with the locked padlock symbol.
5. Plug the mains lead into a wall socket. Start the chopper by pressing [I] or [II].
6. Release the button to stop chopping.
7. Unplug the mains lead and detach the motor unit from the lid.
8. Carefully remove the chopping blade.
9. Empty the chopped ingredients out of the bowl.

Line drawing of a cylindrical device with a handle and internal components, no text or symbols present

Guide

Ingredients Max quantity Chopping time
Meat 200 g 15 sec
Herbs 50 g 8 sec
Nuts 150 g 15 sec
Cheese 100 g 10 sec
Bread 75 g 8 sec
Onions 150 g 8 sec
Biscuits 150 g 8 sec
Fruit 200 g 10 sec

The balloon whisk

Only use the balloon whisk to whip cream, eggs and other runny ingredients. Whisk for max 2 min, then let the motor cool before whisking again.

1. Push the balloon whisk into the holder.
2. Align the arrow on the holder up with the open padlock symbol on the motor unit.
3. Twist the holder so that the arrow lines up with the locked padlock symbol.
4. Start whisking by pressing [I] or [II]. Release the button to stop whisking.
5. Unplug the mains lead from the wall socket.

Line drawing of a hand mixer with whisk and control knob (no text or symbols)

Care and maintenance

The hand blender blade and the chopping blade are extremely sharp. Take care not to cut yourself.

• Always unplug the product from the wall socket before cleaning.
- Clean the motor unit, the chopping bowl lid and the balloon whisk holder with a damp cloth. Use only mild cleaning agents, never solvents or corrosive chemicals. Never immerse the motor unit in water. The chopping bowl, container, balloon whisk, chopping blade and blender are dishwasher safe.

Let the blender dry by placing it upside down so that the water can drain off after washing.

- Strongly coloured foodstuffs may discolour plastic parts. Coat these parts with a thin layer of vegetable oil before washing them in a dishwasher.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner.

When recycling the product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no visible text or labels

Specifications

Rated voltage 220–240 V AC, 50/60 Hz

Power 600 W

Mains lead 1.1 m

Stavmixer

Art.nr

18-4787

44-3123

Modell

HB978

HM978

Diagram showing two containers with a curved arrow inside, indicating a process or movement (no text or symbols present)

Hackaren

Line drawing of a cylindrical device with a handle and internal components, no text or symbols present

Guide

Typ av ingredienser/råvaror Max Hacktid
Kött 200 g 15 sek
Örter 50 g 8 sek
Nötter 150 g 15 sek
Ost 100 g 10 sek
Bröd 75 g 8 sek
Lök 150 g 8 sek
Kex 150 g 8 sek
Frukt 200 g 10 sek

Ballongvispen

Line drawing of a hand mixer with whisk and control knob (no text or symbols)

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Specifikationer

Nätanslutning 220–240 V AC, 50/60 Hz

Effekt 600 W

Nätkabel 1,1 m

Stavmikser

Art.nr. 18-4787

44-3123

Modell

HB978

HM978

Diagram showing two containers with a curved arrow inside, indicating a change or movement (no text or symbols present)

Hakker

Line drawing of a cylindrical device with a handle and internal components, no text or symbols present

Guide

Type ingredienser/råvarer Maks Hakketid
Kjøtt 200 g 15 sekunder
Urter 50 g 8 sekunder
Nøtter 150 g 15 sekunder
Ost 100 g 10 sekunder
Brød 75 g 8 sekunder
Løk 150 g 8 sekunder
Kjeks 150 g 8 sekunder
Frukt 200 g 10 sekunder

Ballongvisp

Line drawing of a laboratory brush with a whisk and control panel (no text or symbols)

Vedlikehold

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Spesifikasjoner

Strømtilkobling 220–240 V AC, 50/60 Hz

Effekt 600 W

Strømledning 1,1 m

Sauvasekoitin

Tuotenro

18-4787

Malli

HB978

44-3123

HM978

Diagram showing two containers with a curved arrow inside, indicating a change or movement (no text or symbols present)

Hienonnin

Line drawing of a cylindrical device with a handle and internal components, no text or symbols present

Opas

Line drawing of a hand mixer with whisk and control knob (no text or symbols)

Symbol of a trash bin crossed with no visible text or labels

Tekniset tiedot

Diagram showing two identical containers with a curved arrow inside, indicating a motion or change in fluid flow (no text or symbols)

Zerkleinerer

Line drawing of a cylindrical device with a handle and internal components, no text or symbols present

Maßhilfe

Line drawing of a laboratory brush with a whisk and control knob (no text or symbols)

Pflege und Wartung

Symbol of a trash bin crossed with no visible text or labels

Technische Daten
