HG 80 - Glue gun Cocraft - Free user manual and instructions

Product Type	Glue gun
Brand	Cocraft
Model	HG 80
Power Supply	220–240 V AC, 50 Hz
Power Consumption	16 W
Protection Class	II
Glue Stick Diameter	11 mm
Warm-up Time	Approx. 4 minutes
Weight	0.3 kg
Nozzle	Standard tip
Indicator Light	Work light / indicator
Support Stand	Yes
Trigger Feed	Yes
Mains Lead	Permanently attached
Materials for Use	Wood, paper, cardboard, certain plastics
Cleaning Method	Wipe with damp cloth; no abrasives or solvents
Safety Features	Never leave unattended; keep away from children; check power cord
Disposal	Do not dispose with household waste; recycle at local facility
Included Accessories	User manual

Frequently Asked Questions - HG 80 Cocraft

How do I insert the glue stick?

Insert a glue stick (11 mm diameter) into the insert hole at the back of the gun. Push it in as far as it will go.

How long does it take to heat up?

The warm-up time is approximately 4 minutes.

What materials can I glue with this gun?

It can be used for gluing wood, paper, cardboard, and certain plastic materials.

How do I clean the glue gun?

Always unplug before cleaning. Wipe the exterior with a damp cloth. Never use abrasive cleaners or solvents.

What power supply does it need?

It requires a standard wall outlet supplying 220–240 V AC, 50 Hz.

Can I leave the glue gun unattended?

No, never leave the glue gun unattended when in operation. It can become a fire risk.

How do I apply glue?

After warm-up, press the trigger to feed glue. Apply to surfaces, then press together and hold for 15 seconds.

What should I do if the power cord is damaged?

If the power cord is damaged, it must be replaced by the manufacturer or an authorized service facility.

Can children use this glue gun?

No, this product must not be used by children or persons with reduced capabilities without supervision.

How do I dispose of the glue gun?

Do not dispose of with household waste. Take it to a local collection facility for recycling.

USER MANUAL HG 80 Cocraft

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Please read the entire instruction manual before using the product and save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you have any questions regarding technical problems please contact Customer Services (see address on reverse).

Safety

The tool can become a fire risk if used improperly. Please take the following into consideration:

• Place the glue gun in a standing position after use and let it cool sufficiently before putting it away for storage.
• Never leave the glue gun unattended when in operation.
• Never expose the glue gun to rain or moisture.
• The power lead should be checked regularly. Never use the device if the power lead or plug is damaged.
• If the power lead is damaged it may only be changed by the manufacturer or their service facility.
• This product must not be used by anyone (including children) suffering from physical or mental impairment. This product should not be used by anyone that has not read the instruction manual unless they have been instructed in its use by someone who will take responsibility for their safety.
• Never let children play with the product.
• Both the glue and glue gun become hot during use. This can cause burn injuries. If this happens, rinse the burn with cold water and let it run over the burn for some time.
• Make sure that power from the wall socket corresponds to the glue gun's specified voltage.
• Only use glue sticks compatible with the glue gun.

Specifications

Power supply 220–240 V AC, 50 Hz

Power 16 W

Protection class II

Glue sticks 11 mm

Warm-up time Approx. 4 min

Weight 0.3 kg

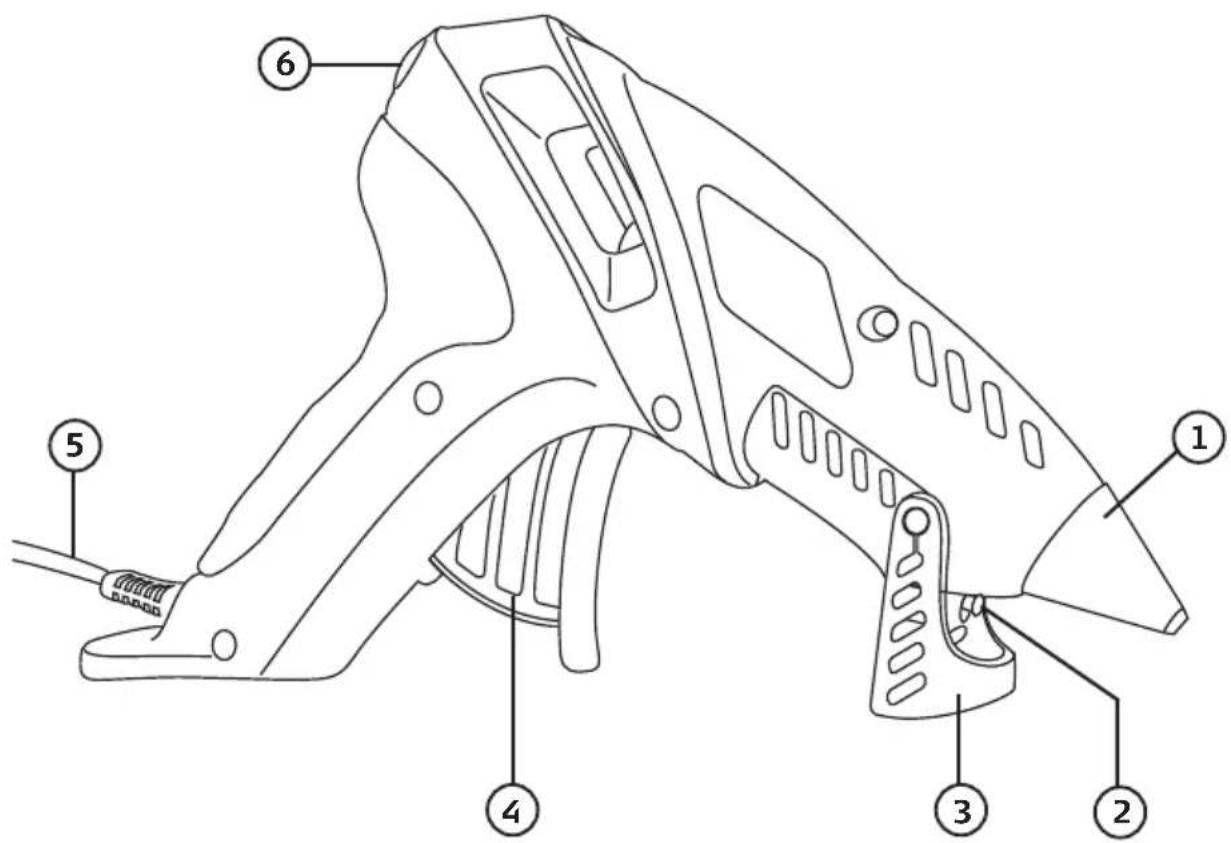

Product description

1. Nozzle
2. Work light/Indicator
3. Support stand
4. Trigger
5. Mains lead
6. Glue stick insert hole

Areas of use

This glue gun can be used for gluing wood, paper, cardboard and certain plastic materials.

Preparations

Glue gun

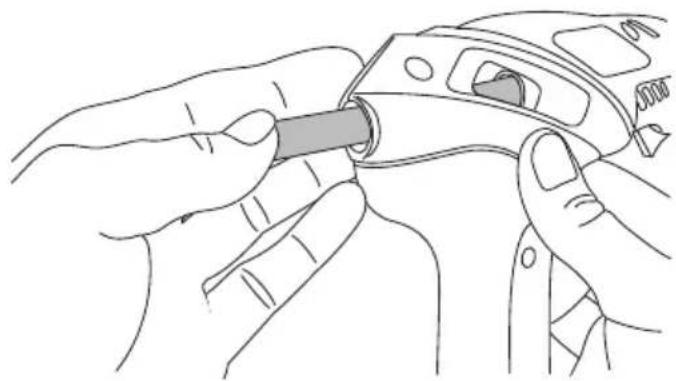

1. Insert a glue stick into the insert hole as shown. Push it in as far as it will go.
2. Connect the plug to a wall socket.

Line drawing of hands inserting a cylindrical component into a device (no text or symbols)

Cleaning

Clean the surfaces of all glue remnants. The exterior should be dry and clear of dust or oil. Smooth surfaces should be roughed before gluing.

Gluing

1. Let the glue gun warm up for about 4 min.
2. Press the trigger to feed the glue as the glue stick begins to melt.
3. Apply the glue to those surfaces you wish to adhere.
4. Immediately press the surfaces together and hold them in position for 15 sec.
5. Let any excess glue cool and remove it with a sharp knife.
6. Unplug the glue gun from the wall socket.

Care and maintenance

Always unplug the device from the wall socket before cleaning.

Wipe the glue gun clean with a damp cloth when needed.

Never use abrasive cleaning agents or solvents.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

Limpistol

Art.nr 18-3123 Modell JS830JQ

40-6998

JS830JQ

Line drawing of hands inserting a cylindrical component into a device (no text or symbols)

Rengöring av ytor

Symbol of a trash bin crossed with two crossed lines, no text or labels present

Limpistol

Art.nr. 18-3123 Modell JS830JQ

40-6998

JS830JQ

Line drawing of hands inserting a cylindrical component into a device (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Liimapistooli

Tuotenro 18-3123 Malli JS830JQ

40-6998

JS830JQ

Line drawing of hands inserting a cylindrical component into a device (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Klebepistole

Line drawing of hands inserting a plug into a device (no text or symbols)

Symbol of a trash bin crossed with two crossed lines, no text or labels present

Declaration of Conformity

Manager Technique & Quality

Insjön, Sweden, 2016-05-16
