Product Type	Floor Fan
Brand	VOX
Model	MVT-50
Dimensions (H x W x D)	100 x 50 x 50 cm
Weight	4 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	60 W
Number of Speed Settings	3
Oscillation	Yes, 90°
Timer	Yes, up to 7 hours
Remote Control	Yes, infrared
Blade Diameter	50 cm
Airflow (max)	2000 m³/h
Noise Level (max)	55 dB(A)
Adjustable Height	Yes, telescopic pole
Safety Features	Overheating protection, tip-over switch
Cleaning Instructions	Wipe with a damp cloth; do not immerse in water
Spare Parts Availability	Contact VOX customer service or authorized dealers
Warranty	2 years
Manual Languages	Multiple languages (see manual)

Frequently Asked Questions - MVT-50 VOX

How do I assemble the VOX MVT-50 fan?

Assembling the fan is straightforward. Attach the base to the pole, then mount the motor unit onto the pole. Finally, attach the fan blades and front grille. Refer to the manual for detailed steps.

How can I clean the fan?

Unplug the fan before cleaning. Use a soft, damp cloth to wipe the exterior. For the blades and grille, you can remove the front grille and gently clean with a damp cloth. Do not immerse any part in water.

Does the fan have a remote control?

Yes, the VOX MVT-50 comes with an infrared remote control that allows you to adjust speed, oscillation, and timer settings from a distance.

How do I use the oscillation feature?

Press the oscillation button on the control panel or remote control. The fan will automatically oscillate left and right. To stop oscillation, press the button again.

What speed settings are available?

The fan offers three speed settings: low, medium, and high. Cycle through the speeds using the speed button on the fan or remote control.

Can I set a timer?

Yes, the fan has a timer function that can be set from 1 to 7 hours. Press the timer button repeatedly to select the desired duration, and the fan will automatically turn off after that time.

What should I do if the fan stops working suddenly?

First, check if the power cord is plugged in. If the fan has tip-over protection, ensure it is on a stable surface. Also, check for any obstructions in the motor or blades. If the issue persists, contact VOX customer support.

Is the fan safe to leave unattended?

The fan is equipped with safety features like overheating protection and an automatic tip-over switch. However, it is recommended to turn off and unplug the fan when leaving the room for extended periods.

How do I replace the remote control battery?

The remote control uses a CR2025 button cell battery. Slide open the battery compartment on the back of the remote, replace the old battery with a new one, and close the compartment.

Where can I find spare parts or the user manual?

Spare parts can be ordered through VOX customer service or authorized service centers. The user manual is available for free download in PDF format from the notice-facile.com website.

USER MANUAL MVT-50 VOX

MVT-50

OPERATING INSTRUCTIONS METAL STAND FAN

MANUALE DELL'UTENTE VENTILATORE METALLICO

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GBR

MVT- 50M

OPERATING INSTRUCTIONS METAL STAND FAN

INSTRUCTION MANUAL

Metal Stand Fan

MVT-50M

Modern office desk fan with radial blades and metallic frame (no text or symbols visible)

Sleek & modern high-velocity fan provides more powerful wind than ordinary plastic fans. It draws air off the floor and circulates through the entire room keeping it cool and breezy. If put near the windows, it helps exhaust hot indoor stuffy air and pulls in fresh outdoor air.

• Energy-saving, high velocity motor for maximum air circulation
• Tilt-adjustment for flexible use
• Triple speed selection
• Precision fan blades for powerful wind but low-noise
• Chrome-stand, solid construction with thermal-protection to prevent motor overheat.

A. Grill Decoration
B. Front Guard
C. Clasp
D. Fan Blade

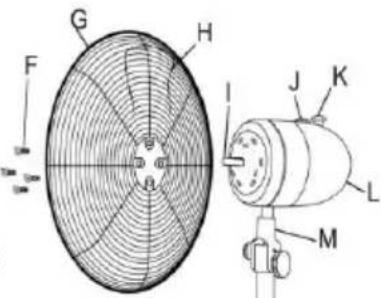

E. Back Grill Securing Screw
F. Securing Screw
G. Back Grill
H. Carrying Handle

I. Motor Shaft
J. Speed Control Knob
K. Oscillation Knob
L. Motor Housing
M. Fan Head Neck

N. Pole

O. Adjustable Height Knob

P. Fan Base

Q. Weight

R. Washer

S. Locking Lever

T. Adjustable Tilt Knob

U. Range of Motion Screw

V. Range of Motion Hole

W. Securing Knob

X. Carriage Bolt

Operating Instructions:

a) Ensure voltage used corresponds with the voltage indicated.
b) Turn the speed control to selected speeds: 0(off) and speeds I, II, III is Slow, Middle, Fast.
c) Tilting angles-By pushing the tilt-guard, you can adjust the fan to any elevation preferred.
d) Never touch the blades with hand or any object!
e) Do not pull the cord too hard. If damaged after pro-long use, have it repaired by an electrician.
f) To clean: Disconnect the power cord from the mains supply. Remove the guard and the blades carefully. Do not drop the blades! First use soft cloth with light soap to clean off oil stains. Then wipe and polish with a dry cloth. Never use polish or any corrosive liquid which can damage the paint, metal or plastic! Put the blades back and lock the guard securely before use.

NO exchange will be executed if the above instructions are not followed. Always test the product first before purchase.

SAFETY PRECAUTIONS

1) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or the lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2) Children should be supervised to ensure that they do not play with the appliance.
3) Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

Abstract black-and-white geometric pattern with diagonal stripes inside a circle (no text or symbols)

VOX

ELECTRONICS

ITA

MVT- 50M

MANUALE DELL'UTENTE VENTILATORE METALLICO

Modern office desk fan with radial blades and metallic frame (no text or symbols visible)

Modern office desk fan with radial blades and metallic frame (no text or symbols visible)

Modern office desk fan with a metallic stand and radial blades (no text or symbols visible)

Modern office desk fan with radial blades and metallic stand (no text or symbols visible)

Elegantan i moderan ventilator visoke brzine pruža snažniji protok vazduha od običnih plastičnih ventilatora. Uvlači vazduh sa poda i cirkuliše kroz celu prostoriju, ostavljajući prostor hladnim i prijatnijim. Ukoliko ga stavite blizu prozora pomaže tako što ispušta vrući unutrašnji vazduh i uvlači svež vazduh unutra.

• Ušteda energije, motor velike brzine za maksimalnu cirkulaciju vazduha
• Podešavanje nagiba, za prilagodljivost pri upotrebi
  • Trostruki izbor brzine
• Precizne lopatice za snažan protok vazduha, niskog nivoa buke
• Hromirano postolje, čvrsta konstrukcija sa termičkom zaštitom kako bi se sprečilo pregrevanje motora.

A. Ukras maske
B. Prednja maska
C. Zakačka
D. Lopatica ventilatora
E. Crni šraf za pričvršćivanje maske
F. Sigurnosni šraf
G. Zadnja maska
H. Ručka za nošenje

I. Osovina motora

Modern office desk fan with radial blades and metallic frame (no text or symbols visible)

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

PRT

MVT- 50M

MANUAL DE INSTRUÇÕES

Modern office desk fan with radial blades and a metallic stand (no text or symbols visible)

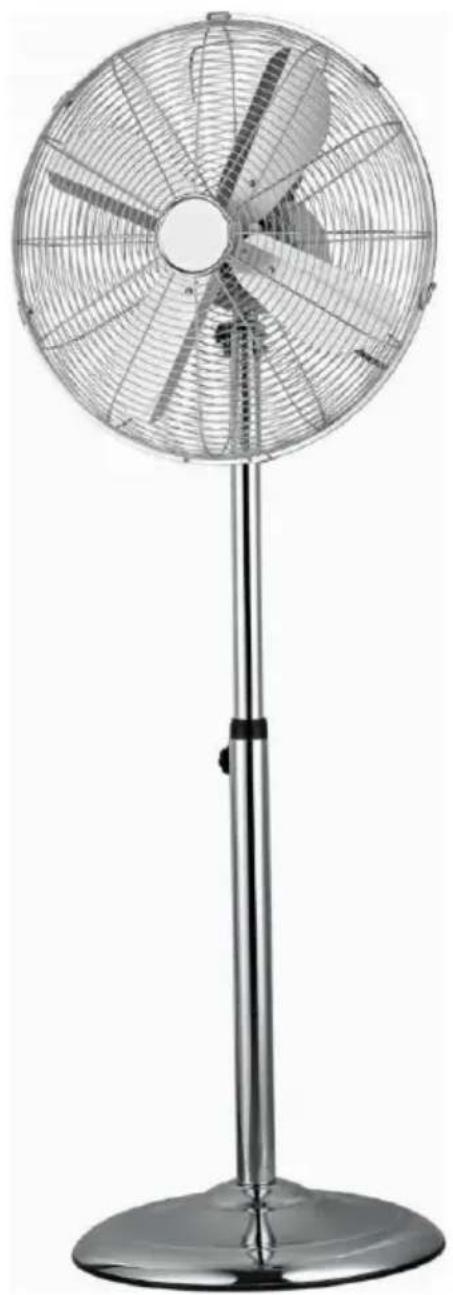

Ventoinha de Pé

MVT-50M

Modern office desk fan with a metallic stand and radial blades (no text or symbols visible)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SVN

MVT- 50M

NAVODILA ZA UPORABO VENTILATOR S KOVINSKIM STOJALOM

NAVODILA ZA UPORABO

Ventilator s kovinskim stojalom

MVT-50M

Modern office desk fan with radial blades and metallic stand (no text or symbols visible)

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

HRV

MVT- 50M

UPUTE ZA UPORABU VENTILATOR S METALNIM POSTOLJEM

UPUTE ZA UPORABU

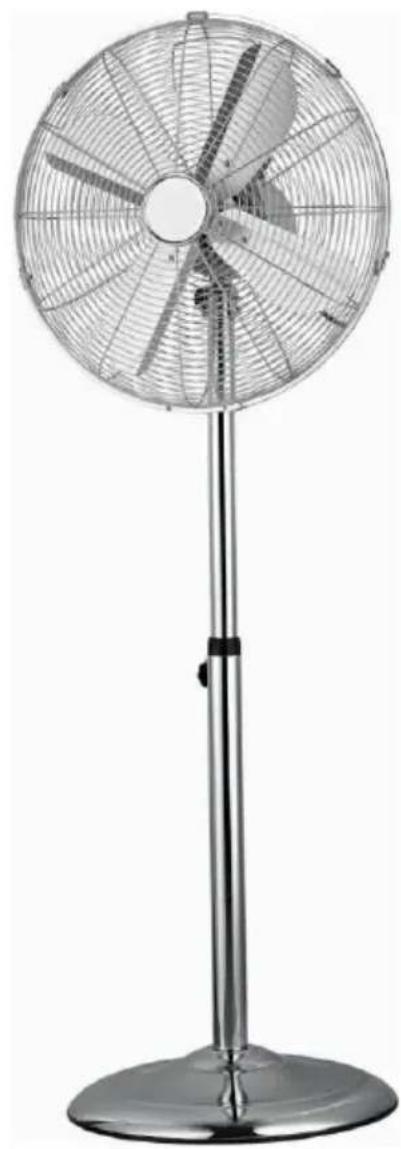

Ventilator s metalnim postoljem

MVT-50M

Modern office desk fan with radial blades and metallic stand (no text or symbols visible)

Upute za uporabu:

a) Provjerite da li mrežni napon odgovara onom deklariranom na etiketi uređaja.
b) Okrenite tipku za kontrolu brzine na izabrane brzine: 0 (isključeno) a brzine I, II, III su Sporo, Srednje, Brzo.
c) Kutovi naginjanja - pritiskanjem zaštitnika nagiba, možete podesiti ventilator na bilo koju željenu visinu.
d) Nikada ne dodirujte lopatice rukom ili bilo kojim predmetom!
e) Pazite da kabel ne povlačite prejako. Ako je oštećen nakon dugotrajne uporabe, odnesite na popravku ovlaštenom serviseru.
f) Čišćenje: Iskopčajte kabel za napajanje iz mreže. Pažljivo uklonite masku i lopatice. Ne ispuštajte lopatice! Prvo koristite meku krpu s blagom sapunicom za čišćenje masnih mrlja. Zatim obrišite i polirajte suhom krpom. Nikada nemojte koristiti sredstva za poliranje ili bilo kakvu korozivnu tekućinu koja će oštetiti boju, metal ili plastiku! Vratite lopatice nazad i dobro pričvrstite masku prije uporabe.

NIJE moguća nikakva zamjena uređaja ukoliko se ne poštivaju gore navedene upute. Uvijek testirajte proizvod prije kupovine.

BIH

MNE

MVT- 50M

UPUTSTVO ZA UPOTREBU VENTILATOR S METALNIM POSTOLJEM

UPUTSTVO ZA UPOTREBU

Ventilator s metalnim postoljem

MVT-50M

Modern office desk fan with radial blades and a metallic stand (no text or symbols visible)

Elegantan i moderan ventilator visoke brzine pruža snažniji protok vazduha od običnih plastičnih ventilatora. Uvlači vazduh sa poda i cirkuliše kroz cijelu prostoriju, ostavljajući prostor hladnim i prijatnijim. Ukoliko ga stavite blizu prozora pomaže tako što ispušta vrući unutrašnji vazduh i uvlači svjež vazduh unutra.

• Ušteda energije, motor velike brzine za maksimalnu cirkulaciju vazduha
• Podešavanje nagiba, za prilagodljivost pri upotrebi
  • Trostruki izbor brzine
• Precizne lopatice za snažan protok vazduha, niskog nivoa buke
• Hromirano postolje, čvrsta konstrukcija sa termičkom zaštitom kako bi se spriječilo pregrijavanje motora.

A. Ukras maske
B. Prednja maska
C. Zakačka
D. Lopatica ventilatora
E. Crni šraf za pričvršćivanje maske
F. Sigurnosni šraf
G. Zadnja maska
H. Ručka za nošenje

I. Osovina motora

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

MKD

MVT- 50M

Modern office desk fan with radial blades and metallic stand (no text or symbols visible)

Modern office desk fan with a metallic stand and radial blades (no text or symbols visible)
