MZ10028-1 - Measuring instrument ADE - Free user manual and instructions

Product Type	Digital Kitchen Scale
Brand	ADE
Model	MZ10028-1
Dimensions (approx.)	20 x 15 x 2 cm
Weight	0.3 kg
Power Supply	2 x AAA batteries (not included)
Maximum Capacity	5 kg / 11 lb
Precision	1 g / 0.1 oz
Display	LCD, backlit
Material	Stainless steel platform, ABS plastic housing
Functions	Tare, unit conversion (g, oz, lb:oz, ml), auto-off, overload indication
Units	g, oz, lb:oz, ml (water)
Auto-Off	After 2 minutes of inactivity
Operating Temperature	10°C to 40°C
Cleaning	Wipe with a damp cloth; do not immerse in water
Intended Use	Household kitchen use only
Included Accessories	Scale only; batteries not included
Spare Parts	Batteries (standard AAA)
Repairability	Battery replacement only; no user-serviceable parts

Frequently Asked Questions - MZ10028-1 ADE

How do I change the unit of measurement?

Press the UNIT button repeatedly to cycle through g, oz, lb:oz, and ml. The selected unit appears on the display.

What type of batteries does the scale require?

The scale uses 2 AAA batteries (not included). Open the battery compartment on the bottom to insert them.

How do I use the tare function?

Place a container on the scale, then press the TARE button to zero the display. Add ingredients to the container; the weight shown is net weight.

What is the maximum weight capacity?

The maximum capacity is 5 kg (11 lb). Exceeding this may damage the scale.

How do I clean the scale?

Wipe the surface with a damp cloth. Do not immerse the scale in water or use abrasive cleaners.

Why does the scale show 'Err' or 'EEEE'?

This indicates overload. Remove excess weight immediately. The scale will reset once the weight is below maximum capacity.

Can I use the scale for liquids?

Yes, in ml mode (for water). Select the ml unit and the scale will display volume based on weight. Note: other liquids may have different densities.

How does the auto-off function work?

The scale automatically turns off after 2 minutes of inactivity to save battery. Press any button to wake it.

Why is the display dim or not working?

Check if batteries are inserted correctly or are depleted. Replace with new AAA batteries if needed. Ensure the battery contacts are clean.

Is the scale accurate?

Yes, the scale has a precision of 1 g. For best accuracy, place the scale on a flat, stable surface and zero it before use.

USER MANUAL MZ10028-1 ADE

Mechanical Baby Length Measuring

Close-up of a white ADE caliper with red adjustment knobs and scale markings (no text or symbols on the instrument itself)

MZ10028-01-210420-Rev002-UM-de-e

MZ10028-01

Preparation and Initial Start-up of the Length Measuring....6

Carton Contents 6

Assembling....6

Safety Instructions....7

Measuring....7

Cleaning and Maintenance....8

Cleaning 8

Storage- and Transport Terms....8

Warranty 8

Disposal....8

Technical Data....9

Preparation and Initial Start-up of the Length Measuring

This symbol means: "Consult operating instructions". To achieve accurate results, read the instructions for use carefully before use and follow all instructions provided therein. Keep the instructions for use for future reference.

Your ADE-Mechanical Baby Length Measuring is a high quality product. This Baby Length Measuring is suitable to use for paediatricians, in children's hospital, for home visits by midwives and is qualified for a body-length up to 100 cm.

Carton Contents

➢ 1 Baby Measuring-Rod
2 Measuring Tongues
1 Operating Manual

Assembling

In order of a space-saving transport, the enclosed measuring tongues are not in a mounted status. Remove the parts out of the packing.

1. Screw off the locking screw.
2. Extract the plug-axle and spring.
3. Push the plug-axle through the drilled hole of the measuring tongue and stick both at the sliding carriage.

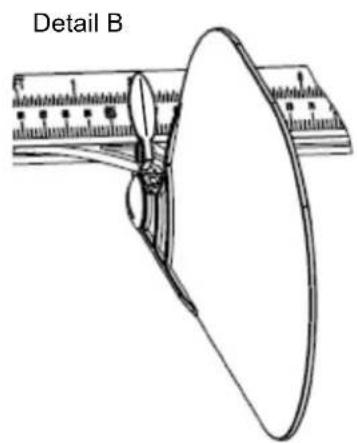

   Pay attention that the arched side of the measuring tongue face upward (Detail B) and the nib at the sliding carriage snap into the groove of the measuring tongue (Detail A).
4. Attach the spring on the plug-axle and screw the locking screw again onto the plug-axle.

Safety Instructions

• Place the length measuring on an even and enough spacious work surface from which the baby cannot fall down.
• Never let the baby unattended together with the length measuring.
• The length measuring should be cleaned regularly (please see point cleaning and maintenance).

Measuring

• Pull apart the measuring tongues of the length measuring up to the stop.
• Adjust the length measuring with the feet on a well-safeguarded workspace.
• Place the baby's head on the left side (0 – position of the length measuring) of the length measuring at the measuring tongue.
  Look to it that the length measuring fit proper at baby's head.
• For a optimal measuring result carefully press down with your right hand the baby's knees and hold the baby by lightly pressing with the left forearm on the knees while simultaneously hold the length measuring with the left hand in measuring position.
• Move with the right hand the right sliding carriage with measuring tongue up to the baby's feet.

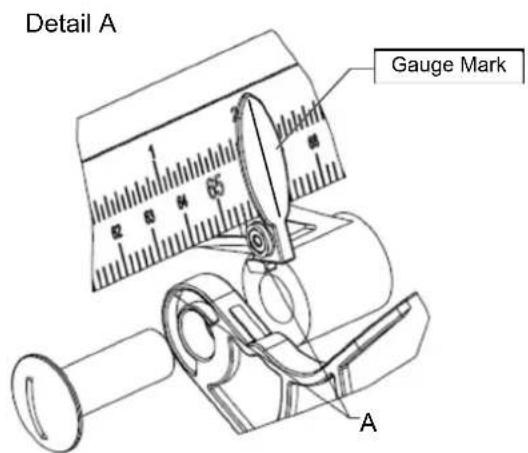

• The measuring result is directly readable on the measuring rod at the gauge mark (Detail A).
• For the optimal safeness of the baby, it is advisable that a second person accompanies the measuring procedure.

Cleaning and Maintenance

Cleaning

• To avoid the transmission of disease-causing agents pay attention to a very continuous cleaning of the device.
• For this, use accepted disinfecting agents and/or a cloth dampened with mild soapsuds.
• Do not use aggressive cleanser!

Storage- and Transport Terms

Keep all parts of the transport packaging for an eventual necessary sending back in order to avoid possible damage during transport.

Warranty

ADE will repair or replace this product within a period of 2 years from date of delivery applying to defects occurred due to poor material or workmanship (presentation of invoice is necessary). This warranty does not include outer natural wear, damages caused by incorrect or negligent handling, overuse, or unsuitable or improper storage. By this agreement, the customer rights regulated by law are in no way affected.

For complaints please contact the speciality retailer where you bought the length measuring.

Disposal

Your ADE-Mechanical Baby Length Measuring consists completely recyclable material and do not belong to household waste.

When the length measuring has had exceed his durability, dispose professional and appropriate according to the country-specific statutes and local guidelines.

Technical Data

Measuring Range: 200 - 1000 mm

Graduation: 2 mm

Dimensions: 1100 x 360 x 70 mm

Weight: 720 g

Manufacturer: ADE Germany GmbH
