| Product Type | Charger for model batteries |
| Brand | Voltcraft |
| Model | V-Charge Eco 6x1S |
| Intended Use | Charging up to six LiPo/LiHV 1S batteries simultaneously |
| Dimensions (L x W x H) | 122 x 68 x 42 mm |
| Weight | 227 g |
| Input Voltage | 100 - 240 V/AC, 50 Hz or 7 - 17 V/DC |
| Output Voltage | Max. 4.35 V |
| Charging Power | 6 x 4.35 W ±10% |
| Charging Current (per channel) | 0.1 - 1.0 A ±10%, adjustable |
| Number of Charging Channels | 6 independent channels |
| Battery Types Supported | LiPo, LiHV (1S) |
| Battery Connectors | MX, JST, mCPX, Micro |
| Display Type | LCD display showing status and parameters |
| Safety Features | Reverse polarity protection, overcharge protection, undervoltage/overvoltage protection, overcurrent protection |
| Operating Temperature | 0 to +40 °C |
| Storage Temperature | -20 to +60 °C |
| Relative Humidity | 0 - 90% (non-condensing) |
| Cable Length (mains) | 1.23 m |
| Included Accessories | Mains cable, CD with operating instructions |
| Care and Cleaning | Disconnect from power; clean with dry, lint-free cloth; avoid aggressive detergents |
| Spare Parts and Repair | No spare parts listed by manufacturer; repairs by specialist only |
Frequently Asked Questions - V-Charge Eco 6x1S VOLTCRAFT
User questions about V-Charge Eco 6x1S VOLTCRAFT
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Charger in PDF format for free! Find your manual V-Charge Eco 6x1S - VOLTCRAFT and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. V-Charge Eco 6x1S by VOLTCRAFT.
USER MANUAL V-Charge Eco 6x1S VOLTCRAFT
Copyright 2021 by Conrad Electronic SE. *2267183_v4_0121_02_DS_m_2L_1
GB Operating instructions
V-Charge Eco 6x1S Charger for model batteries
Item No. 2267183
Intended use
This product is designed to charge up to six LiPo/LiHV batteries with one cell. The charging current can be adjusted from 0.1 to 1.0 A. Setting, monitoring and controlling the functions is made easier by a clear LCD display. The charger also features a range of basic safety functions such as reverse polarity protection and a function to protect the batteries against overcharging. An AC or DC voltage can be used for the voltage/power supply of the charger (see "Technical data"). The factory-provided power cable is designed for use with a mains AC voltage. The DC power supply can be provided via a laboratory power supply unit or other similar device. The charger can also be powered by a rechargeable battery during outdoor activities in dry environments. There is no short-circuit protection for the power supply at the inputs! Follow the instructions in "Initial operation, b) Connecting to the power supply". The required connection cable is not included with the product.
This product is intended for indoor use only. Do not use it outdoors. Contact with moisture (e.g. in a bathroom) must be avoided under all circumstances.
For safety and approval purposes, do not rebuild and/or modify this product. Using the product for purposes other than those described above may damage the product. In addition, improper use can cause hazards such as a short circuit, fire or electric shock. Read the operating instructions carefully and store them in a safe place. Only make this product available to third parties together with its operating instructions.
This product complies with statutory, national and European regulations. All company and product names contained herein are trademarks of their respective owners. All rights reserved.
Delivery content
- Charger
• CD with operating instructions - Mains cable
- Safety information
Up-to-date operating instructions
Download the latest operating instructions at www.conrad.com/downloads or scan the QR code shown. Follow the instructions on the website. The operating instructions for this product can also be downloaded from this link.
Description of symbols
The symbol with the lightning in a triangle indicates that there is a risk to your health, e.g. due to an electric shock.
The symbol with an exclamation mark in a triangle points to important information in these operating instructions which must be observed.
The arrow symbol indicates special information and tips on how to use the product.
This product must only be used in dry, enclosed indoor areas. It must not become damp or wet, as this may cause a fatal electric shock!
This symbol reminds you to read the operating instructions included with the product.
Safety information
Read the operating instructions carefully and especially observe the safety information. If you do not follow the safety information and information on proper handling in these operating instructions, we will assume no liability for any resulting personal injury or damage to property. Such cases will invalidate the warranty/guarantee.
a) General information
• The device is not a toy. Keep it out of the reach of children and pets.
- Do not leave packaging material lying around carelessly. It may become a dangerous plaything for children.
- Protect the product from extreme temperatures, direct sunlight, strong vibrations, high humidity, moisture, combustible gases, vapours and solvents.
- Do not place the product under any mechanical stress.
- If it is no longer possible to operate the product safely, stop using it and prevent unauthorised use. Safe operation can no longer be guaranteed if the product:
- is visibly damaged
- is no longer working properly,
- has been stored for extended periods in adverse ambient conditions
- has been subjected to any serious transport-related stress.
- Handle the product with care. Jolts, impacts or a fall even from a low height may damage the product.
- Consult a technician if you are not sure how to use or connect the product, or if you have concerns about safety.
- Maintenance, modifications and repairs may only be carried out by a technician or a specialist repair centre.
- If you have questions which remain unanswered by these operating instructions, contact our technical support service or other technical personnel.
b) Connected devices
• Always observe the safety information and operating instructions of any other devices which are connected to the product.
c) Installation location
- The product may only be used in dry, enclosed spaces. It must not become damp or wet, otherwise the mains power supply may cause a fatal electric shock!
- Select a stable, flat, clean and sufficiently large place for the charger.
- Do not place the charger on flammable materials (e.g. a carpet, car seat or tablecloth). Always use a suitable non-flammable, heatproof surface. Keep the charger away from flammable or combustible materials (e.g. curtains).
- Ensure that the cable is not pinched or damaged by sharp edges. Lay the connection cable such that nobody will trip over it.
- Do not place any containers filled with liquid (e.g. vases or plants) on or next to the charger. Liquids that come into contact with the interior components may destroy the charger and cause a fire or explosion. Disconnect the product from the operating voltage immediately in this case. Discontinue use and take the charger to a specialist repair centre.
- If any liquids get into the charger, switch off the mains socket to which the charger is connected. To do this, turn off the corresponding circuit breaker or unscrew the fuse. In addition, turn off the residual current device in order to disconnect all poles of the socket from the mains voltage. You can then unplug the charger from the mains socket. Discontinue use immediately and take the charger to a specialist repair shop, or dispose of it in an environmentally friendly manner.
• Always use suitable protection when placing the charger on valuable furniture, otherwise the charger may cause scratches, pressure points or discolouration.
d) Operation
- Never connect devices with unsupported batteries or non-rechargeable batteries to the charger. This may cause a fire or explosion!
• Always set the correct charging voltage. Failure to do so may cause a fire or explosion. - Ensure that there is sufficient ventilation during use; never cover the charger. Leave sufficient distance (at least 20 cm) between the charger and other objects. The charger may cause a fire if it overheats!
- The charger may be operated via a mains voltage or DC voltage. The device can be operated either with a 100 - 240 V/AC voltage or with a 7 - 17 V/DC voltage. Make sure that you use the correct input voltages. Always ensure the correct polarity.
- Never leave the product unattended during use. Although there is a wide range of comprehensive safety mechanisms on the device, it is impossible to exclude the possibility of malfunctions or problems occurring while charging.
- When connecting the battery packs, ensure that the input and output are connected with the correct polarity.
- Never wear metal or conductive objects (e.g. jewellery such as necklaces, bracelets or rings) when handling the charger. This may result in a short circuit, which can cause a fire or explosion.
- Only use the product in temperate climates. It is not suitable for use in tropical climates.
- Do not use the product in the immediate vicinity of strong magnetic or electromagnetic fields, transmitter aerials or HF generators. These may affect the electronic control system.
- Do not place the product directly next to devices with strong electrical or magnetic fields (e.g. transformers, motors, cordless telephones and wireless devices), as these can prevent the product from working properly.
- Never use the product immediately after it has been brought from a cold room into a warm one. This may generate condensation, which can cause the product to malfunction or damage the interior components. This may cause a fatal electric shock! Allow the product to reach room temperature before using it. This may take several hours.
- If the product is not going to be used for a prolonged period of time (e.g. storage), disconnect it from the power supply by removing the power cable from the mains socket.
- Trained personnel must supervise the use of electrical appliances in schools, training facilities and DIY workshops.
- For installations in industrial facilities, follow the accident prevention regulations for electrical systems and equipment issued by the government safety organisation or the corresponding authority for your country.
e) Electrical safety
- Before connecting the product to the mains, ensure that your local AC mains voltage matches the specifications on the nameplate.
- Only use an earthed mains socket (230 V/AC, 50 Hz) connected to the public grid to power the product.
- The mains socket must be located near to the device and be easily accessible.
- For safety reasons, disconnect the mains plug from the mains socket during thunderstorms.
- Never connect or disconnect power plugs when your hands are wet.
Information about charging parameters
Rechargeable batteries consist of two electrodes that are placed into an electrolyte. Batteries are therefore classed as a chemical element. Chemical reactions take place inside this element. These reactions are reversible, which makes it possible to recharge the battery.
A charging voltage is required to recharge batteries. This voltage must be higher than the cell voltage. Moreover, the energy (mAh) supplied during the charging process must be higher than that which can be drawn afterwards. This ratio of the energy supplied to the energy drawn is called efficiency.
The capacity that can be drawn mainly depends on the discharging current and has a decisive impact on the condition of the battery. The supplied charge cannot be used as a measure, because some of it will be lost during charging (e.g. converted into heat).
The capacity data given by the manufacturer is the maximum theoretic quantity of current which can be delivered by the battery. This means that a 2000 mAh battery can, for example, theoretically deliver a current of 1000 mA (= 1 A) for two hours. This value depends heavily on numerous factors (e.g. condition of the battery, discharging current and temperature).
a) Selecting the charging parameters
All parameters must be set correctly before each charge. Using incorrect settings can cause a fire and injury as well as damage to property.
b) Selecting the charging current
Excessive charging current greatly reduces battery service life and, in extreme cases, can cause a fire or explosions. Selecting the appropriate charging current for a battery type is therefore very important. The charging and discharging current are determined by the C-coefficient of a battery pack. Most conventional battery packs have the C-coefficient indicated on the type plate.
The requisite charging current for a battery is calculated according to the following formula:
Capacity in mA x C-coefficient = charging current
1000 x 5 = 5000 mA
A 1000 mAh battery with a coefficient of 5C requires a charging current of approx. 5 A.
If you can't determine the C-coefficient of a battery pack, always use a coefficient of 1C and calculate the charging current accordingly. This is always a safe charging current. However, bear in mind that the charging times can vary according to the actual (but not verified) battery specifications.
For batteries with only one cell, the C coefficient is 1.

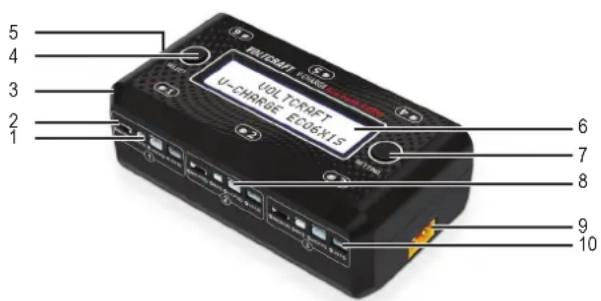

Product overview
1 MX socket 2 MiCRO socket
3 LED indicator 4 SELECT button
5 AC 100-240V AC voltage connection 6 LCD display
7 SETTING button 8 MCPx socket
9 DC 7-17 V (BATT 2-4S) DC voltage connection
10 JST socket
Initial operation
a) Placement
- Place the charger with the plastic feet on a non-combustible, heat-resistant surface close to a standard mains socket, if you wish to use it with a mains voltage. To use the charger with a DC voltage, the DC source must be located nearby or moved next to the charger.
- Keep the charger away from flammable or combustible materials (e.g. curtains). Never operate the charger on car seats, carpet or other combustible materials.
b) Connecting to the power supply
- Connect the mains cable to the AC 100 - 240 V AC voltage connection (5) and plug the mains plug into a standard mains socket.
Never operate the charger with an alternating voltage that is outside the range specified in the technical data.
- If you wish to operate the charger with a DC voltage, use a suitable cable with an XT60 connector (not included) to connect the DC 7-17 V (BATT 2-4S) DC voltage connection (9) to a DC voltage source, e.g. a laboratory power supply that complies with the specifications in the "Technical data" section. You can use a power adapter or, in dry conditions, a car battery. Pay attention to the charge status of your car battery when on the move.
We recommend a battery with 2-4S and a voltage of 7 to 17 V/DC.
The charger has no short-circuit protection at the input. Do not connect both power supply connections simultaneously. Do not attempt to use the charger to charge a battery with an AC voltage and a DC voltage at the same time. This will cause the charger to switch off and start repeatedly, which may damage the AC power supply, or in the worst case, destroy the charger.
c) Setting the parameters
The LCD display (6) is in the correct orientation when the charging outputs 1 to 3 are situated below the display. The identification numbers for outputs 4, 5, and 6 are printed on the housing above the display. Read the display from the direction in which the outputs 1, 2 and 3 are facing towards you.
- When the charger is connected to a power supply, it briefly shows the device logo and type, followed by the value of the input voltage. The six LED indicators light up in red and green until the charger switches to the home/standby display. The charger will emit a beep sound.
Setting the charging current
- Press the SELECT button (4) to switch to the default setting for the charging current. The factory default setting is 0.5 A.
- Press the SETTING button (7) to adjust the charging current setting between 0.1 and 1.0 A. Press and hold the SETTING button to confirm the setting. "SAVE SETTING ..." will appear on the LCD display (6) to confirm that your setting has been saved. The charger will then return to the home screen.
Setting the battery type
- After setting the charging current, press the SELECT button (4) twice to switch to the settings menu for the battery type. The factory default setting is set to LiPo.
- To switch all six charging outputs together, press the SETTING button (7). The setting will be switched to LiHV, or back to LiPo when you press the button again. This can be repeated as often as required.
- Press and hold the SETTING button to confirm the global setting of all six charging outputs. "SAVE SETTING ..." will appear on the LCD display (6) to confirm that your setting has been saved.
- To switch the battery type individually for each of the six charging outputs, press the SELECT button (4) twice to switch to the setting menu for the battery type. All six output symbols will flash.
- Press the SELECT button again to switch the battery type setting for the first charging output (charging output 1). The setting symbol for the respective charging output will start to flash on the LCD display (6). Press the SETTING button to switch between LiPo and LiHV. Each additional press of this button switches between the two battery types.
- Press the SELECT button again to switch to the setting for the next charging output. The indicators for outputs 2 to 6 always flash individually to indicate that the corresponding charging output is ready to be set. Press the SETTING button to set the battery type for each charging output.
- To set the battery type for the other charging outputs, proceed in the same way and repeat this procedure to set all six charging outputs.
- When you have finished setting the battery type, press and hold the SETTING button until ""SAVE SETTING ..." appears on the LCD display (6) to confirm that the settings have been saved successfully. The charger will then return to the home screen.
d) Connecting batteries to the charger
Never attempt to connect more than one battery to a charging output at the same time. This may damage or even destroy the charger.
- For each charging channel (1-6), only connect one battery with one type of connector to the possible battery connections (1, 2, 3 & 4). Select the appropriate connector (Micro, MX, MCPx and JST) for each of the six channels and connect up to a maximum of six batteries to the charger.
- Charging will start after the batteries have been connected.
e) Charging process
- During the charging process, the LED indicator (3) for the corresponding charging channel will flash in red. The LCD display shows the charging parameters for all connected batteries in an automatic loop. The parameters are displayed in the following order: Battery type > Battery voltage > Charging current > Battery capacity
- As soon as a battery is fully charged, "FULL" will be displayed for the corresponding position. The LED indicator (3) will then stay constant green.
Safety features
a) Undervoltage/overvoltage protection for the input voltage
When the DC input voltage is below 7.0 V/DC, the charger will stop charging and the LCD display will show the message "DC Input Low".
DC Input Low Input 6.5V
If you are using a rechargeable battery for the power supply, remove it as soon as possible and recharge it later. Otherwise, check your connected power unit to ensure that the voltage setting is not too low and verify whether there are any other malfunctions.
If the DC input voltage is above 17.0 V/DC, the charger will also stop the charging process and the LCD display will show the message "DC Input High".
DC Input High Input:17.5V
If this message appears, immediately adjust the input voltage to the correct value or disconnect the charger from the voltage source (battery). Prolonged overvoltages pose a significant risk of fire and may destroy the charger.
b) Reverse polarity protection
If you connect a battery with reversed polarity, the charger will not charge. Connect the rechargeable battery(s) with the correct polarity.
c) Cell overvoltage
As soon as the cell voltage is above the value of 50 mV (saturation voltage), the charger automatically stops charging and displays an "OV" warning message for the corresponding channel.
d) Overcurrent
If the charging current is above 1.20 A, the charger automatically stops charging and displays an "OC" warning message for the corresponding channel.
Care and cleaning
Never use aggressive detergents, rubbing alcohol or other chemical solutions, as these may damage the housing or stop the product from functioning properly.
- Disconnect the product from the power supply before cleaning. Pull the mains plug from the mains socket or disconnect the DC power supply.
- Use a dry, lint-free cloth to clean the product.
- To prevent scratch marks, do not press too hard on the surface of the enclosure or LCD display when cleaning.
Disposal
Electronic devices are recyclable waste and must not be placed in household waste. At the end of its service life, dispose of the product according to the relevant statutory regulations.
You thus fulfil your statutory obligations and contribute to environmental protection.
Technical data
Input voltage.... 100 - 240 V/AC, 50 Hz or 7 - 17 V/DC
Output voltage ...... Max. 4.35 V
Charging power 6 x 4.35 W ± 10%
Charging current....6 x 0.1 - 1.0 A ± 10%
Battery connector types.....MX, JST, mCPX, Micro
Cable length 1,23 m
Suitable for ....LiPo, LiHV
Operating conditions.... 0 to +40 °C, 0–90 % relative humidity (non-condensing)
Storage conditions....-20 to +60 °C, 0–90 % relative humidity (non-condensing)
Dimensions (L x W x H)....122 x 68 x 42 mm
Weight 227 g
- GB Operating instructions
- V-Charge Eco 6x1S Charger for model batteries
- Intended use
- Delivery content
- Up-to-date operating instructions
- Description of symbols
- Safety information
- a) General information
- b) Connected devices
- c) Installation location
- d) Operation
- e) Electrical safety
- Information about charging parameters
- a) Selecting the charging parameters
- b) Selecting the charging current
- Capacity in mA x C-coefficient = charging current
- Product overview
- Initial operation
- a) Placement
- b) Connecting to the power supply
- c) Setting the parameters
- Setting the charging current
- Setting the battery type
- d) Connecting batteries to the charger
- e) Charging process
- Safety features
- a) Undervoltage/overvoltage protection for the input voltage
- b) Reverse polarity protection
- c) Cell overvoltage
- d) Overcurrent
- Care and cleaning
- Disposal
- Technical data
Brand : VOLTCRAFT
Model : V-Charge Eco 6x1S
Category : Charger
