Product Type	Nursery chest of drawers
Model Number	Z30613A
Brand	Livarno Lux
Dimensions (W x H x D)	Approx. 36 x 61 x 26 cm
Material	MDF (Medium Density Fiberboard)
Intended Use	Storage in children's rooms, indoor dry areas only
Assembly Required	Yes, by competent adults; includes detailed instructions
Number of Drawers	1
Number of Doors	1
Number of Shelves	1 intermediate shelf
Hardware Included	Screws, dowels, eccentric connectors, door hinges, drawer slides, wall-mount L-screw, stabilizers, furniture gliders, etc.
Wall Mount Required	Yes, for anti-tilt safety
Cleaning Instructions	Dry non-fluffing cloth; damp cloth with mild cleaner for stubborn dirt
Safety Warnings	Risk of tipping if climbed on; keep small parts away from children; use on level surface
Disposal	Packaging recyclable; product components may be recycled per local regulations
Certification/Compliance	Not specified, but designed for nursery use

Frequently Asked Questions - Z30613A Livarno Lux

What is the model number of this chest of drawers?

The model number is Z30613A (also Z30613B for possible alternate version).

What are the dimensions of the Livarno Lux chest of drawers?

The dimensions are approximately 36 x 61 x 26 cm (width x height x depth).

What material is the chest of drawers made from?

It is made from MDF (Medium Density Fiberboard).

Do I need to wall-mount this chest of drawers?

Yes, for safety. The product includes an L-screw and plastic dowel for wall mounting to prevent tipping. Drill a 6 mm hole in the wall and attach as shown in Figure L of the manual.

Is the chest of drawers suitable for children under 3 years old?

No. The manual states it is not suitable for children under the age of 3 due to small parts and tipping risk.

How should I clean the chest of drawers?

Use a dry, non-fluffing cloth for regular cleaning. For stubborn dirt, use a damp cloth with a mild cleaning agent. Avoid corrosive or abrasive cleaners.

What tools are required for assembly?

You will need a screwdriver (probably Phillips) and, for wall mounting, a drill with a 6 mm bit. Check the manual for exact screw sizes.

How many drawers does this chest have?

It has one drawer, plus one door and one intermediate shelf.

Can the chest of drawers be used outdoors?

No. The intended use is indoor, dry areas only. Exposure to humidity or direct sunlight may damage the MDF.

What should I do if I lose the assembly instructions?

You can download the PDF manual from websites like notice-facile.com or contact Livarno Lux customer service. The manual contains detailed step-by-step figures A–L.

USER MANUAL Z30613A Livarno Lux

Before assembling and using the product for the first time, take time to familiarise yourself with the product first. Read the following assembly instructions and safety instructions carefully. Only use the product as described and for the designated areas of application. Please keep these instructions in a safe place. If you hand this product on to a third party, you must also pass on all documents relating to the product.

17 Cross dowel
18 Cross-head screw (approx. 3 x 10 mm)
19 Cross-head screw (approx. 3 x 12 mm)
20 Door hinge
21 L-screw for wall mounting (protection against tilting)
22 Stabiliser for rear panel
23 Drawer slide
24 Cross-head screw (approx. ∅ 2.5 x 25 mm)
25 Cross-head screw (approx. 4 x 25 mm)
26 Plastic dowel
27 Wooden dowel
28 Furniture gliders (self-adhesive)
29 Plastic washer

Intended use

This product is designed for storage in children's rooms. It is designed for use in private, dry, indoor areas. Any use other than previously mentioned or any product modification is prohibited and can lead to injuries and / or product damage. The manufacturer is not liable for any damages caused by any use other than for the intended purpose. The product is not intended for commercial use.

• Description of parts and features

1 Cover panel
2 Right side panel
3 Left side panel
4 Rear panel
5 Intermediate shelf
6 Door
7 Floor element
8 Front panel (drawer)
9 Side panel (left)
10 Base panel (drawer)
11 Rear panel (drawer)
12 Side panel (right)
13 Furniture knob made of wood
14 Screw-in dowel
15 Eccentric connector
16 Cross-head screw (approx. ø 6 x 42 mm)

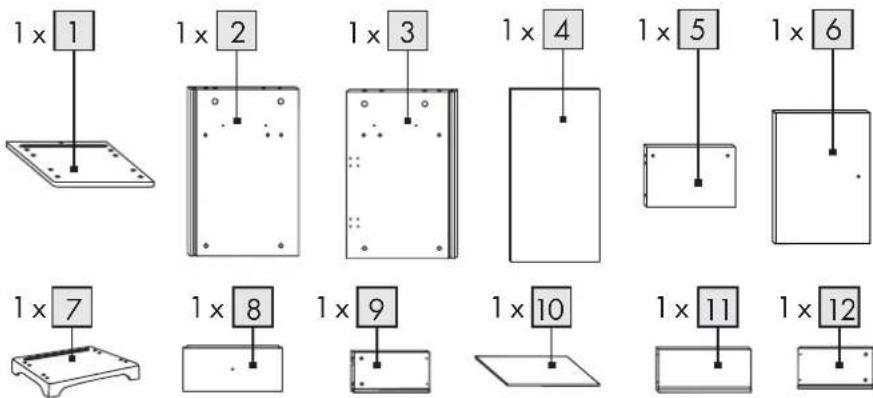

- Scope of delivery

Check the package contents for completeness and condition of the product immediately after opening and ensure all parts are present. Do not under any circumstances assemble the product if the delivery is incomplete.

1 Cover panel
1 Right side panel
1 Left side panel
1 Rear panel
1 Intermediate shelf
1 Door
1 Floor element
1 Front panel (drawer)
1 Side panel (left)
1 Base panel (drawer)
1 Rear panel (drawer)
1 Side panel (right)
2 Furniture knobs made of wood

10Screw-indowels

10Eccentricconnectors

4 Cross-head screws (approx. ø 6 x 42 mm)
4 Cross dowels
4 Cross-head screws (approx. ø 3 x 10 mm)
20 Cross-head screws (approx. ø 3 x 12 mm)
2 Door hinges
1 L-screw for wall fastening (protection against tilting)
4 Stabilisers for rear panel

Introduction / Safety advice / Installation

2 Drawer slides

4 Cross-head screws (approx. 2.5 x 25 mm)

2 Cross-head screws (approx. 4 x 25 mm)

1 Plastic dowel

12Woodendowels

1 Furniture gliders (self-adhesive)

4 Plastic washer

1 Set if assembly instructions

- Technical data

Dimensions: approx. 36 x 61 x 26 cm (w x h x d) Material: MDF

Safety advice

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!

DANG WARNING!

LOSS OF LIFE AND ACCIDENT TO INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging materials. Danger of suffocation. Keep out of the reach of children. It is not a toy.

WARNING!

RISK OF FATAL INJURY!

During installation keep children away from the area in which you are working. The scope of supply includes a number of screws and other small parts. These may prove life-threatening if swallowed or inhaled.

CAUTION! DANGER OF INJURY! Please ensure that no parts are damaged and that all parts are correctly assembled. Incorrect assembly or fitting may lead to injury. Damaged parts can adversely affect safety and proper function.

CAUTION! DANGER OF INJURY! Do not leave children unattended! The product is not a climbing frame! Make sure that people, especially children, do not climb onto or lean against the product. The product could become unstable and tilt to one side and / or topple over. This could result in injuries and / or damage.

■ Make sure that the product is only assembled by competent persons.

■ Make sure that this product is standing on a solid, level surface.

- Distribute weight upon this products' surface evenly so that it cannot overturn.

■ Regularly check the stability of all connections and retighten the screws.

CAUTION! Do not lift or move the product if it is supporting any object.

CAUTION! FIRE HAZARD! Do not position the product near an open fire and / or radiant heaters.

CAUTION! RISK OF INJURY! Wood is a natural product. Despite careful treatment of the surface and assessment, the possibility of splinters cannot be ruled out.

- Keep the product away from humidity. Otherwise this may result in damage to product.

- Do not subject the product to direct sunlight. Otherwise the product may fade.

CAUTION! RISK OF CRUSHING!

Make sure that your fingers do not get between the door/drawer and

the chest of drawers when opening the door/ drawer.

The safety of the product can only be guaranteed if it has been properly assembled and all connecting elements have been securely connected.

- Check the stability of the product before using it.

This product may only be assembled by adults.

■ Not suitable for children under the age of 3!

Installation

Note: Assemble the product on a sufficiently large, scratch-resistant floor. You may have to put a blanket or the like down in order to avoid damaging the product.

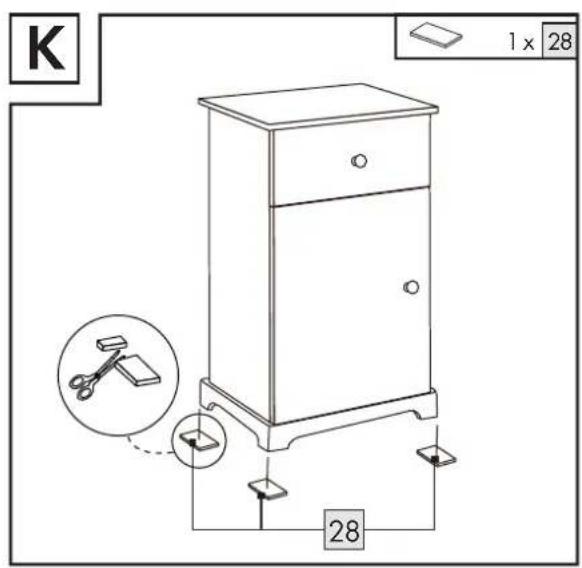

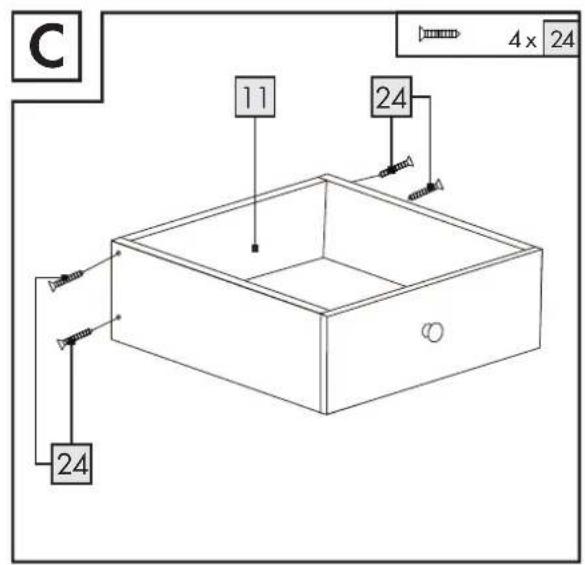

☐ Assemble the chest of drawers in line with Figures A–L.

Note: Regularly check the integrity of all joints and re-tighten all screws at regular intervals.

LIVARNO

13 GB/MT

Installation/Cleaning and Care/Disposal

● Fitting the protection against tilting

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

Note: You will need a drill for this stage of the work.

WARNING! DANGER TO LIFE! Make sure that you do not hit electrical cables, gas or water pipes when you drill into the wall. You may have to check with a cable locator before drilling into a wall.

Product description:

Nursery chest Model No.: Z30613A/Z30613B Version: 11/2010

CAUTION! RISK OF INJURY, DANGER TO LIFE AND RISK OF DAMAGE TO PROPERTY! Carefully read the operating and safety instructions of your drill.

Before assembly, check whether the wall is suitable for fastening the product to it. You may have to ask a professional what one should keep in mind when attaching it and whether the L-screw 21 and the plastic dowel 26 are suitable for the wall in question. Use suitable fastening parts for uneven walls.
☐ Using a drill, drill a hole with a diameter of approx. 6 mm into the wall.
☐ Insert the plastic dowel into the hole and screw the L-screw into the dowel (make sure the hook is pointing upwards when you have finished).
☐ Hook the back of the chest of drawers onto the L-screw (see Fig. L).

- Cleaning and Care

• Do not under any circumstances use corrosive or abrasive cleaning agents. These may damage the product.
  □ Clean the product with a dry, non-fluffing cloth.
  ☐ To remove more stubborn dirt, use a damp cloth and, if necessary, a mild cleaning agent.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Necesita · Vi servono · Necessita de · You need · Sie benötigen:
