Product Type	Swing for children
Brand	Playtive
Model / IAN	IAN 71588
Maximum User Weight	100 kg
Recommended User Age	3 to 14 years
Intended Use	Private home use (indoor/outdoor)
Installation Requirement	Must be installed by an adult on stable equipment (e.g., solid wood or metal scaffolding, concrete ceiling)
Minimum Seat Height from Ground	35 cm
Assembly Fasteners	Minimum 10 mm screw hooks with 540° bend or closed hooks, secured with locknut
Height Adjustment	Adjustable via ring at top; both ropes must be balanced
Safety Features	Supervision required; strangulation hazard (rope); inspect before each use; discontinue if metal visible; not near stairs
Maximum Number of Users	1 person at a time
Cleaning Instructions	Wipe with water only; dry with cloth; do not use strong cleaning agents
Storage	Store clean and dry in temperature-controlled space
Disposal	Dispose of product and packaging in environmentally friendly manner; separate materials for recycling
Warranty	3 years from date of purchase (covers material and workmanship; excludes misuse)
Service Contact (UK)	Tel: [phone] (0.10 £/min), Email: [e-mail]
Service Contact (Cyprus)	Tel: [phone], Email: [e-mail]

Frequently Asked Questions - IAN 71588 Playtive

What is the maximum weight the swing can hold?

The swing supports a maximum load of 100 kg.

What age group is this swing suitable for?

It is designed for children aged 3 to 14 years.

Can the swing be used outdoors?

Yes, it is suitable for outdoor use, but only on private property, not on public playgrounds.

How do I adjust the height of the swing?

Use the ring at the top to adjust rope length. Ensure both ropes are balanced so the seat is level.

What hardware is needed for installation?

Use 10 mm screw hooks with at least a 540° bend or fully closed hooks, secured with a locknut through the beam.

Is adult supervision required during use?

Yes, children must only play with this product under direct adult supervision.

How should I clean the swing?

Clean with water only and wipe dry with a cloth. Do not use strong cleaning agents.

What should I inspect before each use?

Check the fastening of cords, knots under the seat, hooks, and rings for any damage or wear.

What is the warranty period and coverage?

The product comes with a 3-year warranty covering material and workmanship. It does not cover misuse or improper handling.

Can multiple children use the swing at the same time?

No, it is designed for one person only at a time.

USER MANUAL IAN 71588 Playtive

Read through the instruction manual carefully before use. Make sure you keep the instructions for future reference!

Intended use

The product is designed as a toy for private use for children over 36 months of age. The product may not be used on public equipment such as playgrounds, schools, etc..

Technical data

Maximum load of the product: 100kg

⚠ Safety Instructions Risk of injury!

• ATTENTION! Minimum and maximum user age: 3-14 years!
• ATTENTION! Minimum and maximum user weight: 5-100kg!
  • ATTENTION! Only for use at home
• ATTENTION! The distance between the seat element of the swing and the ground must be at least 35cm.
  • ATTENTION! Suitable for outdoor use
• Warning! Not suitable for children under 3 years.
  Rope poses a strangulation hazard.
  • Children may only play with this product under supervision.
  • Maximum load of the product = 100kg.
• The swing may only be set up on equipment that has sufficient stability such as solid wooden scaffolding, metal scaffolding or concrete ceilings.
• An adult must perform the installation.

• An adult must check the stability after installation.

• Only install the swing as described in these instructions, other methods of fastening may damage the cord or the holding element.

• An adult must inspect the fastening of the cords, the knots in the cord beneath the swing unit, the hooks and the rings before each use.

Discontinue use of the swing as soon as the fastening element of the swing becomes brittle and you can see the metal on the inside.

• Do not use the swing near stairs.
• The product may only ever be used by one person.
• Fasten the swing leaving enough space from other objects so that no-one can be injured. Pay attention to the radius that the swing makes when it swings.
• Make sure that there are no hard objects or objects with sharp edges in the area of the swing.
• Do not fasten the swing over concrete, asphalt or any other hard surfaces.
• Use the appropriate fastening material (see the Swing Assembly) for each installation in wooden or metal equipment as well as in concrete ceilings.
• The fastening hooks must be completely inserted through the wood and fixed by a locknut from above when fastening into wooden equipment or wooden beams.

Swing Assembly

Tip

Only fasten the swing to equipment for which you can guarantee adequate strength with absolute confidence. To prevent unintentional detachment use 10mm strength screw hooks minimum for assembly, which are bent by at least 540° or which are completely closed. The fastening hooks must be completely inserted through the wood and fixed by a locknut from above in wooden beams to accomplish an adequately secure connection.

Different fastening hooks

Only fasten the swing unit to an appropriate retention system.

These are:

No. 1: a closed retaining grommet, which is secured to the swing element by a carabiner.

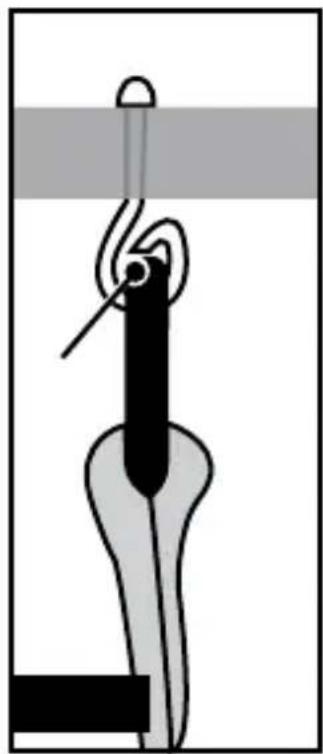

No. 2: a circular hook, which is bent by at least 540° to prevent unintentional detachment.

Tip

The eye of the retaining grommet (A) must be attached at a right angle to the direction of the swing so that the fastening element of the swing is not damaged too much during use.

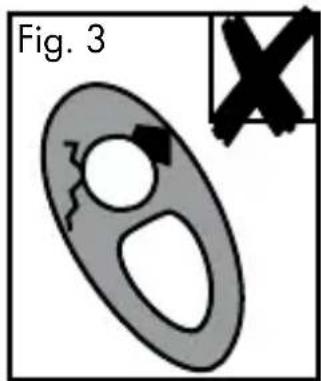

Discontinue use of the swing as soon as the ening element shows fractures or cracks on upper grommet.

Height adjustment of the swing unit

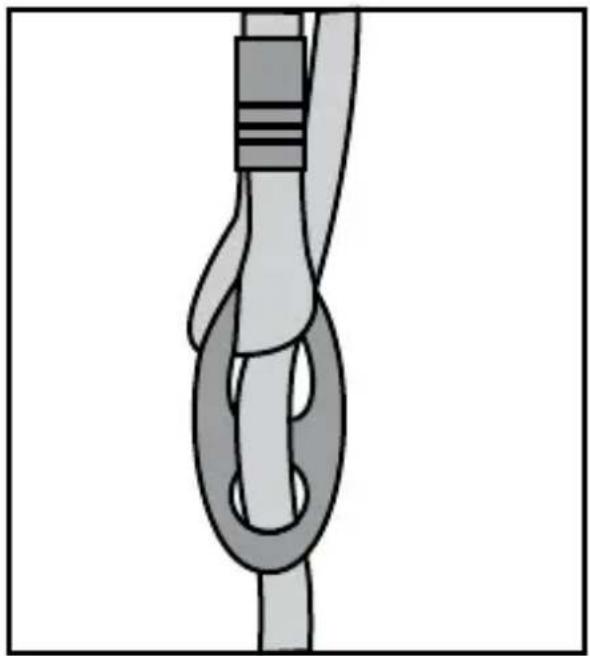

The height of the seat can be adjusted by means of the ring at the top of the swing.

It pulls itself tight again (Fig. 5) after you have adjusted the length of the cord (Fig. 4).

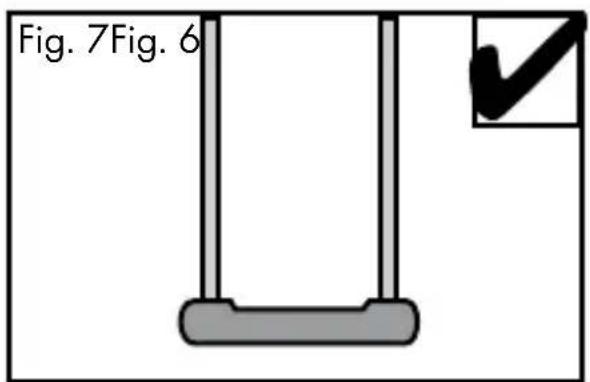

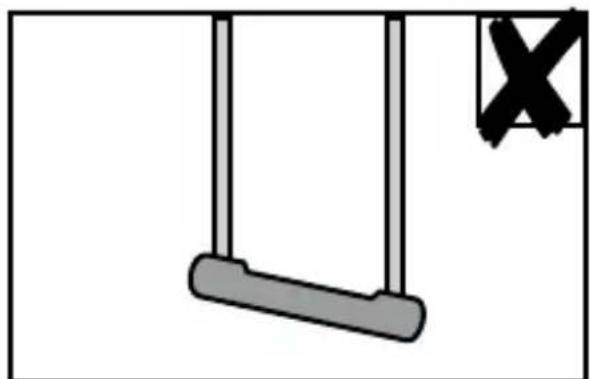

Adjust the length of both ropes so that the swing is absolutely balanced.

Maintenance, Storage

Please always remember that regular maintenance and cleaning contribute to the safety and the preservation of your product.

Always dry the product and store it clean in a temperature controlled space. IMPORTANT! Only use water for cleaning, never use strong cleaning products. Wipe dry afterwards with a cleaning cloth.

Disposal

Please dispose of the product and packaging in an environmentally friendly manner, separating different materials for recycling as required! Dispose of this item through an authorised disposal company or through your local waste disposal facilities - ask your local authority for information if further guidance is required. Ensure that you comply with all regulations currently in force.

3-year warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt. The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 71588

GB Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

CY Service Cyprus

Tel.: [phone]

E-Mail: [e-mail]

Version: 05/2012
