USER MANUAL IAN 86474 Playtive

Read through the instruction manual carefully before use. Make sure you keep the instructions for future reference!

Intended use

The product is designed as a toy for private use for children over 36 months of age. The product may not be used on public equipment such as playgrounds, schools, etc..

Technical data

Maximum load of the product: 100kg

⚠ Safety Instructions

Risk of injury!

• ATTENTION! Minimum and maximum user age: 3-14 years!
• ATTENTION! Minimum and maximum user weight: 5-100kg!
  • ATTENTION! Only for use at home
• ATTENTION! The distance between the seat element of the swing and the ground must be at least 35cm.
• ATTENTION! Suitable for outdoor use
• Warning! Not suitable for children under 3 years.

Rope poses a strangulation hazard.

• Children may only play with this product under supervision.

• Maximum load of the product = 100kg.

- The swing may only be set up on equipment that has sufficient stability such as solid wooden scaffolding, metal scaffolding or concrete ceilings.

- An adult must perform the installation.

- An adult must check the stability after installation.

• Only install the swing as described in these instructions, other methods of fastening may damage the cord or the holding element.
• An adult must inspect the fastening of the cords, the knots in the cord beneath the swing unit, the hooks and the rings before each use.

Discontinue use of the swing as soon as the fastening element of the swing becomes brittle and you can see the metal on the inside.

• Do not use the swing near stairs.
• The product may only ever be used by one person.
• Fasten the swing leaving enough space from other objects so that no-one can be injured. Pay attention to the radius that the swing makes when it swings.
• Make sure that there are no hard objects or objects with sharp edges in the area of the swing.
• Do not fasten the swing over concrete, asphalt or any other hard surfaces.
• Use the appropriate fastening material (see the Swing Assembly) for each installation in wooden or metal equipment as well as in concrete ceilings.
• The fastening hooks must be completely inserted through the wood and fixed by a locknut from above when fastening into wooden equipment or wooden beams.

Swing Assembly

Tip

Only fasten the swing to equipment for which you can guarantee adequate strength with absolute confidence. To prevent unintentional detachment use 10mm strength screw hooks minimum for assembly, which are bent by at least 540° or which are completely closed. The fastening hooks must be completely inserted through the wood and fixed by a locknut from above in wooden beams to accomplish an adequately secure connection.

Different fastening hooks

Only fasten the swing unit to an appropriate retention system.

These are:

No. 1: a closed retaining grommet, which is secured to the swing element by a carabiner.

No. 2: a circular hook, which is bent by at least 540° to prevent unintentional detachment.

Tip

The eye of the retaining grommet (A) must be attached at a right angle to the direction of the swing so that the fastening element of the swing is not damaged too much during use.

⚠️ Discontinue use of the swing as soon as the fastening element shows fractures or cracks on the upper grommet.

Height adjustment of the swing unit

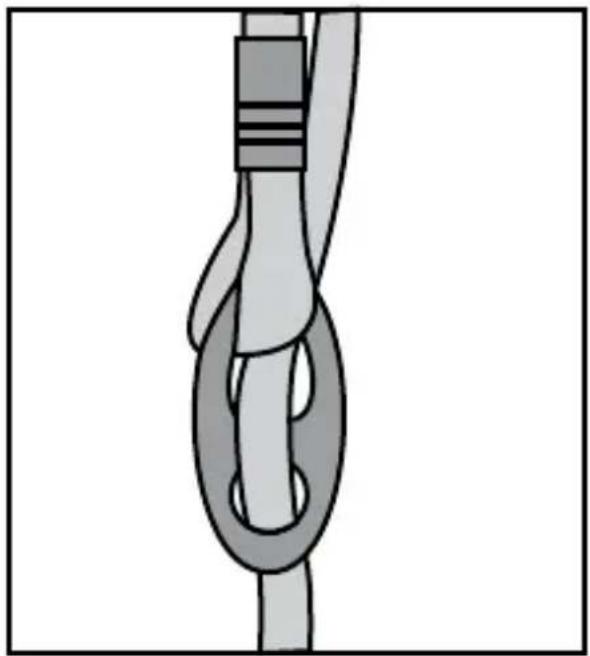

The height of the seat can be adjusted by means of the ring at the top of the swing.

It pulls itself tight again (Fig. 5) after you have adjusted the length of the cord (Fig. 4).

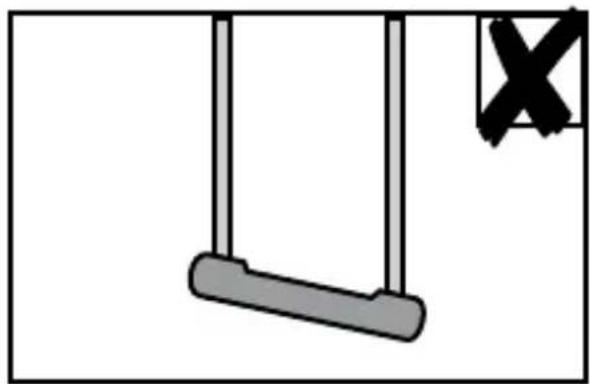

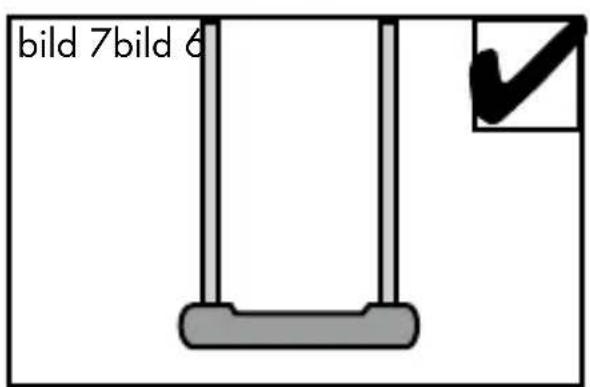

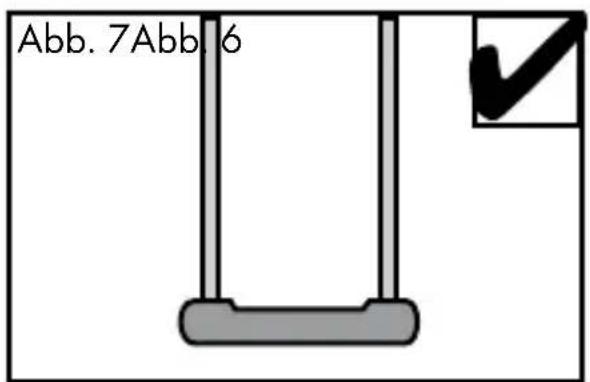

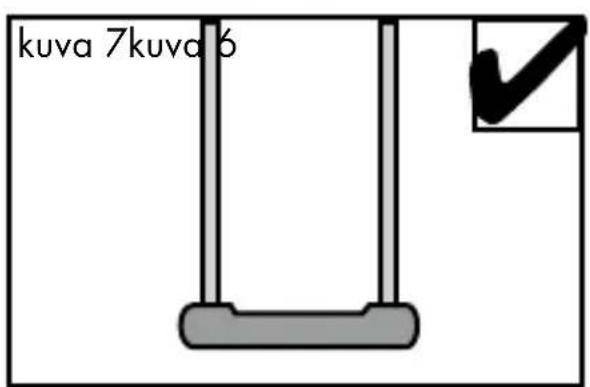

Adjust the length of both ropes so that the swing is absolutely balanced.

Maintenance, Storage

Please always remember that regular maintenance and cleaning contribute to the safety and the preservation of your product.

Always dry the product and store it clean in a temperature controlled space. IMPORTANT! Only use water for cleaning, never use strong cleaning products. Wipe dry afterwards with a cleaning cloth.

Disposal

Please dispose of the product and packaging in an environmentally friendly manner, separating different materials for recycling as required! Dispose of this item through an authorised disposal company or through your local waste disposal facilities - ask your local authority for information if further guidance is required. Ensure that you comply with all regulations currently in force.

3-year warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt. The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 71588

Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

Version: 05/2012
