Product Type	Motion detector for Venetian blind control
Model	A5232BFWW (Art. No. ..5232.. and ..5232 S..)
Brand	JUNG
Intended Use	Operation of electrically-driven blinds, shutters, and awnings
Ambient Temperature	0 ... +45 °C
Storage/Transport Temperature	-10 ... +60 °C
Moving Time	0.5 ... 120 seconds (adjustable)
Brightness Threshold (Art. ..5232 S..)	Approx. 5000 ... 80000 lx
Power Supply	Via Venetian blind control (not included)
Lock-out Protection	Prevents automatic movement; activates by pressing top for >4s
Sun Sensor Support	Yes, for Art. ..5232 S.. with automatic shading
Slat Adjustment	Short press (<1s) to adjust slats
Individual Moving Time Storage	Yes, from 0.5s to 2 minutes
Status LED	Indicates lock-out activation and programming mode
Accessories	Sunlight/dawn sensor Art. 32SD, extension flex Art. 32K
Warranty	As provided by law; send defective device to central service
Safety Notes	Disconnect power before installation; device not for disconnection
Maintenance	No specific instructions; clean with dry cloth if needed

Frequently Asked Questions - A5232BFWW JUNG

What is the intended use of the JUNG A5232BFWW?

The device is designed to operate electrically-driven blinds, shutters, and awnings. It works with a Venetian blind control system.

How do I activate lock-out protection?

Press the top of the cover for more than 4 seconds. The status LED will illuminate, and the blind moves to the upper end position. Lock-out protection disables automatic movement from sensors.

How do I deactivate lock-out protection?

Press the top button briefly. The status LED turns off, and lock-out protection is deactivated. Note that after a power failure, it is automatically deactivated.

Can I store a custom moving time?

Yes. Press the entire cover surface for >4s until the LED flashes. Then press ▼ to move the blind to the desired position. Release, then press the cover for at least 1s to store. The time range is 0.5s to 2 minutes.

What is the sun protection function?

For covers with sensor connection (Art. ..5232 S..), a sun sensor triggers automatic shading when brightness exceeds the threshold for >2 minutes. The blind returns to upper end position when brightness falls below threshold for >15 minutes.

How do I adjust the brightness threshold?

Use the adjuster on the back of the cover. It ranges from approx. 5,000 lx (small sun) to 80,000 lx (large sun). Factory preset is approx. 15,000 lx.

What accessories are available?

Compatible accessories include the sunlight/dawn sensor (Art. No. 32 SD) and extension flex (Art. No. 32 K).

What are the technical specifications?

Ambient temperature: 0...+45°C, storage: -10...+60°C, moving time: 0.5...120s, brightness setting: 5000...80000 lx (Art. ..5232 S..).

Is the device suitable for disconnecting from supply voltage?

No. The device is not suitable for disconnection from supply voltage. Always disconnect all circuit breakers before working on the device or load.

How do I operate the Venetian blind?

Press top or bottom of cover for >1s to move the blind in that direction. Press again to stop. For slat adjustment, press for <1s.

USER MANUAL A5232BFWW JUNG

Centre plate with anti lock-out function

Art. No.: ..5232..

Centre plate with anti lock-out function and sensor connection

Art. No.: ..5232 S..

Operating instructions

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.

Serious injuries, fire or property damage possible. Please read and follow manual fully.

Danger of electric shock. Always disconnect before carrying out work on the devise or load. At the same time, take into account all circuit breakers that supply dangerous voltage to the device or load.

Danger of electric shock. Device is not suitable for disconnection from supply voltage.

These instructions are an integral part of the product, and must remain with the end customer.

2 Device components

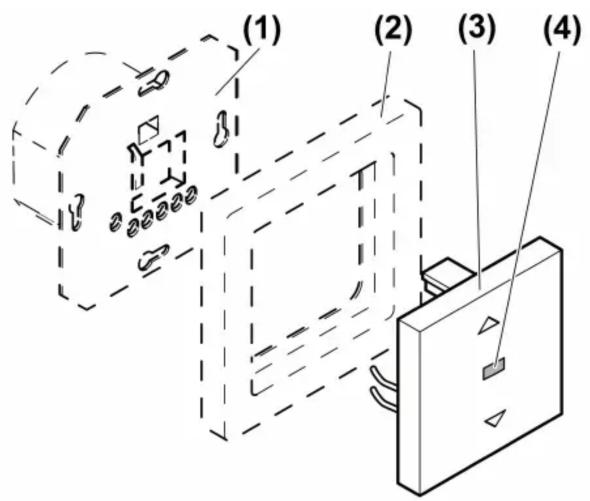

Figure 1: Device components

(1) Venetian blind control
(2) Frame
(3) Cover
(4) Status LED

3 Function

Intended use

• Operation of electrically-driven blinds, shutters and awnings
• Operation on control of the Venetian blind control system
• Status LED
• Lock-out protection
• The individual moving time from the upper end position is storable

Product characteristics

Additional functions for the cover with sensor connection

• Evaluation of a sun sensor
• Brightness threshold adjustable
• Automatic recognition of an outdoor sensor during the first sensor run

Sun protection function for cover with sensor evaluation

The connection of a sun sensor enables automatic shading when it is very bright outside. The brightness threshold that controls the sun protection can be adjusted on the cover. If the measured brightness exceeds the predefined brightness threshold for more than 2 minutes, the Venetian blind moves downwards. The previously stored individual moving time is executed for an outdoor sensor. The stop position is determined by the sun sensor for an indoor sensor.

The sun protection function is only activated if the Venetian blind has been moved to the upper end position and the control has deactivated automatically after 2 minutes. Each manual operation deactivates the sun protection.

If the brightness threshold is fallen short of for more than 15 minutes, the Venetian blind moves back to the upper end position.

4 Operation

Moving the Venetian blind

■ Press top or bottom of cover for longer than one second.

The Venetian blind moves in the desired direction to the end position or stops when the button is pressed again.

Adjusting the slats

■ Press top or bottom of cover for shorter than one second.

The slat position changes in the desired direction for as long as the button is pressed.

Activating lock-out protection

The lock-out protection prevents the Venetian blind from automatically moving down unintentionally. Shutting down on site via the sensors or extensions is disabled.

■ Press top of cover for longer than 4 seconds.

Status LED is illuminated. Venetian blind moves to the upper end position, the lock-out protection is activated.

Deactivating lock-out protection

■ Press top button briefly.

Status LED goes out.

The lock-out protection is deactivated.

i After a power failure, the lock-out protection is deactivated.

Saving individual moving time

If a Venetian blind should not move to the lower end position "ventilation function" or an outdoor sensor is used, a shorter moving time can be stored. A time between 0.5 seconds and 2 minutes can be stored.

■ Press cover over entire surface for longer than 4 seconds.

The Status LED flashes. The Venetian blind moves automatically to the upper end position.

- Keep the cover pressed in the direction ▼ until the Venetian blind is in the desired position.

■ Release cover.

Venetian blind stops.

■ Press cover over entire surface for at least 1 second to store the moving time.

- Or -

■ Press cover ▼ or ▲ to discard the moving time.

The storage mode is exited automatically and the LED ceases to be illuminated.

The individual moving time remains permanently stored. The old moving time will be replaced if a new moving time is stored.
To execute the individual moving time, the Venetian blind must be moved to the upper end position and switch off there automatically after 2 minutes.

5 Information for electrically skilled persons

5.1 Fitting and electrical connection

Mounting and connecting

DANGER!

Electrical shock when live parts are touched.

Electrical shocks can be fatal.

Before carrying out work on the device or load, disengage all the corresponding circuit breakers. Cover up live parts in the working environment.

The Venetian blind control is mounted and connected properly (see instructions for the relevant Venetian blind control).

■ Install sun sensor for covers with sensor connection and connect to terminal block (see instructions for the sensors and control).
■ Adjust brightness threshold (see following chapter).

Connect the sun sensor with the correct polarity. If a sensor is connected with reversed polarity, this will result in malfunctions. It might not be possible to operate the cover any more.

■ Mount cover (3) with frame (2) onto the Venetian blind control (1) (figure 1).

Adjusting brightness threshold for cover with sensor evaluation

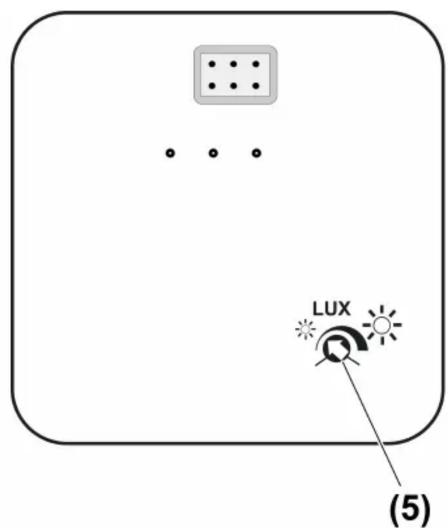

Figure 2: Back of cover: Adjuster for brightness threshold

The brightness threshold can be adjusted within a range of approx. 5,000 Lux "small sun" to approx 80,000 Lux "large sun" using the adjuster (5) on the back of the cover (figure 2). The adjuster is preset to approx. 15,000 Lux at the factory.

■ Adjust the brightness threshold to the required value. Adjust the brightness threshold value after commissioning if necessary.

6 Appendix

6.1 Technical data

Ambient temperature 0 ... +45 °C

Storage/transport temperature -10 ... +60 °C

Switch-over time for direction change approx. 1 s

Moving time 0.5 ... 120 s

Tolerance of the moving time ± 0.5 s

Brightness setting

Art. No. ..5232.. —

Art. No. ..5232 S.. approx. 5000 ... 80000 lx

6.2 Accessories

Sunlight / dawn sensor Art. No. 32 SD

Extension flex Art. No. 32 K

6.3 Warranty

We reserve the right to make technical and formal changes to the product in the interest of technical progress.

We provide a warranty as provided for by law.

Please send the device with a description of the defect to our central customer service office.

ALBRECHT JUNG GMBH & CO. KG

Vollmestraße 1

58579 Schalksmühle

Telefon: +49.23 55.8 06-0

Telefax: +49.23 55.8 06-2 04

[e-mail]

www.jung.de

Service Center

Kupferstr. 17-19

44532 Lünen

Germany
