| Product Type | Motion Detector |
| Brand | JUNG |
| Model | LS17180WWM |
| Detection Technology | Passive Infrared (PIR) |
| Detection Angle | 180° |
| Detection Range | Up to 12 m |
| Mounting Type | Wall or Ceiling |
| Power Supply | 230 V AC, 50/60 Hz |
| Power Consumption | < 0.5 W (standby) |
| IP Rating | IP54 |
| Ambient Temperature | -20°C to +50°C |
| Dimensions (H x W x D) | 120 x 80 x 50 mm |
| Weight | 150 g |
| Output | Relay (normally open, 230 V, 10 A max) |
| Time Adjustment | 10 seconds to 15 minutes |
| Twilight Threshold | 10 to 2000 lux (adjustable) |
| Protection Class | Class II |
| Material | Plastic, white |
| Certifications | CE, VDE |
| Included Accessories | Mounting screws, plugs, instruction manual |
Frequently Asked Questions - LS17180WWM JUNG

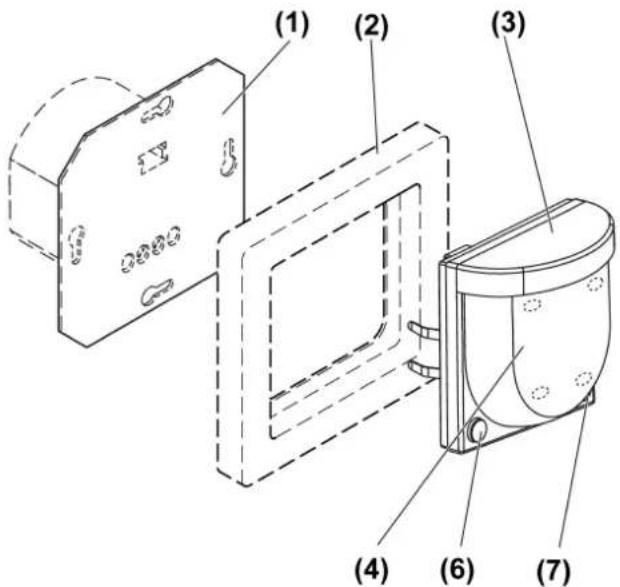

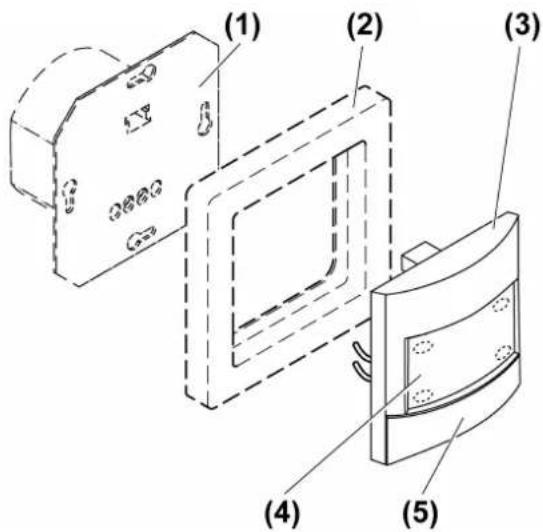

How do I install the JUNG LS17180WWM motion detector?

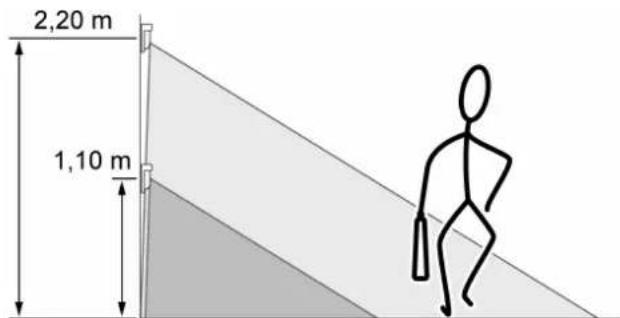

Turn off the power supply. Mount the detector on a wall or ceiling using the included screws. Connect the wires according to the wiring diagram in the manual: L (phase), N (neutral), and the load wire. Ensure the detector is at a recommended height of 2-3 meters.
Can I adjust the sensitivity of the motion detector?
Yes, you can adjust the detection sensitivity using a potentiometer on the device. Turn it clockwise to increase sensitivity and counterclockwise to decrease. Avoid setting it too high to reduce false triggering from pets or environmental changes.

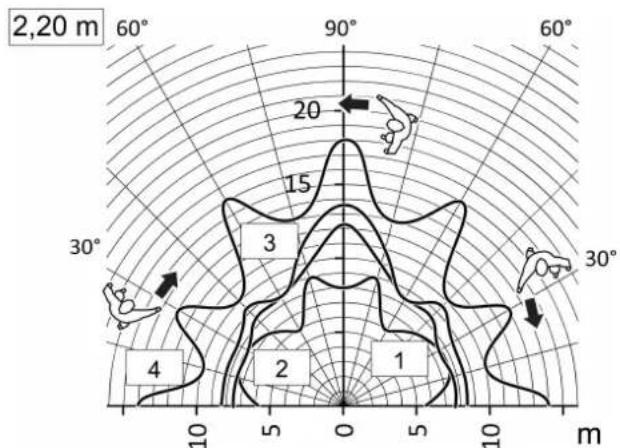

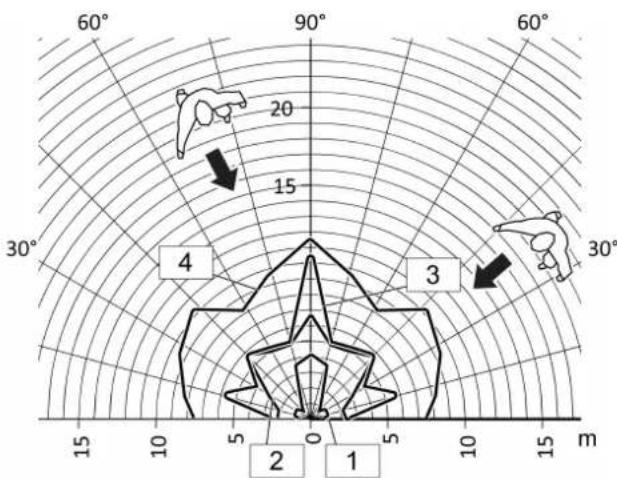

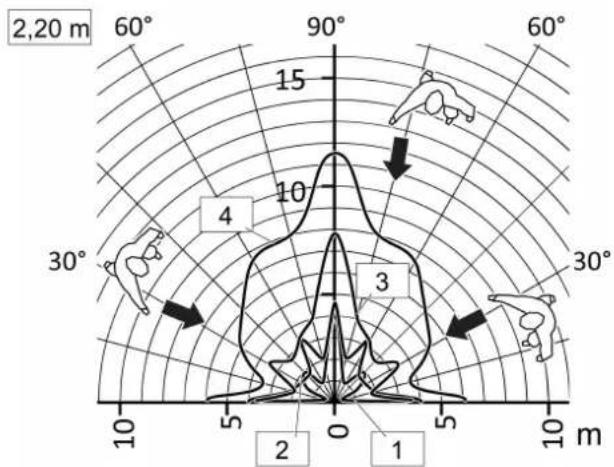

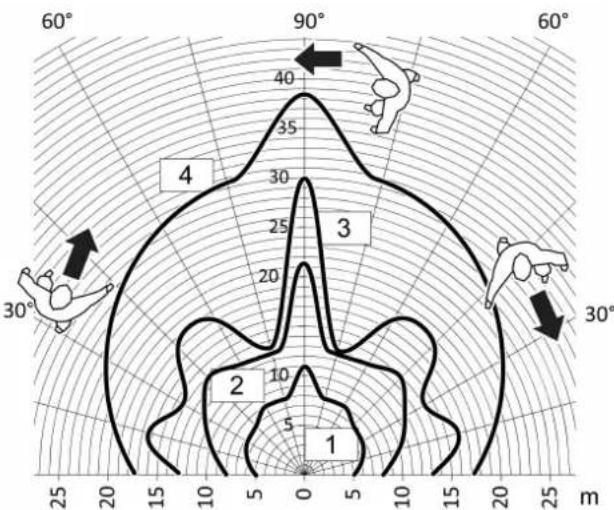

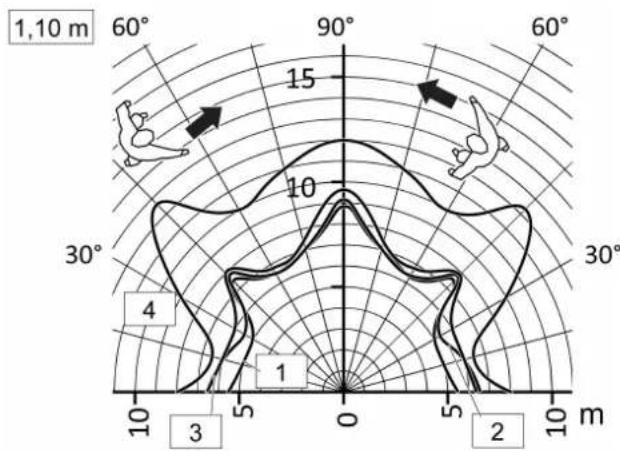

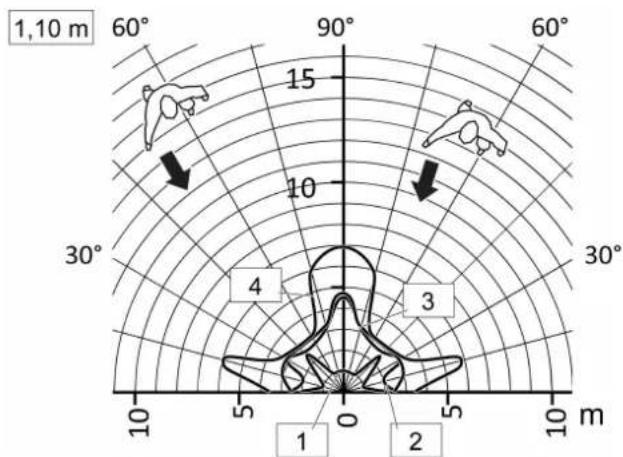

What is the maximum detection range?
The maximum detection range is 12 meters in optimal conditions. The range can be affected by the mounting height, ambient temperature, and the presence of obstacles.
Why does the detector trigger falsely?

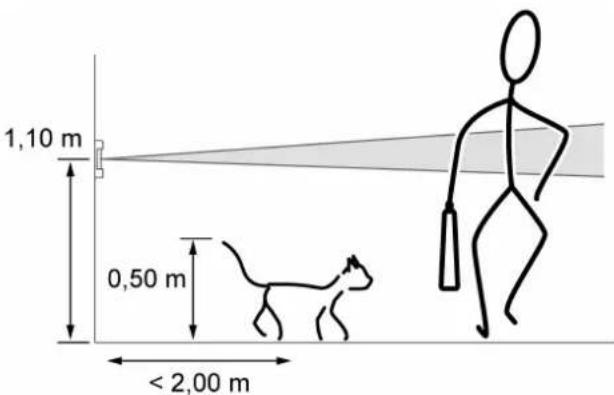

Common causes include pets moving within the detection zone, sudden temperature changes (e.g., from heating vents), reflections from mirrors or shiny surfaces, or mounting too close to heat sources. Adjust sensitivity and aim the detector away from such sources.
Can I use the LS17180WWM outdoors?
Yes, it is IP54 rated, meaning it is protected against dust and water splashes. However, it should not be exposed to direct rain or water jets. For outdoor use, install it under an eave or in a sheltered location.
How do I connect a lamp to the motion detector?
Connect the lamp to the output relay of the detector. The relay is normally open and switches the load when motion is detected. Ensure the lamp's power does not exceed 10 A (230 V). Refer to the wiring diagram in the manual.
How to reset the motion detector?
To reset the device, cut off the power supply for at least 10 seconds, then turn it back on. This will clear any temporary faults. For a full factory reset, adjust the time and twilight settings to their minimum positions and cycle power.
Can the detector be integrated into a smart home system?
The LS17180WWM is a standalone device and does not natively support smart home protocols like KNX or DALI. However, its relay output can be connected to a smart home controller (e.g., a Z-Wave or KNX relay) for integration.
How do I clean the motion detector?
Use a soft, dry cloth to gently wipe the lens and housing. Do not use water, solvents, or abrasive cleaners. Ensure the power is off before cleaning to avoid electrical shock.
What to do if the motion detector stops working?
First, check the power supply (circuit breaker, connections). Inspect for any physical damage or loose wires. Adjust the twilight threshold to a low setting (daytime) to test. If still not working, contact JUNG customer support for repair or replacement.
