Product Type	Mobile Phone (Rugged)
Model Variants	KM0459, KM0460
Display	2.4" QVGA
CPU	MTK6261D (KM0459) / MT6276A (KM0460)
RAM	32 MB (KM0459) / 64 MB (KM0460)
Internal Memory	32 MB (KM0459) / 128 MB (KM0460)
External Memory	microSD up to 32 GB
Camera	0.3 MP (KM0459) / 2.0 MP (KM0460)
Battery	2500 mAh Li-ion
Charging	micro USB, 5V/1A
Network	2G/3G (KM0460), GPRS/WCDMA
SIM	Dual SIM (mini-SIM)
Connectivity	Bluetooth 2.1, WiFi 802.11 b/g (KM0460)
Water/Dust Resistance	IP68 (1 m depth, 30 min)
Special Features	FM Radio, Torch, Power Bank (KM0459), Facebook & Email (KM0460)
Audio Jack	3.5 mm
Dimensions (approximate)	150 x 70 x 15 mm (estimated)
Weight (approximate)	200 g (estimated)
Safety	Do not use while driving; switch off in aircraft; use only approved accessories
Maintenance	Clean with soft damp cloth; do not use chemicals
Spare Parts & Repairability	Contact authorized service; warranty excludes liquid damage

Frequently Asked Questions - Iron 2S Krüger&Matz

How to lock and unlock the keyboard?

To lock the keyboard, press and hold the * button. To unlock, press the left function button then press *.

How to insert SIM and memory card?

Turn off the phone, remove the back cover and battery. Insert SIM cards with gold contacts facing down. For microSD, lift the slot cover, place the card, and close. Ensure proper alignment.

Is the phone waterproof?

The phone has IP68 rating, meaning it is resistant to submersion in up to 1 meter of water for 30 minutes. However, ensure all covers are tightly closed. Warranty does not cover liquid damage.

How to charge the phone?

Connect the micro USB cable to a 5V/1A AC adapter and plug into mains. The battery icon will flash while charging. Do not use damaged chargers.

Can I use the phone as a power bank?

Only model KM0459 has a power bank function. Connect a USB cable from the phone to an external device and enable the function in the Tools tab.

How to change the language?

On the main screen, press the left arrow button, or go to Settings > Phone settings > Language and select your desired language.

How to make an emergency call?

Ensure the phone is switched on and in service. Simply dial the local emergency number and press the green call button.

What should I do if the phone overheats?

If overheating during charging, disconnect the charger and close running apps. Let the device cool down before recharging. If overheating during use, close apps, disable connectivity, and lower screen brightness.

How to clean the phone?

Use a soft, slightly damp cloth. Do not use abrasive or chemical detergents as they may damage the device.

How to set speed dial?

Go to Phonebook settings and select Speed dial. Assign numbers 2-9 to contacts. To call, press and hold the corresponding number key on the main screen.

USER MANUAL Iron 2S Krüger&Matz

Abstract wavy line pattern with no text or symbols

USER'S MANUAL

Completely black image with no visible content or text.

TASTENFUNKTIONEN

Technical line drawing of a two-part electronic device casing (no text or symbols)

Technical line drawing of a mechanical device with internal components and a downward arrow indicating motion (no text or symbols)

Hinweise:

Please read this manual carefully before first use and keep it for future reference.

SAFETY INFORMATION

Please take measures as following to avoid your phone from unauthorized use (e.g. Set PIN code for SIM card).

SAFETY WARNING AND ATTENTIONS

- ROAD SAFETY

Do not use a hand-held phone while driving. Use hands-free fittings when calls are unavoidable while driving. In some countries, dialing or receiving calls while driving is illegal!

• SWITCH OFF IN AIRCRAFT

Wireless devices can cause interference in aircraft. Using a mobile phone in flight is illegal and risky. Please make sure that your mobile phone is powered off in flight.

• SWITCH OFF BEFORE ENTERING RISKY AREAS

Strictly observe the relevant laws, codes, and regulations on the use of mobile phones in risky areas. Turn off your mobile phone before entering a place susceptible to explosion, such as an oil station, oil tank, chemical plant or a place where a blasting process is under way.

• OBSERVE ALL SPECIAL REGULATIONS

Follow any special regulations in force in any area such as hospitals and always switch off your phone whenever it is forbidden to use it or, when it may cause interference or danger. Properly use your phone near medical apparatuses, such as pacemakers, hearing aids and some other electronic medical devices, as it may cause interference to such apparatuses.

• INTERFERENCE

The conversation quality of any mobile phone may be affected by radio interference.

• QUALIFIED SERVICE

Only qualified personnel may install or repair phone equipment. Installing or repairing the mobile phone on your own may bring danger and will violate the warranty rules.

- ACCESSORIES AND BATTERIES

Use only approved accessories and batteries.

• EMERGENCY CALLS

Prior to dialling emergency number, ensure the phone is switched on and in service.

Note: the device may not necessarily support all the features, due to network or radio transmission problems. Do not rely solely on the mobile phone for critical communications such as first aid. Please consult the local network operator.

PRECAUTIONS

• Keep the mobile phone and all its accessories beyond children's reach.
• Ensure the battery cover, lock screw, earphone and USB rubber plugs are perfectly closed while using near water, or in a humid environment, to ensure the phone remains waterproof and dust proof.
• Do not use or store the mobile phone in a high-temperature place. Protect the device from sources of heat and direct sunlight.
• Always do backup of an important data stored on the phone. Producer does not claim liability to any data loss.
• Producer does not claim responsibility for damages caused by inappropriate use and handling of the device.

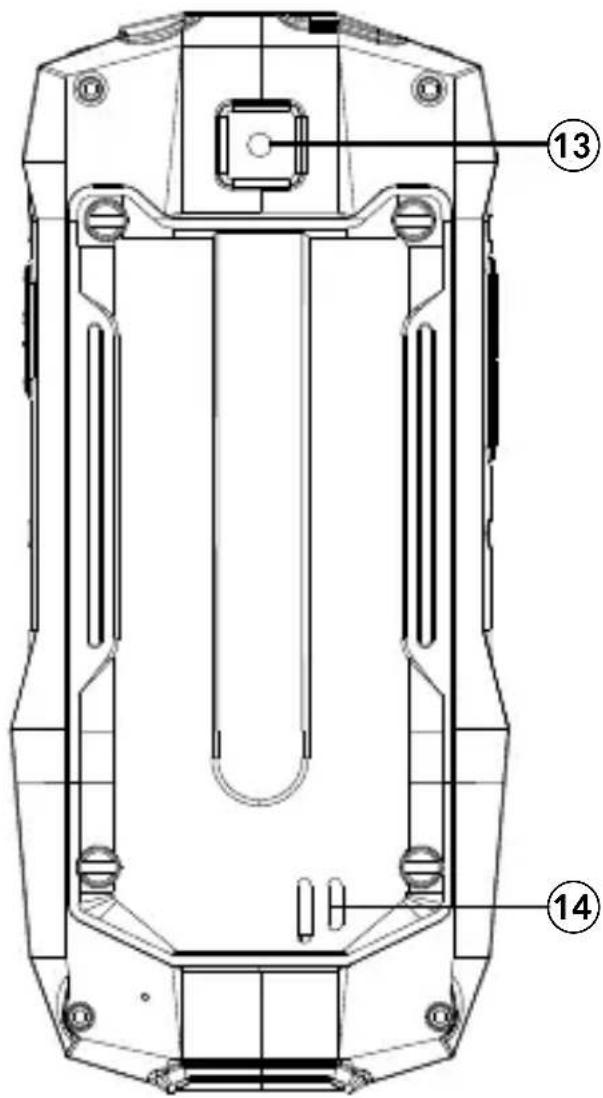

PRODUCT DESCRIPTION

1. Earphone jack 8.
2. Torch button 9. Microphone
3. Volume control buttons 10. Micro USB port (charging)
4. Confirmation button 11. Torch
5. Left function button 12. Receiver
6. Right function button 13. Camera
7.	14. Speaker

Z

E

BUTTONS' FUNCTION

Button Function
	Right function button: Back - turns back to previous page; press when on main screen to open phone book.
	Dial button: answers and dials calls
	End button: ends calls Press and hold to turn on/off the phone.
	Left function button: goes to main menu
	Confirmation button: press the button to approve/confirm Goes to main menu and other phone functions. In calculator app, press to show the result.

Z

	Navigational buttonsNavigational buttons work in 4 directions (functions available when on main screen):• [←]: language selection• [→]: profile selection• [↓]:• KM0459: FM radio• KM0460: browser• [↑]: audio player
	„*” button: press and hold to lock the keyboard Press the left function button, then press „*” button to unlock the keyboard.
	„#” button: when on main screen, press to change between profiles (meeting / silent). In calculator app, press the button to insert „.”.

GETTING STARTED

BATTERY, SIM CARDS AND MEMORY CARD

INSTALLATION

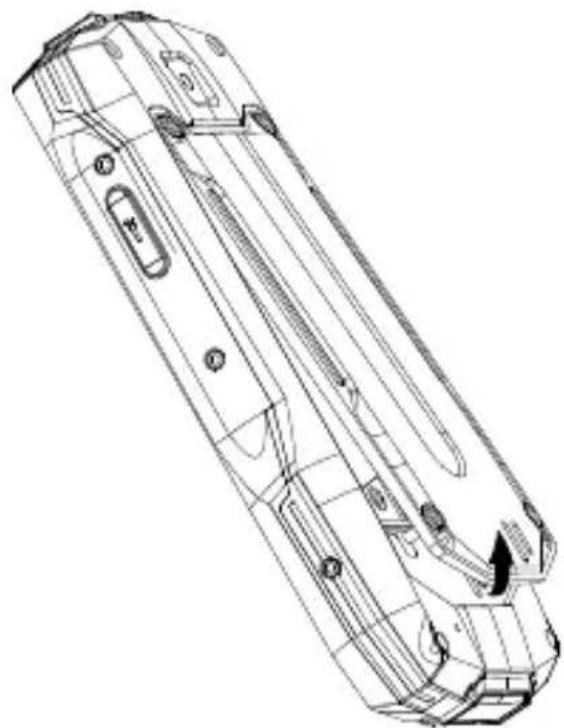

1. When the phone is off, use a screwdriver to twist off the screws and remove the back cover. Remove battery if inserted.

Technical line drawing of a mechanical component with two views (top and side), showing internal structure and mounting features without any text or symbols.

Z

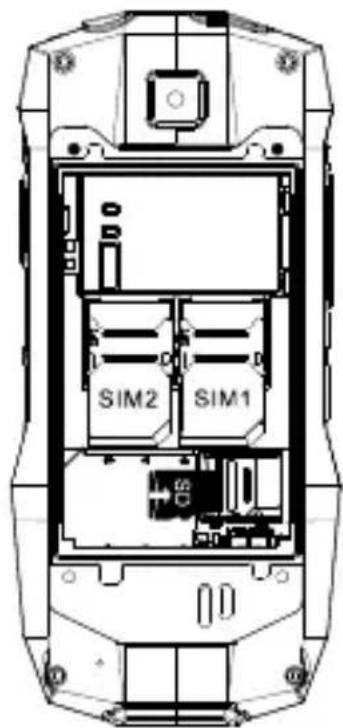

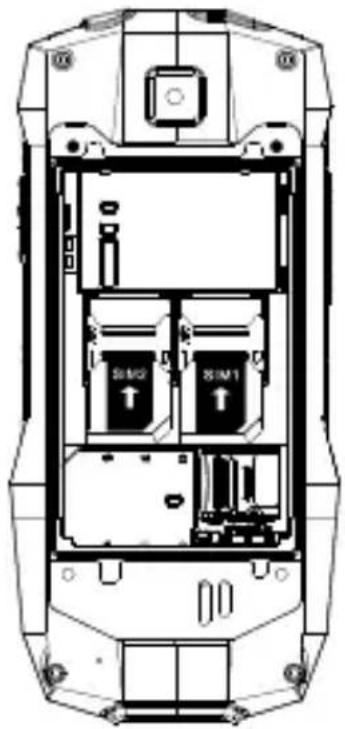

1. Insert SIM cards with pins down. Make sure, the cutouts on the cards are directed properly.

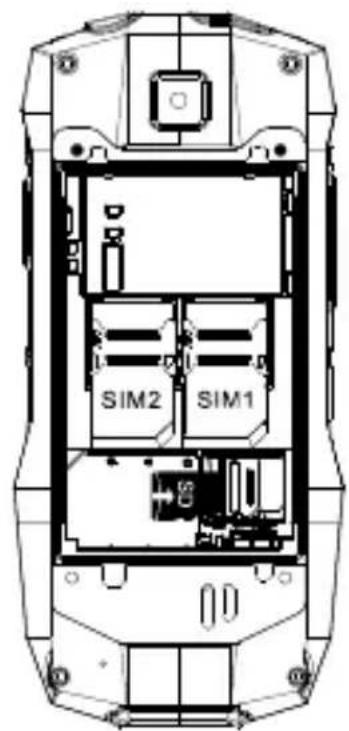

2. Install microSD card (slide and lift the slot cover; place the card into the slot and close the cover). Make sure, the cutouts on the card is directed properly.

1. Place the battery in the battery compartment (pay attention to correct polarity). Close the back cover. Tighten the mounting screws (make sure the back cover has been tightly closed).

Technical line drawing of a mechanical component with internal structure and directional arrow (no text or symbols)

Z

Notes:

- Prior to battery / SIM/memory cards removal from the phone, disconnect the phone from the AC/DC ada and turn it off (otherwise it can damage cards' memory).

• Exercise caution when operating cards, as friction bending may damage them.

• The phone is not a toy, keep it away from children.

• Memory and SIM cards are very small objects. Keep them away from children!

- It is suggested to use memory cards of class higher. Other cards may not be compatible.

- If the memory card cannot be read, make sure it has been installed properly.

- Producer does not guarantee compatibility of the device with every memory card.

• Note: Dual SIM will shorten the battery time compared to single SIM.

• Make sure the battery is fully charged if it has been out of use for a long period.

INGRESS PROTECTION RATING

The device underwent tests in controlled environment, which have proven the device is water and dust resistant under certain conditions - i.e. it meets IP68 classification requirements (Degree of protection provided by enclosures). The tests conducted under laboratory conditions indicated device's resistance during submersion to up to 1 meter depth for period up to 30 minutes. Do not use this device in conditions different from test conditions! Producer reserves the possibility for the results to vary in actual use.

Note: Despite this classification, your device is not impervious to water damage in any situation. Ensure the battery cover, lock screw, earphone and USB rubber plugs are perfectly closed while using near water, or in a humid or dusty environment, to ensure the device remains waterproof and dust proof. Exposing this device in places where IP classification restrictions may be validated or subjecting the device to shock or falling down may result in loss of the water and dust resistance. Do not expose the device to salt or ionized water.

Maintenance after removing from water

• After removing from water, do not uncover the phone body until it is completely wiped dry by towels or tissue papers.
- Open the cover facing downwards to prevent any water remaining in the cover slots from entering the phone's body.
- Carefully dry away water drops from the phone's

speaker, earpiece and microphone after the entire phone has been removed from water, and then place to dry in open air. Do not use electric hair dryers to dry the phone.

- NOTE: Water and dust protection rating is not permanent, and can decrease over time, as a result of everyday usage of the device. Despite the IP68 rating and strengthened casing, the device is not resistant to damages in certain situations. The warranty does not cover mechanical nor liquid damages. The device will not be subject to warranty repair in the event of damage caused by exceeding the conditions of the IP classification requirements and those listed in the above user's manual.

CHARGING

1. Connect an AC/DC adapter to the device and power mains socket.
2. When charging, battery icon will be flashing until fully charged.

Note: before charging, ensure that the voltage and frequency of the local mains supply match the rated voltage and power of the power adaptor.

Overheating

While charging, the temperature of the device and the charger may get increased. This does not affect the device's lifespan or performance and is in the device's normal range of operation.

However, if there is an excessive increase in temperature or overheating, depending on the factor that caused it: device's performance may be significantly reduced, charging process may be stopped, the device may turn off or display notification about switching off for cooling.

Z

Function available only in selected models. Important: if the device displays notification about overheat, turn it off and do not turn it back on until completely cooled down!

In case of overheat during charging:

1. Disconnect the charger from the device.
2. Close any running apps.
3. Wait for the device to cool down, and then begin charging the device again.

If the part of the device where the USB port is placed overheats, check for damage to the connected USB cable.

Replace the damaged USB cable with a new authorized cable.

The device may also overheat during operation when using several battery consuming applications or functions. In case of overheat during usage:

1. Close any running apps.
2. Disconnect any connectivity (Bluetooth, Wi-Fi, data transfer etc.).
3. Lower the screen brightness settings.
4. Wait for the device to cool down before attempting to use it again.

Safety precautions concerning operation environment In order to maintain battery's longevity, and to avoid overheat, follow basic precautions including provisions listed below:

1. Do not use / store the device in very hot or cold environments nor expose to direct sunlight (e.g. on a car's dashboard when using as a navigation).
2. Do not place the device on surfaces that may cause overheat e.g. electric heating mat.
3. Do not place near sources of heat e.g. radiators, microwave ovens, hot kitchen appliances nor high pressure containers.
4. DO NOT use damaged charger or battery!
5. Use only authorized chargers, batteries and cables! Using unauthorized accessories may damage the device or battery. Connecting charger with inadequate parameters may result with damage to the device and poses risk to the user.

OPERATION

TURN ON/OFF

To turn on the phone, press and hold button marked with a red receiver (end call button). If the PIN code has been set beforehand, device will prompt to input the digits.

To turn off the phone, press and hold button marked with a red receiver (end call button).

PHONE LOCK

To lock the phone, press and hold "*" button.

Press the left function button, then press “*” button to unlock the phone.

LANGUAGE SELECTION

To change language settings, press ← button OR go to Settings in main menu, open Phone settings tab and enter Language. Select desired and confirm.

DIALING CALLS

Insert number using numerical buttons and press the button marked with a green receiver (dial call button). User can also dial the call by selecting a number from contact list or a call list.

ANSWERING/ENDING/REJECTING INCOMING CALLS

To answer an incoming call, press button marked with a green receiver (dial call button). To end/reject call, press button marked with a red receiver (end call button).

Note: If the number is not restricted it will be displayed on the screen. And if the number is in phone book, the contact name will be displayed too.

MESSAGES

To display messages, go to the appropriate tab in main menu. To create a new message, select "Write message". For input method change when typing message, press "#" button.

CONTACTS

Z

User can save names and phone numbers in SIM card or phone memory. Color SIM card symbol with a number, on the right of the entry in Contacts symbolizes on which card is the contact saved. Contacts with no symbol symbolize it is saved on the phone.

ADDING NEW CONTACT

To add a new contact, select "Add new contact". Then select desired save place: SIM1, SIM2, phone.

PHONEBOOK SETTINGS

• Speed dial: user can set up to 8 numbers for speed dial. Once a number has been set, press and hold respective number (2-9) to dial a call.
• When on main screen, to set voicemail number, press and hold "1" button.
• Copy contacts: highlight the contact and select copy contact option. If the phone or SIM card memory is full, the device will prompt about it on the screen.
• Delete all contacts: select delete all contacts option and choose whether to delete contacts from SIM1/SIM2/phone.

CALL CENTER

Enter to display dialed, received and missed calls. To display available options, press the left function button (view number, call number, send SMS, save to phonebook, add to blacklist, delete).

POWER BANK FUNCTION

KM0459 model has a power bank function. The phone can serve as a portable charging device. To charge an external device, connect USB cable to the phone and an external device and enable the function in Tools tab.

INTERNET SERVICE

KM0460 model allows for connecting with internet and has a preinstalled Facebook app as well as support e-mail.

CLEANING

Use only soft, slightly damp cloth to clean this product. Do not use any abrasives nor any chemical detergents, as it may damage the phone.

TROUBLESHOOTING

If you experience difficulties when operating the mobile phone refer to the following table to solve the problem. If the problem persists, contact an authorized service

point.

Problem Cause Solution
SIM card error	The SIM card is damaged	Contact your network service provider
	The SIM card is inserted incorrectly	Check the SIM card
	The metal part of the SIM card is polluted	Clean the SIM card with a clean cloth
Poor quality of the received signal	Signals are obstructed. E.g., radio waves cannot be effectively transmitted in a basement.	Move to a place where signals can be effectively transmitted
The phone cannot be powered on	The battery is exhausted	Charge the battery
	The battery may be installed improperly	Check if the battery has been installed correctly
The battery cannot be charged	The charging voltage does not match the voltage range indicated on the charger	Ensure the charging voltage matches the voltage range indicated on the charger
	Poor contact Ensure the charger plug is in good contact

SPECIFICATION

	KM0459 KM0460
Main parameters	CPU: MTK6261D CPU: MT6276A
	RAM: 32 Mb RAM: 64 MB
	Internal memory: 32 Mb	Internal memory: 128 MB
	External memory: max. 32 GB
Display Size: 2,4" QVGA
Multimedia	Camera: 0,3 Mpx Camera: 2,0 Mpx
	FM Radio
	Microphone
	Speaker
	- Facebook
	- E-mail

Z

Connectivity	Network: GPRS, WCDMA	Network: 3G, GPRS, WCDMA, WAP
	- WiFi: 802.11	b/g
	Bluetooth: 2.1
I/O	Dual SIM
	microSD card reader
	micro USB
	Earphone jack (3,5 mm)
Power supply	Power supply: 5 V / 1000 mA
	Battery capacity: 2500 mAh
	Power bank function
Ingress protection	IP68

IMPORTANT: The producer allows the possibility for minor variations in display brightness and color between individual devices. There may be visible light or dark spots on the display. Up to 5 defective pixels are acceptable to be present on the display of the device. Above mentioned cases concerning device's display are not covered under warranty nor statutory warranty rights.

LEARN MORE

For more information on this device visit: www.krugermatz.com.

Read owner's manual carefully before using your device.

Visit www.krugermatz.com website for more products and accessories.

In case of any doubts or questions reach out to our Frequently Asked Questions section.

Please note: illustrations and descriptions concerning operating system are for reference only, and may vary from actual software on your device!

Please note: illustrations and descriptions concerning operating system are for reference only, and may vary from actual software on your device!

Lechpol Electronics Sp. z o.o. Sp.k. hereby declares that mobile phone KM0459 / KM0460 is consistent with directive 2014/53/UE. Full text of the EU Declaration of Conformity is available at following Internet address: www.lechpol.eu.

English

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Made in China for LECHPOL ELECTRONICS Sp. z o.o. Sp.k., ul. Garwolińska 1, 08-400 Miętne.

Z

FUNKCJE KLAWISZY

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with internal features and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with internal components and a downward arrow indicating motion (no text or symbols)

Uwagi:

STOPIÉN OCHRONY (IP)

FUNCTIILE BUTOANELOR

Technical line drawing of a vehicle chassis frame with no visible text or symbols

Technical line drawing of a cylindrical mechanical component with internal features and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with internal features and a downward arrow indicating motion (no text or symbols)

Note:

Completely black image with no visible content or text.

Completely black image with no visible content, text, or symbols.

Abstract wavy line pattern with no text or symbols

www.krugermatz.com

Krüger&Matz is a registered trademark
