SVC 3459 - Vacuum Cleaner SINBO - Free user manual and instructions

Product Type	Bagless Vacuum Cleaner
Model	SVC 3459
Brand	SINBO
Power Supply	AC 230V, 50Hz
Power Consumption	1400 W
Dust Capacity	Dust barrel (approx. 1.5L semi-transparent)
Filtration	Foam filter + orange colored filter canister
Cord Length	Approx. 6 m with automatic rewind
Weight	Approx. 4.5 kg
Dimensions	Approx. 30 x 25 x 20 cm (main unit)
Included Accessories	Stainless steel telescopic tube, flexible hose, floor brush, crevice nozzle
Main Functions	Dry vacuum cleaning for carpets and hard floors; adjustable floor brush with retractable bristles
Safety Features	Double insulation; protective thermostat for motor (auto shut-off on overheating)
Maintenance	Empty dust barrel when half full; wash foam filter and filter canister regularly; replace if damaged
Repairability	Filter and accessories are replaceable; cord/plug repair by qualified personnel only
Warranty	Standard warranty applies; failure to follow precautions may void warranty
Usage Warnings	Not suitable for picking up flammable liquids or hot ashes; keep away from heat sources
Intended Users	Adults; not for persons with reduced abilities without supervision; children should not play with appliance

Frequently Asked Questions - SVC 3459 SINBO

How do I assemble the vacuum cleaner?

Insert the flexible hose into the air intake duct until it clicks. Attach the telescopic tube to the hose and then the floor brush. Adjust the tube length. Always unplug before fitting accessories.

How do I switch on the vacuum cleaner?

Ensure the vacuum is assembled. Unwind the power cord to the yellow mark (but not beyond the red mark). Plug into a 230V outlet and press the On/Off button.

How do I empty the dust barrel?

Unplug the vacuum. Press the knob on top of the dust barrel to remove it. Press the bottom knob to open the cover and empty contents into a bin. Refit the barrel.

How do I clean the filters?

Remove the dust barrel, then open the top by turning it anticlockwise. Take out the foam filter and orange filter canister. Wash both under running water, air dry for 24 hours, then reassemble correctly.

How do I clean the air outlet filter?

Press the tab on the rear grill to remove it. Take out the air outlet filter and clean or replace it.

The vacuum cleaner loses suction. What should I do?

Check if the dust barrel is full and empty it. Clean the filters as described. Also inspect the hose, tube, and nozzle for blockages and clear them.

The vacuum cleaner suddenly stopped working.

This may be due to the motor's protective thermostat activating from overheating. Unplug, empty dust barrel, clean filters, and allow unit to cool for about 1 hour. Then replug and restart.

Can I clean wet surfaces or pick up liquids?

No. This vacuum cleaner is for dry use only. Do not use outdoors on wet surfaces or to pick up liquids.

How do I rewind the power cord?

Turn off the vacuum and unplug. Press the rewind button while guiding the cord with your other hand to prevent whipping.

What do the different floor brush positions do?

For carpets, the bristles should be retracted (in) to glide easily. For hard floors, extend the bristles out to avoid scratching.

USER MANUAL SVC 3459 SINBO

Children being supervised not to play with the appliance.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

ÖNEMLİ UYARILAR

TEKNİK ÖZELLİKLER

Model: SVC 3459

Voltaj: AC230V, 50Hz

Güç: 1400 W

TASIMA VE NAKLIYE ESNASINDA

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Carefully read this manual before using this appliance.

Ensure that you know how the appliance functions and how to operate it.

Maintain the appliance in accordance with the instructions to ensure that it functions properly.

Keep this manual with the appliance. If the appliance is to be used by a third party, this instruction manual must be supplied with it.

The safety instructions do not by themselves eliminate any danger completely and proper accident prevention measures must always be used.

No liability can be accepted for any damage caused by non-compliance with these instructions or any other improper use or mishandling.

Do not use this appliance if it has been dropped or damaged in any way, or if the supply cord is damaged.

PACKAGE CONTENTS

1 x 1400W Bagless Vacuum Cleaner
1 x Stainless Steel Telescopic Tube
1 x Flexible Hose
1 x Floor Brush
1 X Crevice Nozzle
1 x Instruction Manual

Confirm all parts before disposing of carton. Safely dispose of all plastic bags and other packaging components. They may be potentially dangerous to children.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precaution should always be followed.

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

WARNING - To reduce the risk of fire, electric shock, or injury:

1. Do not leave vacuum cleaner when plugged in. Unplug from outlet when not in use and before servicing.
2. To reduce the risk of electric shock, do not use outdoors or on wet surfaces.
3. If the vacuum cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service centre.
4. Do not use with damaged supply cord or plug. If the supply cord is damaged, the manufacturer or its service agent or a similarly qualified person must replace it in order to avoid a hazard.
5. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a

IMPORTANT SAFETY INSTRUCTIONS

person responsible for their safety.

1. Children should be supervised to ensure that they do not play with the appliance.
2. Do not carry by the cord, use cord as a handle, close door on cord, or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.
3. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
4. Do not handle plug or vacuum cleaner with wet hands.
5. Do not put any object into openings. Do not use with any opening or outlet blocked. Keep free of dust, lint, hair and anything that may reduce airflow.
6. Keep hair, loose clothing, fingers and all parts of the body away from openings and moving parts.
7. Turn all controls off before unplugging.
8. Use extra care when cleaning on stairs.
9. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present
10. Hold plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.
11. Unplug before connecting the hose.
12. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
13. Do not use without filters in place.
14. This appliance is double insulated for your protection. Do not attempt to repair a double insulated appliance.

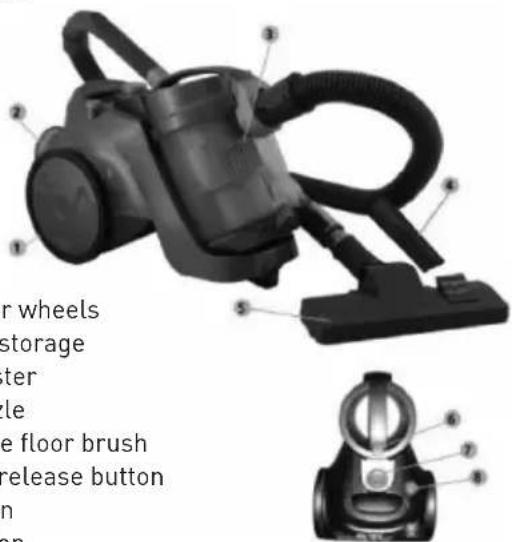

NAME OF PARTS

1. Large rubber wheels
2. Power cord storage
3. Filter cannister
4. Crevice nozzle
5. Dual purpose floor brush
6. Dust barrel release button
7. On/Off button
8. Rewind button

USING

ASSEMBLING THE VACUUM CLEANER

Always remove the plug from the power socket before fitting or removing accessories!

1. Fitting the flexible hose

Insert the flexible hose into the air intake duct at the front of the appliance. Press until it clicks into position.

2. Removing the flexible hose

Remove the plug from the power socket. To release the flexible hose, firmly squeeze the release buttons on both side and pull out from the air intake duct.

3. Fitting the extension tube and floor brush

Simply insert the tube into the available end of the flexible hose and insert the floor brush to the other end of the tube. Adjust the telescopic tube to the desired length.

USING THE VACUUM CLEANER

1. Assemble the vacuum cleaner as described above.
2. Before using the appliance, unwind a sufficient length of cable and insert the plug into a suitable 230V \~ 50Hz power socket. A yellow mark on the power cable shows the ideal cable length.

CAUTION: Do not extend the cable beyond the red mark and never pull out or retract the cord while the machine is running.

1. Press the ON/OFF button to switch the appliance on.

2. Choose a suitable adjustable floor brush position for surface to be cleaned:

a) Carpets – The bristles should be in (retracted) to enable the floor head to glide on the carpet.

b) Hard Floors – The Bristles should be out (extended).

1. Keep an eye on the dust barrel and when it is half full, it is time to empty it

2. To rewind the power cord, turn off the vacuum cleaner and unplug from the power socket. Press down on the cord rewind button with one hand and guide the power cord with the other hand to ensure that it does not whip causing damage or injury.

EMPTYING THE VACUUM CLEANER

Emptying the dust barrel

Always unplug the unit from electrical outlet before removing the dust barrel.

1. Press the knob on the top of the dust barrel.
2. Lift dust barrel back and up.
3. Hold the barrel over a rubbish bin or other suitable area for collecting the contents of the barrel.
4. Press the knob at the bottom end of dust barrel to open the dust barrel cover. The contents are emptied from the bottom of the barrel.
5. Refit the dust barrel to the vacuum cleaner

CLEANING THE FILTERS

The sponge filter needs to be cleaned regularly; the frequency will depend entirely on the environment it is used in. If you notice a lack of suction the filter should be removed and thoroughly washed under a mains pressure tap. Always ensure the filter is completely dry before refitting to the dust barrel.

Removing & Cleaning the Dust Barrel Filter

1. Remove the dust barrel as described above.
2. Open the top of the dust barrel by holding the dust barrel and turning the top of the dust barrel anticlockwise approx 20mm till it unclips.
3. Lift off the top of the barrel and remove the foam filter and orange coloured filter canister, taking note of how the parts are assembled.
4. Thoroughly wash the foam filter and orange coloured filter canister under a mains pressure tap and allow to air dry for 24 hours.
5. Replace the parts back to the dust barrel making sure they are positioned correctly. It is imperative that after the dust barrel has been disassembled, it is reassembled correctly.

Make sure the tab at the top of the orange coloured filter canister is slotted into the receptacle in the barrel and the sponge filter is the right way up (the word UP & an arrow is moulded in the top of the plastic sponge filter housing).

Removing & Cleaning the Air Outlet Filter

1. Remove the air outlet grill located at the rear of the vacuum cleaner by pressing the tab at the top of the grill and lift away.
2. Remove the air outlet filter for cleaning or changing.

PRECAUTIONARY MEASURES

All filters should be checked regularly for signs of damage, preferably after each use. The filters must be replaced immediately if they become damaged. Always disconnect the vacuum from the electrical outlet when checking the filters.

This vacuum cleaner is equipped with a plug and a cord, which rolls up automatically. If any of these parts get damaged, it must be repaired by a qualified repairman or electrician.

IMPORTANT: The motor is equipped with a protective thermostat. If for some reason the vacuum cleaner should overheat, the thermostat will automatically turn the unit off. Should this occur unplug the vacuum cleaner from the wall outlet and turn off switch. Remover dust canister, empty contents and clean the filter. Allow the unit to cool for approximately 1 hour. To restart, re-plug into wall outlet and turn switch back on.

TO PREVENT DAMAGE TO YOUR VACUUM CLEANER

1. Never unwind or rewind the cord while the vacuum cleaner is turned on or plugged in, this may produce arcing of the terminals in the cord rewind mechanism and cause an open circuit. Do not extend the cable beyond the red mark.

CLEANING THE FILTERS

1. Be sure to check that parts are correctly in place, if not, then damage to the vacuum cleaner motor can occur.
2. If the hose inlet, the hose, tube or nozzle attachments are blocked, switch off the vacuum cleaner. Clear the blockage before you attempt to start the vacuum cleaner again.
3. Do not obstruct the air outlet. Do not operate this vacuum cleaner with it standing on its back side i.e. air outlet sitting on the ground. Only operate this unit when all 3 wheels are on the ground.
4. Do not operate the vacuum cleaner too close to heat sources such as heaters, open fires, cigarette butts etc
5. Never run the vacuum cleaner without all the filters and parts correctly in place.
6. Before you start using the vacuum cleaner, remove any large or sharp objects from the floor in order to prevent damage to the floor brush, tube, hose, and filters.

Failure to observe the above precautions may void any warranty

TECHNICAL SPECIFICATIONS

Model: SVC3459

AC230V, 50Hz, 1400 W
