Brand	Toyota
Model	Camry CNG (2001)
Category	Automobile
Vehicle Type	Sedan
Fuel Type	Compressed Natural Gas (CNG)
Engine Displacement	2.2 L (2,164 cc) 4-cylinder
Power Output	130 hp (97 kW) @ 5,200 rpm
Torque	135 lb-ft (183 Nm) @ 4,400 rpm
Transmission	4-speed automatic
Length	188.5 in (4,788 mm)
Width	70.1 in (1,781 mm)
Height	55.1 in (1,400 mm)
Wheelbase	105.1 in (2,670 mm)
Curb Weight	3,250 lbs (1,474 kg)
Fuel Tank Capacity (CNG)	8.0 GGE (gallons gasoline equivalent)
Fuel Economy (City/Hwy)	20/26 mpg (gasoline equivalent)
Seating Capacity	5 passengers
Safety Features	Dual front airbags, ABS brakes, side-impact beams
Maintenance	Regular oil changes, CNG system inspection, fuel filter replacement
Recommended Oil	5W-30 synthetic (API SL or higher)
Spare Parts	CNG injectors, high-pressure lines, pressure regulators

Frequently Asked Questions - Camry CNG (2001) TOYOTA

What is the fuel efficiency of the 2001 Toyota Camry CNG?

The 2001 Toyota Camry CNG achieves approximately 20 mpg city and 26 mpg highway in terms of gasoline equivalent. Actual range may vary based on driving conditions and tank pressure.

How often should I service the CNG system?

It is recommended to have the CNG system inspected every 12,000 miles or 12 months. This includes checking for leaks, inspecting hoses and fittings, and replacing the fuel filter as needed.

Can I convert a regular Camry to CNG?

Converting a regular gasoline Camry to CNG is possible but requires a professional CNG conversion kit and must comply with local regulations. The 2001 Camry was factory-built for CNG, so conversion may not be cost-effective.

Where can I refuel a CNG Camry?

CNG refueling stations are available in many urban areas. Use apps or websites like CNGNow or AFDC to locate stations. Some home refueling units (Phill) are also available, but require a natural gas line.

Is it safe to drive a CNG vehicle?

Yes, CNG vehicles are designed with multiple safety features including pressure relief valves, rupture discs, and automatic shut-off valves. The fuel tank is made of composite material that is stronger than steel and impact-resistant.

What is the range of the Camry CNG on a full tank?

With an 8.0 GGE tank, the 2001 Camry CNG has an estimated range of 170-210 miles depending on driving conditions. Carrying additional CNG tanks in the trunk is not recommended due to safety regulations.

What engine oil should I use?

Use 5W-30 synthetic oil meeting API SL or higher standards. CNG engines run cleaner, so oil change intervals can be extended to 7,500 miles under normal conditions, but check the manual.

How do I store the CNG tank when not in use?

If the vehicle is parked for an extended period, it is recommended to depressurize the tank slowly by running the engine until the fuel is nearly empty. Keep the tank away from heat sources and ensure manual shut-off valve is closed.

Are there any common issues with the CNG system?

Common issues include clogged CNG injectors due to impurities, pressure regulator failure, and leaking hoses. Regular maintenance and using high-quality CNG can mitigate these problems.

Can I still use gasoline in an emergency?

No, the factory 2001 Camry CNG is a dedicated CNG vehicle and cannot run on gasoline. It does not have a gasoline fuel system. Do not attempt to add gasoline as it can damage the engine and CNG components.

USER MANUAL Camry CNG (2001) TOYOTA

Overview of instruments and controls

Instrument panel overview 2

Instrument cluster overview 4

Indicator symbols on the instrument panele 5

'01CAMRY CNG (L/O0009)

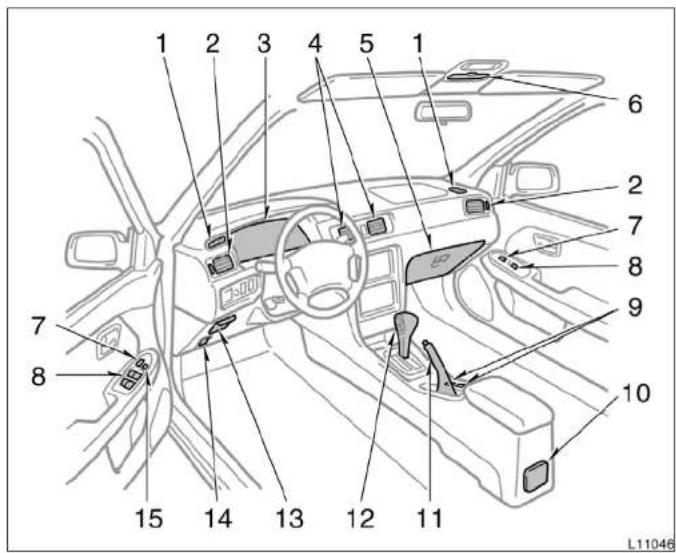

Instrument panel overview

1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Glove box
6. Garage door opener box or auxiliary box
7. Power door lock switches
8. Power window switches
9. Cup holders
10. Cup holder or rear ashtray
11. Parking brake lever
12. Automatic transmission selector lever
13. Auxiliary box
14. Hood lock release lever
15. Window lock switch

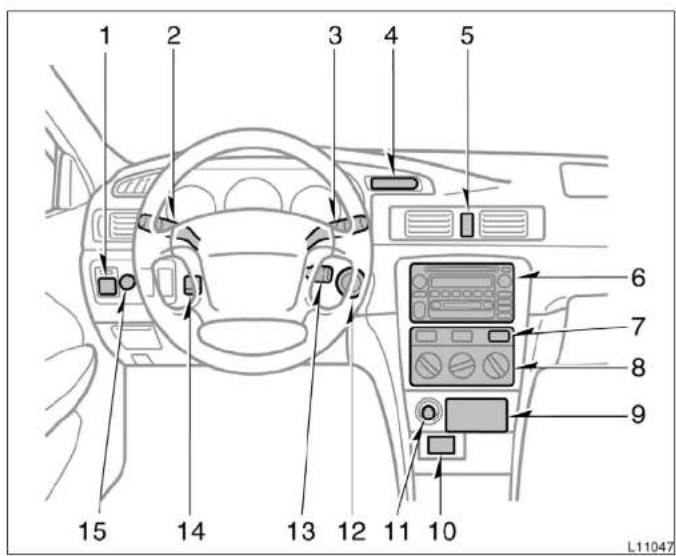

'01CAMRY CNG (L/O0009)

1. Power rear view mirror control switches
2. Headlight and turn signal switch
3. Wiper and washer switches
4. Clock/outside temperature gauge
5. Emergency flasher switch
6. Car audio
7. Rear window and outside rear view mirror defoggers switch
8. Air conditioning controls
9. Front ashtray
10. Power outlet
11. Cigarette lighter
12. Ignition switch
13. Cruise control switch
14. Tilt steering lock release lever
15. Instrument panel light control knob

'01CAMRY CNG (L/O0009)

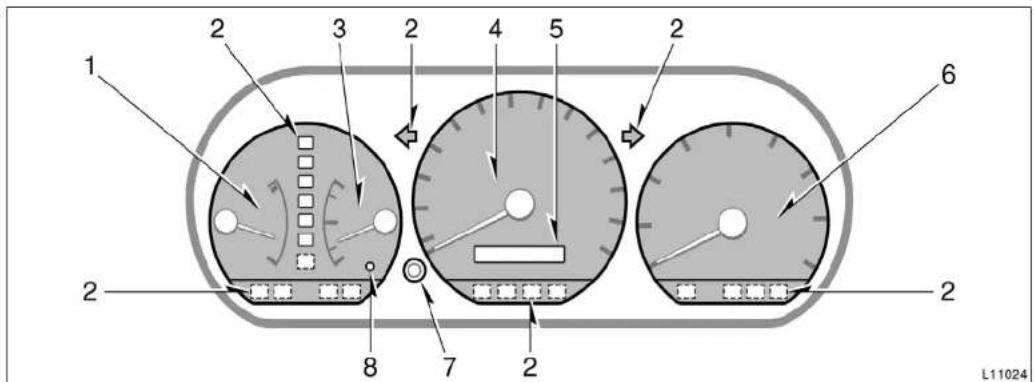

Instrument cluster overview

1. Engine coolant temperature gauge
2. Service reminder indicators and indicator lights

3. Fuel gauge

4. Speedometer

5. Odometer and two trip meters

6. Tachometer

7. Trip meter reset knob

8. Low fuel level warning light

'01CAMRY CNG (L/O0009)

Indicator symbols on the instrument panel

BRAKE	Brake system warning light*1
	Seat belt reminder light*1
	Discharge warning light*1
	Malfunction indicator lamp *1
	Low oil pressure warning light1
ABS	Anti-lock brake system warning light1
	Open door warning light*1
	Rear light failure warning light*1
	SRS warning light*1

	Low windshield washer fluid level warning light *1
	Turn signal indicator lights
	Headlight high beam indicator light
O/D OFF	Overdrive-off indicator light
CRUISE	Cruise control indicator light *2
PRN D 2 L	Automatic transmission indicator lights

*1: For details, see "Service reminder indicators and warning buzzers" in Section 1-5.
*2: If this light flashes, see "Cruise control" in Section 1-6.

'01CAMRY CNG (L/O0009)

'01CAMRY CNG (L/O0009)

SECTION 1-2

OPERATION OF INSTRUMENTS AND CONTROLS

Keys and Doors

Keys 8

Side doors 8

Power windows 10

Trunk lid 12

Hood 14

Refueling 15

'01CAMRY CNG (L/O0009)

Keys

Your vehicle is supplied with two kinds of keys.

1. Master key—This key works in every lock.
2. Sub key—This key will not work in the glove box and trunk.

To protect things locked in the glove box or trunk when you have your vehicle parked, leave the sub key with the attendant.

Since the doors and trunk lid can be locked without a key, you should always carry a spare master key in case you accidentally lock your keys inside the vehicle.

Illustration of a key being inserted into a keyhole, showing the handle and keychain (no text or symbols)

KEY NUMBER PLATE

Your key number is shown on the plate. Keep the plate in a safe place such as your wallet, not in the vehicle.

If you should lose your keys or if you need additional keys, duplicates can be made by your authorized Toyota CNG dealer using the key number.

We recommend you to write down the key number and keep it in safe place.

Side doors

Diagram of a door handle with a switch and circular arrow indicating rotation (no text or symbols)

LOCKING AND UNLOCKING WITH KEY Insert the key into the keyhole and turn it.

To lock: Turn the key forward.

To unlock: Turn the key backward.

All the doors lock and unlock simultaneously with either front door. In the driver's door lock, turning the key once will unlock the driver's door and twice in succession will unlock all the doors simultaneously.

'01CAMRY CNG (L/O0009)

Diagram of a door handle with directional arrows indicating movement or force (no text or symbols)

LOCKING AND UNLOCKING WITH INSIDE LOCK BUTTON

Move the lock button.

To lock: Push the knob forward.

To unlock: Pull the knob backward.

Closing the door with the lock knob in the lock position will also lock the door. Be careful not to lock your keys in the vehicle.

The door cannot be locked if you leave the key in the ignition switch.

Line drawing of a car interior layout with a control panel and directional arrows (no text or symbols)

Driver's side

Simple line drawing of a car roof with two arrows pointing to a vehicle (no text or symbols)

Passenger's side

LOCKING AND UNLOCKING WITH POWER DOOR LOCK SWITCH

Push the switch.

To lock: Push the switch on the front side. To unlock: Push the switch on the rear side.

All the doors lock or unlock simultaneously.

'01CAMRY CNG (L/O0009)

REAR DOOR CHILD-PROTECTORS

Move the lock lever to the "LOCK" position as shown on the label.

This feature allows you to lock a rear door so it can be opened from the outside only, not from inside. We recommend using this feature whenever small children are in the vehicle.

CAUTION

Before driving, be sure that the doors are closed and locked, especially when small children are in the vehicle. Along with the proper use of seat belts, locking the doors helps prevent the driver and passengers from being thrown out from the vehicle during an accident. It also helps prevent the doors from being opened unintentionally.

Power windows

Line drawing of a car interior with a hand holding a device (no text or symbols)

The windows can be operated with the switch on each door.

The power windows work when the ignition switch is in the "ON" position.

Key off operation: If both front doors are closed, they work for 43 seconds even after the ignition switch is turned off. They stop working when either front door is opened.

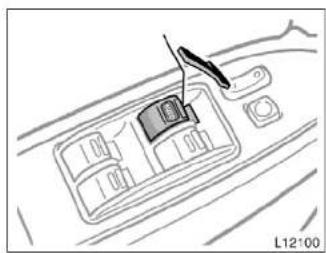

Use the switch on the driver's door.

Normal operation: The window moves as long as you hold the switch.

To open: Lightly push down the switch. To close: Pull up the switch.

'01CAMRY CNG (L/O0009)

Line drawing of a car interior with a hand holding a tool, showing no text or symbols

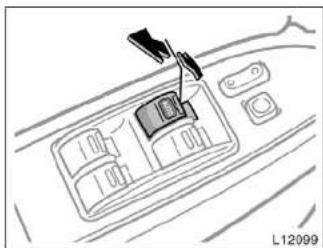

Automatic operation (to open only): Push the switch completely down and then release it. The window will fully open. To stop the window partway, lightly pull the switch up and then release it.

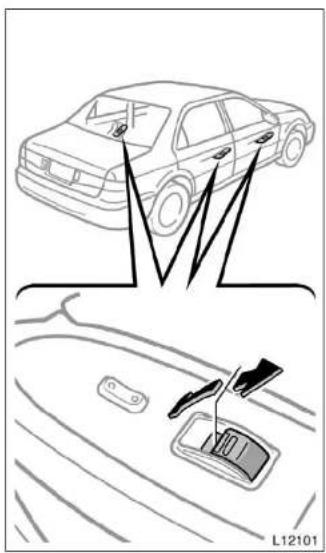

Use the switches on the passengers' doors. The driver's door also has switches that control the passengers' windows.

The window moves as long as you hold the switch.

To open: Push down the switch.

To close: Pull up the switch.

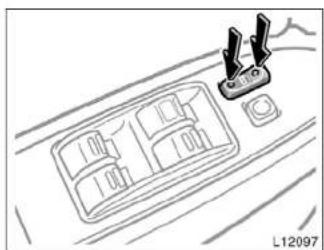

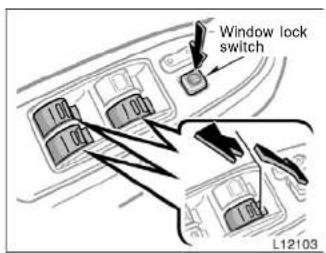

If you push in the window lock switch on the driver's door, the passengers' windows cannot be operated.

Diagram showing car interior and dashboard view with sensor points (no text or symbols)

CAUTION

To avoid serious personal injury, you must do the following.

●Always make sure the heads, hands and other parts of the bodies of all occupants are kept completely inside the vehicle before you close the power windows. If someone's neck, head or hands gets caught in a closing window, it could result in a serious injury. When anyone closes the power windows, make sure that he/she operates the windows safely.
- When small children are in the vehicle, never let them use the power window switches without supervision. Use the window lock switch to prevent them from making unexpected use of the switches.
●Never leave small children alone in the vehicle, especially with the ignition key still inserted. They could use the power window switches and get trapped in a window. Unattended children can be involved in serious accidents.

Trunk lid—

Diagram showing a car interior with a door and directional arrow, no text or symbols present

CAUTION

Keep the trunk lid closed while driving. This not only keeps the luggage from being thrown out but also prevents exhaust gases from entering the vehicle.

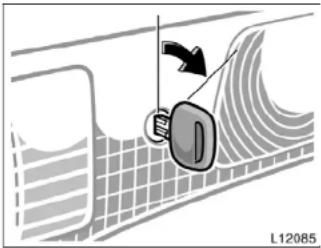

To open the trunk lid from the outside, insert the master key and turn it clockwise.

See "Luggage slowage precautions" in Section 2 for precautions in loading luggage.

To close the trunk lid, lower it and press down on it. After closing the trunk lid, try pulling it up to make sure it is securely closed.

'01CAMRY CNG (L/O0009)

—Lock release lever

Diagram showing a car seatbelt with a magnified inset highlighting the seatbelt mechanism (no text or symbols present)

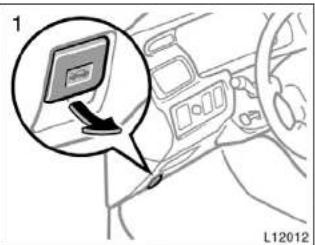

To open the trunk lid from the driver's seat, pull up on the lock release lever.

—Luggage security system

Diagram showing a car interior with a key inserted into the window and a curved arrow indicating direction (no text or symbols)

This system deactivates the lock release lever so that things locked in the trunk can be protected.

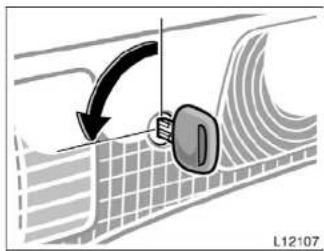

After closing the trunk lid, insert the master key and turn it counterclockwise to deactivate the lock release lever.
After closing the trunk lid, try pulling it up to make sure it is securely locked.

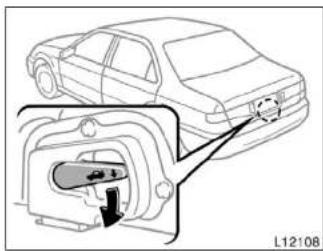

—Internal trunk release handle

Line drawing of a car showing the engine compartment with a close-up inset (no text or symbols)

If a person is locked in the trunk, pull down the phosphorescent handle (illuminated for a while) on the inside of trunk lid in case of emergency to open the trunk lid.
The handle illuminating time depends on the intensity of the light thrown on the handle.

'01CAMRY CNG (L/O0009)

CAUTION

●Always lock the trunk lid and all doors, and keep away the vehicle keys out of children's reaches.
●Never leave children unattended in the vehicle. Unsupervised children may lock themselves in the vehicle or trunk and suffer serious injuries or death.

Hood

To open the hood:

1. Pull the hood lock release lever. The hood will spring up slightly.

1. In front of the vehicle, pull up the auxiliary catch lever and lift the hood.

Before closing the hood, check to see that you have not forgotten any tools, rags, etc. Then lower the hood and make sure it locks into place. If necessary, press down gently on the front edge to lock it.

Refueling—

—Refueling precaution

When refueling, you must use a special nozzle that meets ANSI/AGA NGV-1-1994 standards.

There are three types of nozzles. Use a P36 type nozzle for this vehicle. If a P36 nozzle is not available at a nearby CNG station, you may use another type of nozzle, but you cannot expect to get a completely full tank with it.

For your safety, ask and follow the instructions at the refueling station when refueling.

Before starting to refuel, wipe off mud or dirt that may be deposited around the fuel receptacle.

You will hear a chattering noise from the tank when it is being filled, but this is quite normal.

If you hear fuel leaking from the fuel receptacle, stop refueling immediately and have your authorized Toyota CNG dealer check the fuel receptacle.

For information on CNG stations, refer to the station "Refueling station information" on page v in the beginning of this manual.

CAUTION

●In order to safety refuel and avoid serious personal injury, ask the CNG station staff to refuel the vehicle with CNG for you.
- Do not start the engine while refueling. As the natural gas is flammable, an explosion or a fire could occur. Also, do not smoke or allow open flames when refueling.
- If you smell or hear fuel leaking while refueling, immediately stop refueling. Do not refuel it until after the leak has been repaired.

—Refueling method (high speed refueling)

There are two ways of natural gas refueling: high and low speed. This manual explains typical high speed refueling. As for the low speed refueling method, follow the instructions provided by the manufacturer for the refueling equipments. 1. To open the refueling plug door, pull the lever up. When refueling, turn off the engine.

Diagram of a mechanical assembly with a rotating component and a directional arrow indicating motion (no text or symbols)

2. Remove the rubber cap. Check there is no mud or dirt around the fuel receptacle.

Mechanical assembly diagram showing a valve or actuator inside a housing (no text or symbols visible)

3. Fit the filling nozzle securely on the fuel receptacle. There are various types of filling nozzles so follow the instructions at each CNG station.

'01CAMRY CNG (L/O0009)


Mechanical assembly diagram showing a lever mechanism with a black arrow indicating motion (no text or symbols present)

4. Turn the valve lever to fasten the nozzle to the fuel receptacle and to start filling the tank. 5. Refueling will stop automatically when the tank is full. When disconnecting the filling nozzle, follow the instructions of the refueling station. Reverse the procedure to disconnect the nozzle after filling the tank. When disconnecting the filling nozzle, you may hear a brief hissing sound as a small amount of fuel escapes, but this is normal. '01CAMRY CNG (L/O0009)  '01CAMRY CNG (L/O0009)

SECTION 1-3

OPERATION OF INSTRUMENTS AND CONTROLS

Seats, Seat belts, Steering wheel and Mirrors Seats 20 Front seats 20 Head restraints 22 Seat belts 22 SRS driver and front passenger airbagsgs 31 Child restraint 39 Tilt steering wheel 56 Outside rear view mirrors 57 Anti-glare inside rear view mirroror 58 Sun visors 59

Seats

While the vehicle is being driven, all vehicle occupants should have the seatback upright, sit well back in the seat and properly wear the seat belts provided.

CAUTION

- Do not drive the vehicle unless the occupants are properly seated. Do not allow sitting on top of a folded-down seatback, or in the luggage compartment. Persons not properly seated and/or properly restrained by seat belts can be severely injured in the event of emergency braking or a collision. ●During driving, do not allow passengers to stand up or move around between seats. Severe injuries can occur in the event of emergency braking or a collision.

Front seats—

—Seat adjustment

precautions

Adjust the driver's seat so that the foot pedals, steering wheel and instrument panel controls are within easy reach of the driver.

CAUTION

- Adjustments should not be made while the vehicle is moving, as the seat may unexpectedly move and cause the driver to lose control of the vehicle. - When adjusting the seat, be careful not to hit the seat against a passenger or luggage. ●After adjusting the seat position, try sliding it forward and backward to make sure it is locked in position. ●After adjusting the seatback, exert body pressure to make sure it is locked in position. - Do not put objects under the seats. The objects may interfere with the seat-lock mechanism or unexpectedly push up the seat position adjusting lever; the seat may suddenly move, causing the driver to lose control of the vehicle. ●While adjusting the seat, do not put your hands under the seat or near the moving parts. You may catch and injure your hands or fingers.

'01CAMRY CNG (L/O0009)

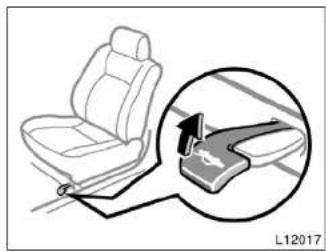

—Adjusting front seats  1. SEAT POSITION ADJUSTING LEVER Hold the center of the lever and pull it up. Then slide the seat to the desired position with slight body pressure and release the lever. 2. SEATBACK ANGLE ADJUSTING LEVER Lean forward and pull the lever up. Then lean back to the desired angle and release the lever.  3. SEAT CUSHION HEIGHT ADJUSTING KNOB Turn the knob either way.

'01CAMRY CNG (L/O0009)

 Head restraints

Illustration of two mechanical components with directional arrows indicating motion (no text or symbols)

Front

Diagram of a cylindrical object with two vertical supports and an upward arrow, connected by a line (no text or symbols)

Rear For your safety and comfort, adjust the head restraint before driving. To raise: Pull it up. To lower: Push it down while pressing the lock release button. Front head restraint only—You can also move the head restraint forward or backward. If such adjustment is desired, pull or push on the top of the head restraint. The head restraint is most effective when it is close to your head. Therefore, using a cushion on the seatback is not recommended.

CAUTION

- Adjust the center of the head restraint so that it is closest to the top of your ears. ●After adjusting the head restraint, make sure it is locked in position. - Do not drive with the head restraints removed.

Seat belts—

—Seat belt precautions

Toyota strongly urges that the driver and passengers in the vehicle be properly restrained at all times with the seat belts provided. Failure to do so could increase the chance of injury and/or the severity of injury in accidents. Child. Use a child restraint system appropriate for the child until the child becomes large enough to properly wear the vehicle's seat belts. See "Child restraint" for details. If a child is too large for a child restraint system, the child should sit in the rear seat and must be restrained using the vehicle's seat belt. According to accident statistics, the child is safer when properly restrained in the rear seat than in the front seat. If a child must sit in the front seat, the seat belts should be worn properly. If an accident occurs and the seat belts are not worn properly, the force of the rapid inflation of the airbag may cause death or serious injury to the child. Do not allow the child to stand up or kneel on either rear or front seats. An unrestrained child could suffer serious injury or death during emergency braking or a collision. Also, do not let the child sit on your lap. It does not provide sufficient restraint. Pregnant woman. Toyota recommends the use of a seat belt. Ask your doctor for specific recommendations. The lap belt should be worn securely and as low as possible over the hips and not on the waist. Injured person. Toyota recommends the use of a seat belt. Depending on the injury, first check with your doctor for specific recommendations.

CAUTION

Persons should ride in their seats properly wearing their seat belts whenever the vehicle is moving. Otherwise, they are much more likely to suffer serious bodily injury or death in the event of sudden braking or a collision. When using the seat belts, observe the following: - Use the belt for only one person at a time. Do not use a single belt for two or more people—even children. - Avoid reclining the seatbacks too much. The seat belts provide maximum protection when the seatbacks are in the upright position. (Refer to the seat adjustment instructions.) - Be careful not to damage the belt webbing or hardware. Take care that they do not get caught or pinched in the seat or doors. - Inspect the belt system periodically. Check for cuts, fraying, and loose parts. Damaged parts should be replaced. Do not disassemble or modify the system. - Keep the belts clean and dry. If they need cleaning, use a mild soap solution or lukewarm water. Never use bleach, dye, or abrasive cleaners—they may severely weaken the belts. (See “Cleaning the interior” in Section 5.) -Replace the belt assembly (including bolts) if it has been used in a severe impact. The entire assembly should be replaced even if damage is not obvious. —Front seat belts and rear outside seat belts

Illustration of a person adjusting a seatbelt with a belt, showing hands and a magnified view (no text or symbols)

Adjust the seat as needed (front seats only) and sit up straight and well back in the seat. To fasten your belt, pull it out of the retractor and insert the tab into the buckle. You will hear a click when the tab locks into the buckle. The seat belt length automatically adjusts to your size and the seat position. The retractor will lock the belt during a sudden stop or on impact. It also may lock if you lean forward too quickly. A slow, easy motion will allow the belt to extend, and you can move around freely. If the seat belt cannot be pulled out of the retractor, firmly pull the belt and release it. You will then be able to smoothly pull the belt out of the retractor. When a passenger's shoulder belt is completely extended and is then retracted even slightly, the belt is locked in that position and cannot be extended. This feature is used to hold the child restraint system securely. (For details, see "Child restraint" in this section.) To free the belt again, fully retract the belt and then pull the belt out once more.

CAUTION

●After inserting the tab, make sure the tab and buckle are locked and that the belt is not twisted. - Do not insert coins, clips, etc. in the buckle as this may prevent you from properly latching the tab and buckle. - If the seat belt does not function normally, immediately contact your authorized Toyota CNG dealer. Do not use the seat until the seat belt is fixed. It cannot protect an adult occupant or your child from injury.

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Seat belts with an adjustable shoulder anchor— Adjust the shoulder anchor position to your size. To raise: Slide the anchor up. To lower: Push in the lock release button and slide the anchor down. After adjustment make sure the anchor is locked in position.

'01CAMRY CNG (L/O0009)

CAUTION

Always make sure the shoulder belt is positioned across the center of your shoulder. The belt should be kept away from your neck, but not falling off your shoulder. Failure to do so could reduce the amount of protection in an accident and cause serious injuries in a collision.

CAUTION

\- High-positioned lap belts and loose-fitting belts both could cause serious injuries due to sliding under the lap belt during a collision or other unintended result. Keep the lap belt positioned as low on hips as possible. \- For your safety, do not place the shoulder belt under your arm. Adjust the position of the lap and shoulder belts. Position the lap belt as low as possible on your hips—not on your waist, then adjust it to a snug fit by pulling the shoulder portion upward through the latch plate.

'01CAMRY CNG (L/O0009)



Illustration of a hand using a belt drive a cable, showing motion and angle (no text or symbols)

To release the belt, press the buckle-release button and allow the belt to retract. If the belt does not retract smoothly, pull it out and check for kinks or twists. Then make sure it remains untwisted as it retracts. —Rear center seat belt  Sit up straight and well back in the seat. To fasten your belt, insert the tab into the buckle. You will hear a click when the tab locks into the buckle. If the belt is not long enough for you, hold the tab at a right angle to the belt and pull on the tab.

CAUTION

●After inserting the tab, make sure the tab and buckle are locked and that the belt is not twisted. - Do not insert coins, clips, etc. in the buckle as this may prevent you from properly latching the tab and buckle. - If the seat belt does not function normally, immediately contact your authorized Toyota CNG dealer. Do not use the seat until the seat belt is fixed. It cannot protect an adult occupant or your child from injury.

'01CAMRY CNG (L/O0009)

 Remove excess length of the belt and adjust the belt position. To shorten the belt, pull the free end of the belt. Position the lap belt as low as possible on your hips—not on your waist, then adjust it to a snug fit.

CAUTION

High-positioned and loose-fitting lap belts could cause serious injuries due to sliding under the lap belt during a collision or other unintended result. Keep the lap belt positioned as low on hips as possible.

Illustration of hands adjusting a belt buckle (no text or symbols)

To release the belt, press the buckle-release button. 2001 CAMRY CNG\_U (OM33542U)

—Seat belt extender

If your seat belt cannot be fastened securely because it is not long enough, a personalized seat belt extender is available from your authorized Toyota CNG dealer free of charge. Please contact your authorized Toyota CNG dealer so that he/she can order the proper required length for the extender. Bring the heaviest coat you expect to wear for proper measurement and selection of length. Additional ordering information is available at your authorized Toyota CNG dealer.

CAUTION

When using the seat belt extender, observe the following. Failure to follow these instructions could result in less effectiveness of the seat belt restraint system in case of vehicle accident, increasing the chance of personal injury. ●Never use the seat belt extender if you can fasten the seat belt without it.

'01CAMRY CNG (L/O0009)

●Remember that the extender provided for you may not be safe when used on a different vehicle, or for another person or at a different seating position than the one originally intended for.

Diagram of a car seatbelt buckle with two arrows indicating fastening (no text or symbols)

To connect the extender to the seat belt, insert the tab into the seat belt buckle so that the "PRESS" signs on the buckle-release buttons of the extender and the seat belt are both facing outward as shown. You will hear a click when the tab locks into the buckle. When releasing the seat belt, press on the buckle-release button on the extender, not on the seat belt. This helps prevent damage to the vehicle interior and extender itself. When not in use, remove the extender and store in the vehicle for future use.

CAUTION

●After inserting the tab, make sure the tab and buckle are locked and that the seat belt extender is not twisted. - Do not insert coins, clips, etc. in the buckle as this may prevent you from properly latching the tab and buckle. - If the seat belt does not function normally, immediately contact your authorized Toyota CNG dealer. Do not use the seat until the seat belt is fixed. It cannot protect an adult occupant or your child from injury.

'01CAMRY CNG (L/O0009)


—Front seat belt pretensioners


Interior view of a car showing two people seated in the driver's seat, with dashboard and steering wheel visible (no text or symbols)

The driver and front passenger's seat belt pretensioners are designed to be activated in response to a severe frontal impact. When the airbag sensor detects the shock of a severe frontal impact, the front seat belts are quickly drawn back in by the retractors so that the belts snugly restrain the front seat occupants. The front seat belt pretensioners are activated even with no passenger in the front seat. Collisions occurring at certain speeds and angles may cause the seat belt pretensioners and SRS airbags not to operate all together.

Diagram showing a boat with a moving object and a small boat on water, no text or symbols present

This indicator comes on when the ignition key is turned to the "ACC" or "ON" position. It goes off after about 6 seconds. This means the front seat belt pretensioners are operating properly. This warning light system monitors the airbag sensor assembly, front airbag sensors, front seat belt pretensioner assemblies, inflators, warning light, interconnecting wiring and power sources. (For details, see "Service reminder Indicators and warning buzzers" in Section 1-5.)  The front seat belt pretensioner system mainly consists of the following components and their locations are shown in the illustration. 1. Front airbag sensors 2. SRS warning light 3. Front seat belt pretensioner assemblies 4. Airbag sensor assembly The front seat belt pretensioners are controlled by the airbag sensor assembly. The airbag sensor assembly consists of a safing sensor and airbag sensor. When the front seat belt pretensioners are activated, an operating noise may be heard and a small amount of smoke-like gas may be released. This gas is harmless and does not indicate that a fire is occurring. Once the front seat belt pretensioners have been activated, the seat belt retractors remain locked.

CAUTION

Do not modify, remove, strike or open the front seat belt pretensioner assemblies, airbag sensor or surrounding area or wiring. Doing any of these may cause sudden operation of the front seat belt pretensioners or disable the system, which could result in death or serious injury. Failure to follow these instructions can result in death or serious injuries.

NOTICE

Do not perform any of the following changes without consulting your authorized Toyota CNG dealer. Such changes can interfere with proper operation of the front seat belt pretensioners in some cases. ◆Installation of electronic devices such as a mobile two-way radio, cassette tape player or compact disc player ◆Repairs on or near the front seat belt retractor assemblies ◆Modification of the suspension system ◆Modification of the front end structure ◆Attachment of a grille guard (bull bar, kangaroo bar, etc.), snowplow, winches or any other equipment to the front end ◆Repairs made on or near the front fenders, front end structure or console

Diagram showing a person falling into a boat's hull with a ship handle, no text or symbols present

This front seat belt pretensioner system has a service reminder indicator to inform the driver of operating problems. If any of the following conditions occurs, this indicates a malfunction of the airbags or pretensioners. Contact your authorized Toyota CNG dealer as soon as possible to service the vehicle. ●The light does not come on when the ignition key is turned to the "ACC" or "ON" position, or the light remains on. ●The light comes on or flashes while driving.

'01CAMRY CNG (L/O0009)

\- If either front seat belt does not retract or can not be pulled out due to a malfunction or activation of the relevant front seat belt pretensioner.

Top-down line drawing of a car (no text or symbols)

In the following cases, contact your authorized Toyota CNG dealer as soon as possible: ●The front part of the vehicle (shaded in the illustration) was involved in an accident that was not severe enough to cause the front seat belt pretensioners to operate. ●Either front seat belt pretensioner assembly or surrounding area is scratched, cracked, or otherwise damaged. SRS driver and front passenger airbags

Medical illustration of a surgical procedure in progress, showing anatomical structures without any text or symbols

The SRS (Supplemental Restraint System) front airbags are designed to provide further protection for the driver and front passenger in addition to the primary safety protection provided by the seat belts. In response to a severe frontal impact, the SRS airbags work together with the seat belts to help reduce injury by inflating. The SRS airbags help to reduce injuries mainly to the driver's or front passenger's head or chest caused by directly hitting the steering wheel or dashboard. The front passenger airbag is activated even with no passenger in the front seat. Be sure to wear your seat belt properly.

'01CAMRY CNG (L/O0009)


CAUTION

A driver or front passenger too close to the steering wheel or dashboard during airbag deployment can be killed or seriously injured. Toyota strongly recommends that: ●The driver sit as far back as possible from the steering wheel while still maintaining control of the vehicle. ●The front passenger sit as far back as possible from the dashboard. ●All vehicle occupants be properly restrained using the available seat belts.

Top-down diagram of a car showing airflow or traffic direction with arrows pointing to the side (no text or symbols)

This indicator comes on when the ignition key is turned to the "ACC" or "ON" position. It goes off after about 6 seconds. This means the SRS front airbags are operating properly. This warning light system monitors the airbag sensor assembly, front airbag sensors, front seat belt pretensioner assemblies, inflators, warning light, interconnecting wiring and power sources. (For details, see "Service reminder indicators and warning buzzers" in Section 1-5.) The SRS airbag system is designed to activate in response to a severe frontal impact within the shaded area between the arrows in the illustration. The SRS airbags will deploy if the severity of the impact is above the designed threshold level, comparable to an approximate 25 km/h (15 mph) collision when impacting straight into a fixed barrier that does not move or deform. If the severity of the impact is below the above threshold level, the SRS airbags may not deploy.

'01CAMRY CNG (L/O0009)

 However, this threshold velocity will be considerably higher if the vehicle strikes an object, such as a parked vehicle or sign pole, which can move or deform on impact, or if it is involved in an underride collision (e.g. a collision in which the nose of the vehicle "underrides", or goes under, the bed of a truck, etc.). It is possible that in some collisions at the lower zone of airbag sensor detection and activation the SRS airbags and seat belt pretensioners will not operate all together. For the safety of all occupants, always wear your seat belts properly.   The SRS airbags are not designed to inflate if the vehicle is involved in a side or rear collision, if it rolls over, or if it is involved in a low-speed frontal collision. The SRS airbags may deploy if a serious impact occurs to the underside of your vehicle. Some examples are shown in the illustration.

'01CAMRY CNG (L/O0009)

 The SRS airbag system consists mainly of the following components, and their locations are shown in the illustration. 1. Front airbag sensors 2. SRS warning light 3. Airbag module for front passenger (airbag and inflator) 4. Airbag sensor assembly 5. Airbag module for driver (airbag and inflator) The airbag sensor assembly consists of a safing sensor and airbag sensor. In a severe frontal impact, the sensors detect deceleration and the system triggers the airbag inflators. Then a chemical reaction in the inflators quickly fills the airbags with non-toxic gas to help restrain the forward motion of the occupants. When the airbags inflate, they produce a fairly loud noise and release some smoke and residue along with non-toxic gas. This does not indicate a fire. This gas is normally harmless; however, for those who have delicate skin, it may cause a minor skin irritation. Be sure to wash off any residue as soon as possible to prevent any potential skin irritation. Deployment of the airbags happens in a fraction of a second, so the airbags must inflate with considerable force. While the system is designed to reduce serious injuries, it may also cause minor burns or abrasions and swelling. Parts of the airbag module (steering wheel hub, dashboard) may be hot for several minutes, but the airbags themselves will not be hot. The airbags are designed to inflate only once. A crash severe enough to inflate the airbags may break the windshield as the vehicle buckles. In vehicles with a passenger airbag the windshield may also be damaged by absorbing some of the force of the inflating airbag.

'01CAMRY CNG (L/O0009)


CAUTION

The SRS airbag system is designed only as a supplement to the primary protection of the driver side and front passenger side seat belt systems. The front seat occupants can be killed or seriously injured by the inflating airbags if they do not wear the available seat belts properly. During sudden braking just before a collision, an unrestrained driver or front passenger can move forward into direct contact with or close proximity to the airbag which may then deploy during the collision. To ensure maximum protection in an accident, the driver and all passengers in the vehicle must wear their seat belts properly. Wearing a seat belt properly during an accident reduces the chances of death or serious injury or being thrown out of the vehicle. For instructions and precautions concerning the seat belt system, see "Seat belts" in this section. \- Improperly seated and/or restrained infants and children can be killed or seriously injured by the deploying front airbags. An infant or child who is too small to use a seat belt should be properly secured using a child restraint system. Toyota strongly recommends that all infants and children be placed in the rear seat of the vehicle and properly restrained. The rear seat is the safest for infants and children. For instructions concerning the installation of a child restraint system, see "Child restraint" in this section.  \- Never put a rear-facing child restraint system on the front passenger seat because the force of the rapid inflation of the front passenger airbag can cause death or serious injury to the child.

'01CAMRY CNG (L/O0009)

 - A forward-facing child restraint system should be allowed to be put on the front passenger seat only when it is unavoidable. Always move the seat as far back as possible, because the force of the deploying front passenger airbag could cause death or serious injury to the child. - For instructions concerning the installation of a child restraint system, see "Child restraint" in this section.  - Do not sit on the edge of the seat or lean over the dashboard when the vehicle is in use. The front air bags inflate with considerable speed and force; you may be killed or seriously injured. Sit up straight and well back in the seat, and always use your seat belt properly.  - Do not allow a child to stand up, or to kneel on the front passenger seat. The airbag inflates with considerable speed and force; the child may be killed or seriously injured. - Do not hold a child on your lap or in your arms. Use a child restraint system in the rear seat. For instructions concerning the installation of a child restraint system, see "Child restraint" in this section.

'01CAMRY CNG (L/O0009)

 \- Do not put objects or your pets on or in front of the dashboard or steering wheel pad that houses the airbag system. They might restrict inflation or cause death or serious injury as they are projected rearward by the force of deploying airbags. Likewise, the driver and front passenger should not hold things in their arms or on their knees. \- Do not modify or remove any wiring. Do not modify, remove, strike or open any components such as the steering wheel pad, steering wheel, column cover, front passenger airbag cover, front passenger airbag or airbag sensor assembly. Doing any of these may cause sudden SRS airbag inflation or disable the system, which could result in death or serious injury. Failure to follow these instructions can result in death or serious injury.

NOTICE

Do not perform any of the following changes without consulting your authorized Toyota CNG dealer. Such changes can interfere with proper operation of the SRS airbag system in some cases. Installation of electronic devices such as a mobile two-way radio, cassette tape player or compact disc player ◆Modification of the suspension system ◆Modification of the front end structure ◆Attachment of a grille guard (bull bar, kangaroo bar, etc.), snowplow, winches or any other equipment to the front end ◆Repairs made on or near the front fenders, front end structure, console, steering column, steering wheel or dashboard near the front passenger airbag

'01CAMRY CNG (L/O0009)

 This SRS airbag system has a service reminder indicator to inform the driver of operating problems. If either of the following conditions occurs, this indicates a malfunction of the airbags. Contact your authorized Toyota CNG dealer as soon as possible to service the vehicle. ●The light does not come on when the ignition key is turned to the "ACC" or "ON" position, or the light remains on. ●The light comes on while driving.

Top-down line drawing of a car dashboard and steering wheel (no text or symbols)

In the following cases, contact your authorized Toyota CNG dealer as soon as possible: ●The SRS airbags have been inflated. ●The front part of the vehicle (shaded in the illustration) was involved in an accident that was not severe enough to cause the SRS airbags to inflate. ●The pad section of the steering wheel or front passenger airbag cover (shaded in the illustration) is scratched, cracked, or otherwise damaged.

NOTICE

Do not disconnect the battery cables before contacting your authorized Toyota CNG dealer.

Child restraint—

—Child restraint precautions

Toyota strongly urges the use of child restraint systems for children small enough to use them. The laws of all fifty states in the U.S.A. and Canada now require the use of a child restraint system. Your vehicle conforms to SAEJ1819. If a child is too large for a child restraint system, the child should sit in the rear seat and must be restrained using the vehicle's seat belt. See "Seat belts" for details.

CAUTION

\- For effective protection in automobile accidents and sudden stops, child must be properly restrained using a seat belt or child restraint system depending on the age and size of the child. Holding a child in your arms is not a substitute for a child restraint system. In an accident, the child can be crushed against the windshield, or between you and the vehicle's interior. ●Toyota strongly urges use of a proper child restraint system which conforms to the size of the child, and is put on the rear seat. According to accident statistics, the child is safer when properly restrained in the rear seat than in the front seat. - Never put a rear-facing child restraint system on the front seat. In the event of an accident, the force of the rapid inflation of the airbag can cause death or serious injury if a rear-facing child restraint system is put on the front seat. ●Unless it is unavoidable, do not put a child restraint system on the front seat. - A forward-facing child restraint system should be allowed to be put on the front passenger seat only when it is unavoidable. Always move the seat as far back as possible, because the force of the deploying front passenger airbag could cause death or serious injury to the child. ●Make sure that you have complied with all installation instructions provided by the child restraint manufacturer and that the system is properly secured.

—Child restraint system

A child restraint system for a small child or baby must itself be properly restrained on the seat with either the lap belt or the lap portion of the lap/shoulder belt. You must carefully consult the manufacturer's instructions which accompany the child restraint system. To provide proper restraint, use a child restraint system following the manufacturer's instructions about the appropriate age and size of the child for the restraint system. Install the child restraint system correctly following the instructions provided by its manufacturer. General directions are also provided under the following illustrations. The child restraint system should be installed on the rear seat. According to accident statistics, the child is safer when properly restrained in the rear seat than in the front seat.

CAUTION

● Never put a rear-facing child restraint system on the front seat. In the event of an accident, the force of the rapid inflation of the airbag can cause death or serious injury if a rear-facing child restraint system is put on the front seat. ●Unless it is unavoidable, do not put a child restraint system on the front seat. - A forward-facing child restraint system should be allowed to be put on the front passenger seat only when it is unavoidable. Always move the seat as far back as possible, because the force of the deploying front passenger airbag could cause death or serious injury to the child. ●After installing the child restraint system, make sure it is secured in place following the manufacturer's instructions. If it is not restrained securely, it may cause death or serious injury to the child in the event of a sudden stop or accident. When not using the child restraint system, keep it secured with the seat belt or place it in the trunk or somewhere other than the passenger compartment. This will prevent it from injuring passengers in the event of a sudden stop or accident.

'01CAMRY CNG (L/O0009)


—Types of child restraint system

Child restraint systems are classified into the following 3 types depending on the child's age and size. (A) Infant seat (B) Convertible seat (C) Booster seat Install the child restraint system following the instructions provided by its manufacturer. Your vehicle has anchor brackets for securing the top strap of a child restraint system. For instructions about how to use the anchor bracket, see “—Using a top strap” in this section.

Illustration of a child seated in a car seat, viewed from the side (no text or symbols)

(A) Infant seat

Illustration of a child sitting on a car seatbelt, giving a thumbs-up (no text or symbols)

(C) Booster seat

Illustration of a child seated in a car seat inside a vehicle (no text or symbols)

(B) Convertible seat 2001 CAMRY CNG\_U (OM33542U)

'01CAMRY CNG (L/O0009)

—Installation with 2-point type seat belt

Illustration of a person in a car seat inside a vehicle, with no visible text or symbols

(A) INFANT SEAT INSTALLATION An infant seat is used in rear-facing position only.

CAUTION

- Do not put a rear-facing child restraint system on the rear seat if it interferes with the lock mechanism of the front seats. This can cause death or serious injury to the child and front passenger in case of sudden braking or a collision. - If your driving position is not satisfactory, install the child restraint system on the rear right seat.

Illustration of a hand adjusting a seatbelt with a magnified inset showing the angle (no text or symbols)

1. Run the center lap belt through or around the infant seat following the instructions provided by its manufacturer and insert the tab into the buckle taking care not to twist the lap belt.

'01CAMRY CNG (L/O0009)


CAUTION

●After inserting the tab, make sure the tab and buckle are locked and that the lap belt is not twisted. - Do not insert coins, clips, etc. in the buckle as this may prevent you from properly latching the tab and buckle. - If the seat belt does not function normally, it cannot protect your child from injury. Contact your authorized Toyota CNG dealer immediately. Do not use the seat until the seat belt is fixed.

Illustration of a hand holding a mechanical component with an arrow indicating direction (no text or symbols)

2. While pressing the infant seat firmly against the seat cushion and seatback, tighten the lap belt by pulling its free end to hold the infant seat securely.

Illustration of a hand securing a car seatbelt (no text or symbols visible)

CAUTION

Push and pull the child restraint system in different directions to be sure it is secure. Follow all the installation instructions provided by its manufacturer.

'01CAMRY CNG (L/O0009)


Close-up of a car seatbelt buckle with a black arrow pointing to the buckle (no text or symbols visible)

3. To remove the infant seat, press the buckle-release button.

Illustration of a child in a car seat inside a larger hand, with no visible text or symbols

(B) CONVERTIBLE SEAT INSTALLATION A convertible seat is used in forward-facing or rear-facing position depending on the child's age and size. When installing, follow the manufacturer's instructions about the applicable child's age and size as well as directions for installing the child restraint system.

'01CAMRY CNG (L/O0009)


Illustration of a car seat with a belt and arrow indicating direction (no text or symbols)

1. Run the center lap belt through or around the convertible seat following the instructions provided by its manufacturer and insert the tab into the buckle taking care not to twist the lap belt.

CAUTION

●After inserting the tab, make sure the tab and buckle are locked and that the lap belt is not twisted. - Do not insert coins, clips, etc. in the buckle as this may prevent you from properly latching the tab and buckle. - If the seat belt does not function normally, it cannot protect your child from injury. Contact your authorized Toyota CNG dealer immediately. Do not use the seat until the seat belt is fixed.

Diagram of a car seatbelt with labeled components, no text or symbols present

2. While pressing the convertible seat firmly against the seat cushion and seatback, tighten the lap belt by pulling its free end to hold the convertible seat securely.

'01CAMRY CNG (L/O0009)



Illustration of a car seat with a hand adjusting the seatbelt, no text or symbols present

CAUTION Push and pull the child restraint system in different directions to be sure it is secure. Follow all the installation instructions provided by its manufacturer.  3. To remove the convertible seat, press the buckle-release button. —Installation with 3-point type seat belt

Illustration of a baby car seat inside a vehicle, with no visible text or symbols

(A) INFANT SEAT INSTALLATION An infant seat is used in rear-facing position only.

'01CAMRY CNG (L/O0009)


CAUTION

● Never put a rear-facing child restraint system on the front passenger seat because the force of the rapid inflation of the front passenger airbag can cause death or serious injury to the child.  \- Do not put a rear-facing child restraint system on the rear seat if it interferes with the lock mechanism of the front seats. This can cause death or serious injury to the child and front passenger in case of sudden braking or a collision. \- If your driving position is not satisfactory, do not install the child restraint system on the left seat.

Medical illustration showing a surgical instrument inserted into a patient's arm (no text or labels)

1. Run the lap and shoulder belt through or around the infant seat following the instructions provided by its manufacturer and insert the tab into the buckle taking care not to twist the belt. Keep the lap portion of the belt tight.

'01CAMRY CNG (L/O0009)


CAUTION

●After inserting the tab, make sure the tab and buckle are locked and that the lap and shoulder portions of the belt are not twisted. - Do not insert coins, clips, etc. in the buckle as this may prevent you from properly latching the tab and buckle. - If the seat belt does not function normally, it cannot protect your child from injury. Contact your authorized Toyota CNG dealer immediately. Do not use the seat until the seat belt is fixed.

Illustration of a person adjusting a seatbelt with arrows indicating motion (no text or symbols)

2. Fully extend the shoulder belt to put it in the lock mode. When the belt is then retracted even slightly, it cannot be extended. To hold the infant seat securely, make sure the belt is in the lock mode before letting the belt retract.

Medical illustration showing a surgical tool inserted into a patient's arm (no text or labels)

3. While pressing the infant seat firmly against the seat cushion and seatback, let the shoulder belt retract as far as it will go to hold the infant seat securely.

'01CAMRY CNG (L/O0009)


Illustration of a hand holding a tool near a vehicle (no text or symbols visible)

CAUTION

Push and pull the child restraint system in different directions to be sure it is secure. Follow all the installation instructions provided by its manufacturer.

Close-up of a hand holding a tool with a T-shaped component, no visible text or symbols

4. To remove the infant seat, press the buckle-release button and allow the belt to retract completely. The belt will move freely again and be ready to work for an adult or older child passenger.

Illustration of a baby car seat inside a vehicle, with a hand pointing to the side (no text or symbols)

(B) CONVERTIBLE SEAT INSTALLATION

A convertible seat is used in forward-facing or rear-facing position depending on the child's age and size. When installing, follow the manufacturer's instructions about the applicable child's age and size as well as directions for installing the child restraint system.

'01CAMRY CNG (L/O0009)


CAUTION

● Never put a rear-facing child restraint system on the front passenger seat because the force of the rapid inflation of the front passenger airbag can cause death or serious injury to the child.  \- A forward-facing child restraint system should be allowed to be put on the front passenger seat only when it is unavoidable. Always move the seat as far back as possible, because the force of the deploying front passenger airbag could cause death or serious injury to the child.  \- Do not put a rear-facing child restraint system on the rear seat if it interferes with the lock mechanism of the front seats. This can cause death or serious injury to the child and front passenger in case of sudden braking or a collision. \- If your driving position is not satisfactory, do not install the child restraint system on the left seat.

'01CAMRY CNG (L/O0009)


Diagram of a car seatbelt with a belt buckle and arrow indicating force (no text or symbols)

1. Run the lap and shoulder belt through or around the convertible seat following the Instructions provided by its manufacturer and insert the tab into the buckle taking care not to twist the belt. Keep the lap portion of the belt tight.

CAUTION

●After inserting the tab, make sure the tab and buckle are locked and that the lap and shoulder portions of the belt are not twisted. - Do not insert coins, clips, etc. in the buckle as this may prevent you from properly latching the tab and buckle. - If the seat belt does not function normally, it cannot protect your child from injury. Contact your authorized Toyota CNG dealer immediately. Do not use the seat until the seat belt is fixed.

Diagram of a car seatbelt buckle being lifted, showing hand placement and seat arrangement (no text or symbols)

2. Fully extend the shoulder belt to put it in the lock mode. When the belt is then retracted even slightly, it cannot be extended. To hold the convertible seat securely, make sure the belt is in the lock mode before letting the belt retract.

'01CAMRY CNG (L/O0009)


Diagram of a car seatbelt with arrows indicating movement, no text or symbols present

3. While pressing the convertible seat firmly against the seat cushion and seatback, let the shoulder belt retract as far as it will go to hold the convertible seat securely.

Illustration of a car seatbelt with a belt, no text or symbols present

  4. To remove the convertible seat, press the buckle-release button and allow the belt to retract completely. The belt will move freely again and be ready to work for an adult or older child passenger.

'01CAMRY CNG (L/O0009)


Illustration of a child in a car seatbelt sitting on a chair, with no visible text or symbols

(C) BOOSTER SEAT INSTALLATION A booster seat is used in forward-facing position only.

CAUTION

A forward-facing child restraint system should be allowed to be put on the front passenger seat only when it is unavoidable. Always move the seat as far back as possible, because the force of the deploying front passenger airbag could cause death or serious injury to the child.

Illustration of a person seated on a car seatbelt with a belt buckle, no text or symbols present

1. Sit the child on a booster seat. Run the lap and shoulder belt through or around the booster seat and child following the instructions provided by its manufacturer and insert the tab into the buckle taking care not to twist the belt. Make sure the shoulder belt is correctly across the child's shoulder and that the lap belt is positioned as low as possible on child's hips. See "Seat belts" for details.

'01CAMRY CNG (L/O0009)


CAUTION

●Always make sure the shoulder belt is positioned across the center of child's shoulder. The belt should be kept away from child's neck, but not falling off child's shoulder. Failure to do so could reduce the amount of protection in an accident and cause serious injuries in a collision. - Both high-positioned lap belts and loose-fitting belts could cause serious injuries due to sliding under the lap belt during a collision or other unintended result. Keep the lap belt positioned as low on a child's hips as possible. - For child's safety, do not place the shoulder belt under child's arm. ●After inserting the tab, make sure the tab and buckle are locked and that the lap and shoulder portions of the belt are not twisted. - Do not insert coins, clips, etc. in the buckle as this may prevent your child from properly latching the tab and buckle. - If the seat belt does not function normally, it cannot protect your child from injury. Contact your authorized Toyota CNG dealer immediately. Do not use the seat until the seat belt is fixed.  2. To remove the child restraint system, press the buckle-release button and allow the belt to retract.

'01CAMRY CNG (L/O0009)

—Using a top strap


Interior view of a car showing steering wheel and dashboard (no text or symbols visible)

Follow the procedure below for a child restraint system that requires the use of a top strap.  Use the anchor bracket on the package tray behind the rear seat to attach the top strap. Anchor brackets are installed for each rear seating position.  TO USE THE ANCHOR BRACKET: 1. Outside anchor brackets only—Remove the head restraint.

'01CAMRY CNG (L/O0009)


Diagram of a car gear shift lever system with no visible text or symbols

2. Fix the child restraint system with the seat belt. Latch the hook onto the anchor bracket and tighten the top strap. For instructions to install the child restraint system, see "Child restraint" in this section.

CAUTION

Make sure the top strap is securely latched, and check that the child restraint system is secure by pushing and pulling it in different directions. Follow all the installation instructions provided by its manufacturer.

Mechanical assembly diagram showing a hand turning a component with a downward arrow (no text or symbols)

3. Outside anchor brackets only—Replace the head restraint. Tilt steering wheel

Diagram of a car steering wheel with directional arrows indicating rotation (no text or symbols)

To change the steering wheel angle, hold the steering wheel, pull up the lock release lever, tilt the steering wheel to the desired angle and release the lever. When the steering wheel is in a low position, it will spring up as you release the lock release lever.

'01CAMRY CNG (L/O0009)


Outside rear view mirrors—

CAUTION

- Do not adjust the steering wheel while the vehicle is moving. It may cause the driver to mishandle the vehicle and an accident may occur resulting in death or serious injuries. ●After adjusting the steering wheel, try moving it up and down to make sure it is locked in position.

Illustration of a car inside a vehicle mirror, showing the side view of the window (no text or symbols)

CAUTION

- Do not adjust the mirror while the vehicle is moving. It may cause the driver to mishandle the vehicle and an accident may occur resulting in death or serious injuries. - Since the mirror surfaces can get hot, keep your hands off them when the defogger switch is on. Adjust the mirror so that you can just see the side of your vehicle in the mirror. Be careful when judging the size or distance of any object seen in the outside rear view mirror on the passenger's side. It is a convex mirror with a curved surface. Any object seen in a convex mirror will look smaller and farther away than when seen in a flat mirror. On some models, when you push the rear window defogger switch, the heater panels in the outside rear view mirrors will quickly clear the mirror surface.

'01CAMRY CNG (L/O0009)

—Power rear view mirror control

NOTICE

If ice should jam the mirror, do not operate the control or scrape the mirror face. Use a spray de-icer to free the mirror. To adjust a mirror, use the switches. 1. Master switch—To select the mirror to be adjusted Place the switch at "L" (left) or "R" (right). 2. Control switch—To move the mirrorUP push the switch in the desired direction. Mirror can be adjusted when key is in the "ACC" or "ON" position. Anti-glare inside rear view mirror  Adjust the mirror so that you can just see the rear of your vehicle in the mirror. To reduce glare from the headlights of the vehicle behind you during night driving, operate the lever on the lower edge of the mirror. Daylight driving—Lever at position 1 The reflection in the mirror has greater clarity at this position. Night driving—Lever at position 2 Remember that by reducing glare you also lose some rear view clarity.

'01CAMRY CNG (L/O0009)


CAUTION

Do not adjust the mirror while the vehicle is moving. It may cause the driver to mishandle the vehicle and an accident may occur resulting in death or serious injuries.

Sun visors—


CAUTION

Do not extend the plate at the end of the sun visor when the visor is in the position 1. It can cover the anti-glare inside rear view mirror and obstruct the rear view. To block out glare, move the sun visor. To block out glare from the front—Swing down the sun visor (position 1). To block out glare from the side—Swing down the sun visor, remove it from the hook and swing it to the lateral side (position 2). If glare comes from obliquely behind you, extend the plate at the end of the visor (to position 3 or 4). '01CAMRY CNG (L/O0009) —Vanity mirrors

Diagram of a car interior showing a directional arrow pointing to a rectangular panel (no text or symbols)

To use the vanity mirror, swing down the sun visor and open the cover. '01CAMRY CNG (L/O0009)

SECTION 1-4

OPERATION OF INSTRUMENTS AND CONTROLS

Lights, Wipers and Defogger Headlights and turn signals 62 Emergency flashers 63 Instrument panel light control 64 Interior light 64 Ignition switch light 64 Windshield wipers and washer 65 Rear window and outside rear view mirror defoggersrs 65

'01CAMRY CNG (L/O0009)


Headlights and turn signals


NOTICE

To prevent the battery from being discharged, do not leave the lights on for a long period when the engine is not running.

HEADLIGHTS

To turn on the following lights: Twist the headlight/turn signal lever knob. Position 1—Parking, tail, license plate, side marker and instrument panel lights Position 2—Headlights and all of the above The lights automatically turn off when the driver's door is opened with the ignition turned off. To turn them on again, turn the key to the "ON" position or actuate the headlight switch. If you are going to park for over one week, make sure the headlight switch is off. High-Low beams—For high beams, turn the headlights on and push the lever away from you (position 1). Pull the lever toward you (position 2) for low beams. The headlight high beam indicator light (blue light) on the instrument panel will tell you that the high beams are on. Flashing the high beam headlights (position 3)—Pull the lever all the way back. The high beam headlights turn off when you release the lever. You can flash the high beam headlights with the knob turned to "OFF".

'01CAMRY CNG (L/O0009)



TURN SIGNALS

To signal a turn, push the headlight/turn signal lever up or down to position 1. The key must be in the "ON" position. The lever automatically returns after you make a turn, but you may have to return it by hand after you change lanes. To signal a lane change, move the lever up or down to the pressure point (position 2) and hold it. If the turn signal indicator lights (green lights) on the instrument panel flash faster than normal, a front or rear turn signal bulb is burned out. Emergency flashers

NOTICE

To prevent the battery from being discharged, do not leave the switch on longer than necessary when the engine is not running. To turn on the emergency flashers, push the switch. All the turn signal lights will flash. To turn them off, push the switch once again. Turn on the emergency flashers to warn other drivers if your vehicle must be stopped where it might be a traffic hazard. Always pull as far off the road as possible. The turn signal light switch will not work when the emergency flashers are operating.

'01CAMRY CNG (L/O0009)

 Instrument panel light control

Diagram of a car interior showing a circular component with an arrow and a small circle highlighting a feature, no text or symbols present.

To adjust the brightness of the instrument panel lights, turn the knob. Interior light

Diagram of a car interior with directional arrows indicating movement or flow (no text or symbols)

To turn on the interior light, slide the switch. The interior light switch has the following positions: “ON”—Keeps the light on all the time. "OFF"—Turns the light off. "DOOR"—Turns the light on when any of the door is opened. The light remains on for a certain time after all the doors are closed. When all the doors are locked, or when the ignition switch is turned to "ACC" or "ON" after all the doors are closed, the light fades out. Ignition switch light  For easy access to the ignition switch, the ignition switch light comes on when any of the doors are opened. The light remains on for a certain time after all the doors are closed. When all the doors are locked, or when the ignition switch is turned to "ACC" or "ON" after all the doors are closed, the light fades out.

'01CAMRY CNG (L/O0009)

Windshield wipers and washer  To turn on the windshield wipers, move the lever to the desired setting. The key must be in the "ON" position.

Lever position Speed setting
Position 1 Intermittent
Position 2 Slow
Position 3 Fast

With interval adjuster: The "INT TIME" band lets you adjust the wiping time interval when the wiper lever is in the intermittent position (position 1). Twist the band upward to Increase the time between sweeps, and downward to decrease it. To squirt washer fluid, pull the lever toward you. If the windshield wipers are off, they will operate a couple of times after the washer squirts. For instructions on adding washer fluid, see "Adding washer fluid" in Section 7-3. In freezing weather, warm the windshield with the defroster before using the washer. This will help prevent the washer fluid from freezing on your windshield, which can block your vision.

NOTICE

Do not operate the wipers if the wind-shield is dry. It may scratch the glass. Rear window and outside rear view mirror defoggers  To defog or defrost the rear window, push the switch. The key must be in the "ON" position. The thin heater wires on the inside of the rear window will quickly clear the surfaces. An indicator light will illuminate to indicate the defogger is operating. On some models, heater panels in the outside rear view mirrors will also quickly clear the surfaces. Push the switch once again to turn the defogger off. The system will automatically shut off after the defogger has operated about 15 minutes. '01CAMRY CNG (L/O0009)

CAUTION

Since the mirror surfaces can get hot keep your hands off them when the defogger switch is on. Make sure you turn the defoggers off when the surfaces are clear. Leaving the defoggers on for a long time could cause the battery to discharge, especially during stop-and-go driving. The defoggers are not designed for drying rain water or for melting snow. If the outside rear view mirrors are heavily coated with ice, use a spray de-icer before operating the switch.

NOTICE

When cleaning the inside of the rear window, be careful not to scratch or damage the heater wires or connectors. '01CAMRY CNG (L/O0009)

SECTION 1-5

OPERATION OF INSTRUMENTS AND CONTROLS

Gauges, Meters and Service reminder indicators Fuel gauge 68 Engine coolant temperature gaugege 68 Tachometer 69 Odometer and two trip meters 69 Service reminder indicators and warning buzzersrs 70

Fuel gauge

 The gauge works when the ignition switch is on and indicates the approximate quantity of fuel remaining in the tank. Nearly full—Needle at "F" Nearly empty—Needle at around 1/5 position It is a good idea to keep the tank over 1/4 full. This fuel gauge has a non-return type needle which remains at the last indicated position when the ignition switch is turned off. This gauge indicates the amount of fuel remaining in the tank is calculated from the pressure of the natural gas and the temperature inside the tank. The actual amount may be slightly above or below that indicated, depending on the outside temperature and environment. If the low fuel level warning light comes on, fill the fuel tank as soon as possible. If you continue to drive the vehicle after the low fuel level warning light comes on, the light will begin to blink, and at the same time you will not be able to drive at speeds over 80 km/h (50 mph).

CAUTION

If the engine does not start and the low fuel level warning light is blinking, fuel may be leaking. Contact your authorized Toyota CNG dealer immediately.

NOTICE

If the low fuel warning light begins to blink, the fuel tank will soon be empty. Move to a safe place as soon as possible.

Engine coolant temperature gauge

 L15002 The gauge indicates the engine coolant temperature when the ignition switch is on. The engine operating temperature will vary with changes in weather and engine load. If the needle moves into the red zone, your engine is too hot. If your vehicle overheats, stop your vehicle and allow the engine to cool. Your vehicle may overheat during severe operating conditions, such as: ●Driving up a long hill on a hot day. - Reducing speed or stopping after high speed driving.

'01CAMRY CNG (L/O0009)

 - Idling for a long period with the air conditioning on in stop-and-go traffic. ●Towing a trailer.

NOTICE

Do not remove the thermostat in the engine cooling system as this may cause the engine to overheat. The thermostat is designed to control the flow of coolant to keep the temperature of the engine within the specified operating range. ◆Do not continue driving with an overheated engine. See "If your vehicle overheats" in Section 4. Tachometer  The tachometer indicates engine speed in thousands of rpm (revolutions per minute). Use it while driving to select correct shift points and to prevent engine lugging and over-revving. Driving with the engine running too fast causes excessive engine wear and poor fuel economy. Remember, in most cases the slower the engine speed, the greater the fuel economy.

NOTICE

Do not let the indicator needle get into the red zone. This may cause severe engine damage. Odometer and two trip meters  This meter displays the odometer and two trip meters. 1. Odometer—Shows the total distance the vehicle has been driven. 2. Two trip meters—Show two different distances independently driven since the last time each trip meter was set to zero. You can use one trip meter to calculate the fuel economy and the other to measure the distance on each trip. All trip meter data is cancelled if the electrical power source is disconnected.

'01CAMRY CNG (L/O0009)


Service reminder indicators and warning buzzers

3. Trip meter reset knob—Resets the two trip meters to zero, and also change the meter display. To change the meter display, quickly push and release the knob. The meter display changes in the order from the odometer to trip meter A to trip meter B, then back to the odometer each time you push. To reset the trip meter A to zero, display the meter A reading, then push and hold the knob until the meter is set to zero. The same process can be applied for resetting the trip meter B.

'01CAMRY CNG (L/O0009)

(a) Brake System Warning Light

This light comes on in the following cases when the ignition key is in the "ON" position. - When the parking brake is applied... - When the brake fluid level is low...

CAUTION

It is dangerous to continue driving normally when the brake fluid level is low. Have your vehicle checked at your authorized Toyota CNG dealer in the following case: \- The light does not come on even if the parking brake is applied when the ignition key is in the "ON" position.

CAUTION

If the light does not turn off even after the parking brake is released while the engine is running, immediately stop your vehicle at a safe place and contact your authorized Toyota CNG dealer. In this case, the brakes may not work properly and your stopping distance will become longer. Depress the brake pedal firmly and bring the vehicle to an immediate stop. (b) Seat Belt Reminder Light and Buzzer This light and buzzer remind you to buckle up the driver's seat belt. Once the ignition key is turned to "ON" or "START", the reminder light and buzzer come on if the driver's seat belt is not fastened. Unless the driver fastens the belt, the light stays on and the buzzer stops after about 4 to 8 seconds.

(c) Discharge Warning Light

This light warns that the battery is being discharged. If it comes on while you are driving, there is a problem somewhere in the charging system. The engine ignition will continue to operate, however, until the battery is discharged. Turn off the air conditioning, blower, radio, etc., and drive directly to the nearest authorized Toyota CNG dealer or repair shop.

NOTICE

Do not continue driving if the engine drive belt is broken or loose.

(d) Malfunction Indicator Lamp

This lamp warns that there is a problem somewhere in your engine or automatic transmission electrical system. If it comes on while you are driving, have your vehicle checked/ repaired by your authorized Toyota CNG dealer as soon as possible.

'01CAMRY CNG (L/O0009)


(e) Low Fuel Level Warning Light

This light comes on when the amount of natural gas remaining in the tank drops to about 1/5. If you continue to drive the vehicle after the low fuel level warning light comes on, the light will begin to blink, and at the same time you will not be able to drive at speeds over 80 km/h (50 mph). When the outside temperature is below -30^ ( -22^ ), the fuel gauge may indicate an amount less than actual amount and the indicator may come on.

CAUTION

If the engine does not start and the low fuel level warning light is blinking, fuel may be leaking. Contact your authorized Toyota CNG dealer immediately.

NOTICE

If the low fuel warning light begins to blink, the fuel tank will soon be empty. Move to a safe place as soon as possible.

(f) Low Oil Pressure Warning Light

This light warns that the engine oil pressure is too low. If it flickers or stays on while you are driving, pull off the road to a safe place and stop the engine immediately. Call your authorized Toyota CNG dealer or qualified repair shop for assistance. The light may occasionally flicker when the engine is idling or it may come on briefly after a hard stop. There is no cause for concern if it then goes out when the engine is accelerated slightly. The light may come on when the oil level is extremely low. It is not designed to indicate low oil level, and the oil level must be checked using the level dipstick.

NOTICE

Do not drive the vehicle with the warning light on—even for one block. It may ruin the engine.

(g) "ABS" Warning Light

The light comes on when the ignition key is turned to the "ON" position. If the anti-lock brake system works properly, the light turns off after a few seconds. Thereafter, if the system malfunctions, the light comes on again. When the "ABS" warning light is on (and the brake system warning light is off), the anti-lock brake system does not operate, but the brake system still operates conventionally. When the "ABS" warning light is on (and the brake system warning light is off), the anti-lock brake system does not operate so that the wheels could lock up during a sudden braking or braking on slippery road surfaces. If either of the following conditions occurs, this indicates a malfunction somewhere in the parts monitored by the warning light system. Contact your authorized Toyota CNG dealer as soon as possible to service the vehicle. \- The light does not come on when the ignition key is turned to the "ON" position or remains on. ●The light comes on while you are driving.

'01CAMRY CNG (L/O0009)

 A warning light turning on briefly during operation does not indicate a problem.

(h) Open Door Warning Light

This light remains on until all the doors are completely closed.

(i) Rear Light Failure Warning Light

If this light comes on when the headlight switch is turned on (at the first or second clickstop), it indicates that one or more of the tail lights are burned out. If it comes on when the brake pedal is depressed, one or more stop lights are burned out. Have defective bulbs replaced as soon as possible.

(j) SRS Warning Light

This light will come on when the ignition key is turned to the "ACC" or "ON" position. After about 6 seconds, the light will go off. This means the systems of the airbag and front seat belt pretensioner are operating properly. The warning light system monitors the airbag sensor assembly, front airbag sensors, front seat belt pretensioner assemblies, inflators, warning light, interconnecting wiring and power sources. If either of the following conditions occurs, this indicates a malfunction somewhere in the parts monitored by the warning light system. Contact your authorized Toyota CNG dealer as soon as possible to service the vehicle. ●The light does not come on when the ignition key is turned to the "ACC" or "ON" position or remains on. ●The light comes on or flashes while driving.

(k) Low Windshield Washer Fluid Level Warning Light

The light warns that the windshield washer fluid level is too low. Add washer fluid at your earliest opportunity. (For instructions, see "Adding washer fluid" in Section 7-3.)

(I) Key Reminder Buzzer

This buzzer reminds you to remove the key when you open the driver's door with the ignition key in the "ACC" or "LOCK" position.

CHECKING SERVICE REMINDER INDICATORS (except the low fuel level warning light and low windshield washer fluid level warning light)

1. Apply the parking brake. 2. Open one of the doors. The open door warning light should come on. 3. Close the door. The open door warning light should go off. 4. Turn the ignition key to "ACC". The SRS warning light should come on. It goes off after about 6 seconds. 5. Turn the ignition key to "ON", but do not start the engine. All the service reminder indicators except the open door warning light and SRS warning light should come on. The "ABS" warning light goes off after a few seconds. If any service reminder indicator or warning buzzer does not function as described above, have it checked by your authorized Toyota CNG dealer as soon as possible. '01CAMRY CNG (L/O0009)  '01CAMRY CNG (L/O0009)

SECTION 1-6

OPERATION OF INSTRUMENTS AND CONTROLS

Ignition switch, Transmission and Parking brake Ignition switch with steering lock 76 Automatic transmission 77 Parking brake 81 Cruise control 81

'01CAMRY CNG (L/O0009)

Ignition switch with steering lock

 "START"—Starter motor on. The key will return to the "ON" position when released. For starting tips, see Section 3. "ON"—Engine on and all accessories on. This is the normal driving position. "ACC"—Accessories such as the radio operate, but the engine is off. If you leave the key in the "ACC" or "LOCK" position and open the driver's door, a buzzer will remind you to remove the key. "LOCK"—Engine is off and the steering wheel is locked. The key can be removed only at this position. 76 You must push in the key to turn the key from "ACC" to the "LOCK" position. The selector lever must be put in the "P" position before pushing the key. When starting the engine, the key may seem stuck at the "LOCK" position. To free it, first be sure the key is pushed all the way in, and then rock the steering wheel slightly while turning the key gently.

NOTICE

Do not leave the key in the "ON" position if the engine is not running. The battery will discharge and the ignition could be damaged. 2001 CAMRY CNG\_U (OM33542U)

'01CAMRY CNG (L/O0009)


Automatic transmission

 Your automatic transmission has a shift lock system to minimize the possibility of incorrect operation. This means you can only shift out of "P" position when the brake pedal is depressed (with the ignition switch in "ON" position and the lock release button depressed).

(a) Selector lever

The shift position is also displayed on the instrument cluster. P: Parking, engine starting and key removal R: Reverse N: Neutral D: Normal driving (with overdrive on) 2: Stronger engine braking L: Maximum engine braking

'01CAMRY CNG (L/O0009)


(b) Overdrive switch

You can select either third gear (with overdrive off) or fourth gear (with overdrive on) by pushing this switch. To turn the overdrive off, push the switch. The "O/D OFF" indicator light should come on. To turn the overdrive on again, push the switch again. The "O/D OFF" indicator light should go off. Always drive your vehicle with the over-drive on for better fuel economy and quieter driving. If the engine is turned off when the overdrive is off and restarted, the overdrive will be on automatically. Vehicles with cruise control—When the cruise control is being used, even if you downshift the transmission by pushing and releasing the overdrive switch, engine braking will not be enabled because the cruise control is not cancelled. For ways to decrease the vehicle speed, see "Cruise control" in this section.

(c) Normal driving

1. Start the engine as instructed in "How to start the engine" in Section 3. The transmission must be in "P" or "N". 2. With your foot holding down the brake pedal, shift the selector lever to "D". When the lever is in the "D" position, the automatic transmission system will select the most suitable gear for running conditions such as normal cruising, hill climbing, hard towing, etc. Always turn the overdrive on for better fuel economy and quieter driving. If the engine coolant temperature is low, the transmission will not shift into overdrive gear even with the overdrive on.  3. Release the parking brake and brake pedal. Depress the accelerator pedal slowly for smooth starting.

(d) Using engine braking

To use engine braking, you can downshift the transmission as follows: - Push the overdrive switch. The "O/D OFF" indicator light will come on and the transmission will downshift to third gear. - Shift into the "2" position. The transmission will downshift to second gear when the vehicle speed drops down to or lower than 106 km/h (66 mph), and stronger engine braking will be enabled. - Shift into the "L" position. The transmission will downshift to first gear when the vehicle speed drops down to or lower than 47 km/h (29 mph), and maximum engine braking will be enabled. Vehicles with cruise control—When the cruise control is being used, even if you downshift the transmission by pushing and releasing the overdrive switch, engine braking will not be enabled because the cruise control is not cancelled. For ways to decrease the vehicle speed, see "Cruise control" in this section.

CAUTION

Be careful when downshifting on a slippery surface. Abrupt shifting could cause the vehicle to spin or skid.

(e) Using "2" and "L" positions

The "2" and "L" positions are used for strong engine braking as described previously. With the selector lever in "2" or "L", you can start the vehicle in motion as with the lever in "D". With the selector lever in "2", the vehicle will start in first gear and automatically shift to second gear. With the selector lever in "L", the transmission is engaged in first gear.

NOTICE

◆Be careful not to over-rev the engine. Watch the tachometer to keep engine rpm from going into the red zone. The approximate maximum allowable speed for each position is given below for your reference: "2" 119 km/h (74 mph)..... "L" 66 km/h (41 mph).... Do not continue hill climbing or hard towing for a long time in the "2" or "L" position. This may cause severe automatic transmission damage from overheating. To prevent such damage, "D" position should be used in hill climbing or hard towing.

(f) Backing up

1. Bring the vehicle to a complete stop. 2. With the brake pedal held down with your foot, shift the selector lever to the "R" position.

NOTICE

Never shift into reverse while the vehicle is moving.

(g) Parking

1. Bring the vehicle to a complete stop. 2. Pull the parking brake lever up fully to securely apply the parking brake. 3. With the brake pedal pressed down, shift the selector lever to the "P" position.

CAUTION

Never attempt to move the selector lever into "P" position under any circumstances while the vehicle is moving. Serious mechanical damage and loss of vehicle control may result.

(h) Good driving practice

- If the transmission repeatedly shifts up and down between the third gear and overdrive when climbing a gentle slope, the overdrive should be turned off. Be sure to turn the switch on immediately afterward. - When towing a trailer, in order to maintain engine braking efficiency, do not use overdrive.

'01CAMRY CNG (L/O0009)

CAUTION

Always keep your foot on the brake pedal while stopped with the engine running. This prevents the vehicle from creeping.

NOTICE

Do not hold the vehicle on an upgrade with the accelerator pedal. It can cause the transmission to overheat. Always use the brake pedal or parking brake. (i) Rocking your vehicle if stuck

CAUTION

If your vehicle becomes stuck in snow, mud, sand, etc., then you may attempt to rock your vehicle free by moving it forward and backward. Do not attempt this procedure if people or objects are anywhere near the vehicle. During the rocking operation the vehicle may suddenly move forward or backward as it becomes unstuck, causing injury or damage to nearby people or objects.

NOTICE

If you rock your vehicle, observe the following precautions to prevent damage to the transmission and other parts. Do not depress the accelerator pedal while shifting the selector lever or before the transmission is completely shifted to forward or reverse gear. ◆Do not race the engine and avoid spinning the wheels. ◆If your vehicle remains stuck after rocking the vehicle several times, consider other ways such as towing. (j) If you cannot shift the selector lever out of "P" position If you cannot shift the selector lever from "P" position even though the brake pedal is depressed, use the shift lock override button. For instructions, see "If you cannot shift automatic transmission selector lever" In Section 4.

'01CAMRY CNG (L/O0009)

 Parking brake  When parking, firmly apply the parking brake to avoid inadvertent creeping. To set: Pull up the lever. For better holding power, first depress the brake pedal and hold it while setting the parking brake. To release: Pull up the lever slightly (1), press the lock release button (2), and lower (3). To remind you that the parking brake is set, the parking brake reminder light in the instrument panel remains on until you release the parking brake.

CAUTION

Before driving, be sure the parking brake is fully released and the parking brake reminder light is off.

Cruise control

The cruise control allows you to cruise the vehicle at a desired speed over 40 km/h (25 mph) even with your foot off the accelerator pedal. Your cruising speed can be maintained up or down grades within the limits of engine performance, although a slight speed change may occur when driving up or down the grades. On steeper hills, a greater speed change will occur so it is better to drive without the cruise control.

CAUTION

●To help maintain maximum control of your vehicle, do not use the cruise control when driving in heavy or varying traffic, or on slippery (rainy, icy or snow-covered) or winding roads. - Avoid vehicle speed increases when driving downhill. If the vehicle speed is too fast in relation to the cruise control set speed, cancel the cruise control then downshift the transmission to use engine braking to slow down.

'01CAMRY CNG (L/O0009)


TURNING ON THE SYSTEM

To operate the cruise control, press the "CRUISE ON-OFF" button. This turns the system on. The indicator light in the instrument panel shows that you can now set the vehicle at a desired cruising speed. Another press will turn the system completely off.

CAUTION

To avoid accidental cruise control engagement, keep the "CRUISE ON-OFF" switch off when not using the cruise control.

SETTING AT A DESIRED SPEED

The transmission must be in "D" before you set the cruise control speed. Bring your vehicle to the desired speed, push the lever down in the "SET/COAST" direction and release it. This sets the vehicle at that speed. If the speed is not satisfactory, tap the lever up for a faster speed, or tap it down for a slower speed. Each tap changes the set speed by 1.6 km/h (1.0 mph). You can now take your foot off the accelerator pedal. If you need acceleration—for example, when passing—depress the accelerator pedal enough for the vehicle to exceed the set speed. When you release it, the vehicle will return to the speed set prior to the acceleration.

CANCELLING THE PRESET SPEED

You can cancel the preset speed by: a. Pulling the lever in the "CANCEL" direction and releasing it. b. Depressing the brake pedal. If the vehicle speed falls below about 40 km/h (25 mph), the preset speed will automatically cancel out. If the vehicle speed drops 16 km/h (10 mph) below the preset speed, the preset speed will also automatically cancel out. If the preset speed automatically cancels out other than for the above cases, have your vehicle checked by your authorized Toyota CNG dealer at the earliest opportunity.

RESETTING TO A FASTER SPEED

Push the lever up in the "RES/ACC" direction and hold it. Release the lever when the desired speed is attained. While the lever is held up, the vehicle will gradually gain speed.

'01CAMRY CNG (L/O0009)

 However, a faster way to reset is to accelerate the vehicle and then push the lever down in the "SET/COAST" direction. RESETTING TO A SLOWER SPEED Push the lever down in the "SET/COAST" direction and hold it. Release the lever when the desired speed is attained. While the lever is held down, the vehicle speed will gradually decrease. However, a faster way to reset is to depress the brake pedal and then push the lever down in the "SET/COAST" direction. Even if you turn off the overdrive switch, with the cruise control on, engine braking will not be applied because the cruise control is not cancelled. To decrease the vehicle speed, reset to a slower speed with the cruise control lever or depress the brake pedal. If you use the brake pedal, cruise control is cancelled.

RESUMING THE PRESET SPEED

If the preset speed is cancelled by pulling the control lever or by depressing the brake pedal or clutch pedal, pushing the lever up in the "RES/ACC" direction will restore the speed set prior to cancellation. However, once the vehicle speed falls below about 40 km/h (25 mph), the preset speed will not be resumed.

CRUISE CONTROL FAILURE WARNING

If the "CRUISE" indicator light in the instrument cluster flashes when using the cruise control, press the "CRUISE ON-OFF" button to turn the system off and then press it again to turn it on. If any of the following conditions then occurs, there is some trouble in the cruise control system. ●The indicator light does not come on. ●The indicator light flashes again. ●The Indicator light goes out after it comes on. If this is the case, contact your authorized Toyota CNG dealer and have your vehicle inspected. '01CAMRY CNG (L/O0009)  '01CAMRY CNG (L/O0009)

SECTION 1-7

OPERATION OF INSTRUMENTS AND CONTROLS

Car audio system Reference 86 Using your audio system 86 Car audio system operating hints 94

'01CAMRY CNG (L/O0009)


Reference

 AM-FM ETR radio/cassette player/compact disc player (with compact disc auto changer controller)

Using your audio system—Some basics

This section describes some of the basic features on Toyota audio systems. Some information may not pertain to your system. Your audio system works when the ignition key is in the "ACC" or "ON" position.

TURNING THE SYSTEM ON AND OFF

Push "PWR-VOL" to turn the audio system on and off. Push "AM", "FM1·2", "TAPE" or "CD" to turn on that function without pushing "PWR·VOL". You can turn on each player by inserting a cassette tape or compact disc. You can turn off each player by ejecting the cassette tape or compact disc. If the audio system was previously off, then the entire audio system will be turned off when you eject the cassette tape or compact disc. If the another function was previously playing, it will come on again.

SWITCHING BETWEEN FUNCTIONS

Push "AM", "FM1·2", "TAPE" or "CD" if the system is already on but you want to switch from one function to another.

TONE AND BALANCE

For details about your system's tone and balance controls, see the description of your own system.

Tone

How good an audio program sounds to you is largely determined by the mix of the treble and bass levels. In fact, different kinds of music and vocal programs usually sound better with different mixes of treble and bass.

Balance

A good balance of the left and right stereo channels and of the front and rear sound levels is also important. Keep in mind that if you are listening to a stereo recording or broadcast, changing the right/left balance will increase the volume of one group of sounds while decreasing the volume of another.

'01CAMRY CNG (L/O0009)

YOUR RADIO ANTENNA

NOTICE

Attaching the film (especially conductive or metallic type) on the rear glass will noticeably reduce the sensitivity of the radio.

YOUR CASSETTE PLAYER

When you insert a cassette, the exposed tape should be to the right.

NOTICE

Do not oil any part of the player and do not insert anything other than cassette tapes into the slot, or the tape player may be damaged.

YOUR COMPACT DISC PLAYER

When you insert a disc, gently push it in with the label side up. (The player will automatically eject a disc if the label side is down.) The compact disc player will play from track 1 through the end of the disc. Then it will play from track 1 again. On models with the compact disk auto changer, next disc will be played from track 1.

NOTICE

Never try to disassemble or oil any part of the compact disc player. Do not insert anything except a compact disc into the slot. The player is intended for use with 12 cm (5 in.) discs only.

'01CAMRY CNG (L/O0009)


—Controls and features

 Details of specific buttons, controls and features are described in the alphabetical listing that follows.

'01CAMRY CNG (L/O0009)


1 2 3 4 5 6 (Preset buttons)

These buttons are used to preset and tune in radio stations. To preset a station to a button: Tune in the desired station (see "TUNE" knob or "SEEK" button). Push and hold down the button until you hear a beep—this will set the station to the button. The button number will appear on the display. To tune in to a preset station: Push the button for the station you want. The button number and station frequency will appear on the display. These systems can store one AM and two FM stations for each button (The display will show "AM", "FM1" or "FM2" when you push "AM" "FM1-2").

(Eject button)

Push the cassette tape eject button to eject a cassette. Push the compact disc eject button to eject a compact disc. After you turn the ignition to "LOCK", you will be able to eject a cassette or disc but you will not be able to reinsert it.

◀▶ (Program)

Push “◀▶” to select the other side of a cassette tape. The display indicates which side is currently selected (“▲” indicates top side, “▼” indicates bottom side). Auto-reverse feature: After the cassette player reaches the end of a tape side, it automatically reverses and begins to play the other side. This is true whether the cassette was playing or fast forwarding.

◀◀/▶▶ (Reverse/Fast forward buttons) Cassette Player

Push the fast forward button to fast forward a cassette tape. "FF" will appear on the display. Push the reverse button to rewind a tape. "REW" will appear on the display. To stop the tape while it is fast forwarding, push the fast forward button or "TAPE"; to stop the tape while it is re-winding, push the reverse button or "TAPE". If a tape side rewinds completely, the cassette player will stop and then play that same side. If a tape fast forwards completely, the cassette player will play the other side of the tape, using the auto-reverse feature.

Compact Disc Player

If you want to fast forward or reverse through a compact disc track, push and hold in the fast forward or reverse button. When you release the button, the compact disc player will resume playing.

AM

Push "AM" to turn on the radio and select the AM band. "AM" will appear on the display. If the audio system is off, you can turn on the radio by pushing "AM". Also, push "AM" to switch from cassette or compact disc operation to radio operation.

'01CAMRY CNG (L/O0009)


CD (Compact Disc)

Push "CD" to switch from radio or cassette operation to compact disc operation. If the audio system is off, you can turn on the compact disc player by pushing "CD". In both cases, a disc must already be loaded in the player. When the audio is set into compact disc operation, the display shows the track or, track and disc number currently being played. Each time you push "CD", the system changes to the automatic changer. If the player malfunctions, your audio system will display one of the six following error messages. If "WAIT" appears on the display, it indicates that the inside of the player unit may be too hot due to the very high ambient temperature. Remove the disc or magazine from the player and allow the player to cool down. If "Err 1" appears on the display, it indicates the disc is dirty, damaged, or it was inserted up-side down. Clean the disc or insert it correctly. If "Err 2" appears on the display, it indicates no disc is loaded inside the magazine. Insert a disc. If "Err 3" or "Err 4" appears on the display, it indicates there is a trouble inside the system. Eject the disc or magazine. Set the disc or magazine again. If "OPEN" appears on the display, it indicates the compact disc auto changer lid is open. Close the compact disc auto changer lid. If the malfunction is not rectified, take your vehicle to your authorized Toyota CNG dealer. CONTROL / MODE (Audio control and mode adjustment)

Manual tone adjustment function—

This knob is used to adjust the tone manually. For low-pitch tone adjustment, push "CONTROL / MODE" repeatedly until "BAS" appears on the display. Then turn the knob to suit your preference. The display will show the range from "BAS -5" to "BAS 5". For high-pitch tone adjustment, push "CONTROL / MODE" repeatedly until "TRE" appears on the display. Then turn the knob to suit your preference. The display will show the range from "TRE -5" to "TRE 5".

Sound balance adjustment function—

This knob is also used to adjust the sound balance between the front and rear, and the right and left speakers. For front/rear adjustment, push "CONTROL / MODE" repeatedly until "FAD" appears on the display. Then turn the knob to adjust the front/rear balance. The display will show the range from "FAD-F7" to "FAD-R7". For left/right adjustment, push "CONTROL / MODE" repeatedly until "BAL" appears on the display. Then turn the knob to adjust the left/right balance. The display will show the range from "BAL-L7" to "BAL-R7".

DISC VA

Compact disc auto changer only— By using this button, you can select a disc you wish to listen to. Push either side of the button until the number of the disc you want to listen to appears on the display.

'01CAMRY CNG (L/O0009)


Dolby®BONR

If you are listening to a tape that was recorded with Dolby® B Noise Reduction, push the button marked with the double-D symbol. The double-D symbol will appear on the display. Push the button again to turn off Dolby® B NR. The Dolby NR mode reduces tape noise by about 10 dB. For best sound reproduction, play your tapes with this button on or off according to the mode used for recording the tape. ^* : Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. "DOLBY" and the double D symbol are trademarks of Dolby Laboratories Licensing Corporation.

FM1·2

Push "FM1:2" to turn on the radio and select the FM band. "FM1" or "FM2" will appear on the display. This system allows you to set twelve FM stations, two for each button. If the audio system is off, you can turn on the radio by pushing "FM1·2". Also, push "FM1·2" to switch from cassette or compact disc operation to radio operation.

PWR·VOL (Power and Volume)

Push "PWR·VOL" to turn the audio system on and off. Turn "PWR·VOL" to adjust the volume.

RAND (Random)

There are two random features—you can either listen to the tracks on all the compact discs in the magazine in random order, or only listen to the tracks on a specific compact disc in random order. To randomly play the tracks on a disc: Quickly push and release RAND. "RAND, will appear on the display. The disc you are listening to will play in random order. If you hear a beep, you held the button too long, and the player will play all the tracks in the magazine in random order. To turn off the random feature, push this button again. Compact disc auto changer only— To randomly play all the tracks in the magazine: Push and hold "RAND" until you hear a beep. "BRAND" will appear on the display and the player will perform all the tracks on all the discs in the magazine in random order. To turn off the random feature, push this button again.

RPT (Repeat)

Cassette Player

Push "RPT" while the track is playing. "RPT will appear on the display. When the track ends, it will automatically be rewound and replayed. This process will be continued until you push the button again to turn off the repeat feature. There must be at least 3 seconds of blank space between tracks in order for the repeat feature to work correctly.

Compact Disc Player

There are two repeat features—You can either replay a disc track or a whole compact disc. Repeating a track: Quickly push and release "RPT" while the track is playing. "RR will appear on the display. If you hear a beep, you held the button too long, and the player will repeat the whole disc. When the track ends, it will automatically be replayed. This process will be continued until you push the button again to turn off the repeat feature.

'01CAMRY CNG (L/O0009)

 Compact disc auto changer only— Repeating a disc: Push and hold "RPT" until you hear a beep. "RPT," will appear on the display. The player will repeat all the tracks on the disc you are listening to. When the disc ends, the player will automatically go back to the top track of the disc and replay. This process will be continued until you push the button again to turn off the repeat feature.

SCAN

Radio

You can either scan all the frequencies on a band or scan only the preset stations for that band. To scan the preset stations: Push and hold "SCAN" until you hear a beep. The radio will tune in the next preset station up the band, stay there for 5 seconds, and then move to the next preset station. To select a station, push "SCAN" again. To scan all the frequencies: Quickly push and release "SCAN". If you hear a beep, you held the button too long, and the radio will scan the preset stations. The radio will find the next station up the station band, stay there for 5 seconds, and then scan again. To select a station, push "SCAN" again. Compact disc player There are two scan features—you can either scan the tracks on a specific disc or scan the first tracks of all the discs in the magazine. Scanning the tracks on a disc: Quickly push and release "SCAN". "SCAN" will appear on the display and the player will scan all the tracks on the disc you are listening to. If you hear a beep, you held the button too long, and the player will scan the first track of all the discs in the magazine. To select a track, push "SCAN" again. If the player scanned all the tracks on the disc, it will stop scanning. Compact disc auto changer only— Scanning the first track of all the discs in the magazine: Push "SCAN" until you hear a beep. "SCAN" will appear on the display and the player will perform the first track of the next disc. To select a disc, push the "SCAN" again. If the player has scanned all the discs, it will stop scanning.

SEEK (Seeking)

Radio

In the seek mode, the radio finds and plays the next station up or down the station band. To seek a station, quickly push and release the “^” or “∨” under the “SEEK”. Do this again to find another station.

Cassette Player

By using this button, you can skip up or down to a different track. You can skip up to nine tracks at a time. Push the up or down side of the button. "FF 1" or "REW 1" will appear on the display.

'01CAMRY CNG (L/O0009)

 Next, push either side of the track button until the number on the display reaches the number of tracks you want to skip. If you push the button ten times, the skip feature will be turned off. When counting the number of tracks you want to rewind, remember to count the current track as well. For example, if you want to rewind to a song that is two before the song you are listening to, push on the down side of the button until "REW 3" appears on the display. If you have pushed the track button more than you wanted to, push the other side of the button. The track number will be reduced. The track number you select is not valid if it is higher than the number of tracks remaining on the current cassette side. ●After the beginning of the tape is reached, the player will automatically start playing the same side. ●After the end of the tape is reached, the player will automatically reverse sides and start playing the other side. There must be at least 3 seconds of blank space between tracks for the track button to work correctly. In addition, the feature may not work well with some spoken word, live, or classical recordings.

ST (Stereo reception) display

Your radio automatically changes to stereo reception when a stereo broadcast is received. "ST" appears on the display. If the signal becomes weak, the radio reduces the amount of channel separation to prevent the weak signal from creating noise. If the signal becomes extremely weak, the radio switches from stereo to mono reception.

TAPE

Push "TAPE" to switch from radio or compact disc operation to cassette operation. If the audio system is off, you can turn on the cassette player by pushing "TAPE". In both cases, a cassette must already be loaded in the player.

TRACK (Track up/down button): Compact disc player

By using this button, you can skip up or down to a different track. Push either side of the track button until the number of the track you want to listen to appears on the display. If you want to return to the beginning of the current track, push the down side of the button one time, quickly.

TUNE (Tuning)

Your Toyota has an electronic tuning radio (ETR). Turn the knob clockwise to step up the frequency. Turn the knob counterclockwise to step down the frequency.

'01CAMRY CNG (L/O0009)


Car audio system operating hints

NOTICE

To ensure the correct audio system operation: ◆Be careful not to spill beverages over the audio system. ◆Do not put anything other than a cassette tape or Compact Disc into the slot. ◆The use of cellular phone inside or near the vehicle may cause a noise from the speakers of the audio system which you are listening to. However, this does not indicate a malfunction.

RADIO RECEPTION

Usually, a problem with radio reception does not mean there is a problem with your radio—it is just the normal result of conditions outside the vehicle. For example, nearby buildings and terrain can interfere with FM reception. Power lines or telephone wires can interfere with AM signals. And of course, radio signals have a limited range. The farther you are from a station, the weaker Its signal will be. In addition, reception conditions change constantly as your vehicle moves. Here are some common reception problems that probably do not indicate a problem with your radio: FM Fading and drifting stations—Generally, the effective range of FM is about 40 km (25 miles). Once outside this range, you may notice fading and drifting, which increase with the distance from the radio transmitter. They are often accompanied by distortion. Multi-path—FM signals are reflective, making it possible for two signals to reach your antenna at the same time. If this happens, the signals will cancel each other out, causing a momentary flutter or loss of reception. Static and fluttering—These occur when signals are blocked by buildings, trees, or other large objects. Increasing the bass level may reduce static and fluttering. Station swapping—If the FM signal you are listening to is interrupted or weakened, and there is another strong station nearby on the FM band, your radio may tune in the second station until the original signal can be picked up again. AM Fading—AM broadcasts are reflected by the upper atmosphere—especially at night. These reflected signals can interfere with those received directly from the radio station, causing the radio station to sound alternately strong and weak. Station interference—When a reflected signal and a signal received directly from a radio station are very nearly the same frequency, they can interfere with each other, making it difficult to hear the broadcast. Static—AM is easily affected by external sources of electrical noise, such as high tension power lines, lightening, or electrical motors. This results in static.

CARING FOR YOUR CASSETTE PLAYER AND TAPES

For the best performance for your cassette player and tapes: Clean the tape head and other parts regularly. ●A dirty tape head or tape path can decrease sound quality and tangle your cassette tapes. The easiest way to clean them is by using a cleaning tape. (A wet type is recommended.)

'01CAMRY CNG (L/O0009)

 Use high-quality cassettes. - Low-quality cassette tapes can cause many problems, including poor sound, inconsistent playing speed, and constant auto-reversing. They can also get stuck or tangled in the cassette player. - Do not use a cassette if it has been damaged or tangled or if its label is peeling off. - Do not leave a cassette in the player if you are not listening to it, especially if it is hot outside. ●Store cassettes in their cases and out of direct sunlight. ●Avoid using cassettes with a total playing time longer than 100 minutes (50 minutes per side). The tape used in these cassettes is thin and could get stuck or tangled in the cassette player.

CARING FOR YOUR COMPACT DISC PLAYER AND DISCS

- Use only compact discs labeled as shown. ●Extremely high temperatures can keep your compact disc player from working. On hot days, use the air conditioning to cool the vehicle interior before you listen to a disc. ●Bumpy roads or other vibrations may make your compact disc player skip. \- If moisture gets into your compact disc player, you may not hear any sound even though your compact disc player appears to be working. Remove the disc from the player and wait until it dries.

'01CAMRY CNG (L/O0009)

 - Your compact disc player cannot play special shaped or low-quality compact discs such as those shown here. Do not use them as the player could be damaged. ●Handle compact discs carefully, especially when you are inserting them. Hold them on the edge and do not bend them. Avoid getting fingerprints on them, particularly on the shiny side. - Dirt, scrapes, warping, pin holes, or other disc damage could cause the player to skip or to repeat a section of a track. (To see a pin hole, hold the disc up to the light.) - Remove discs from the compact disc player when you are not listening to them. Store them in their plastic cases away from moisture, heat, and direct sunlight. To clean a compact disc: Wipe it with a soft, lint-free cloth that has been dampened with water. Wipe in a straight line from the center to the edge of the disc (not in circles). Dry it with another soft, lint-free cloth. Do not use a conventional record cleaner or anti-static device.

CAUTION

Compact disc players use an invisible laser beam which could cause hazardous radiation exposure if directed outside the unit. Be sure to operate the player correctly. '01CAMRY CNG (L/O0009)

SECTION 1-8

OPERATION OF INSTRUMENTS AND CONTROLS

Air conditioning system Controls 98 Air flow selector settings 101 Operating tips 101 Side vents 103

'01CAMRY CNG (L/O0009)

Controls  1. "A/C" Button 2. Air Intake Selector 3. Air Flow Selector 4. Temperature Selector 5. Fan Speed Selector

'01CAMRY CNG (L/O0009)

Fan speed selector

Turn the knob to adjust the fan speed—to the right to increase, to the left to decrease.

Temperature selector

Turn the knob to adjust the temperature—to the right to warm, to the left to cool.

Air flow selector

Turn the knob to select the vents used for air flow. 1. Panel—Air flows mainly from the instrument panel vents. 2. Bi-level—Air flows from both the floor vents and the instrument panel vents. 3. Floor—Air flows mainly from the floor vents. 4. Floor/Windshield—Air flows mainly from the floor vents and windshield vents. This position allows the air intake to select FRESH automatically. This is to clean up the front view more quickly. If you want to return the setting to RECIRCULATE mode, press the air intake selector button once again. Press the "A/C" button for dehumidified heating or cooling. This setting clears the front view more quickly. 5. Windshield—Air flows mainly from the windshield vents. Turning the Air Flow Selector to the windshield position turns on the defogging function with the purpose of clearing the front view. This position allows the air intake to select FRESH automatically. This is to clean up the front view more quickly. If you want to return the setting to RECIRCULATE mode, press the air intake selector button once again. Press the "A/C" button for dehumidified heating or cooling. This setting clears the front view more quickly. For details about air flow selector settings, see the illustration after "A/C" button.

'01CAMRY CNG (L/O0009)


Air intake selector

The air intake selector button is used to switch the air intake FRESH mode that draws outside air into the system and RECIRCULATED mode that recirculates the air inside vehicle. To turn the air source to RECIRCULATED mode, press the button. The indicator will come on. To turn the air source to FRESH mode, press the button again. The indicator will go off. To prevent fogging up of the windshield, the air intake mode may change automatically to FRESH depending on the condition of the air conditioning system.

"A/C" button

To turn on the air conditioning, press the "A/C" button. The "A/C" button indicates will come on. To turn the air conditioning off, press the button again. If the "A/C" button indicator flashes, there is a problem in the air conditioning system and the air conditioning automatically shuts off. If this happens, take your vehicle to your authorized Toyota CNG dealer for service.

'01CAMRY CNG (L/O0009)

Air flow selector settings Operating tips

●To cool off your Toyota after it has been parked in the hot sun, drive with the windows open for a few minutes. This vents the hot air, allowing the air conditioning to cool the interior more quickly. ●Make sure the air intake grilles in front of the windshield are not blocked (by leaves or snow, for example). - On humid days, do not blow cold air on the windshield. The windshield could fog up because of the difference in air temperature on the inside and outside of the windshield. - Keep the area under the front seats clear to allow air to circulate throughout the vehicle. - On cold days, move the fan speed to "HI" for a minute to help clear the intake ducts of snow or moisture. This can reduce the amount of fogging on the windows. - When driving on dusty roads, close all windows. If dust thrown up by the vehicle is still drawn into the vehicle after closing the windows, it is recommended that the air intake selector be set to FRESH and the fan speed selector to any setting except "OFF".

'01CAMRY CNG (L/O0009)

\- If following another vehicle on a dusty road, or driving in windy and dusty conditions, it is recommended that the air intake selector be temporarily set to RECIRCULATE, which will close off the outside passage and prevent outside air and dust from entering the vehicle interior.

Heating

For best results, set controls to: Fan speed—Any setting except "OFF" Temperature—Towards WARM (red zone) Air intake—FRESH (outside air) Air flow—FLOOR Air conditioning—OFF - For quick heating, select recirculated air for a few minutes. To keep the windows from fogging, select fresh after the vehicle interior has been warmed. - Press the "A/C" button on for dehumidified heating. - Choose floor/windshield air flow to heat the vehicle interior while defrosting or defogging the windshield.

Air conditioning

For best results, set controls to: Fan speed—Any setting except "OFF" Temperature—Towards COLD (blue zone) Air intake—FRESH (outside air) Air flow—PANEL Air conditioning—ON \- For quick cooling, select recirculated air for a few minutes.

Ventilation

For best results, set controls to: Fan speed—Any setting except "OFF" Temperature—Towards COLD (blue zone) Air intake—FRESH (outside air) Air flow—PANEL Air conditioning—OFF

'01CAMRY CNG (L/O0009)


Defogging

The inside of the windshield For best results, set controls to: Fan speed—Any setting except "OFF" Temperature—Towards WARM (red zone) to heat; COLD (blue zone) to Air intake—FRESH (outside air) Air flow—WINDSHIELD Turning the Air Flow Selector to the wind-shield position turns on the defogging function with the purpose of clearing the front view. When turning the air flow control knob to windshield position, the air intake selects FRESH automatically. This is to clean up the front view more quickly. Press the "A/C" button for dehumidified heating or cooling. This setting clears the front view more quickly. ●On humid days, do not blow cold air on the windshield—the difference between the outside and inside temperatures could make the fogging worse.

Defrosting

The outside of the windshield For best results, set controls to: Fan speed—Any setting except "OFF" Temperature—Towards WARM (red zone) Air intake—FRESH (outside air) Air flow—WINDSHIELD Turning the Air Flow Selector to the wind-shield position turns on the defrosting function with the purpose of clearing the front view. When turning the air flow control knob to windshield position, the air intake selects FRESH automatically. This is to clean up the front view more quickly. Press the "A/C" button for dehumidified heating. This setting clears the front view more quickly. ●To heat the vehicle interior while defrosting the windshield, choose floor/windshield air flow. Side vents

Diagram of a car air vent with directional arrow indicating left side (no text or symbols)

If air flow control is not satisfactory, check the side vents. The side vents may be opened or closed as shown. '01CAMRY CNG (L/O0009)  '01CAMRY CNG (L/O0009)

SECTION 1-9

OPERATION OF INSTRUMENTS AND CONTROLS

Other equipment

Clock 106 Outside temperature gauge 106 Cigarette lighter and ashtrays 107 Power outlet 107 Glove box 108 Garage door opener box 108 Auxiliary box 112 Cup holders 112 Floor mat 113

'01CAMRY CNG (L/O0009)

 Clock  The digital clock indicates the time. The key must be in the "ACC" or "ON" position. To reset the hour: Push the "H" button. To reset the minutes: Push the "M" button. If the electrical power source has been disconnected from the clock, the time display will automatically be set to 1:00 (one o'clock). When the instrument panel lights are turned on, the brightness of the time indicator will be reduced. Push the "MODE" button to change the display from clock to outside temperature gauge. (See "Outside temperature gauge" In this section.) Outside temperature gauge  The outside temperature gauge indicates the outside air temperature. The key must be in the "ON" position. To change the display from clock to outside temperature gauge, push and release "MODE". The display changes in order from clock to outside temperature gauge (°F) to outside temperature gauge (°C), then back to clock each time you push. (See "Clock" in this section.) 1. Outside temperature gauge (°F)—Shows outside air temperature in Fahrenheit. The displayed temperature ranges from -22°F to 122°F. 2001 CAMRY CNG\_U (OM33542U) 2. Outside temperature gauge (°C)—Shows the outside air tempera- ture in Celsius. The displayed temperature ranges from -30°C to 50°C. When you return the key to the "ACC" position, the display returns to clock. If there is a problem with the connection to the outside air temperature sensor, “—” will appear on the display. Contact your authorized Toyota CNG dealer. When the instrument panel lights are turned on, the brightness of the temperature indicator is reduced.

'01CAMRY CNG (L/O0009)

 Cigarette lighter and ashtrays

Diagram of a device with arrows indicating motion or flow, no readable text or symbols present

Cigarette lighter and front ashtray

Diagram of a car interior showing a lever handle and directional arrow (no text or symbols)

Rear ashtray (on some models)

CIGARETTE LIGHTER

To use the cigarette lighter, press it in. When it becomes heated, it automatically pops out ready for use. If the engine is not running, the key must be in the "ACC" position. Do not hold the cigarette lighter pressed in. Use a Toyota genuine cigarette lighter or equivalent for replacement.

ASHTRAYS

To use the ashtray, pull it out. When finished with your cigarette, thoroughly extinguish it in the ashtray to prevent other cigarette butts from catching fire. After using the ashtray, push it back in completely. To remove the ashtray, press down on the lock spring plate and pull out.  Power outlet  The power outlet is designed for power supply for car accessories. The key must be in the "ACC" or "ON" position for the power outlet to be used.

NOTICE

◆To prevent the fuse from being blown, do not use the electricity over the total vehicle capacity of 12V/120W. ◆To prevent the battery from being discharged, do not use the power outlet longer than necessary when the engine is not running.

'01CAMRY CNG (L/O0009)

Glove box

Garage door opener box

◆Close the power outlet lid when the power outlet is not in use. Inserting a foreign object other than the appropriate plug that fits the outlet, or allowing any liquid into the outlet may cause electrical failure or short circuits.

To use the glove box, do this.

To open: Pull the lever. With the instrument panel lights on, the glove box light will come on when the glove box is open. To lock: Insert the master key and turn it clockwise. The box is designed to store a garage door opener transmitter. Open the cover and remove the Velcro loop.

CAUTION

To reduce the chance of injury in case of an accident or a sudden stop, always keep the glove box door closed while driving.

'01CAMRY CNG (L/O0009)



Diagram of a mechanical component with arrows indicating movement, no text or symbols present

Remove the paper strip covering the adhesive on back side of loop and adhere loop to back side of the transmitter near center.

Illustration of a paperclip attached to a rectangular block, with an arrow indicating motion (no text or symbols)

Please note if transmitter has wire clip for sun visor, this clip must be removed prior to adhesion of the Velcro.

Diagram of a car interior showing a component with an arrow pointing to a highlighted section (no text or symbols present)

Place the transmitter with Velcro loop facing inside of box into the box. Make sure the transmitter button is located above button pins.

'01CAMRY CNG (L/O0009)

 Remove spacers from the center panel. Place the largest spacer on the pin that would be below transmitter button when the cover is closed. Close the cover.  When the garage door opener transmitter is properly installed, you can operate the transmitter by pushing the center panel of the cover.

Diagram of an automotive electronic component with a magnified inset showing internal components (no text or symbols)

If the center panel does not contact with your garage door opener transmitter: - Check to see if spacer is on correct pin. - Attach another spacer to the top of original spacer. Check operation. If required, continue add spacers until contact is achieved. If the transmitter is clattering during driving, fill in a piece of felt or pad to prevent the transmitter from clattering.

'01CAMRY CNG (L/O0009)


CAUTION

●To reduce the chance of injury in case of an accident or a sudden stop, always keep the garage door opener box closed while driving. - Keep the remained spacers away from children.

Person installing or adjusting a vehicle interior panel with arrows indicating movement (no text or symbols visible)

The auxiliary box and garage door opener box (stored in the glove box) are interchangeable. Removing the cover— Half open the cover. Pinch each hinge and pull it out of its pivot one by one as shown above. Do not remove the cover forcibly.

Diagram of hands installing or adjusting a car interior compartment with arrows indicating movement (no text or symbols present)

Installing the cover— Align the hinges to the pivots, and press each hinge with a thumb until you hear a click. Make sure that the cover opens and closes smoothly.

'01CAMRY CNG (L/O0009)

 Auxiliary box (type A)

Diagram of a car interior seatbelt with directional arrows indicating movement (no text or symbols)

To use the box, open it as shown above.

CAUTION

To reduce the chance of injury in case of an accident or a sudden stop, always keep the auxiliary box closed while driving.

NOTICE

In hot weather, inside of the vehicle becomes very hot. Do not leave anything flammable or deformable such as a lighter, the glasses, etc. inside. Auxiliary box (type B)

Diagram of a car interior showing a vehicle's seat and dashboard (no text or symbols)

To use the box, pull on the handle.

CAUTION

To reduce the chance of injury in case of an accident or a sudden stop, always keep the auxiliary box closed while driving. Cup holders

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Front

Diagram showing a door opening and a tray with a cylindrical container, no text or symbols present

Rear The cup holder is designed for holding cups or drink-cans securely. Front: To use the holder, open the lid. Rear: To use the holder, pull it out.

CAUTION

- Do not place anything else other than cups or drink-cans on the cup holder, as such items may be thrown about in the compartment and possibly injure people in the vehicle during sudden braking or in an accident. ●To reduce the chance of injury in case of an accident or sudden stop while driving, keep the cup holder closed when it is not in use. Floor mat   Use a floor mat of the correct size. If the floor carpet and floor mat have a hole, then it is designed for use with a locking clip. Fix the floor mat with locking clip into the hole in the floor carpet.

CAUTION

Make sure the floor mat is properly placed on the floor carpet. If the floor mat slips and interferes with the movement of the pedals during driving, it may cause an accident. '01CAMRY CNG (L/O0009)  '01CAMRY CNG (L/O0009)

SECTION 3

STARTING AND DRIVING

Before starting the engine 130 How to start the engine 130 Tips for driving in various conditionsns 131 Winter driving tips 132 Dinghy towing 133 Trailer towing 134 How to save fuel and make your vehicle last longer, toooo ..... 139 '01CAMRY CNG (L/O0009)

SECTION 2

INFORMATION BEFORE DRIVING YOUR TOYOTA

Break-in period 116 Fuel 116 Fuel system 117 Operation in foreign countries 118 Three-way catalytic converter 119 Engine exhaust cautions 120 Facts about engine oil consumption on 121 Twin ground electrode platinum-tipped spark plugs 122 Brake system 122 Brake pad wear limit indicators 125 Luggage stowage precautions 125 Your Toyota's identification 126 Theft prevention labels 127 Suspension and chassis 127 Types of tires 128

Break-in period

Drive gently and avoid high speeds. Your vehicle does not need an elaborate break-in. But following a few simple tips for the first 1600 km (1000 miles) can add to the future economy and long life of your vehicle: ●Do not drive over 88 km/h (55 mph). ●Run the engine at moderate speed between 2000 and 4000 rpm. - Avoid full-throttle starts. ●Try to avoid hard stops during the first 300 km (200 miles). - Do not drive for a long time at any single speed, either fast or slow. - Do not tow a trailer during the first 800 km (500 miles).

Fuel

Fuel used for your vehicle is compressed natural gas (CNG). The main ingredient of the natural gas is flammable, colorless methane, which generates lower emissions compared with a gasoline-engine vehicle. The natural gas you use for refueling must meet NFPA-52 and SAE-J1616 standards. If you smell natural gas or hear the sound of leaking fuel while refueling, stop refueling immediately. If you smell or hear fuel leaking other than when refueling, shut off the fuel system. (See "If you suspect the fuel is leaking" In Section 4.)

CAUTION

●Natural gas is flammable and explosive. Take due care to keep away from fire and sparks at all times. - If you suspect the fuel is leaking while refueling, stop refueling immediately. If leaking fuel is ignited, an explosion or fire could occur, causing death or serious injury. \- If you smell or hear natural gas leaking, shut off the fuel system immediately. If leaking fuel is ignited, an explosion or fire could occur, causing death or serious injury.

NOTICE

Do not use improper fuel that does not meet the required standards. Using improper fuel may affect the engine performance or cause damage to the emission control system. If you suspect any abnormality in the fuel system, have your vehicle inspected by your authorized Toyota CNG dealer as soon as possible.

'01CAMRY CNG (L/O0009)

Fuel system—Components  1. Fuel tank 2. Manual shutoff valve Have the fuel system checked and maintained by your authorized Toyota CNG dealer.

—Fuel tank

The fuel tank on your vehicle conforms to ANSI/AGA NGV-2, NFPA-52 and DOT NHTSA FMVSS 304 safety standards. Removal, servicing, discharge of fuel and disposal of the tank should only be done by a qualified technician as prescribed by the fuel control regulation of NFPA-52, and all applicable federal, state and local regulations. Have the fuel tank inspected at the interval listed in the "Owner's Manual Supplement". The fuel tank also requires inspection if the vehicle is involved in a collision or fire hazard. Warning labels on the fuel tank and the engine compartment indicate the service limit date of the tank. Do not remove or paint over the labels. See instructions on fuel container for inspection and service life.

CAUTION

●This tank contains high pressure flammable natural gas. You must ensure that the tank is checked and inspected and properly maintained, as well as avoid overfilling or drilling holes in it, or damaging it in any other way because death or serious injury may result. \- Do not allow any person other than a qualified technician to remove this tank from the vehicle. If residual gas in the tank is not discharged correctly, static electricity may be ignited, causing fire or explosion. \- Do not leave the fuel tank where the temperature can exceed 80°C (176°F). The tank's built-in pressure relief device may open and release all the fuel from under the floor.

'01CAMRY CNG (L/O0009)


NOTICE

◆Do not damage the tank. If the tank is damaged, have it inspected by your authorized Toyota CNG dealer as soon as possible. ◆Do not expose the tank to chlorine, oxygen or other corrosive liquids. ◆This tank is intended for use with compressed natural gas—the fuel for this vehicle. Do not use it for any other purpose.

SERVICE PRESSURE: 24800 kPa (3600 psig)

Equivalent gasoline capacity: 43 L (11.4 gal., 9.5 Imp.gal.) Water volume: 135 L (35.7 gal., 29.7 Imp.gal.)

—Fuel shut off system

If the engine stalls, fuel flow from the tank is automatically shut off. When restarting the engine after fuel flow is shut off, turn the ignition switch to "ACC" or "LOCK" once and then start it. The fuel flow from the tank will also be shut off automatically when an airbag inflates upon collision or if the piping is disconnected.

CAUTION

If the vehicle is involved in a collision and there is a chance that there may be fuel leakage, never restart the engine. Ignition of leaked natural gas may cause death or serious injury.

Manual shutoff valve

This valve is for manually shutting off fuel from the tank. It is usually left open. Use this valve to shut off fuel if you suspect that the fuel is leaking or after you have been involved in a collision. Refer to "If you suspect the fuel is leaking" In Section 4 for how to operate the valve.

Operation in foreign countries

If you plan to drive your Toyota in another country... First, comply with the vehicle registration laws. Second, confirm the availability of the correct fuel and filling nozzles. Three-way catalytic converter

Diagram of a car's internal components with arrows indicating movement or force (no text or symbols)

The three-way catalytic converter is an emission control device installed in the exhaust system. The purpose is to reduce pollutants in the exhaust gas.

CAUTION

- Keep people and combustible materials away from the exhaust pipe while the engine is running. The exhaust gas is very hot. - Do not drive, idle or park your vehicle over anything that might burn easily such as grass, leaves, paper or rags.

NOTICE

A large amount of unburned gases flowing into the three-way catalytic converter may cause it to overheat and create a fire hazard. To prevent this and other damage, observe the following precautions: ◆Use only CNG (Compressed Natural Gas). ◆Do not drive with an extremely low fuel level; running out of fuel could cause the engine to misfire, creating an excessive load on the three-way catalytic converter. ◆Do not allow the engine to run at idle speed for more than 20 minutes. ◆Avoid racing the engine. ◆Do not push-start or pull-start your vehicle. ◆Do not turn off the ignition while the vehicle is moving.

Engine exhaust cautions

◆Keep your engine in good running order. Malfunctions in the engine electrical system, electronic ignition system/distributor ignition system or fuel system could cause an extremely high three-way catalytic converter temperature. If the engine becomes difficult to start or stalls frequently, take your vehicle in for a check-up as soon as possible. Remember, your authorized Toyota CNG dealer knows your vehicle and its three-way catalytic converter system best. To ensure that the three-way catalytic converter and the entire emission control system operate properly, your vehicle must receive the periodic inspections required by the Toyota Maintenance Schedule. For scheduled maintenance information, refer to the "Owner's Manual Supplement".

CAUTION

- Avoid inhaling the engine exhaust. It contains carbon monoxide, which is a colorless and odorless gas. It can cause unconsciousness or even death. ●Make sure the exhaust system has no holes or loose connections. The system should be checked from time to time. If you hit something, or notice a change in the sound of the exhaust, have the system checked immediately. - Do not run the engine in a garage or enclosed area except for the time needed to drive the vehicle in or out. The exhaust gases cannot escape, making this a particularly dangerous situation. - Do not remain for a long time in a parked vehicle with the engine running. If it is unavoidable, however, do so only in an unconfined area and adjust the heating or cooling system to force outside air into the vehicle. - Keep the trunk lid closed while driving. An open or unsealed trunk lid may cause exhaust gases to be drawn into the vehicle. - To allow proper operation of your vehicle's ventilation system, keep the inlet grilles in front of the windshield clear of snow, leaves, or other obstructions. - If you smell exhaust fumes in the vehicle, drive with the windows open and the trunk lid closed. Have the cause immediately located and corrected.

Facts about engine oil consumption

FUNCTIONS OF ENGINE OIL

Engine oil has the primary functions of lubricating and cooling the inside of the engine, and plays a major role in maintaining the engine in proper working order.

ENGINE OIL CONSUMPTION

It is normal that an engine should consume some engine oil during normal engine operation. The causes of oil consumption in a normal engine are as follows. \- Oil is used to lubricate pistons, piston rings and cylinders. A thin film of oil is left on the cylinder wall when a piston moves downwards in the cylinder. High negative pressure generated when the vehicle is decelerating sucks some of this oil into the combustion chamber. This oil as well as some part of the oil film left on the cylinder wall is burned by the high temperature combustion gases during the combustion process. \- Oil is also used to lubricate the stems of the intake valves. Some of this oil is sucked into the combustion chamber together with the intake air and is burned along with the fuel. High temperature exhaust gases also burn the oil used to lubricate the exhaust valve stems. The amount of engine oil consumed depends on the viscosity of the oil, the quality of the oil and the conditions the vehicle is driven under. More oil is consumed by high-speed driving and frequent acceleration and deceleration. A new engine consumes more oil, since its pistons, piston rings and cylinder walls have not become conditioned. When judging the amount of oil consumption, note that the oil may become diluted and make it difficult to judge the true level accurately. As an example, if a vehicle is used for repeated short trips, and consumes a normal amount of oil, the dipstick may not show any drop in the oil level at all, even after 1000 km (600 miles) or more. This is because the oil is gradually becoming diluted with fuel or moisture, making it appear that the oil level has not changed. 2001 CAMRY CNG\_U (OM33542U) The diluting ingredients evaporate out when the vehicle is then driven at high speeds, as on an express way, making it appear that oil is excessively consumed after driving at high speeds.

IMPORTANCE OF ENGINE OIL LEVEL CHECK

One of the most important points in proper vehicle maintenance is to keep the engine oil at the optimum level so that oil function will not be impaired. Therefore, it is essential that the oil level be checked regularly. Toyota recommends that the oil level be checked every time you refuel the vehicle.

NOTICE

Failure to check the oil level regularly could lead to serious engine trouble due to insufficient oil. For detailed information on oil level check, see "Checking the engine oil level" in Section 7-2. Twin ground electrode platinum-tipped spark plugs  Your engine is fitted with twin ground electrode platinum-tipped spark plugs.

NOTICE

For your engine performance, use only twin ground electrode platinum-tipped spark plugs specially designed for CNG vehicles and do not adjust gaps. Spark plugs for gasoline-engined vehicles cannot be used for your vehicle.

Brake system

The tandem master cylinder brake system is a hydraulic system with two separate sub-systems. If either sub-system should fail, the other will still work. However, the pedal will be harder to press, and your stopping distance will be longer. Also, the brake system warning light may come on.

CAUTION

Do not drive your vehicle with only a single brake system. Have your brakes fixed immediately.

BRAKE BOOSTER

The brake booster uses engine vacuum to power-assist the brakes. If the engine should quit while you are driving, you can bring the vehicle to a stop with normal pedal pressure. There is enough reserved vacuum for one or two stops—but no more!

CAUTION

\- Do not pump the brake pedal if the engine stalls. Each push on the pedal uses up your reserved vacuum. ●Even if the power assist is completely lost, the brakes will still work. But you will have to push the pedal hard, much harder than normal. And your braking distance will be longer.

ANTI-LOCK BRAKE SYSTEM

The anti-lock brake system is designed to help prevent lock-up of the wheels during a sudden braking or braking on slippery road surfaces. This assists in providing stability and steering performance of the vehicle under these circumstances.

'01CAMRY CNG (L/O0009)

 Effective way to press the ABS brake pedal: When the anti-lock brake system function is in action, just hold the brake pedal down more firmly. Especially, in a panic stop, you need to keep it depressed more firmly, and do not pump the brake. Pumping the brake pedal makes the stopping distance longer. The anti-lock brake system becomes operative after the vehicle has accelerated to a speed in excess of approximately 10 km/h (6 mph). It stops operating when the vehicle decelerates to a speed below approximately 5 km/h (3 mph). Depressing the brake pedal on slippery road surfaces such as on the manhole cover, the steel plate under the construction, joints in the bridge, etc. on a rainy day tends to activate the anti-lock brake system. You may hear a click or motor sound in the engine compartment for a few seconds when the engine is started or just after the vehicle is started. This means that the anti-lock brake system is in the self-check mode, and does not indicate a malfunction. When the anti-lock brake system is activated, the following conditions may occur, however, do not indicate a malfunction of the system: - You may hear the anti-lock brake system operating and feel the brake pedal pulsating and the vibrations of the vehicle body and steering wheel. You may also hear the motor sound in the engine compartment even after the vehicle is stopped. - At the end of the anti-lock brake system activation, the brake pedal may move a little to the forward.

CAUTION

Do not overestimate the anti-lock brake system: Although the anti-lock brake system assists in providing vehicle control, it is still important to drive with all due care and maintain a moderate speed and safe distance from the vehicle in front of you, because there are limits to the vehicle stability and effectiveness of steering wheel operation even with the anti-lock brake system on. If tires grip performance exceeds its capability, or if hydroplaning occurs during high speed driving in the rain, the anti-lock brake system does not provide vehicle control.

'01CAMRY CNG (L/O0009)

Anti-lock brake system is not designed to shorten the stopping distance: Always drive at the moderate speed and maintain a safe distance from the vehicle in front of you. Compared with vehicles not fitted with an anti-lock brake system, your vehicle may require a longer stopping distance in the following cases: - Driving on rough, gravel or snow-covered roads. ●Driving with tire chains installed. ●Driving over the steps such as the joints on the road. ●Driving on roads where the road surface is pitted or has other differences in surface height. Install all 4 tires of specified size at designated pressure: The anti-lock brake system detects vehicle speeds using the speed sensors for respective wheels' turning speeds. The use of tires other than specified may fail to detect the accurate turning speed, resulting in a longer stopping distance.

"ABS" warning light

The light comes on when the ignition key turned to the "ON" position. If the anti-lock brake system works properly, the light turns off after a few seconds. Thereafter, if the system malfunctions, the light comes on again. When the "ABS" warning light is on (and the brake system warning light is off), the anti-lock brake system does not operate, but the brake system still operates conventionally. When the "ABS" warning light is on (and the brake system warning light is off), the anti-lock brake system does not operate so that the wheels could lock up during a sudden braking or braking on slippery road surfaces. If either of the following conditions occurs, this indicates a malfunction somewhere in the parts monitored by the warning light system. Contact your authorized Toyota CNG dealer as soon as possible to service the vehicle. - The light does not come on when the ignition key is turned to the "ON" position, or remains on. ●The light comes on while you are driving. A warning light turning on briefly during operation does not indicate a problem. Brake pad wear limit indicators

Diagram of a human eye with visible blood vessels and optic disc (no text or labels)

The brake pad wear limit indicators on your disc brakes give a warning noise when the brake pads are worn to where replacement is required. If you hear a squealing or scraping noise while driving, have the brake pads checked and replaced by your authorized Toyota CNG dealer as soon as possible. Expensive rotor damage can result if the pads are not replaced when necessary.

Luggage stowage precautions

When stowing luggage or cargo in the vehicle, observe the following: - Put luggage or cargo in the trunk when at all possible. Be sure all items are secured in place. - Be careful to keep the vehicle balanced. Locating the weight as far forward as possible helps maintain balance. - For better fuel economy, do not carry unneeded weight.

CAUTION

- Do not place anything on the package tray panel behind the rear seatback. Such items may be thrown about and possibly injure people in the vehicle during sudden braking or an accident. - Do not drive with objects left on top of the instrument panel. They may interfere with the driver's field of view. Or they may move during sharp vehicle acceleration or turning, and impair the driver's control of the vehicle. In an accident they may injure the vehicle occupants.

NOTICE

◆Ensure that all luggage placed in the trunk is secure. Extra care should be taken with heavy items and items with protrusions as they may get beyond the partition to the tank and damage the tank or fuel system components. ◆Do not load the vehicle beyond the vehicle capacity weight specified in Section 8.

'01CAMRY CNG (L/O0009)

 Your Toyota's identification— —CNG identification  A special label is pasted close to the license plate on a CNG vehicle. Do not remove this label. —Vehicle identification number

Diagram of a car interior corner with a tool pointing to the side panel (no text or symbols present)

The vehicle identification number (VIN) is the legal identifier for your vehicle. This number is on the left top of the instrument panel, and can be seen through the windshield from outside. This is the primary identification number for your Toyota. It is used in registering the ownership of your vehicle.

Diagram of a car interior showing a door and seat, with no visible text or symbols

The vehicle identification number (VIN) is also on the Certification Label.

'01CAMRY CNG (L/O0009)

—Engine number

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

The engine number is stamped on the engine block as shown.

Theft prevention labels

Your new vehicle carries theft prevention labels which are approximately 56 mm (2.20 in.) by 16 mm (0.63 in.). The purpose of these labels is to reduce the incidence of vehicle thefts by facilitating the tracing and recovery of parts from stolen vehicles. The label is designed so that once it is applied to a surface, any attempt to remove it will result in destroying the integrity of the label. Transferring these labels intact from one part to another, will be impossible.

NOTICE

You should not attempt to remove the theft prevention labels as it may violate certain state or federal laws.

Suspension and chassis

CAUTION

Do not modify the suspension/chassis with lift kits, spacers, springs, etc. It can cause dangerous vehicle handling characteristics, resulting in loss of control.

Types of tires

Determine what kind of tires your vehicle is originally equipped with.

1. Summer tires

Summer tires are high-speed capability tires best suited to highway driving under dry conditions. Since summer tires do not have the same traction performance as snow tires, summer tires are inadequate for driving on snow-covered or icy roads. For driving on snow-covered or icy roads, we recommend using snow tires. If installing snow tires, be sure to replace all four tires.

2. All season tires

All season tires are designed to provide better traction in snow and to be adequate for driving in most winter conditions, as well as for use all year round. All season tires, however, do not have adequate traction performance compared with snow tires in heavy or loose snow. Also, all season tires fall short in acceleration and handling performance compared with summer tires in highway driving.

CAUTION

●Do not mix summer and all season tires on your vehicle as this can cause dangerous handling characteristics, resulting in loss of control. - Do not use tires other than the manufacturer's designated tires, and never mix tires or wheels of the sizes different from the originally equipped tires and wheels.

'01CAMRY CNG (L/O0009)


Before starting the engine

1. Check the area around the vehicle before entering it. 2. Adjust seat position, seatback angle, seat cushion height, head restraint height and steering wheel angle. 3. Adjust the inside and outside rear view mirrors. 4. Lock all doors. 5. Fasten seat belts.

How to start the engine—(a) Before cranking

1. Apply the parking brake firmly. 2. Turn off unnecessary lights and accessories. 3. Put the selector lever in "P". If you need to restart the engine while the vehicle is moving, put the selector lever in "N". A starter safety device will prevent the starter from operating if the selector lever is in any drive position. 4. Depress the brake pedal and hold it to the floor until driving off.

(b) Starting the engine

Before starting the engine, be sure to follow the instructions in "(a) Before cranking".

Normal starting procedure

The multiport fuel injection system/sequential multiport fuel injection system in your engine automatically controls the proper air-fuel mixture for starting. You can start a cold or hot engine as follows: 1. With your foot off the accelerator pedal, turn the key to "ON" and hold it there for a few seconds so that the fuel flows to the engine. Then crank the engine by turning the key to "START". Release it when the engine starts. You will hear a click noise coming from the fuel tank, but this is normal. 2. After the engine runs for about 10 seconds, you are ready to drive. If the weather is below freezing, let the engine warm up for a few minutes before driving. If the weather is extremely cold or if the vehicle is at very high altitude... The engine may become hard to start. Do as the following procedure: 1. Depress the accelerator pedal halfway. Lift your foot off the accelerator pedal when the engine starts. 2. If the engine does not start after 15 seconds of cranking, or if it starts but stalls right away, depress the accelerator pedal all the way and hold it there until the engine starts. Lift your foot off the accelerator pedal when the engine starts. 3. Let the engine warm up for a few minutes before driving. If the engine stalls... Simply restart it, using the procedure given above, depending on the ambient temperature and your vehicle's altitude. If the engine will not start... See "If your vehicle will not start" in Section 4.

CAUTION

If the engine does not start and the low fuel level warning light is blinking, fuel may be leaking. Contact your authorized Toyota CNG dealer immediately.

NOTICE

◆Do not crank for more than 30 seconds at a time. This may overheat the starter and wiring systems. ◆Do not race a cold engine. ◆If the engine becomes difficult to start or stalls frequently, have the engine checked immediately.

Tips for driving in various conditions

●Always slow down in gusty crosswinds. This will allow you much better control. - Drive slowly onto curbs and, if possible, at a right angle. Avoid driving onto high, sharp-edged objects and other road hazards. Failure to do so can lead to severe tire damage resulting in tire bursts. - When parking on a hill, turn the front wheels until they touch the curb so that the vehicle will not roll. Apply the parking brake, and place the transmission in "P". If necessary, block the wheels. - Washing your vehicle or driving through deep water may get the brakes wet. To see whether they are wet, check that there is no traffic near you, and then press the pedal lightly. If you do not feel a normal braking force, the brakes are probably wet. To dry them, drive the vehicle cautiously while lightly pressing the brake pedal with the parking brake applied. If they still do not work safely, pull to the side of the road and call your authorized Toyota CNG dealer for assistance.

'01CAMRY CNG (L/O0009)


CAUTION

●Before driving off, make sure that the parking brake is fully released and the parking brake reminder light is off. - Do not leave your vehicle unattended while the engine is running. - Do not rest your foot on the brake pedal while driving. It can cause dangerous overheating, needless wear, and poor fuel economy. ●To drive down a long or steep hill, reduce your speed and downshift. Remember, if you ride the brakes excessively, they may overheat and not work properly. - Be careful when accelerating, upshifting, downshifting or braking on a slippery surface. Sudden acceleration or engine braking could cause the vehicle to spin or skid. - Do not drive in excess of the speed limit. Even if the legal speed limit permits it, do not drive over 140 km/h (85 mph) unless your vehicle has high-speed capability tires. Driving over 140 km/h (85 mph) may result in tire failure, loss of control and possible injury. Be sure to consult a tire dealer to determine whether the tires on your vehicle are high-speed capability tires or not before driving at such speeds. - Do not continue normal driving when the brakes are wet. If they are wet, your vehicle will require a longer stopping distance, and it may pull to one side when the brakes are applied. Also, the parking brake will not hold the vehicle securely.

Winter driving tips

If the ignition switch is turned off when it is extremely cold, following situations may occur. When it is extremely cold, the engine may keep on for a few seconds even if the ignition switch is turned off. This is normal. Make sure you have a proper freeze protection of engine coolant. Your coolant must contain ethylene-glycol type coolant for a proper corrosion protection of aluminum components. Use "TOYOTA Long Life Coolant" or equivalent. See Section 7-2 for details about coolant type selection.

NOTICE

Do not use alcohol type antifreeze or plain water alone. When it is extremely cold, we recommend to use 60% solution for your Toyota, to provide protection down to about -50^ ( -58^ ). Do not use more than 70% solution for better coolant performance. Check the condition of the battery and cables. Cold temperatures reduce the capacity of any battery, so it must be in top shape to provide enough power for winter starting. Section 7-3 tells you how to visually inspect the battery. Your authorized Toyota CNG dealer and most service stations will be pleased to check the level of charge. Make sure the engine oil viscosity is suitable for the cold weather. See Section 7-2 for recommended viscosity. Leaving a heavy summer oil in your vehicle during winter months may cause harder starting. If you are not sure about which oil to use, call your authorized Toyota CNG dealer—he will be pleased to help. Keep the door locks from freezing. Squirt lock de-icer or glycerine into the locks to keep them from freezing. To open a frozen look, try heating the key before inserting it. Use a washer fluid containing an anti-freeze solution. This product is available at your authorized Toyota CNG dealer and most auto parts stores. Follow the manufacturer's directions for how much to mix with water.

NOTICE

Do not use engine antifreeze or any other substitute because it may damage your vehicle's paint. Do not use your parking brake when there is a possibility it could freeze. When parking, put the transmission into "P" and block the rear wheels. Do not use the parking brake, or snow or water accumulated in and around the parking brake mechanism may freeze, making it hard to release. Keep ice and snow from accumulating under the fenders. Ice and snow built up under your fenders can make steering difficult. During bad winter driving, stop and check under the fenders occasionally. Depending on where you are driving, we recommend you carry some emergency equipment. Some of the things you might put in the vehicle are tire chains, window scraper, bag of sand or salt, flares, small shovel, jumper cables, etc. Dinghy towing

Silhouette of a van and a car with a no-smoking symbol (no text or numbers present)

Your vehicle is not designed to be dinghy towed (with four wheels on the ground) behind a motorhome.

NOTICE

Do not tow your vehicle with four wheels on the ground. This may cause serious damage to your vehicle.

Trailer towing

Your vehicle is designed primarily as a passenger-carrying vehicle. Towing a trailer will have an adverse effect on handling, performance, braking, durability and driving economy (fuel consumption, etc.). Your safety and satisfaction depend on the proper use of correct equipment and cautious driving habits. For your safety and the safety of others, you must not overload your vehicle or trailer. Toyota warranties do not apply to damage or malfunction caused by towing a trailer for commercial purposes. Ask your authorized Toyota CNG dealer for further details before towing.

WEIGHT LIMITS

Before towing, make sure the total trailer weight, gross vehicle weight, gross axle weight and trailer tongue load are all within the limits. The total trailer weight and tongue load can be measured with platform scales found at a highway weighing station, building supply company, trucking company, junk yard, etc.

Diagram of a car interior showing a door and seat, with a black arrow pointing to the door (no text or symbols present)

CAUTION

●The total trailer weight (trailer weight plus its cargo load) must not exceed 907 kg (2000 lb.). Exceeding this weight is dangerous. ●Trailer hitch assemblies have different weight capacities established by the hitch manufacturer. Even though the vehicle may be physically capable of towing a higher weight, the operator must determine the maximum weight rating of the particular hitch assembly and never exceed the maximum weight rating specified for the trailer-hitch. Exceeding the maximum weight rating set by the trailer hitch manufacturer can cause an accident resulting in serious personal injuries. ●The gross vehicle weight must not exceed the Gross Vehicle Weight Rating (GVWR) indicated on the Certification Label. The gross vehicle weight is the sum of weights of the unloaded vehicle, driver, passengers, luggage, hitch and trailer tongue load. It also includes the weight of any special equipment installed on your vehicle.

'01CAMRY CNG (L/O0009)

●The load on either the front or rear axle resulting from distribution of the gross vehicle weight on both axles must not exceed the Gross Axle Weight Rating (GAWR) listed on the Certification Label. Total trailer weight Tongue load  Tongue load Total trailer weight 100 = 9 to 11% L30001 ●The trailer cargo load should be distributed so that the tongue load is 9 to 11% of the total trailer weight, not exceeding the maximum of 90 kg (200 lb.). Never load the trailer with more weight in the back than in the front. About 60% of the trailer load should be in the front half of the trailer and the remaining 40% in the rear.

HITCHES

- Use only a hitch which is recommended by the hitch manufacturer and conforms to the total trailer weight requirement. - Follow the directions supplied by the hitch manufacturer. Lubricate the hitch ball with a light coat of grease. ●Toyota recommends removing the trailer hitch whenever you are not towing a trailer to reduce the possibility of additional damage caused by the hitch if your vehicle is struck from behind.

NOTICE

Do not use axle-mounted hitches as they can cause damage to the axle housing, wheel bearings, wheels or tires. Also, never install a hitch which may interfere with the normal function of an Energy Absorbing Bumper, if so equipped.

BRAKES AND SAFETY CHAINS

●Toyota recommends trailers with brakes that conform to any applicable federal and state/provincial regulations.

'01CAMRY CNG (L/O0009)

 ●A safety chain must always be used between the towing vehicle and the trailer. Leave sufficient slack in the chain for turns. The chain should cross under the trailer tongue to prevent the tongue from dropping to the ground in case it becomes damaged or separated. For correct safety chain procedures, follow the hitch or trailer manufacturer's recommendations.

CAUTION

- If the total trailer weight exceeds 453 kg (1000 lb.), trailer brakes are required. - Never tap into your vehicle's hydraulic system as it would lower its braking effectiveness. ●Never tow a trailer without using a safety chain securely attached to both the trailer and the vehicle. If damage occurs to the coupling unit or hitch ball, there is danger of the trailer wandering over into another lane.

TIRES

\- Ensure that your vehicle's tires are properly inflated. Adjust the tire pressure to the recommended cold tire pressure indicated below (See Section 7-2 for instructions.): Tire pressure, kPa (kgf/cm² or bar, psi) 220 (2.2, 32) ●The trailer tires should be inflated to the pressure recommended by the trailer manufacturer in respect to the total trailer weight.

TRAILER LIGHTS

●Trailer lights must comply with federal, state/provincial and local regulations. See your local recreational vehicle dealer or rental agency for the correct type of wiring and relays for your trailer. Check for correct operation of the turn signals and stop lights each time you hitch up. Direct splicing may damage your vehicle's electrical system and cause a malfunction of your lights.

BREAK-IN SCHEDULE

●Toyota recommends that you do not tow a trailer with a new vehicle or a vehicle with any new power train component (engine, transmission, differential, wheel bearing, etc.) for the first 800 km (500 miles) of driving.

MAINTENANCE

\- If you tow a trailer, your vehicle will require more frequent maintenance due to the additional load. For this information, please refer to the scheduled maintenance information in the "Owner's Manual Supplement". \- Retighten all fixing bolts of the towing ball and bracket after approximately 1000 km (600 miles) of trailer driving.

'01CAMRY CNG (L/O0009)


PRE-TOWING SAFETY CHECK

- Check that your vehicle remains level when a loaded or unloaded trailer is hitched. Do not drive if the vehicle has an abnormal nose-up or nose-down condition, and check for improper tongue load, overload, worn suspension or other possible causes. ●Make sure the trailer cargo is securely loaded so that it can not shift. - Check that your rear view mirrors conform to any applicable federal, state/provincial or local regulations. If not, install the rear view mirrors required for towing purpose.

TRAILER TOWING TIPS

When towing a trailer, your vehicle will handle differently than when not towing. The three main causes of vehicle-trailer accidents are driver error, excessive speed and improper trailer loading. Keep these in mind when towing: ●Before starting out, check operation of the lights and all vehicle-trailer connections. After driving a short distance, stop and recheck the lights and connections. Before actually towing a trailer, practice turning, stopping and backing with a trailer in an area away from traffic until you learn the feel. - Backing with a trailer is difficult and requires practice. Grip the bottom of the steering wheel and move your hand to the left to move the trailer to the left. Move your hand to the right to move the trailer to the right. (This procedure is generally opposite to that when backing without a trailer). Also, just turn the steering wheel a little at a time, avoiding sharp or prolonged turning. Have someone guide you when backing to reduce the risk of an accident. ●Because stopping distance may be increased, vehicle-to-vehicle distance should be increased when towing a trailer. For each 16 km/h (10 mph) of speed, allow at least one vehicle and trailer length between you and the vehicle ahead. Avoid sudden braking as you may skid, resulting in jackknifing and loss of control. This is especially true on wet or slippery surfaces. ●Avoid jerky starts or sudden acceleration. If your vehicle has a manual transmission, prevent excessive clutch slippage by keeping engine rpm low and not racing the engine. Always start out in first gear. - Avoid jerky steering and sharp turns. The trailer could hit your vehicle in a tight turn. Slow down before making a turn to avoid the necessity of sudden braking. ●Remember that when making a turn, the trailer wheels will be closer than the vehicle wheels to the inside of the turn. Therefore, compensate for this by making a larger than normal turning radius with your vehicle. ●Crosswinds and rough roads will adversely affect handling of your vehicle and trailer, causing sway. Pay attention to the rear from time to time to prepare yourself for being passed by large trucks or buses, which may cause your vehicle and trailer to sway. If swaying happens, firmly grip the steering wheel and reduce speed immediately but gradually. Never increase speed. Steer straight ahead. If you make no extreme correction with the steering or brakes, the vehicle and trailer will stabilize. - Be careful when passing other vehicles. Passing requires considerable distance. After passing a vehicle, do not forget the length of your trailer and be sure you have plenty of room before changing lanes. 2001 CAMRY CNG\_U (OM33542U)

'01CAMRY CNG (L/O0009)

- In order to maintain engine braking efficiency do not use overdrive. ●Because of the added load of the trailer, your vehicle's engine may overheat on hot days (at temperatures over 30^ C [85°F]) when going up a long or steep grade with a trailer. If the engine coolant temperature gauge indicates overheating, immediately turn off the air conditioning (if in use), pull off the road and stop in a safe spot. Refer to "If your vehicle overheats" in Section 4. ●Always place wheel blocks under both the vehicle and trailer wheels when parking. Apply the parking brake firmly. Put the transmission in "P". Avoid parking on a slope with a trailer, but if it cannot be avoided, do so only after performing the following: 1. Apply the brakes and hold. 2. Have someone place wheel blocks under both the vehicle and trailer wheels. 3. When the wheel blocks are in place, release your brakes slowly until the blocks absorb the load. 4. Apply the parking brake firmly. 5. Shift into "P" and turn off the engine. When restarting out after parking on a slope: 1. With the transmission in "P" position, start the engine. (Be sure to keep the brake pedal depressed.) 2. Shift into gear. 3. Release the parking brake (also foot brake on automatic transmission vehicles) and slowly pull or back away from the wheel blocks. Stop and apply your brakes. 4. Have someone retrieve the blocks.

CAUTION

\- Do not exceed 72 km/h (45 mph) or the posted towing speed limit, whichever is lower. Because instability (swaying) of a towing vehicle-trailer combination usually increases as the speed increases, exceeding 72 km/h (45 mph) may cause loss of control. \- Slow down and downshift before descending steep or long downhill grades. Do not make sudden downshifts. ●Avoid holding the brake pedal down too long or too frequently. This could cause the brakes to overheat and result in reduced braking efficiency.

'01CAMRY CNG (L/O0009)


How to save fuel and make your vehicle last longer, too

Getting more kilometers/mileage from a liter/gallon of fuel is easy—just take it easy. It will help make your vehicle last longer, too. Here are some specific tips on how to save money on both fuel and repairs: - Keep your tires inflated at the correct pressure. Underinflation causes tire wear and wastes fuel. See Section 7-2 for instructions. - Do not carry unneeded weight in your vehicle. Excess weight puts a heavier load on the engine, causing greater fuel consumption. - Avoid lengthy warm-up idling. Once the engine is running smoothly, begin driving—but gently. Remember, however, that on cold winter days this may take a little longer. - Keep the automatic transmission overdrive turned on when engine braking is not required. Driving with the overdrive off will reduce the fuel economy. (For details, see "Automatic transmission" in Section 1–6.) - Accelerate slowly and smoothly. Avoid jackrabbit starts. Get into high gear as quickly as possible. - Avoid long engine idling. If you have a long wait and you are not in traffic, it is better to turn off the engine and start again later. - Avoid engine lugging or over-revving. Use a gear position suitable for the road on which you are travelling. - Avoid continuous speeding up and slowing down. Stop-and-go driving wastes fuel. ●Avoid unnecessary stopping and braking. Maintain a steady pace. Try to time the traffic signals so you only need to stop as little as possible or take advantage of through streets to avoid traffic lights. Keep a proper distance from other vehicles to avoid sudden braking. This will also reduce wear on your brakes. ●Avoid heavy traffic or traffic jams whenever possible. - Do not rest your foot on the brake pedal. This causes premature wear, overheating and poor fuel economy. - Maintain a moderate speed on highways. The faster you drive, the greater the fuel consumption. By reducing your speed, you will cut down on fuel consumption. - Keep the front wheels in proper alignment. Avoid hitting the curb and slow down on rough roads. Improper alignment not only causes faster tire wear but also puts an extra load on the engine, which, in turn, wastes fuel. - Keep the bottom of your vehicle free from mud, etc. This not only lessens weight but also helps prevent corrosion. - Keep your vehicle tuned-up and in top shape. A dirty air cleaner, improper valve clearance, dirty plugs, dirty oil and grease, brakes not adjusted, etc. all lower engine performance and contribute to poor fuel economy. For longer life of all parts and lower operating costs, keep all maintenance work on schedule, and if you often drive under severe conditions, see that your vehicle receives more frequent maintenance (For scheduled maintenance information, please refer to the "Owner's Manual Supplement".) '01CAMRY CNG (L/O0009)

CAUTION

Never turn off the engine to coast down hills. Your power steering and brake booster will not function without the engine running. Also, the emission control system operates properly only when the engine is running. '01CAMRY CNG (L/O0009)

SECTION 4

IN CASE OF AN EMERGENCY

If your vehicle will not start 142 If your engine stalls while drivingng 145 If your vehicle overheats 145 If you have a flat tire 146 If your vehicle needs to be toweded 154 If you cannot shift automatic transmission selector leverer ..... 156 If you lose your keys 157 If you suspect the fuel is leaking 157

If your vehicle will not start—(a) Simple checks

Before making these checks, make sure you have followed the correct starting procedure given in "How to start the engine" in Section 3 and that you have sufficient fuel. If the engine is not turning over or is turning over too slowly— 1. Check that the battery terminals are tight and clean. 2. If the battery terminals are O.K., switch on the interior light. 3. If the light is out, dim or goes out when the starter is cranked, the battery is discharged. You may try jump starting. See "(b) Jump starting" for further instructions. If the light is O.K., but the engine still will not start, it needs adjustment or repair. Call your authorized Toyota CNG dealer or a qualified repair shop.

NOTICE

Do not pull- or push-start the vehicle. It may damage the vehicle or cause a collision when the engine starts. Also the three-way catalytic converter may overheat and become a fire hazard. If the engine turns over at its normal speed but will not start— 1. Check that all the push-on connectors are tight. (For example, connectors at the spark plugs, ignition coil and/or distributor) 2. If the engine still does not start, manual shutoff valve may be closed. Open the manual shutoff valve. (See "If you suspect the fuel is leaking" in this section.) At temperature below -15^ (5°F), even if you follow the above procedure, your vehicle may not start because of a frozen fuel injector. Call your authorized Toyota CNG dealer.

CAUTION

If the engine does not start and the low fuel level warning light is blinking, fuel may be leaking. Contact your authorized Toyota CNG dealer immediately.

(b) Jump starting

To avoid serious personal injury and damage to your vehicle which might result from battery explosion, acid burns, electrical burns, or damaged electronic components, these instructions must be followed precisely. If you are unsure about how to follow this procedure, we strongly recommend that you seek the help of a competent mechanic or towing service.

CAUTION

●Batteries contain sulfuric acid which is poisonous and corrosive. Wear protective safety glasses when jump starting, and avoid spilling acid on your skin, clothing, or vehicle. - If you should accidentally get acid on yourself or in your eyes, remove any contaminated clothing and flush the affected area with water immediately. Then get immediate medical attention. If possible, continue to apply water with a sponge or cloth while enroute to the medical office.

'01CAMRY CNG (L/O0009)

●The gas normally produced by a battery will explode if a flame or spark is brought near. Use only standardised jumper cables and do not smoke or light a match while jump starting.

NOTICE

The battery used for boosting must be 12 V. Do not jump start unless you are sure that the booster battery is correct.

JUMP STARTING PROCEDURE

1. If the booster battery is installed in another vehicle, make sure the vehicles are not touching. Turn off all unnecessary lights and accessories. 2. If required, remove all the vent plugs from the booster and discharged batteries. Lay a cloth over the open vents on the batteries. (This helps reduce the explosion hazard, personal injuries and burns.) 3. If the engine in the vehicle with the booster battery is not running, start it and let it run for a few minutes. During jump starting run the engine at about 2000 rpm with the accelerator pedal lightly depressed.  4. Make the cable connections in the order a, b, c, d. a. Connect the clamp of the positive (red) jumper cable to the positive (2) terminal on the discharged battery. b. Connect the clamp at the other end of the positive (red) jumper cable to the positive (2) terminal on the booster battery.

'01CAMRY CNG (L/O0009)

 c. Connect the clamp of the negative (black) jumper cable to the negative terminal on the booster battery. d. Connect the clamp at the other end of the negative (black) jumper cable to a solid, stationary, unpainted, metallic point of the vehicle with the discharged battery. The recommended connecting point is shown in the following illustration:  Connecting point Do not connect it to or near any part that moves when the engine is cranked.

CAUTION

When making the connections, to avoid serious injury, do not lean over the battery or accidentally let the jumper cables or clamps touch anything except the correct battery terminals or the ground. 5. Start your engine in the normal way. After starting, run it at about 2000 rpm for several minutes with the accelerator pedal lightly depressed. 6. Carefully disconnect the cables in the exact reverse order: the negative cable and then the positive cable. 7. Carefully dispose of the battery cover cloths—they may now contain sulfuric acid. 8. If removed, replace all the battery vent plugs. If the cause of your battery discharging is not apparent (for example, lights left on), you should have it checked.

If your engine stalls while driving

If your engine stalls while driving.. 1. Reduce your speed gradually, keeping a straight line. Move cautiously off the road to a safe place. 2. Turn on your emergency flashers. 3. Move the ignition key back to "ACC" or "LOCK", then try starting the engine again. If the engine will not start, see "If your vehicle will not start".

CAUTION

If the engine is not running, the power assist for the brakes and steering will not work so steering and braking will be much harder than usual.

If your vehicle overheats

If your engine coolant temperature gauge indicates overheating, if you experience a loss of power, or if you hear a loud knocking or pinging noise, the engine has probably overheated. You should follow this procedure... 1. Pull safely off the road, stop the vehicle and turn on your emergency flashers. Put the transmission in "P" and apply the parking brake. Turn off the air conditioning if it is being used. 2. If coolant or steam is boiling out of the radiator or reservoir, stop the engine. Wait until the steam subsides before opening the hood. If there is no coolant boiling over or steam, leave the engine running and make sure the electric cooling fan is operating. If it is not, turn the ignition off.  3. Look for obvious coolant leaks from the radiator, hoses, and under the vehicle. However, note that water draining from the air conditioning is normal if it has been used.  4. If the coolant is leaking, stop the engine immediately. Call your authorized Toyota CNG dealer for assistance. 5. If there are no obvious leaks, check the coolant reservoir. If it is dry, add coolant to the reservoir while the engine is running. Fill it about half full.

'01CAMRY CNG (L/O0009)

 6. After the engine coolant temperature has cooled to normal, again check the coolant level in the reservoir. If necessary, bring it up to half full again. Serious coolant loss indicates a leak in the system. You should have it checked as soon as possible at your authorized Toyota CNG dealer.

If you have a flat tire—

1. Reduce your speed gradually, keeping a straight line. Move cautiously off the road to a safe place well away from the traffic. Avoid stopping on the center divider of a highway. Park on a level spot with firm ground. 2. Stop the engine and turn on your emergency flashers. 3. Firmly set the parking brake and put the transmission in "P". 4. Have everyone get out of the vehicle on the side away from traffic. 5. Read the following instructions thoroughly.

CAUTION

When jacking, be sure to observe the following to reduce the possibility of personal injury: ●Follow jacking instructions. - Do not put any part of your body under the vehicle supported by the jack. Personal injury may occur. - Do not start or run the engine while your vehicle is supported by the jack. - Stop the vehicle on a level firm ground, firmly set the parking brake and put the transmission in "P". Block the wheel diagonally opposite to the one being changed if necessary. ●Make sure to set the jack properly in the jack point. Raising the vehicle with jack improperly positioned will damage the vehicle or may allow the vehicle to fall off the jack and cause personal injury. ●Never get under the vehicle when the vehicle is supported by the jack alone. ●Use the jack only for lifting your vehicle during wheel changing. - Do not raise the vehicle with someone in the vehicle. - When raising the vehicle, do not put an object on or under the jack. - Raise the vehicle only high enough to remove and change the tire.

'01CAMRY CNG (L/O0009)

NOTICE

Do not continue driving with a deflated tire. Driving even a short distance can damage a tire and wheel beyond repair.

Compact spare tire

The compact spare tire is designed for temporary emergency use only. The compact spare tire is identified by the distinctive wheel design and color and special wording "TEMPORARY USE ONLY" molded into the side wall of the tire. The standard tire should be repaired and replaced as soon as possible. The compact spare tire saves space in your trunk, and its lighter weight helps to improve fuel economy and permits easier installation in case of a flat tire. The compact spare tire can be used many times, if necessary. It has tread life of up to 4800 km (3000 miles) depending on road conditions and your driving habits. When tread wear indicators appear on the tire, replace the tire. See also the tire section in Section 7-2 for details on the tread wear indicators and other service information.

CAUTION

●The compact spare tire was designed especially for your Toyota. Do not use it on any other vehicle. \- Do not exceed 80 km/h (50 mph) when driving with the compact spare tire. \- Avoid sudden acceleration, sudden deceleration and sharp turns with the compact spare tire.

'01CAMRY CNG (L/O0009)

 —Required tools and spare tire

NOTICE

Your ground clearance is reduced when the compact spare tire is installed so avoid driving over obstacles and drive slowly on rough, unpaved roads and speed bumps. Also, do not attempt to go through an automatic car wash as the vehicle may get caught, resulting in damage.  1. Get the required tools and spare tire. 1. Wheel nut wrench 2. Jack handle 3. Jack 4. Spare tire

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

To remove the jack, turn the jack joint by hand until the jack becomes free. To prepare yourself for an emergency, you should familiarize yourself with the use of the jack, each of the tools and their storage locations.

'01CAMRY CNG (L/O0009)



Mechanical assembly diagram showing a lever mechanism with directional arrows (no text or labels)

To store the jack, align the hole of the jack head with the vehicle hook. Turn the jack joint until the jack base fits securely with the vehicle body. This prevents the jack from flying forward during a collision or sudden stop.  To remove the spare tire: 1. Remove the spare tire cover. 2. Loosen the bolt and remove it. 3. Remove the spacer. Then take the spare tire out of the vehicle. When storing the spare tire, put it in place with the outer side of the wheel facing up. Then secure the tire by repeating the above removal steps in reverse order to prevent it from flying forward during a collision or sudden braking. —Blocking the wheel

Simple line drawing of a car with two circular windows and a lit bulb, no text or symbols present.

2. Block the wheel diagonally opposite the flat tire to keep the vehicle from rolling when it is jacked up. When blocking the wheel, place a wheel block from the front for the front wheels or from the rear for the rear wheels.

'01CAMRY CNG (L/O0009)

 —Removing wheel ornament

Diagram of a mechanical component with a magnified circular feature and an arrow indicating direction (no text or symbols)

3. Remove the wheel ornament.

Pry off the wheel ornament, using the beveled end of the wheel nut wrench as shown.

CAUTION

Do not try to pull off the ornament by hand. Take due care in handling the ornament to avoid unexpected personal injury. —Loosening wheel nuts

Diagram of a mechanical component with a tool inserted, showing concentric rings and a central hub (no text or symbols)

4. Loosen all the wheel nuts.

Always loosen the wheel nuts before raising the vehicle. Turn the wheel nuts counterclockwise to loosen. To get maximum leverage, fit the wrench to the nut so that the handle is on the right side, as shown above. Grab the wrench near the end of the handle and pull up on the handle. Be careful that the wrench does not slip off the nut. Do not remove the nuts yet—just unscrew them about one-half turn. —Positioning the jack  5. Position the jack at the correct jack point as shown. Make sure the jack is positioned on a level and solid place.

'01CAMRY CNG (L/O0009)

 —Raising your vehicle

Diagram of a mechanical clamp or spring being held by a hook, with a curved arrow indicating rotation (no text or symbols present)

6. After making sure that no one is in the vehicle, raise it high enough so that the spare tire can be installed. Remember you will need more ground clearance when putting on the spare tire than when removing the flat tire. To raise the vehicle, insert the jack handle into the jack (it is a loose fit) and turn it clockwise. As the jack touches the vehicle and begins to lift, double-check that it is properly positioned.

CAUTION

Never get under the vehicle when the vehicle is supported by the jack alone. —Changing wheels

Illustration of hands holding a tire with a circular component, no text or symbols present

7. Remove the wheel nuts and change tires. Lift the flat tire straight off and put it aside. Roll the spare wheel into position and align the holes in the wheel with the bolts. Then lift up the wheel and get at least the top bolt started through its hole. Wiggle the tire and press it back over the other bolts.

'01CAMRY CNG (L/O0009)



Illustration of a hand cleaning a circular object with a cloth, no text or symbols present

Before putting on wheels, remove any corrosion on the mounting surfaces with a wire brush or such. Installation of wheels without good metal-to-metal contact at the mounting surface can cause wheel nuts to loosen and eventually cause a wheel to come off while driving. Therefore after the first 1600 km (1000 miles), check to see that the wheel nuts are tight. —Reinstalling wheel nuts

Close-up of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

8. Reinstall all the wheel nuts finger tight. Reinstall the wheel nuts (tapered end inward) and tighten them as much as you can by hand. Press back on the tire and see if you can tighten them more. —Lowering your vehicle  9. Lower the vehicle completely and tighten the wheel nuts. Turn the jack handle counterclockwise to lower the vehicle. Use only the wheel nut wrench to tighten the nuts. Do not use other tools or any additional leverage other than your hands, such as a hammer, pipe or your foot. Make sure the wrench is securely engaged over the nut. Tighten each nut a little at a time in the order shown. Repeat the process until all the nuts are tight.

'01CAMRY CNG (L/O0009)


CAUTION

When lowering the vehicle, make sure all portions of your body and all other persons around will not be injured as the vehicle is lowered to the ground.

—Reinstalling wheel ornament


Diagram of a mechanical component with arrows indicating direction, no visible text or symbols

10. Reinstall the wheel ornament.

1. Put the wheel ornament into position. Align the cutout of the wheel ornament with the valve stem as shown. 2. Then tap it firmly with the side or heel of your hand to snap it into place.

—After changing wheels

11. Check the air pressure of the replaced tire. Adjust the air pressure to the specification designed in Section 8. If the pressure is lower, drive slowly to the nearest service station and fill to the correct pressure. Do not forget to reinstall the tire inflation valve cap as dirt and moisture could get into the valve core and possibly cause air leakage. If the cap is missing, have a now one put on as soon as possible. 12. Restow all the tools, jack and flat tire securely. As soon after changing wheels as possible, tighten the wheel nuts to the torque specified in Section 8 with a torque wrench. Have a technician repair the flat tire.

CAUTION

Before driving, make sure all the tools, jack and flat tire are securely in place in their storage location to reduce the possibility of personal injury during a collision or sudden braking.

'01CAMRY CNG (L/O0009)


If your vehicle needs to be towed—

(a) Towing with wheel lift type truck— —From front  —From rear  (b) Using flat bed truck  L40066 If towing is necessary, we recommend you to have it done by your authorized Toyota CNG dealer or a commercial tow truck service. In consultation with them, have your vehicle towed using either (a) or (b). Only when you cannot receive a towing service from your authorized Toyota CNG dealer or a commercial tow truck service, tow your vehicle carefully in accordance with the instructions given in "—Emergency towing" in this section. Proper equipment will help ensure that your vehicle is not damaged while being towed. Commercial operators are generally aware of the state/provincial and local laws pertaining to towing. Your vehicle can be damaged if it is towed incorrectly. Although most operators know the correct procedure, it is possible to make a mistake. To avoid damage to your vehicle, make sure the following precautions are observed. If necessary, show this page to the tow truck driver.

TOWING PRECAUTIONS:

Use a safety chain system for all towing, and abide by the state/provincial and local laws. The wheels and axle on the ground must be in good condition. If they are damaged, use a towing dolly. (a) Towing with wheel lift type truck From front—Release the parking brake.

NOTICE

When lifting wheels, take care to ensure adequate ground clearance for towing at the opposite end of the raised vehicle. Otherwise, the bumper and/or underbody of the towed vehicle will be damaged during towing. From rear—Use a towing dolly under the front wheels.

NOTICE

Never tow a vehicle with an automatic transmission from the rear with the front wheels on the ground, as this may cause serious damage to the transmission. (b) Using flat bed truck  (c) Towing with sling type truck

NOTICE

Do not tow with sling type truck, either from the front or rear. This may cause body damage. —Emergency towing

Line drawing of a car's rear wheel with arrows indicating motion or force (no text or symbols)

If towing is necessary, we recommend you to have it done by your authorized Toyota CNG dealer or a commercial tow truck service. If towing service is not available in an emergency, your vehicle may be temporarily towed by a cable or chain secured to one of the emergency towing eyelets under the vehicle. Use extreme caution when towing vehicles.

NOTICE

Only use specified towing eyelet; otherwise your vehicle may be damaged. A driver must be in the vehicle to steer it and operate the brakes. Towing in this manner may be done only on hard-surfaced roads for a short distance and at low speeds. Also, the wheels, axles, drive train, steering and brakes must all be in good condition.

CAUTION

Use extreme caution when towing vehicles. Avoid sudden starts or erratic driving maneuvers which would place excessive stress on the emergency towing eyelets and towing cable or chain. The eyelets and towing cable or chain may break and cause serious injury or damage.

NOTICE

Use only a cable or chain specifically intended for use in towing vehicles. Securely fasten the cable or chain to the towing eyelets provided. Before towing, release the parking brake and put the transmission in "N". The key must be in "ACC" (engine off) or "ON" (engine running).

If you cannot shift automatic transmission selector lever


CAUTION

If the engine is not running, the power assist for the brakes and steering will not work so steering and braking will be much harder than usual.

Diagram showing a tool interacting with a mechanical component, with an arrow indicating direction (no text or symbols present)


Hand pressing a button on a mechanical device (no text or symbols visible)

If you cannot shift the selector lever out of "P" position to other positions even though the brake pedal is depressed, use the shift lock override button as follows: 1. Turn the ignition key to "LOCK" position. Make sure the parking brake is on. 2. Pry up the cover with a flat-bladed screwdriver or equivalent. 3. Insert your finger into the hole to push down the shift lock override button. You can shift out of "P" position only while pushing the button. 4. Shift into "N" position. 5. Insert the cover. 6. Start the engine. For your safety, keep the brake pedal depressed. Be sure to have the system checked by your authorized Toyota CNG dealer as soon as possible.

'01CAMRY CNG (L/O0009)


If you lose your keys

You can purchase a new key at your authorized Toyota CNG dealer if you can give them the key number. See the suggestion given in "Keys" in Section 1-2. If your keys are locked in the vehicle and you cannot get a duplicate, your authorized Toyota CNG dealer can still open the door for you, using their special tools. If you must break a window to get in, we suggest breaking the smallest side window because it is the least expensive to replace. Be extremely cautious to avoid cuts from the glass. If you suspect the fuel is leaking  Manual shutoff valve If you smell fuel or hear the sound of leaking fuel at any time or if your vehicle is involved in an accident, do as following: 1. Park your vehicle in a well-ventilated area and apply the parking brake. Keep away from heat, sparks and flame. 2. Open all the windows and the trunk lid for ventilation. 3. Turn the ignition key to the "LOCK" position. 4. After confirming that it is safe to do so, close the manual shutoff valve. The manual shutoff valve is intended to shut the fuel from the tank off. Normally it is left open. To close: Turn the lever clockwise 90°. To open: Turn the lever counterclockwise 90°. After you close the manual shutoff valve, have your vehicle serviced by your authorized Toyota CNG dealer as soon as possible. If, due to a collision or similar circumstances, the fuel system may be damaged, close the manual shutoff value, and contact your authorized Toyota CNG dealer to have the fuel system checked for fuel leakage. 2001 CAMRY CNG\_U (OM33542U) '01CAMRY CNG (L/O0009)

CAUTION

- If you smell or hear fuel leaking, shut off the fuel system immediately. If leaking fuel is ignited, an explosion or fire could occur, causing death or serious injury. - Do not inhale a large amount of leaked fuel. Inhaling the natural gas continuously may cause the lack of oxygen in your body. - If you suspect a fuel leakage, do not park the vehicle in an enclosed area such as a garage, or the leaked fuel may fill the area and cause a fire or explosion. - If you suspect the fuel is leaking while refueling, stop refueling immediately. If leaking fuel is ignited, an explosion or fire could occur causing death or serious injury. '01CAMRY CNG (L/O0009)

SECTION 5

CORROSION PREVENTION AND APPEARANCE CARE

Protecting your Toyota from corrosionon 160 Washing and waxing your Toyota 161 Cleaning the interior 162

'01CAMRY CNG (L/O0009)


Protecting your Toyota

from corrosion

Toyota, through its diligent research, design and use of the most advanced technology available, has done its part to help prevent corrosion and has provided you with the finest quality vehicle construction. Now, it is up to you. Proper care of your Toyota can help ensure long-term corrosion prevention.

The most common causes of corrosion to your vehicle are:

●The accumulation of road salt, dirt and moisture in hard-to-reach areas under the vehicle. ●Chipping of paint, or undercoating caused by minor accidents or by stones and gravel.

Care is especially important if you live in particular areas or operate your vehicle under certain environmental conditions:

●Road salt or dust control chemicals will accelerate corrosion, as will the presence of salt in the air near the sea-coast or in areas of industrial pollution. ●High humidity accelerates corrosion especially when temperatures range just above the freezing point. - Wetness or dampness to certain parts of your vehicle for an extended period of time, may cause corrosion even though other parts of the vehicle may be dry. ●High ambient temperatures can cause corrosion to those components of the vehicle which are prevented from quick-drying due to lack of proper ventilation. The above signifies the necessity to keep your vehicle, particularly the underside, as clean as possible and to repair any damage to paint or protective coatings as soon as possible.

To help prevent corrosion on your Toyota, follow these guidelines:

Wash your vehicle frequently. It is, of course, necessary to keep your vehicle clean by regular washing, but to prevent corrosion, the following points should be observed: \- If you drive on salted roads in the winter or if you live near the ocean, you should hose off the undercarriage at least once a month to minimize corrosion. ●High pressure water or steam is effective for cleaning the vehicle's underside and wheel housings. Pay particular attention to these areas as it is difficult to see all the mud and dirt. It will do more harm than good to simply wet the mud and debris without removing them. The lower edge of doors, rocker panels and frame members have drain holes which should not be allowed to clog with dirt as trapped water in these areas can cause corrosion. ●Wash the underside of the vehicle thoroughly when winter is over. See "Washing and waxing your Toyota" for more tips. Check the condition of your vehicle's paint and trim. If you find any chips or scratches in the paint, touch them up immediately to prevent corrosion from starting. If the chips or scratches have gone through the bare metal, have a qualified body shop make the repair.

Washing and waxing your Toyota

Check the interior of your vehicle. Water and dirt can accumulate under the floor mats and could cause corrosion. Occasionally check under the mats to make sure the area is dry. Be particularly careful when transporting chemicals, cleansers, fertilizers, salt, etc.; these should be transported in proper containers. If a spill or leak should occur, immediately clean and dry the area. Use mud shields on your wheels. If you drive on salted or gravel roads, mud shields help protect your vehicle. Full-size shields, which come as near to the ground as possible, are the best. We recommend that the fittings and the area where the shields are installed be treated to resist corrosion. Your authorized Toyota CNG dealer will be happy to assist in supplying and installing the shields if they are recommended for your area. Keep your vehicle in a well ventilated garage or a roofed place. Do not park your vehicle in a damp, poorly ventilated garage. If you wash your vehicle in the garage, or if you drive it in covered with water or snow, your garage may be so damp it will cause corrosion. Even if your garage is heated, a wet vehicle can corrode if the ventilation is poor.

Washing your Toyota

Keep your vehicle clean by regular washing. The following cases may cause weakness to the paint or corrosion to the body and parts. Wash your vehicle as soon as possible. ●When driving in a coastal area - When driving on a road sprinkled with antifreeze - When having coal tar, tree sap, bird droppings and carcass of an insect - When driving in the areas where there is a lot of smoke, soot, dust, iron dust and chemical substance - When the vehicle becomes remarkably dirty with dust and mud

Hand-washing your Toyota

Work in the shade and wait until the vehicle body is not hot to the touch.  1. Rinse off loose dirt with a hose. Remove any mud or road salt from the underside of the vehicle or in the wheel wells. 2. Wash with a mild car-wash soap, mixed according to the manufacturer's instructions. Use a soft cotton mitt and keep it wet by dipping it frequently into the wash water. Do not rub hard—let the soap and water remove the dirt. Plastic wheel ornaments: The plastic wheel ornaments are damaged easily by organic substances. If any organic substances splashes an ornament, be sure to wash it off with water and check if the ornament is damaged.  Plastic bumpers: Wash carefully. Do not scrub with abrasive cleaners. The bumper faces are soft. Road tar: Remove with turpentine or cleaners that are marked safe for painted surfaces.

NOTICE

Do not use organic substances (gasoline, kerosene, benzine or strong solvents), which may be toxic or cause damage. 3. Rinse thoroughly—dried soap can cause streaking. In hot weather you may need to rinse each section right after you wash it. 4. To prevent water spots, dry the vehicle using a clean soft cotton towel. Do not rub or press hard—you might scratch the paint.

Automatic car wash

Your vehicle may be washed in an automatic car wash, but remember that the paint can be scratched by some type of brushes, unfiltered washing water, or the washing process itself. Scratching reduces paint durability and gloss, especially on darker colors. The manager of the car wash should be able to advise you whether the process is safe for the paint on your vehicle.

Waxing your Toyota

Polishing and waxing is recommended to maintain the original beauty of your Toyota's finish. Once a month or if the vehicle surface does not repel water well, apply wax. 1. Always wash and dry the vehicle before you begin waxing, even if you are using a combined cleaner and wax. 2. Use a good quality polish and wax. If the finish has become extremely weathered, use a car-cleaning polish, followed by a separate wax. Carefully follow the manufacturer's instructions and precautions. Be sure to polish and wax the chrome trim as well as the paint. 3. Wax the vehicle again when water does not bead but remains on the surface in large patches.

NOTICE

Always remove the plastic bumpers if your vehicle is re-painted and placed in a high heat paint waxing booth. High temperatures could damage the bumpers.

Cleaning the interior

CAUTION

Do not wash the vehicle floor with water, or allow water to get onto the floor when cleaning the vehicle interior or exterior. Water may get into audio components or other electrical components above or under the floor carpet (or mat) and cause a malfunction; and it may cause body corrosion.

Vinyl interior

The vinyl upholstery may be easily cleaned with a mild soap or detergent and water. First vacuum over the upholstery to remove loose dirt. Then, using a sponge or soft cloth, apply the soap solution to the vinyl. After allowing it to soak in for a few minutes to loosen the dirt, remove the dirt and wipe off the soap with a clean damp cloth. If all the dirt do not come off, repeat the procedure. Commercial foaming-type vinyl cleaners are also available which work well. Follow the manufacturer's instructions.

NOTICE

Do not use solvent, thinner, gasoline or window cleaner on the interior.

Carpets

Use a good foam-type shampoo to clean the carpets. Begin by vacuuming thoroughly to remove as much dirt as possible. Several types of foam cleaners are available; some are in aerosol can sand others are powders or liquids which you mix with water to produce a foam. To shampoo the carpets, use a sponge or brush to apply the foam. Rub in overlapping circles. Do not apply water—the best results are obtained by keeping the carpet as dry as possible. Read the shampoo instructions and follow them closely.

Seat belts

The seat belts may be cleaned with mild soap and water or with lukewarm water. Use a cloth or sponge. As you are cleaning, check the belts for excessive wear, fraying, or cuts.

NOTICE

◆Do not use dye or bleach on the belts—it may weaken them. ◆Do not use the belts until they become dry.

Windows

The windows may be cleaned with any household window cleaner.

NOTICE

When cleaning the inside of the rear window, be careful not to scratch or damage the heater wires or connectors. Air conditioning control panel, car audio, instrument panel, ☐ onsole panel, and switches Use a soft damp cloth for cleaning. Soak a clean soft cloth in water or lukewarm water then lightly 2w ipe off dirt.

NOTICE

Do not use organic substances (solvents, kerosene, alcohol, asoline, etc.) or alkaline or acidic solutions. These chemicals can cause discoloring, staining or peeling of the surface. If you use cleaners or polishing agents, make sure their ingredients do not include the substances mentioned above. If you use a liquid car freshener, do not spill the liquid onto the vehicle's interior surfaces. It may contain the ingredients mentioned above. Immediately clean any spill using the method mentioned above. If you have any questions about the cleaning of your Toyota, your authorized Toyota CNG dealer will be pleased to answer them.  '01CAMRY CNG (L/O0009) '01CAMRY CNG (L/O0009)

SECTION 6

VEHICLE MAINTENANCE AND CARE

Maintenance requirements 166 General maintenance 167 Does your vehicle need repairing?g? 169 For scheduled maintenance information, please refer to the "Owner's Manual Supplement".

'01CAMRY CNG (L/O0009)


Maintenance requirements

Your Toyota vehicle has been designed for fewer maintenance requirements with longer service intervals to save both your time and money. However, each regular maintenance, as well as day-to-day care, is more important than ever before to ensure smooth, trouble-free, safe, and economical drivings. It is the owner's responsibility to make sure the specified maintenance, including general maintenance service, is performed. Note that both the new vehicle and emission control system warranties specify that proper maintenance and care must be performed. See "Owner's Manual Supplement".

General maintenance

General maintenance items are those day-to-day care practices that are important to your vehicle for proper operation. It is the owner's responsibility to insure that the general maintenance items are performed regularly. These checks or inspections can be done either by yourself or a qualified technician, or if you prefer, your authorized Toyota CNG dealer will be pleased to do them at a nominal cost.

Scheduled maintenance

The scheduled maintenance items listed in the "Owner's Manual Supplement" are those required to be serviced at regular intervals. For details of your maintenance schedule, read the "Owner's Manual Supplement". It is recommended that any replacement parts used for maintenance or for the repair of the emission control system be Toyota supplied. The owner may elect to use non-Toyota supplied parts for replacement purposes without invalidating the emission control system warranty. However, use of replacement parts which are not of equivalent quality may impair the effectiveness of the emission control systems. You may also elect to have maintenance, replacement, or repair of the emission control devices and system performed by any automotive repair establishment or individual without invalidating this warranty. See "Owner's Manual Supplement" for complete warranty information.

Where to go for service?

Toyota technicians are well-trained specialists and are kept up to date with the latest service information through technical bulletins, service tips, and in-dealership training programs. They learn to work on Toyota's before they work on your vehicle, rather than while they are working on it. You can be confident that your authorized Toyota CNG dealer's service department performs the best job to meet the maintenance requirements on your vehicle—reliably and economically. Your copy of the repair order is proof that all required maintenance has been performed for warranty coverage. And if any problems should arise with your vehicle while under warranty, your authorized Toyota CNG dealer will promptly take care of it. Again, be sure to keep a copy of the repair order for any service performed on your Toyota.

What about do-it-yourself maintenance?

Many of the maintenance items are easy to do yourself if you have a little mechanical ability and a few basic automotive tools. Simple instructions for how to perform them are presented in Section 7.

'01CAMRY CNG (L/O0009)

 If you are a skilled do-it-yourself mechanic, the Toyota service manuals are recommended. Please be aware that do-it-yourself maintenance can affect your warranty coverage. See "Owner's Manual Supplement" for the details.

General maintenance

Listed below are the general maintenance items that should be performed as frequently as specified. In addition to checking the items listed, if you notice any unusual noise, smell or vibration, you should investigate the cause or take your vehicle to your authorized Toyota CNG dealer or a qualified service shop immediately. It is recommended that any problem you notice be brought to the attention of your dealer or the qualified service shop for their advice.

OUTSIDE THE VEHICLE

Items listed below should be performed from time to time, unless otherwise specified.

Tire pressure

Check the pressure with a gauge every two weeks, or at least once a month. See Section 7-2 for additional information.

Tire surface and wheel nuts

Check the tires carefully for cuts, damage or excessive wear. See Section 7-2 for additional information. When checking the tires, make sure no nuts are missing, and check the nuts for looseness. Tighten them if necessary.

Tire rotation

Rotate the tires according to the maintenance schedule. (For scheduled maintenance information, please refer to the "Owner's Manual Supplement".) See Section 7-2 for additional information.

Fluid leaks

Check underneath for leaking oil, water or other fluid after the vehicle has been parked for a while. If you smell fuel fumes or notice any leak, have the cause found and corrected immediately.

Doors and engine hood

Check that all doors including trunk lid operate smoothly and all latches lock securely. Make sure the engine hood secondary latch secures the hood from opening when the primary latch is released.

'01CAMRY CNG (L/O0009)


INSIDE THE VEHICLE

Items listed below should be checked regularly, e.g. while performing periodic services, cleaning the vehicle, etc.

Lights

Make sure the headlights, stop lights, tail lights, turn signal lights, and other lights are all working. Check headlight aim.

Service reminder indicators and warning buzzers

Check that all service reminder indicators and warning buzzers function properly.

Steering wheel

Be alert for changes in steering condition, such as hard steering or strange noise.

Seats

Check that all front seat controls such as seat adjusters, seatback recliner, etc. operate smoothly and that all latches lock securely in any position. Check that the head restraints move up and down smoothly and that the locks hold securely in any latched position.

Seat belts

Check that the seat belt system such as buckles, retractors and anchors operate properly and smoothly. Make sure that the belt webbings not cut, frayed, worn or damaged.

Accelerator pedal

Check the pedal for smooth operation and uneven pedal effort or catching.

Brake pedal

Check the pedal for smooth operation and that the pedal has the proper clearance. Check the brake booster function.

Brakes

At a safe place, check that the brakes do not pull to one side when applied.

Parking brake

Check that the lever has the proper travel and that, on a safe incline, your vehicle is held securely with only the parking brake applied.

Automatic transmission "Park" mechanism

Check the lock release button of the selector lever for proper and smooth operation. On a safe incline, check that your vehicle is held securely with the selector lever in "P" position and all brakes released.

IN THE ENGINE COMPARTMENT

Items listed below should be checked from time to time, e.g. each time when refueling.

Washer fluid

Make sure there is sufficient fluid in the tank. See Section 7-3 for additional information.

Engine coolant level

Make sure the coolant level is between the "FULL" and "LOW" lines on the see-through reservoir when the engine is cold. See Section 7-2 for additional information.

Battery electrolyte level

Make sure the electrolyte level of all battery cells is between upper and lower level lines on the case. Add only distilled water when replenishing. See Section 7-3 for additional information.

Brake fluid level

Make sure the brake fluid level is correct. See Section 7-2 for additional information.

Engine oil level

Check the level on the dipstick with the engine turned off and the vehicle parked on a level spot. See Section 7-2 for additional information.

Power steering fluid level

Check the level through the reservoir. The level should be in the "HOT" or "COLD" range depending on the fluid temperature. See Section 7-2 for additional information.

Exhaust system

If you notice any change in the sound of the exhaust or smell exhaust fumes, have the cause located and corrected immediately. (See "Engine exhaust cautions" in Section 2.)

Does your vehicle need repairing?

Be on the alert for changes in performance, sounds, and visual tip-offs that indicate service is needed. Some important clues are as follows: ●Engine missing, stumbling, or pinging ●Appreciable loss of power ●Strange engine noises ●A leak under the vehicle (however, water dripping from the air conditioning after use is normal.) - Change in exhaust sound (This may indicate a dangerous carbon monoxide leak. Drive with the windows open and have the exhaust system checked immediately.) - Flat-looking tire; excessive tire squeal when cornering; uneven tire wear ●Vehicle pulls to one side when driving straight on a level road ●Strange noises related to suspension movement - Loss of brake effectiveness; spongy feeling brake; pedal almost touches floor; vehicle pulls to one side when braking ●Engine coolant temperature continually higher than normal If you notice any of these clues, take your vehicle to your authorized Toyota CNG dealer as soon as possible. It probably needs adjustment or repair.

CAUTION

Do not continue driving with the vehicle unchecked. It could result in serious vehicle damage and possibly personal injury.  '01CAMRY CNG (L/O0009) '01CAMRY CNG (L/O0009)

SECTION 7-1

DO-IT-YOURSELF MAINTENANCE

Introduction

Engine compartment overview 172 Fuse locations 173 Do-it-yourself service precautionsns 174 Parts and tools 175 Positioning the jack 176

'01CAMRY CNG (L/O0009)

Engine compartment overview  1. Power steering fluid reservoir 2. Engine coolant reservoir 3. Engine oil filler cap 4. Engine oil level dipstick 5. Brake fluid reservoir 6. Fuse blocks 7. Battery 8. Electric cooling fans 9. Windshield washer fluid tank

'01CAMRY CNG (L/O0009)

 Fuse locations

Diagram showing a car interior with a vehicle compartment and a plastic container (no text or symbols)

2001 CAMRY CNG\_U (OM33542U)

Do-it-yourself service precautions

If you perform maintenance by yourself, be sure to follow the correct procedure given in this section. You should be aware that improper or incomplete servicing may result in operating problems. Performing do-it-yourself maintenance during the warranty period may affect your warranty coverage. Read the separate Toyota Warranty statement for details and suggestions. This section gives instructions only for those items that are relatively easy for an owner to perform. As explained in Section 6, there are still a number of items that must be done by a qualified technician with special tools. For information on tools and parts for do-it-yourself maintenance, see "Parts and tools". Utmost care should be taken when working on your vehicle to prevent accidental injury. Here are a few precautions that you should be especially careful to observe;

CAUTION

●Never work on the fuel system by yourself. Any work on this system must be performed by your authorized Toyota CNG dealer. If an unqualified person works on it incorrectly causing fuel leaks etc., a fire hazard or explosion may occur, which is very dangerous. - When the engine is running, keep hands, clothing, and tools away from the moving fan and engine drive belts. (Removing rings, watches, and ties is advisable.) ●Right after driving, the engine compartment—the engine, radiator, exhaust manifold and spark plug boots, etc.—will be hot. So be careful not to touch them. Oil, fluids and spark plugs may also be hot. - If the engine is hot, do not remove the radiator cap or loosen the drain plugs to prevent burning yourself. - Do not smoke, cause sparks or allow open flames around fuel or the battery. Their fumes are flammable. - Be extremely cautious when working on the battery. It contains poisonous and corrosive sulfuric acid. - Do not get under your vehicle with just the body jack supporting it. Always use automotive jack stands or other solid supports. - Be sure that the ignition is off if you work near the electric cooling fans or radiator grille. With the ignition on, the electric cooling fans will automatically start to run if the engine coolant temperature is high and/or the air conditioning is on. - Use eye protection whenever you work on or under your vehicle where you may be exposed to flying or falling material, fluid spray, etc. ●Used engine oil contains potentially harmful contaminants which may cause skin disorders such as inflammation or skin cancer, so care should be taken to avoid prolonged and repeated contact with it. To remove used engine oil from your skin, wash thoroughly with soap and water.

'01CAMRY CNG (L/O0009)

- Do not leave used oil within the reach of children. ●Dispose of used oil and filter only in a safe and acceptable manner. Do not dispose of used oil and filter in household trash, in sewers or onto the ground. Call your authorized Toyota CNG dealer or a service station for information concerning recycling or disposal. ●Take care when filling the brake fluid reservoir because brake fluid can harm your eyes and damage painted surfaces. If fluid gets in your eyes, flush your eyes with clean water immediately. If you still feel uncomfortable with your eyes, go to the doctor.

NOTICE

◆Remember that battery and ignition cables carry high currents or voltages. Be careful of accidentally causing a short circuit. ◆Be careful not to touch the fuel pipe unintentionally. If an excessive force is applied on the pipe, gas may leak from its connections. ◆Add only demineralized or distilled water to fill the radiator. And if you spill some of the coolant, be sure to wash off with water to prevent it from damaging the parts or paint. ◆Do not allow dirt or anything else to fall through the spark plugholes. ◆Use only spark plugs of the specified type. Using other types will cause engine damage, loss of performance or radio noise. ◆Do not reuse platinum-tipped spark plugs by cleaning or regapping. ◆Do not overfill automatic transmission fluid, or the transmission could be damaged. ◆Do not drive with the air cleaner filter removed, or excessive engine wear could result. Also backfiring could cause a fire in the engine compartment. ◆Be careful not to scratch the glass surface with the wiper frame. When closing the engine hood, check to see that you have not forgotten any tools, rags, etc.

Parts and tools

Here is a list of parts and tools you will need on performing do-it-yourself maintenance. Remember all Toyota parts are designed in metric sizes, so your tools must be metric. Checking the engine oil level Parts (if level is low): \- Engine oil API grade SJ, "Energy–Conserving" or ILSAC multi-grade having viscosity proper for your climate Tools: ●Rag or paper towel ●Funnel (only for adding oil) Checking the engine coolant level Parts (if level is low): - "TOYOTA Long Life Coolant" or equivalent See Section 7-2 for details about coolant type selection. ●Demineralized or distilled water Tools: ●Funnel (only for adding coolant)

'01CAMRY CNG (L/O0009)


Checking brake fluid

Parts (if level is low): ●SAE J1703 or FMVSS No.116 DOT 3 brake fluid Tools: ●Rag or paper towel ●Funnel (only for adding fluid) Checking power steering fluid Parts (if level is low): ●Automatic transmission fluid DEXRON ^® II or III Tools: ●Rag or paper towel ●Funnel (only for adding fluid) Checking battery condition Tools: ●Warm water ●Baking soda •Grease ●Conventional wrench (for terminal clamp bolts)

Checking and replacing fuses

Parts (if replacement is necessary): ●Genuine Toyota fuse or equivalent with same amperage rating as original Adding washer fluid Parts: ●Water ●Washer fluid containing antifreeze (for winter use) Tools: ●Funnel Replacing light bulbs Parts: \- Bulb with same number and wattage rating as original (See charts in "Replacing light bulbs" in Section 7-3.) Tools: ●Screwdriver ●Flat-bladed screwdriver Positioning the jack  Front  Rear When jacking up your vehicle with the jack, position the jack correctly as shown in the illustrations.

CAUTION

When jacking, be sure to observe the following to reduce the possibility of personal injury: D Follow jacking instructions. D Do not put any part of your body under the vehicle supported by the jack. Personal injury may occur. D Do not start or run the engine while your vehicle is supported by the jack. D Stop the vehicle on a level firm ground, firmly set the parking brake and put the transmission in reverse. Block the wheels on the opposite side of the jack up point if necessary. D Make sure to set the jack properly in the jack point. Raising the vehicle with jack improperly positioned will damage the vehicle or may allow the vehicle to fall off the jack and cause personal injury. D Never get under the vehicle when the vehicle is supported by the jack alone; use vehicle support stands. D Do not raise the vehicle with someone in the vehicle. D When raising the vehicle, do not put an object on or under the jack.

NOTICE

Make sure to place the jack correctly, or your vehicle may be damaged.  '01CAMRY CNG (L/O0009) '01CAMRY CNG (L/O0009)

SECTION 7-2

DO-IT-YOURSELF MAINTENANCE

Engine and Chassis

Checking the engine oil level 180 Checking the engine coolant level 181 Checking brake fluid 182 Checking power steering fluid 183 Checking tire pressure 184 Checking and replacing tires 185 Rotating tires 186 Installing snow tires and chains 186 Replacing wheels 187 Checking the engine oil level  With the engine at operating temperature and turned off, check the oil level on the dipstick. 1. To get a true reading, the vehicle should be on a level spot. After turning off the engine, wait a few minutes for the oil to drain back into the bottom of the engine. 2. Pull out the dipstick, and wipe it clean with a rag. 3. Reinsert the dipstick—push it in as far as it will go, or the reading will not be correct. 4. Pull the dlstick out and look at the oil level on the end.  If the oil level is below or only slightly above the low level line, add engine oil of the same type as already in the engine. Remove the oil filler cap and add engine oil in small quantities at a time, checking the dipstick. The approximate quantity of oil needed to fill between the low level and the full level on the dipstick is indicated below for reference. When the level reaches within the correct range, install the filler cap hand-tight. Oil quantity, L (qt., Imp. qt.): 0.7 (0.7, 0.6)

NOTICE

◆Avoid overfilling, or the engine could be damaged. ◆Check the oil level on the dipstick once again after adding the oil.

Engine oil selection Use API grade SJ, "Energy-Conserving" or ILSAC multigrade engine oil. Recommended viscosity (SAE):  SAE 5W-30 is the best choice for your vehicle, for good fuel economy, and good starting in cold weather. If you use SAE 10W-30 engine oil in extremely low temperatures, the engine may become difficult to start, so SAE 5W-30 engine oil is recommended.

'01CAMRY CNG (L/O0009)

  API service symbol  ILSAC certification mark

Oil identification marks

Either or both API registered marks are added to some oil containers to help you select the oil you should use. The API Service Symbol is located anywhere on the outside of the container. The top portion of the label shows the oil quality by API (American Petroleum Institute) designations such as SJ. The center portion of the label shows the SAE viscosity grade such as SAE 5W-30. "Energy-Conserving" shown in the lower portion, indicates that the oil has fuel-saving capabilities. The ILSAC (International Lubricant Standardization and Approval Committee) Certification Mark is displayed on the front of the container.

Checking the engine coolant level

Look at the see-through coolant reservoir when the engine is cold. The coolant level is satisfactory if it is between the "FULL" and "LOW" lines on the reservoir. If the level is low, add ethylene-glycol type coolant for a proper corrosion protection of aluminum components. The coolant level in the reservoir will vary with engine temperature. However, if the level is on or below the "LOW" line, add coolant. Bring the level up to the "FULL" line. Always use ethylene–glycol type coolant for a proper corrosion protection of aluminum components. See information in the next column. If the coolant level drops within a short time after replenishing, there may be a leak in the system. Visually check the radiator, hoses, radiator cap and drain cock and water pump. If you can find no leak, have your authorized Toyota CNG dealer test the cap pressure and check for leaks in the cooling system.

CAUTION

To prevent burning yourself, do not remove the radiator cap when the engine is hot.

Coolant type selection

Use of Improper coolants may damage your engine cooling system. Your coolant must contain ethylene-glycol type coolant for a proper corrosion protection of your engine that contains aluminum components. Use "TOYOTA Long Life Coolant" or equivalent. In addition to preventing freezing and subsequent damage to the engine, this type of coolant will also prevent corrosion. Further supplemental inhibitors or additives are neither needed nor recommended. Read the coolant container for information on freeze protection. Follow the manufacturer's directions for how much to mix with plain water (preferably demineralized water or distilled water). The total capacity of the cooling system is given in Section 8. We recommend to use 50% solution for your Toyota, to provide protection down to about -35^ ( -31^ ). When it is extremely cold, to provide protection down to about -50^ ( -58^ ), 60% solution is recommended. Do not use more than 70% solution for better coolant performance.

NOTICE

Do not use alcohol type antifreeze or plain water alone. Checking brake fluid

Illustration of a mechanical component with labeled parts (MAX, MIN) and no readable text or symbols beyond labels

To check the fluid level, simply look at the see-through reservoir. The level should be between the "MAX" and "MIN" lines on the reservoir. It is normal for the brake fluid level to go down slightly as the brake pads wear. So be sure to keep the reservoir filled. If the reservoir needs frequent refilling, it may indicate a serious mechanical problem. If the level is low, add SAE J1703 or FMVSS No.116 DOT 3 brake fluid to the brake reservoir.

'01CAMRY CNG (L/O0009)

 Remove and replace the reservoir cap by hand. Fill the brake fluid to the dotted line. This brings the fluid to the correct level when you put the cap back on. Use only newly opened brake fluid. Once opened, brake fluid absorbs moisture from the air, and excess moisture can cause a dangerous loss of braking.

CAUTION

Take care when filling the reservoir because brake fluid can harm your eyes and damage painted surfaces. If fluid gets in your eyes, flush your eyes with clean water.

NOTICE

If you spill some of the fluid, be sure to wash it off with water to prevent it from damaging the parts or paint. Checking power steering fluid  Check the fluid level through the reservoir. If necessary, add automatic transmission fluid DEXRON®II or III. If the vehicle has been driven around 80 km/h (50 mph) for 20 minutes (a little more in frigid temperatures), the fluid is hot (60°C—80°C or 140°F—175°F). You may also check the level when the fluid is cold (about room temperature, 10°C—30°C or 50°F—85°F) if the engine has not been run for about five hours. Clean all dirt from outside of the reservoir tank and look at the fluid level. If the fluid is cold, the level should be in the "COLD" range. Similarly, if it is hot, the fluid level should be in the "HOT" range. If the level is at the low side of either range, add automatic transmission fluid DEXRON®II or III to bring the level within the range. To remove the reservoir cap, turn it counterclockwise and lift up. To reinstall it, turn it clockwise. After replacing the reservoir cap, visually check the steering box case, vane pump and hose connections for leaks or damage.

CAUTION

The reservoir tank may be hot so be careful not to burn yourself.

NOTICE

Avoid overfilling, or the power steering could be damaged.

'01CAMRY CNG (L/O0009)


Checking tire pressure


Line drawing of a car seatbelt mechanism with a black arrow indicating the direction (no text or symbols present)

Keep your tire pressures at the proper level. The recommended cold tire pressures, tire size and the vehicle capacity weight are given in Section 8. They are also on the tire pressure label as shown. You should check the tire pressures every two weeks, or at least once a month. And don't forget the spare! Incorrect tire pressure can reduce tire life and make your vehicle less safe to drive. Low tire pressure results in excessive wear, poor handling, reduced fuel economy, and the possibility of blowouts from overheated tires. Also, low tire pressure can cause poor sealing of the tire bead. If the tire pressure is excessively low, there is the possibility of wheel deformation and/or tire separation. High tire pressure produces a harsh ride, handling problems, excessive wear at the center of the tire tread, and a greater possibility of tire damage from road hazards. If a tire frequently needs refilling, have it checked by your authorized Toyota CNG dealer. The following instructions for checking tire pressure should be observed: ●The pressure should be checked only when the tires are cold. If your vehicle has been parked for at least 1 hour and has not been driven for more than 1.5 km or 1 mile since, you will get an accurate cold tire pressure reading. ●Always use a tire pressure gauge. The appearance of a tire can be misleading. Besides, tire pressures that are even just a few pounds off car degrade ride and handling. 2001 CAMRY CNG\_U (OM33542U) ●Take special care when adding air to the compact spare tire. The smaller tire size can gain pressure very quickly. Add compressed air in small quantities and check the pressure often until it reaches the specified pressure. \- Do not bleed or reduce tire pressure after driving. It is normal for the tire pressure to be higher after driving. ●Never exceed the vehicle capacity weight. The passenger and luggage weight should be located so that the vehicle is balanced. \- Be sure to reinstall the tire inflation valve caps. Without the valve caps, dirt or moisture could get into the valve core and cause air leakage. If the caps have been lost, have new ones put on as soon as possible.

Checking and replacing tires


CHECKING YOUR TIRES

Check the tires tread for the tread wear indicators. If the indicators show, replace the tires. The tires on your Toyota have built-in tread wear indicators to help you know when the tires need replacement. When the tread depth wears to 1.6 mm (0.06 in.) or less, the indicators will appear. If you can see the indicators in two or more adjacent grooves, the tire should be replaced. The lower the tread, the higher the risk of skidding. The effectiveness of snow tires is lost if the tread wears down below 4 mm (0.16 in.). Check the tires regularly for damage such as cuts, splits and cracks. If any damage is found, consult with a technician and have the tire repaired or replaced. Even if the damage does not appear serious, a qualified technician should examine the damage. Objects which have penetrated the tire may have caused internal damage. Any tires which are over 6 years old must be checked by a qualified technician even if damage is not obvious. Tires deteriorate with age even if they have never or seldom been used. This applies also to the spare tire and tires stored for future use. REPLACING YOUR TIRES When replacing a tire, use only the same size and construction as originally installed and with the same or greater load capacity. Using any other size or type of tire may seriously affect handling, ride, speedometer/odometer calibration, ground clearance, and clearance between the body and tires or snow chains.

CAUTION

\- Do not mix radial, bias belted, or bias-ply tires on your vehicle. It can cause dangerous handling characteristics, resulting in loss of control. \- Do not use tires or wheels other than the manufacturer's recommended size. Toyota recommends all four tires, or at least both front or rear tires be replaced as a set. See "If you have a flat tire" in Section 4 for tire change procedure. When a tire is replaced, the wheel should always be balanced. An unbalanced wheel may affect vehicle handling and tire life. Wheels can get out of balance with regular use and should therefore be balanced occasionally. When replacing a tubeless tire, the air valve should also be replaced with a new one.

'01CAMRY CNG (L/O0009)


Rotating tires


Diagram of a car with four wheels and bidirectional arrows indicating movement (no text or symbols)

To equalize the wear and help extend tire life, Toyota recommends that you rotate your tires according to the maintenance schedule. (For scheduled maintenance information, please refer to the "Owner's Manual Supplement".) However, the most appropriate timing for tire rotation may vary according to your driving habits and road surface conditions. See "If you have a flat tire" in Section 4 for tire change procedure. When rotating tires, check for uneven wear and damage. Abnormal wear is usually caused by incorrect tire pressure, improper wheel alignment, out-of-balance wheels, or severe braking.

Installing snow tires and chains

WHEN TO USE SNOW TIRES OR CHAINS Snow tires or chains are recommended when driving on snow or ice. On wet or dry roads, conventional tires provide better traction than snow tires. SNOW TIRE SELECTION If you need snow tires, select the same size, construction and load capacity as the original tires on your Toyota. Do not use tires other than those mentioned above. Do not install studded tires without first checking local regulations for possible restrictions.

SNOW TIRE INSTALLATION

Snow tires should be installed on all wheels. Installing snow tires on the front wheels only can lead to an excessive difference in road grip capability between the front and rear tires which could cause loss of vehicle control. When storing removed tires you should store them in a cool dry place. Mark the direction of rotation and be sure to install them in the same direction when replacing.

'01CAMRY CNG (L/O0009)

CAUTION

\- Do not drive with the snow tires incorrectly inflated. ●Never drive over 120 km/h (75 mph) with any type of snow tires.

TIRE CHAIN SELECTION

Use the tire chains of correct size and type. Use SAE Class "S" type radial tire chains except radial cable chains or V-bar type chains. Regulations regarding the use of tire chains vary according to location or type of road, so always check them before installing chains.

CHAIN INSTALLATION

Install the chains on the front tires as tightly as possible. Do not use tire chains on the rear tires. Retighten chains after driving 0.5—1.0 km (1/4—1/2 mile). When installing chains on your tires, carefully follow the instructions of the chain manufacturer. If wheel covers are used, they will be scratched by the chain band, so remove the covers before putting on the chains.

CAUTION

\- Do not exceed 50 km/h (30 mph) or the chain manufacturer's recommended speed limit, whichever is lower. ●Drive carefully avoiding bumps, holes, and sharp turns, which may cause the vehicle to bounce. \- Avoid sharp turns or locked-wheel braking, as use of chains may adversely affect vehicle handling. \- When driving with chains installed, be sure to drive carefully. Slow down before entering the curves to avoid losing control of the vehicle. Otherwise an accident may occur.

NOTICE

Do not attempt to use a tire chain on the compact spare tire, as it may result in damage to the vehicle as well as the tire.

Replacing wheels

WHEN TO REPLACE YOUR WHEELS

If you have wheel damage such as bending, cracks or heavy corrosion, the wheel should be replaced. If you fail to replace damaged wheels, the tire may slip off the wheel or cause loss of handling control.

WHEEL SELECTION

When replacing wheels, care should be taken to ensure that the wheels are replaced by ones with the same load capacity, diameter, rim width, and offset. This must be observed on compact spare tires, too. Correct replacement wheels are available at your authorized Toyota CNG dealer. A wheel of a different size or type may adversely affect handling, wheel and bearing life, brake cooling, speedometer/odometer calibration, stopping ability, headlight aim, bumper height, vehicle ground clearance, and tire or snow chain clearance to the body and chassis.

'01CAMRY CNG (L/O0009)

Replacement with used wheels is not recommended as they may have been subjected to rough treatment or high mileage and could fail without warning. Also, bent wheels which have been straightened may have structural damage and therefore should not be used. Never use an inner tube in a leaking wheel which is designed for a tubeless tire. '01CAMRY CNG (L/O0009)

SECTION 7-3

DO-IT-YOURSELF MAINTENANCE

Electrical components

Checking battery condition 190 Battery recharging precautions 191 Checking and replacing fuses 192 Adding washer fluid 193 Replacing light bulbs 193

Checking battery condition—Precautions

CAUTION

BATTERY PRECAUTIONS

The battery produces flammable and explosive hydrogen gas. \- Do not cause a spark from the battery with tools. \- Do not smoke or light a match near the battery. The electrolyte contains poisonous and corrosive sulfuric acid. ●Avoid contact with eyes, skin or clothes. ●Never ingest electrolyte. ●Wear protective safety glasses when working near the battery. \- Keep children away from the battery.

EMERGENCY MEASURES

\- If electrolyte gets in your eyes, flush your eyes with clean water immediately and get immediate medical attention. If possible, continue to apply water with a sponge or cloth while en route to the medical office. - If electrolyte gets on your skin, thoroughly wash the contact area. If you feel pain or burning, get medical attention immediately. - If electrolyte gets on your clothes, there is a possibility of its soaking through to your skin, so immediately take off the exposed clothing and follow the procedure above, if necessary. - If you accidentally swallow electrolyte, drink a large quantity of water or milk. Follow with milk of magnesia, beaten raw egg or vegetable oil. Then go immediately for emergency help.

—Checking battery exterior

 Check the battery for corroded or loose terminal connections, cracks, or loose hold-down clamp. a. If the battery is corroded, wash it off with a solution of warm water and baking soda. Coat the outside of the terminals with grease to prevent further corrosion. b. If the terminal connections are loose, tighten their clamp nuts—but do not overtighten. c. Tighten the hold-down clamp only enough to keep the battery firmly in place. Overtightening may damage the battery case.

'01CAMRY CNG (L/O0009)


NOTICE

◆Be sure the engine and all accessories are off before performing maintenance. When checking the battery, remove the ground cable from the negative terminal ("-" mark) first and reinstall it last. ◆Be careful not to cause a short circuit with tools. ◆Take care no solution gets into the battery when washing it.

—Checking battery fluid

Type A Green Dark   Clear or light yellow  Type B Blue White Red    Z73001

CHECKING BY HYDROMETER

Check the battery condition by the hydrometer color.

Hydrometer color		Condition
Type A Type B
Green Blue Good
Dark White		Charging necessary. Have battery checked by your authorized Toyota CNG dealer.
Clear or light yellow	Red	Have battery checked by your authorized Toyota CNG dealer.

Battery recharging precautions

During recharging, the battery is producing hydrogen gas. Therefore, before recharging: 1. If recharging with the battery installed on the vehicle, be sure to disconnect the ground cable. 2. Be sure the power switch on the recharger is off when connecting the charger cables to the battery and when disconnecting them.

CAUTION

●Always charge the battery in an unconfined area. Do not charge the battery in a garage or closed room where there is not sufficient ventilation. - Only do a slow charge (5 A or less). Charging at a quicker rate is dangerous. The battery may explode, causing personal injuries.

NOTICE

Never recharge the battery while the engine is running. Also, be sure all accessories are turned off. 2001 CAMRY CNG\_U (OM33542U)

'01CAMRY CNG (L/O0009)

Checking and replacing fuses

Type A  Good Blown  Type B  Good Blown  Type C  Good Blown  L70022

Technical line drawing of a mechanical component with an arrow indicating assembly or insertion (no text or symbols present)

If the headlights or other electrical components do not work, check the fuses. If any of the fuses are blown, they must be replaced. See "Fuse locations" in Section 7-1 for locations of the fuses. Turn the ignition switch and inoperative component off. Pull a suspected fuse straight out and check it. Determine which fuse may be causing the problem. The lid of the fuse box shows the name of the circuit for each fuse. See Section 8 of this manual for the functions controlled by each circuit. Type A fuses can be pulled out by the pull-out tool. The location of the pull-out tool is shown in the illustration. If you are not sure whether the fuse has blown, try replacing the suspected fuse with one that you know is good. If the fuse has blown, push a new fuse into the clip. Only install a fuse with the amperage rating designated on the fuse box lid. If you do not have a spare fuse, in an emergency you can pull out the "MIRROR-HEATER", "DOME" or "A/C" fuse, which may be dispensable for normal driving, and use it if its amperage rating is the same. If you cannot use one of the same amperage, use one that is lower, but as close as possible to, the rating. If the amperage is lower than that specified, the fuse might blow out again but this does not indicate anything wrong. Be sure to get the correct fuse as soon as possible and return the substitute to its original clip. It is a good idea to purchase a set of spare fuses and keep them in your vehicle for emergencies.

'01CAMRY CNG (L/O0009)

 If the new fuse immediately blows out, there is a problem with the electrical system. Have your authorized Toyota CNG dealer correct it as soon as possible.

CAUTION

Never use a fuse with a higher amperage rating, or any other object, in place of a fuse. This may cause extensive damage and possibly a fire.

Adding washer fluid

If any washer does not work or low windshield washer fluid level warning light comes on, the washer tank may be empty. Add washer fluid. You may use plain water as washer fluid. However, in cold areas where temperatures range below freezing point, use washer fluid containing antifreeze. This product is available at your authorized Toyota CNG dealer and most auto parts stores. Follow the manufacturer's directions for how much to mix with water.

NOTICE

Do not use engine antifreeze or any other substitute because it may damage your vehicle's paint.

Replacing light bulbs—

The following illustrations show how to gain access to the bulbs. When replacing a bulb, make sure the ignition switch and light switch are off. Use bulbs with the wattage ratings given in the table.

CAUTION

Halogen bulbs have pressurized gas inside and require special handling. They can burst or shatter if scratched or dropped. Hold a bulb only by its plastic or metal case. Do not touch the glass part of a bulb with bare hands.

NOTICE

Only use a bulb of the listed type.

'01CAMRY CNG (L/O0009)

The inside of the lens of exterior lights such as headlights may temporarily fog up when the lens becomes wet in the rain or in a car wash. This is not a problem because the fogging is caused by the temperature difference between the outside and inside of the lens, just like the windshield fogged up in the rain. However, if there is a large drop of water on the Inside of the lens, or if there is water pooled inside the light, contact your Toyota CNG dealer.

Light bulbs	Bulb No.	W Type
Headlights (high) 9005 60 A
Headlights (low) 9006 51 B
Parking, front side marker and front turn signal lights	3157 NA	27/8 E
Rear side marker lights	194 3	8 D
Rear turn signal lights	3156 or 3157	27	D
Stop/tail lights 3157	27/8 D
Back-up lights 921	18 D
License plate lights	—	5	D
High mounted stoplight	21CP	18 D
Interior light	— 10	F
Glove box light —	1.2 D
Trunk light	—	3.8	D

A: HB3 halogen bulbs B: HB4 halogen bulbs C: Single end bulbs D: Wedge base bulbs E: Wedge base bulbs (amber) F: Double end bulbs

'01CAMRY CNG (L/O0009)


—Headlights

 1. Open the hood. Turn the bulb base counterclockwise to the front of the vehicle as shown.

Mechanical component diagram showing a tool with directional arrows indicating movement (no text or symbols)

2. Unplug the connector while depressing the lock release. If the connector is tight, wiggle it.

Mechanical assembly diagram showing a gear and lever mechanism (no text or symbols)

3. Install a new bulb and connector into the mounting hole. Aiming is not necessary after replacing the bulb. When aiming adjustment is necessary, contact your authorized Toyota CNG dealer.

'01CAMRY CNG (L/O0009)

 —Parking, front side marker and front turn signal lights

Diagram showing a car interior with a tool and valve, no text or symbols present

Use a flat-bladed screwdriver. Remove and install the cover clips as shown in the following illustrations.  Removing the cover clips

Diagram of a car interior showing a curved object with directional arrows indicating movement or force (no text or symbols present)

Use a flat-bladed screw driver. To protect the surface, place several sheets of paper over the surface.  Installing the cover clips

'01CAMRY CNG (L/O0009)

 —Rear side maker, rear turn signal and stop/tail lights

Illustration of a hand holding a screwdriver with a circular component, showing mechanical assembly (no text or symbols)

Use a Phillips-head screwdriver. Remove and install the cover clips as shown in the following illustrations. Removing the cover clips

Illustration of two hands holding a small mechanical component with arrows indicating direction (no text or symbols)

Installing the cover clips 2001 CAMRY CNG\_U (OM33542U)

'01CAMRY CNG (L/O0009)



Diagram of a mechanical or electrical component with directional arrows, no visible text or symbols

 —Stop/tail lights  a: Rear side marker light b: Rear turn signal light c: Stop/tail light

Technical line drawing of a mechanical component with no visible text or symbols

'01CAMRY CNG (L/O0009)

 —Back-up lights

Mechanical component diagram showing a lever mechanism with adjustment arrows (no text or symbols)

Use a flat-bladed screwdriver.

Diagram of a car seatbelt switch mechanism with a connector and cable (no text or symbols)


Line drawing of a car interior showing hand positioning and steering wheel (no text or symbols)

2001 CAMRY CNG\_U (OM33542U)

'01CAMRY CNG (L/O0009)

 —License plate lights  Remove and install the cover clips as shown in the following illustrations.

Illustration of a hand holding a screwdriver and a tool, with no visible text or symbols

Removing the cover clips

Mechanical assembly diagram showing a clamp securing a component on a device (no text or symbols visible)

 Installing the cover clips

'01CAMRY CNG (L/O0009)

—High mounted stoplight

Diagram of a vehicle or aircraft with directional arrows indicating movement, no text or symbols present



Diagram of a car plug inserted into a socket, showing wiring and mounting points (no text or symbols)

2001 CAMRY CNG\_U (OM33542U)  '01CAMRY CNG (L/O0009) '01CAMRY CNG (L/O0009)

SECTION 8

SPECIFICATIONS

Dimensions and weight 204 Engine 204 Fuel 204 Service specifications 205 Tires 207 Fuses 207

'01CAMRY CNG (L/O0009)


Dimensions and weight

Overall length mm (in.) 4790 (188.6) Overall width mm (in.) 1780 (70.1) Overall height mm (in.) 1419 (55.9) Wheelbase mm (in.) 2670 (105.1) Front tread mm (in.) 1548 (60.9) Rear tread mm (in.) 1519 (59.8) Vehicle capacity weight (occupants + luggage) (lb) 410 (900) \*: Unladen vehicle

Engine

Model: 5S-FNE Type: 4 cylinder in line, CNG (Compressed Natural Gas) Bore and stroke, mm (in.): 87.0 91.0 (3.43 3.58) Displacement, cm ^3 (cu. in.): 2164 (132.0)

Fuel

Fuel type: Compressed natural gas Service pressure: 24800 kPa (3600 psig) Equivalent gasoline capacity: 43 L (11.4 gal., 9.5 Imp.gal.) Water volume: 135 L (35.7 gal., 29.7 Imp.gal.)

'01CAMRY CNG (L/O0009)

Service specifications

ENGINE

Valve clearance (engine cold), mm (in.): Intake 0.19—0.29 (0.007—0.011) Exhaust 0.28—0.38 (0.011—0.015) Spark plug type: DENSO PK20TR8-G Spark plug gap, mm(in.): 0.8 (0.031) Drive belt tension measured with Boroughs drive belt tension gauge No.BT-33-73F (used belt), lbf: Generator belt 130±10 Power steering pump belt 80±20

ENGINE LUBRICATION

Oil capacity (drain and refill), L (qt., Imp. qt.): With filter 3.6 (3.8, 3.2) Without filter 3.4 (3.6, 3.0) Oil grade: API grade SJ, "Energy-Conserving" or ILSAC multigrade engine oil is recommended. Recommended oil viscosity (SAE):

COOLING SYSTEM

Total capacity, L (qt., Imp. qt.): 6.9 (7.3, 6.1) Coolant type: "TOYOTA Long Life Coolant" or equivalent With ethylene-glycol type coolant for a proper corrosion protection of aluminum components Do not use alcohol type antifreeze or plain water alone.

BATTERY

Open voltage° at 20°C (68°F): 12.6—12.8V Fully charged 12.2—12.4V Half charged 11.8—12.0V Discharged \*: Voltage that is checked 20 minutes after the key is removed with all the lights turned off Charging rates: 5 A max. Note: If the replacement is necessary, make sure to do so with a battery that is the same standard as the original.

'01CAMRY CNG (L/O0009)

AUTOMATIC TRANSAXLE

Automatic transmission

Fluid capacity (drain and refill), L (qt., Imp. qt.) Up to 2.5 (2.6, 2.2) Fluid type: Automatic transmission fluid D-II or DEXRON ^ III (DEXRON ^ II)

Differential

Fluid capacity L (qt., Imp. qt.): 1.6 (1.7, 1.4) Fluid type: Automatic transmission fluid D-II or DEXRON ^ III (DEXRON ^ II)

BRAKES

Minimum pedal clearance when depressed with the force of 490 N (50 kgf, 110 lbf) with the engine running, mm (in.): 70 (2.8) Pedal free play, mm (in.): 1—6 (0.04—0.24) Pad wear limit, mm (in.): 1.0 (0.04) Lining wear limit, mm (in.): 1.0 (0.04) Parking brake adjustment when pulled with the force of 196 N (20 kgf, 44 lbf): 5—8 clicks 206 Fluid type: SAE J1703 or FMVSS No.116 DOT 3

STEERING

Wheel free play: Less than 30 mm (1.2 in.) Power steering fluid type: Automatic transmission fluid DEXRON®II or III 2001 CAMRY CNG\_U (OM33542U)

Tires Fuses

Tire size: Spare tire T145/80R16 105M Except spare tire P205/65R15 92H Tire pressure, kPa (kgf/cm ^2 or bar, psi): Spare tire 420 (4.2, 60) Except spare tire

Normal driving	For all loads including full rated loads	220 (2.2, 32)
	For reduced loads (1 to 4 passengers)	200 (2.0, 29)
Trailer driving		220 (2.2, 32)

When driving under the above vehicle load conditions at sustained high speeds above 160 km/h (100 mph), in countries where such speeds are permitted by-law, inflate the front and rear tires to 240 kPa (2.4 kgf/cm ^2 or bar, 35 psi) provided that it does not exceed the maximum cold tire pressure molded on the tire sidewall. Wheel size: Spare tire 4T Except spare tire 15 6JJ Wheel nut torque, N·m (kgf·m, ft·lbf): 104 (10.5, 77) NOTE: For a complete information on tires (e.g. replacing tires or replacing wheels), see "Checking tire pressure" through "Replacing wheels" in Section 7-2.  Engine compartment

'01CAMRY CNG (L/O0009)

 Engine compartment

Simple diagram with three rounded rectangles and one labeled square (no text or symbols beyond the number)

Engine compartment  Instrument panel

Fuses (type A)

1. A/C 10 A: Air conditioning system 2. SPARE 10 A: Spare fuse 3. SPARE 15 A: Spare fuse 4. SPARE 30 A: Spare fuse 5. ALT-S 5 A: Charging system 6. HEAD (RH) 20 A: Right-hand headlight 7. EFI 20 A: Multiport fuel injection system/sequential multiport fuel injection system, A/F sensor 8. HORN 10 A: Horn 9. HAZARD 15 A: Emergency flasher 10. AM2 30 A: Gauge and meter, SRS airbag system, seat belt pretensioners, multiport fuel injection system/sequential multiport fuel injection system, "IGN" and "STARTER" fuses 11. TEL 5 A: No circuit 12. HEAD (LH) 20 A: Left-hand headlight 13. RADIO NO.1 20 A: Audio system 14. DOME 7.5 A: Clock, ignition switch light, trunk light, interior light, power door lock system 15. ECU-B 10 A: Anti-lock brake system, SRS airbag system, seat belt pretensioners 16. A/F HTR 25 A: No circuit 17. DOOR SUB 25A: No circuit 18. INJ 20 A: Multiport fuel injection system/sequential multiport fuel injection system, starting system 19. DRL NO.2 5 A: No circuit 20. H-LP LH (LWR) 15 A: No circuit 21. H-LP RH (LWR) 15 A: No circuit 22. SEAT-HEATER 20 A: No circuit 23. HEATER 10 A: Air conditioning system, rear window defogger

'01CAMRY CNG (L/O0009)

24. GAUGE 10 A: Gauges and meters, back-up lights, cruise control system, charging system, power windows, service reminder indicators and warning buzzers 25. WIPER 25 A: Windshield wipers and washer 26. MIRROR-HEATER 10 A: Outside rear view mirror defogger 27. ECU-IG 15 A: Cruise control system, anti-lock brake system, SRS airbag system, seat belt pretensioners, shift lock control system, multiport fuel injection system/sequential multiport fuel injection system 28. IGN 5 A: Gauges and meters, charging system, SRS airbag system, seat belt pretensioners, multiport fuel injection system/sequential multiport fuel injection system 29. STOP 15 A: Stop lights, cruise control system, high-mounted stoplight, anti-lock brake system, shift lock control system, multiport fuel injection system/sequential multiport fuel injection system 30. TAIL 10 A: Parking lights, license plate lights, tail lights, front side marker lights, multiport fuel injection system/sequential multiport fuel injection system 31. POWER-OUTLET 15 A: Power outlet 32. OBD 7.5 A: On-board diagnosis system 33. FOG 15 A: No circuit 34. STARTER 5 A: Gauges and meters, multiport fuel injection system/sequential multiport fuel injection system 35. DOOR 25 A: Power door lock system 36. PANEL 7.5 A: Gauge and meter, audio system, cigarette lighter, glove box light, clock, instrument panel light control, service reminder indicators, air conditioning control panel lights, ashtray light, emergency flasher, rear window defogger, electronically controlled automatic transmission system 37. TURN 7.5 A: Emergency flasher 38. RAD-NO.2 7.5 A: Audio system 39. CIG 15 A: Cigarette lighter, shift lock control system, power rear view mirror controls, power door lock system, SRS airbag system, seat belt pretensioners, air conditioning system Fuses (type B) 40. CDS 30 A: Electric cooling fans 41. RDI 30 A: Electric cooling fans 42. MAIN 40 A: "HEAD (RH)" and "HEAD (LH)" fuses 43. HTR 50 A: "AM1" and "A/C" fuses 44. DEF 40 A: Rear window defogger 45. PWR 30 A: Power window control system 46. AM1 40 A: "POWER-OUTLET", "CIG", "RAD-NO.2", "TURN", "WIPER", "ECU-IG", "GAUGE", and "HEATER" fuses 47. CDS NO.2 30 A: No Circuit Fuses (type C) 48. ALT 100 A: "RDI" and "CDS" fuses 49. FL ABS 60 A: Anti-lock brake system  '01CAMRY CNG (L/O0009) '01CAMRY CNG (L/O0009)

SECTION 9

REPORTING SAFETY DEFECTS FOR U.S. OWNERS AND UNIFORM TIRE QUALITY GRADING

Reporting safety defects for U.S. owners 212 Uniform tire quality grading 212

'01CAMRY CNG (L/O0009)


Reporting safety defects for U.S. owners

If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free: 1-800-331-4331). If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer, or Toyota Motor Sales, U.S.A., Inc. To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1-800-424-9393 (or 366-0123 in Washington, D.C. area) or write to: NHTSA, U.S. Department of Transportation, Washington, D.C. 20590. You can also obtain other information about motor vehicle safety from the Hotline.

Uniform tire quality grading

This information has been prepared in accordance with regulations issued by the National Highway Traffic Safety Administration of the U.S. Department of Transportation. It provides the purchasers and/or prospective purchasers of Toyota vehicles with information on uniform tire quality grading. Your authorized Toyota CNG dealer will help answer any questions you may have as you read this information. DOT quality grades—All passenger car tires must conform to Federal Safety Requirements in addition to these grades. Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example: Treadwear 200 Traction AA Temperature A

'01CAMRY CNG (L/O0009)

 Treadwear—The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear one and a half (1-1/2) times as well on the government course as a tire graded 100. The relative performance of tires depends upon the actual conditions of their use, however, and may depart significantly from the norm due to variations in driving habits, service practices and differences in road characteristics and climate. Traction AA, A, B, C—The traction grades, from highest to lowest, are AA, A, B, and C, and they represent the tire's ability to stop on wet pavement as measured under controlled conditions on specified government test surfaces of asphalt and concrete. A tire marked C may have poor traction performance. Warning: The traction grade assigned to this tire is based on braking (straight ahead) traction tests and does not include cornering (turning) traction. Temperature A, B, C—The temperature grades are A (the highest), B, and C, representing the tire's resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure. The grade C corresponds to a level of performance which all passenger car tires must meet under the Federal Motor Vehicle Safety Standard No. 109. Grades B and A represent higher levels of performance on the laboratory test wheel than the minimum required by law. Warning: The temperature grades for this tire are established for a tire that is properly inflated and not overloaded. Excessive speed, underinflation, or excessive loading, either separately or in combination, can cause heat buildup and possible tire failure. '01CAMRY CNG (L/O0009)

Important information about this manual

Safety and vehicle damage warnings

Throughout this manual, you will see safety and vehicle damage warnings. You must follow these warnings carefully to avoid possible injury or damage. The types of warnings, what they look like, and how they are used in this manual are explained as follows:

CAUTION

This is a warning against something which may cause injury to people if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk to yourself and other people.

NOTICE

This is a warning against something which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your vehicle and its equipment.

Safety symbol

 00060 When you see the safety symbol shown above, it means: "Do not..."; "Do not do this"; or "Do not let this happen".

Important information about your Toyota

New vehicle warranty

Your new vehicle is covered by the following Toyota limited warranties: - New vehicle warranty - Emission control systems warranty - Others For further information, please refer to the "Owner's Manual Supplement".

Your responsibility for maintenance

It is the owner's responsibility to make sure that the specified maintenance is performed. Section 6 gives details of these maintenance requirements. Also included in Section 6 is general maintenance. For scheduled maintenance information, please refer to the "Owner's Manual Supplement".

Accessories, spare parts and modification of your Toyota

A wide variety of non-genuine spare parts and accessories for Toyota vehicles are currently available in the market. You should know that Toyota does not warrant these products and is not responsible for their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle. This vehicle should not be modified with non-genuine Toyota products. Modification with non-genuine Toyota products could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from the modification may not be covered under warranty. '01CAMRY CNG (L/O0009)

Installation of a mobile two-way radio system

As the installation of a mobile two-way radio system in your vehicle could affect electronic systems such as multiport fuel injection system/sequential multiport fuel injection system, cruise control system, anti-lock brake system, SRS airbag system and seat belt pretensioner system, be sure to check with your authorized Toyota CNG dealer for precautionary measures or special instructions regarding installation.

Scrapping of your Toyota

The SRS airbag and seat belt pretensioner devices in your Toyota contain explosive chemicals. If the vehicle is scrapped with the airbags and pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by the qualified service shop or by your authorized Toyota CNG dealer before you dispose of your vehicle.

Precautions for CNG

Your vehicle may use compressed natural gas (CNG) for fuel. - Handle the CNG vehicle with care as the fuel tank and pipes of it are filled with extremely high pressure gas. In this case, close the manual shutoff valve and have your authorized Toyota CNG dealer carry out an inspection. - You will be able to tell if fuel is leaking out of the vehicle by the sound of the leaking fuel and the smell of the fuel. - Be careful not to run out of fuel. There are less CNG stations than gasoline stations so we recommend that you refuel early. For details, see "Fuel" and "Fuel system" in Section 2.

Refueling station information

For information on refueling stations for CNG, contact Natural Gas Vehicle Coalition (NGVC) at the address and numbers listed below. Natural Gas Vehicle Coalition 1515 Wilson Blvd. Arlington, Va. 22209 Phone: [phone] '01CAMRY CNG (L/O0009)  '01CAMRY CNG (L/O0009)

Foreword

Welcome to the growing group of value-conscious people who drive Toyota. We are proud of the advanced engineering and quality construction of each vehicle we build. This Owner's Manual explains the operation of your new Toyota. Please read it thoroughly and have all the occupants follow the instructions carefully. Doing so will help you enjoy many years of safe and trouble-free motoring. For important information about this manual and your Toyota, read the following pages carefully. When it comes to service, remember that your authorized Toyota CNG dealer knows your vehicle best and is interested in your complete satisfaction. He will provide quality maintenance and any other assistance you may require. Please leave this Owner's Manual in this vehicle at the time of resale. The next owner will need this information also. All information and specifications in this manual are current at the time of printing. However, because of Toyota's policy of continual product improvement, we reserve the right to make changes at any time without notice. Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may find some explanations for equipment not installed on your vehicle.

TOYOTA MOTOR CORPORATION

©2000 TOYOTA MOTOR CORPORATION All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Toyota Motor Corporation. 2001 CAMRY CNG\_U (OM33542U)

'01CAMRY CNG (L/O0009)


Quick index

- If a service reminder indicator or warning buzzer comes on .... 70 - If your vehicle will not start 142 - If your engine stalls while driving 145 - If your vehicle overheats 145 - If you have a flat tire .... 146 - If your vehicle needs to be towed 154 - Tips for driving during break-in period 116 - How to start the engine .... 130 - General maintenance 167 - Complete index

Gas station information

Fuel type:

Compressed natural gas See page 116 for detailed information.

Service pressure:

24800 kPa (3600 psig) Equivalent gasoline capacity: 43 L (11.4 gal., 9.5 Imp. gal.) Water volume: 135 L (35.7 gal., 29.7 Imp. gal.) See page 118 for detailed information.

Engine oil:

API grade SJ, "Energy-Conserving" or ILSAC multigrade engine oil is recommended See page 180 for detailed information.

Automatic transmission fluid:

Automatic transmission fluid D-II or DEXRON®III (DEXRON®II) Tire information: See pages 184 through 187. Tire pressure: See page 207. 2001 CAMRY CNG\_U (OM33542U)  Publication No. OM33542U Part No. 01999-33542 Printed in Japan 01-0009-00 CNG (LU) '01CAMRY CNG (L/O0009)  You should know as much about the quality and importance of proper maintenance of your new vehicle as the people who built it. The Toyota authorized Repair Manual tells you how to maintain your vehicle and enables you to correctly perform your own maintenance.  2001 CAMRY CNG\_U (OM33542U) The best way to keep your new vehicle in top running order is to maintain it properly from the moment you drive it off the showroom floor. The Toyota authorized Repair Manual is packed with literally everything you need to know to perform your own maintenance in virtually every area of your new vehicle.

Maintenance procedures for the engine, chassis, body, electrical system, and more, are clearly explained and illustrated.

Periodic maintenance and tune-up

Periodic maintenance and tunc-up helps to prevent small problems from growing into larger ones later on. The repair manual outlines exactly what maintenance is required and clearly explains how to do the work yourself step-by-step. Areas covered include such things as spark plug replacement, valve clearance adjustment and engine oil and filter replacement.

Where to obtain the Repair Manual

The repair manual for CAMRY CNG, written in English, may be purchased as applicable from your authorized Toyota CNG dealer. Pub. Name: 2001 CAMRY CNG Repair Manual Supplement Pub. No.: RM830U (for CNG) Pub. Name: 2001 CAMRY Repair Manual Pub. No.: RM819U1 (Maintenance, Preparation, Service specifications and Diagnostics) RM819U2 (Engine, Chassis and Body)
