Product Type	Wireless Dual Band Gigabit Router
Brand	Totolink
Model	A3300R
Dimensions (L x W x H)	21 x 12 x 4 cm (excluding antennas)
Weight	Approximately 0.3 kg
Power Supply	12V DC/1A
CPU	1 GHz Dual-Core
Wi-Fi Standards	IEEE 802.11ac Wave 2, 802.11a/b/g/n
Frequency Bands	2.4 GHz and 5 GHz
Maximum Data Rate	Up to 1167 Mbps total (300 Mbps on 2.4 GHz + 867 Mbps on 5 GHz)
Antennas	4 external omni-directional (2 x 2.4 GHz, 2 x 5 GHz, 5 dBi each)
Ports	1 x Gigabit WAN, 3 x Gigabit LAN
Wireless Security	WPA/WPA2 Mixed
MU-MIMO	Yes
Beamforming	Yes
Guest Network	Yes, supports multiple SSIDs for different groups
QoS	Yes, bandwidth control based on IP address
Parental Control	Yes, internet time control based on MAC
Operation Modes	Gateway, AP, Repeater, WISP
IPv6 Support	Yes
Package Contents	A3300R Router, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide
Operating Temperature	0°C to 50°C
Storage Temperature	-40°C to 70°C
Maintenance and Cleaning	Use a soft dry cloth to clean the exterior. Do not use liquids or sprays.
Safety	Use only the provided power adapter. Keep away from water and heat sources.
Spare Parts and Repairability	No specific spare parts information available. Contact manufacturer for repairs.

Frequently Asked Questions - A3300R Totolink

What is the maximum wireless speed of the Totolink A3300R?

The Totolink A3300R delivers a combined wireless speed of up to 1167 Mbps (300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band), making it suitable for high-bandwidth activities like streaming HD video and online gaming.

How many antennas does the A3300R have and what is their purpose?

It features four external omni-directional antennas (two for 2.4 GHz and two for 5 GHz, each with 5 dBi gain). These antennas enhance wireless coverage and signal stability, providing a wider range and better performance.

Does the A3300R support MU-MIMO technology?

Yes, the A3300R supports MU-MIMO (Multi-User Multiple-Input Multiple-Output) technology, which allows it to communicate with multiple devices simultaneously, improving overall network efficiency and speed for each connected device.

What operation modes are available on the A3300R?

The router offers several modes: Gateway Mode (default for internet sharing), AP Mode (wired access point), Repeater Mode (wireless signal extension), and WISP Mode (wireless ISP connection). You can choose the appropriate mode via the web interface.

How can I set up a guest network on the A3300R?

You can configure a guest network through the router's web interface under Guest Network Settings. This feature creates separate SSIDs for guests, isolating them from your main network while providing internet access. It supports both 2.4 GHz and 5 GHz bands.

How does QoS work on the Totolink A3300R?

The Quality of Service (QoS) function allows you to prioritize bandwidth for specific devices or applications based on IP address. You can set up/down speed limits on the WAN interface and manage traffic to ensure smoother performance for critical tasks like gaming or video calls.

What wireless security standards does the A3300R support?

It supports WPA/WPA2 Mixed security, which provides strong encryption to protect your wireless network. You can also enable MAC filtering and disable SSID broadcast for additional security.

Does the A3300R have parental controls?

Yes, it includes Parental Control functionality that allows you to restrict internet access for specific devices based on MAC address and schedule. You can set time limits to manage children's online activity.

What is the power supply requirement for the A3300R?

The router requires a 12V DC / 1A power adapter. Only use the adapter included in the package to avoid damage. The power consumption is typical for a dual-band gigabit router.

What is included in the box with the A3300R?

The package contains: A3300R Router, Power Adapter (12V/1A), RJ45 Ethernet Cable, and Quick Installation Guide. No mounting hardware or additional antennas are included.

USER MANUAL A3300R Totolink

AC1200 Wireless Dual Band Gigabit Router

A3300R is a wireless dual band gigabit router which complies with the latest IEEE802.11ac Wave 2 standards, supporting to connect and communicate with multiple wireless devices at the same time.

A3300R

Dual-Core CPU

Black wireless router with three external antennas and ventilation grille (no visible text or symbols)

Full Gigabit Ports Guest Network Dual-Band Wi-Fi Wireless Extension
IPV6

Overview

A3300R is a wireless dual band gigabit router which complies with the latest IEEE802.11ac Wave 2 standards, supporting to connect and communicate with multiple wireless devices at the same time. Equipped with 4 pieces omni-directional antennas, A3300R delivers Wi-Fi speed up to 1167Mbps, offering a faster Internet speed and a more stable Internet connection with other wireless devices.

Meanwhile, full gigabit WAN port and LAN ports offer a larger capability for data streaming via cable connection. Besides, TR069, which has excellent supervision and testing functions, is used for remote centralized management of gateway, router, set-top box and other devices in the home network from the network side.

Moreover, MU-MIMO and Beamforming contribute to improve efficiency greatly. It is an ideal choice for the homes or offices with a high demand for the Internet access.

Black wireless router device with visible antennas and ventilation slots (no text or symbols)

Features

• Complies with the IEEE 802.11ac Wave 2 Wi-Fi standard.
• 1167Mbps in total on dual band, 867Mbps on 5GHz and 300Mbps. on 2.4GHz.
• 1GHz Dual-Core CPU for Powerful Processing.
• MU-MIMO technology allows to transfer data to multiple devices at the same time, each device enjoys high Internet speed separately.
• Beamforming technology allows to intensively transmit the signal to the directions of the other wireless connected terminals, improving the using-efficiency of the bandwidth and reducing the dead spots and the surrounding unnecessary RF interference.
• Full gigabit ports offers a larger capability for data streaming via cable connection.
• Supports DHCP, Static IP, PPPoE, PPTP and L2TP connection mode.
• Provides WPA/WPA2 mixed security.
• QoS function allows to change the bandwidth for different terminals via IP address.
• Supports IP address filtering, port filtering, MAC filtering, URL filtering and port forwarding.
• Guest network allows to create different SSIDs for different groups, better for Internet access management.
• Easy setup and management with phone UI and TOTOLINK Router APP.

Highlights

Black wireless router with three external antennas against a light blue sky background (no text or symbols visible)

1167Mbps Super-fast Speed Wi-Fi

A3300R complies with the IEEE802.11ac Wi-Fi standard, working on 2.4GHz and 5GHz simultaneously and delivering speeds up to 1167Mbps.

Four External Antennas, Wide Wi-Fi Coverage

Equipped four external omni-directional antennas, A3300R offers a higher wireless performance and expands wireless signal to a wider coverage.

1GHz Dual-Core CPU for Powerful Processing

Equipped with 1GHz dual-Core powerful processor, A3300R handles demands of multiple users accessing your network simultaneously, ensuring everyone in your home is possible to surf the internet constantly at the same time.

MU-MIMO Technology

Latest MU-MIMO technology supports to connect with multiple devices at the same time and each device enjoys high internet speed separately.

Highlights

Ris Rwanda router with four video camera images surrounding it, no text or symbols present.

Illustration of a wireless router connected to two smartphones with wireless signals, surrounded by network nodes (no text or symbols)

MU-MIMO Technology Beamforming Technology

Beamforming Technology for Wi-Fi Focus

The Beamforming technology allows to intensively transmit the signal to the directions of the other wireless connected terminals, such as cellphones, tablets and laptops, thus to improve the using-efficiency of the bandwidth and reduce the dead spots and the surrounding unnecessary RF interference.

Multiple Modes for Various Scenarios

A3300R provides several working modes, such as "Gateway Mode", "AP Mode", "WISP Mode", "Repeater Mode", selectable for the different scenarios. Users could choose the suitable working mode as per their current environments and the demands.

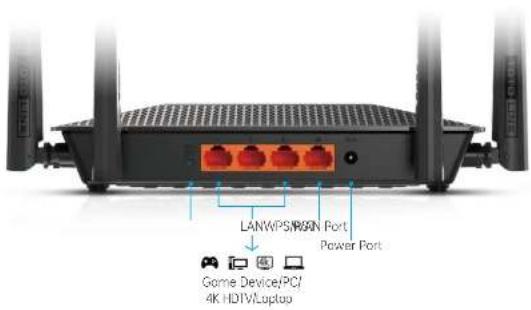

Gigabit WAN and LAN Ports

One Gigabit WAN and three Gigabit LAN ports offer a larger capability for data streaming via cable connection, delivering a super-fast Internet speed and offering Internet experience as connecting with a high-speed fiber, ideal for users subscribing a bandwidth of 200Mbps or above.

Specifications

Hardware
Interface	- 3 *1000Mbps Adaptive LAN Ports- 1 *1000Mbps Adaptive WAN Port
Power Supply	- 12VDC/1A
Button	- 1 *RST/WPS Button
LED Indicator	- 1 *SYS, 1 *2.4G, 1 *5G, 1 *WAN, 3 *LAN
Antenna	- 2 * 2.4GHz fixed antennas(5dBi)- 2 * 5GHz fixed antennas(5dBi)
Dimensions (L x W x H)	- 21*12*4CM (excluding antennas)
Wireless
Standards	- IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b,- IEEE 802.11g, IEEE 802.11n
RF Frequency	- 2.4GHz/5GHz
Data Rate	- 2.4GHz: Up to 300Mbps- 5GHz: Up to 867Mbps
EIRP	- 2.4GHz < 20dBm- 5GHz < 20dBm
Wireless Security	- WPA/WPA2 Mixed

Wireless
Reception Sensitivity - 2	4G: 11b 11M: -81dBm@8% PER11g 54M: -68dBm@10% PER11n HT20 MCS7: -65dBm@10% PERHT40 MCS7: -62dBm@10% PER- 5G: 11a 54M: -68dBm@10% PER11n HT20 MCS7: -65dBm@10% PERHT40 MCS7: -62dBm@10% PER11ac VHT80 MCS9: -51dBm@10% PER
Software
Home	- Quick Setup - Basic setup- Advanced setup - Operation Mode
Basic	- Internet Settings - Wireless Settings- Parental Control - Guest Network Settings- Smart QoS
Network	- Internet Setup - LAN Setup - DDNS- IPTV - IPv6 - IP/MAC Binding
Wireless	- Wireless Setup - Guest Network- Schedule - Access Control - Advanced

Specifications

Software
Parental Control	- Internet time control based on MAC
QoS	- Up/Down speed control on WAN,Bandwidth control based on IP address
Security	- IP/Port Filtering - MAC Filtering- URL Filtering
Tools	- Change Password - Time Setup - System- Upgrade - Diagnosis - Route Tracking- TR-069 Config - System Log and so on
Operation Mode	- Gateway mode - Bridge mode - Repeater mode- WISP mode
Other Function	- Multi-language automatic adaptation- Domain Access - LED Control- Logout - Reboot

Software
NATService	- Virtual Server - Remote	- DMZ - UPnP	- VPN Passthrough - Schedule
Others
Package ContentsEnvironment	- A3300R Wireless Router *1- Power Adapter *1- RJ45 Ethernet Cable *1- Quick Installation Guide *1- Operating Temperature: 0°C~50 °C (32 °F~122°F)- Storage Temperature: -40°C~70 °C (-40 °F~158°F)- Operating Humidity: 10%~90% non-condensing- Storage Humidity: 5%~90% non-condensing
