CM2073H - Coffee maker Clas Ohlson - Free user manual and instructions

Product Type	Automatic Drip Coffee Maker
Brand	Clas Ohlson
Model	CM2073H
Article Numbers	44-1322-1, 44-1322-2, 44-1322-3
Capacity	1.5 liters (10 cups)
Voltage	220–240 V AC, 50/60 Hz
Power Rating	915–1080 W
Auto Shut-Off	After 40 minutes
Water Reservoir	Transparent with measuring scale
Filter Type	No. 4 paper filter (cone)
Carafe Material	Glass
Carafe & Lid Dishwasher Safe	Yes
Hotplate	Yes, keeps coffee warm
Drip-Stop Mechanism	Yes (prevents dripping when carafe removed)
Removable Filter Holder	Yes
Funnel Included	Yes
Descaling Method	Vinegar solution (2–3 tbsp vinegar with full reservoir)
Recommended Descaling Frequency	Every 30–40 uses
Safety Features	Auto shut-off, drip-stop, cannot be immersed, no modifications allowed
Cleaning	Wipe with damp cloth; carafe and lid dishwasher safe
Intended Use	Domestic use (kitchens, hotels, motels, etc.)
Warranty	Standard manufacturer warranty (check local regulations)

Frequently Asked Questions - CM2073H Clas Ohlson

How do I brew coffee with the CM2073H?

Open the water reservoir lid, fill with desired water amount. Insert a No. 4 paper filter into the filter basket. Add coffee grounds. Secure the filter holder and close the carafe lid. Place the carafe on the hotplate, plug in, and press the On/Off button. Wait for brewing to finish. The hotplate keeps coffee warm until you turn off the machine.

What is the capacity of the coffee maker?

The coffee maker has a capacity of 1.5 liters, which corresponds to approximately 10 standard coffee cups.

Does the coffee maker have an automatic shut-off?

Yes, the CM2073H is equipped with an automatic safety shut-off that switches the machine off after 40 minutes of inactivity for safety and energy saving.

How do I descale the coffee maker?

Mix 2–3 tablespoons of vinegar with water up to the 10-cup mark in the reservoir (no coffee). Run a complete brewing cycle. Repeat if necessary. Then run 2–3 cycles with clean water to rinse. Do this in a well-ventilated area.

Can I put the carafe and lid in the dishwasher?

Yes, the glass carafe and its lid are dishwasher safe. However, the main unit and other parts should be wiped with a damp cloth only.

What type of filter should I use?

Use a standard No. 4 cone filter (paper filter). Insert it into the removable filter holder before adding coffee grounds.

Why does the coffee drip when I remove the carafe?

The coffee maker features a drip-stop mechanism. However, if the carafe lid is not properly seated or the carafe is removed during brewing, dripping may occur. Always wait until brewing is complete before removing the carafe.

How do I clean the coffee maker?

Always unplug and let the machine cool. Wipe the exterior with a soft damp cloth. Do not immerse in water. The carafe and lid can be washed in the dishwasher. For internal cleaning, run a descaling process when needed.

Is it safe to use the coffee maker unattended?

The coffee maker has an auto shut-off that turns it off after 40 minutes for safety. However, never leave it unattended for extended periods. Use a timer to switch it off if you forget.

What is the power consumption and voltage?

The coffee maker operates on 220–240 V AC, frequency 50/60 Hz, with a power rating of 915–1080 W. Ensure your outlet matches these specifications.

USER MANUAL CM2073H Clas Ohlson

Please read the entire instruction manual before using the product and save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you have any questions regarding technical problems please contact our Customer Services.

Safety

• Place the coffee maker on a dry and stable surface away from children's reach to prevent anyone from being scalded.
• The coffee maker should be used only as described in this manual.
  • Always disconnect the plug from the wall socket before cleaning or when not in use.
• Ensure that the product is used with the correct voltage. Refer to the product's rating plate.
• Never allow the coffee maker to be on for an extended time. It is recommended that you use a timer between the plug of the coffee maker and wall socket to turn the coffee maker off if you should forget.
• Do not pull or carry the coffee maker by the lead. Do not use the lead as a handle or let it fasten in door jambs. Do not pull it around sharp corners and edges or over warm surfaces, such as warm hobs.
• Never immerse the coffee maker in water and do not expose it to knocks, blows or high temperatures.
• Never use the coffee maker if you have dropped it on the floor, left it outdoors or dropped it into water.
• The mains lead should be checked regularly. Never use the product if the mains lead or plug is damaged.
• The mains lead must be changed if damaged. This is to prevent the risk of electric shock or fire and should only be carried out by the manufacturer, authorised service facility or qualified tradesman.
• The coffee maker should only be used and kept indoors.
• The coffee maker is intended for domestic use and similar environments such as in kitchens, hotels, motels, etc.
• Do not open the housing. Certain components inside the casing carry dangerous electrical current. Contact with these components could result in electric shock.
• The coffee maker should only be repaired by qualified service personnel.
• The coffee maker should not be taken apart or modified.
• The product may be used by children of 8 years and above and by persons with reduced physical, sensory or mental capability or lack of experience and knowledge provided they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
• Never let children play with the product.

Buttons and functions

Coffee maker with automatic safety shut-off feature

The coffee maker is equipped with a safety shut-off feature which switches it off automatically after 40 minutes.

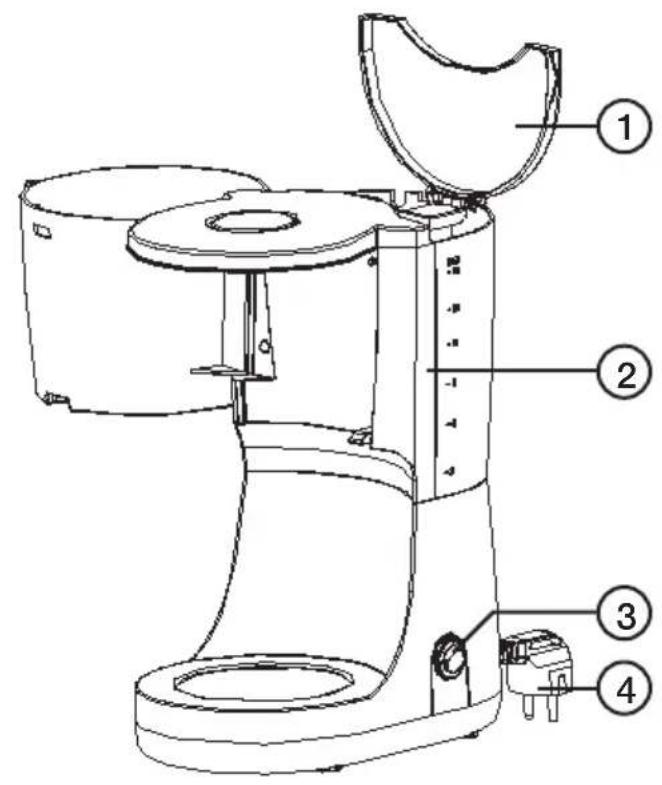

1. Water reservoir lid
2. Water reservoir
3. [⏻] On/Off
4. Mains lead

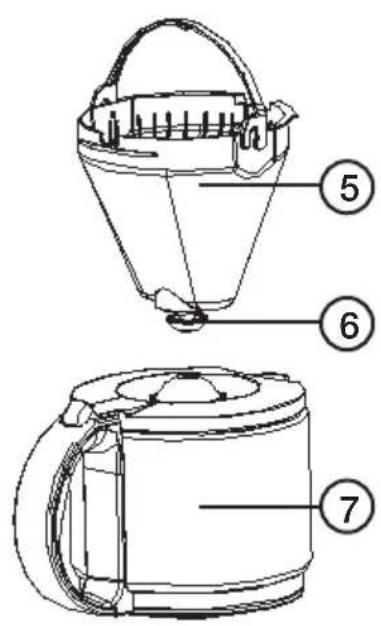

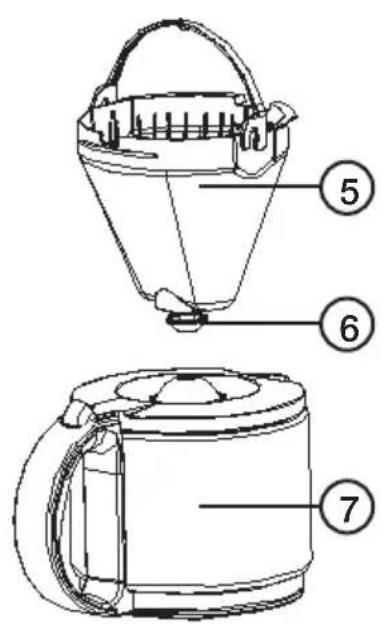

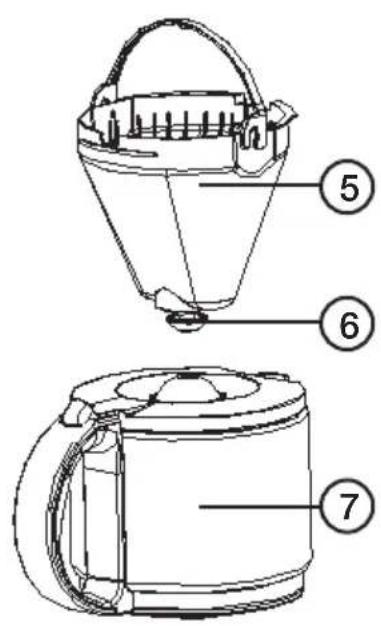

5. Removable filter holder
6. Funnel
7. Glass carafe

Operating instructions

Before initial use

• Rinse out the glass carafe and filter body with water before use.
• Before using the coffee maker for the first time you should run the machine through two to three filtration cycles with the water reservoir filled up to the 10 coffee cup mark and without coffee grounds. This should also be done when the coffee maker has not been used for a long time, and after descaling.

General

• The measuring scale on the water reservoir allows for easy and accurate filling. Make sure not to exceed the maximum water level.
• If you intend to brew several pots of coffee you should turn it off after every brewed pot and let the machine rest for about 5 minutes between brewing.

Brewing coffee

1. Open the lid and fill the water reservoir with the desired amount of water.
2. Insert a number 4 filter into the filter basket.
3. Close the filter holder after filling with coffee and make sure that it is locked into place.
4. Close the carafe lid and slot the carafe securely into place. Make sure the carafe lid is correctly in place to prevent the drip-stop mechanism on the filter assembly from operating during brewing.
5. Plug the coffee maker into a convenient wall socket and switch it on using the on/off button.
6. Wait until all the water has run through the filter before trying to remove the carafe from the hotplate.

The coffee can be kept warm by leaving it on the hotplate.

The hotplate will stay warm until the machine is turned off. Always turn off the appliance after use and remove the plug from the wall socket.

Care and maintenance

Cleaning

• Pull out the plug and let the coffee maker cool before cleaning.
• Use a soft damp cloth to wipe the product.
• Both the carafe and its lid are dishwasher safe.

Descaling

Depending on your water quality all appliances using warm water need to be descaled regularly in order to operate properly.

If a substantial amount of scale is allowed to build up it will be extremely difficult to remove even with a descaling agent. Scale can also cause leaks in the brewing mechanism. We recommend that the appliance be descaled after every thirty to forty uses. The following vinegar solution can be used for descaling:

1. Mix 2–3 tablespoons vinegar with the water reservoir filled up to the 10 coffee cup mark and without coffee grounds.
2. Pour this solution into the reservoir. Insert a filter into the filter basket without coffee as described in the Brewing coffee section and let the machine run through a complete filtering cycle. Repeat if necessary. Do this descaling process in a well ventilated area and avoid breathing in the fumes.
3. To clean the appliance after descaling you should run the machine through 2–3 filtration cycles with clean water at full capacity.

Disposal

This product should be disposed of in accordance with local regulations. If you are unsure how to proceed, contact your local authority.

Specifications

Capacity 1.5 l

Voltage 220–240 V AC, 50/60 Hz

Power 915-1080 W

Kaffebryggare

Art.nr 44-1322-1, -2, -3 Modell CM2073H

1. Lokk for vannbeholder
2. Vannbeholder
3. [⏻] På-/Av-bryter
4. Strømkabel
5. Filterholder
6. Munnstykke
7. Glasskolbe

Bruk
