CM2022L - Coffee maker Clas Ohlson - Free user manual and instructions

Product Type	Coffee Maker
Brand	Clas Ohlson
Model	CM2022L
Dimensions (approx)	25 × 20 × 35 cm
Weight (approx)	2 kg
Power Supply	1000–1200 W, 220–240 V, 50/60 Hz
Capacity	1.2 L (approx. 10 cups)
Water Tank	Removable, with water level indicator
Filter Type	Permanent filter or paper filter No. 4
Brewing Features	Anti-drip function, automatic keep-warm plate
Controls	On/off switch with indicator light
Carafe	Glass carafe with handle and pour spout
Safety Features	Auto shut-off after 2 hours, boil-dry protection
Cleaning and Maintenance	Descaling recommended every 1–2 months; removable filter basket and carafe dishwasher safe
Spare Parts	Carafe (part no. CM2022L-01), filter basket (CM2022L-02)
Warranty	2 years

Frequently Asked Questions - CM2022L Clas Ohlson

How do I descale the Clas Ohlson CM2022L coffee maker?

Mix equal parts water and white vinegar (or use a descaling solution). Fill the water tank, run a brew cycle without coffee. Let it stand for 15 minutes, then run two cycles with fresh water. Rinse thoroughly.

What type of filter does the CM2022L use?

It uses a permanent mesh filter or standard No. 4 paper filters. The permanent filter is reusable.

Can I program the coffee maker to start at a specific time?

No, the CM2022L does not have a programmable timer. It must be turned on manually.

How do I clean the carafe?

The glass carafe is dishwasher safe. For stains, soak with a mixture of hot water and baking soda, then scrub gently.

What does the auto shut-off feature do?

The coffee maker automatically turns off after 2 hours to save energy and prevent accidents.

Why is my coffee not hot enough?

Ensure the carafe is properly placed on the warming plate. If the plate is dirty, clean it. Also, descale if mineral buildup is affecting heating.

How much coffee should I use?

Use 1 heaping tablespoon of ground coffee per cup of water. Adjust to taste.

Can I use the coffee maker without a filter?

No, always use the permanent filter or a paper filter to avoid grounds in your coffee and damage to the machine.

What spare parts are available for the CM2022L?

Spare parts include the glass carafe (CM2022L-01) and the filter basket (CM2022L-02). Contact Clas Ohlson customer service.

Is the coffee maker safe to leave on overnight?

The auto shut-off turns the machine off after 2 hours, so it is safe. However, do not leave unattended for long periods.

USER MANUAL CM2022L Clas Ohlson

Black and white photo of a coffee maker with clear glass and black lid, no visible text or symbols

Coffee Maker

Art.no 18-4709 Model CM2022L

44-2005-1, -2, -3 CM2022L

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

• Place the coffee maker on a dry and stable surface out of children's reach to prevent anyone from being scalded by hot coffee.
• The coffee maker should only be used as described in this manual.
• Always unplug the coffee maker from the wall socket before cleaning it and when it is not in use.
• Ensure that the appliance is used with the correct voltage. Refer to the rating plate on the appliance.
• Never allow the coffee maker to be on for an extended time. It is recommended that you use a short-cycle time switch between the plug and wall socket to turn the coffee maker off after a set time in case you forget to switch it off.
• Do not pull or carry the coffee maker by the lead. Do not use the lead to carry the coffee maker and do not crush it in door jambs. Do not pull it around sharp corners and edges or over warm surfaces, such as warm hobs.
• Never immerse the coffee maker in water and do not expose it to knocks, blows or high temperatures.
• Never use the coffee maker if you have dropped it on the floor, left it outdoors or dropped it into water.
• The mains lead should be checked regularly. Never use the coffee maker if the mains lead or plug is damaged.

• The mains lead must be changed if damaged. This is to prevent the risk of electric shock or fire and should only be carried out by the manufacturer, authorised service facility or a qualified tradesman.

• The coffee maker should only be used and kept indoors.

• The coffee maker is intended for domestic use and similar environments such as in kitchens.
• Do not open the housing. Certain unshielded components inside the casing carry dangerous voltages. Contact with these components could result in electric shock.
• The coffee maker should only be repaired by qualified service personnel.
• The coffee maker should not be taken apart or modified.
• The appliance may be used by children aged 8 years and above and by persons with reduced physical, sensory or mental capability or lack of experience and knowledge provided they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Never let children play with the coffee maker.

Buttons and functions

Coffee maker with automatic safety shut-off feature

The coffee maker is equipped with an auto-stop, safety shut-off feature which switches it off automatically after 40 minutes.

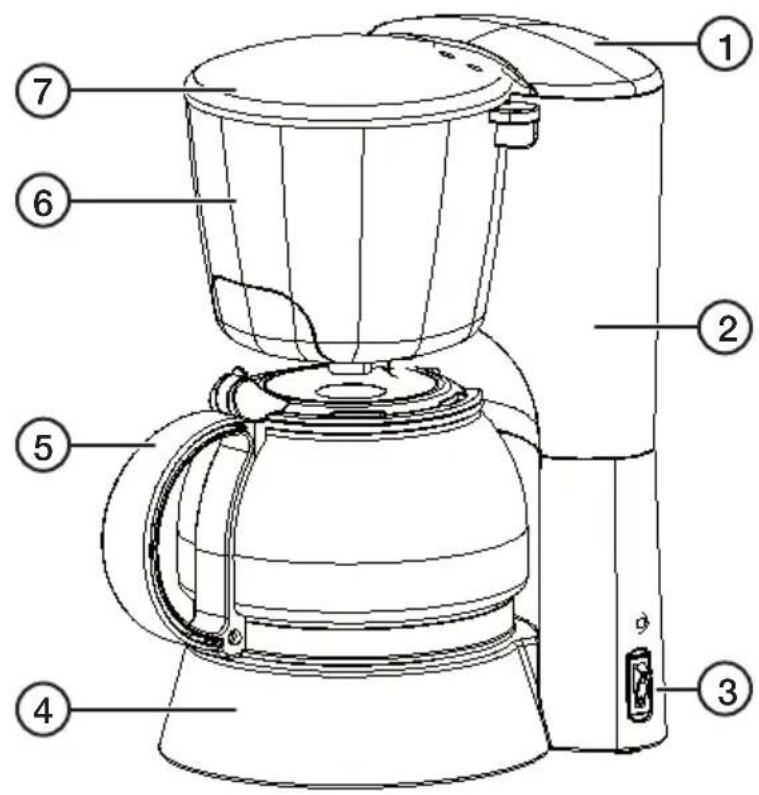

1. Water reservoir lid
2. Water reservoir
3. [I/0] On/off switch
4. Base
5. Glass carafe
6. Filter holder with permanent filter
7. Lid with filter

Labeled diagram of a coffee maker with numbered parts for identification

Operating instructions

Before initial use

• Wash the glass carafe and permanent filter before using the coffee maker for the first time.
• Before using the coffee maker for the first time you should run the machine through two to three filtration cycles with the water reservoir filled up to the 5-coffee cup mark and without coffee grounds. This should also be done when the coffee maker has not been used for a long time, and after descaling.

General

- The measuring scale on the water reservoir makes it easier for you to fill the reservoir with the correct amount of water. Make sure not to exceed the maximum water level.

- If you intend to brew several pots of coffee you should turn it off after every brewed pot and let the machine rest for about 5 minutes between brews.

Brewing coffee

1. Open the lid and fill the water reservoir with the desired amount of water.
2. Insert the permanent filter into the filter holder.
3. Close the filter holder after filling with coffee and make sure that it is locked into place.
4. Put the lid on the carafe and place the carafe onto the base. Make sure the carafe lid is correctly in place to prevent the drip-stop mechanism on the filter assembly from operating during brewing.
5. Plug the coffee maker into a convenient wall socket and switch it on using the on/off switch on the coffee maker.
6. Wait until all the water has run through the filter before trying to remove the carafe from the hotplate.

The coffee can be kept warm by leaving it on the hotplate. The hotplate will stay warm until the machine is turned off. Always turn off the appliance after use and disconnect the plug from the wall socket.

Care and maintenance

Cleaning

• Unplug the coffee maker and let it cool before cleaning it.
• Use a soft damp cloth to wipe the coffee maker clean.
• The glass carafe, carafe lid, filter holder and permanent filter can all be machine-washed.

Descaling

Depending on your water quality, all appliances using warm water need to be descaled on a regular basis in order to ensure proper operation.

If a substantial amount of scale is allowed to build up, it will be extremely difficult to remove even with a descaling agent. Scale can also cause leaks in the brewing mechanism. We recommend that the coffee maker be descaled after every thirty to forty uses. The following vinegar solution can be used for descaling:

1. Mix 1–2 tablespoonfuls of vinegar with about 5 cupfuls of water.
2. Pour this solution into the tank. Insert a filter into the filter basket without coffee as described in the Brewing coffee section and let the machine run through a complete filtering cycle. Repeat if necessary. Do this descaling process in a well ventilated area and avoid breathing in the fumes.
3. To clean the coffee maker after descaling you should run the machine through 2–3 filtration cycles using clean water filled to full capacity.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no visible text or labels

Specifications

Capacity 0.61

Voltage 220–240 V AC, 50/60 Hz

Power 600–700 W

Kaffebryggare

Art.nr 18-4709 Modell CM2022L

44-2005-1, -2, -3 CM2022L

Labeled diagram of a coffee maker with numbered parts for identification

Användning

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Specifikationer

Kapacitet 0,6 l

Spänning 220–240 V AC, 50/60 Hz

Effekt 600–700 W

Kaffetrakter

Art.nr. 18-4709 Modell CM2022L

44-2005-1, -2, -3 CM2022L

Les brukerveiledningen grundig før produktet tas i bruk, og ta vare på den for framtidig bruk. Vi reserverer oss mot eventuelle feil i tekst og bilder, samt endringer av tekniske data. Ved tekniske problemer eller spørsmål, ta kontakt med vårt kundesenter. (Se opplysninger på baksiden).

Sikkerhet

Labeled diagram of a coffee maker with numbered parts for identification

Bruk

Symbol of a recycling bin with no text or numbers present

Spesifikasjoner

Kapasitet 0,6 l

Spenning 220–240 V AC, 50/60 Hz

Effekt 600–700 W

Kahvinkeitin

Tuotenro 18-4709 Malli CM2022L

44-2005-1, -2, -3 CM2022L

Labeled diagram of a coffee maker with numbered parts for identification

Käyttö

Symbol of a trash bin crossed with no visible text or labels

Tekniset tiedot

Kapasiteetti 0,6 l

Jännite 220–240 V AC, 50/60 Hz

Teho 600–700 W

Kaffeemaschine

Labeled diagram of a coffee maker with numbered parts for identification

Benutzung

Symbol of a trash bin crossed with no visible text or labels

Technische Daten
