DSX6.2C - Loudspeaker Crunch - Free user manual and instructions

Product Type	6.5-inch Component Speaker System
Speaker Size	6.5 inches (165 mm)
Tweeter Size	1 inch (25 mm) silk dome
Power Handling (RMS)	60 Watts
Power Handling (Peak)	180 Watts
Impedance	4 Ohms
Sensitivity	92 dB
Frequency Response	60 Hz - 20 kHz
Woofer Cone Material	Polypropylene with rubber surround
Mounting Depth	2.5 inches (64 mm)
Crossovers	External, 12 dB/octave
Grilles Included	Yes, mesh grilles
Installation Hardware	Included (screws, brackets, wiring)
Weight (per speaker)	2.5 lbs (1.13 kg)
Water Resistance	Not waterproof, for interior use
Compliance	CE, RoHS

Frequently Asked Questions - DSX6.2C Crunch

What is the Crunch DSX6.2C speaker system?

The Crunch DSX6.2C is a 6.5-inch component speaker set designed for car audio systems. It includes two woofers, two tweeters, and external crossovers for improved sound staging.

What is the power handling of the DSX6.2C?

The RMS power handling is 60 watts per speaker, with a peak power handling of 180 watts. This makes them suitable for amplifiers delivering up to 60 watts RMS per channel.

What is the impedance of these speakers?

The impedance is 4 ohms, which is standard for most car audio systems and compatible with most aftermarket amplifiers.

How do I install the Crunch DSX6.2C speakers?

Install the woofers in 6.5-inch locations (doors or rear deck) and mount the tweeters in the dash or sail panels. Connect the crossovers between the amplifier and each driver, ensuring correct polarity. Use the included hardware for secure mounting.

Can I run these speakers without an external amplifier?

Yes, you can run them directly off a head unit, but for best performance, use an external amplifier that provides at least 60 watts RMS per channel.

What is the frequency response of the DSX6.2C?

The frequency response is 60 Hz to 20 kHz, covering the full audible range. The woofers handle lows to mids, while the tweeters cover highs.

Are the tweeters adjustable?

Yes, the tweeters are swivel-mount, allowing you to aim them for optimal sound imaging. The crossovers also have tweeter level adjustment (0 dB or -3 dB) to fine-tune the output.

Do these speakers come with grilles?

Yes, each speaker includes a mesh grille to protect the cone and dust cap. The grilles are paintable to match your interior.

What is the mounting depth of the woofer?

The mounting depth is 2.5 inches (64 mm). Ensure your vehicle has sufficient clearance behind the mounting location to avoid interference.

How should I maintain these speakers?

Keep them clean with a soft, dry cloth. Avoid exposing them to moisture or direct sunlight. Periodically check connections for corrosion or looseness.

USER MANUAL DSX6.2C Crunch

Collection of black CRUNCH speakers and earpieces with visible brand labels (no text extraction needed)

DSX5.2C

DSX6.2C

COMPONENT SYSTEMS

BENUTZERHANDBUCH

OWNER'S MANUAL

DEUTSCH

INSTALLATION DER LAUTSPRECHER

The first step of installing a speaker system is a well-thought-out planning. Choose a suitable location for your speaker components carefully. Please observe the following suggestions to ensure proper results and best performance:

1. Choose a location which offers none or just a minimum of obstacles between the components and your ears. Please observe at thereto, the positions of the driver's seat, the headrests and other constructions of the inside of vehicle interior.
2. Mount the left and right speakers in the same array on each side, which means that they are installed at the same height and directly across from each other. Do not install one speaker higher, lower, further forward or further back from the opposite speaker.
3. Always check what's behind the chosen mounting locations to ensure that there is proper clearance for the back of the speaker components and avoid obstructions such as window tracks, wire harnesses, gas tank etc.
4. The best performance will be achieved, when the speakers are securely mounted to a designated speaker opening in a door panel or a rear speaker shelf. There should be no gaps between the speaker basket and the mounting surface.

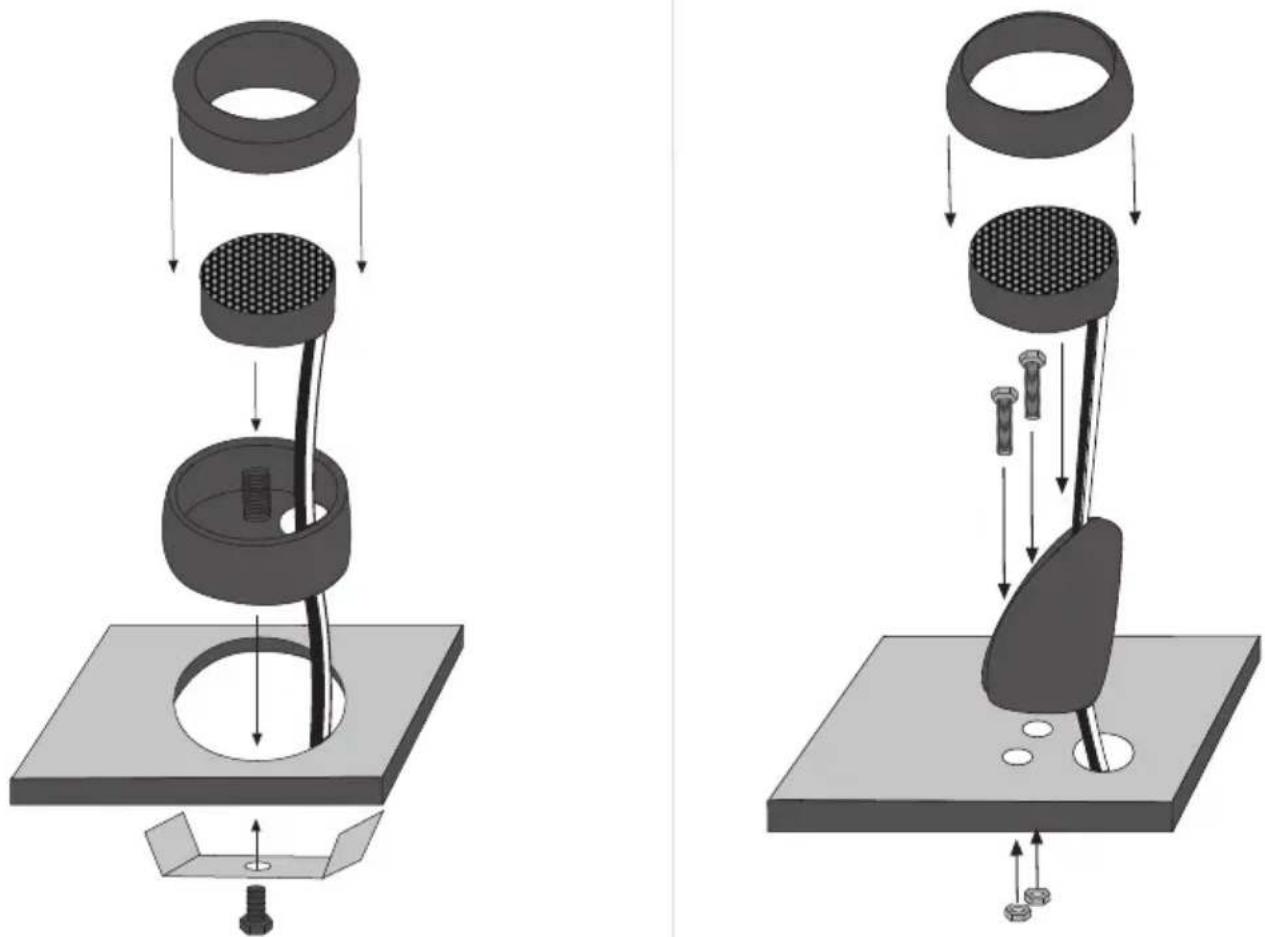

TWEETER MOUNTING

A.) Flush mount with standard housing B.) Angle mount with built-on housing

ENGLISH

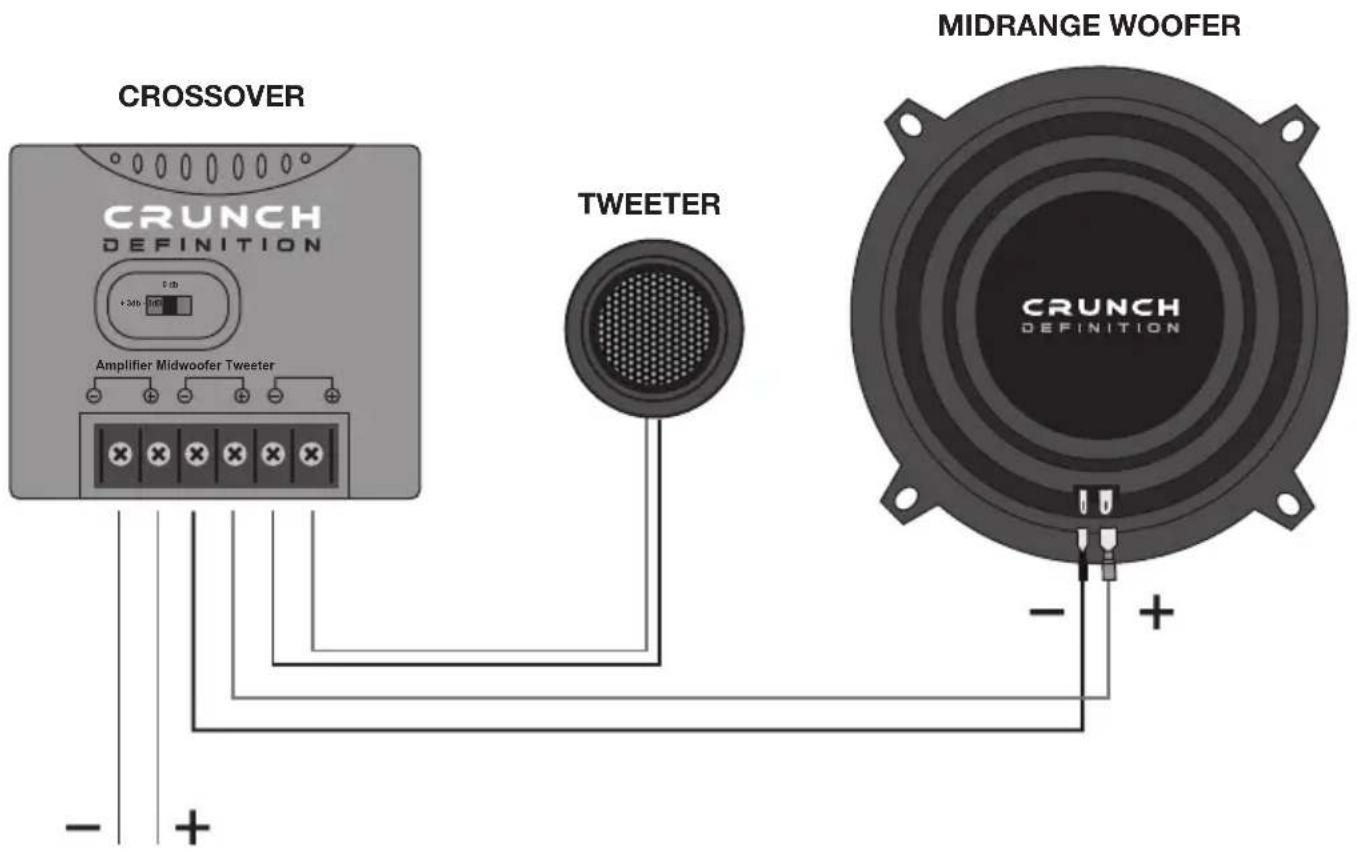

MIDRANGE WOOFER INTERCONNECTION

• Connect the positive terminals (+) and the negative terminals (−) of the midrange woofers with the according terminals "MIDWOOFER" of the crossover.
• Use for the interconnection the supplied cables with jacks (white and black).

TWEETER INTERCONNECTION

- Connect the positive connectors (+") and the negative connectors (−") of the tweeters with the according terminals "TWEETER" of the crossover.

CROSSOVER INTERCONNECTION

• Connect the positive terminals (+") and the negative terminals (−") of the amplifier speaker outputs with the according terminals "AMPLIFIER" of the crossover.
• Use for the interconnection the supplied cables (white and black).

Repeat all three steps for the channel pair on the opposite side of the vehicle.

TO THE SPEAKER OUTPUTS OF THE AMPLIFIER

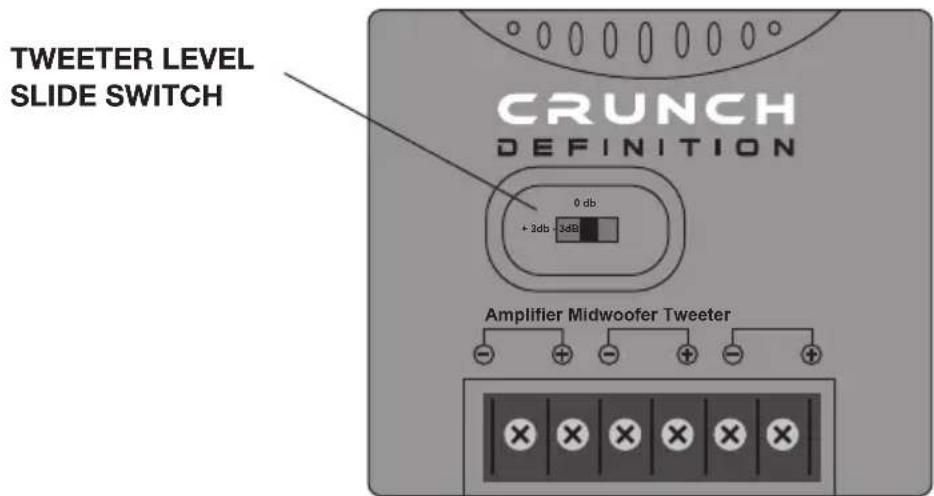

TWEETER LEVEL ADJUSTMENT OF THE CROSSOVER

The DEFINITION DSX crossovers offer the opportunities to match the tweeter level of the loudspeaker system with the characteristics of the interior environment and the complete soundsystem.

- To adjust the tweeter level set the 3-way slide switch to the following positions: "+ 3dB" (high level), "0dB" (mid level) and "-3dB" (low level)

INSTALLATION OF THE CROSSOVER

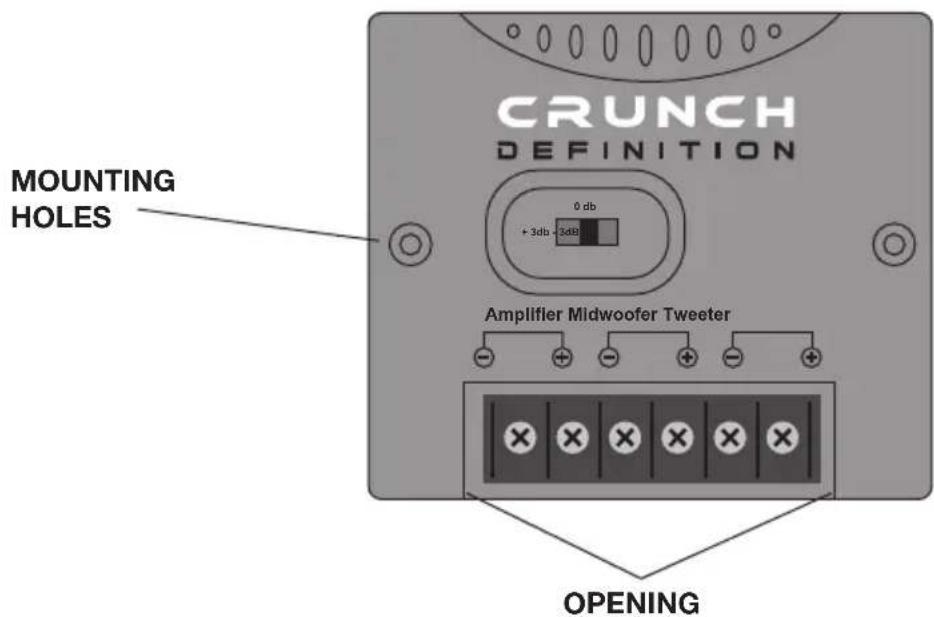

Under specific circumstances it will be necessary to mount the crossover to the vehicle. To use the designated mounting holes, you have to remove the transparent acrylic cover of the crossover housing. Insert carefully a small screwdriver or pen to the inside through the small openings next to the terminals and remove the acrylic cover by pulling apart. The mouting holes sit on the left and right center. Use appropriate screws, depending on the surface, where the housing will be installed on.
