USER MANUAL 57372 HYUNDAI

BENZINETRILPLAAT 57372

Line drawing of a power vehicle with a lever and base platform (no text or symbols)

HYUNDAI

Nederlands

English

- Verklaring van overeenstemming • Declaration of conformity

2

7

13

19

8

HYUNDAI

6

TRILPLAAT 57372

WAARSCHUWING

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in fire and/or serious injury. Save all warnings and instructions for future reference.

SAFETY INSTRUCTIONS

When using the machine, always observe the safely warnings.

The following symbols are used throughout this manual:

Dencles risk of personal injury or damage to the machine.

You will find the following symbols on the machine:

Wear gloves.

Wear safety shoes.

Wear eye protection.

Keep hands away from rotating parts.

Do not touch parts which are hot from operation. Serious burns may result.

Do not smoke or have open flames. Do not use the machine in surroundings where sparks, flames or open fire can be present. Do not smoke near the machine.

Keep bystanders off and away.

Understand your machine

Read and understand the operator's manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards peculiar to it.

Be thoroughly familiar with the controls and their proper operation. Know how to stop the machine and disengage the controls quickly.

Make sure to read and understand all the instructions and safety. Do not attempt to operate the machine until you fully understand how to properly operate and maintain the engine and how to avoid accidental injuries and/or property damage.

Work area

Never start or run the engine inside a closed area. The exhaust tumes are dangerous, containing carbon monoxide, an odorless and deadly gas. Operate this unit only in a well ventilated outdoor area. Never operate the machine without good visibility or light.

Personal safety

Do not operate the machine while under the influence of drugs, alcohol, or any medication that could affect your ability to use it properly.

Dress properly. Wear heavy long pants, boots and gloves. Do not wear loose clothing, short pants, jewelry of any kind. Secure long hair so it is above shoulder level. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

Check your machine before starting it. Keep guards in place and in working order. Make sure all nuts, bolts, etc. are securely tightened.

ENGLSH

Never operate the machine when it is in need of repair or is in poor mechanical condition. Replace damaged, missing or failed parts before using it. Check for fuel leaks. Keep the machine in safe working condition.

Do not use the machine if the engine's switch does not turn it on or off. Any gasoline powered machine that can not be controlled with the engine switch is dangerous and must be replaced.

Form a habit of checking to see that keys and adjusting wrenches are removed from machine area before starting it. A wrench or a key that is left attached to a rotating part of the machine may result in personal injury.

Stay alert, watch what you are doing and use common sense when operating the machine.

Do not overreach. Do not operate the machine while barefoot or when wearing sandals or similar lightweight footwear. Wear protective footwear that will protect your feel and improve your footing on slippery surfaces. Keep proper fooling and balance at all times. This enables better control of the machine in unexpected situations.

Avoid accidental starting. Be sure the engine's switch is off before transporting the machine or performing any maintenance or service on the unit. Transporting or performing maintenance or service on a machine with its switch on invites accidents.

Fuel safety

Fuel is highly flammable, and its vapors can explode if ignited. Take precautions when using to reduce the chance of serious personal injury.

When refilling or draining the fuel tank, use an approved fuel storage container while in a clean, well-ventilated outdoor area. Do not smoke, or allow sparks, open flames or other sources of ignition near the area while adding fuel or operating the unit. Never fill fuel tank indoors.

Keep grounded conductive objects, such as tools, away from exposed, live electrical parts and connections to avoid sparking or arcing. These events could ignite fumes or vapors.

Always stop the engine and allow it to cool before filling the fuel tank. Never remove the cap of the fuel tank or add fuel while the engine is running or when the engine is hot. Do not operate the machine with known leaks in the fuel system.

Loose the fuel tank cap slowly to relieve any pressure in the tank.

Never overfill fuel tank (there should be no fuel above the upper limit mark).

Replace all fuel tank and container caps securely and wipe up spilled fuel. Never operate the unit without the fuel cap securely in place.

Avoid creating a source of ignition for spilled fuel. If fuel is spilled, do not attempt to start the engine but move the machine away from the area of spillage and avoid creating any source of ignition until fuel vapors have dissipated.

Store fuel in containers specifically designed and approved for this purpose. Store fuel in a cool, well-ventilated area, safely away from sparks, open flames or other sources of ignition.

Never store fuel or machine with fuel in the tank inside a building where fumes may reach an spark, open flame, or any other source of ignition, such as a water heater, furnace, clothes dryer and the like. Allow the engine to cool before storing in any enclosure.

HYUNDAI

1415

Machine use and care

Never pick up or carry a machine while the engine is running.

Do not force the machine. Use the correct machine for your application. The correct machine will do the job better and safer at the rate for which it was designed.

Do not change the engine governor settings or over-speed the engine. The governor controls the maximum safe operating speed of the engine.

Do not run the engine at a high speed when you are not pounding.

Do not put hands or feet near rotating parts.

Avoid contact with hot fuel, oil, exhaust fumes and hot surfaces. Do not touch the engine or muffler. These parts get extremely hot from operation. They remain hot for a short time after you turn off the unit. Allow the engine to cool before doing maintenance or making adjustments.

If the machine should start to make an unusual noise or vibration, immediately shut off the engine, disconnect the spark plug wire, and check for the cause. Unusual noise or vibration is generally warning of trouble.

Use only attachments and accessories approved by the manufacturer. Failure to do so can result in personal injury.

Maintain the machine. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the machine's operation. If damaged, have the machine repaired before use. Many accidents are caused by poorly maintained equipment.

Keep the engine and muffler free of grass, leaves, excessive grease or carbon build up to reduce the chance of a fire hazard.

Never douse or squirt the unit with water or any other liquid. Keep handles dry, clean and free from debris. Clean after each use.

Observe proper disposal laws and regulations for gas, oil, etc. to protect the environment.

Store idle machine cut of the reach of children and do not allow persons unfamiliar with the machine or these instructions to operate it. Machine is dangerous in the hands of untrained users.

Service

Before cleaning, repair, inspecting, or adjusting, shut off the engine and make certain all moving parts have stopped. Always make sure the engine's switch is in its "OFF" position. Disconnect the spark plug wire, and keep the wire away from the plug to prevent accidental starting.

Have your machine serviced by a qualified repair personnel using only identical replacement parts. This will ensure that the safety of the machine maintained.

Specific safety rules

To avoid injury, keep hands, fingers and feet away from the base plate. Grip the handle of the plate compactor firmly with both hands. Always operate the machine from behind, never pass or stand in front of the machine when the engine is running.

Never place tools or any other item under the plate compactor

If the unit strikes a foreign object, stop the engine, disconnect the spark plug, thoroughly inspect the machine for any damage, and repair the damage before restarting and operating the machine.

Do not overload the machine capacity by compacting too deep in a single pass or at too fast a rate.

Never operate the unit at high transport speeds on hard or slippery surfaces.

Exercise extreme caution when operating on or crossing gravel drives, walks, or roads. Stay alert for hidden hazards or traffic. Do not carry passengers.

Never leave the operating position and leave the plate compactor unattended when the engine is running.

Always stop the engine when compacting is delayed or when walking from one location to another.

Stay away from the edged of ditches and avoid actions that may cause the plate compactor to topple over.

Always ascend slopes carefully, in a direct path and in reverse to present the plate compactor from topping over onto the operator.

Always park the unit on a firm and level surface and shut the tool off.

To reduce exposure to vibration, limit the hours of operation and take periodic breaks to minimize repetition and rest your hand. Reduce the speed and force in which you do the repetitive movement. Try to fill each day with jobs where operating hand-held power equipment is not required.

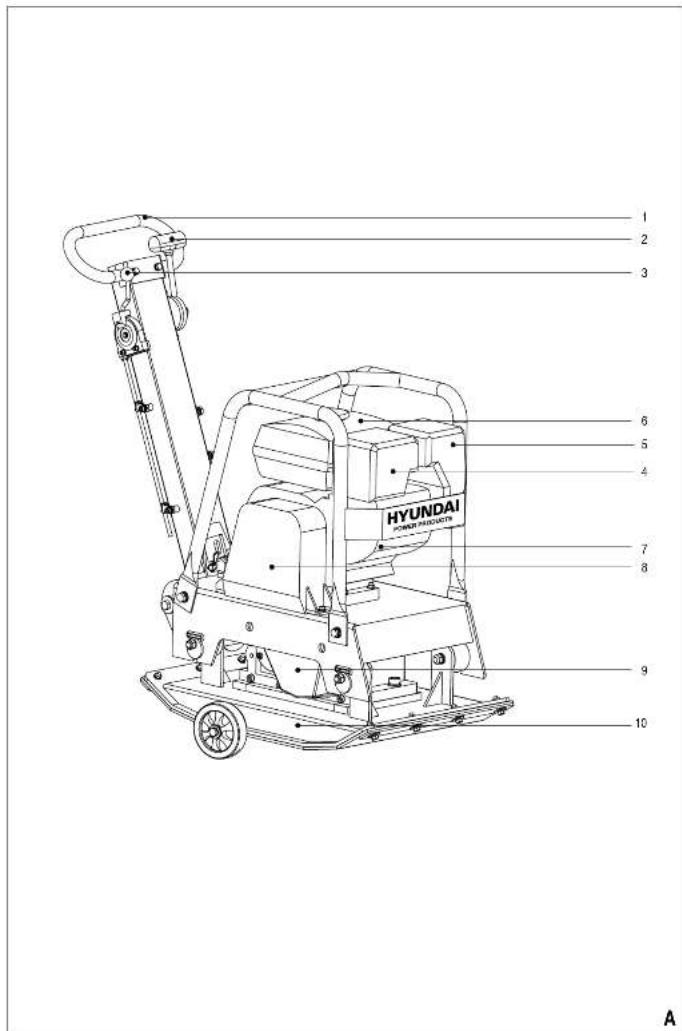

DESCRIPTION (fig. A)

Your compactor is designed for paving of street work (smaller surfaces) and compacting various soil types and materials.

1. Handle
2. Direction lever
3. Throttle lever
4. Mutter
5. Air clean
6. Fuel tank
7. Engine
8. Belt guard
9. Vibrator
10. Base plate

Package contents

The package contains the following parts:

Plate compactor chassis with engine

Wheels kit

Instruction manual

Guarantee and service

Paving pad kit

The rubber paving pad allows to compact concrete paving slabs, stones, bricks and blocks silently and gently.

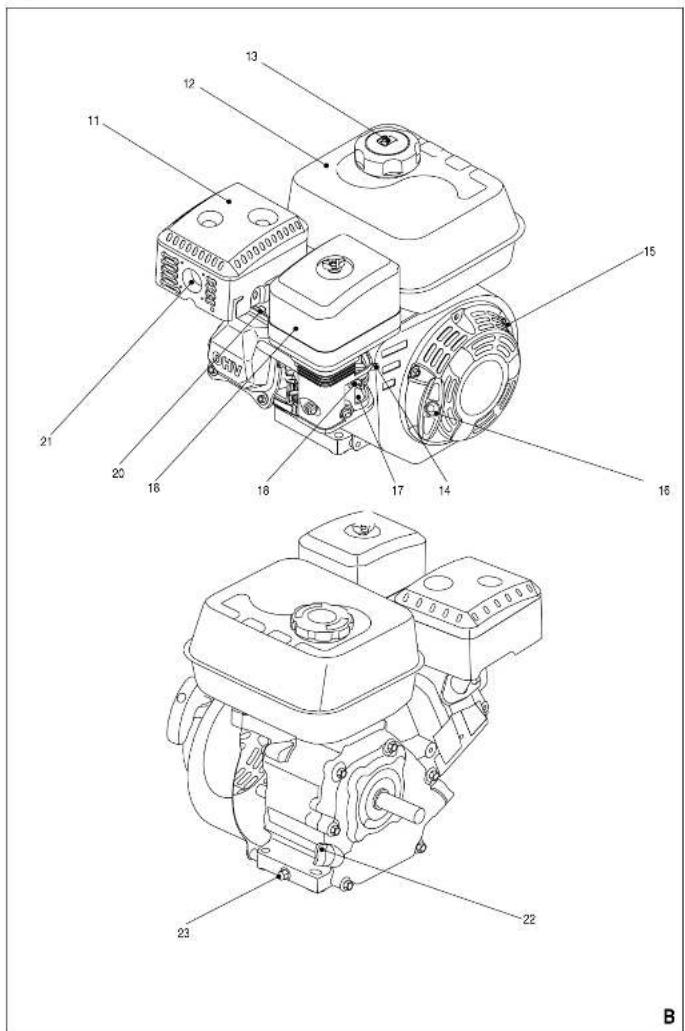

The engine (fig. B)

1. Muller
2. Fuel tank
3. Fuel tank cap
4. Throttle lever
5. Engine switch
6. Recoll starter
7. Fuel valve lever
8. Choke lever
9. Air filter
10. Spark
11. Exhaust port
12. Oil diopstick
13. Drain plug

Filling the crankcase with engine oil (fig. C)

The machine is delivered without engine oil! Before use the oil reservoir must be filled with engine oil. If you do not fill with engine oil, this can cause irreparable damage to the engine.

Use 4-stroke motor oil. SAE 10W-30 is recommended for general, all-temperature use.

- Remove the dipstick from the filling point (a).

• Fill the crankcase with the prescribed amount of oil.

- Replace the dipslick.

Replace the engine oil after the first 20 operating hours.

Fill the vibration mechanism with oil (fig. D)

Use 4-stroke engine oil. SAE 10W-30 is suitable for general use at all temperatures. Other viscosities can be used when the average ambient temperature is within the specified ranges.

- Remove the dipstick from the filling point (a).

• Fill the vibration mechanism with oil.

- Relace the dipstick

Replace the oil after 200 operation hours.

Oil alarm system

The oil alarm system is designed to prevent damage to the engine due to low oil levels. The engine is automatically shut down as soon as the oil level becomes too low. Check the oil level when the engine stops and does not restart.

Fuel valve control

The fuel valve lever must be in the ON position for the engine to run. When the engine is not in use, leave the fuel valve lever in the OFF position to prevent carburetor flooding and to reduce the possibility of fuel leakage.

Throttle lever

The throttle lever controls engine speed.

Engine switch

The engine switch enables and disables the ignition system.

Choke lever

The choke lever opens and closes the choke valve in the carburetor. The open position provides the correct fuel mixture for operation after starting, and for restarting a warm engine.

Recoil starter grip

Pulling the starter grip operates the recoil starter to crank the engine.

BEFORE FIRST USE

Fill with fuel

Always use fuel that meets the following specifications: unleaded petrol, octane rating of 86 or higher.

Never till fuel while the machine is running. Allow the machine to cool for at least 15 minutes after use before refilling with fuel.

Do not smoke near the machine or near the fuel. Never fill fuel near sparks, flames or open flames.

- Remove the fuel tank cap (14).

- Carefully pour the fuel into the filling opening. Do not fill the tank beyond the 1cp of the fuel filter.

- Reinstall the fuel tank cap

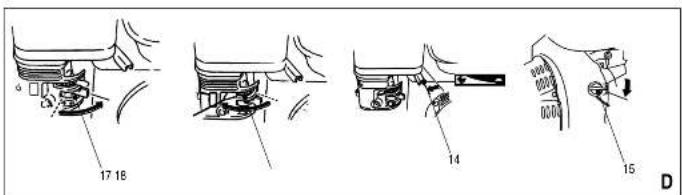

Starting the engine (fig. D)

1. Move the fuel valve lever (17) to the "ON" position.

2. To start a cold engine, move the choke (18) to the "CLOSE" position. To restart a warm engine, leave the choke lever in the "OPEN" position.

3. Move the throttle lever (14) away from the "SLOW" position.

4. Turn the engine switch (15) to the ON position.

5. Pull the starter cord lightly until you feel resistance.

6. Pull the start cord forcefully. Repeat this until the motor is starting.

7. Slowly return de start cord.

8. With a cold start, slowly slide the choke lever back while the engine is warming up.

Do not operate the machine on concrete or on extremely hard, dry, compacted surfaces. This could damage both the plate and the engine.

USE

After engine warms up, move the throttle lever to high speed. The plate starts to vibrate. Move the directional lever (2) forwards or backwards. The machine moves in the set direction.

Do not move the throttle lever slowly to high speed. If the engine speed increases very slowly, the clutch may slip.

Guide the machine, but let the machine do the work.

The vibrating plate moves fast on flat surfaces. On uneven surfaces or slopes, push the vibration plate slightly forward.

When using a compactor on hot asphalt, water must be sprayed to prevent the bottom plate from adhering to the hot asphalt surface.

When using the compactor on paving stones, attach the urethane pad to the bottom of the plate to prevent chipping or grinding surface of the stones.

Damp soil is necessary for a good result. Too moist soil prevents good compaction. Allow extreme wet soil to dry first.

If soil is so dry as to create dust clouds while operating plate, some moisture should be added to the ground material to improve compacting. This will also reduce service to the air filter.

Stopping the engine (fig. B+D)

To stop the engine in an emergency, simply turn the engine switch (15) to the "OFF" position. Under normal conditions, use the following procedure:

1. Move the throttle lever (14) to the "SLOW" position.

2. Let engine idle for one or two minutes.

3. Turn the engine switch (15) to the 'OFF' position.

4. Tum the fuel valve lever (17) to the "OFF" position.

Do not move choke control (18) to "CLOSE" to stop engine. Backline or engine damage may occur.

MAINTENANCE

Maintaining your compactor will insure long life to the machine.

Preventive maintenance

1. Turn off engine. Engine must be cool.

2. Keep the engine's throttle lever in its "SLOW" position, and remove spark plug wire from spark plug.

3. Inspect the general condition of the plate compactor. Check for loose screws, misalignment or binding of moving parts, cracked or broken parts, and any other condition that may affect its safe operation.

4. Remove all debris from the plate compactor with a soft brush, vacuum, or compressed air. Then use a premium quality lightweight machine oil to lubricate all moving parts.

HYUNDAI

1. Clean the bottom of the compactor base as soon as it begins to pick up soil being compacted. The unit can not do a good job if the bottom surface is not smooth and clean.

2. Replace spark plug wire.

Never use a pressure washer to clean your plate compactor.

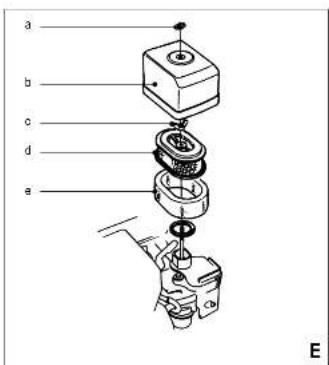

Cleaning the air filter (fig. E)

Clean the air filter every 50 operating hours.

1. Loosen the flat nut (a) and the filter cover (b).

2. Loosen the wing nut (c) and remove the filter from the holder.

3. Check the filter. Replace a damaged filter

4. Knock the paper filter element (d) several times. Do not use a brush to clean the filter.

5. Clean the foam part of the filter (e) in hot water with detergent Squeeze out the filter. Don't wring! Allow the filter to dry.

6. Soak the dry filter in engine oil and squeeze out the filter.

7. Side both hitters together and place back in the hitter holder.

8. Tighten the wing nut and place the filter cover. Attach the cover with the flat nut.

Checking the spark plug (fih. H)

1. Remove the spark plug cap.

2. Remove the spark plug wire from the spark plug.

3. Remove the spark plug.

4. Clean the electrode with a steel wire brush.

5. Check the contact separation (correct value 0.7 - 0.8 mm) and adjust if needed.

6. Place back the spark plug and the spark plug cap.

Changing the engine oil (fig. C)

1. Remove the drain plug (b).

2. Allow the oil to drain from the reservoir.

3. Fill the reservoir with clean oil

4. Place back the drain plug.

Checking V-belt(s)

To ensure optimum power transmission from the engine to the eccentric shaft, the V-belt(s) must be in good condition and operate under proper tension.

16 17

1. Tum off engine. Engine must be cool.

2. Remove the belt guard to access the V-belt(s).

3. Check the condition of the V-belt(s). If any V-belt is cracked,

frayed, or glazed, it should be replaced as soon as convenient.

1. Check the V-belt tension by squeezing them in the center. The normal deflection on each side should be 9 mm to 13 mm with moderate pressure from your thumb or finger.

On new machines or after installing a new belt, check bell tension after first 20 hours of operation. Check and adjust belt every 50 hours thereafter.

Changing the vibrator (fig. D)

Change the oil after 200 operating hours.

- Remove the oil drain plug (b).

- Fill the vibration mechanism with oil.

- Put the drain plug back into the vibrator

STORAGE

If the machine will not be used for a period of longer than 30 days, empty the fuel container and change the oil. This prevents problems with restarting

- Remove dirt and stones from the bottom plate.

• Empty the fuel tank

- Change the oil.

- Clean the air filter.

- Cover the machine and place it in a clean and dry environment.

TRANSPORT

Let the machine cool down completely before transporting it.

Insert the axle of the wheels into the opening on both sides of the vibrating plate for easy moving of the machine.

Always keep the machine upright to prevent leakage of fuel.

TECHNICAL DATA 57372

Plate size mm 710 x 450
Centrifugal force kracht N	30.5
Speed	min ^-1	4,000
Compacting depth	cm	50
Compacting speed	cm/sec	25
Engine		270
Tank capacity	l	6
Lubricating oil capacity	l	0.95
Fuel type	unleaded	Euro 95 (E10);SAE 10W-30
Oil
Starting system		recoll starterr
Bougeltype		F/RTC
L_cr (sound pressure)*	dB(A)	86.51
L_pH (sound power)**	dB(A)	106.51
Weight	kg	158

* Level of sound pressure in the workplace.

** The measured value is less than the guaranteed value L_ 108 dB(A).

ENGLISH

GUARANTEE

Refer to the enclosed guarantee conditions for the terms and conditions of guarantee.

ENVIRONMENT

Disposal

Your product, accessories and packaging should be sorted for environmental-friendly recycling.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

Subject to change; specifications can be changed without further notice.

TROUBLE SHOOTING

Problem Cause Remedy
Motor fails to start 1. Spark plug wire disconnected.2. Cut of fuel or stale fuel.3. Throttle lever not in correct starting position.4. Choke not in ON Position.5. Fouled spark plug.		1. Attach spark plug wire securely tospark plug.2. Fill with clean, fresh gasoline.3. Move throttle lever to start position.4. Throttle must be positioned at chokefor a cold start.5. Clean, adjust gap, or replace.
Eglhe runs erratically 1. Spark plug wire loose.2. Unit running on CHOKE.3. Blocked fuel line or stale fuel.4. Water or dirt in fuel system.5. Dirty air cleaner.		1. Connect and tighten spark plug wire.2. Move choke lever to OFF.3. Clean fuel line. Fill tank with clean, fresh gasoline.4. Drain fuel tank. Refill with fresh fuel.5. Clean or replace air cleaner.
Engine overheats 1. Engine oil level low.2. Dirty air cleaner.3. Air flow restricted.		1. Fill craniocase with proper oil.2. Clean air cleaner.3. Remove blower housing and clean.
Engine will not stop when throttle lever is positioned at stop, or engine speed does not increase properly when throttle lever is adjusted.	1. Debris interfering with throttle linkage. 1. Clean dirt and debris.
Compactor is difficult to control when pounding (machine jumps or lurches forward)	1. Too high engine speed on hard ground. 1. Set the throttle lever at lower speed.

CE

VERKLARING VAN OVEREENSTEMMING

DECLARATION OF CONFORMITY

ART. NR. 57372H

TYPE NR. CNP30-2

HYUNDAI Gasoline plate compactor

Also of course 4:10 to 5:10, however, the project is conducting the 1st to 2nd place of a company's share.

EN500-1:2006-A1 EN500-12011 EN500-12008-A1 EN500-11990

EN1930746:195

according to the provisions of the directive

(2) H_2O is the prime of the existence

20042BC Airport

Kauringlvarantie, Tasting, auherby.

TJV Fheinland.

De technische documents is ander beheer van

Keeper of the technical documents for

Bevacizre zu den latent sua documental oben

[e-mail], www.byurdahool.nl.com

Dvize bv

Witte Vlinderweg 51

1521 PS Wormerveer

Nederland

[e-mail]

www.hyundaitools-nl.com
