USER MANUAL 9035V/5 Hazet
Operating instructions
Combination basic unit with vibration and hammer function
CE
Instrukcja obsługi
Ursprungsprache deutsch – original language: German – Langue d'origine allemand – Język źródłowy niemiecki – Alkuperäinen kieli saksa
Close-up of a hand using a drill pen to work on a car tire against a blue background (no visible text or symbols)natural_image
Close-up of a black handheld electronic device with a blue arrow indicating a component (no visible text or symbols)natural_image
Close-up of hands holding a black hair curling tool with a black connector (no text or symbols visible)
- These operating instructions contain important advice that is necessary for the safe and trouble-free operation of your HAZET tool.
- For intended use of the tool, it is essential that all safety instructions and other information in these operating instructions is adhered to.
- For this reason, always keep these operating instructions together with your HAZET tool.
- This tool has been designed exclusively for specific applications. HAZET emphasises that any modification to the tool and/or use in a way that does not correspond to its intended application is strictly forbidden.
- HAZET will not be liable for any injuries to persons or damage to property originating from improper or inappropriate application, misuse of the tool or a disregard of the safety instructions.
- Furthermore, the general safety regulations and regulations for the prevention of accidents in the application range of this tool must be observed and respected.
2. Explanation of symbols
Attention: Pay strict attention to these symbols!
Read the operating instructions!
The owner is obliged to observe the operating instructions and instruct all users of this tool according to the operating instructions.
NOTE!
This symbol indicates advice that is helpful when using the tool.
WARNING!
This symbol indicates important specifications, dangerous condiety risks and safety advice.
CAUTION!
This symbol marks advice which if disregarded results in damage, malfunction and/or functional failure of the tool.
QUALIFIED PERSONNEL!
The tool may be used by qualified personnel only. Handling by non-qualified people may lead to injuries to persons or damage to the tool or the workpiece.
Always wear personal protective equipment!
1. Owner's liability
- The tool was developed and manufactured according to the technical norms and standards valid and recognised at the time and is considered to be operationally reliable. Nevertheless, the tool may present a danger when it is used in an incorrect or inappropriate way or by non-qualified personnel. Please make sure that any person using this tool or carrying out maintenance work carefully reads and fully understands these operating instructions before using the tool.
- Any modification of the tool is strictly forbidden.
- All safety, warning and operating instructions on the tool must be kept legible at all times. All damaged labels or stickers must be replaced immediately.
- All specified set values or ranges must be observed.
• Always keep the operating instructions close to the tool. - The tool must only be used if it is in good working condition.
- All safety equipment must always be within easy reach and should be checked regularly.
2. Intended use
Operational reliability is only guaranteed if the tool is used as intended in accordance with the information in the operating instructions. In addition to the safety advice in these operating instructions, the general safety regulations, regulations for the prevention of accidents and regulations for environmental protection valid for this tool's application range must be observed and respected.
Use and maintenance of the tool must always comply with relevant local and national regulations.
- The HAZET combination basic unit with vibration and hammer function is a handy tool for handiwork and DIY jobs.
- It is particularly suitable for work in hard-to-access areas on motor vehicles, motorcycles, agricultural equipment or assembly lines.
- The two application options and the cold-insulated handle allow for a wide range of applications and simple operation.
- The combination basic unit with vibration and hammer function can be used in vibro mode (low power) to loosen tight screw connections with light vibrations. And in hammer mode (full power) using the 9-position control on the handle to use the tool as a chisel hammer for body work, for example.
- This can be easily adjusted with the air regulation on the handle and adapted to various requirements.

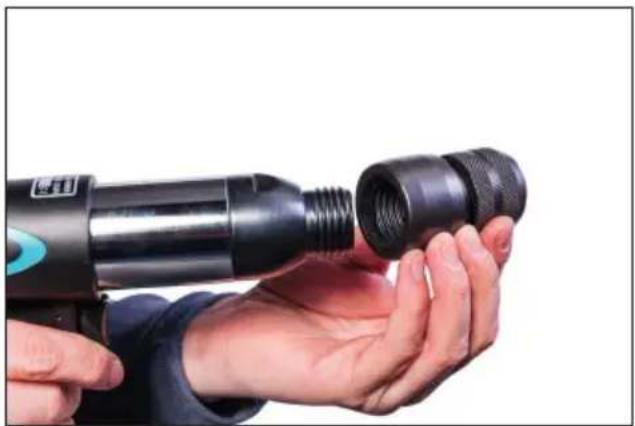

- Screw the keyless drill chuck onto the tool and check it is seated firmly.

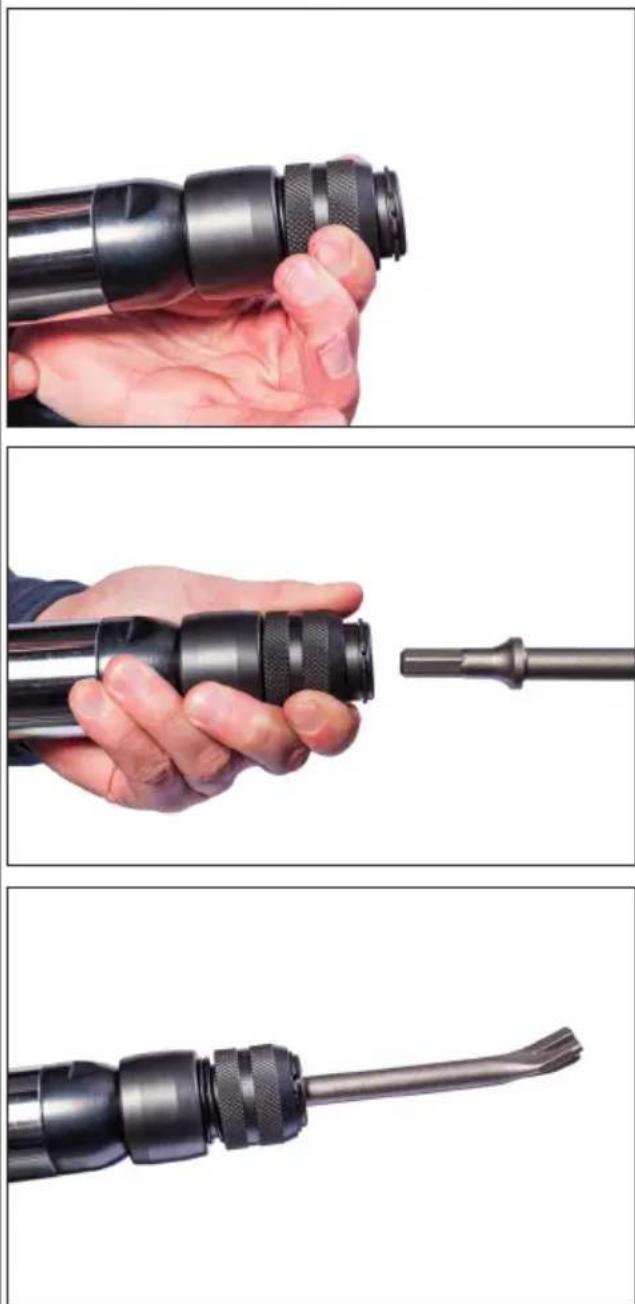

- The chisel is attached using an easy-to-use keyless drill chuck. To lock it in place, the collet is pulled back and the chisel is inserted. Then release the lock and the chisel is fixed securely in place.
- Any deviation from the intended use and/or any misapplication of the tools is not permitted and will be considered as improper use.
Always wear personal protective equipment!
- Any claims against the manufacturer and/or its authorised agents resulting from damage caused by improper use of the unit are excluded.
- Any personal injury or material losses caused by improper use of the tool are the sole responsibility of the owner.
3. Dangers that may arise from using the tool
Before each use, check the HAZET tool for full functionality. Do not use the tool if its functional efficiency cannot be ensured or if damage is detected. If you use the tool despite full functionality not being guaranteed, this poses a risk of serious injury, health problems and material damage.
- Do not use tools with a defective On/Off switch. Any tools that cannot be switched on or off with the On/Off switch are dangerous and must be repaired immediately.
- All service or repair work must be carried out by qualified personnel only. Only use original spare parts so as to guarantee its long-term operational safety.
- Do not remove safety devices and/or housing parts.
- Never operate the tool when a protective cover is missing or when not all of the safety devices are fitted and in perfect condition.
-
For safety reasons, any modification to HAZET tools is strictly forbidden. Any modification of the tool will result in immediate exclusion from express or implied warranty and liability.
-
Wear working gloves and safety glasses.
Pneumatic tools can disperse chips, dust and other abraded particles at high speed which may result in severe eye injuries. Compressed air is dangerous. The air flow may cause harm to sensitive parts of the body like eyes, ears, etc. Dust and objects being raised by the air flow may cause injuries.
- Wear hearing protection. Long exposure to the working noise of pneumatic tools may result in permanent hearing loss.
- Wear a face mask or breathing protection. Breathing in the vapour of some materials like adhesives and chemicals containing tar can, over a prolonged period, cause serious harm.
- Wear tight-fitting protective clothing. Tools with moving parts can get caught in your hair, clothes, jewellery or other loose objects, which can lead to serious injury.
Never wear clothing that is too loose and/or clothing with bands or loops, etc. which may get caught in the moving parts of the tool. During the work, take off jewellery, watches, identification tags, bracelets, necklaces, etc. that could get caught in the tool. Never touch the moving parts of a tool. Long hair should be tied back or covered.
- Keep pneumatic tools out of the hands of children. Unattended tools or tools that are connected to the compressed air supply may be used by unauthorised persons and could cause injury to them or to other persons.
Always wear personal protective equipment!
- Do not use the tool in rooms with an explosive atmosphere. Tools such as sanders can cause sparks that may ignite combustible materials. Never operate tools in proximity to combustible substances like petrol, naphtha or detergents, etc. Work in well-cleaned and well-ventilated areas only. Keep combustible materials out of the work area. Never use oxygen, carbon dioxide or other bottled gases to power pneumatic tools.
- Do not point the tool at another person. Keep children and other persons out of the work area when operating the tool.
- Do not operate the tool in an idle state.
- Do not allow pneumatic tools to come into contact with sources of electricity.
- Pay attention to the working pressure. For max. air pressure see table on page 17. Exceeding the approved maximum pressure of tools and accessories may cause explosions and may result in severe injuries. The maximum pressure of the compressed air must be equal to or less than the approved pressure load indicated for the tool.
- Check tight fit of the air hose connections. Do not use defective pressure hoses. Uncontrollably moving pressure hoses may cause severe injuries.
- Only disconnect pneumatic tools in an unpressurised state. Uncontrollably moving pressure hoses may cause severe injuries.
- Only use clean and dry air. Never use oxygen, carbon dioxide or other bottled gases to power pneumatic tools.
- Only use spare parts, attachments and accessories recommended by the manufacturer.
- Never carry the tool by the compressed air hose.
- Never carry the connected tool with a finger on the operating lever.
- Avoid unintentional activation.
• Always keep the handles dry, clean and free of grease or oil.
- Ensure that the working area is clean, well ventilated and always well lit.
- Never use the tool whilst under the influence of alcohol or drugs.
• Repair work must be carried out exclusively by authorised persons.
- Labels on the tool must always be kept legible. The user is responsible for ensuring that the sticker stating warning signs, rotation speed, the serial no. and the article no. is not damaged and is easy to read.
- Do not use quick-release couplings directly on the tool. There must be an air hose of at least 20 cm in length between the tool and the quick-release coupling.
- Only replace tools when the air hose is disconnected. Before lubricating or changing the tools, always disconnect the machine from the compressed air supply.
- Never use damaged chisels.
- Only use chisels recommended by HAZET for use of this tool.
Always wear personal protective equipment!

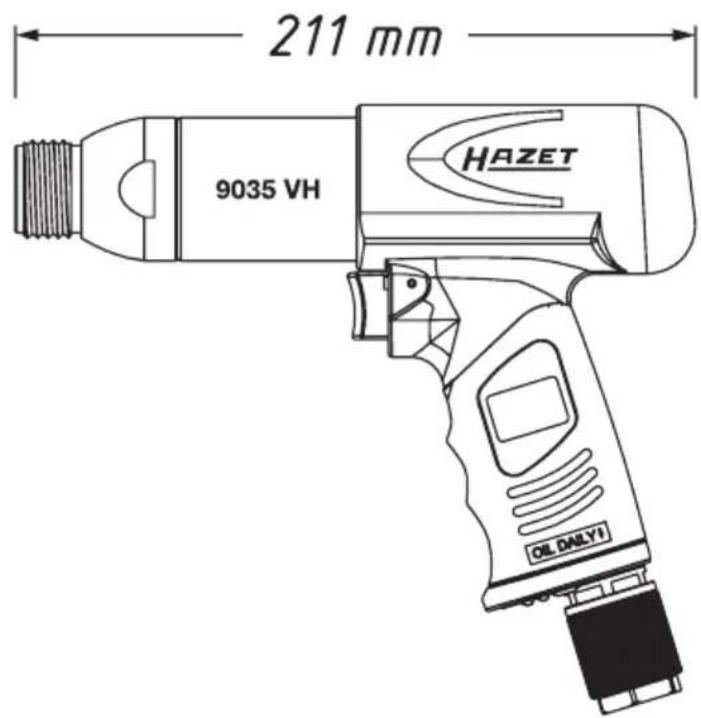

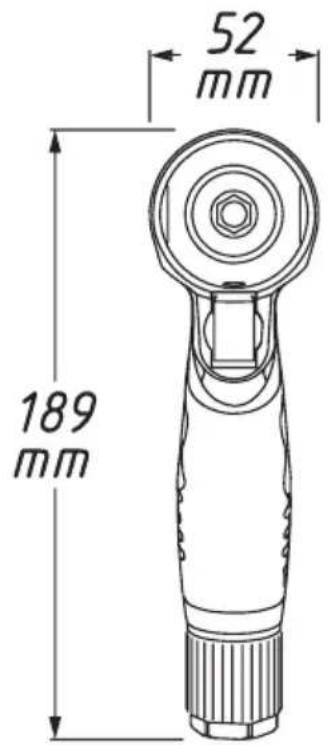

1. Technical data / tool components
| 9035 VH9 positions speed control | Vibro Modus(Low-power / MIN.) | Meißel Hammer Modus(full-power / MAX.) | |
| Air Inlet mm (") 12.91 (1/4") 12.91 (1/4") | |||
| Blows per minute bpm 1100 3000 | |||
| Chisel Insert mm 6-point mm 10 | 10 | ||
| Stroke mm 73 73 | |||
| Weight kg 2.2 2.2 | |||
| Rec. Hose ∅ mm 10 10 | |||
| Average air consumption L/min | 19 198 | ||
| Working Pressure bar 6.3 6.3 | |||
| Sound Pressure Level dBb(A) | 92 105 | ||
| Sound Power Level | dBb(A) 103 | 116 | |
| Vibration | m/s ^2 | 5 | 18 |
Always wear personal protective equipment!
2. Accessories

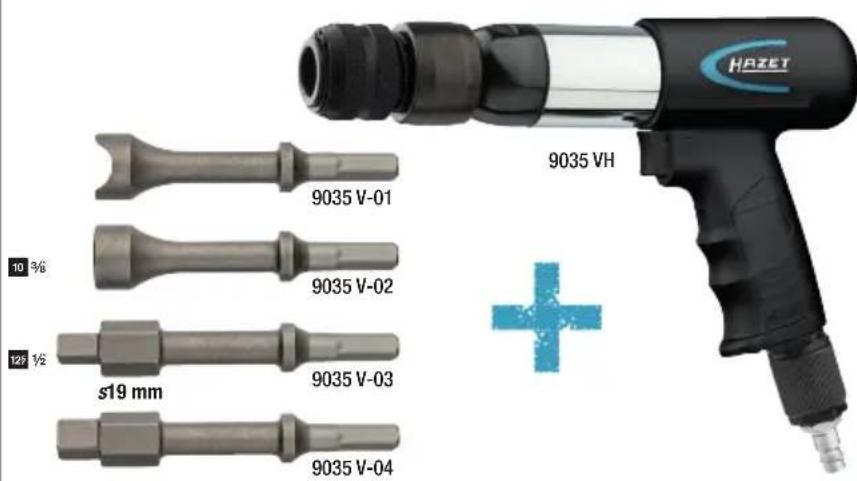

9035 V/5
EAN-No. 4000896213368
Vibration chisel set
| Adapter | ||
| 9035 VH-01 | Quick-clamp adapter 214242 | |
| Spare parts | ||
| 9035 V-01 | Semi-circular vibration chisel 214181 | |
| 9035 V-02 | Circular vibration chisel 214174 | |
| 9035 V-03 | 3/8" Vibration chisel 214167 | |
| 9035 V-04 | 1/2" Vibration chisel 214150 | |
| Spare parts as set | ||
| 9035 V/4 Set | 214013 | |
| Basic unit, individual | ||
| 9035 VH In case including keyless drill chuck 214020 | ||

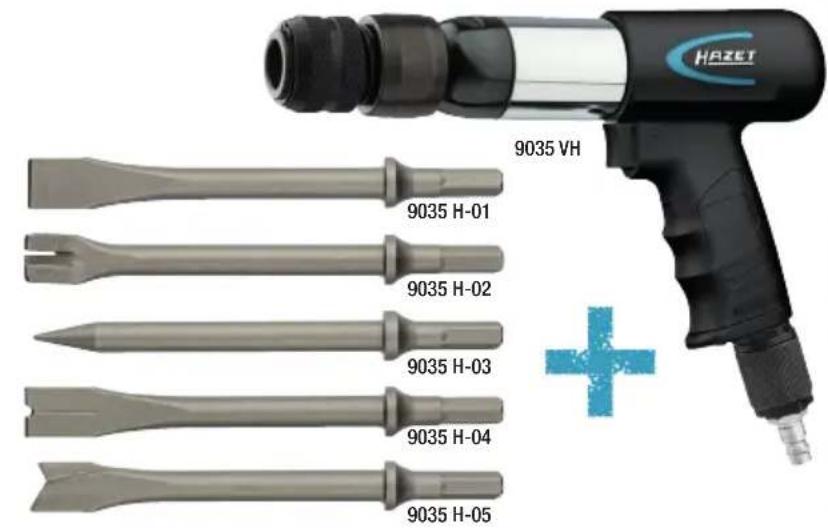

9035 H/6
EAN-No. 4000896214655
Chisel hammer set


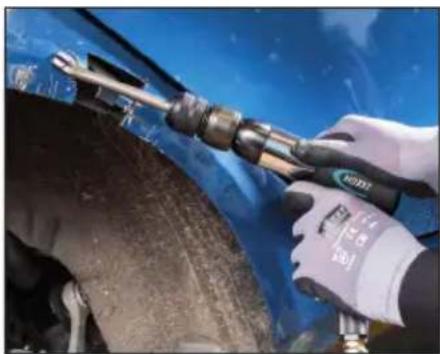

Close-up of a hand using a drill pen to work on a car tire against a blue background (no visible text or symbols)| HAZETNo. | Designation | EAN-No.4000896+ |
| Adapter | ||
| 9035 VH-01 | Quick-clamp adapter 214242 | |
| Spare parts | ||
| 9035 H-01 | Flat chisel 214136 | |
| 9035 H-02 | Sheet metal cutting chisel 213924 | |
| 9035 H-03 | Pointed chisel | 214198 |
| 9035 H-04 | Rivet cutting chisel | 214143 |
| 9035 H-05 | Curve cutting chisel | 214525 |
| Spare parts as set | ||
| 9035 H/5 set | 214006 | |
| Basic unit, individual | ||
| 9035 VH | In case including keyless drill chuck 214020 | |
Always wear personal protective equipment!
3. Before starting the operation
The pneumatic tools must always be used, inspected and maintained in compliance with the local government, state or federal regulations.
- Drain the compressor tank and remove the condensate from the air lines. Carefully read through the operating instructions for the compressor.
IMPORTANT:
We recommend using air filters and a compressed air line lubricator.
CAUTION!
Disconnect the compressed air supply prior to lubricating, connecting or disconnecting the tool.
- Lubricate the tool; see the section on maintenance in these operating instructions.
- Remove the dust cap on the compressed air inlet.

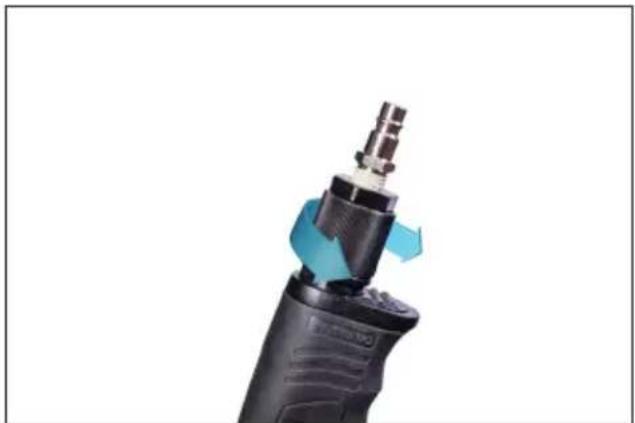

- Connect the tool to a hose of suitable size. Table on page 17.
4. Commissioning
- Switch on the compressor so that the air tank can be filled.
- Turn the compressor regulator to approx. 90 PSI or 6.3 bar. The max. working pressure of this tool is approx. 90 PSI or 6.3 bar.
- The power may vary depending on the size of the air compressor and the volume of the compressed air output.
- Do not use damaged or worn air hoses or adapters of inferior quality.
- The technical data provided refer to an operation of the tool at a pressure of 6.3 bar.
-
Caution is required at all times when using the tool. Negligent operation may cause damage to the inner parts or the housing and limit the working performance.
-
Press the operating lever to operate the tool.
- Release the operating lever to stop the tool.
- Please note that the tool still carries on running after the operating lever has been released.
- Use the air regulation on the handle to select the working mode - Vibro mode (low power) - Chisel hammer mode (full power).
The technical data for the respective working mode can be found in the table on page 17.
Always wear personal protective equipment!
- Select the correct chisel for your specific application and set the tool to the desired position for the application. The chisel is attached using an easy-to-use keyless drill chuck. To lock it in place, the collet is pulled back and the chisel is inserted. Then release the lock and the chisel is fixed securely in place. Check that the chisel is seated firmly.
- Only use chisels recommended by HAZET for use of this tool.
- After completing the operation, switch off the compressor and store it in accordance with the operating instructions of the compressor.
- Only use clean and dry air at a max. pressure of 90 PSI or 6.3 bar. Dust, flammable vapour and high humidity can result in damage to the pneumatic tool's motor.
- Do not remove any stickers and replace damaged stickers.
- Keep hands, loose clothing and long hair away from the tool's moving part.
Always wear personal protective equipment!
5. Maintenance and cleaning
- Lubrication:
Pneumatic tools have to be lubricated throughout their entire service life. The motor and the ball bearings require compressed air to operate the tool. Since the moisture in the compressed air corrodes the motor, the motor must be lubricated every day. We recommend that an integrated lubricator is used to do this.
- HAZET 9070 N-1 lubricator for mounting to the pneumatic tool.
- Lubricating the pneumatic motor by hand:
Disconnect tool from the air supply and hold with the air inlet pointing upwards. Put 1 or 2 drops of special pneumatic oil into the air inlet.
Connect the tool to the compressed air supply; cover the air outlet on the tool with a towel and operate for a few seconds.
Never use combustible or easily evaporable liquids such as kerosene, diesel or petrol to lubricate the tool.
CAUTION!
Excess oil in the motor will be expelled through the air outlet.
WARNING!
Never point the opening of the outlet at any person or object. The air outlet is located at the back of the handle.
- Maintenance
Always disconnect the tool from the compressed air supply prior to carrying out maintenance work.
- If used daily, carry out maintenance every 3 months, or every 1000 operating hours at the latest.
- Damaged or worn components such as o-rings and bearings etc. must be replaced and all moving parts must be lubricated.
- Only use spare parts recommended by the manufacturer, as any other parts will invalidate the warranty.
- Ensure that the relevant environmental protection regulations are observed when disposing of the components, lubricants and oils, etc.
- Never clean with solvents or acids, esters (organic compounds comprising acids and alcohol), acetone (ketone), chlorinated hydrocarbons or oils containing nitro hydrocarbons. Do not use any chemicals with a low burning point.
- For customer service, please contact your distributor or the HAZET Service Centre.
6. Malfunctions
If malfunctions occur, check the following:
- Compression system and compressed air supply line, air consumption l/min and hose diameter according to the technical data of the tool
- Check the compressed air for the occurrence of dust, condensate and rust particles
• Excess lubrication of the air motor
Always wear personal protective equipment!
-en
④ Spare parts
- For safety reasons, only the manufacturer's original spare parts may be used.
- Unsuitable or defective spare parts may cause damage, malfunction or total failure of the tool.
- The use of non-approved spare parts will void all warranty, service and liability claims as well as all claims for compensation against the manufacturer or its agents, distributors and sales representatives.
⑤ Storage
- The tool must be stored under the following conditions:
- Do not store the tool outdoors.
- Keep tool in a dry and dust-free place.
- Do not expose the tool to liquids and aggressive substances.
• Storage temperature: -10 to +45 °C. - Relative air humidity: max. 65%
⑥ Disposal
- For disposal, clean tool and disassemble according to the regulations for work safety and environmental protection.
- Components can be recycled.
Always wear personal protective equipment!
Close-up of hands using a precision tool to adjust or install a mechanical component (no visible text or symbols)natural_image
Close-up of a hand using a drill bit on a car tire against a blue sky (no visible text or symbols)natural_image
Close-up of a black handheld electric shaver with a blue plastic clip, no visible text or symbolsnatural_image
Close-up of hands holding a black handheld device with a black connector, against a plain white background (no text or symbols visible)
Close-up of hands using a handheld tool to adjust or install a car engine component (no visible text or symbols)natural_image
Close-up of a hand using a handheld tool to work on a car tire against a blue background (no visible text or symbols)natural_image
Close-up of a black handheld electronic device with a blue arrow indicating a component (no visible text or symbols)natural_image
Close-up of hands holding a black hair curling device with a coiled cable connector (no text or symbols visible)
