Product Type	Compressor / Inflator
Brand	Black & Decker
Model	BDINF12-LA
Power Source	12V DC vehicle socket
Maximum Pressure	160 psi (11 bar / 1100 kPa)
Display	LCD with pressure readings and units (psi, bar, kPa)
Operating Modes	High-volume (for large items) and High-pressure (for tires, balls)
Automatic Shut-off	Yes, settable pressure in high-pressure mode
Deflate Function	Yes, via high-volume hose connection
High-Volume Hose	Included, for inflating air mattresses, rafts, etc.
High-Pressure Hose	Included, for tires, basketballs, etc.
Accessories Included	Universal valve adapter, tapered nozzle, needle inflator nozzle
Duty Cycle (at 65 psi)	2 minutes on, 5 minutes off
Maximum Continuous Run Time (above 100 psi)	10 minutes, then 20 minutes rest
Safety Features	Double insulated, auto shut-off, no user-serviceable parts
Storage	Cord retainer, accessory storage, hose storage channel
Cleaning and Maintenance	Clean with dry cloth only; do not immerse in liquids
Repairability	No user-serviceable parts; refer to authorized service center
Intended Use	Inflating car/bike tires, balls, air mattresses, rafts, etc.
Compliance	Class II construction; double insulated

Frequently Asked Questions - BDINF12-LA BLACK & DECKER

What is the maximum pressure this inflator can deliver?

The BDINF12-LA can deliver a maximum pressure of 160 psi (11 bar / 1100 kPa).

How do I set the automatic shut-off pressure?

Press the mode button to select psi, bar, or kPa. Then press the + or - buttons to set the desired pressure. After 3 seconds, the display will flash and reset to 0.0. Connect the hose and start the inflator; it will shut off automatically when the preset pressure is reached.

Can I use this inflator while the car engine is running?

No, the manual warns against operating the inflator while the car engine is running for safety reasons.

How do I inflate a tire using the high-pressure hose?

Remove the high-pressure hose from storage, attach a suitable nozzle (e.g., universal valve adapter), connect to the tire valve, press the high-pressure side of the power switch (indicated by the tire symbol), and monitor the pressure. The inflator will shut off automatically if a pressure is set.

How do I deflate an air mattress using this inflator?

Attach the high-volume hose to the high-volume pump deflate connection (notch alignment and twist counter-clockwise). Insert the hose or tapered nozzle into the item and press the high-volume side of the power switch (air mattress symbol). To remove, twist the hose clockwise and slide off.

What accessories are included with the BDINF12-LA?

The inflator comes with a universal valve adapter, tapered nozzle, needle inflator nozzle, high-pressure hose, and high-volume hose. All accessories are stored on the unit.

How should I clean and maintain the inflator?

Use only a dry cloth to clean the tool. Never let any liquid inside the tool or immerse any part. Regularly clean the ventilation slots with a soft brush or dry cloth. Unplug the unit before maintenance.

Is it safe to leave the inflator running unattended?

No, do not leave the unit running unattended. Overinflation can cause bursting and serious injury. The manual explicitly warns against this.

Can I use this inflator to inflate basketballs?

Yes, use the high-pressure mode with the universal valve adapter and a needle nozzle. Set the appropriate pressure (typical basketball pressure is 7-9 psi) and inflate until the inflator shuts off automatically.

What should I do if the LCD display malfunctions?

If the display malfunctions, do not attempt to repair it yourself. The unit contains no user-serviceable parts. Contact an authorized BLACK+DECKER service center or a qualified repair person for assistance.

USER MANUAL BDINF12-LA BLACK & DECKER

MANUAL DE INSTRUÇÕES

INSTRUCTIONS MANUAL

WARNING: READ INSTRUCTIONS MANUAL BEFORE USING PRODUCT.

FIG. B FIG. C

FIG. D FIG. E

DO NOT RETURN THIS PRODUCT TO THE STORE, first contact your local BLACK+DECKER office or nearest authorized service center.

INTENDED USE

Your BLACK+DECKER inflator is designed to be used in most vehicles from the standard 12 Volt socket to inflate car and bike tires and balls. As a secondary use to inflate, rafts, swimming pool floats etc.

GENERAL SAFETY RULES

⚠ Warning! Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury.

SAVE THESE INSTRUCTIONS

SAFETY INSTRUCTIONS General power tool safety warnings. Warning! When using battery-powered

appliances,

basic safety precautions, including the following, should always be followed to reduce the risk of fire, leaking batteries, personal injury and material damage.

▶ Read all of this manual carefully before using the appliance.
The intended use is described in this manual. The use of any accessory or attachment or the erformance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.
▶ Retain this manual for future reference.

1. Using your appliance

Always take care when using the appliance.

This appliance is not intended for use by young or infirm persons without supervision.
▶ The appliance is not to be used as a toy.
▶ Use in a dry location only. Do not allow the appliance to become wet.
▶ Do not immerse the appliance in water.
▶ Do not open body casing. There are no user serviceable parts inside.
▶ Do not operate the appliance in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
▶ Only use the appliance in a well ventilated area.
▶ To reduce the risk of damage to plugs and cords never pull the cable to remove the plug from a socket.

2. Safety of others

This appliance is not intended for use by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for the their safety.

▶ Children should be supervised to ensure that they do not play with the appliance.
▶ When not in use, the appliance should be stored in a dry, well ventilated place out of the reach of children.
▶ Children should not have access to stored appliances.
▶ When the appliance is stored or transported in a vehicle it should be placed in the boot or restrained to prevent movement following sudden changes in speed or direction.
The appliance should be protected from direct sunlight, heat and moisture.

3. Inspection and repairs

Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage to switches and any other conditions that may affect its operation.
▶ Do not use the appliance if any part is damaged or defective.
▶ Have any damaged or defective parts repaired or replaced by an authorised repair agent.
▶ Never attempt to remove or replace any parts other than those specified in this manual.

4. Service

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

5. Service

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

6. Electrical safety

Your tool is double insulated; therefore no earth wire is required. Always check that the main voltage corresponds to the voltage on the rating plate.

Warning! If the power cord is damaged, it must be replaced by the manufacturer, authorized BLACK+DECKER Service Center or an equally qualified person in order to avoid damage or injury. If the power cord is replaced by an equally qualified person, but not authorized by BLACK+DECKER, the warranty will not be valid.

7. Labels on tool

The label on your tool may include the following symbols:

Read Instructions Manual

Use Eye Protection

Use Ear Protection

Use proper respiratory protection

V ..... Volts

A ..... Amperes

Hz ..... Hertz

W ..... Watts

min ..... minutes

\~ ..... Alternating Current

- .... Direct Current

≈ ...... AC/DC Alternating or Direct

.... Visible Radiation

.../min.. Revolutions or Recipro- cation per minute

Current BPM...... beats per minute

n_0 ..... No-Load Speed

IPM...... Impacts per minute

Class I Construction (grounded)

Class II Construction

Earthing Terminal

⚠️ ...... Safety Alert Symbol

RPM...... Revolutions per minute

sfpm...... surface feet per minute

SPM...... strokes per minute

n..... rated speed

Do not expose the appliance to rain or high humidity.

Before performing maintenance or cleaning on the appliance, unplug the supply cord.

Do not leave the inflator unattended.a

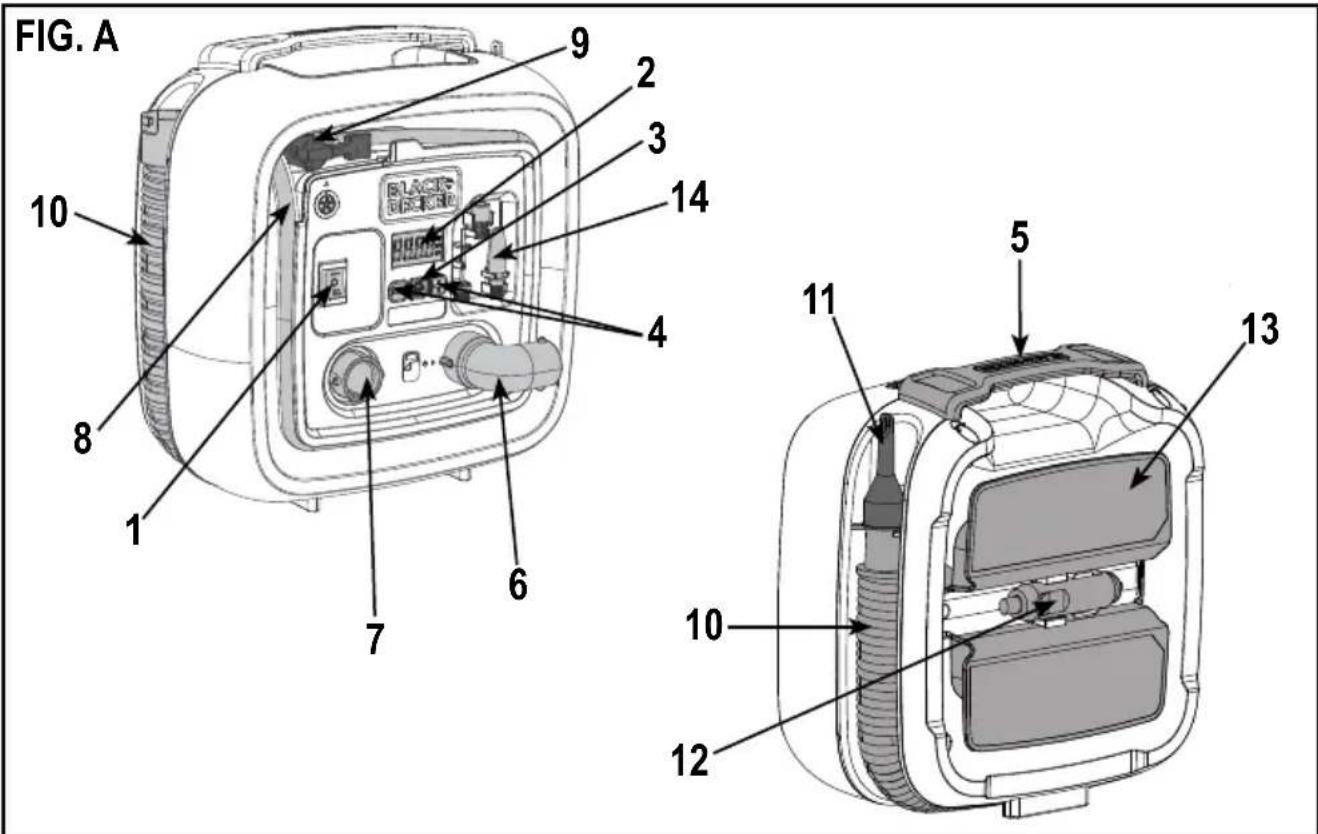

FEATURES (Fig. A)

1. Main power switch
2. LCD
3. Mode toggle button
4. Pressure setting buttons
5. Handle
6. High-volume pump inflate connection
7. High-volume pump deflate connection
8. High-pressure hose
9. Universal valve adapter
10. High-volume hose
11. Tapered nozzle
12. 12V DC vehicle connector
13. Cord retainer
14. Accessory storage

SAVE THESE INSTRUCTIONS

⚠️Warnings!

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water. Keep the case dry at all times.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not place near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarizedor grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments / accessories specified by the manufacturer.
12. Unplug unit when lightning is in the area or when unit is not in use.
13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
14. Do not expose to dripping or splashing.

⚠️ Warnings! To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

1. Do not operate near flammable materials, fumes or gases.
2. Do not disassemble product, no user serviceable parts. Incorrect reassembly may result in a risk of electric shock or fire.
3. Provide adequate ventilation and refrain from placing items on or around the product during operation.
4. Keep this product out of the reach of children.
5. Since the vibration produced by the inflator may cause it to "walk", do not operate on a high shelf or other surface. Operate at ground or bench level only.

ADDITIONAL SAFETY WARNINGS FOR YOUR INFLATOR

⚠ Warning! For home and car use only:

▶ Inflate bike tires, balls, rafts, swimming pool floats, air mattresses, and more in and around the home. Recommended maximum continuous duty at 65 psi is 2 minutes on with 5 minutes off.

⚠ Warning! Risk to breathing:

The compressed air from your inflator is not safe for breathing. Never inhale air from your inflator or from abreathing device connected to the inflator.

⚠ Warning! Risk of bursting:

▶ Too much air pressure causes a hazardous risk of bursting. Check the manufacturer's maximum pressure rating for objects being inflated.
▶ Do not leave inflator running unattended. It could burst tires or other items.

▶ Use a tire gauge to check the tires pressure before each use and while inflating tires.

⚠ Warning! Risk of unsafe operation.

▶ Do not modify or attempt to repair. Never drill into, weld, or make any modifications to the inflator or its attachments.
▶ Operate only with the accessories included or air handling parts acceptable for not less than 160 psi. The use of any accessory not recommended for use with this tool could be hazardous.
▶ Never "horseplay." High pressure air is dangerous. Don't direct air-flow at yourself or others.

⚠ Warning! Always leave the valve adaptor lever open when not in use.

⚠ Warning! Risk of fire:

▶ Inflator can become hot during use. Allow inflator to cool 30 minutes before storing away.

LIQUID CRYSTAL DISPLAY FLUID (FIRST AID MEASURES)

If liquid crystal comes in contact with your skin:

▶ Wash area off completely with plenty of water. Remove contaminated clothing.

If liquid crystal gets into your eye:

▶ Flush the affected eye with clean water and then seek medical attention.

If liquid crystal is swallowed:

▶ Flush your mouth thoroughly with water. Drink large quantities of water and induce vomiting. Then seek medical attention.

ASSEMBLY

HOSE AND CORD STORAGE

• Wrap the 12V DC cord around the cord retainer (13) and snap the 12V DC connector 12 into its storage location on the cord retainer.
  The high-pressure hose (8) is located in a storage channel around the face of the unit. Open the lever on the valve adapter (9) and slide the adapter over the nub (15) inside the channel. Close the lever to latch the adapter to the nub.
  The accessories are stored on the face of the unit inside the accessory storage area (14).
  ▶ The high-volume hose (10) is stored around the edge of the unit and snaps into position at both ends.

FITTING THE ACCESSORIES

Universal valve adapter (Fig. B)

Your inflator is supplied with the standard tapered nozzle (15 and 16), and the needle inflator nozzle (17), located on the front of the unit.

▶ To use the universal valve adaptor (9), make sure the lever is in the up position.

▶ Place the valve adapter over the stem of the inflator needle or tapered nozzle.
▶ Press the lever (18) on the valve adapter down to lock it in place.
▶ Place the inflation needle or tapered nozzle into the item to be inflated.

Note: Always make sure that the lever is in the up position when not in use. Operate your inflator only with the universal valve adaptor or with the included nozzles.

Note: Make sure the universal valve adapter is firmly locked in place before turning the inflator on.

High-volume hose (Fig. C)

▶ Remove the high-volume hose (10) from the storage location.
▶ Line up the notches (19) of the hose with the nubs (20) of the high volume pump inflator connection (6). Then, slide the hose on and twist counter-clockwise to secure.
▶ To remove, twist the hose clockwise and slide hose off.

Many inflatables have an internal flap that prevents air loss during inflation, especially air mattresses. Unless this flap is displaced by the nozzle the inflatable will not inflate.

e Push the nozzle firmly into the valve to make sure that you push this flap out of the way.

⚠ Warning! Risk of Bursting. Excessive air pressure may cause a hazardous risk of bursting or personal injury. Check the manufacturer's maximum pressure rating for items being inflated.

Note: If the pressure rating for the item being inflated is above 100 psi, note that the maximum run time is 10 minutes, leave to rest for 20 minutes before reusing.

OPERATION

⚠ Warning! Do not operate the inflator when the car engine is running.

Note: Make sure that your 12 Volt accessory socket is live. On some vehicles the accessory socket may only become live when the ignition key is in the accessory position.

SWITCHING ON (Fig. D)

⚠ Warning! Risk of Bursting. Do not leave unit running unattended. Overinflation of tires and other items could result in serious injury and property damage.

▶ Connect the 12V DC adapter (12) into your vehicles 12V accessory socket.

To turn on high-volume

The high-volume hose is meant to be used for objects that hold large amounts of air, such as air mattresses, rafts, and swimming pool floats.

Note: The high-volume mode DOES NOT have an auto shut-off feature.

1. Attach the high-volume hose (10) to the high volume pump inflator connection (6) as described in the "High volume hose" section.
2. Insert the hose, or it's tapered nozzle (11) into the object being inflated.
3. Press the high-volume side of the mode power switch (1), indicated by the air mattress symbol (21).
4. To turn off, push the power switch to the center position.

To turn on high-pressure

The high-pressure hose is meant to be used for objects that need more air pressure, such as tires and basketballs.

1. Remove the high-pressure hose (8) from the storage.
2. Attach a nozzle as described in the "Universal valveadapter" section.
3. Insert the nozzle into the object being inflated.
4. Press the high-pressure side of the main power switch (1), indicated by the tire symbol (22).
5. To turn off, push the power switch to the center position.

DEFLATE USING THE HIGH-VOLUME HOSE (Fig. E)

⚠ Warning! Beware of objects being ejected.

When deflating, large amounts of air will exit the high volume pump inflator connection (6). Ensure the high-volume pump inflate connection is not pointed at anyone or anything.

1. Remove the high-volume hose (10) from the storage location.
2. Line up the notches (19) of the hose with the nubs (23) of the high-volume pump deflate connection (7). Then, slide the hose on and twist counter-clockwise to secure.
3. Insert the hose, or it's tapered nozzle (11) into the object being deflated.
4. Press the high-volume side of the main power switch (1), indicated by the air mattress symbol (21).
5. To turn off, push the power switch to the center position.
6. To remove the hose, twist the hose clockwise and slide hose off.

SETTING THE AUTOMATIC SHUT-OFF PRESSURE

Note: The LCD will only show inflation pressures when the inflator is being used.

1. To switch between the different units (psi, bar or kPa), press the mode button (3) until the required units are displayed.
2. Press the - or + pressure setting buttons (4) until the required pressure is displayed.

3. After 3 seconds the display will flash and return to a reading of "0.0". This is normal.

4. Connect the universal valve adaptor and accessories, if required, to the item to be inflated, making sure that the lever of the valve adaptor is in the down position to lock it in place.

5. To start the inflator press the mode power switch (1), the side of the tire symbol (22).

6. When the item to be inflated has reached the preset value the unit will automatically turn off.
   Note: You may notice the actual pressure reading may drop after a couple of seconds. This is normal.
7. To stop the inflator at any time, press the main power button back to the center position.
   Note: If the main power switch is turned off, all settings will be lost and will need to be reentered. This is a safety feature to prevent the risk of items OVER INFLATING. USING THE INFLATOR AS A PRESSURE GAUGE.

USING THE INFLATOR AS A PRESSURE GAUGE

1. Connect the universal valve adaptor (9) to the item to be checked.
2. Press the main power switch (1), on the side of the tire symbol (22).
3. The LCD will display the item's pressure.
4. After checking, press the main power button back to the center position and return the air hose to the storage location.

MAINTENANCE

Use only a dry cloth to clean the tool. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Your BLACK+DECKER tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

⚠ Warning! Unplug the unit before performing any maintenance on the tool.

▶ Regularly clean the ventilation slots in your tool using a soft brush or dry cloth.

⚠️ Important! To ensure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (other than those listed in this manual) should be performed by authorized service centers or other qualified organizations, always using identical replacement parts. Unit contains no user service able parts inside.

ACCESSORIES

Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center.

⚠ Warning! The use of any accessory not recommended for use with this tool could be hazardous.

PROTECTING THE ENVIRONMENT

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your BLACK+DECKER product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again.

Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials. Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

SPECIFICATIONS

Voltage 12 V MAX*

Max. Pressure 160Psi

BDINF12-LA

=

CNPJ: 53.296.273/0001-91

Insc. Est.: 701.948.711.00-98

S.A.C.: 0800.703.4644
