Type	Side-by-side refrigerator-freezer
Dimensions (H x W x D)	1770 x 900 x 660 mm
Climate Class	SN, N, ST, T (10 °C to 43 °C)
Freezer Temperature Range	-14 °C to -22 °C
Fridge Temperature Range	2 °C to 8 °C
Operating Modes	SMART, ECO, SUPER COOLING, SUPER FREEZING
Water Dispenser	Yes, with 3 L tank
Child Lock	Yes
Door Open Alarm	Yes (after 90 seconds)
Interior Lighting	LED
Reversible Doors	Yes
Shelves	Movable glass shelves in fridge, wire shelves in freezer
Door Balconies	Height adjustable
Crisper Drawers	Yes, with covers
Refrigerant	R-600a (flammable)
Electrical Connection	220-240 V ~ 50 Hz, earthed plug
Minimum Clearance	50 mm at sides and back
Installation	Freestanding, not built-in

Frequently Asked Questions - SBS6025IXF VOX

How do I reverse the door opening direction?

To reverse the doors, follow the instructions in the manual. You will need a Philips and flat screwdriver. Tilt the unit backwards, disconnect the harness, unscrew the hinges, remove the doors, and reinstall them in the reversed order. Ensure the unit is unplugged and empty before starting.

How do I set the temperature?

Use the FRZ. TEMP button to adjust freezer temperature from -14°C to -22°C, and the REF. TEMP button for fridge temperature from 2°C to 8°C. You can also select SMART, ECO, SUPER COOLING, or SUPER FREEZING modes.

What does SMART mode do?

In SMART mode, the refrigerator automatically sets the temperature of both compartments based on internal and ambient conditions for optimal performance.

How do I use the water dispenser?

First, clean the water tank inside the fridge. Fill it with drinkable water up to the 3 L line. To dispense, gently push a glass against the dispenser pad outside the door. The flow stops when you remove the glass.

How should I clean the refrigerator?

Unplug the appliance and remove all food. Clean the interior and accessories with lukewarm water and neutral soap. Do not use abrasive cleaners or steam cleaners. Dry thoroughly before reconnecting.

Why is the alarm sounding?

The door open alarm sounds if a door is left open for 90 seconds. Close the door to stop it. If the door is not properly closed, the alarm will sound every 35 seconds until the door is closed.

How do I activate the child lock?

Press and hold the LOCK 3s button for 3 seconds. The lock indicator will illuminate. To deactivate, press and hold the same button for 1 second.

What is ECO mode?

ECO mode sets the refrigerator to the lowest energy consumption setting. The freezer will run at -15°C and the fridge at +8°C.

Can I freeze fresh food?

Yes. For best results, wrap food in airtight packaging, freeze in small portions, and do not exceed the maximum freezing capacity indicated on the rating plate. The freezing process takes 24 hours.

What should I do if the refrigerator stops cooling?

Check if the mains plug is securely inserted, the fuse is intact, and the socket works. Ensure the temperature setting is not too warm and the door is not left open. If the issue persists, contact a qualified service agent.

USER MANUAL SBS6025IXF VOX

GBR

SRB

HRV

SVN

ESP

PRT

SBS6025IXF

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life is properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 to 8 years are allowed to load and unload this appliance.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
• Keep all packaging well away from children. There is risk of suffocation.

- If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.

- If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING! Do not damage the refrigerant circuit.

WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.

WARNING! Do not touch the light bulb if it has been on for a long period of time because it could be very hot. ^1)

WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING! Do not locate multiple portable socket-outlets or portable power suppliers at the rear of the appliance.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The refrigerant isobutane (R-600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

- During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

- Avoid open flames and sources of ignition.

- Thoroughly ventilate the room in which the appliance is situated.

- It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.

- This appliance is intended to be used in household and similar applications such as

- staff kitchen areas in shops, offices and other working environments;

- farm houses and by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments;

- catering and similar non-retail applications.

WARNING! Any electrical components (plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.
WARNING! The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp” is not usable for domestic lighting. ^1)

• Power cord must not be lengthened.
• Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
• Make sure that you can approach the mains plug of the appliance.
• Do not pull the mains cable.
• If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
• You must not operate the appliance without the lamp.
• This appliance is heavy. Care should be taken when moving it.
• Do not remove or touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

• Do not put hot items on the plastic parts in the appliance.

• Do not place food products directly against the rear wall.

• Frozen food must not be re-frozen once it has been thawed out. ^1)

• Store pre-packed frozen food in accordance with the frozen food manufactures instructions. ^1)
• Appliances manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. ^1)
• Ice lollies can cause frost burns if consumed straight from the appliance. ^1)
• To avoid contamination of food, please respect the following instructions
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

• Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

• One-, two-and three-star compartments (if they are presented in the appliance) are not suitable for the freezing of fresh food.

• If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mount developing within the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. ^1)
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance. ^2)

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

- Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In such event retain the packing.

• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation, follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

Service

- Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.

- This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Energy saving

• Do not put hot food in the appliance;
• Do not pack food close together as this prevents air circulating;

• Make sure food does not touch the back of the compartment(s);

• If electricity goes off, do not open the door(s);

• Do not open the door(s) frequently;
• Do not keep the door(s) open for too long time;
• Do not set the thermostat on exceeding cold temperatures;
• All accessories, such as drawers, shelves balconies, should be kept there for lower energy consumption.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger.

The materials used on this appliance marked by the symbol 🌐 are recyclable.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging materials

The materials with the symbol 📊 are recyclable. Dispose the packaging in a suitable collection container to recycle it.

Disposal of the appliance

1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.

⚠ WARNING! During using, service and disposal the appliance please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.

It is risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor. Please be far away from fire source during using, service and disposal.

This illustration is only for hinting, for the detail please check your appliance.

Installation

Tool required: Philips screwdriver, Flat bladed screwdriver

• Ensure the unit is unplugged and empty.
  • To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.

• It's better that 2 people handle the unit during assembly.

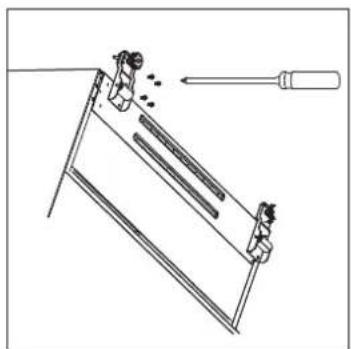

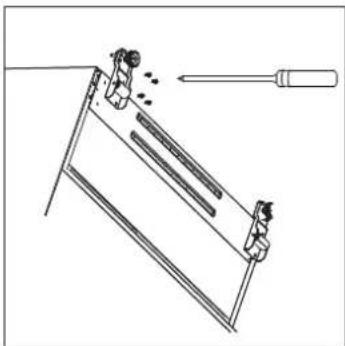

• Unscrew hinge cover by Philips screwdriver.

Line drawing of a screwdriver above a workbench with a tool (no text or symbols)

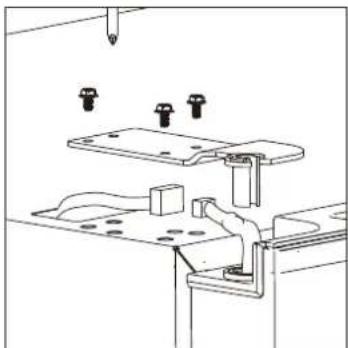

1. Disconnect the harness.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

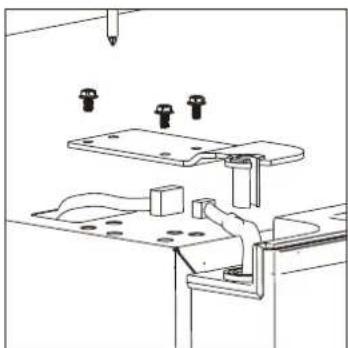

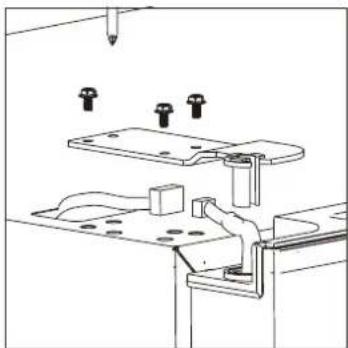

1. Unscrew top hinge.

Technical line drawing of a mechanical assembly with mounting holes and a tool (no text or symbols)

Installation

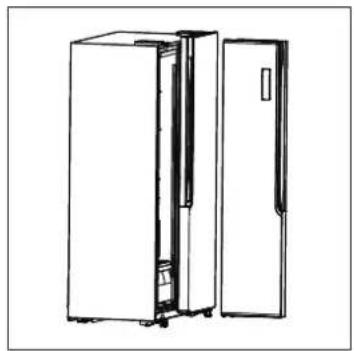

1. Lift the door and place it on a soft pad. Then remove another door as same process.

Line drawing of a refrigerator with front and back doors, showing internal compartments (no text or symbols)

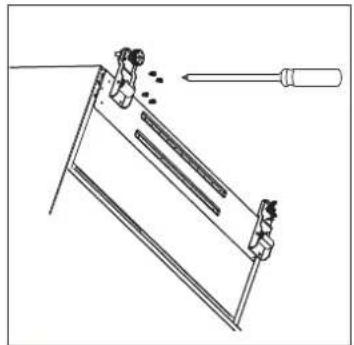

1. Unscrew bottom hinges.

Simple line drawing of a tool interacting with a ladder, no text or symbols present

1. After the appliance is positioned, install the doors as reversed process.

Installation

If kitchen door is not wide enough h to pass the refrigerator, handle and doors can be removed according to bellow process.

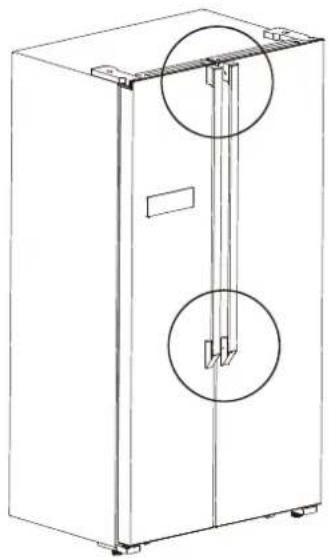

Remove the handles

Tool required: Hex wrench in accessory bag.

• Ensure the unit is unplugged and empty.

• All parts removed must be saved to do the reinstallation of the door.

• Unscrew handles with Hex wrench.

Line drawing of a cabinet with two circular components and vertical dividers (no text or symbols)

Simple line drawing of a cabinet or cabinet with a handle, enclosed in a circle (no text or symbols)

Simple line drawing of a door and window with a circular outline (no text or symbols)

1. Pull the handles to remove them.

Line drawing of a rectangular refrigerator with a right-pointing arrow indicating direction (no text or symbols)

1. After the appliance is positioned, install the handles as reversed process.

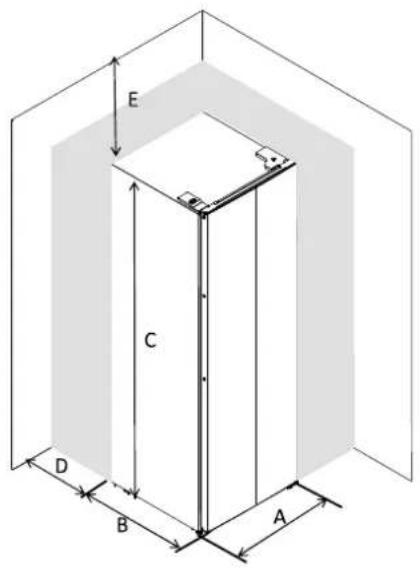

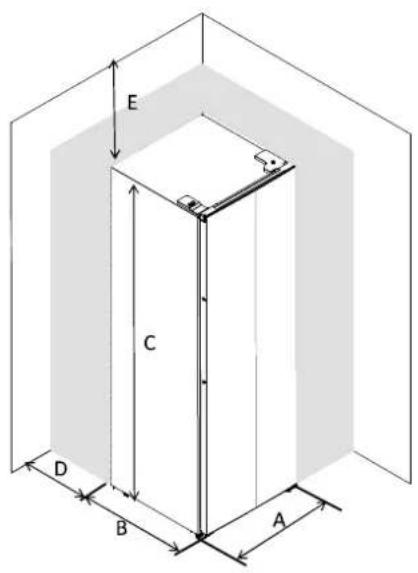

Space Requirement

• Keep enough space of door open.
• Keep at least 50mm gap at two sides and back.

A	900
B	660
C	1770
D	min=50
E	min=50
F	1800
G	1560
H	135°

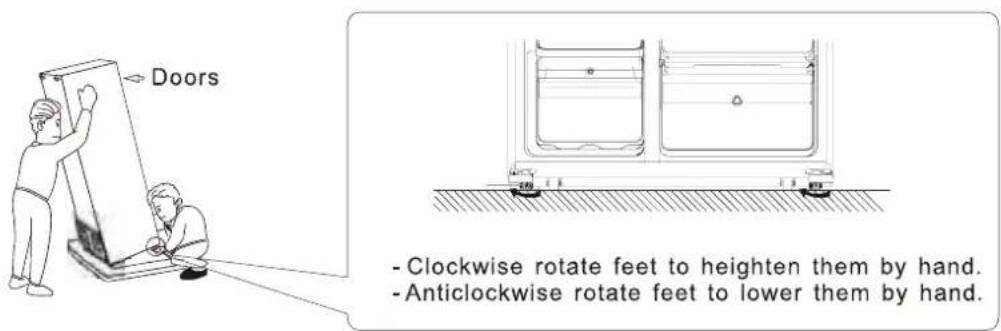

Levelling the refrigerator

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

for refrigerating appliances with climate class:

• extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C; (SN)
• temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C; (N)
• subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C; (ST)
• tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C; (T)

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 50 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

This refrigerating appliance is not intended to be used as a built-in appliance;

Warning! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed. This appliance complies with the E.E.C. Directives.

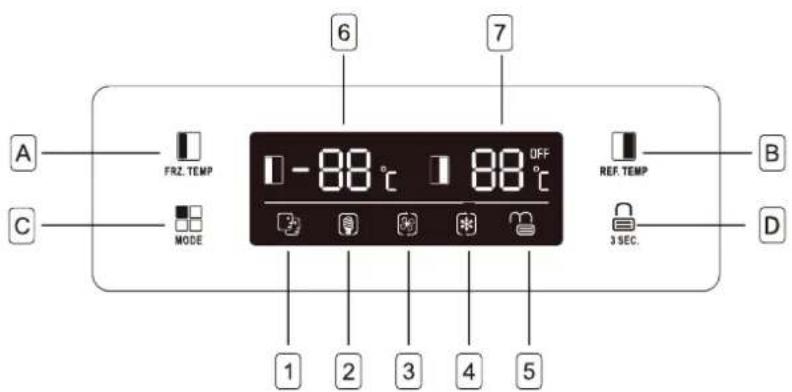

Using the Control Panel

Buttons

A Press to adjust temperature of freezer compartment (left side) from -14°C to -22°C.
B Press to adjust temperature of fridge compartment (right side) from 2°C to 8°C and "OFF". If select "OFF", fridge compartment will be turned off.
Press to select running mode from SMART, ECO, SUPER COOLING, SUPER FREEZING and USER'S SETTING (no symbol in display).
Press 3 SEC. button and hold for 3 seconds to lock other three buttons. Press it and hold for 1 second to unlock other three buttons.

Display

1 SMART mode, the refrigerator sets the temperature of two compartments automatically according to internal temperature and ambient temperature.
2 ECO mode, the refrigerator runs in lowest energy consumption setting.
3 SUPER COOLING cools the fridge compartment to the lowest temperature for approx. 2 hours. Then the temperature set before super mode is automatically restored.
4 SUPER FREEZING cools the freezer compartment to the lowest temperature for approx. 6 hours. Then the temperature set before super mode is automatically restored.
5 LOCK, the symbol will light on if buttons are locked.
6 Display the setting temperature of freezer compartment.
7 Display the setting temperature of fridge compartment.

Door Open Alarm

If one door keeps open for 90 seconds, periodical alarm will be arisen until the door is closed.

Daily Use

Mode	Indicator light	Freezer temperature display	Fridge temperature display
Smart		The temperature display for freezer and fridge will change based on ambient temperature (see the table below).
ECO		-15°C	+8°C
Super cooling		No change	+2°C
Super freezing		-25°C	No change

NOTES:

ECO mode: Select this mode when you want to save power.

Super cooling mode: This mode allows you to cool foods quickly and will be automatically deactivated after 2.5 hours of operation.

Super freezing mode: This mode allows you to freeze foods quickly and will be automatically deactivated after 50 hours of operation.

Door open alarm

When any door is left open or not closed completely for about 90 seconds, the appliance will sound an alarm.

Close the fridge door then the alarm will stop.

If the door is not well closed, then the alarm will sound every 35 seconds until the doors are well closed. If doors are open for 10 continuous minutes without closing, the internal LED light would be turned off automatically.

Child safety lock

This function is designed to prevent children from operating the appliance

• To activate the function, press and hold ☐ LOCK 3s for about 3 seconds. The lock indicator light
will illuminate indicating the safety lock function is activated.
- To deactivate the function, press and hold LOCK 3s for about 1 second. The unlock indicator light
will illuminate indicating the safety lock function is deactivated.

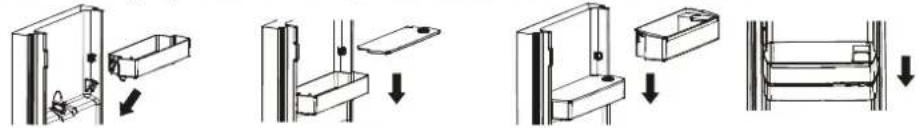

Before using the water dispenser for the first time, remove and clean the water tank located inside the fridge compartment. 1. Lift and take off tank balcony first, then take off water tank with cover. Detach the cover to wash and clean the

tank and cover.

Technical line drawing of a mechanical assembly with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

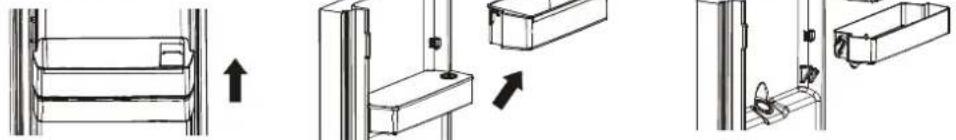

1. After cleaning, reposition water tank, cover and tank balcony as below process.

1. Clean the dispenser pad outside the fridge door.

Filing the water tank with water

1. Open the small lid

Line drawing of a hand placing a small object into a rectangular box (no text or symbols)

1. Fill the water tank with drinkable water up to 3 L line.
2. Close the small lid on the cover

Dispensing

To dispense water, push the dispenser pad gently, using a glass or container. To stop the flow of water, pull your glass away from the dispenser pad.

Daily Use

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, and then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Daily use

Position different food in different compartments according to be below tabl

Refrigerator compartments	Type of food
Door or balconies of fridge compartment	·Foods with natural preservatives, such as jams,juices, drinks, condiments.·Do not store perishable foods.
Crisper drawer (salad drawer)	·Fruits, herbs and vegetables should be placed separately in the crisper bin.·Do not store bananas, onions, potatoes, garlic in the refrigerator.
Fridge shelf – middle	·Dairy products, eggs
Fridge shelf – top	·Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers.
Freezer drawer(s)/shel	·Foods for long-term storage.·Bottom drawer/shelf for raw meat, poultry, fish.·Middle drawer/shelf for frozen vegetables, chips.·Top drawer/shelf for ice cream, frozen fruit, frozen baked goods.

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the freezer compartment or at room temperature, depending on the time available for this operation. Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Ice-cube

This appliance may be equipped with one or more ice-cube to produce ice.

Accessories

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Positioning the door balconies

To enable storage of food packages of various sizes, the door balconies can be placed at different heights. To make these adjustments proceed as follows: gradually pull the balcony in the direction of the arrows until it comes free, then reposition as required.

Line drawing of a hand holding a shelf with a tray, no text or symbols present

Simple diagram of a container with two upward arrows, no text or symbols present

Temperature setting recommendation

Temperature Setting Recommendation
Environment Temperature	Temperature Setting
Summer	Fridge set on 4°C
	Freezer set on -18°C
Normal	Fridge set on 4°C
	Freezer set on -18°C
Winter	Fridge set on 4°C
	Freezer set on -18°C

• Information above give users recommendation of temperature setting.

Impact on Food Storage

• Under Recommended setting, the best storage time of fridge is no more than 3 days.
• Under Recommended setting, the best storage time of freezer is no more than 1 month.
• The best storage time may reduce under other settings.

Helpful hints and tips

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

- the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;

• the freezing process takes 24 hours. No further food to be frozen should be added during this period;

- only freeze top quality, fresh and thoroughly cleaned, foodstuffs;

- prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;

- wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;

- do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;

- lean foods store better and longer than fatty ones; salt reduces the storage life of food;

- water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

- it is advisable to put the freezing date on each individual pack to enable you to keep record of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;

- me sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;

- not open the door frequently or leave it open longer than absolutely necessary;

- once defrosted, food deteriorates rapidly and cannot be refrozen;

• not exceed the storage period indicated by the food manufacture.

Hints for fresh food refrigeration

To obtain the best performance:

- Do not store warm food or evaporating liquids in the refrigerator.

- Do cover or wrap the food, particularly if it has a strong flavour.

Hints for refrigeration

Useful hints:

- Meat (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer.

- For safety, store in this way only one or two days at the most.

- Cooked foods, cold dishes, etc....: these should be covered and may be placed on any shelf.

- Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.

- Butter and cheese: these should be placed in special airtight containers or wrapped in aluminum foil or polythene bags to exclude as much air as possible.

- Milk bottle should have a cap and should be stored in the balconies on the door.

- Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Caution! The appliance must not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

- Do not allow such substances to come into contact the appliance parts.

- Do not use any abrasive cleaners

- Remove the food from the freezer. Store them in a cool place, well covered.

- Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.

- Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.

• After everything is dry place appliance back into service.

Troubleshooting

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician or a competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem	Possible cause	Solution
Appliance dose not work	Mains plug is not plugged in or is loose	Insert mains plug.
	Fuse has blown or is defective	Check fuse, replace if necessary.
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
Appliance freezes or cools too much	Temperature is set too cold or the appliance runs at SUPER modes.	Turn the temperature regulator to a warmer setting temporarily.
The food is not frozen enough.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door just as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Heavy build up of frost on the door seal.	Door seal is not air tight.	Carefully warm the leaking sections of the door seal with a hair dryer (on a cool setting). At the same time shape the warmed door seal by hand such that it sits correctly.
Unusual noises	Appliance is not level.	Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
Side panels are hot	It is normal. Heat exchange is In the side panels	Take gloves to touch side panels if need.

If the malfunction shows again, contact the Service Center.

These data are necessary to help you quickly and correctly. Write the necessary data here, refer to the rating plate.

Abstract black-and-white circular graphic with diagonal white stripes (no text or symbols)

VOX

ELECTRONICS

SRB

Uputstvo za upotrebu

Side by side

Frižider sa zamrzivačem

SBS6025IXF

Sadržaj
1.Sigurnosna upozorenja	strana 1-11
2. Opšti izgled uređaja	strana 12
3. Instalacija	strana 113-117
4. Svakodnevna upotreba	strana 18-21

Line drawing of a mechanical setup with a tool above a table and a small component on the table (no text or symbols)

1. Isključite pojas.

Pure technical line drawing of a mechanical assembly or bracket (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and structural supports (no text or symbols)

Postavljanje

1. Podignite vrata i postavite ih na mekanu podlogu. Zatim uklonite druga vrata na isti način.

Line drawing of a refrigerator with front and back views (no text or symbols)

Simple line drawing of a ladder with two people and a screwdriver, no text or symbols present

1. Kada je uređaj postavljen, postavite vrata na način suprotan uklanjanju.

Ukoliko vrata kuhinje nisu dovoljno široka da uređaj uđe, vrata i ručke mogu da se uklone kao što je opisano ispod.

Uklanjanje ručki

Potreban alat:_Inbus u kesici sa dodacima.

• Uverite se da je uređaj isključen i prazan.

• Svi uklonjeni delovi moraju se sačuvati za ponovno postavljanje vrata.

• Uklonite ručke uz pomoć inbusa.

Line drawing of a refrigerator with two circular components on the door (no text or symbols)

Simple line drawing of a mechanical bracket and frame inside a circle (no text or symbols)

Simple line drawing of a mechanical part inside a circle (no text or symbols)

Line drawing of a rectangular refrigerator with a right-pointing arrow indicating direction (no text or symbols)

1. Nakon što je uređaj pozicioniran, ponovo postavite ručke.

Prostorni zahtevi

• Ostavite dovoljno mesta za otvaranje vrata.
• Ostavite najmanje 50 mm prostora s obe i sa zadnje strane.

A	900
B	660
C	1770
D	min=50
E	min=50
F	1800
G	1560
H	135°

Nivelisane i postavljanje frižidera

Postavljanje

Pozicioniranje

Technical line drawing showing three-step assembly of a mechanical housing or enclosure, with no visible text or symbols.

1. Nakon čišćenja, ponovo stavite rezervoar za vodu, poklopac i držač kao što je prikazano ispod.

Four-step diagram showing mechanical assembly steps: bracket opening, clamping, packing, and final assembly (no text or symbols)

1. Očistite papučicu rezervoara izvan vrata frižidera.

Punjenje rezervoara za vodu

1. Otvorite mali poklopac

Line drawing of a hand inserting a small object into a device on a cabinet (no text or symbols)

1. Napunite rezervoar vodom za piće do linije 3.
2. Zatvorite mali poklopac na rezervoaru.

Sipanje vode

Da biste sipali vodu, pritisnite papučicu dispenzera koristeći čašu ili posudu.

Da biste zaustavili tok vode, uklonite čašu ili posudu sa papučice dispenzera.

Svakodnevna upotreba

Prva upotreba

Čišćenje unutrašnjosti

Pre prve upotrebe uređaja isperite unutrašnjost i unutrašnje delove miakom vodom i neutralnim sapunom kako bi otklonili blago neprijatan miris karakterističan kod novog uređaja, zatim temeljno osušiti.

Važna napomena! Nemojte koristiti abrazivna sredstva ili deterdžente, jer će to oštetiti finu obradu uređaja.

Svakodnevna upotreba

Abstract black-and-white circular graphic with diagonal white stripes (no text or symbols)

VOX

ELECTRONICS

HRV

Upute za uporabu

Side by side

Line drawing of a mechanical setup with a tool above a table and a small component on the table (no text or symbols)

1. Odspojite pojas.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with mounting holes and structural supports (no text or symbols)

Postavljanje

1. Podignite vrata i postavite ih na mekanu podlogu. Zatim uklonite druga vrata na isti način.

Line drawing of a refrigerator with front and back views (no text or symbols)

Simple line drawing of a ladder with two people and a screwdriver, no text or symbols present

1. Kada je uređaj postavljen, postavite vrata na način suprotan uklanjanju.

Postavljanje

Line drawing of a rectangular cabinet with two circular components and vertical connectors (no text or symbols)

Simple line drawing of a cabinet or door with a handle, enclosed in a circle (no text or symbols)

Simple line drawing of a door and window inside a circle (no text or symbols)

Line drawing of a rectangular cabinet with a right-pointing arrow indicating direction (no text or symbols)

Technical line drawing showing three sequential steps of a door or cabinet assembly (no text or symbols)

1. Nakon čišćenja, ponovno postavite spremnik za vodu, poklopac i držač kao što je prikazano ispod.

Four-step diagram showing mechanical assembly or assembly process with arrows indicating direction (no text or symbols)

1. Očistite papučicu spremnika izvan vrata hladnjaka.

Simple line drawing of a container with an arrow pointing to the side (no text or symbols)

Abstract black-and-white geometric pattern with diagonal stripes inside a circle (no text or symbols)

VOX

ELECTRONICS

SVN

Navodila za uporabo

Side by side Hladilnik in zamrzovalnik

SBS6025IXF

Vsebina
1. Varnostne informacije stran 1-10

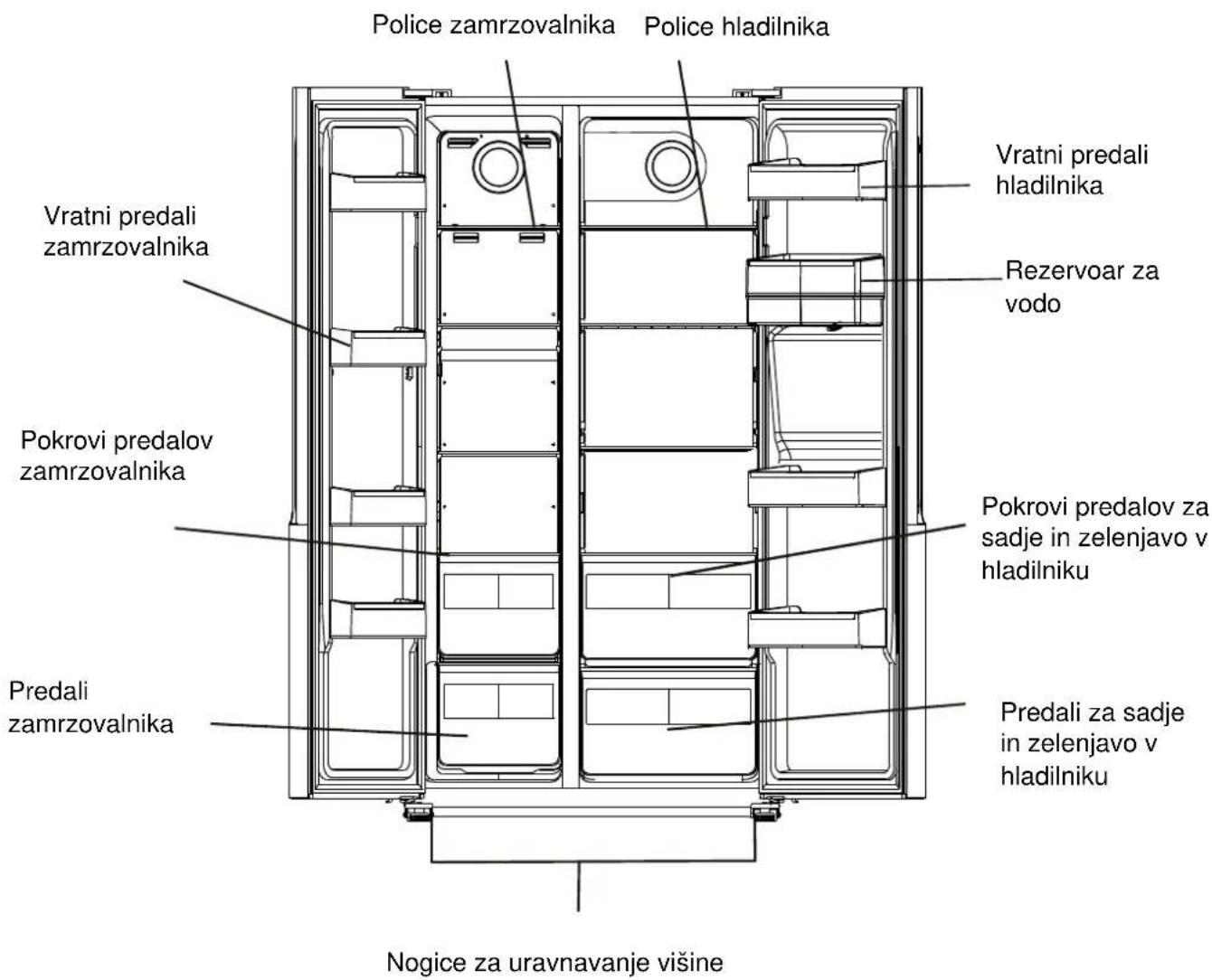

2. Opis aparata stran 11
3. Namestitev stran 12-16
4. Vsakodnevna uporaba	stran 17-23

▲ Anterior view of the building

Simple line drawing of a mechanical setup with a pipette above a workbench (no text or symbols)

1. Odklopite varnostno žico

Pure technical line drawing of a mechanical assembly or bracket (no text or symbols)

Technical line drawing of a mechanical assembly with bolts and mounting brackets (no text or symbols)

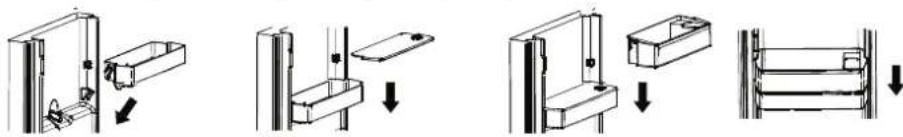

Namestitev

Line drawing of a refrigerator with open door and side panel (no text or symbols)

Simple line drawing of a mechanical setup with a lever and two supports (no text or symbols)

Line drawing of a cabinet with two circular components and vertical connectors (no text or symbols)

Simple line drawing of a cabinet or cabinet with a handle, enclosed in a circle (no text or symbols)

Simple line drawing of a mechanical part inside a circle (no text or symbols)

Line drawing of a refrigerator with a right-pointing arrow indicating direction (no text or symbols)

Technical line drawing of a dual-panel container mechanism with wheels and a central valve (no text or symbols)

Technical line drawing of a mechanical assembly with three stages: front, side, and side views (no text or symbols)

1. Po končanem pomivanju, ponovno namestite rezervoar, pokrov in vratno polico rezervoarja, sledeč spodaj opisani postopek.

Four-step diagram showing mechanical assembly steps with arrows indicating direction (no text or symbols)

1. Očistite tipko dozirnika na zunanji strani vrat hladilnika.

Polnjenje rezervoarja z vodo

Line drawing of a hand inserting a green card into a rectangular device (no text or symbols)

1. Nalijte vodo do oznake 3 L.

2. Zaprite manjšo loputo na pokrovu.

Doziranje

Za doziranje vode, pristavite kozarec ali posodo, in previdno potisnite tipko dozirnika.

Da bi prekinili dotok vode, odmaknite kozarec od tipke dozirnika.

Prva uporaba

Illustration of a hand placing a wooden shelf item into a container with two upward arrows indicating flow or movement (no text or symbols present)

Abstract black circular design with white diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ESP

Manual de uso

Side by side Refrigerador con congelador

SBS6025IXF

Line drawing of a mechanical setup with a tool and a base, no text or symbols present

1. Apague el cinturón.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Desatornillar la bisagra superior.

Technical line drawing of a mechanical assembly with mounting holes and a handle (no text or symbols)

Instalación

Line drawing of a refrigerator with doors and a side door, showing internal structure (no text or symbols)

1. Afloje la bisagra inferior.

Simple line drawing of a ladder with a pointer and two hanging weights (no text or symbols)

Technical line drawing of a mechanical component with wheels and internal compartments (no text or symbols)

Technical line drawing showing three sequential steps of a mechanical assembly or mounting process (no text or symbols)

Four-step diagram showing mechanical assembly steps with arrows indicating direction (no text or symbols)

Line drawing of a hand placing a small object into a container (no text or symbols)

Illustration showing a hand installing or adjusting a shelf panel and a close-up of a container with upward arrows (no text or symbols)

Line drawing of a screwdriver above a flat workbench (no text or symbols)

Technical line drawing of a mechanical assembly or bracket (no text or symbols visible)

1. Desaparafuse a dobradiça superior.

Technical line drawing of a mechanical assembly with mounting holes and a handle (no text or symbols)

Instalação

Line drawing of a refrigerator with open doors and internal compartments (no text or symbols)

Diagram of a mechanical setup with a tool and two sensors on an inclined plane (no text or symbols)

Instalação

Remover as maçanetas

Line drawing of a refrigerator with two circular components on the door (no text or symbols)

Simple line drawing of a cabinet or cabinet with a handle, enclosed in a circle (no text or symbols)

Simple line drawing of a mechanical part inside a circle (no text or symbols)

1. Puxe as maçanetas para as retirar.

Line drawing of a rectangular cabinet with a right-pointing arrow indicating direction (no text or symbols)

Technical line drawing of a two-part container mechanism with wheels and a hatched ground base (no text or symbols)

Technical line drawing of a mechanical assembly showing three stages: front, side, and side views (no text or symbols)

Simple line drawing of a container with an arrow pointing to the side (no text or symbols)

Line drawing of a hand inserting a card into a drawer (no text or symbols)

Colocar as prateleiras da porta

Illustration showing a hand placing a shelf item into a rack, and a container with upward arrows indicating flow or movement (no text or symbols)
