Product Type	Wireless Digital Intercom / Doorbell
Brand	Mercury
Model	350.298UK
Frequency	426-440 MHz
Range	Up to 500m (open area)
IP Rating	IP44 (Outdoor unit only)
Power Supply (Indoor Unit)	18650 Lithium rechargeable battery (DC3.7V)
Power Supply (Outdoor Unit)	18650 Lithium rechargeable battery (DC3.7V) or DC12V 1-2A mains adaptor (not supplied)
Dimensions (Indoor Unit)	154 x 54 x 36 mm
Dimensions (Outdoor Unit)	158 x 62 x 50.5 mm
Weight (Indoor Unit)	165g (including battery)
Weight (Outdoor Unit)	220g (including rain shade & battery)
Number of Ringtones	8 selectable melodies
Ring Volume	Adjustable (high, medium, low)
Battery Charging	Via indoor unit USB charging port (cable supplied)
LED Indicators	Low battery warning (flashing) and charging status (flashing during charge, off when full)
Electronic Door Lock	Compatible (not supplied, requires mains power for outdoor unit)
Installation	Wire-free, simple setup with rain shade and mounting screws
Weatherproof	Outdoor unit weatherproof with IP44 rating
Talk Function	Two-way communication via talk button
Unlock Function	Remote door release if door lock is connected
Included Accessories	Outdoor unit, indoor unit, rain shade, 2 rechargeable batteries, USB charging lead, electronic lock connecting wire, fixing kit, user guide

Frequently Asked Questions - 350.298UK Mercury

What is the maximum range of the doorbell?

The doorbell has a transmission range of up to 500 meters in open areas. Walls and obstacles may reduce this range.

How do I charge the batteries?

Place the rechargeable batteries into the indoor unit and connect the USB charging cable to a suitable USB power source. The indoor unit functions as a charger. During charging, the unlock button LED will flash and turn off when fully charged.

Can I use the outdoor unit without batteries?

Yes, the outdoor unit can be powered by an additional DC12V mains power supply (model 350.006UK, not supplied). Remove the rechargeable battery before mains installation. Use a qualified electrician.

Is the outdoor unit weatherproof?

Yes, the outdoor unit has an IP44 rating, meaning it is protected against splashing water. The included rain shade provides additional protection.

How do I change the ringtone?

Press the Chime Selection button on the indoor unit repeatedly to cycle through 8 different melodies until you find the desired tone.

Can I connect an electronic door lock?

Yes, if the outdoor unit is powered by mains (12V PSU), you can connect an electronic door lock (not supplied) using the provided connecting wire. Use RVV2 x 1.0mm² cable and consult a qualified electrician.

What does the flashing LED on the outdoor unit mean?

A slowly flashing LED on the outdoor unit's call button indicates low battery. Recharge or replace the battery as soon as possible.

How do I adjust the volume?

Press the Volume Adjustment button on the indoor unit repeatedly to select between high, medium, or low volume settings.

What is the warranty?

The device should not be taken apart or repaired by unauthorized persons, as this will invalidate the warranty. For any issues, contact the manufacturer or retailer.

Can I mount the indoor unit on a wall?

Yes, the indoor unit can be hung on a wall using the fixing screws provided and the keyhole slots on the back of the unit. Alternatively, it can be placed on a flat surface.

USER MANUAL 350.298UK Mercury

Two white electronic devices with circular buttons and perforated speaker grille (no visible text or symbols)

2.4Ghz Wireless Digital Intercom

Order ref: 350.005UK

User Manual

A stylish and attractive wireless digital intercom that allows you to talk to your visitors before opening the door. No wires are required between the outdoor and indoor units making this system very simple to install. Both units are powered by a rechargeable battery with the indoor unit doubling as a battery charger when connected to a suitable USB power source using the charging lead provided. Its also possible to connect the outdoor unit to an electronic door lock, utilising the door release button on the indoor unit. Ideal for use in domestic and business applications and helpful for the elderly or less mobile.

Features:

• Simple wire free installation and setup
• Up to 500m transmission range
• 8 Ringtones and adjustable ring volume
  • Recharge the batteries using the indoor unit and USB charging lead (supplied)
• Weatherproof outdoor unit can be connected to an electronic lock (not supplied) when connected to mains power
  • Outdoor unit can also be mains powered using additional 12V PSU 350.006UK (not supplied)
  • LED indicators for low battery warning and battery charging status

In the box:

• Outdoor unit (IP44)
- Indoor unit
- Rain shade for outdoor unit
• 2pcs DC3.7V Rechargeable battery

• USB charging lead (1m)
• Electronic lock connecting wire
- Fixing kit
- User guide

Installation:

Outdoor unit

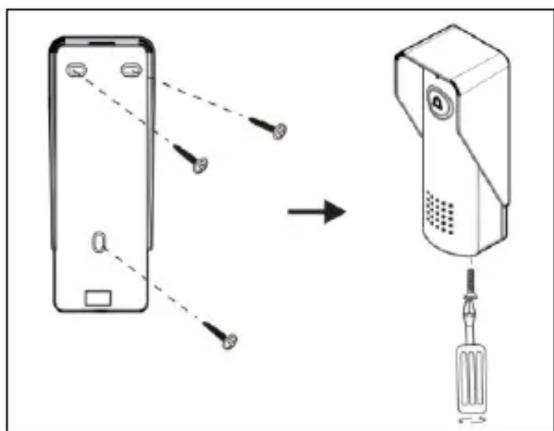

1. Fasten the rain shade on the wall around 1.4\~1.7m above the ground using the screws and plugs provided in the fixing kit.
2. Open the battery cover using a small Philips screwdriver and insert one of the DC3.7V rechargeable batteries ensuring the correct polarity.
3. Replace the cover and screw then slot the unit into the rain shade.
4. Secure the unit from underneath using the fixing screw provided in the fixing kit.
5. Its also possible to power the outdoor unit using an additional DC12V mains power supply (350.006UK not

supplied). If mains installation is required, please use a qualified electrician and ensure the rechargeable battery is removed before installation.

Indoor unit

1. The indoor unit can simply be stood on a suitable flat surface or hung on a wall using the fixing screws provided and keyhole slots in the back of the unit.
2. Please ensure the unit is kept in a dry environment away from direct sunlight and any wireless items that may interfere with the signal such as cordless phones, indoor aerials or WiFi hubs and routers.

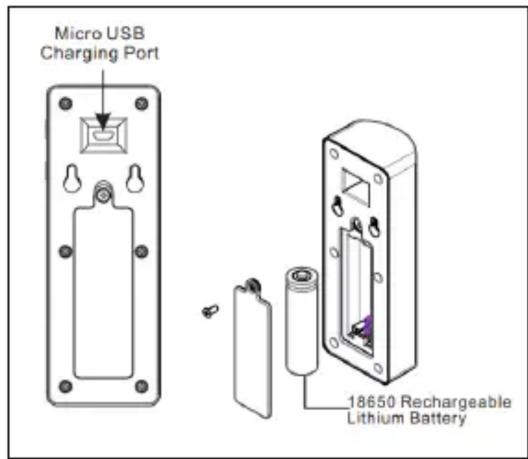

3. Open the battery cover using a small Philips screwdriver and insert one of the DC3.7V rechargeable batteries ensuring the correct polarity.
4. Replace the cover and screw to secure the unit.
5. There is also a USB charging port on the top of the indoor unit which can be used to charge up the batteries used in both units.
6. Simply insert the USB charging cable provided into the charging port and connect the cable to a suitable USB power source.
7. During charging the unlock button will flash, then go out once the battery is fully charged.

Electronic door lock

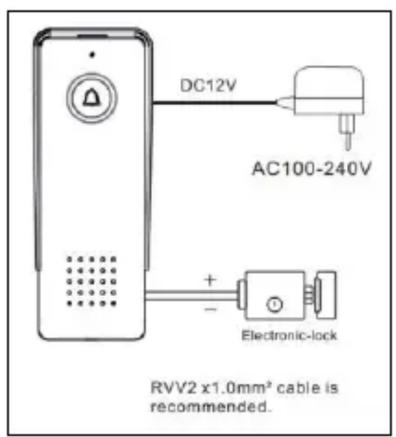

1. Its possible to connect the outdoor unit to an additional electronic door lock (not supplied) using the connecting wire provided.
2. This is only possible if the outdoor unit is connected to mains power using the additional 12V power supply mentioned above.
3. It is recommended to use RVV2 x 1.0mm ^4 cable to connect to the electronic door lock.
4. Once the door lock is connected correctly the unlock button will also be activated on the indoor unit.

NOTE: it is recommended that all wiring connections for both the electronic door lock and 12V DC power supply are undertaken by a qualified electrician.

Operation:

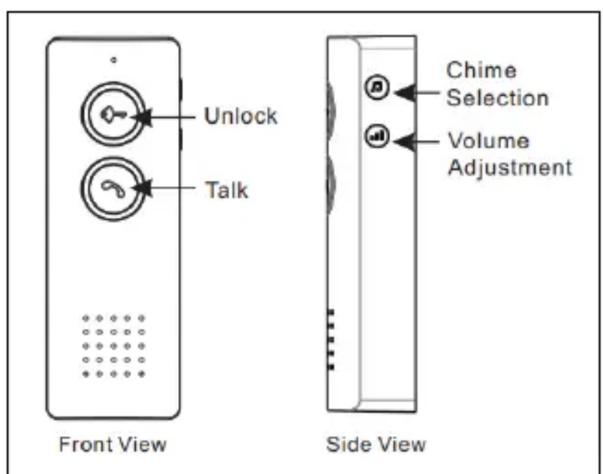

1. When the call button is pressed on the outdoor unit, the indoor unit chime will sound and the LED on the talk button will flash.
2. Press the talk button to speak to your visitor and press again to end the conversation.
3. If an electronic door lock is connected you can also press the unlock button to admit your visitor entry to your property.
4. It is possible to select a different chime on the indoor unit. Simply scroll through the 8 available melodies by pressing the chime selection button repeatedly.

1. To adjust the chime volume press the volume adjustment button repeatedly to select either high, medium or low volume setting accordingly.

System alerts:

1. The LED on the outdoor unit call button flashing slowly indicates the battery level is low and it should be recharged as soon as possible.
2. The LED on the indoor unit unlock button flashing slowly indicates the battery level is low and it should be recharged as soon as possible.

Specification:

Frequency	426~440 MHz
Range	Up to 500m (open area)
IP Rating	IP44 (External unit only)
Power supply: indoor unit	18650 Lithium rechargeable battery (DC3.7V)
Power supply: outdoor unit	18650 Lithium rechargeable battery (DC3.7V) or DC12V 1~2A Mains adaptor (not supplied)
Dimensions: indoor unit	154 x 54 x 36mm
Dimensions: outdoor unit	158 x 62 x 50.5mm
Weight: indoor unit	165g (including battery)
Weight: outdoor unit	220g (including rain shade & battery)

Warning:

• For reasons of electrical safety, this device must never be immersed in water, exposed to damp conditions or excessive force.
• Do not use this device if you find that it is damaged in any way.
• Do not attempt to repair this device or take apart under any circumstances, as this will invalidate your warranty.

This product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.

Hereby, AVSL Group Ltd. declares that the radio equipment type: 350.005UK complies with Directive 2014/53/EU The full text of the EU declaration of conformity for 350.005UK is available at the following internet address:

http://www.avsl.com/assets/exportdoc/3/5/350005UK%20CE.pdf

Errors and omissions excepted.

Copyright© 2021 AVSL Group Ltd, Unit 2 Bridgewater Park, Taylor Road, Trafford Park, Manchester. M41 7JQ.

AVSL (Europe) Ltd, Unit 3D North Point House, North Point Bus. Park, New Mallow Road, Cork, Ireland.
