Product Type	LED Telescopic Work Lamp
Model	GT-ALex-02UK
Brand	Oecolux
LED Configuration	30 + 6 + 1 (30 work LEDs, 6 reading LEDs, 1 torch LED)
Battery Type	Lithium-Ion, 3.7 V, 1000 mAh, built-in, non-replaceable
Power Supply Unit Input	100-240 V~, 50/60 Hz, 0.3 A max
Power Supply Unit Output	9 V, 500 mA
Car Cigarette Lighter Adapter	Type ZZ-103, Input/Output 12 V / 9 V, Fuse F0.25AL250V
LED Output Power	2.21 W
Charging Time	Approx. 3 hours (for empty battery)
Operating Time (approx.)	Not specified; charge before brightness declines; avoid deep discharge
Lighting Modes	Torch (single LED), Reading light (6 LEDs), Work light (30 LEDs) via telescopic extension
Mounting Options	Magnetic base and fold-out hook
Designated Use	Private use only; not for commercial workshops
Safety Features	Overcharge protection; do not look directly into light; keep away from flammable materials; not for use in explosive environments
Cleaning	Wipe with slightly damp cloth and mild detergent; do not immerse in water
Warranty Period	3 years from date of purchase (6 months for rechargeable battery as consumable)
Conformity	EU Directive 2004/108/EC; automotive directive 72/245/EWG
Included Accessories	AC/DC power supply unit, car cigarette lighter adapter, operating instructions
After-Sales Contact	UK: 0800/3286020, Ireland: 00800/44675888, [e-mail]

Frequently Asked Questions - GT-ALex-02UK Oecolux

How do I charge the work lamp?

Switch off the lamp. Connect the power supply unit or car cigarette lighter adapter to the charging socket (1). The red LED (2) lights during charging; it turns green when fully charged. Disconnect after green light. Empty battery charges in approx. 3 hours.

Can I use the lamp while charging?

Yes, you can use the work lamp while it is being charged. However, do not leave it unattended during charging.

How do I turn on the different light modes?

Press the on/off switch (5) once for the torch (3), twice for the reading light (4), and a third time to turn off. Pull the lamp apart to activate the 30 LEDs (6); slide together to turn them off.

Is the work lamp suitable for professional automotive workshops?

No, the lamp is designed for private use only and is not intended for commercial workshops or similar environments.

What should I do if the car cigarette lighter adapter does not work?

Check the fuse inside the adapter. Unscrew the ring anticlockwise, replace the blown fuse with a new one of type F0.25AL250V (0.25 A, 250 V, fast-acting). Do not bridge a defective fuse.

Can I replace the built-in battery?

No, the lithium-ion battery is built-in and not replaceable. For disposal, follow the instructions in the manual to safely remove the battery (destroys the lamp).

How should I clean the work lamp?

Disconnect from power. Use a well wrung-out, slightly damp cloth with a little dishwashing detergent. Never immerse in water or use aggressive cleaners.

What is the warranty period and how do I claim?

Warranty is 3 years from purchase (6 months for rechargeable battery). Contact the service hotline (UK: 0800/3286020, Ireland: 00800/44675888) before sending the product. Include original receipt and completed warranty card.

Can I use the lamp in wet conditions or near water?

No. The lamp must not be exposed to dripping or spray water. Do not immerse in water. Risk of electric shock. Do not use in bathrooms or near moisture sources.

How do I dispose of the lamp and battery?

Do not dispose of with household waste. Remove the rechargeable battery before disposal (follow steps in manual). Dispose of battery and lamp at a local collection center for electrical/electronic waste.

USER MANUAL GT-ALex-02UK Oecolux

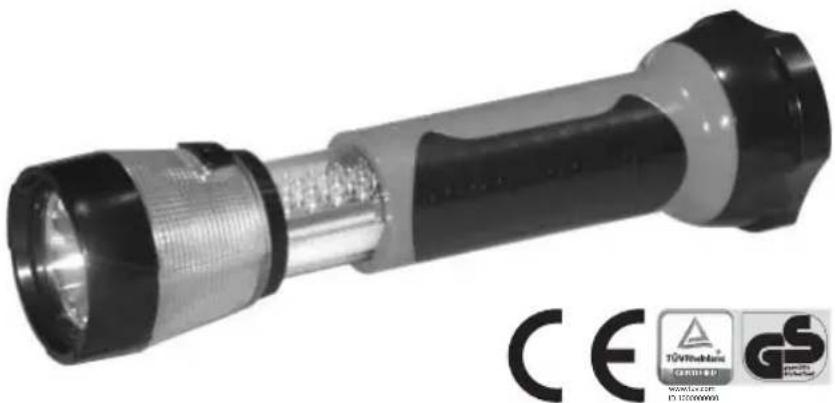

30+6+1 LED Telescopic Work Lamp Instruction Manual

AFTER SALES SUPPORT

GB 0800/3286020

IRE 00800 / 4467 5888

[e-mail]

MODEL: GT-ALex-02UK, Product code 92081, 03/2015, E47295

GB IRE 30+6+1 LED Telescopic Work Lamp Table of Contents

Introduction ....3 Cleaning ....33
Scope of delivery 4 Technical data 35
Designated use ....5 Remove rechargeable battery prior Safety instructions ....6 to disposal ....38
Conformity declaration 26 Warranty conditions 45 Use 27 Warranty card

MODEL: GT-ALex-02UK

PRODUCT CODE: 92081 03/2015

GB IR0800/328602000800/44675888
[e-mail]

AFTER SALES SUPPORT

Introduction

We congratulate you on your new work lamp and are convinced that you will be satisfied with this modern device. The device complies with the relevant safety regulations. In order to always guarantee the optimum function and performance of this device and to ensure your personal safety, we have one request:

Please read through these operating instructions carefully prior to initial use and especially follow the safety instructions!

AFTER SALES SUPPORT

GB 0800 / 328 6020 00800 / 4467 5888 [e-mail]

MODEL: GT-ALex-02UK PRODUCT CODE: 92081 03/2015

30+6+1 LED Telescopic Work Lamp Introduction / Scope of delivery

All activities on and with this device may only be carried out as described in these operating instructions.

If you should pass the work lamp on, please include the operating instructions.

Scope of delivery

• 30+6+1 LED telescopic work lamp, • AC/DC power supply unit, • Car cigarette lighter adapter,
• Operating Instructions

4

MODEL: GT-ALex-02UK

PRODUCT CODE: 92081 03/2015

GB IRE0800 / 328 6020 00800 / 4467 5888

[e-mail]

AFTER SALES SUPPORT

30+6+1 LED Telescopic Work Lamp Designated use

Designated use

The device is designed for private use.

The work lamp is unsuitable for commercial use in motor vehicle workshops or other workshops, etc.

AFTER SALES SUPPORT

GB 0800 / 328 6020 00800 / 4467 5888 [e-mail]

MODEL: GT-ALex-02UK PRODUCT CODE: 92081 03/2015

GB IRE 30+6+1 LED Telescopic Work Lamp Safety instructions

Safety instructions

General instructions

- This product is not to be used by children. This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

MODEL: GT-ALex-02UK

PRODUCT CODE: 92081 03/2015

GB IRE0800 / 328 6020 00800 / 4467 5888

[e-mail]

AFTER SALES SUPPORT

• Do not leave persons requiring assistance to use electrical devices unsupervised. The power supply unit must be kept out of the reach of children.
• Packaging materials such as films or polystyrene are not children's toys! Keep children away from them. Suff ocation hazard!
• The lamp must not be used in an environment that is subject to a fire and explosion hazard.

AFTER SALES SUPPORT

GB IR0800 / 328 6020 00800 / 4467 5888 [e-mail]

MODEL: GT-ALex-02UK PRODUCT CODE: 92081 03/2015

GB IRE 30+6+1 LED Telescopic Work Lamp Safety instructions

• The light is very bright. Never look directly into it at close range and do not shine it into the eyes of people or animals.
• Protect the work lamp from intense heat, cold and strong vibrations and impact.
• In order to avoid damage to surfaces, do not slide the work lamp over the surface to which it is adhered.
• Do not clean the appliance with harsh, scratching or abrasive detergents.

MODEL: GT-ALex-02UK

PRODUCT CODE: 92081 03/2015

GB IRE0800 / 328 6020 00800 / 4467 5888

[e-mail]

AFTER SALES SUPPORT

The surfaces could otherwise be damaged.

With use in motor vehicles

• The work lamp and the charging cable must not endanger the driver and passengers. The lamp must always be stored and fastened, so that it also does not create an injury hazard when braking suddenly.
• While driving, all vehicle parts (pedals, steering wheel, etc.) must be capa-

AFTER SALES SUPPORT

GB IR0800 / 328 6020 00800 / 4467 5888 [e-mail]

MODEL: GT-ALex-02UK PRODUCT CODE: 92081 03/2015

GB IRE 30+6+1 LED Telescopic Work Lamp Safety instructions

ble of being operated by the driver with ease and without any restriction.
- You must not operate the lamp while you are actively driving in traffic and e.g. are turning a steering wheel. Risk of glare!

Hazard from electricity

Only touch the device with dry hands!

The device must not be exposed to dripping or spray water.

MODEL: GT-ALex-02UK

PRODUCT CODE: 92081 03/2015

GB IRE0800 / 328 6020 00800 / 4467 5888

[e-mail]

AFTER SALES SUPPORT

The work lamp and power supply unit must not be immersed in water or other liquids. Electrical shock hazard! Therefore, also do not use the appliance in the vicinity of moisture sources, e.g. in the bathroom.

If the appliance should fall into water or another liquid, first disconnect the power plug and then remove the appliance!

AFTER SALES SUPPORT

GB IR0800 / 328 6020 00800 / 4467 5888 [e-mail]

MODEL: GT-ALex-02UK PRODUCT CODE: 92081 03/2015

GB IRE 30+6+1 LED Telescopic Work Lamp Safety instructions

• Only connect the power supply unit to a properly installed socket, with voltage corresponding to the “technical data”.
• When using an adapter plug or extension cord, these must comply with the valid safety regulations. The specified maximum voltage must not be exceeded.
• Ensure that the socket is easily-accessible, so that you can remove the power supply unit, if necessary.

MODEL: GT-ALex-02UK

PRODUCT CODE: 92081 03/2015

GB IRE0800 / 328 6020 00800 / 4467 5888

[e-mail]

AFTER SALES SUPPORT

• Lay the power cable to that it does not become a trip hazard.

• Do not use the lamp:

• if it is damaged,

• if the charging cable is damaged,
• the power supply unit or car cigarette lighter adapter is damaged.

- Unwind the charging cable completely prior to use. In doing so, ensure that the charging cable is not trapped, squeezed or damaged by sharp

AFTER SALES SUPPORT

GB IR0800 / 328 6020 00800 / 4467 5888 [e-mail]

MODEL: GT-ALex-02UK PRODUCT CODE: 92081 03/2015

GB IRE 30+6+1 LED Telescopic Work Lamp Safety instructions

edges or hot items.

- Disconnect the power supply unit from the socket:

• if you are not charging the appliance,
• after each use,
  – before cleaning or putting the appliance away,
• if an obvious fault occurs during operation,
• in a thunder storm.

MODEL: GT-ALex-02UK

PRODUCT CODE: 92081 03/2015

GB IRE0800 / 328 6020 00800 / 4467 5888

[e-mail]

AFTER SALES SUPPORT

Always pull on the power supply unit, not on the cable.

• Do not carry or pull the device using the electric cables.
• Do not make any changes to the work lamp, to the power supply unit/cable or on the cigarette lighter adapter.
• Never attempt to open the device or penetrate it with metal objects.
• Only allow repairs to be carried out on appliances by a professional workshop. Also pay attention to the guarantee conditions.

AFTER SALES SUPPORT

GB IR0800 / 328 6020 00800 / 4467 5888 [e-mail]

MODEL: GT-ALex-02UK PRODUCT CODE: 92081 03/2015

GB IRE 30+6+1 LED Telescopic Work Lamp Safety instructions

- If the power supply unit or charging cable is damaged, it must no longer be used and must be replaced by the same type of power supply unit.

Fire hazard

Do not leave the work lamp unattended when it is being charged.

• Keep the work lamp away from fl ammable materials.
• Do not cover the work lamp or the power supply unit with items.

MODEL: GT-ALex-02UK

PRODUCT CODE: 92081 03/2015

GB IR0800 / 328 6020 00800 / 4467 5888

[e-mail]

AFTER SALES SUPPORT

- A rechargeable battery that has been removed for disposal must not be damaged. Fire hazard from self-combustion!

Risk of property damage Do not use the work lamp for longer than 3 hours. As soon as the brightness of the LEDs has noticeably declined, the work lamp must be charged.

AFTER SALES SUPPORT

GB IR0800 / 328 6020 00800 / 4467 5888 [e-mail]

MODEL: GT-ALex-02UK PRODUCT CODE: 92081 03/2015

GB IRE 30+6+1 LED Telescopic Work Lamp Safety instructions

Operating the work lamp until the LEDs have extinguished leads to deep discharge of the rechargeable battery. This can cause the rechargeable battery to be irrecoverably destroyed.

Also always ensure that you switch off the work lamp. Charge the work lamp prior to longer periods of disuse.

MODEL: GT-ALex-02UK

PRODUCT CODE: 92081 03/2015

GB IRE0800 / 328 6020 00800 / 4467 5888

[e-mail]

AFTER SALES SUPPORT

Warnings and safety information for the use of products with lithium-ion batteries

The rechargeable batteries in the lamp cannot be exchanged or replaced. They are also not permitted to be used for operating other devices, or recharged through other devices.

A lack of attention when using the product in combination with the warnings below could lead to malfunction, electrical problems, ex-

AFTER SALES SUPPORT

GB IR0800 / 328 6020 00800 / 4467 5888 [e-mail]

MODEL: GT-ALex-02UK PRODUCT CODE: 92081 03/2015

GB IRE 30+6+1 LED Telescopic Work Lamp Safety instructions

cessive heat, FIRE, injury and/or material damage.

• The light may only be charged with the power supply unit supplied or with the car cigarette lighter adapter.
• The device may only be charged under supervision.
  • After the device has been charged, always disconnect the light from the battery charger and allow it to cool down before use.

MODEL: GT-ALex-02UK

PRODUCT CODE: 92081 03/2015

GB IRE0800 / 328 6020 00800 / 4467 5888

[e-mail]

AFTER SALES SUPPORT

• Lithium-ion batteries are mechanically sensitive. They can ignite due to an internal short circuit and when coming into contact with air.
• A damaged lithium-ion battery, e.g. because the light is damaged, can ignite 30 or more minutes later.
• Lithium-ion batteries must never be short circuited. A battery removed for disposal can ignite due to a short circuit.
• A burning battery must not be extinguished using water, but rather with sand.

AFTER SALES SUPPORT

GB 0800 / 328 6020 00800 / 4467 5888 [e-mail]

MODEL: GT-ALex-02UK PRODUCT CODE: 92081 03/2015

GB IRE 30+6+1 LED Telescopic Work Lamp Safety instructions

Disposal

- Also dispose of the packaging materials properly and in an environmentally sound manner. These are raw materials and can be recycled.

Batteries and rechargeable batteries are not permitted to be disposed of with household waste!

- Every consumer is legally obligated to submit batteries and rechargeable

MODEL: GT-ALex-02UK

PRODUCT CODE: 92081 03/2015

GB IRE0800 / 328 6020 00800 / 4467 5888

[e-mail]

AFTER SALES SUPPORT

batteries to the collection centre of his local municipality, district or to retailers. All batteries and rechargeable batteries can thereby be disposed of in an environmentally friendly manner.

If the device can no longer be used, submit it to a collection centre for electrical and electronic waste.

Do not dispose of it with household waste.

AFTER SALES SUPPORT

GB 0800 / 328 6020 00800 / 4467 5888 [e-mail]

MODEL: GT-ALex-02UK PRODUCT CODE: 92081 03/2015

GB IRE 30+6+1 LED Telescopic Work Lamp Safety instructions

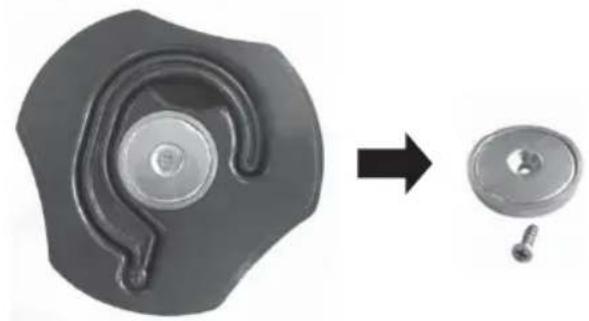

Prior to the disposal of the work lamp, the rechargeable battery must be removed, please refer to "Remove rechargeable battery prior to disposal".

Damaged rechargeable batteries must be disposed of in accordance with the valid regulations and ordinances.

- Keep removed batteries away from children, do not throw into fire, short circuit or dismantle.

MODEL: GT-ALex-02UK

PRODUCT CODE: 92081 03/2015

GB IRE0800 / 328 6020 00800 / 4467 5888

[e-mail]

AFTER SALES SUPPORT

• If battery liquid has leaked, avoid contact with skin, eyes and mucous membranes. When coming into contact with battery acid, immediately rinse the affected areas with plenty of clean water and immediately contact a physician.
• If you suspect a battery to have been swallowed, seek immediate medical attention.

AFTER SALES SUPPORT

GB 0800 / 328 6020 00800 / 4467 5888 [e-mail]

MODEL: GT-ALex-02UK PRODUCT CODE: 92081 03/2015

GB IRE 30+6+1 LED Telescopic Work Lamp Conformity Declaration

Conformity Declaration

The conformity of the product with the legally prescribed standards is guaranteed. You can find the full conformity declaration on the Internet at www.gt-support.de.

MODEL: GT-ALex-02UK

PRODUCT CODE: 92081 03/2015

GB IRE0800 / 328 6020 00800 / 4467 5888

[e-mail]

AFTER SALES SUPPORT

30+6+1 LED Telescopic Work Lamp Use

Use Recharge battery

Do not leave the work lamp unattended when it is being charged.

The rechargeable battery takes around 3 hours to charge. Switch off the work lamp while it is charging.

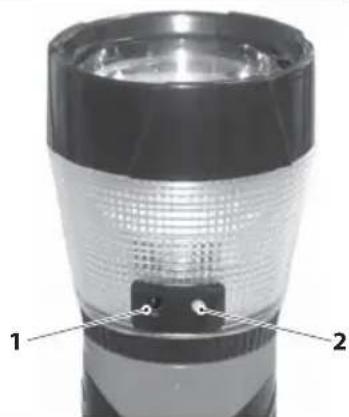

- Connect the plug of the power supply unit or car cigarette lighter adapter to socket 1.

AFTER SALES SUPPORT

GB 0800 / 328 6020 00800 / 4467 5888 [e-mail]

MODEL: GT-ALex-02UK PRODUCT CODE: 92081 03/2015

GB IRE 30+6+1 LED Telescopic Work Lamp Use

• Connect the power supply unit to a properly installed socket or the car cigarette lighter adapt to a live (turn ignition key to Pos. I if necessary) cigarette lighter adapter in a car.
• The LED 2 illuminates red during the charging process. As soon as the charging process has ended, the LED illuminates green.

The rechargeable battery is protected from overloading by the electronics. Disconnect the work lamp from the power supply as soon as the LED illuminates green. It is possible to recharge the battery at any time.

MODEL: GT-ALex-02UK

PRODUCT CODE: 92081 03/2015

GB IRE0800 / 328 6020 00800 / 4467 5888

[e-mail]

AFTER SALES SUPPORT

An empty battery charges in approx. 3 hours.

Information regarding the car cigarette lighter adapter

If charging with the car cigarette lighter adapter does not function, but the work lamp can be charged using the power supply unit, it is possible that the installed fuse has blown. Replace this as described below.

Fire hazard! Never bridge a defective fuse and only replace it with a fuse of the same type. Check the cable of the car cigarette lighter adapter for damage; replace the car cigarette

AFTER SALES SUPPORT

GB 0800 / 328 6020 00800 / 4467 5888 [e-mail]

MODEL: GT-ALex-02UK PRODUCT CODE: 92081 03/2015

GB IRE 30+6+1 LED Telescopic Work Lamp Use

lighter adapter, if necessary.

• Unscrew the ring on the adapter anti-clockwise.
• Replace the defective fuse with a new one of the type F0.25AL250V (0.25 A, 250 V, fl ink).
• Turn the coloured ring with the inserted metal cap clockwise to tighten.

MODEL: GT-ALex-02UK

PRODUCT CODE: 92081 03/2015

GB IRE0800 / 328 6020 00800 / 4467 5888

[e-mail]

AFTER SALES SUPPORT

Switching on and off

• Press the on/off-switch 5 when switched off once to switch on the torch 3 and twice to switch on the reading light 4.
• Press the on/off-switch 5 a third time to switch off the work light.
  • Pull the work lamp apart in order to switch 3

AFTER SALES SUPPORT

GB 0800 / 328 6020 00800 / 4467 5888 [e-mail]

MODEL: GT-ALex-02UK PRODUCT CODE: 92081 03/2015

GB IRE 30+6+1 LED Telescopic Work Lamp Use

on the 30 LEDs 6 and slide it together in order to switch off the LEDs.

In order to avoid glare from the work lamp, turn the work lamp to the side with the on/off switch 5 when you pull it apart.

You can also use the work lamp while it is charging.

The 30+6-1 LED work light can be positioned using the magnet/fold-out hook 7 on a magnetic surface or hung up by the hook.

In order to avoid damage to surfaces, do not slide the work lamp over the surface to which it is adhered. If necessary, place a rag, a piece of film or paper on the surface.

MODEL: GT-ALex-02UK

PRODUCT CODE: 92081 03/2015

GB IRE0800 / 328 6020 00800 / 4467 5888

[e-mail]

AFTER SALES SUPPORT

Cleaning

CAUTION! Prior to any cleaning, ensure that you disconnect the power supply unit from the socket/the car cigarette lighter adapter from the socket of the motor vehicle. Never immerse the device in water or other liquids!

Do not use any corrosive, aggressive aging the surfaces.

AFTER SALES SUPPORT

GB 0800 / 328 6020 00800 / 4467 5888 [e-mail]

MODEL: GT-ALex-02UK PRODUCT CODE: 92081 03/2015

30+6+1 LED Telescopic Work Lamp Cleaning

Only use a well wrung-out, slightly dampened cloth with some dishwashing detergent for cleaning the work lamp, the power supply unit and the car cigarette lighter adapter.

MODEL: GT-ALex-02UK

PRODUCT CODE: 92081 03/2015

GB IRE0800 / 328 6020 00800 / 4467 5888

[e-mail]

AFTER SALES SUPPORT

30+6+1 LED Telescopic Work Lamp Technical data

Technical data

30+6+1 LED telescopic work lamp

Model: GT-ALex-02UK

Battery: 3.7 V, 1000mAh, Lithium-Ion Akku

Input: 9 V, max. 500 mA--

LED Output: 2,21 W

AFTER SALES SUPPORT

GB 0800 / 328 6020 00800 / 4467 5888 [e-mail]

MODEL: GT-ALex-02UK PRODUCT CODE: 92081 03/2015

GB IRE 30+6+1 LED Telescopic Work Lamp Technical data

Power supply unit

Model: LY06 090 0500B

Input: 100-240 V\~, 50/60 Hz, 0.3 A Max.

Output: 9 V,500 mA ---

Car cigarette lighter adapter

Type: ZZ-103

Input / Output: 12 V ---/9V---

Fuse: F0.25AL250V

36

MODEL: GT-ALex-02UK

PRODUCT CODE: 92081 03/2015

GB IRE0800 / 328 6020 00800 / 4467 5888

[e-mail]

AFTER SALES SUPPORT

Because our products are constantly being further developed and improved, design modifications and technical changes are possible.

The LED working light complies with the requirements of the EU directive 2004/108/EC (Electromagnetic compatibility) and complies with the critical values of the sections 6.5, 6.6, 6.8, 6.9 and attachment I of the EU Directive 72/245/EWG with the effective amendments of the 2006/96/EG (automotive directive).

AFTER SALES SUPPORT

GB 0800 / 328 6020 00800 / 4467 5888 [e-mail]

MODEL: GT-ALex-02UK PRODUCT CODE: 92081 03/2015

30+6+1 LED Telescopic Work Lamp Remove battery prior to disposal

Remove rechargeable battery prior to disposal

Prior to removing the rechargeable battery, disconnect the work lamp from the power supply and completely discharge the battery! After removing the battery, the work lamp is destroyed and cannot be repaired.

Ensure that you wear safety glasses and safety gloves in order to avoid injuries to the eyes from splinters or cut injuries on the hands.

MODEL: GT-ALex-02UK

PRODUCT CODE: 92081 03/2015

GB IRE0800 / 328 6020 00800 / 4467 5888

[e-mail]

AFTER SALES SUPPORT

It is important that you follow steps 1 to 10 to remove the battery safely.

ATTENTION, FIRE HAZARD! To avoid short circuiting and therefore a fire, step 8 must be performed only as described.

Sawing on the opposite side would cause the battery to short circuit.

AFTER SALES SUPPORT

GB 0800 / 328 6020 00800 / 4467 5888 [e-mail]

MODEL: GT-ALex-02UK PRODUCT CODE: 92081 03/2015

30+6+1 LED Telescopic Work Lamp Remove battery prior to disposal

Step 1 Step 2

40

MODEL: GT-ALex-02UK

PRODUCT CODE: 92081 03/2015

GB IRE0800/328602000800/44675888

[e-mail]

AFTER SALES SUPPORT

Step 3 Step 4

AFTER SALES SUPPORT

GB 0800 / 328 6020 00800 / 4467 5888 [e-mail]

MODEL: GT-ALex-02UK PRODUCT CODE: 92081 03/2015

30+6+1 LED Telescopic Work Lamp Remove battery prior to disposal

Step 5 Step 6

42

MODEL: GT-ALex-02UK

PRODUCT CODE: 92081 03/2015

GB IR0800/328602000800/44675888

[e-mail]

AFTER SALES SUPPORT

30+6+1 LED Telescopic Work Lamp Remove battery prior to disposal

Step 7 Step 8

AFTER SALES SUPPORT

GB 0800 / 328 6020 00800 / 4467 5888 [e-mail]

MODEL: GT-ALex-02UK PRODUCT CODE: 92081 03/2015

30+6+1 LED Telescopic Work Lamp Remove battery prior to disposal

Step 9 Step 10

44

MODEL: GT-ALex-02UK

PRODUCT CODE: 92081 03/2015

GB IRE0800/328602000800/44675888

[e-mail]

AFTER SALES SUPPORT

Warranty conditions

Dear Customer,

The ALDI warranty offers you extensive benefits com-

pared to the statutory obligation arising from a warranty:

Warranty period: 3 years from date of purchase, 6

months for wear parts and consumables under n

mal and proper conditions of use (e.g. rechargeabl

batteries).

Costs: Free repair/exchange or refund. No transpo

costs.

Hotline: Free hotline.

ADVICE: Please contact our service hotline by phon

e-mail or fax before sending in the device. This allows

to provide support in the event of possible operator errors.

In order to make a claim under the warranty, pleas

send us:

- the original receipt and the warranty card properl

completed.

- the product with all components included in 1

packaging.

The warranty does not cover damage caused by:

- Accident or unanticipated events (e.g. lightning,

water, fi re).

- Improper use or transport.

- Disregard of the safety and maintenance instruc-

tions.

- Other improper treatment or modification.

After the expiry of the warranty period, you still have

possibility to have your product repaired at your owr

expense. If the repair or the estimate of costs is not

of charge you will be informed accordingly in advance.

This warranty does not limit the statutory obligation

of the seller arising from a warranty. The period of

warranty can only be extended in accordance with

a legal standard. In countries where a (compulsory

warranty and/or spare part storage and/or a system

for compensation are/is required by law, the statute

minimum conditions apply. In the event that a prod

is received for repair, neither the service company

the seller will assume any liability for data or setting

possibly stored on the product by the customer.

Warranty Card
30+6+1 LED Telescopic Work Lamp
GT-ALex-02UK
Your details:
Name
Address

E mail

Date of purchase*

*We recommend you keep the receipt with this warranty card

Location of purchase

Description of malfunction:

Return your completed warranty card to:

Globaltronics Service Center,

c/o Bridges Logistics,

PO Box 1125, Bromley, BR1 9TW, UK

Hotline:

UK: 0800 / 328 6020

Ireland: 00800 / 4467 5888

Mail: [e-mail]

Imported by (not a service address!):

Globaltronics GmbH & Co. KG, Domstr. 19, 20095 Hamburg, Germany

These instructions can also be downloaded from our website as a PDF file at www.gt-support.de.
