Product Type	Extendable LED Workshop Lamp
Model	GT-ALex-03-UK
Battery	3.7 V, 1000 mAh, Lithium-Ion rechargeable battery
Input	12 V, Max 500 mA
LED Output	Max 2.8 W
Power Supply Unit Model	LY06-120-0500B
Power Supply Input	100-240 V~, 50/60 Hz
Power Supply Output	12 V, 500 mA
Car Cigarette Lighter Adapter Model	ZZ-103
Car Adapter Input/Output	12 V / 12 V
Fuse	F0.5AL250V (0.5 A, 250 V, quick-acting)
Charge Time	Approx. 3 hours
Lighting Modes	Torch (single LED), Reading light (10 LEDs), Extendable 10 LEDs
Additional Features	Magnetic base, fold-out hook, extendable body
Safety	Do not look directly into LEDs; keep away from children; do not use in hazardous environments
Cleaning	Use a slightly damp cloth with mild detergent; do not immerse
Warranty	3 years from date of purchase
Disposal	Remove battery before disposal; do not dispose with household waste

Frequently Asked Questions - GT-ALex-03-UK Oecolux

How do I charge the workshop lamp?

Connect the power supply unit or car cigarette lighter adapter to the lamp's socket. Plug into a mains socket or car cigarette lighter. The LED indicator glows red during charging and green when fully charged. Charge takes approximately 3 hours. Do not leave unattended while charging.

How do I turn on the different lights?

Press the on/off switch once to turn on the torch (single LED). Press twice to turn on the reading light (10 LEDs). Press a third time to turn off. Additionally, pulling the lamp apart switches on the 10 extendable LEDs; sliding it together switches them off.

Can I use the lamp while charging?

Yes, the LEDs can be switched on during the charging process.

How do I clean the lamp?

Before cleaning, disconnect the power supply. Use a well wrung-out, slightly damp cloth with some dishwashing detergent. Never immerse the lamp in water or use abrasive cleaners.

What should I do if the car cigarette lighter adapter doesn't charge?

Check if the fuse has blown. Unscrew the ring on the adapter anticlockwise, replace the defective fuse with a new F0.5AL250V (0.5 A, 250 V) fuse. Never bypass a defective fuse. Also check the adapter cable for damage.

How do I remove the battery before disposal?

Disconnect the lamp from power and completely discharge the battery. Wear safety glasses and gloves. Follow steps 1 to 10 in the manual to safely extract the battery. The lamp will be destroyed after removal.

Is the lamp suitable for commercial workshops?

No, the lamp is designed for private use only. It is not intended for commercial workshops or motor vehicle workshops.

Can I use the lamp with a 24V vehicle?

No, the car cigarette lighter adapter is only suitable for 12V battery vehicles. Do not use with trucks, boats, or vehicles with 24V systems.

What are the safety precautions regarding the battery?

Do not short-circuit, damage, or expose the battery to fire. If battery liquid leaks, avoid contact with skin/eyes and rinse with plenty of water. Keep removed batteries away from children. Dispose of according to local regulations.

How long is the warranty period?

The warranty is 3 years from the date of purchase. It covers manufacturing defects under intended use. Contact the hotline before returning the product. Keep your receipt and warranty card.

USER MANUAL GT-ALex-03-UK Oecolux

The following table is provided in the image:

In contrast, we expect to

АГИЕ НАЛАЗСУРРО

1. 引领/期权

2. 本说明仅供参考。

10.24.2016年 10月30日

TOECOLUX

Extendable LED

Workshop Lamp

Contents

Scope of delivery

Denominisation of Components ......

Introduction

designated use

Safety instructions

Fermlarite Decimation 22

Conformity Declaration

The 31

Cleaning

Technical data

The following table is provided in the image:

Remove rechargeable battery select to dorsal

prior to respeople

Marranty card

Marranty conditions

Scope of delivery/

Denomination of components

1 Balendable LED Workshop Lamp
AC/DC power supply unit
3 Car cigarette lighter adapter
A Socket
LED

6 Torch
Reading light
3. In silo with
② 10+1PS
⑲ Invest (Hold at 100)
May be a time on the
the 810-1935-4000

Great care has gone into the manufacture of this product and it should therefore provide you with years of good service when used properly. In the event of product failure within it's intended use over the course of the first 3 years after date of purchase, we will remedy the problem as quickly as possible once it has been brought to our attention. In the unlikely event of such an occurrence, or if you require any information about the product, please contact us via our helpline support services, details of which are to be found both in this manual and on the product itself.

These User Manual can also be downloaded from our website as a PDF file at www.gt-support.de.

Don't look directly into the LEDs during operation!

Introduction

In order to always guarantee the optimum function and performance of this device and to ensure your personal safety, we have one request:

Please read through these user guide carefully prior to initial use and especially follow the safety instructions!

All activities on and with this device may only be carried out as described in these user guide.

If you should pass the work lamp on, please include the user guide.

AFTER SALES SUPPORT

GB 0800 / 328 6020

00800 / 4467 5888

[e-mail]

Extendable LED Workshop Lamp Designated use

Designated use

The device is designed for private use.

The work lamp is not designated for commercial use in motor vehicle workshops or other workshops, etc.

This car cigarette lighter adapter is only suitable for use in motor vehicles provided with a battery voltage of 12 V.

It is not designed for trucks, boats or similar with a battery voltage of 24 volts.

Safety instructions

General instructions

- This product is not to be used by children. This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given

AFTER SALES SUPPORT

GB 0800 / 328 6020 IRE 00800 / 4467 5888

[e-mail]

supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Do not leave persons requiring assistance to use electrical devices unsupervise. The power supply unit must be kept out of the reach of children.
• Packaging materials such as fi lms or polystyrene are not children's toys! Keep children away from them. Suffocation hazard!

Extendable LED Workshop Lamp Safety instructions

• The lamp must not be used in an environment that is subject to a fire and explosion hazard.
• The light is very bright. Never look directly into it at close range and do not shine it into the eyes of people or animals.
• Protect the work lamp from intense heat, cold and strong vibrations and impact.

AFTER SALES SUPPORT

GB 0800 / 328 6020 IRE 00800 / 4467 5888

[e-mail]

Extendable LED Workshop Lamp Safety instructions

• In order to avoid damage to surfaces, do not slide the work lamp over the surface to which it is adhered.
• Do not clean the appliance with harsh, scratching or abrasive detergents. The surfaces could otherwise be damaged.

With use in motor vehicles

- The work lamp and the charging cable must not endanger the driver and

passengers. The lamp must always be stored and fastened, so that it also does not create an injury hazard when braking suddenly.

• While driving, all vehicle parts (pedals, steering wheel, etc.) must be capable of being operated by the driver with ease and without any restriction.
• You must not operate the lamp while you are actively driving in traffic and e.g. are turning a steering wheel. Risk of glare!

Hazard from electricity

• Only touch the device with dry hands!
• Use power supply and Lamp only in dry interior rooms.
• The device must not be exposed to dripping or spray water.

• The work lamp and power supply unit must not be immersed in water or other liquids.

• Electrical shock hazard! Therefore, also do not use the appliance in the vicinity of moisture sources, e.g. in the bathroom.

• If the appliance should fall into water or another liquid, first disconnect the power plug and then remove the appliance!
• Only connect the power supply unit to a properly installed socket, with voltage corresponding to the “technical data”.

Extendable LED Workshop Lamp Safety instructions

• When using an adapter plug or extension cord, these must comply with the valid safety regulations. The specified maximum voltage must not be exceeded.
• Ensure that the socket is easily-accessible, so that you can remove the power supply unit, if necessary.

• Lay the power cable to that it does not become a trip hazard.

• Do not use the lamp:

• if it is damaged,
• if the charging cable is damaged,
• the power supply unit or car cigarette lighter adapter is damaged.
• Unwind the charging cable completely prior to use. In doing so, ensure that the charging cable is not trapped, squeezed or damaged by sharp edges or hot items.

- Disconnect the power supply unit from the socket:

• if you are not charging the appliance,
• after each use,
  – before cleaning or putting the appliance away,
• if an obvious fault occurs during operation,
• in a thunder storm.

Always pull on the power supply unit, not on the cable.

• Do not carry or pull the device using the electric cables.
• Do not make any changes to the work lamp, to the power supply unit/cable or on the cigarette lighter adapter.
• Never attempt to open the device or penetrate it with metal objects. Rechargeable batteries and LEDs are not replaceable by operator.
• The workshop lamp and connecting lines can't be repaired or replaced, the workshop lamp has to be disposed accordingly in case of a damage.

AFTER SALES SUPPORT

GB 0800 / 328 6020 IRE 00800 / 4467 5888

[e-mail]

- If the power supply unit or charging cable is damaged, it must no longer be used and must be replaced by the same type of power supply unit.

Fire hazard

• Do not leave the work lamp unattended when it is being charged.
• Keep the work lamp away from fl ammable materials.
• Do not cover the work lamp or the power supply unit with items.

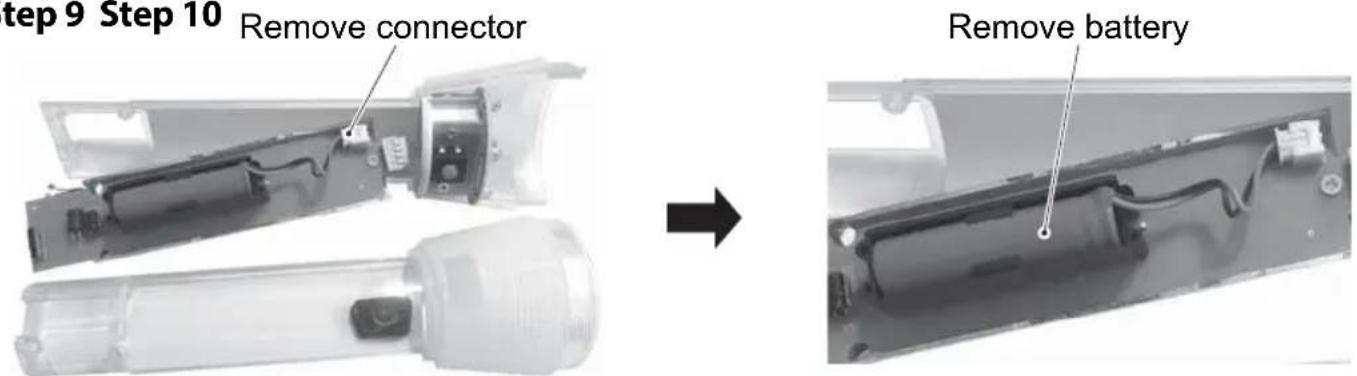

- A rechargeable battery that has been removed for disposal must not be damaged. Fire hazard from self-combustion!

Risk of property damage

• Do not use the work lamp for longer than 3 hours. As soon as the brightness of the LEDs has noticeably declined, the work lamp must be charged.
• Operating the work lamp until the LEDs have extinguished leads to deep

AFTER SALES SUPPORT

GB 0800 / 328 6020 IRE 00800 / 4467 5888

[e-mail]

discharge of the rechargeable battery. This can cause the rechargeable battery to be irrecoverably destroyed.

• Also always ensure that you switch off the work lamp.
• Charge the work lamp prior to longer periods of disuse.

Warnings and safety information for the use of products with lithium-ion batteries

The rechargeable batteries in the lamp cannot be exchanged or replaced. They are also not permitted to be used for operating other devices, or recharged through other devices.

A lack of attention when using the product in combination with

AFTER SALES SUPPORT

GB 0800 / 328 6020 IRE 00800 / 4467 5888

[e-mail]

the warnings below could lead to malfunction, electrical problems, excessive heat, FIRE, injury and/or material damage.

• The light may only be charged with the power supply unit supplied or with the car cigarette lighter adapter.
• The device may only be charged under supervision.

• After the device has been charged, always disconnect the light from the battery charger and allow it to cool down before use.

• Lithium-ion batteries are mechanically sensitive. They can ignite due to an internal short circuit and when coming into contact with air.

• A damaged lithium-ion battery, e.g. because the light is damaged, can ignite 30 or more minutes later.
• Lithium-ion batteries must never be short circuited. A battery removed for disposal can ignite due to a short circuit.
• A burning battery must not be extinguished using water, but rather with sa

AFTER SALES SUPPORT

GB 0800 / 328 6020 IRE 00800 / 4467 5888

[e-mail]

Disposal

- Also dispose of the packaging materials properly and in an environmentally sound manner. These are raw materials and can be recycled.

Batteries and rechargeable batteries are not permitted to be disposed of with household waste!

- Every consumer is legally obligated to submit batteries and rechargeable

batteries to the collection centre of his local municipality, district or to retailers. All batteries and rechargeable batteries can thereby be disposed of in an environmentally friendly manner.

If the device can no longer be used, submit it to a collection centre for electrical and electronic waste.

Do not dispose of it with household waste.

AFTER SALES SUPPORT

GB 0800 / 328 6020 IRE 00800 / 4467 5888

[e-mail]

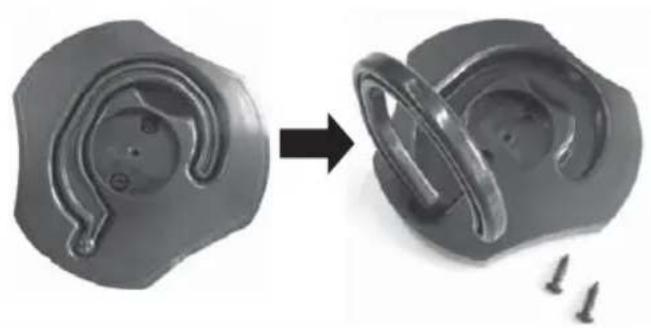

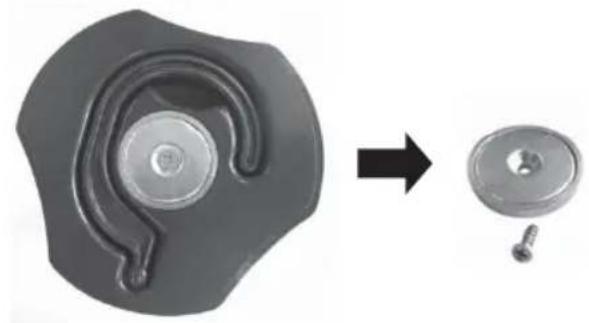

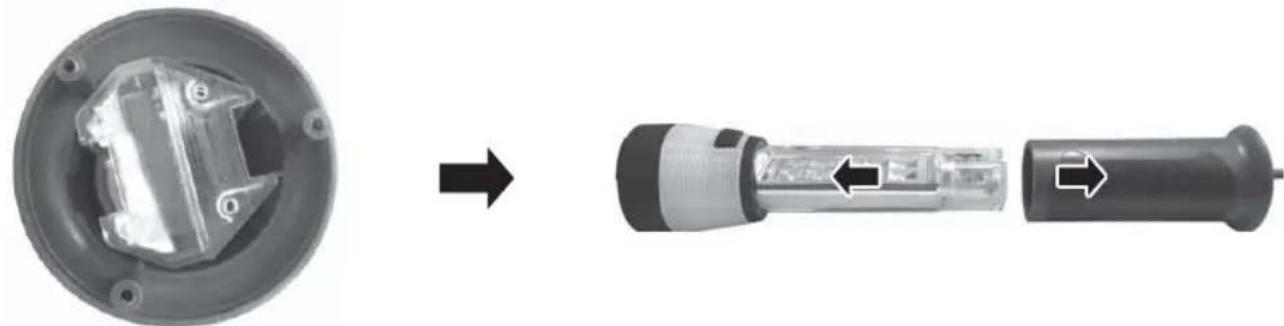

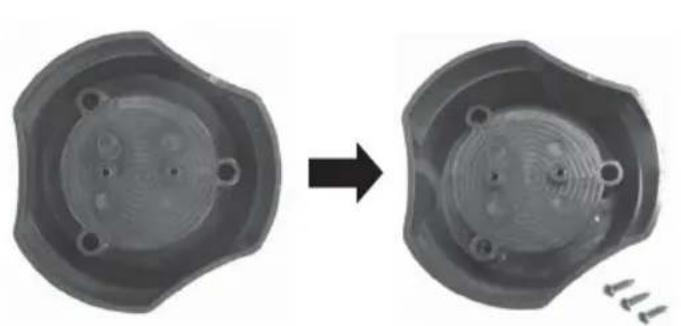

Prior to the disposal of the work lamp, the rechargeable battery must be removed, please refer to “Remove rechargeable battery prior to disposal”.

Damaged rechargeable batteries must be disposed of in accordance with the valid regulations and ordinances.

Extendable LED Workshop Lamp Safety instructions

• Keep removed batteries away from children, do not throw into fire, short circuit or dismantle.
• If battery liquid has leaked, avoid contact with skin, eyes and mucous membranes. When coming into contact with battery acid, immediately rinse the affected areas with plenty of clean water and immediately contact a physician.

AFTER SALES SUPPORT

GB 0800 / 328 6020 IRE 00800 / 4467 5888

[e-mail]

Extendable LED Workshop Lamp Safety instructions

- If you suspect a battery to have been swallowed, seek immediate medical attention.

CE Conformity Declaration

The conformity of the product with the legally prescribed standards is guaranteed. You can find the full conformity declaration on the Internet at www.gt-support.de.

Extendable LED Workshop Lamp Use

Use

Recharge battery

Do not leave the work lamp unattended when it is being charged.

The rechargeable battery takes around 3 hours to charge. Switch off the work lamp while it is charging.

AFTER SALES SUPPORT

GB 0800 / 328 6020 IRE 00800 / 4467 5888

[e-mail]

• Connect the plug 2 of the power supply unit or car cigarette lighter adapter to socket 4.
• Connect the power supply unit to a properly installed socket or the car cigarette lighter adapt to a live (turn ignition key to Pos. I if necessary) cigarette lighter adapter in a car.

Extendable LED Workshop Lamp Use

- The LED 5 illuminates red during the charging process. As soon as the charging process has ended, the LED illuminates green.

The rechargeable battery is protected from overloading by the electronics. Disconnect the work lamp from the power supply as soon as the LED 5 illuminates green. It is possible to recharge the battery at any time.

AFTER SALES SUPPORT

GB 0800 / 328 6020 IRE 00800 / 4467 5888

[e-mail]

An empty battery charges in approx. 3 hours.

Information regarding the car cigarette lighter adapter

If charging with the car cigarette lighter adapter does not function, but the work lamp can be charged using the power supply unit, it is possible that the installed fuse has blown. Replace this as described below.

Fire hazard! Never bridge a defective fuse and only replace it with a fuse of the same type. Check the cable of the car cigarette lighter adapter for damage; replace the car cigarette lighter adapter, if necessary.

• Unscrew the ring on the adapter anti-clockwise.
• Replace the defective fuse with a new one of the type F0.5AL250V (0.5 A, 250 V, fl ink).

AFTER SALES SUPPORT

GB 0800 / 328 6020 IRE 00800 / 4467 5888

[e-mail]

- Turn the coloured ring with the inserted metal cap clockwise to tighten.

Switching on and off

• Press the on/off-switch 8 when switched off once to switch on the torch 6 and twice to switch on the reading light 7.
• Press the on/off-switch 8 a third time to switch off the work light.
• Pull the work lamp apart in order to switch on the 10 LEDs 9 and slide it together in order to switch off the LEDs.

AFTER SALES SUPPORT

GB 0800 / 328 6020

00800 / 4467 5888

[e-mail]

In order to avoid glare from the work lamp, turn the work lamp to the side with the on/off switch 8 when you pull it apart.

The LEDs can be switched on during the charging process.

- The workshop lamp can be positioned using the magnet/fold-out hook ¹⁰ on a magnetic surface or hung up by the hook.

Extendable LED Workshop Lamp Use

In order to avoid damage to surfaces, do not slide the work lamp over the surface to which it is adhered. If necessary, place a rag, a piece of film or paper on the surface.

AFTER SALES SUPPORT

GB 0800 / 328 6020 IRE 00800 / 4467 5888

[e-mail]

Extendable LED Workshop Lamp Cleaning

Cleaning

CAUTION! Prior to any cleaning, ensure that you disconnect the power supply unit from the socket/the car cigarette lighter adapter from the socket of the motor vehicle.

Never immerse the device in water or

Do not use any corrosive, aggressive or abrasive detergents in order to avoid damaging the surfaces.

Only use a well wrung-out, slightly dampened cloth with some dishwashing detergent for cleaning the work lamp, the power supply unit and the car cigarette lighter adapter.

AFTER SALES SUPPORT

GB 0800 / 328 6020 IRE 00800 / 4467 5888

[e-mail]

Extendable LED Workshop Lamp Technical data

Technical data

Extendable LED Workshop Lamp

Model: GT-ALex-03-UK

Battery: 3,7 V ===, 1000 mAh, Lithium-Ion rechargeable battery

Input: 12 V ---, Max 500 mA

LED Output: Max 2,8 W

Extendable LED Workshop Lamp

Technical data

Power supply unit

Model: LY06-120-0500B

Input: 100-240 V\~, 50/60 Hz

Output: 12 V, 500 mA—

AFTER SALES SUPPORT

GB 0800 / 328 6020 IRE 00800 / 4467 5888

[e-mail]

Extendable LED Workshop Lamp Technical data

Car cigarette lighter adapter

Type: ZZ-103

Input / Output: 12 V / 12 V--- ---

Fuse: F0.5AL250V

The Extendable LED Workshop Lamp complies with the requirements of the EU directive 2004/108/EC (Electromagnetic compatibility) and complies with the critical values of the sections 6.5, 6.6, 6.8, 6.9 and attachment I of the EU Directive 72/245/EWG with the effective amendments of the 2006/96/EG (automotive directive).

AFTER SALES SUPPORT

GB 0800 / 328 6020 IRE 00800 / 4467 5888

[e-mail]

Extendable LED Workshop Lamp Remove rechargeable battery prior to disposal

Remove rechargeable battery prior to disposal

Prior to removing the rechargeable battery, disconnect the work lamp from the power supply and completely discharge the battery! After removing the battery, the work lamp is destroyed and cannot be repaired.

Ensure that you wear safety glasses and safety gloves in order to avoid injuries to the eyes from splinters or cut injuries on the hands.

It is important that you follow steps 1 to 10 to remove the battery safely.

CAUTION FIRE HAZARD! To avoid a short-circuit and thus avoid a fire, the removal of the rechargeable batteries may only take place by a competent person when disposing of the product as described.

AFTER SALES SUPPORT

GB 0800 / 328 6020

00800 / 4467 5888

[e-mail]

Extendable LED Workshop Lamp

Remove rechargeable battery prior to disposal

Step 1 Step 2

Extendable LED Workshop Lamp

Remove rechargeable battery prior to disposal

Step 3 Step 4

AFTER SALES SUPPORT

GB 0800 / 328 6020 IRE 00800 / 4467 5888

[e-mail]

Extendable LED Workshop Lamp

Remove rechargeable battery prior to disposal

Step 5 Step 6

Extendable LED Workshop Lamp

Remove rechargeable battery prior to disposal

Step 7 Step 8

AFTER SALES SUPPORT

GB 0800 / 328 6020 IRE 00800 / 4467 5888

[e-mail]

Extendable LED Workshop Lamp

Remove rechargeable battery prior to disposal

Step 9 Step 10

WARRANTY CARD Extendable LED Workshop Lamp

etails:

Name

Address

The image is too blurry to recognize any text content.

E mail

(for status reports for repair)

Date of purchase*

* We recommend you keep the receipt with this warranty card.

Location of purchase

Description of malfunction:

If after contacting the manufacturer you are requested to return the faulty product please return the completed warranty card together with it.

Globaltronics Service Center, c/o Bridges Logistics PO Box 1125, Bromley

BR1 9TW

-

AFTER SALES SUPPORT

0800/3286020

00800/44675888 [e-mail]

∴ m = 3/11

MODEL: GT-ALex-03-UK PRODUCT CODE: 92968 03/2016

∴ m = 3/11

Hotline: Free hotline.

The ALDI warranty offers you extensive benefits:

Warranty period: 3 years from date of purchase.

Costs: F r e

Hotline: F r e

ADVICE: Please contact our service hotline by

phone, e-mail or fax before sending in the device. This allows us to provide support in the event of possible

operator errors.

In order to make a claim under the warranty, please send us:

• the faulty item together with the original

card.

packaging.

The warranty does not cover damage caused by:

- Accident or unanticipated events (e. g.

lightning, water, fire).

- Improper use or transport.

instructions.

- Other improper treatment or modification.

After the expiry of the warranty period, you still have the possibility to have your product repaired at your own expense. If the repair or the estimate of costs is not free of charge you will be informed accordingly in advance.

This does not affect your statutory rights.

In the event that a product is received for repair,

neither the service company nor the seller will assume any liability for data or settings possibly

stored on the product by the customer.

This sentence may be asked by SUA to be

sold.
