Product Type	Compact Blender
Model	Explore 7 E7CB1-80SM
Brand	Electrolux
Functions	Blending, Ice Crush, Smoothie, Pulse, Speed 1, Speed 2
Speed Settings	2 speeds + Pulse (variable speed)
Programs	Ice Crush, Smoothie (auto-stop)
Capacity (Mini Jug)	500 ml
Capacity (Multi-Chopper)	400 ml
Maximum Processing Time	1 minute (heavy load)
Maximum Liquid Temperature	90°C (do not process boiling liquids)
Blade Material	Stainless steel (sharp)
Jug Material	Plastic (Tritan or similar, dishwasher safe)
Safety Features	Auto shut-off after 5 minutes idle, thermal cut-out, lid lock, non-slip feet
Accessories Included	Mini jug, blender blade assembly, lid with measuring cup, sealing rings, take away bottle with drinking lid, cooling stick, multi-chopper jar and blade (certain models)
Cleaning	All parts except motor base are dishwasher safe; hand wash recommended for longevity
Power Source	Mains (voltage as per rating plate)
Auto Shut-off	Yes, after 5 minutes of inactivity
Warranty	Standard Electrolux warranty (contact customer service)
Weight (approx.)	2.5 kg
Dimensions (approx.)	20 x 20 x 40 cm

Frequently Asked Questions - Explore 7 E7CB1-80SM ELECTROLUX

What is the maximum capacity of the blender jug?

The maximum capacity for the mini jug is 500 ml. Do not exceed the maximum level indicated on the jug to avoid spillage.

Can I blend hot liquids?

Yes, but allow liquids to cool to a maximum of 90°C. Fill the jug only half full and start on low speed. The blender jug can become warm, so protect your hands and vent steam through the filler hole.

How do I clean the blender?

For quick cleaning, pour warm water with a few drops of detergent into the jug and run a few pulses. For thorough cleaning, all parts except the motor base are dishwasher safe. The blade assembly is sharp; handle with care.

Can I crush ice with this blender?

Yes, use the Ice Crush program (O button). The blender will stop automatically when finished. Do not process hard and dry substances other than ice in the jug; use the multi-chopper for nuts, coffee beans, etc.

What accessories are included?

The package includes a mini jug with lid and measuring cup, blender blade assembly, sealing rings, a take away bottle with drinking lid and carry handle, a cooling stick, and a multi-chopper jar with blade assembly (accessories may vary by model).

How does the cooling stick work?

Unscrew the cap, fill with tap water, and freeze the stick. Place the frozen stick in the take away bottle to keep your smoothie cool for longer. The cooling stick is dishwasher safe.

Why does the blender stop during operation?

The blender has a thermal cut-out safety feature. If it stops, unplug and let it cool down for 15 minutes. Also check that the jug is properly locked onto the base.

Can I use the blender to grind dry ingredients?

For dry grinding (e.g., coffee, nuts, rice), use the multi-chopper accessory. Do not use the blender jug for dry substances except ice cubes, as it may damage the blades.

What is the maximum processing time for heavy loads?

Do not process heavy loads continuously for more than 1 minute. Allow the appliance to rest before next use.

How do I lock the jug onto the base?

Place the assembled jug on the blender base and rotate it clockwise until it locks into position. The symbol √ on the blade assembly base should align with the ^ symbol on the motor base.

USER MANUAL Explore 7 E7CB1-80SM ELECTROLUX

Explore 7 Compact Blender

E7CB1-50CW

E7CB1-53CW

E7CB1-53GB

E7CB1-56GB

E7CB1-86FG

E7CB1-86SM

EN INSTRUCTION BOOK

CNS 说明书

CNT 說明手冊

KR사용 설명서

ID Buku Panduan

White bowl filled with blueberries, no text or symbols visible

Exterior view of a modern electric blender with a transparent lid, placed beside a potted plant (no signage or text visible)

Illustration of various kitchen utensils and a kettle with a graduation cap, no text or symbols present

Illustration of a kitchen blender with a drop funnel and handle, showing mechanical components and cleaning process (no text or symbols)

Illustration of a blender with blue liquid inside, no text or symbols present

Illustration of a blender with a hand holding a bag, accompanied by a prohibition symbol (no text or labels present)

Illustration of a water tap pouring liquid into a glass pitcher with a jar nearby (no text or symbols)

Illustration of a kitchen appliance with a cloth cover and a no-smoking symbol (no text or labels)

Illustration of various kitchen utensils and containers, including thermos, cups, and a tray (no text or symbols)

Thank you for choosing an Electrolux product. In order to ensure the best results, always use original Electrolux accessories and spare parts. They have been designed especially for your product. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

INSTRUCTION MANUAL

Graphics and drawings in this manual are solely for illustration purposes and are subject to variations from actual product.

Read all instructions carefully before using the appliance for the first time.

Keep this manual for future reference.

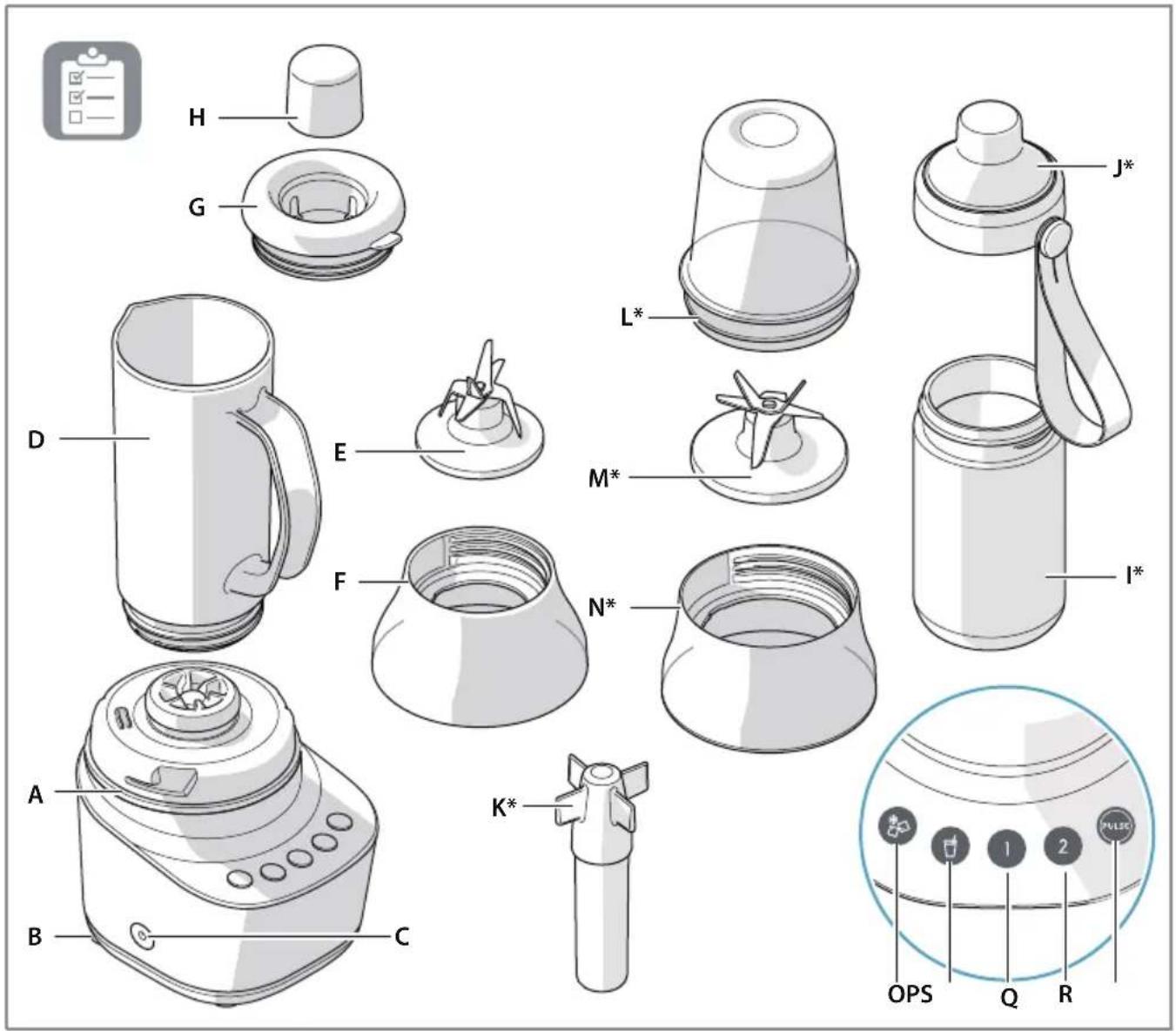

COMPONENTS

A. Blender base
B. Suction feet
C. ON/OFF-button
D. Mini jug
E. Blender blade assembly, with sealing ring
F. Base for blender blade assembly
G. Mini jug lid with filler hole

H. Measuring cup
I. Take away bottle*
J. Drinking lid with carry handle*
K. Cooling stick*
L. Multi-chopper jar*
M. Multi-chopper blade assembly, with sealing ring*
N. Base for multi-chopper blade assembly*

O. Ice Crush button
P. Smoothie button
Q. "Speed 1" button
R. "Speed 2" button
S. PULSE button

*Certain models only

PICTURE PAGE 2-4

SAFETY ADVICE

• Remove and safely discard any packaging materials before using the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Keep the appliance and its power cord out of reach of children. Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and maintenance should not be performed by children unless they are supervised.
• The appliance can only be connected to a power supply which voltage and frequency comply with the specifications on the rating plate.
• Never use or pick up the appliance if the power cord is damaged and/or the housing is damaged.
• If the appliance or its power cord is damaged, it must be replaced by Electrolux or its service agent in order to avoid hazard.
• Do not immerse the appliance, its power cord or plug in water or any other liquid.
• Do not use or place the appliance near the edge of the table or counter, near hot gas, stove, electric burner or heated oven.
  • Always place the appliance on a flat, level and dry surface.
• Always switch off the appliance and disconnect it from the power supply if it is left unattended and before changing of the accessories, cleaning or maintenance.
• The blades and inserts are very sharp. Danger of injury. Care shall be taken when changing accessories, after use and during cleaning and maintenance.
• Never touch the blades or inserts with your hand or with any utensils while the appliance is plugged in and/or during operation.
• Do not attempt to remove the blade assembly.
• Keep hands and utensils away from the appliance during operation to avoid the risk of severe injury to persons or damage to the appliance.

• Ensure that the appliance is switched off before removing the jug from the motor base.

• Do not operate the appliance without food or liquid in the jug.

• Never operate the appliance without the lid.
• Do not use the appliance continuously for more than 1 minutes when processing heavy load.
• The jug cannot be used for blending or grinding hard and dry substances, except for ice cubes. Use the multi-chopper to grind hard and dry substances (Eg. nuts, candy, rice etc...)
• Be careful if hot liquid is poured into the appliance as it can be ejected out of the appliance due to a sudden steaming.
• Never process boiling liquids (max 90°C).
• Do not exceed the maximum filling volume as indicated on the appliance.
• Do not use this appliance to stir paint. Danger, could result in an explosion!
• Do not let the power cord come into contact with hot surfaces or hang over the edge of a table or counter.
• Never use accessories or parts made by other manufacturers not recommended or sold by Electrolux as it may cause a risk of injury to persons.
  • This appliance is for indoor use only.
• This appliance is intended for domestic use only. Electrolux will not accept any liability for possible damage caused by improper or incorrect use.
• If the appliance is left on without using any speed or programs, it will automatically switch off after 5 minutes.
• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

GETTING STARTED

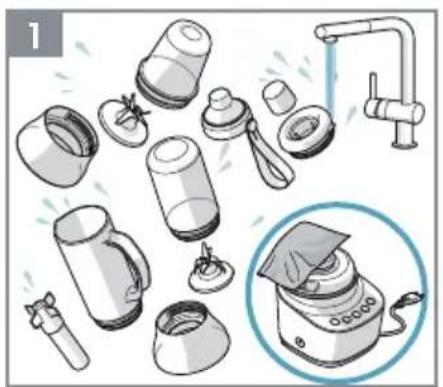

Before using your appliance for the first time: Remove all packing material such as plastics, stickers or tags that may be attached to the housing, bowls or attachments. Clean the appliance and accessories, see instructions: "Cleaning and Care".
2 Prepare the ingredients: Rinse ingredients thoroughly. Cut the ingredients into 4 to 6 pieces and remove any hard or large seeds. Remove any thick peel from the fruit or vegetables.
3 Place the blender blade assembly (E) on the top of the blender blade assembly base (F) and tighten the jug (D) until it firmly locks into position. Place the assembled jug on the blender base (A) and rotate it clockwise until it locks into position. (The jug can only be placed in one position). When locked, the symbol √ on the blade assembly base should be aligned with the ^symbol on the blender base. Put the ingredients in the jug. (Do not exceed the maximum level as indicated on the jug.)

Caution! Always place the sealing ring around the blender blade assembly before operating the product.. Use only sealing rings provided by Electrolux!

4 Close the lid by aligning the lever on the lid with the handle of the jug. Insert the measuring cup. (You can add ingredients through the filler hole after you started processing. Never remove the measuring cup or the lid while running the product.)

Caution! Never run the blender empty. When processing hot liquids, see step 5.

5 Processing hot liquids: We recommend to allow hot liquids to cool down (max 90 °C) before filling the jug. Fill the jug only half full and start processing on low speed. The blender jug can become very warm – take care to protect your hands and to ventilate steam out through the filler hole. Always replace the lid before use.
6 Start the blender: Plug into mains. Press the ON/OFF-button (C), the buttons will light up. Press the speed 1 or speed 2 button, to select your desired processing speed.
7 Caution! Keep hands and utensils out of the blending jug while blending.

Caution! Never run the blender empty, running the blender empty can cause overheating and damage the product.

8 You have preset speeds (1, 2), dedicated recipe programs, and Pulse mode to choose from. The selected speed or recipe program will light up. The blender will operate until the program is finished. To stop any program manually, press any button.

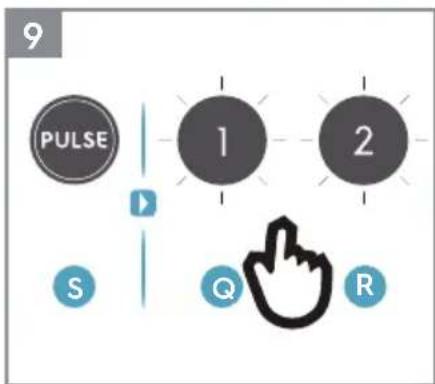

9 You can give the ingredients a quick mix to get to your desired consistency with the Pulse function. Press the PULSE button(S) to go into Pulse mode. The PULSE and the speed buttons start blinking. Press 1 or 2 to pulse at different speeds.
10 The product comes with a variety of recipe programs. You can choose between Ice crush (O) and Smoothies (P). The blender will stop automatically when the program is ready.

USING THE MULTI-CHOPPER\* (\* CERTAIN MODELS ONLY)

11 Turn the multi-chopper (J) upside down, with the open end facing upwards. Carefully remove the base for blade assembly (N) by rotating it clockwise, then remove the blade assembly (M). Fill the multi-chopper jar with the desired ingredients. Do not fill more than half full. Place the multi-chopper blade assembly (I), followed by the multi-chopper blade assembly base on the open end of the jar and rotate clockwise to fasten the jar.

Turn the multi-chopper the right way up and lock into place on the blender base by rotating clockwise.

Caution! Always place the sealing ring around the blender blade assembly before operating the product. Use only sealing rings provided by Electrolux!

Note: When locked, the symbol on the multi-chopper blade assembly base should be aligned with the symbol on the blender base.

12 Fill the ingredients in the take away bottle (I). Place the blender blade assembly (E) on the open end of the jar and tighten the blender blade assembly base (F) by screwing it on the jar. Turn the take away bottle upside down. Place the assembled take away bottle onto the blender base (A) and rotate it clockwise to lock until it clicks into position.

Note: When locked, the symbol ∧ on blender blade assembly base should be aligned with the symbol on the ∨ blender base.

Caution! The blades are very sharp!

USING THE COOLING STICK\* (\* CERTAIN MODELS ONLY)

13 The cooling stick keeps your smoothies cool for longer. Unscrew the cap of the cooling stick (K) and fill it with tap water. Screw the cap back on the cooling stick and place it in the freezer until the water freezes.

14 Place the frozen cooling stick in the take away bottle. Pour your freshly prepared blend into the take away bottle (I) and fasten with the drinking lid with carry handle (J). The cooling stick can be cleaned in a dishwasher.

CLEANING AND CARE

To avoid crazing of the jug, always rinse the jug with only clean water right after usage. This is to prevent acids or essential oils from the ingredients that may attack the plastic material. After rinsing the jug, it can be washed by hand with detergent, or placed into the dishwasher for cleaning.

Avoid leaving the ready dishes (e.g. soup, smoothie, juice) in the jug for a long time, especially when acidic ingredients (e.g. lime, lemon) is processed.

However, if crazing would appear, the effect is purely cosmetic and it does not have any impact the integrity of the jug.

15 Always rinse the jug thoroughly with only clean water before placing it to the dishwasher.

Quick cleaning: Pour warm water into the jug, add a few drops of detergent.

Mix water and detergent by pressing the PULSE button then speed 2 button a couple of times. Finally, rinse the jug under running water.

16 Thorough cleaning of the blender base and interface: Switch off the blender and unplug the power cord. Wipe the blender base with a damp cloth.

Warning! Never immerse the blender base, plug, or cord in water or any other fluid.

17 Thorough cleaning of the jug: Note! The Blade assembly is not removable. Remove the lid and measuring cup. Rinse the blade assembly in water and detergent.

Caution! Handle carefully, the blades are very sharp!

All parts, except for the blender base are dishwasher safe.

Enjoy your new Electrolux product!

RECIPES

When using the multi-chopper to chop ingredients like onions and shallots, cut the ingredients into cubes no bigger than 2.5 cm to get the best result. Ingredients with tough textures such as carrot and celery are not recommended for chopping.

MAXIMUM PROCESSING TIME MAXIMUM CAPACITY
1 min 500 ml

RECOMMENDED BLENDING SPEED
Recipe Ingredients Quantity Time Speed setting
Pureeing raw vegetables	Carrots 20-80 g			30 s	2(Max speed)
	Potatoes 20-80 g
	Onions 20-80 g
	Water	60-120	g
Pineapple-apricots Smoothie	Pineapple in slices	200	g		2
	Dried Apricots	20	g
	Yoghurt	250	g
Soup for mini jug	Carrots 250 g			≤ 60 s	2
	Water	350	ml
Soup for take away bottle	Carrots 210 g			≤ 60 s	2
	Water	290	ml
Raspberries Smoothie	Frozen raspberries	150	g	Program set
	Banana (1⁄2 pcs)	50	g
	Water	50	g
	Yoghurt	250	g
Milkshake	Milk 100-200 ml			Program set
	Vanilla Ice cream	100-150	ml
	Banana	1⁄4 - 1⁄2	pcs
	Chocolate syrup	30-60	g
Potato leek soup	Potatoes 60 g				2
	Leek	60	g
	Water	180	g
Chunky guacamole	Firm-ripe avocados	2	pcs		PULSE + 1
	Red onion	1	pcs
	Fresh cilantro leaves	1/4	cup
	Fresh lime juice	1 and 1 1/2	tbsp
	Salt	1	pinch

RECOMMENDED BLENDING SPEED

Recipe Ingredients Quantity Time Speed setting
Chunky pesto	Fresh basil 30 g			≤ 30 s 2
	Olive oil 108 g
	Pine nuts 16 g
	Minced garlic 10 g
	Salt	6	g
	Grated Parmesan cheese 50 g
	Grated Romano cheese	30 g
	Butter	42	g
Semi-smooth hummus	Canned chickpeas	200	g		2
	Lemon juice	2	tbsp
	Garlic cloves, crushed	2	pcs
	Ground cumin	1	tsp
	Salt	1	pinch
	Tahini (sesame seed paste)	1	tbsp
	Water	4	tbsp
	Extra virgin olive oil	2	tbsp
	Paprika	1	tsp

MULTI-CHOPPER FUNCTION

Maximum volume for multi-chopper cup: 400 ml		Maximum dry grinding time: 30 s
Ingredients	Maximum Quantity	Time	Speed setting
Coffee	60 g	20-30 seconds	2
Dry shrimp	50 g	10 seconds ON + 3 seconds OFF (2 times)	2
Dry chili	20 g	10 seconds ON + 3 seconds OFF (2 times)	2
Fresh chili	50 g	10 seconds ON + 3 seconds OFF (2 times)	2
Pepper corn	100 g	10 seconds ON + 3 seconds OFF (2 times)	2
Dry anchovy	50 g	10 seconds ON + 3 seconds OFF (2 times)	2
Raw rice	100 g	10 seconds ON + 3 seconds OFF (2 times)	2
Five spice	50 g	10 seconds ON + 3 seconds OFF (2 times)	2
Garlic	50 g	5 seconds ON + 3 seconds OFF (5 times)	2
Nuts	80 g	5-10 seconds	2
Almonds	80 g	5-10 seconds	2
Onions	100 g	5-10 seconds	2
Beef	100 g	5-10 seconds	2

TROUBLESHOOTING

SYMPTOM CAUSE SOLUTION
The blender does not switch on. Jug/base are not fixed properly. Check if all the components are in correct position. Note! the jug can only be placed on the base with handle towards the user interface.
If the appliance is still not working, please contact Electrolux Customer Service.

DISPOSAL

Recycle the materials with the symbol ⚙. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances.

Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal minice.

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available: Model, PNC, Serial Number. The information can be found on the rating plate.

Due to the Electrolux policy of continual product development; specifications, colours, and details of our products and those mentioned in this manual are subject to change without notice.

Electrolux Korea limited

9F, Pine Avenue B,

100 Euljiro, Jung-gu, Seoul, Korea 04551

Korea

Tel: [phone]

Fax: [phone]

Customer Care Services : [phone]

Email: [e-mail]

Website: www.electrolux.co.kr

INDONESIA

Electrolux Philippines, Inc.

10th Floor. W5th Avenue Building

5th Avenue Corner 32nd Street

Bonifacio Global City,

Taguig Philippines 1634

Trunkline: [phone]

Domestic Toll Free: 1 800 10 845 care 2273

Customer Care Services: +63 2 845 care 2273

Email: [e-mail]

Website: www.electrolux.com.ph

THAILAND

Electrolux Thailand Co Ltd

Electrolux Building

14th Floor 1910 New Petchburi Road

Bangkapi, Huay Kwang

Bangkok 10310

Thailand

Tel: [phone]

Fax: [phone]

Customer Care Services: [phone]

Email: [e-mail]

Website: www.electrolux.co.th

VIETNAM

Electrolux Vietnam Ltd

Floor 9th, A&B Tower

76 Le Lai Street

Ben Thanh Ward - District 1

Ho Chi Minh City

Vietnam

Tel: [phone]

Fax: [phone]

Customer Care Services: 1800-58-8899

Email: [e-mail]

Website: www.electrolux.vn

MALAYSIA

Electrolux Home Appliances Sdn Bhd

Lot C6, No. 28, Jalan 15/22,

Taman Perindustrian Tiong Nam,

40200 Shah Alam, Selangor

Malaysia

Customer Care Services Tel: [phone]

Customer Care Services Fax: [phone]

Email: [e-mail]

Website: www.electrolux.com.my

SINGAPORE

Electrolux SEA Pte Ltd

1 Fusionopolis Place, Galaxis

07-10 (West Lobby)

Singapore 138522

Customer Care Services: [phone]

Fax: [phone]

Email: [e-mail]

Website: www.electrolux.com.sg

AUSTRALIA

Electrolux Home Products Pty Ltd

ABN 51 004 762 341

163 O'Riordan Street, Mascot, NSW 2020, Australia

Customer Service Phone: [phone]

Website: www.electrolux.com

NEW ZEALAND

Electrolux Small Appliances

A division of Electrolux (NZ) Limited

3-5 Niall Burgess Road, Mt. Wellington, Auckland,

New Zealand

Phone: [phone]

Customer Service Phone: [phone]

Website: www.electrolux.com

HONG KONG

大昌貿易行有限公司

電器維修中心

香港九龍灣啟祥道20號

大昌行集團大廈5樓

Modern kitchen counter with white ceramic vases, a blue abstract logo on a wall, and glassware hanging from a shelf (no text or symbols on main objects)
